Dell™Inspiron™1300/B120/B130ServiceManual
Before You Begin
Hinge
System Components
Battery
Memory, Optical Drive, and Mini PCI Card
Hard Drive
Keyboard
Display Assembly
Palm Rest
Modem
Coin-Cell Battery
Microprocessor Thermal-Cooling Assembly
Microprocessor Module
Speakers
System Board
Antenna
Fan
Flashing the BIOS
Base Plastics
Pinout Assignments for I/O Connectors
Model PP21L
Notes, Notices, and Cautions
Information in this document is subject to change without notice.
©2005DellInc.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page
Antenna
Dell™Inspiron™1300/B120/B130ServiceManual
Replacing the Antenna
Replacing the Antenna



1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the hard drive. See Removing the Hard Drive.

3. Remove the optical drive. See Removing the Optical Drive.

4. Remove the memory module. See Removing the Memory Module.

5. Remove the Mini PCI card. See Removing the Mini PCI Card.

6. Remove the microprocessor thermal-cooling assembly. See Removing the Microprocessor Thermal-Cooling Assembly.

7. Remove the microprocessor. See Removing the Microprocessor Module.

8. Remove the hinge cover. See Removing the Hinge Cover.

9. Remove the keyboard. See Removing the Keyboard.

10. Remove the display assembly. See Removing the Display Assembly.

11. Remove the palm rest. See Removing the Palm Rest.

12. Remove the modem. See Removing the Modem.

13. Remove the speakers connector. See Removing the Speakers.

14. Remove the system board. See Removing the System Board.

15. Remove the antenna cable from the guides.

16. Replace the antenna cable, securing it under the guides.
CAUTION: Before performing the following procedures, read the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.

Back to Contents Page


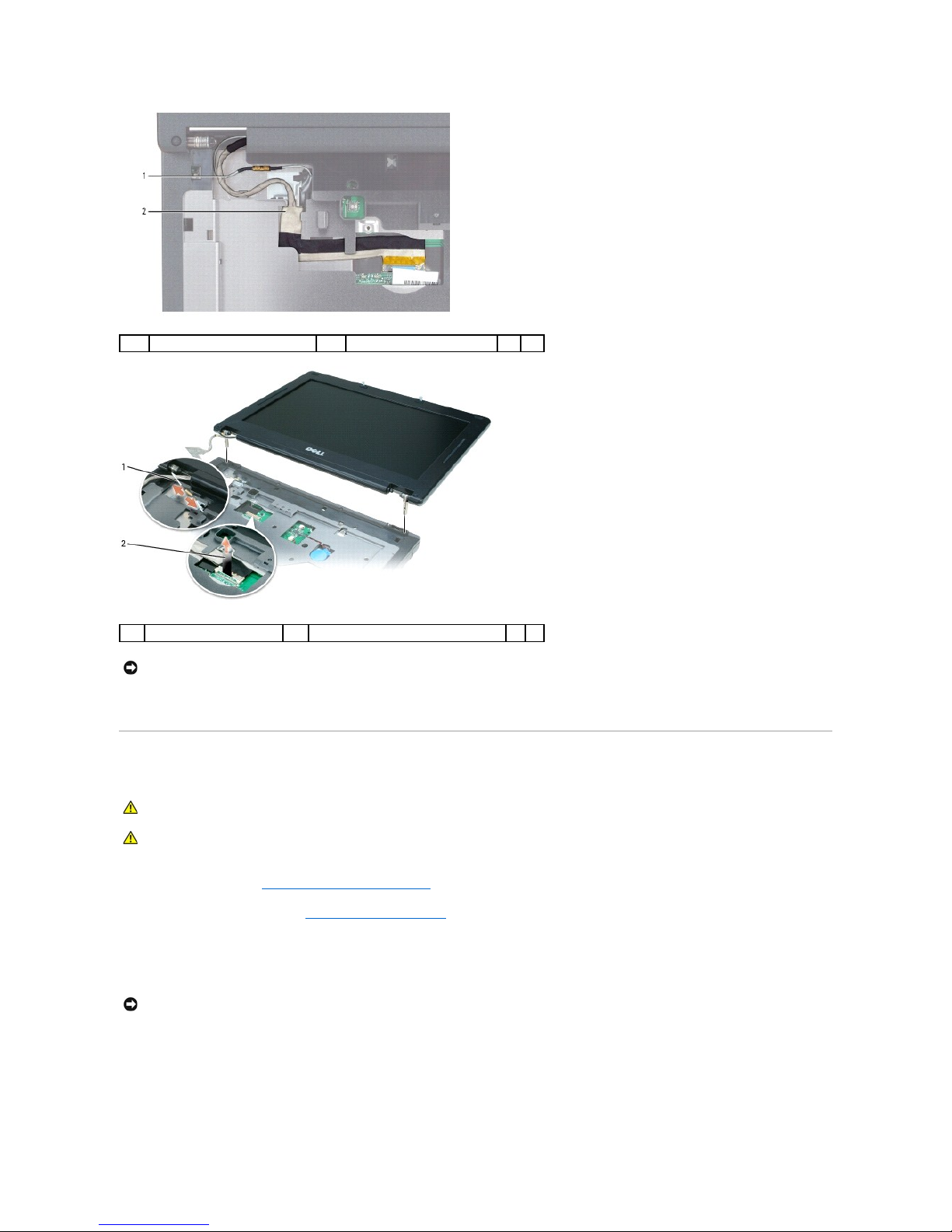

1
antenna cable
2
guides



Back to Contents Page
Base Plastics
Dell™Inspiron™1300/B120/B130ServiceManual



1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the hard drive. See Removing the Hard Drive.

3. Remove the optical drive. See Removing the Optical Drive.

4. Remove the memory module. See Removing the Memory Module.

5. Remove the Mini PCI card. See Removing the Mini PCI Card.

6. Remove the microprocessor thermal-cooling assembly. See Removing the Microprocessor Thermal-Cooling Assembly.

7. Remove the microprocessor. See Removing the Microprocessor Module.

8. Remove the hinge cover. See Removing the Hinge Cover.

9. Remove the keyboard. See Removing the Keyboard.

10. Remove the display assembly. See Removing the Display Assembly.

11. Remove the palm rest. See Removing the Palm Rest.

12. Remove the modem. See Removing the Modem.

13. Remove the speakers connector. See Removing the Speakers.

14. Remove the system board. See Removing the System Board.
Back to Contents Page

CAUTION: Before performing the following procedures, read the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.

Back to Contents Page
Battery
Dell™Inspiron™1300/B120/B130ServiceManual
Replacing the Battery
Replacing the Battery


To remove the battery:

1. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

2. Ensure that the computer is turned off.

3. Turn over the computer.

4. Slide the battery-bay latch release lock on the bottom of the computer away from the battery.

5. Slide and hold the battery-bay latch release, and then remove the battery from the bay.
To replace the battery, follow the removal procedure in reverse order.
Back to Contents Page

CAUTION: Before performing these procedures, disconnect the modem from the telephone wall jack.
CAUTION: Using an incompatible battery may increase the risk of fire or explosion. Replace the battery only with a compatible battery purchased
fromDell.ThebatteryisdesignedtoworkwithyourDell™computer.Donotuseabatteryfromothercomputerswithyourcomputer.
1
battery
2
battery-bay latch release
3
battery-bay latch release lock

Back to Contents Page
Before You Begin
Dell™Inspiron™1300/B120/B130ServiceManual
Recommended Tools
Turning Off Your Computer
Before Working Inside Your Computer
Computer Orientation
Screw Identification
This chapter provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the
following conditions exist:
lYou have performed the steps in Turning Off Your Computer and Before Working Inside Your Computer.
lYou have read the safety information in the Product Information Guide.
lA component can be replaced by performing the removal procedure in reverse order.
Recommended Tools
The procedures in this document may require the following tools:
lSmall flat-blade screwdriver
lPhillips screwdriver
lSmall plastic scribe
lHex nut driver
lFlash BIOS-update program floppy disk or CD
Turning Off Your Computer

1. Shut down the operating system:
a. Save and close any open files, exit any open programs, click the Start button, and then click Turn Off Computer.
b. In the Turn off computer window, click Turn off.
The computer turns off after the operating system shutdown process finishes.

2. Ensure that the computer and any attached devices are turned off. If your computer and attached devices do not automatically turn off when you shut
down your operating system, press and hold the power button for 4 seconds.
Before Working Inside Your Computer
Use the following safety guidelines to help protect your computer from potential damage and to help ensure your own personal safety.



1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.

2. Turn off your computer. See Turning Off Your Computer.
NOTICE: To avoid losing data, save and close any open files and exit any open programs before you turn off your computer.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal
mounting bracket. Hold a component such as a processor by its edges, not by its pins.
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not
covered by your warranty.
NOTICE: When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself. Some cables have a connector with
locking tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep
them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and
aligned.
NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.


3. Disconnect any telephone, network, and USB cables from the computer.

4. Disconnect your computer and all attached devices from their electrical outlets.

5. Turn over the computer.

6. Remove the battery.
a. Slide the battery-bay latch release lock on the bottom of the computer away from the battery.
b. Slide and hold the battery-bay latch release, and then remove the battery from the bay.

7. Press the power button to ground the system board.

8. Remove any installed ExpressCards from the ExpressCard slot.
Computer Orientation

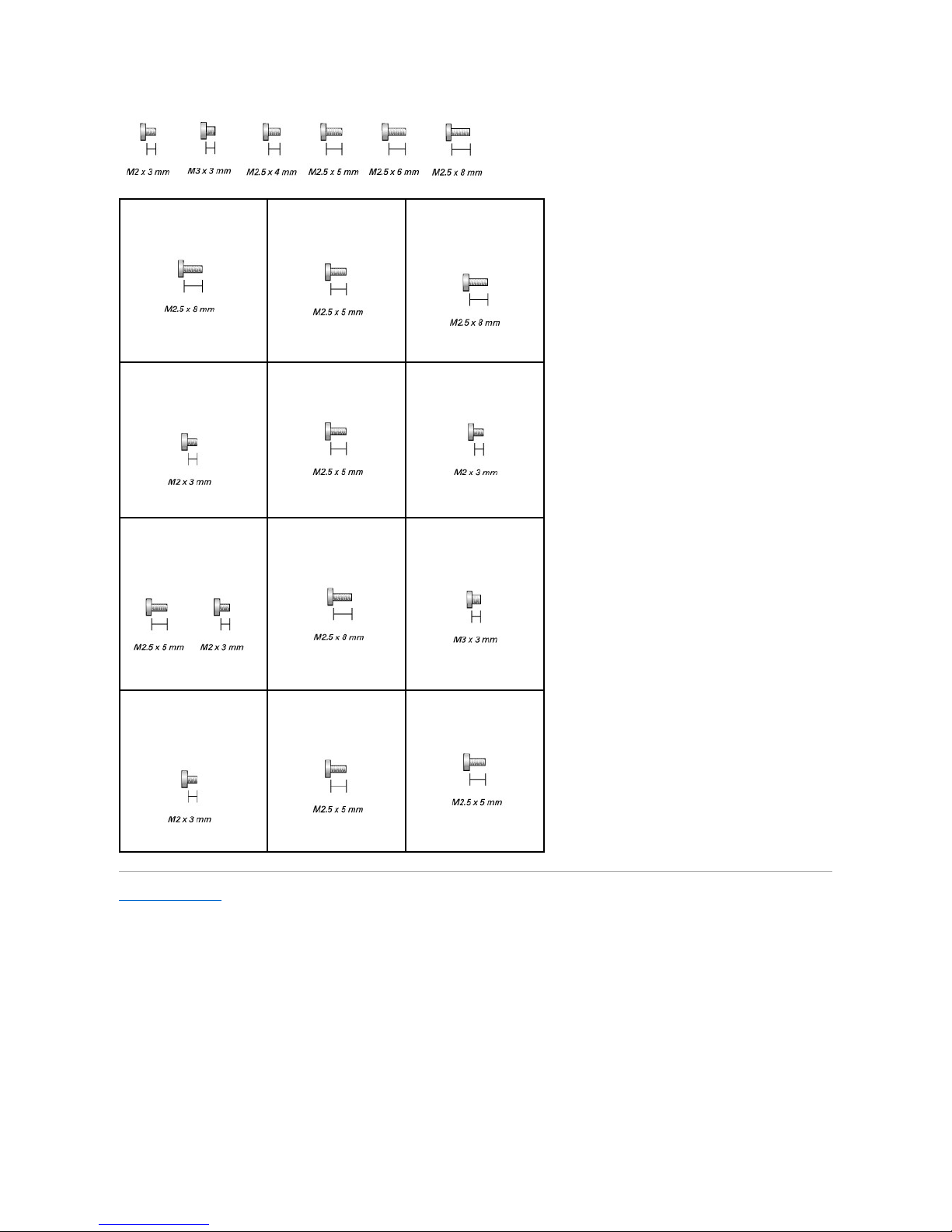

Screw Identification
When you are removing and replacing components, print this section as a tool to lay out and keep track of the screws. The printout provides the number of
screws and their sizes.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
NOTICE: To avoid damaging the system board, you must remove the main battery before you service the computer.
1
battery
2
battery-bay latch release
3
battery-bay latch release lock
1
front
2
left
3
back
4
right

Back to Contents Page

Optical Drive:
(1 each)

Fan Module:
(4 each)
Display Assembly
to Computer Base:
(4 each)

Modem to
System Board:
(2 each)
Display Bezel:
(6 each)

Display Panel:
(8 each)

Top of Palm Rest to
Computer Base:
(5 each of M2.5 x 5 mm)
(2 each of M2 x 3 mm)

Base Plastic to
Palm Rest From Bottom:
(10 each)
Hard Drive Carrier to
Hard Drive:
(2 each)

Speakers to
Base Plastics:
(1 for left speaker, 2 for right
speaker, 3 total)
System Board to
Base Plastics:
(5 each, system board)
Keyboard to Palm Rest:
(2 each)

Back to Contents Page
Flashing the BIOS
Dell™Inspiron™1300/B120/B130ServiceManual
Flashing the BIOS From a CD
Flashing the BIOS From the Hard Drive
If a BIOS-update program CD is provided with the new system board, flash the BIOS from the CD. If you do not have a BIOS-update program CD, flash the BIOS from
the hard drive.
Flashing the BIOS From a CD

1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.

2. Insert the BIOS-update program CD, and restart the computer.
Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the flash update is complete, the
computer will automatically reboot.

3. Press <F2> during POST to enter the system setup program.

4. Press <Alt> and <F> to reset the computer defaults.

5. Press <Esc>, select Save changes and reboot, and press <Enter> to save configuration changes.

6. Remove the flash BIOS-update program CD from the drive and restart the computer.
Flashing the BIOS From the Hard Drive

1. Ensure that the AC adapter is plugged in, the main battery is properly installed, and a network cable is attached.

2. Turn on the computer.

3. Locate the latest BIOS update file for your computer at support.dell.com.

4. Click Download Now to download the file.

5. If the Export Compliance Disclaimer window appears, click Yes, I Accept this Agreement.
The File Download window appears.

6. Click Save this program to disk and then click OK.
The Save In window appears.

7. Click the down arrow to view the Save In menu, select Desktop, and then click Save.
The file downloads to your desktop.

8. Click Close if the Download Complete window appears.
The file icon appears on your desktop and is titled the same as the downloaded BIOS update file.

9. Double-click the file icon on the desktop and follow the instructions on the screen.
Back to Contents Page

NOTE: If you use a BIOS-update program CD to flash the BIOS, set up the computer to boot from a CD before inserting the CD.

Back to Contents Page
Coin-Cell Battery
Dell™Inspiron™1300/B120/B130ServiceManual
Removing the Coin-Cell Battery
Replacing the Coin-Cell Battery
Removing the Coin-Cell Battery



1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the hinge cover. See Removing the Hinge Cover.

3. Remove the keyboard. See Removing the Keyboard.

4. Locate the coin-cell battery and disconnect the cable from the system board connector by pulling toward the coin-cell battery.

5. Remove the cable from the guides and lift the coin-cell battery from the computer.
Replacing the Coin-Cell Battery

1. Connect the cable to the system board by pushing it into the connector.

2. Route the cable through the channel and press the coin-cell battery into place.
CAUTION: Before performing the following procedures, read the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.

Back to Contents Page


Back to Contents Page
Microprocessor Module
Dell™Inspiron™1300/B120/B130ServiceManual
Removing the Microprocessor Module
Installing the Microprocessor Module
Removing the Microprocessor Module



1. Follow the instructions in Before Working Inside Your Computer.

2. Turn over the computer.

3. Remove the microprocessor thermal-cooling assembly. See Removing the Microprocessor Thermal-Cooling Assembly.

4. To loosen the ZIF socket, use a small, flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.
The ZIF-socket cam screw secures the microprocessor to the system board. Take note of the arrow on the ZIF-socket cam screw.

5. Use a microprocessor extraction tool to remove the microprocessor module.
Installing the Microprocessor Module
CAUTION: Before performing the following procedures, read the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
NOTICE: Press and hold the microprocessor down by applying slight pressure to the center of the microprocessor while turning the cam screw to
prevent intermittent contact between the cam screw and microprocessor.
NOTICE: To avoid damage to the microprocessor, hold the screwdriver so that it is perpendicular to the microprocessor when turning the cam screw.
NOTICE: When removing the microprocessor module, pull the module straight up. Be careful not to bend the pins on the microprocessor module.
1
ZIF-socket cam screw
2
ZIF-socket
3
pin-1 corner of microprocessor
NOTICE: Ensure that the cam lock is in the fully open position before seating the microprocessor module. Seating the microprocessor module properly in
the ZIF socket does not require force.
NOTICE: A microprocessor module that is not properly seated can result in an intermittent connection or permanent damage to the microprocessor and
ZIF socket.


1. Align the pin-1 corner of the microprocessor module so that it points to the triangle on the system board, and insert the microprocessor module into the
ZIF socket.
When the microprocessor module is correctly seated, all four corners are aligned at the same height. If one or more corners of the module are higher
than the others, the module is not seated correctly.

2. Tighten the ZIF socket by turning the cam screw clockwise to secure the microprocessor module to the system board.

3. Wipe the thermal grease off of the microprocessor thermal-cooling assembly with a clean paper towel.

4. Replace the microprocessor thermal-cooling assembly. See Installing the Microprocessor Thermal-Cooling Assembly.

5. Update the BIOS using a flash BIOS-update program CD. See Flashing the BIOS From a CD.
Back to Contents Page

NOTICE: Hold the microprocessor down while turning the cam screw to prevent intermittent contact between the cam screw and microprocessor.

Back to Contents Page
Display Assembly
Dell™Inspiron™1300/B120/B130ServiceManual
Removing the Display Assembly
Removing the Display Bezel
Removing the Display Panel
Installing the Display Panel
Removing the Display Assembly



1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the hinge cover. See Removing the Hinge Cover.

3. Remove the keyboard. See Removing the Keyboard.

4. Pull straight up on the pull-tab that is attached to the display-feed flex cable to disconnect the cable from the system board.

5. Disconnect the antenna cable.

6. Close the display.

7. Turn the computer upside down with the back of the computer facing you.

8. From the bottom of the computer, remove the two M2.5 x 8-mm screws labeled "D."

9. From the back of the computer, remove the two M2.5 x 8-mm screws labeled "D."

10. Turn the computer right-side up and open the display.

11. Carefully remove the antenna cable and the display cables from their routing guides.
CAUTION: Before performing the following procedures, read the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.


12. Lift the display assembly out of the computer base.
Removing the Display Bezel



1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the display assembly. See Removing the Display Assembly.

3. Use a plastic scribe to pry the six screw covers/display bumpers out of the screw holes on the front of the bezel.

4. Remove the six M2.5 x 5-mm screws from the front of the bezel.

5. Starting at the bottom of the display panel, use your fingers to separate the bezel from the top cover and lift the inside edge of the bezel away from the
top cover.
1
antenna cable
2
display cable


1
antenna cable
2
display cable pull tab


NOTICE: Be careful not to damage the display switch when removing the display.
CAUTION: Before performing the following procedures, read the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
NOTICE: Carefully separate the bezel from the top cover to avoid damage to the bezel.

Removing the Display Panel



1. Follow the instructions in "Before Working Inside Your Computer."

2. Remove the display assembly. See Removing the Display Assembly.

3. Remove the display bezel. See Removing the Display Bezel.

4. Remove the four M2 x 3-mm screws from each side of the display panel.

5. Lift the display panel out of the top cover.
1
screw covers/display bumpers (6)
2
M2.5 x 5-mm screws (6)
3
display bezel
4
top cover




CAUTION: Before performing the following procedures, read the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.


6. Press in both sides of the top flex-cable connector, and pull the top flex-cable connector away from the display connector.

7. Use the pull-tab to disconnect the bottom flex-cable connector from the inverter connector.
Installing the Display Panel

1. Connect the top flex-cable connector to the display panel connector.

2. Connect the bottom flex-cable connector to the inverter connector.

3. Lay the display panel into the top cover.

4. Replace the eight M2 x 3-mm screws that secure the display panel to the top cover.

5. Route the display-feed flex cable so that it rests in the notch located in the bottom edge of the top cover.

6. Replace the display bezel.
Back to Contents Page

1
display panel
2
top cover
3
M2 x 3-mm screws (8)
1
inverter connector
2
pull-tab on bottom flex-cable connector
3
top flex-cable connector
4
display connector







Back to Contents Page
Fan
Dell™Inspiron™1300/B120/B130ServiceManual
Removing the Cooling Fan
Installing the Cooling Fan
Removing the Cooling Fan



1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the hard drive. See Removing the Hard Drive.

3. Remove the optical drive. See Removing the Optical Drive.

4. Remove the memory module. See Removing the Memory Module.

5. Remove the Mini PCI card. See Removing the Mini PCI Card.

6. Remove the microprocessor thermal-cooling assembly. See Removing the Microprocessor Thermal-Cooling Assembly.

7. Remove the microprocessor. See Removing the Microprocessor Module.

8. Remove the hinge cover. See Removing the Hinge Cover.

9. Remove the keyboard. See Removing the Keyboard.

10. Remove the display assembly. See Removing the Display Assembly.

11. Remove the palm rest. See Removing the Palm Rest.

12. Remove the modem. See Removing the Modem.

13. Remove the speakers connector. See Removing the Speakers.

14. Remove the system board. See Removing the System Board.

15. Disconnect the the fan power cable from the system board.

16. Turn the system board over and remove the four M2.5 x 5-mm screws holding the metal plate in place.
CAUTION: Before performing the following procedures, read the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.


17. Remove the plate and lift the system board off the fan assembly.
Installing the Cooling Fan

1. Position the system board over the fan assembly, aligning the screw holes in the system board with those in the fan assembly.

2. Place the metal plate over the holes in the system board and replace the four M2.5 x 5-mm screws.

3. Turn the system board over and connect the fan connector to the system board.
Back to Contents Page

1
fan assembly
2
metal plate
3
M2.5 x 5-mm screws (4)
