Dell™ Inspiron™
Quick Reference Guide
Model: DCMF
book.book Page 1 Wednesday, July 2, 2008 1:51 PM

Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data
and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury,
or death.
____________________
Information in this document is subject to change without notice.
© 2008 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, DellConnect, Inspiron, and YOURS IS HERE are
trademarksofDell Inc.;Intel,Celeron,Core,andPentiumareregisteredtrademarksofIntelCorporation;
AMD,AMD Athlon,and Phenom are trademarks of Advanced Micro Devices, Inc.; HyperTransport is
a licensed trademark of the HyperTransport Technology Consortium; Microsoft, Windows,Windows
Vista, and Windows Vista start button are either trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries; Bluetooth is a trademark owned by Bluetooth
SIG,Inc. andisused byDellInc.underlicense;Blu-ray Discis atrademark ofBlu-ray DiscAssociation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Model: DCMF
June 2008 P/N MT480 Rev. A01
book.book Page 2 Wednesday, July 2, 2008 1:51 PM

Contents 3
Contents
1 About Your Dell™ Inspiron™ 518/519 . . . . 7
Front View . . . . . . . . . . . . . . . . . . . . . . 7
Back View . . . . . . . . . . . . . . . . . . . . . . 8
Back Panel Connectors. . . . . . . . . . . . . . . . 9
2 Setting Up Your Computer . . . . . . . . . . . . 11
Installing Your Computer in an Enclosure. . . . . . . . 11
Connecting to the Internet . . . . . . . . . . . . . . . . 13
Setting Up Your Internet Connection . . . . . . . . 13
Transferring Information to a New Computer . . . . . . 15
3 Specifications . . . . . . . . . . . . . . . . . . . . . 17
4 Troubleshooting . . . . . . . . . . . . . . . . . . . . 27
Troubleshooting Tools . . . . . . . . . . . . . . . . . . 27
Beep Codes . . . . . . . . . . . . . . . . . . . . . 27
System Messages . . . . . . . . . . . . . . . . . 29
Troubleshooting Hardware Problems in the
Windows Vista®Operating System . . . . . . . . 31
Dell Diagnostics . . . . . . . . . . . . . . . . . . 31
book.book Page 3 Wednesday, July 2, 2008 1:51 PM

4Contents
Solving Problems . . . . . . . . . . . . . . . . . . . . 35
Power Problems . . . . . . . . . . . . . . . . . . 35
Memory Problems . . . . . . . . . . . . . . . . . 36
Lockups and Software Problems . . . . . . . . . . 37
5 Reinstalling Your Operating System . . . 41
Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . 41
What Is a Driver? . . . . . . . . . . . . . . . . . . 41
Identifying Drivers . . . . . . . . . . . . . . . . . 42
Reinstalling Drivers and Utilities . . . . . . . . . . 42
Using the Drivers and Utilities media . . . . . . . . 43
Restoring Your Operating System . . . . . . . . . . . . 44
Using Microsoft Windows System Restore . . . . . 45
Using Dell Factory Image Restore . . . . . . . . . 46
Using the Operating System Media. . . . . . . . . 47
6 Finding Information . . . . . . . . . . . . . . . . 49
7 Getting Help . . . . . . . . . . . . . . . . . . . . . . 51
Obtaining Assistance . . . . . . . . . . . . . . . . . . 51
Technical Support and Customer Service . . . . . 52
DellConnect™. . . . . . . . . . . . . . . . . . . . 52
Online Services . . . . . . . . . . . . . . . . . . . 52
AutoTech Service . . . . . . . . . . . . . . . . . . 53
Automated Order-Status Service . . . . . . . . . . 53
Problems With Your Order . . . . . . . . . . . . . . . . 53
Product Information . . . . . . . . . . . . . . . . . . . 54
book.book Page 4 Wednesday, July 2, 2008 1:51 PM

Contents 5
Returning Items for Warranty Repair or Credit . . . . . 54
Before You Call . . . . . . . . . . . . . . . . . . . . . 55
Contacting Dell . . . . . . . . . . . . . . . . . . . . . 57
A Appendix . . . . . . . . . . . . . . . . . . . . . . . . . 59
FCC Notice (U.S. Only) . . . . . . . . . . . . . . . . . . 59
FCC Class B . . . . . . . . . . . . . . . . . . . . . 59
Macrovision Product Notice . . . . . . . . . . . . . . 60
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
book.book Page 5 Wednesday, July 2, 2008 1:51 PM

6Contents
book.book Page 6 Wednesday, July 2, 2008 1:51 PM

About Your Dell™ Inspiron™ 518/519 7
About Your Dell™ Inspiron™
518/519
NOTE: For more information about the ports and connectors on your computer,
see "Specifications" on page 17.

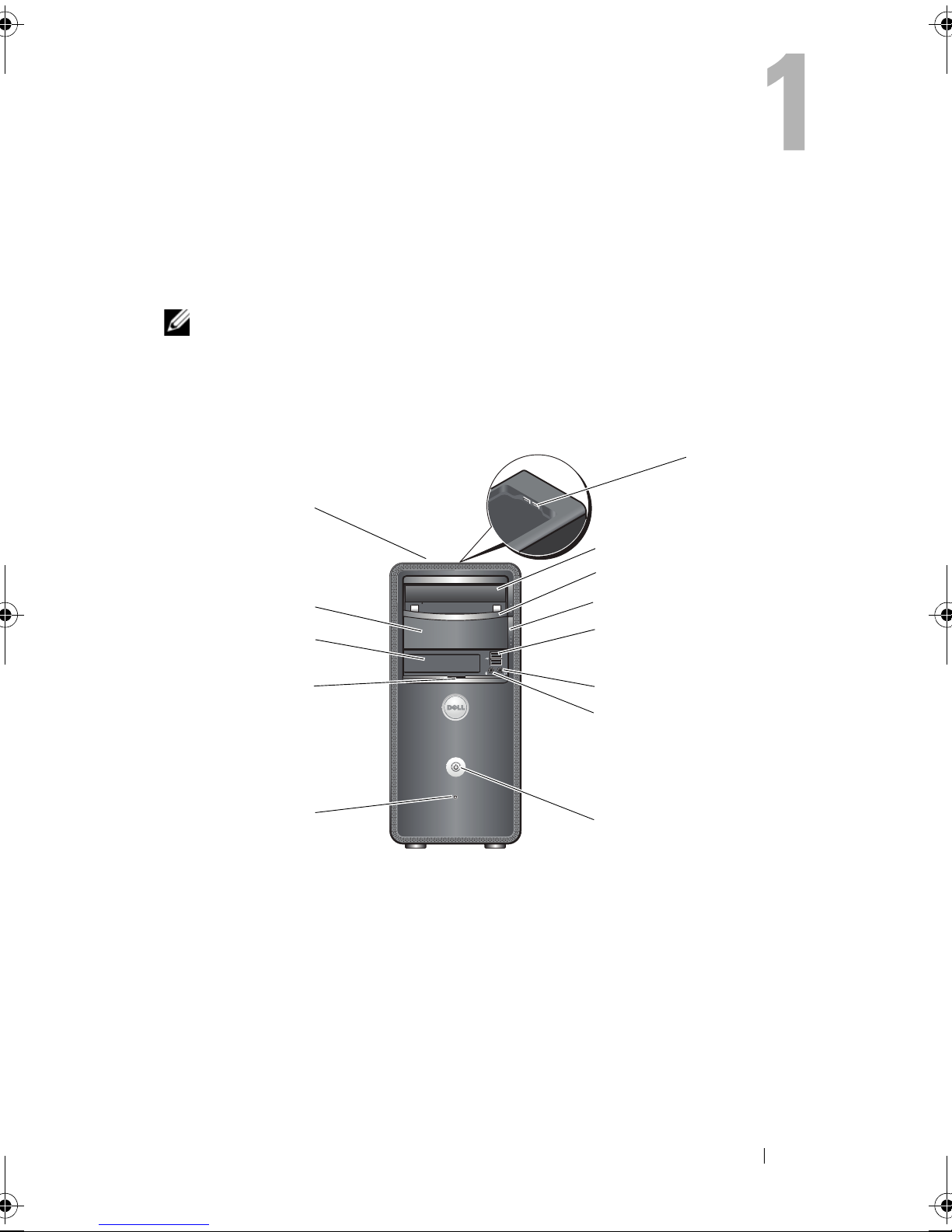

Front View
1 USB 2.0 connectors (2) 2 optical drive
3 optical-drive panel 4 optical-drive eject button
5 USB 2.0 connectors (2) 6 headphone connector
7 microphone connector 8 power button
9 drive activity light 10 front-panel door grip
11 FlexBay drive 12 optional optical-drive bay
13 Service Tag (located on top of
the chassis towards the front)
1
2
3
5
6
7
8
9
10
11
12
13
4
book.book Page 7 Wednesday, July 2, 2008 1:51 PM

8About Your Dell™ Inspiron™ 518/519

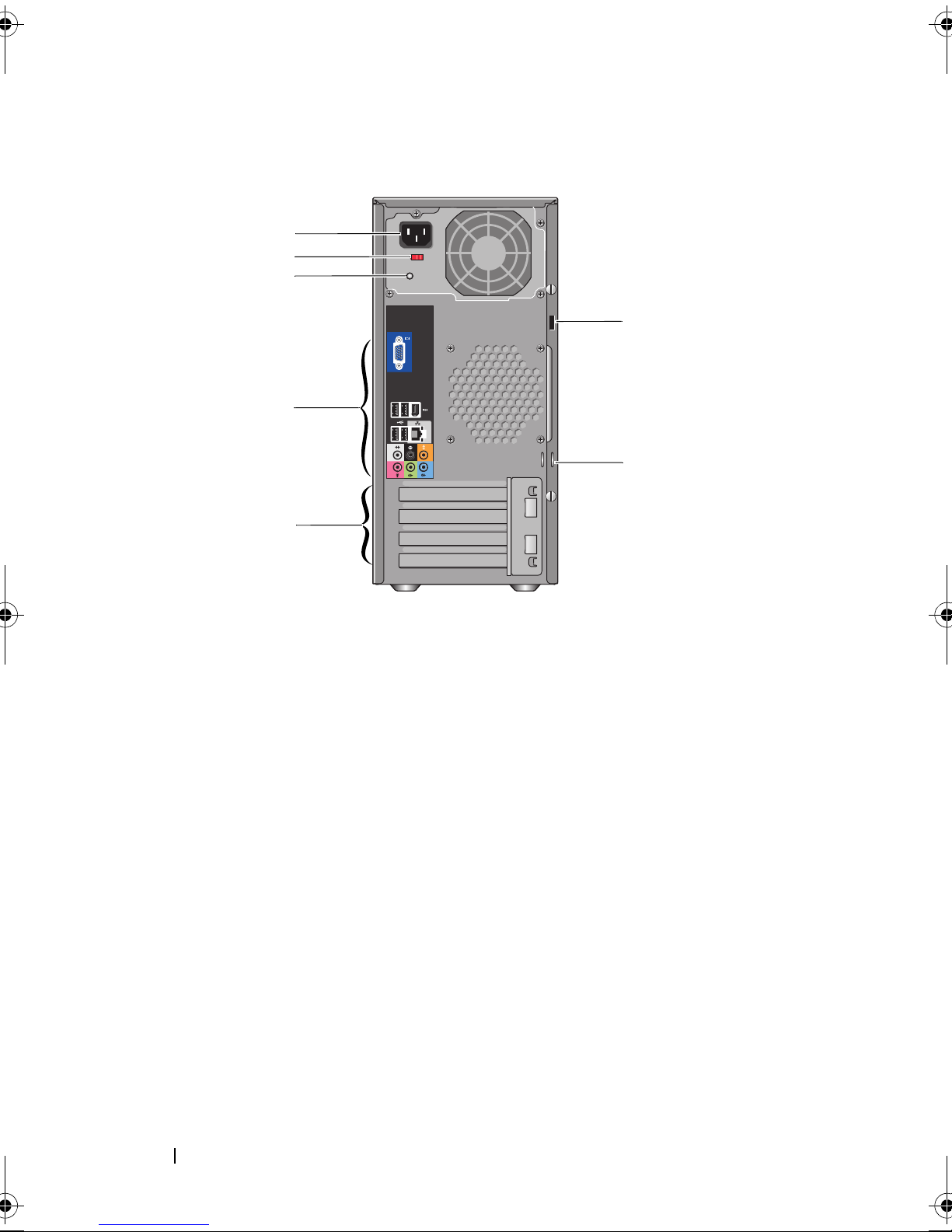

Back View
1 power connector 2 voltage selector switch
3 power supply light 4 back panel connectors
5 expansion card slots (4) 6 padlock rings
7 security cable slot
1
2
3
4
5
7
6
book.book Page 8 Wednesday, July 2, 2008 1:51 PM

About Your Dell™ Inspiron™ 518/519 9
Back Panel Connectors
1 IEEE 1394 connector 2 link integrity light
3 network adapter connector 4 network activity light
5 center/subwoofer connector 6 line-in connector
7 front L/R line-out connector 8 microphone
9 side L/R surround connector 10 back L/R surround connector
11 USB 2.0 connectors (4) 12 VGA video connector
23
9
8
45
6
7
11
12 10
1
book.book Page 9 Wednesday, July 2, 2008 1:51 PM

10 About Your Dell™ Inspiron™ 518/519
book.book Page 10 Wednesday, July 2, 2008 1:51 PM

Setting Up Your Computer 11
Setting Up Your Computer
Installing Your Computer in an Enclosure
Installing your computer in an enclosure can restrict the airflow and impact
your computer’s performance, possibly causing it to overheat. Follow the
guidelines below when installing your computer in an enclosure:
NOTICE: The operating temperature specifications indicated in this manual
reflects the maximum ambient operating temperature. The room ambient
temperature needs to be a consideration when installing your computer in an
enclosure. For example, if the ambient room temperature is at 25°C (77°F),
depending on your computer’s specifications, you only have 5° to 10°C (9° to 18°F)
temperature margin before you reach your computer’s maximum operating
temperature. For details about your computer’s specifications, see "Specifications"
on page 17.
• Leave a 10.2 cm (4 in) minimum clearance on all vented sides of the
computer to permit the airflow required for proper ventilation.
• If your enclosure has doors, they need to be of a type that allows at least
30 percent airflow through the enclosure (front and back).
NOTICE: Do not install your computer in an enclosure that does not allow airflow.
Restricting the airflow impacts your computer’s performance, possibly causing it to
overheat.
book.book Page 11 Wednesday, July 2, 2008 1:51 PM

12 Setting Up Your Computer
• If your computer is installed in a corner on a desk or under a desk, leave at
least 5.1 cm (2 in) clearance from the back of the computer to the wall to
permit the airflow required for proper ventilation.
book.book Page 12 Wednesday, July 2, 2008 1:51 PM

Setting Up Your Computer 13
Connecting to the Internet
NOTE: ISPs and ISP offerings vary by country.
To connect to the Internet, you need a modem or network connection and an
Internet service provider (ISP). Your ISP will offer one or more of the
following Internet connection options:
• DSL connections that provide high-speed Internet access through your
existing telephone line or cellular telephone service. With a DSL
connection, you can access the Internet and use your telephone on the
same line simultaneously.
• Cable modem connections that provide high-speed Internet access
through your local cable TV line.
• Satellite modem connections that provide high-speed Internet access
through a satellite television system.
• Dial-up connections that provide Internet access through a telephone line.
Dial-up connections are considerably slower than DSL and cable (or
satellite) modem connections.
• Wireless LAN connections that provide Internet access using Bluetooth
®
wireless technology.
If you are using a dial-up connection, connect a telephone line to the modem
connector on your computer and to the telephone wall jack before you set up
your Internet connection. If you are using a DSL or cable/satellite modem
connection, contact your ISP or cellular telephone service for setup
instructions.
Setting Up Your Internet Connection
To set up an Internet connection with a provided ISP desktop shortcut:
1
Save and close any open files, and exit any open programs.
2 Double-click the ISP icon on the Microsoft
®
Windows
®
desktop.
3 Follow the instructions on the screen to complete the setup.
book.book Page 13 Wednesday, July 2, 2008 1:51 PM

14 Setting Up Your Computer
If you do not have an ISP icon on your desktop or if you want to set up an
Internet connection with a different ISP, perform the steps in the following
section that corresponds to the operating system your computer is using.
NOTE: If you are having problems connecting to the Internet, see your
Dell Technology Guide. If you cannot connect to the Internet but have successfully
connected in the past, the ISP might have a service outage. Contact your ISP to
check the service status, or try connecting again later.
NOTE: Have your ISP information ready. If you do not have an ISP, the Connect to
the Internet wizard can help you get one.
1 Save and close any open files, and exit any open programs.
2 Click the Windows Vista start button™ , and click Control Panel .
3 Under Network and Internet, click Connect to the Internet .
The
Connect to the Internet window appears.
4 Click either Broadband (PPPoE) or Dial-up , depending on how you want
to connect:
• Choose
Broadband if you will use a DSL, satellite modem, cable TV
modem, or Bluetooth wireless technology connection.
• Chose
Dial-up if you will use a dial-up modem or ISDN.
NOTE: If you do not know which type of connection to select, click Help me
choose or contact your ISP.
5 Follow the instructions on the screen and use the setup information
provided by your ISP to complete the setup.
6 Save and close any open files, and exit any open programs.
7 Click the Windows Vista start button , and click Control Panel .
8 Under Network and Internet, click Connect to the Internet .
The
Connect to the Internet window appears.
book.book Page 14 Wednesday, July 2, 2008 1:51 PM

Setting Up Your Computer 15
9 Click either Broadband (PPPoE) or Dial-up , depending on how you want
to connect:
•Choose
Broadband if you will use a DSL, satellite modem, cable TV
modem, or Bluetooth wireless technology connection.
• Chose
Dial-up if you will use a dial-up modem or ISDN.
NOTE: If you do not know which type of connection to select, click Help me
choose or contact your ISP.
10 Follow the instructions on the screen and use the setup information
provided by your ISP to complete the setup.
Transferring Information to a New Computer
You can use your operating system "wizards" to help you transfer files and
other data from one computer to another—for example, from an old
computer to a new computer. To transfer information to a new computer
using the Windows Vista® wizard:
1
Click the Windows Vista start button , and then click Transfer files
and settings
→ Start Windows Easy Transfer .
2 In the User Account Control dialog box, click Continue .
3 Click Start a new transfer or Continue a transfer in progress .
Follow the instructions provided on the screen by the Windows Easy Transfer
wizard.
book.book Page 15 Wednesday, July 2, 2008 1:51 PM

16 Setting Up Your Computer
book.book Page 16 Wednesday, July 2, 2008 1:51 PM

Specifications 17
Specifications
NOTE: Offerings may vary by region. For more information regarding the
configuration of your computer, click Start→Help and Support and select the option
to view information about your computer.
Processor Inspiron 518 Inspiron 519
Ty p e
•Intel
®
Core™ 2 Quad processor
• Intel Core 2 Duo processor
• Intel Pentium
®
Dual-Core
processor
• Intel Celeron
®
processor
• AMD Atholon™ 64/ LE/
64 X2/ X2 BE
• AMD Phenom™ X2/ X4/
X2 GE/ triple core
L2 cache At least 512 KB pipelined-burst,
eight-way set associative,
writeback SRAM
• Up to 2 MB for AMD
Athlon 64 X2 dual-core
processors
• Up to 512 KB for AMD
Athlon 64 processors
• Up to 4 MB for AMD
Phenom processors
DRAM bus width Not applicable 64 bits per channel
Computer Information Inspiron 518 Inspiron 519
System chipset Intel G33 and ICH9 AMD RS780 and SB700
RAID support RAID 1 (mirroring) Not applicable
Data bus width 64 bits Not applicable
DRAM bus width 64 bits Not applicable
Processor address
bus width
32 bits 16 bit up/down
HyperTransport link
Flash EPROM 8 Mb 8 Mb
book.book Page 17 Wednesday, July 2, 2008 1:51 PM

18 Specifications
Expansion Bus Inspiron 518 Inspiron 519
Bus type PCI 2.3
PCI Express 1.0A
SATA 1.0 and 2.0
USB 2.0
PCI 2.3
PCI Express 2.0
SATA 1.0 and 2.0
USB 2.0
Bus speed
PCI 133 MB/s 133 MB/s
PCI Express x1 slot bidirectional speed
— 500 MB/s
x16 slot bidirectional speed
— 8 GB/s
x1 slot bidirectional speed
—1 GB/s
x16 slot bidirectional speed
— 16 GB/s
SATA 1.5 Gbps and 3.0 Gbps 1.5 Gbps and 3.0 Gbps
USB • High speed — 480 Mbps
• Full speed — 12 Mbps
• Low speed — 1.2 Mbps
• High speed — 480 Mbps
• Full speed — 12 Mbps
• Low speed — 1.2 Mbps
PCI
Connectors
Connector size
Connector data
width (maximum)
One
124 pins
32 bits
One
124 pins
32 bits
PCI Express
Connector
Connector size
Connector data
width (maximum)
Two x1
36 pins
1 PCI Express lane
Two x1
36 pins
1 PCI Express lane
PCI Express
Connector
Connector size
Connector data
width (maximum)
One x16
164 pins
16 PCI Express lane
One x16
164 pins
16 PCI Express lane
book.book Page 18 Wednesday, July 2, 2008 1:51 PM

Specifications 19
Memory Inspiron 518/519
Memory module connector Four user-accessible DDR2 DIMM sockets
Memory module capacities 512 MB, 1 GB, and 2 GB
Memory type 667 MHz, 800 MHz Non-ECC DDR2
SDRAM
Minimum memory 512 MB
Maximum memory 4 GB
Drives Inspiron 518/519
Externally accessible One 3.5-inch drive bay
Two 5.25-inch drive bays
Internally accessible Two 3.5-inch drive bays
Available devices Two 3.5-inch SATA hard drives
Two 5.25-inch SATA DVD-ROM/ DVD+/-
RW super multi drive / Blu-ray Disc drive /
Blu-ray Disc RW drive
One 3.5-inch USB media card
reader/Bluetooth media card reader
book.book Page 19 Wednesday, July 2, 2008 1:51 PM

20 Specifications
Connectors Inspiron 518/519
External connectors
Audio ALC888 (7.1 Channel audio)
Line-in connector — Use the blue line-in
connector to attach a record/playback device
such as a microphone, cassette player, CD
player, or VCR.
On computers with a sound card, use the
connector on the card.
Front L/R line-out connector — Use the
green line-out connector to attach
headphones and most speakers with
integrated amplifiers.
On computers with a sound card, use the
connector on the card.
Microphone connector — Use the pink
connector to attach a personal computer
microphone for voice or musical input into a
sound or telephony program.
On computers with a sound card, use the
microphone connector on the card.
Center/sub-woofer connector — Use the
orange connector to attach the sub-woofer.
Back L/R speakers connector — Use the black
surround connector to attach multichannel-
capable speakers.
Side L/R surround connector — Use the gray
connector to provide enhanced surround
audio for computers with 7.1 speakers.
On computers with a sound card, use the
connector on the card.
IEEE 1394 One 6-pin serial connector on the back-panel
Use the IEEE 1394 connector for high-speed
data devices such as digital video cameras
and external storage devices.
book.book Page 20 Wednesday, July 2, 2008 1:51 PM
