Dell™Inspiron™510mServiceManual
Before You Begin
Memory Module, Mini PCI Card, and Devices
Color Insert Cover
System Components
Reserve Battery
Hard Drive
PC Card With Bluetooth®Wireless Technology
Keyboard
Modem
Microprocessor Thermal-Cooling Assembly
Microprocessor Module
Display Assembly and Display Latch
Palm Rest
Docking Doors
Speakers
Base Latch
Fan
System Board
Flashing the BIOS
Pin Assignments for I/O Connectors
Notes, Notices, and Cautions
Information in this document is subject to change without notice.
©2003–2004DellInc.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.; Intel is a registered trademarks of Intel Corporation; Microsoft and Windows are
registered trademarks of Microsoft Corporation; Bluetooth is a trademark owned by Bluetooth SIG, Inc. and is used by Dell Inc. under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model PP10L
May 2004 Rev. A01
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Back to Contents Page
Before You Begin
Dell™Inspiron™510mServiceManual
Preparing to Work Inside the Computer
Recommended Tools

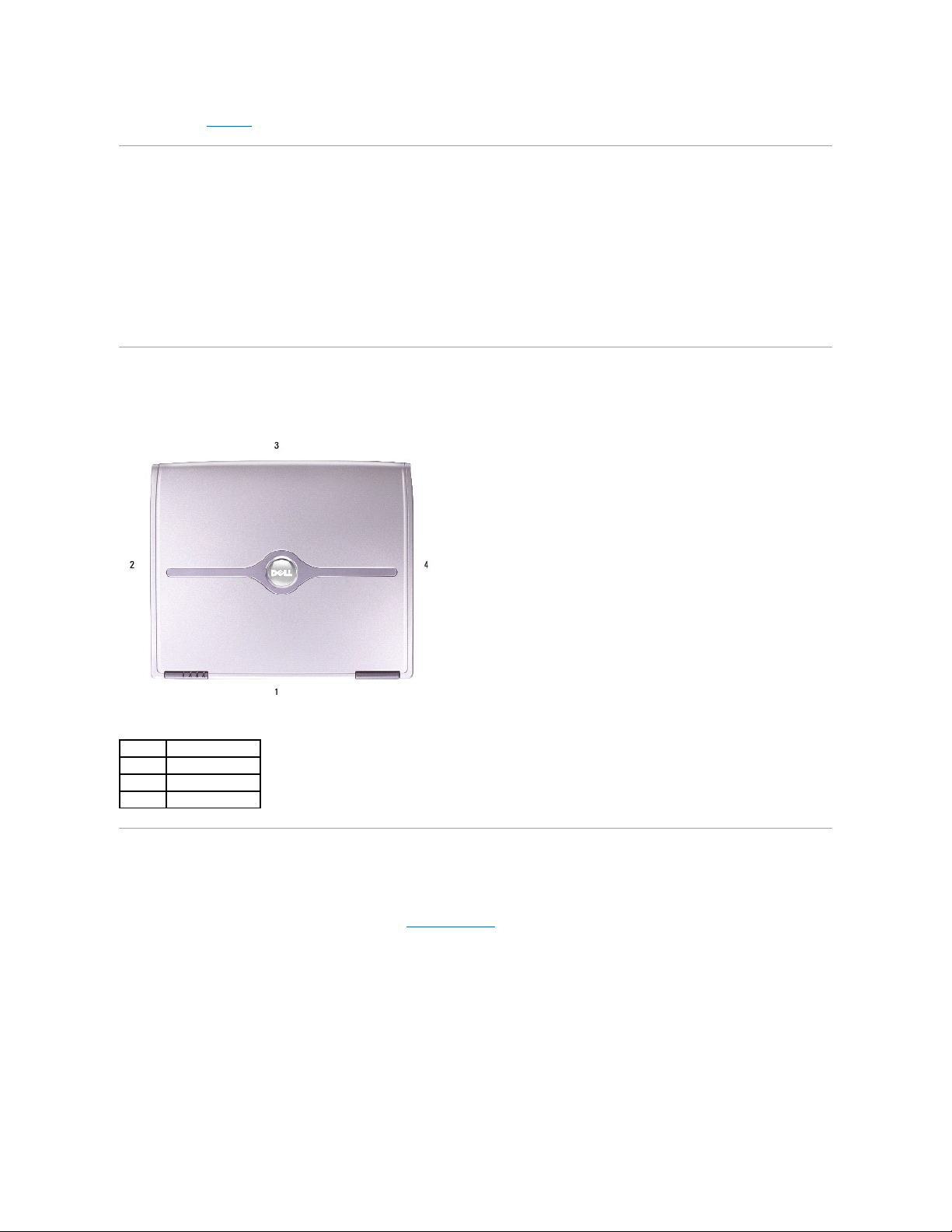

Computer Orientation
Screw Identification
Preparing to Work Inside the Computer
1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.
2. Save any work in progress and exit all open programs.
3. Turn off the computer and all attached devices.
4. If the computer is connected to a docking device (docked), undock it.
5. Disconnect the computer from the electrical outlet.
6. To avoid possible damage to the system board, wait 10 to 20 seconds and then disconnect any attached devices.
7. Disconnect all other external cables from the computer.
8. Remove any installed PC Cards from the PC Card slot.
9. Close the display and turn the computer upside down on a flat work surface.

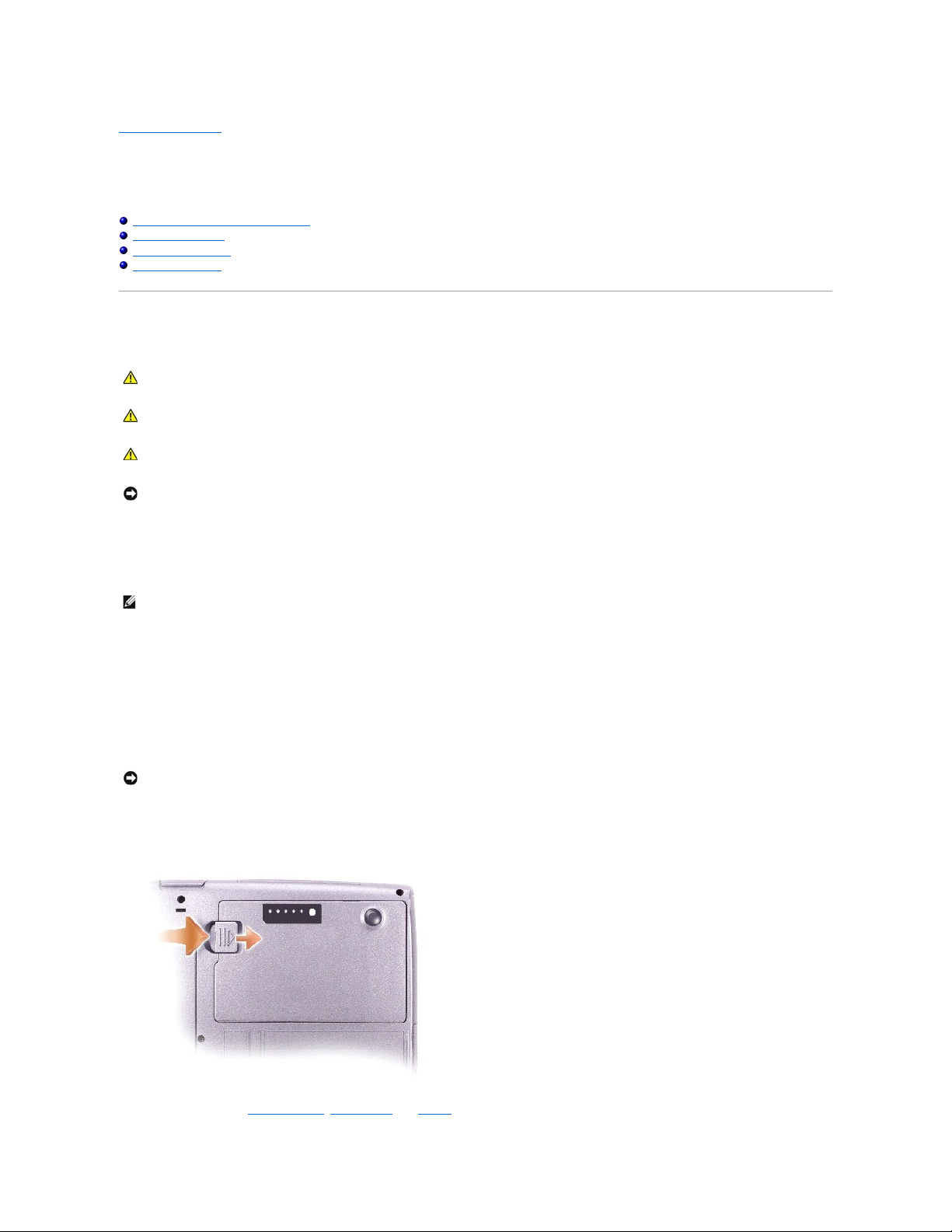

10. Slide and hold the battery-bay latch release on the bottom of the computer, and then remove the battery from the bay.
11. Remove any installed memory modules, Mini PCI cards, and devices, including a second battery if one is installed.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty. Read and follow the safety instructions in the Owner's Manual that came with the computer.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal
mounting bracket. Hold a component such as a microprocessor by its edges, not by its pins.
NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
NOTE: Ensure that the computer is off and not in a power management mode. If you cannot shut down the computer using the computer operating
system, press and hold the power button for 4 seconds.
NOTICE: To avoid damaging the system board, you must remove the main battery before you service the computer.
12. Remove the hard drive.
Recommended Tools
The procedures in this manual require the following tools:
l#1 Phillips screwdriver
l¼-inch flat-blade screwdriver
lSmall plastic scribe
lFlash BIOS update program floppy disk or CD
Computer Orientation

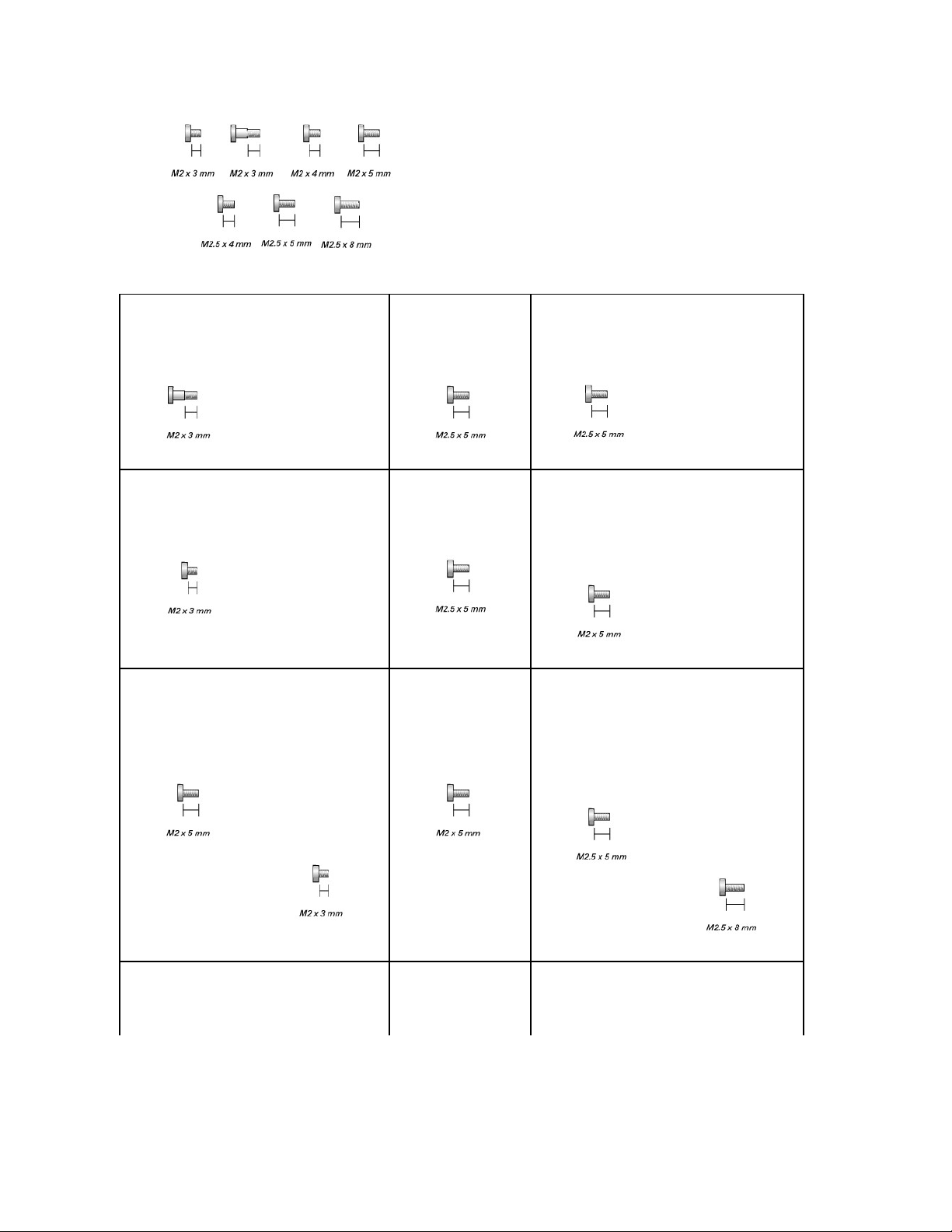

Screw Identification
When you are removing and replacing components, photocopy "Screw Identification" as a tool to lay out and keep track of the screws. The placemat provides
the number of screws and their sizes.
1
back
2
right
3
front
4
left
Optional Device:
(1 each)
Hard Drive:
(2 each)
Keyboard:
(2 each)
Modem:
(1 each)
Display Assembly:
(4 each)
Display Bezel:
(display bumpers, 6 each)
(6 each)
Display Panel:
(8 each)
Display Adapter Rails
(14.1-inch display only):
(4 each)
Display Latch:
(1 each)
Palm Rest:
(4 each)
(13 each)
Speakers:
Fan:
System Board:
(2 each)
Back to Contents Page
Flashing the BIOS
Dell™Inspiron™510mServiceManual
1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.
2. Insert the BIOS update program floppy disk or CD, and turn on the computer.
Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the flash update is complete, the
computer will automatically reboot.
3. Press <F2> during POST to enter the system setup program.
4. Press <Alt> and <F> to reset the computer defaults.
5. Press <Esc Suspend>, select Save changes and reboot, and press <Enter> to save configuration changes.
6. Remove the flash BIOS update program floppy disk or CD from the drive and restart the computer.
Back to Contents Page
NOTE: If you use a BIOS update program CD to flash the BIOS, set up the computer to boot from a CD before inserting the CD.
Back to Contents Page

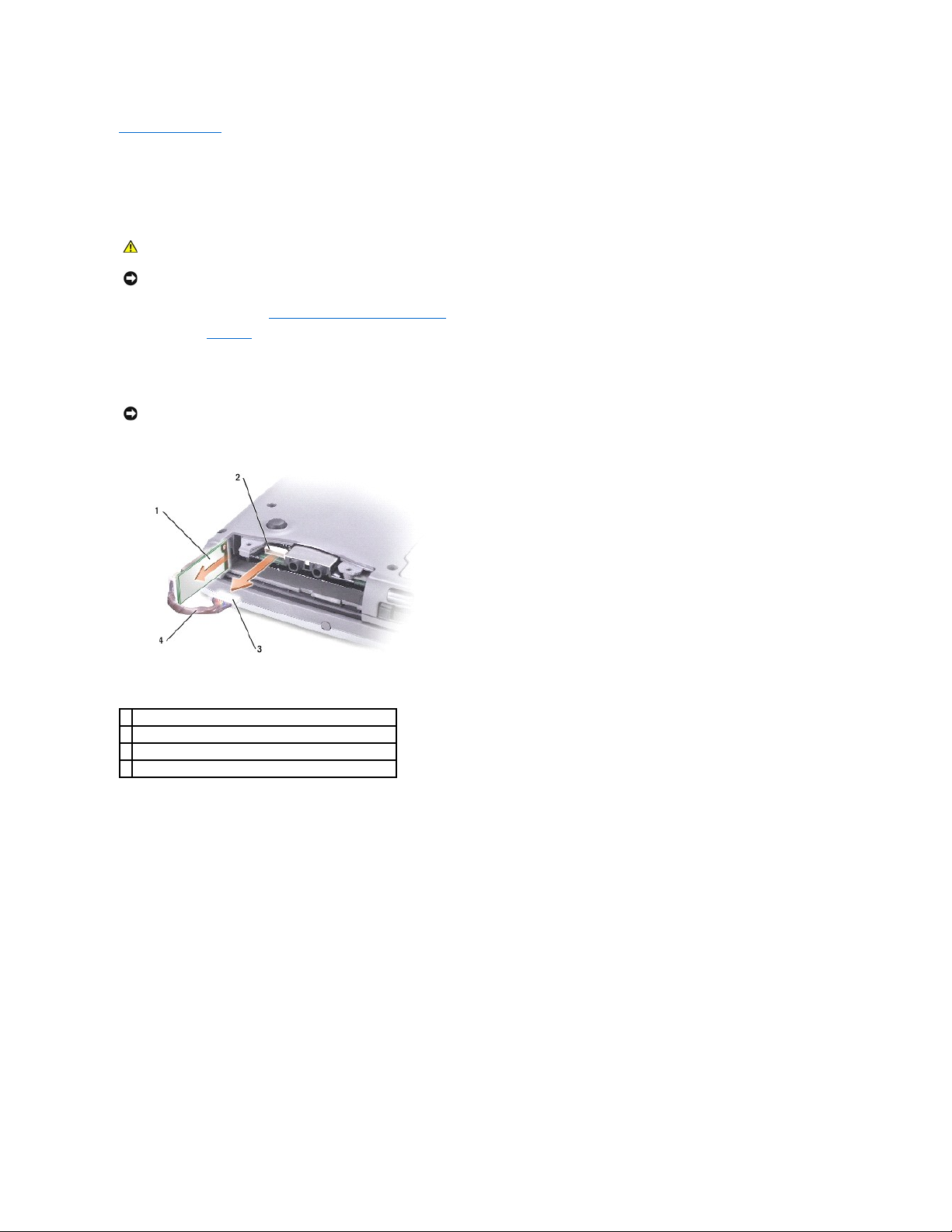

PC Card With Bluetooth®Wireless Technology
Dell™Inspiron™510mServiceManual
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the hard drive.
3. Pull the connector of the PC Card with Bluetooth wireless technology out of the system board connector.
4. Pull the cable to remove the PC Card with Bluetooth wireless technology from the computer.
To replace a connector of the PC Card with Bluetooth wireless technology:
1. Insert the PC Card with Bluetooth wireless technology.
2. Ensure that the cable is routed under the tab.
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: When replacing the PC Card with Bluetooth wireless technology, ensure that the cable of the PC Card with Bluetooth wireless technology is
routed correctly so that you do not damage the cable when you install the hard drive.

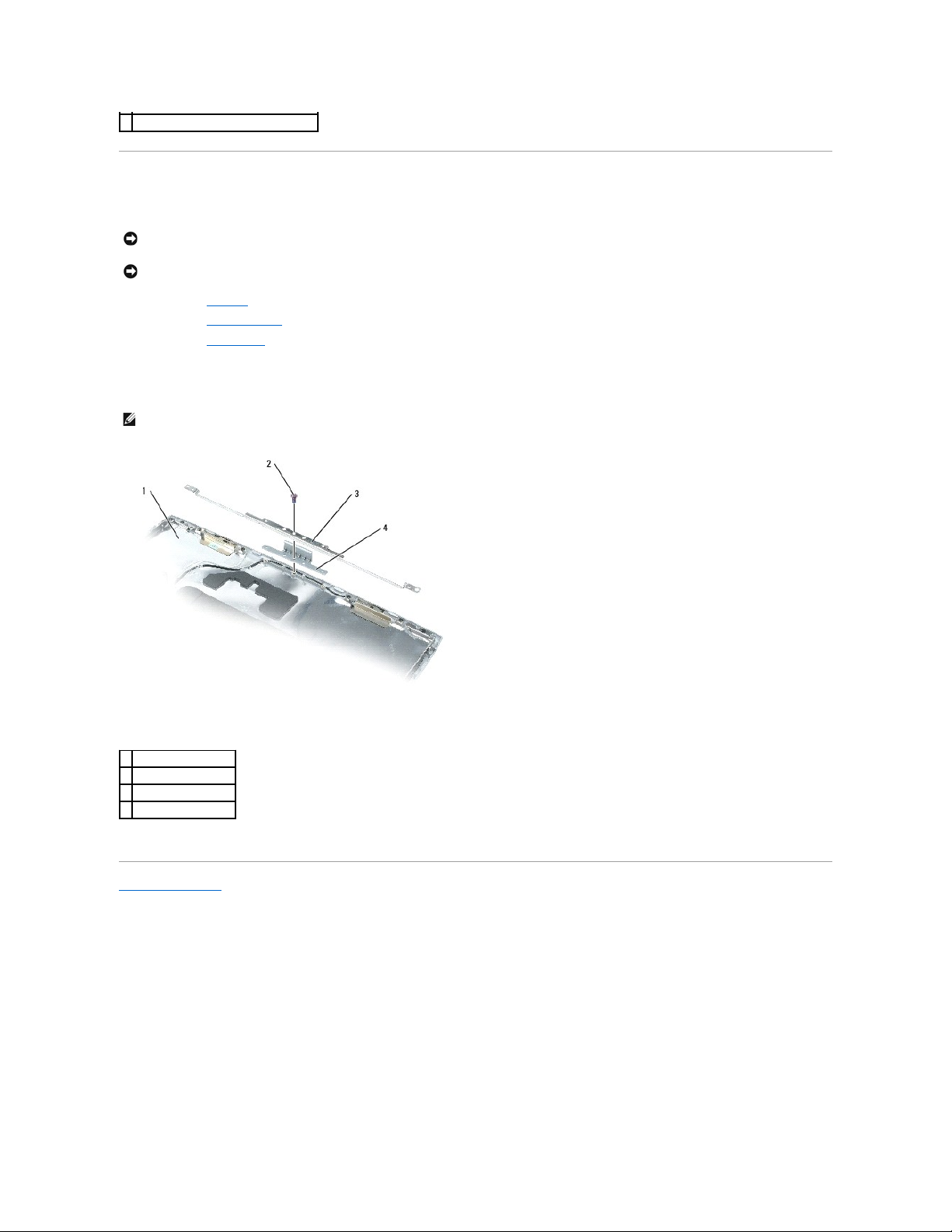

1
PC Card with Bluetooth wireless technology
2
system board connector
3
connector of PC Card with Bluetooth wireless technology
4
cable of PC Card with Bluetooth wireless technology
Back to Contents Page

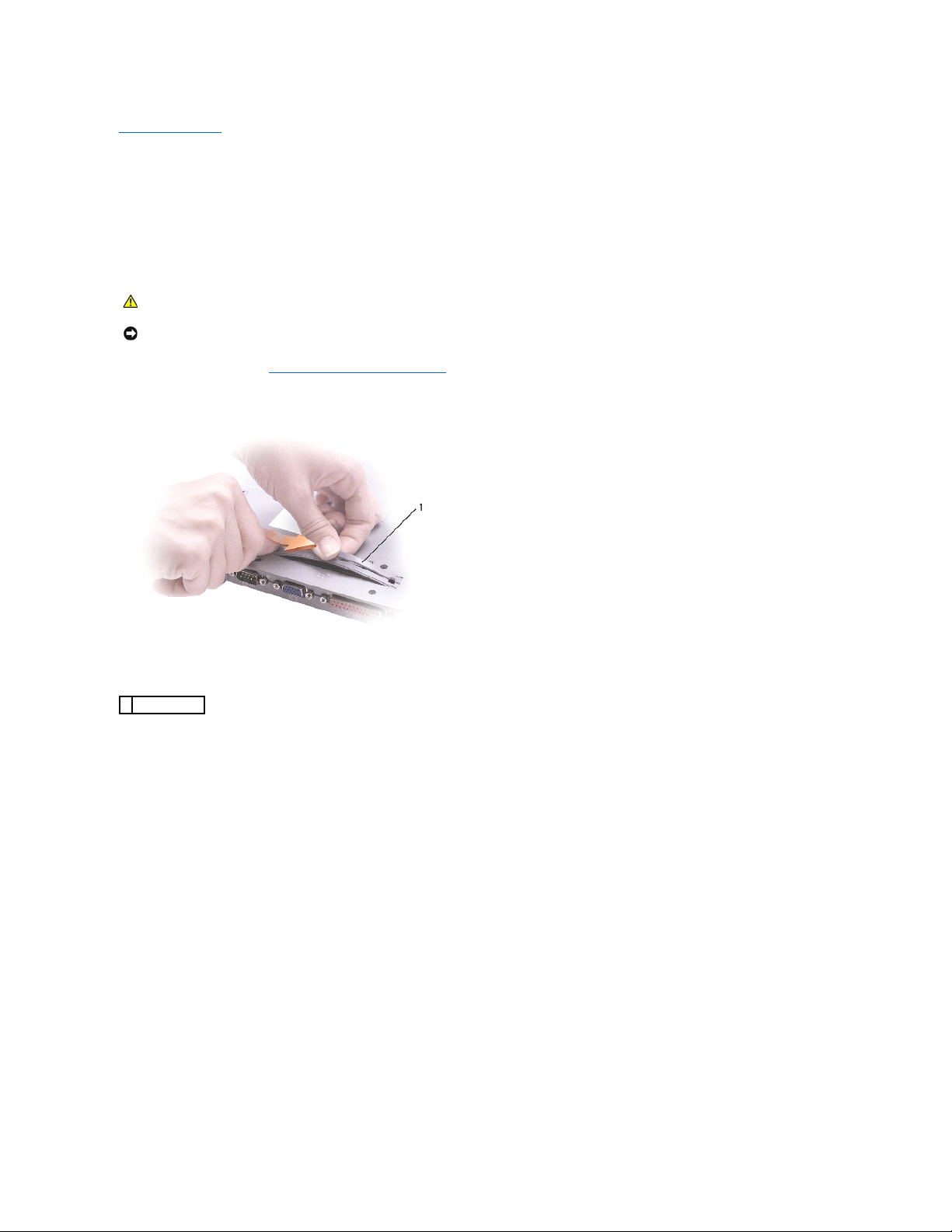

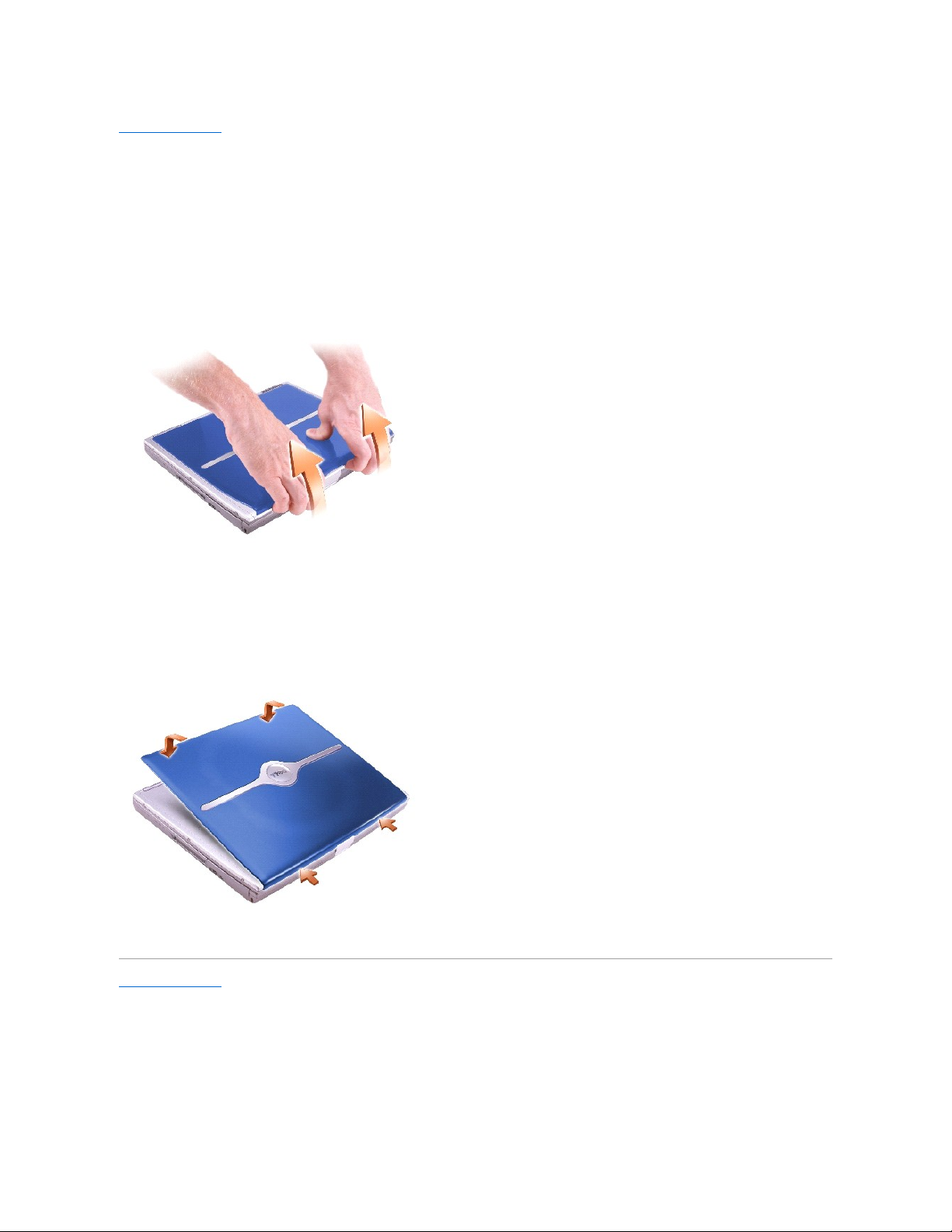

Color Insert Cover
Dell™Inspiron™510mServiceManual
Removing the Color Insert Cover
1. Press down along the front of the display.
2. Firmly grasp the lip of the color insert cover to detach it from the computer, and pull the cover up.
Replacing the Color Insert Cover
1. Place the tabs on the cover in the grooves above the display hinges, and lower the cover over the computer.
2. Press along the front until the cover snaps into place.
Back to Contents Page
Back to Contents Page

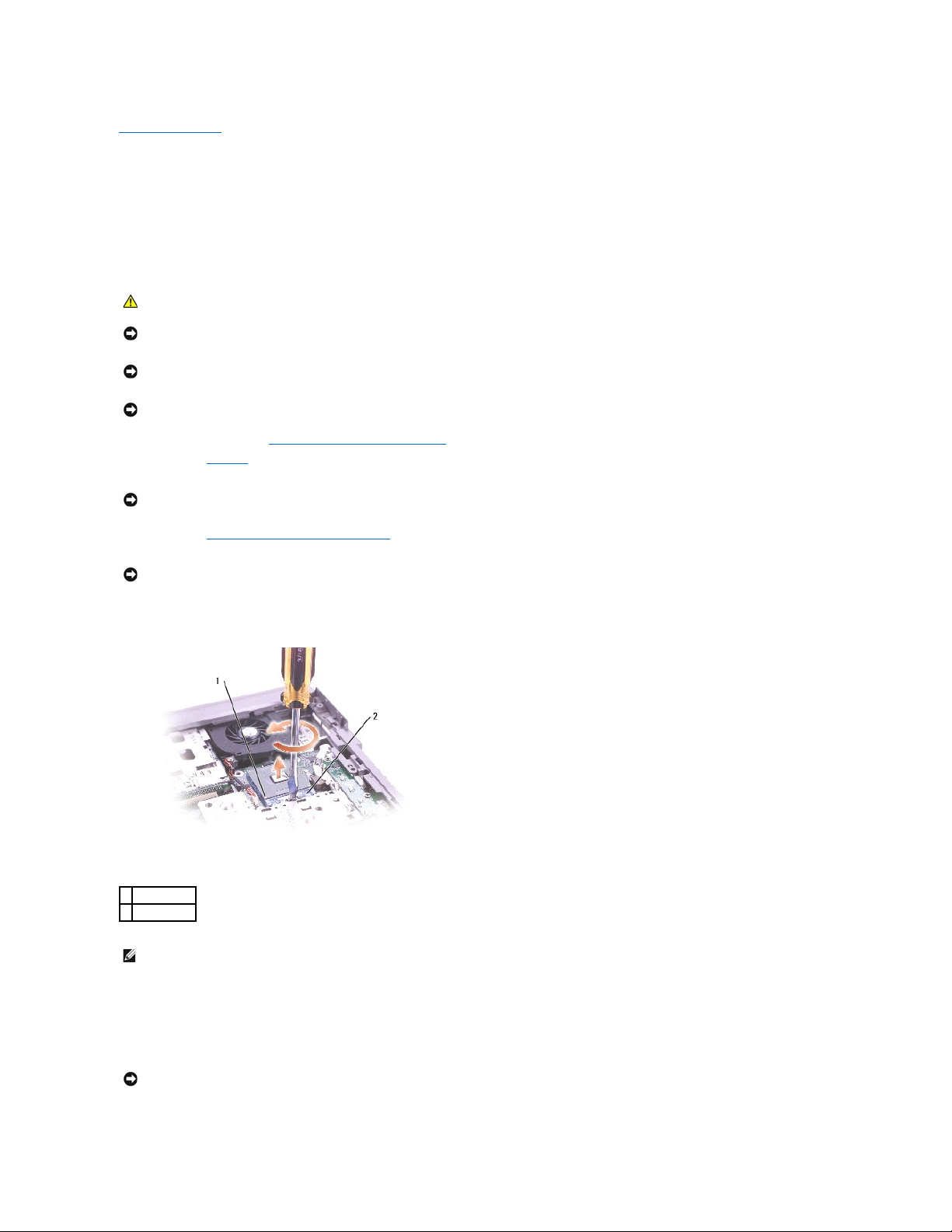

Microprocessor Module
Dell™Inspiron™510mServiceManual
Removing the Microprocessor Module
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the microprocessor thermal-cooling assembly.
4. To loosen the ZIF socket, use a small, flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.
5. Lift out the microprocessor module.
Installing the Microprocessor Module
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: Do not touch the processor die. Press and hold the microprocessor down on the substrate on which the die is mounted while turning the cam
screw to prevent intermittent contact between the cam screw and microprocessor.
NOTICE: To avoid damage to the microprocessor, hold the screwdriver so that it is perpendicular to the microprocessor when turning the cam screw.
NOTICE: To ensure maximum cooling for the microprocessor, do not touch the heat transfer areas on the microprocessor thermal-cooling assembly. The
oils in your skin reduce the heat transfer capability of the thermal pads.
NOTICE: When removing the microprocessor module, pull the module straight up. Be careful not to bend the pins on the microprocessor module.
1
pin-1 corner
2
ZIF socket
NOTE: The ZIF-socket cam screw secures the microprocessor to the system board. Take note of the arrow on the ZIF-socket cam screw.
NOTICE: Ensure that the cam lock is in the fully open position before seating the microprocessor module. Seating the microprocessor module properly in
the ZIF socket does not require force.
1. Align the pin-1 corner of the microprocessor module with the pin-1 corner of the ZIF socket, and insert the microprocessor module.
When the microprocessor module is correctly seated, all four corners are aligned at the same height. If one or more corners of the module are higher
than the others, the module is not seated correctly.
2. Tighten the ZIF socket by turning the cam screw clockwise to secure the microprocessor module to the system board.
3. Replace the other computer parts you removed earlier in this procedure.
4. Update the BIOS using a flash BIOS update program floppy disk or CD. For instructions on how to flash the BIOS, see "Flashing the BIOS."
Back to Contents Page
NOTICE: A microprocessor module that is not properly seated can result in an intermittent connection or permanent damage to the microprocessor and
ZIF socket.
NOTE: The pin-1 corner of the microprocessor module has a triangle that aligns with the triangle on the pin-1 corner of the ZIF socket.
NOTICE: You must position the microprocessor module correctly in the ZIF socket to avoid permanent damage to the module and the socket.
Back to Contents Page

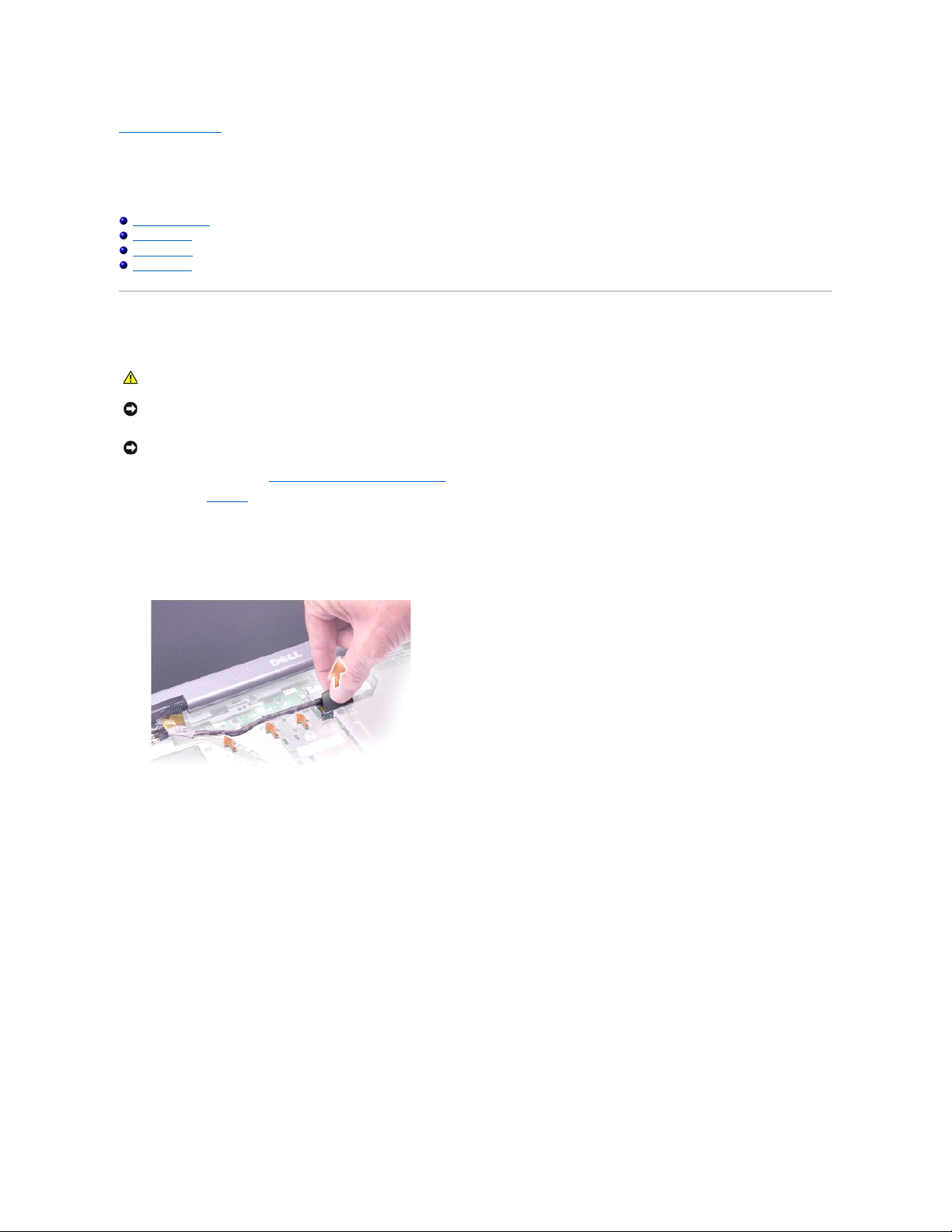

Display Assembly and Display Latch
Dell™Inspiron™510mServiceManual
Display Assembly
Display Bezel
Display Panel
Display Latch
Display Assembly
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Open the display assembly approximately 180 degrees, and support the display assembly so that it does not open past this position.
4. Pull up on the pull-tab that is attached to the display cable connector to remove the connector from the system board.
5. Release the display cable from the three display-cable routing clips.
6. Release the two antenna cables from the two antenna-securing clips.
7. Disconnect one antenna cable from the display by holding the two gold antenna connectors and gently pulling them apart. Then disconnect the other
antenna cable. (The gold antenna connectors on each cable are keyed to ensure that they are correctly reconnected.)
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: You must remove the display assembly before you remove the palm rest.
8. Remove the four M2.5 x 5-mm screws.
9. Rotate the display assembly to a 90-degree angle, and lift the display assembly up and out of the computer base.

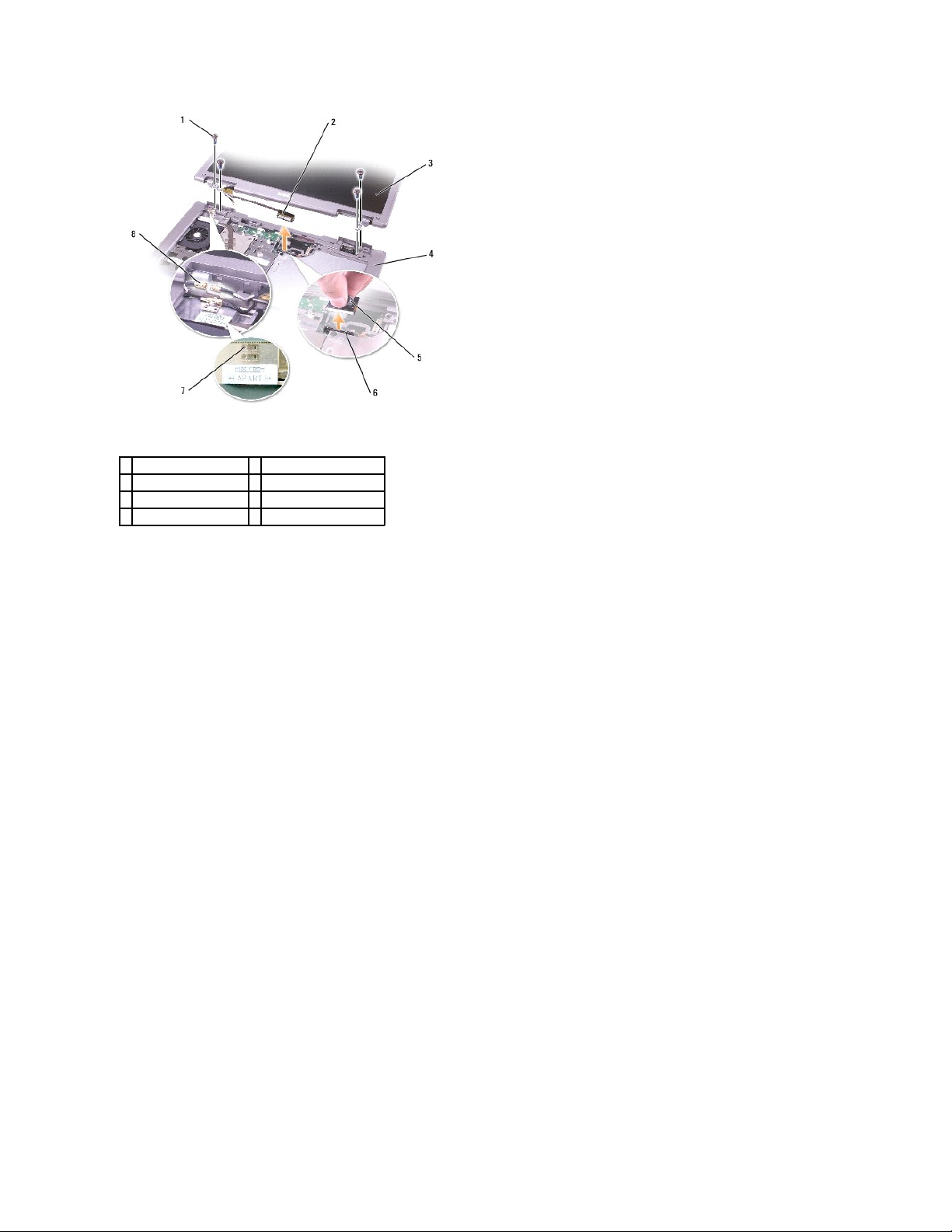

14.1-Inch Display
1
M2.5 x 5-mm screws (4)
5
pull-tab
2
display cable connector
6
system board connector
3
display
7
antenna securing clips (2)
4
computer base
8
antenna connectors (4)

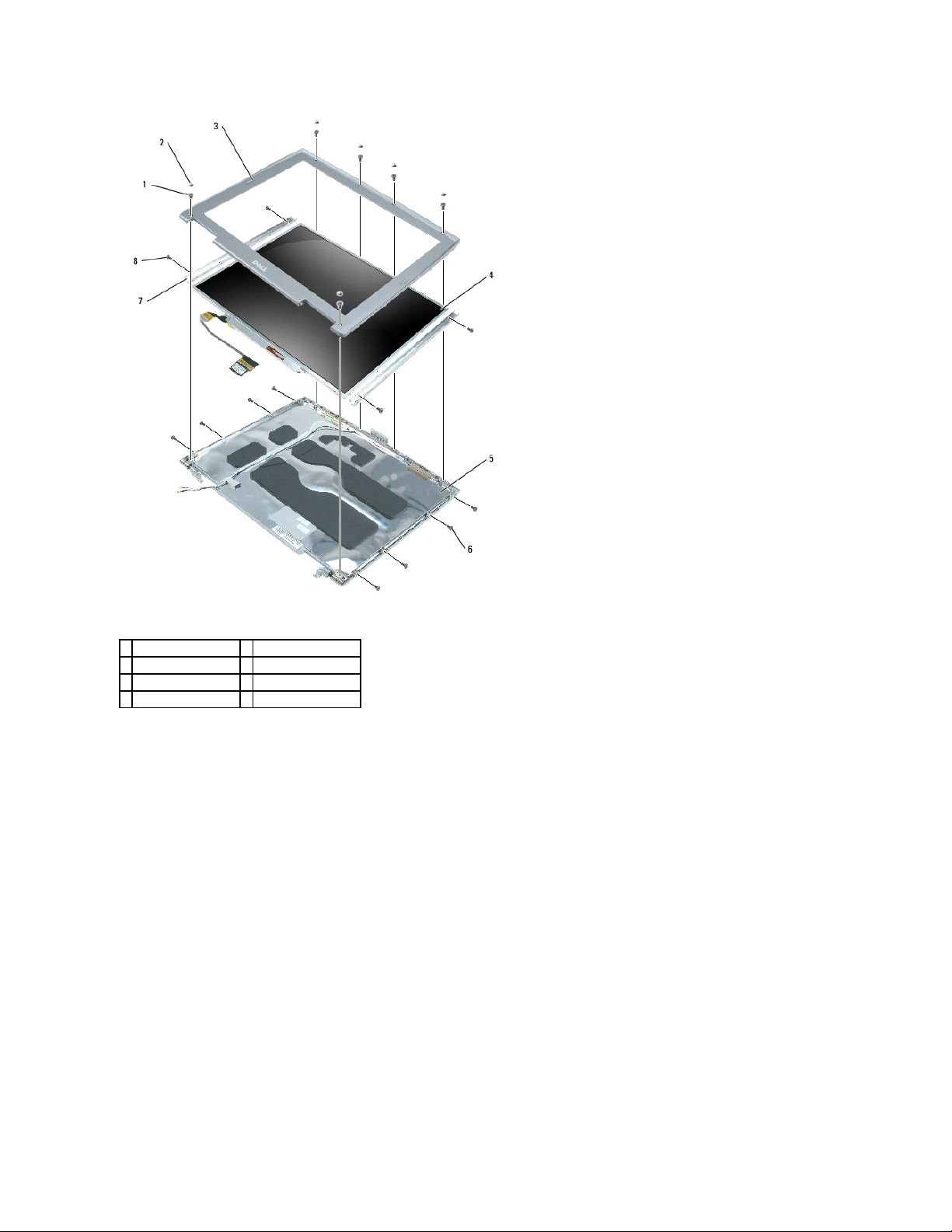

15-Inch Display
1
M2 x 5-mm screws (6)
5
top cover
2
display bumpers (6)
6
M2 x 5-mm screws (8)
3
display bezel
7
adapter rails (2)
4
display panel
8
M2 x 3-mm screws (4)
Display Bezel
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the display assembly.
4. Use a plastic scribe to pry the six display bumpers out of the screw holes located on the front of the bezel.
5. Remove the six M2 x 5-mm screws located on the front of the bezel.
6. Startingatthebottomofthedisplaypanel(bytheDELL™logo),useyourfingerstoseparatethebezelfromthetopcoverbyliftingtheinsideedgeof
the bezel away from the top cover.

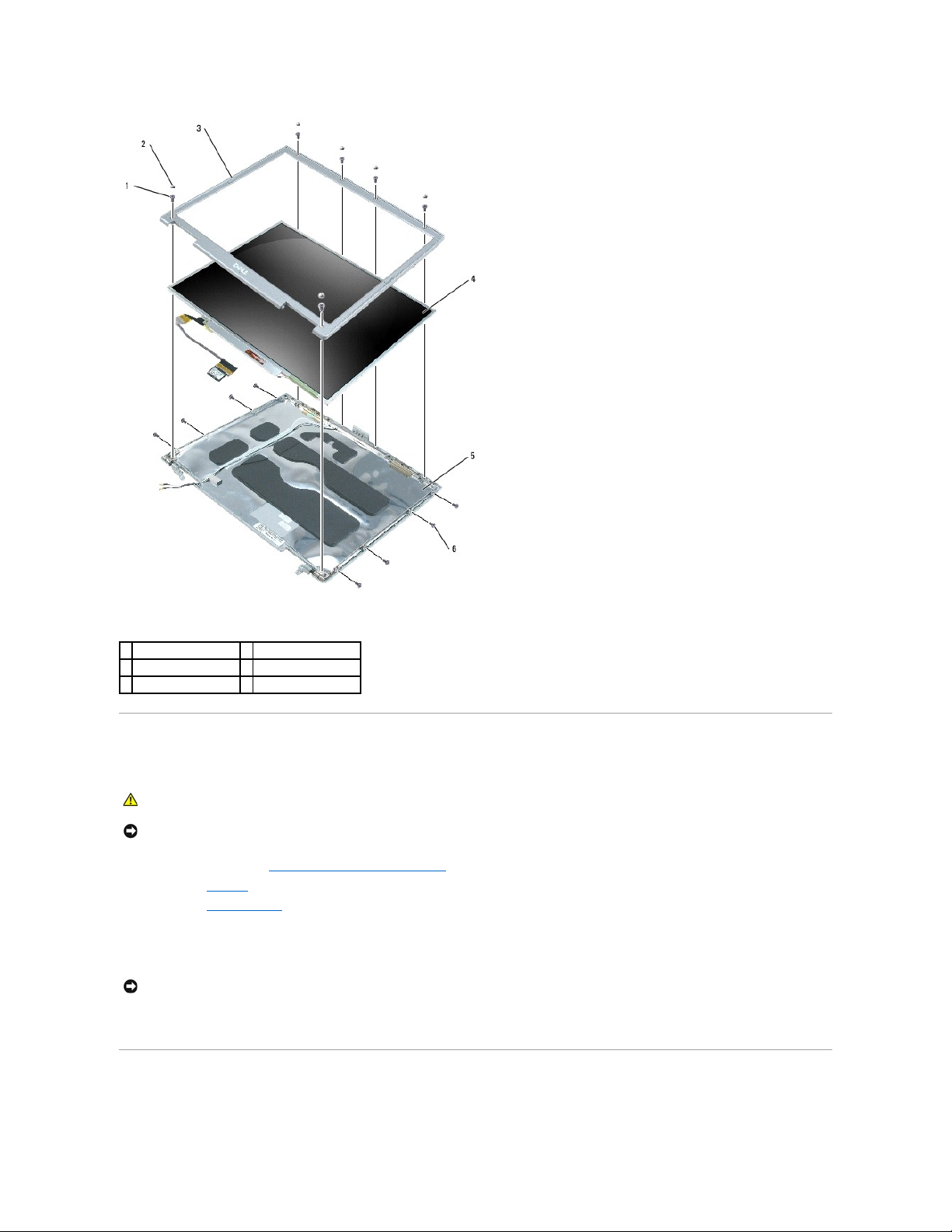

Display Panel
1
M2 x 5-mm screws (6)
4
display panel
2
display bumpers (6)
5
top cover
3
display bezel
6
M2 x 5-mm screws (8)
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: Carefully separate the bezel from the top cover to avoid damage to the bezel.

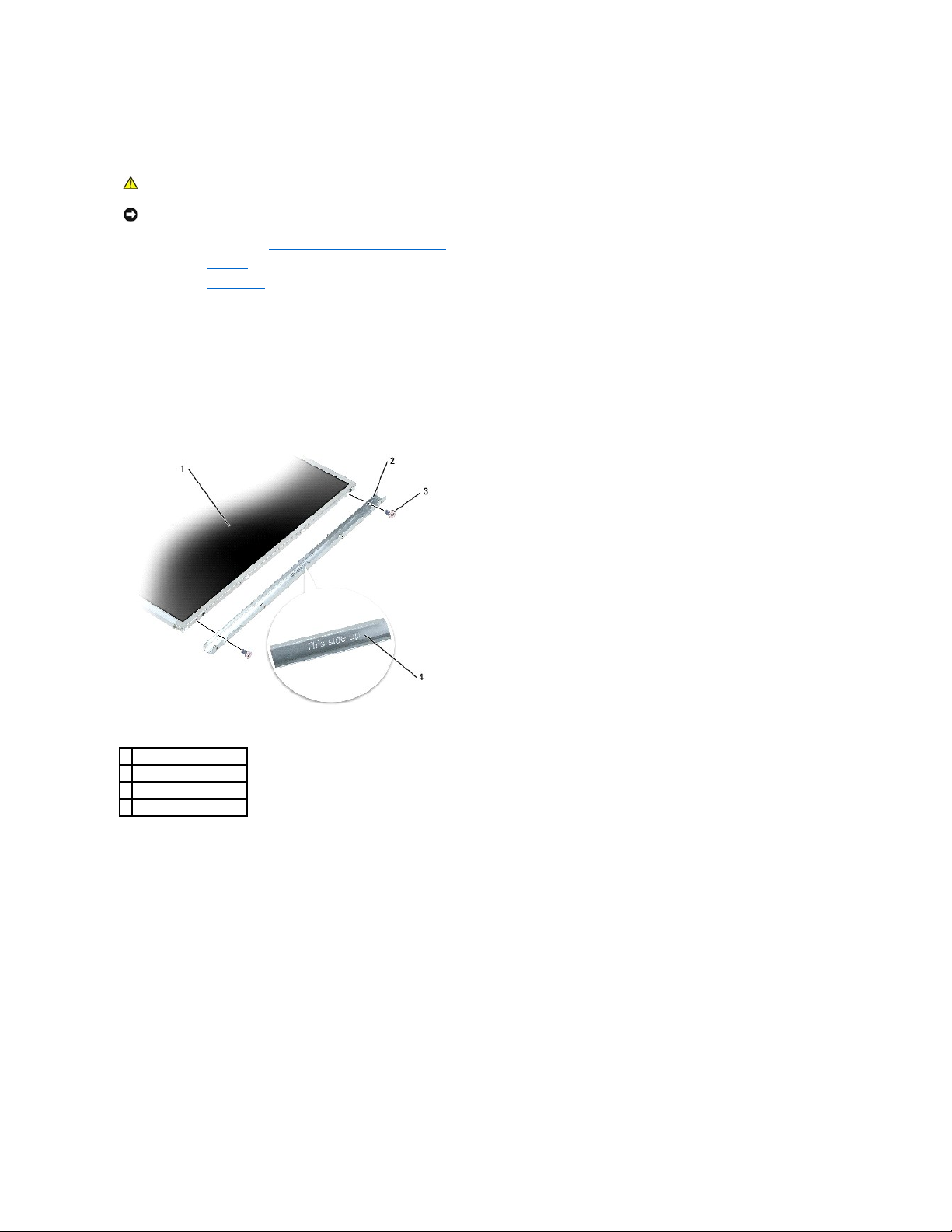

14.1-Inch Display Panel
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the display bezel.
4. Remove the eight M2 x 5-mm screws from each side of the display-panel adapter rails.
5. Lift the display panel, and rotate the display panel out of the display cover.
6. Remove the four M2 x 3-mm screws from each side of the display panel to remove the adapter rails.
When reinstalling the adapter rails to the replacement display panel, orient the rails so that the "This side up" markings are facing you, and then
reattach the rails with the M2 x 3-mm four screws. (The "This side down" markings on the rails should be visible from the backside of the display panel.)

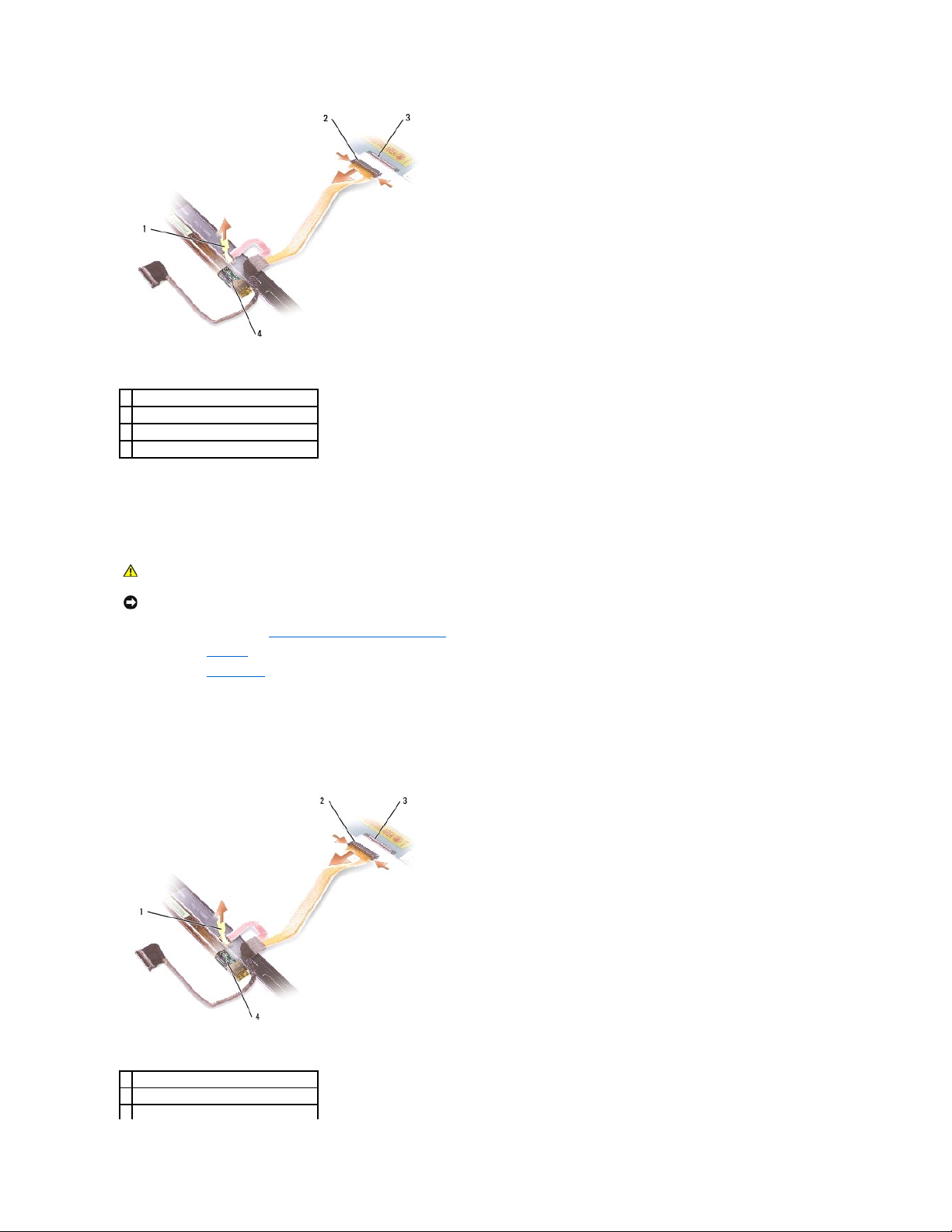

7. Press in both sides of the top flex-cable connector, and pull the top flex-cable connector away from the display connector.
8. Use the pull-tab to disconnect the bottom flex-cable connector from the inverter connector.
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by touching an unpainted metal surface on the computer.
1
14.1-inch display panel
2
adapter rails (2)
3
M2 x 3-mm screws (4)
4
"This side up" markings
15-Inch Display Panel
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the display bezel.
4. Remove the eight M2 x 5-mm screws from each side of the display panel.
5. Lift the display panel, and rotate the display panel out of the display cover.
6. Press in both sides of the top flex-cable connector, and pull the top flex-cable connector away from the display connector.
7. Use the pull-tab to disconnect the bottom flex-cable connector from the inverter connector.
1
pull-tab on bottom flex-cable connector
2
top flex-cable connector
3
display connector
4
inverter connector
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by touching an unpainted metal surface on the computer.
1
pull-tab on bottom flex-cable connector
2
top flex-cable connector
3
display connector
Display Latch
1. Remove the keyboard.
2. Remove the display assembly.
3. Remove the display bezel.
4. Remove the M2 x 5-mm screw that secures the display bracket to the top cover.
5. Lift the display bracket out of the top cover, and then remove the display latch.
Back to Contents Page
4
inverter connector
NOTICE: Disconnect the computer and any attached devices from electrical outlets, and remove any installed batteries.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by touching an unpainted metal surface on the computer.
NOTE: Ensure that the display bracket is upright when you replace the display latch.
1
top cover
2
M2 x 5-mm screw (1)
3
display bracket
4
display latch
Back to Contents Page
Docking Doors
Dell™Inspiron™510mServiceManual
Removing the Docking Doors
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Gently bend the docking doors and lift them away from the computer base.
Installing the Docking Doors
Slide the side of the docking doors with the spring over the longer posts.
CAUTION: Before working inside your computer, read the safety instructions in your Owner's Manual.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
1
docking doors
Other manuals for Inspiron 600m
29
Table of contents
Other Dell Laptop manuals
Dell
Dell G3 15 Operation and maintenance manual
Dell
Dell Latitude X300 Technical manual
Dell
Dell XPS 17 User manual
Dell
Dell Latitude D810 User manual
Dell
Dell Vostro 3300 User guide
Dell
Dell Alienware 17 User manual
Dell
Dell Vostro 5480 User manual
Dell
Dell Latitude 5300 2-in-1 Chrome User manual
Dell
Dell Inspiron 13 7353 User manual
Dell
Dell XPS 13 User manual
Dell
Dell Latitude ST User manual
Dell
Dell Inspiron 5720 User manual
Dell
Dell Precision Workstation M6400 User manual
Dell
Dell Inspiron 1420 User manual
Dell
Dell Inspiron 15 User manual
Dell
Dell Inspiron 3137 User manual
Dell
Dell Latitude D505 Series User manual
Dell
Dell Vostro 1310 Owner's manual
Dell
Dell Open Manage Printer Manager 1.2 User manual
Dell
Dell Inspiron 13 7000 Series User manual
