This section provides information about
setting up your Dell™XPS™ laptop.
Before Setting Up Your
Computer
When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.
Restricting airflow around your laptop may
cause it to overheat. To prevent overheating
ensure that you leave a minimum of 5.1 cm
(2 inches) on the right and left sides. You
should never place your computer in an
enclosed space, such as a cabinet or drawer
while it is powered on.
WARNING: Do not block, push objects
into, or allow dust to accumulate in
the air vents. Do not place your Dell
computer in a low-airflow environment,
such as a closed briefcase, or on fabric
surfaces, such as carpets or rugs, while
it is powered on. Restricting the airflow
can damage the computer, deteriorate
the computer performance, or cause
a fire. The computer turns on the fan
when the computer gets hot. Fan
noise is normal and does not indicate a
problem with the fan or the computer.
CAUTION: Placing or stacking heavy
or sharp objects on the computer may
result in permanent damage to the
computer.
Setting Up Your XPS Laptop

8
Setting Up Your XPS Laptop
Connect the AC Adapter

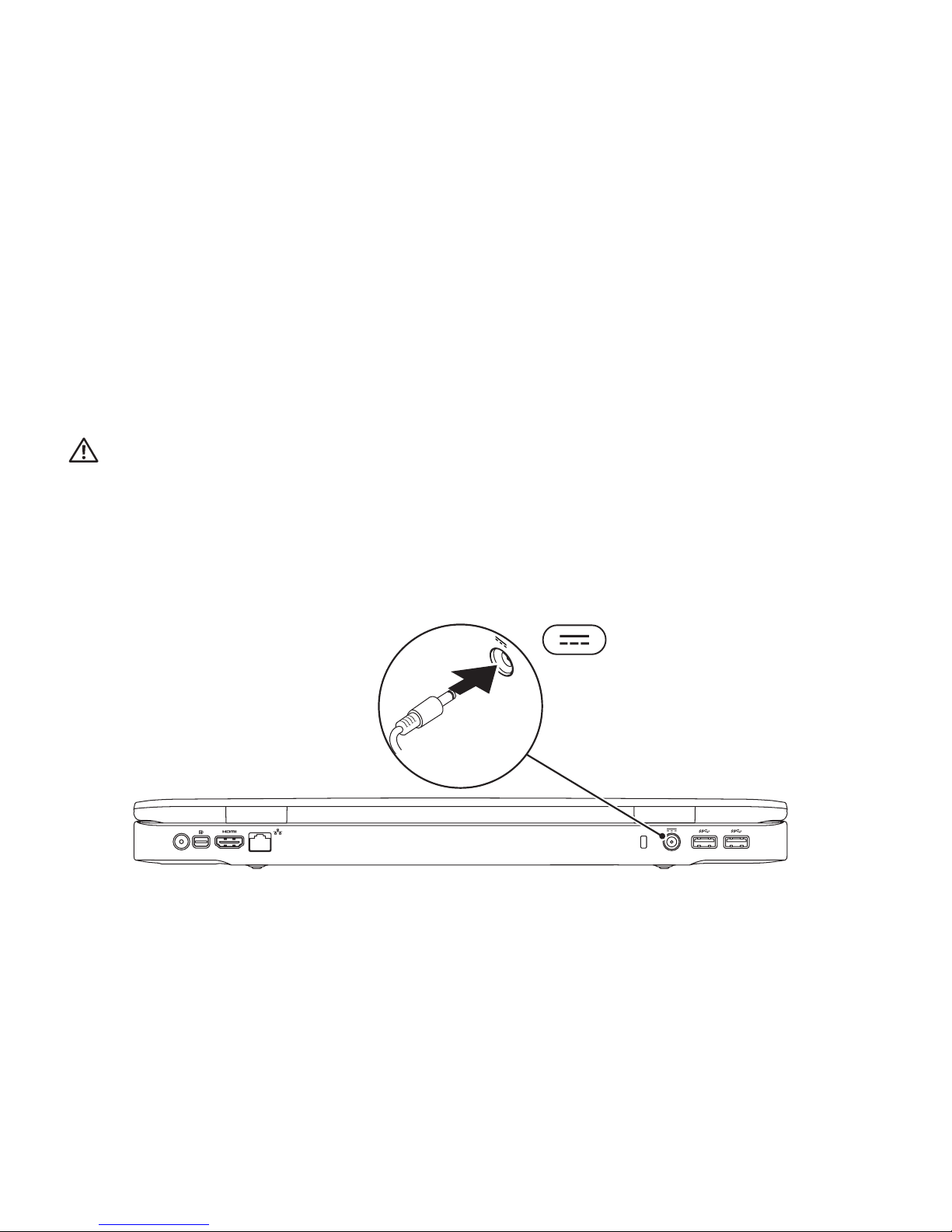

Connect the AC adapter to the computer and then plug it into an electrical outlet or surge
protector.
WARNING: The AC adapter works with electrical outlets worldwide. However, power
connectors and power strips vary among countries. Using an incompatible cable or
improperly connecting the cable to a power strip or electrical outlet may cause fire or
permanent damage to your computer.

9
Setting Up Your XPS Laptop
Connect the Network Cable (Optional)
To use a wired network connection, connect the network cable.

10
Setting Up Your XPS Laptop

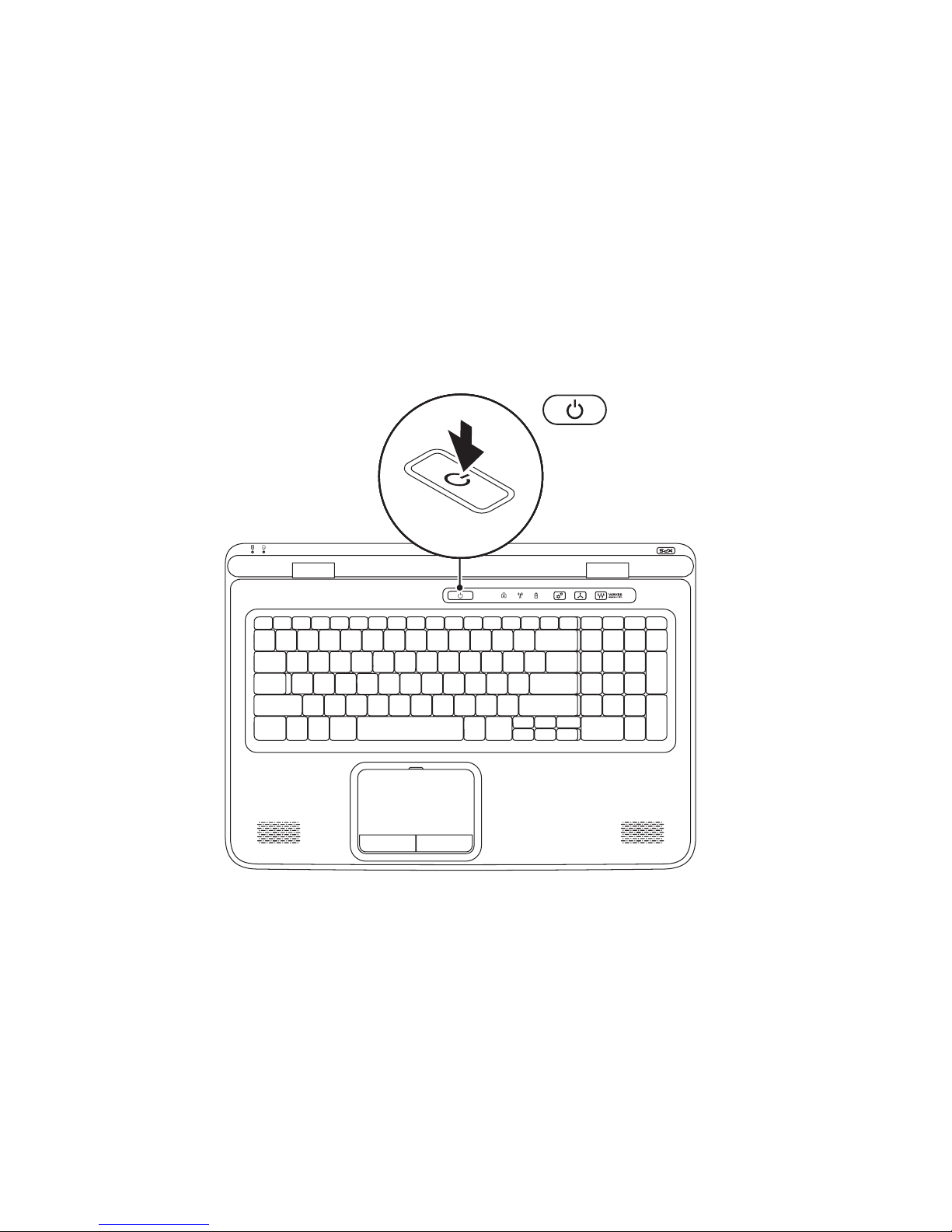

Press the Power Button

11
Setting Up Your XPS Laptop
Set Up Microsoft Windows
Your Dell computer is preconfigured with the Microsoft®Windows®operating system. To set
up Windows for the first time, follow the instructions on the screen. These steps are mandatory
and may take some time to complete. The Windows setup screens will take you through several
procedures including accepting license agreements, setting preferences, and setting up an
Internet connection.
CAUTION: Do not interrupt the operating system’s setup process. Doing so may render
your computer unusable and you will need to reinstall the operating system.
NOTE: For optimal performance of your computer, it is recommended that you download
and install the latest BIOS and drivers for your computer available at support.dell.com.
NOTE: For more information on the operating system and features, go to
support.dell.com/MyNewDell.

12
Setting Up Your XPS Laptop
Create System Recovery Media (Recommended)
NOTE: It is recommended that you create a system recovery media as soon as you set up
Microsoft Windows.
The system recovery media can be used to restore your computer to the operating state it
was in when you purchased the computer, while preserving data files (without the need of the
Operating System disc). You can use the system recovery media if changes to the hardware,
software, drivers, or other system settings have left the computer in an undesirable operating
state.
You will require the following to create the system recovery media:
Dell DataSafe Local Backup•
USB key with a minimum capacity of 8 GB or DVD‑R/DVD+R/Blu‑ray Disc• ™
NOTE: Dell DataSafe Local Backup does not support rewritable discs.

13
Setting Up Your XPS Laptop
To create a system recovery media:
Ensure that the AC adapter is connected (see “Connect the AC Adapter” on page1. 8).
Insert the disc or USB key in the computer.2.
Click3. Start → All Programs→Dell DataSafe Local Backup.
Click4. Create Recovery Media.
Follow the instructions on the screen.5.
NOTE: For information on restoring your operating system using the system recovery
media, see “System Recovery Media” on page 76.

14
Setting Up Your XPS Laptop
Install the SIM Card (Optional)
NOTE: Installing a SIM card is not required if you are using an EVDO card to access the
Internet.
NOTE: Installing a mini B‑CAS card into the SIM card slot is required to set up and view
ISDB‑T digital TV in Japan.
Installing a Subscriber Identity Module (SIM) card on your computer allows you to connect to
the Internet. To access the Internet you must be within the network of your cellular service
provider.
To install the SIM card:
Turn off your computer.1.
Remove the battery (see “Removing and Replacing the Battery” on page2. 48).
In the battery bay, slide the SIM card into the SIM card slot.3.
Replace the battery (see “Removing and Replacing the Battery” on page4. 48).
Turn on your computer.5.
To remove the SIM card, press and eject the SIM card.

15
Setting Up Your XPS Laptop
1battery bay
2SIM card slot
3SIM card
12
3

16
Setting Up Your XPS Laptop
Enable or Disable Wireless (Optional)

17
Setting Up Your XPS Laptop
To enable or disable wireless:
Ensure that your computer is turned on.1.
Press the wireless key2. on the function key row on the keyboard.

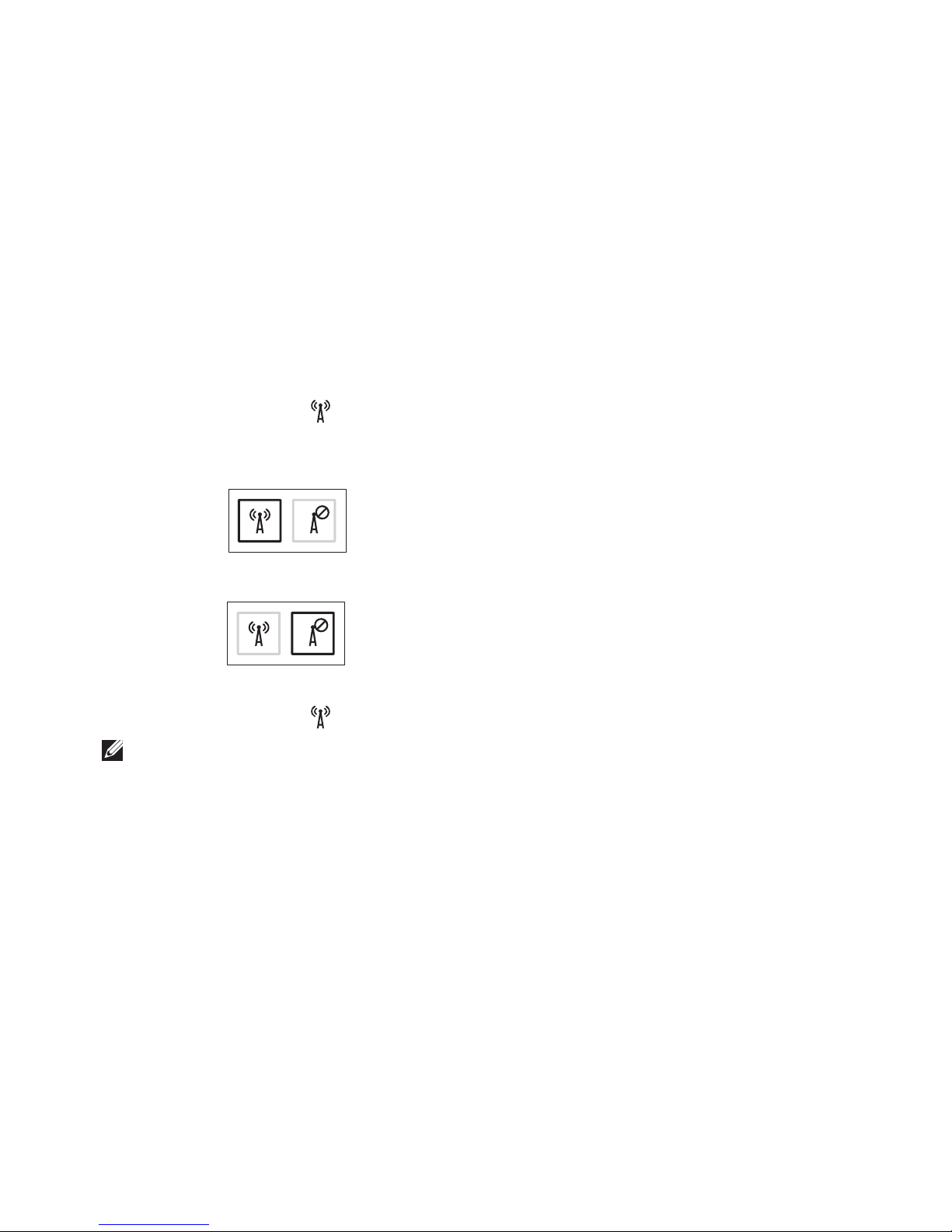

The current status of the wireless radios appears on the screen.
Wireless enabled
Wireless disabled
Press the wireless key3. again to switch between the wireless enabled or disabled states.
NOTE: The wireless key allows you to quickly turn off wireless radios (Wi‑Fi and
Bluetooth®), such as when you are asked to disable all wireless radios on an airplane flight.

18
Setting Up Your XPS Laptop
Set Up Wireless Display
(Optional)
NOTE: Wireless display may not be
supported on all computers.
Wireless display can only be set up on
computers with:
Processor Intel®Core™ i3‑3xx to i7‑8xx
Video
controller
Integrated: Intel HD Graphics
Discrete: NVIDIA GeForce
GT 435M/445M
WLAN card Intel Centrino®1000/6200/
6300 or Intel Centrino
Advanced‑N + WiMAX 6250
Operating
system
Windows 7 Home Premium,
Professional, or Ultimate
Driver If not present, download
and install the latest driver
for “Intel Wireless Display
Connection Manager”
available at support.dell.com.
To set up wireless display on your computer:
Ensure that your computer is turned on.1.
Ensure that wireless is enabled (see “Enable2.
or Disable Wireless” on page 16).
Connect the wireless display adapter to3.
the TV.
NOTE: The wireless display adapter does
not ship with your computer and must be
purchased separately.
Turn on the TV and the wireless display4.
adapter.
Select the appropriate video source5.
for your TV, such as HDMI1, HDMI2, or
S‑Video.
Double‑click the Intel6. ®Wireless Display
icon on the desktop.
The Intel®Wireless Display window
appears.
