This section provides information about setting
up your Dell™Inspiron™laptop.
Before Setting Up Your
Computer
When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.
Restricting airflow around your Inspiron
laptop may cause it to overheat. To prevent
overheating ensure that you leave at least
10.2 cm (4 inches) at the back of the computer
and a minimum of 5.1 cm (2 inches) on all other
sides. You should never place your computer in
an enclosed space, such as a cabinet or drawer
when it is powered on.
WARNING: Do not block, push objects
into, or allow dust to accumulate in
the air vents. Do not place your Dell™
computer in a low-airflow environment,
such as a closed briefcase, or on fabric
surfaces, such as carpets or rugs, while
it is powered on. Restricting the airflow
can damage the computer, deteriorate the
computer performance, or cause a fire.
The computer turns on the fan when the
computer gets hot. Fan noise is normal and
does not indicate a problem with the fan or
the computer.
CAUTION: Placing or stacking heavy or
sharp objects on the computer may result
in permanent damage to the computer.
Setting Up Your Inspiron Laptop
INSPIRON

6
Setting Up Your Inspiron Laptop
Connect the AC Adapter
Connect the AC adapter to the computer and then plug it into an electrical outlet or surge protector.
WARNING: The AC adapter works with electrical outlets worldwide. However, power
connectors and power strips vary among countries. Using an incompatible cable or
improperly connecting the cable to a power strip or electrical outlet may cause fire or
permanent damage to your computer.

7
Setting Up Your Inspiron Laptop
Connect the Network Cable (Optional)

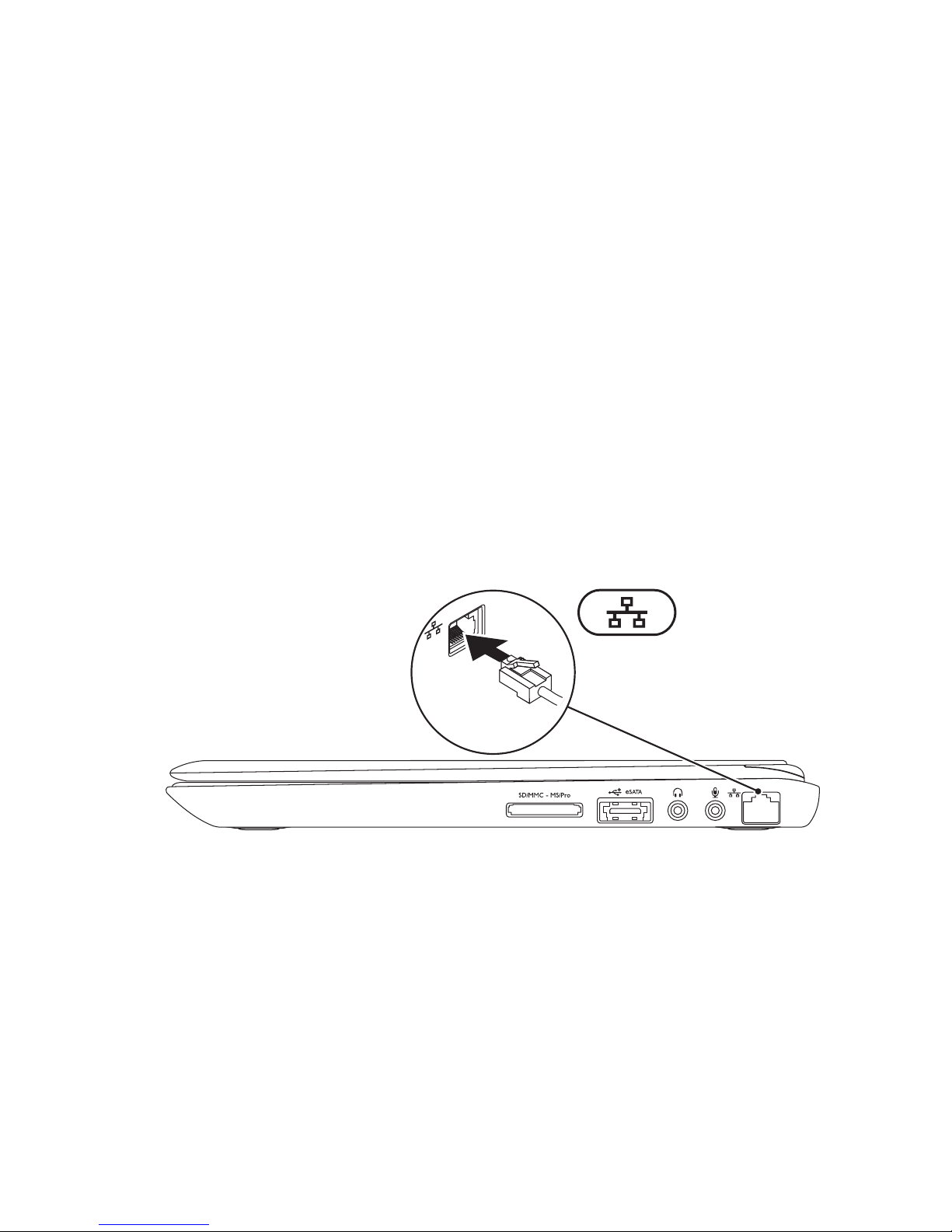

To use a wired network connection, connect the network cable.

8
Setting Up Your Inspiron Laptop
Press the Power Button

9
Setting Up Your Inspiron Laptop
Set Up the Operating System
Your computer is preconfigured with the operating system you selected at the time of purchase.
Set Up Microsoft Windows
To set up Microsoft®Windows®for the first time, follow the instructions on the screen. These
steps are mandatory and may take some time to complete. The Windows setup screens will take
you through several procedures including accepting license agreements, setting preferences, and
setting up an Internet connection.
CAUTION: Do not interrupt the operating system’s setup process. Doing so may render your
computer unusable and you will need to reinstall the operating system.
NOTE: For optimal performance of your computer, it is recommended that you download and
install the latest BIOS and drivers for your computer available at support.dell.com.
NOTE: For more information on the operating system and features, see
support.dell.com/MyNewDell.
Set Up Ubuntu
To set up Ubuntu®for the first time, follow the instructions on the screen. See the Ubuntu
documentation for more operating system specific information.

10
Setting Up Your Inspiron Laptop
Create System Recovery Media (Recommended)
NOTE: It is recommended that you create a system recovery media as soon as you set up
Microsoft Windows.
The system recovery media can be used to restore your computer to the operating state it was in
when you purchased the computer, while preserving data files (without the need of the Operating
System disc). You can use the system recovery media if changes to the hardware, software, drivers,
or other system settings have left the computer in an undesirable operating state.
You will require the following to create the system recovery media:
Dell DataSafe Local Backup•
USB key with a minimum capacity of 8 GB or DVD-R/DVD+R/Blu-ray Disc• ™
NOTE: Dell DataSafe Local Backup does not support rewritable discs.

11
Setting Up Your Inspiron Laptop
To create a system recovery media:
Ensure that the AC adapter is connected (see “Connect the AC Adapter” on page1. 6).
Insert the disc or USB key in the computer.2.
Click3. Start → Programs→Dell DataSafe Local Backup.
Click4. Create Recovery Media.
Follow the instructions on the screen.5.
NOTE: For information on using the system recovery media, see “System Recovery Media” on
page 62.

12
Setting Up Your Inspiron Laptop
Install the SIM Card (Optional)
NOTE: Installing a SIM card is not required if you are using an EVDO card to access the
Internet.
Installing a Subscriber Identity Module (SIM) card on your computer allows you to connect to the
Internet. To access the Internet you must be within the network of your cellular service provider.
To install the SIM card:
Turn off your computer.1.
Remove the battery (see “Removing and Replacing the Battery” on page2. 38).
In the battery bay, slide the SIM card into the SIM card slot.3.
Replace the battery (see “Removing and Replacing the Battery” on page4. 38).
Turn on your computer.5.

13
Setting Up Your Inspiron Laptop

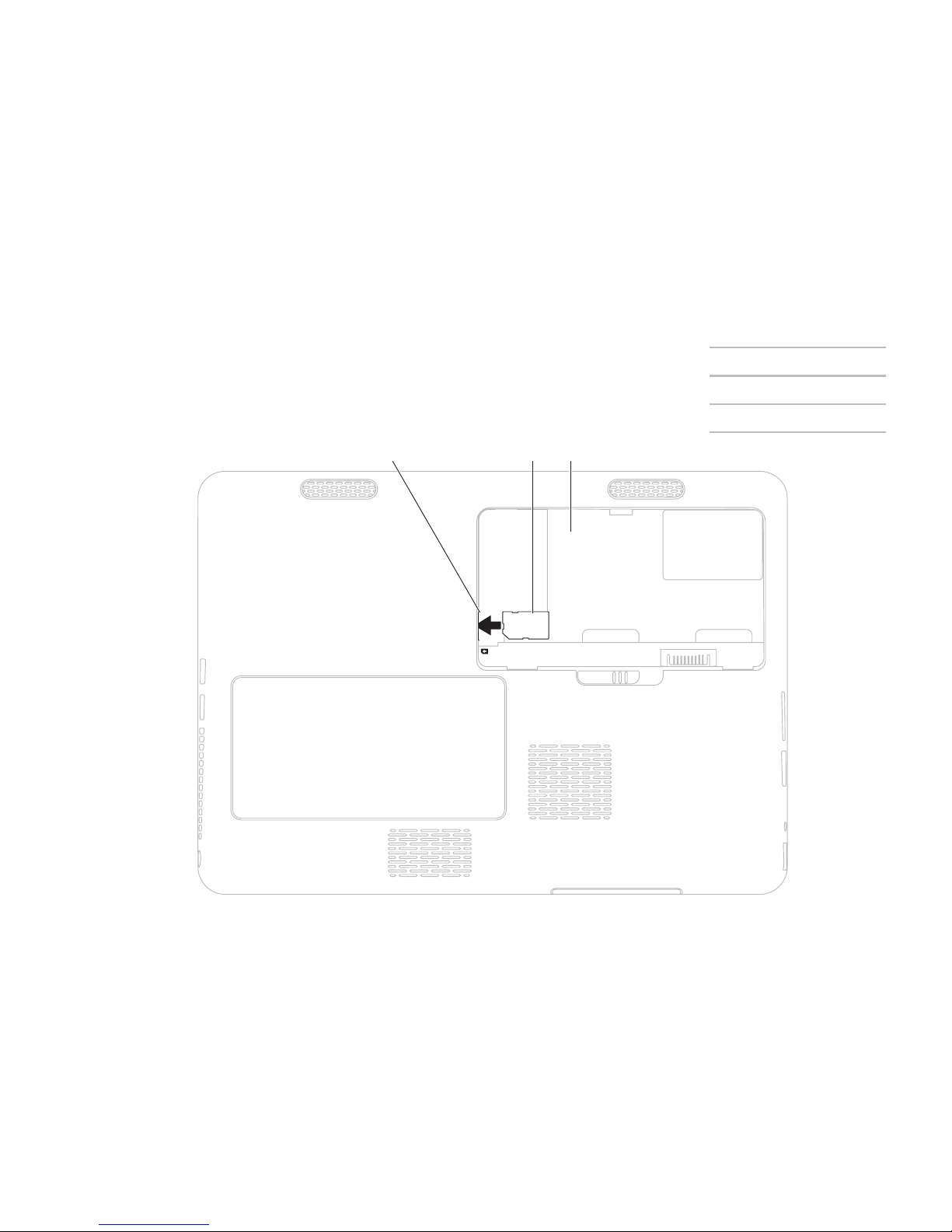

1SIM card slot
2SIM card
3battery bay
23
1

14
Setting Up Your Inspiron Laptop
Enable or Disable Wireless (Optional)

15
Setting Up Your Inspiron Laptop
NOTE: The wireless feature is available on your computer only if you ordered a WLAN card
at the time of purchase. For more information on the cards supported by your computer, see
“Specifications” on page 76.
To enable or disable wireless:
Ensure that your computer is turned on.1.

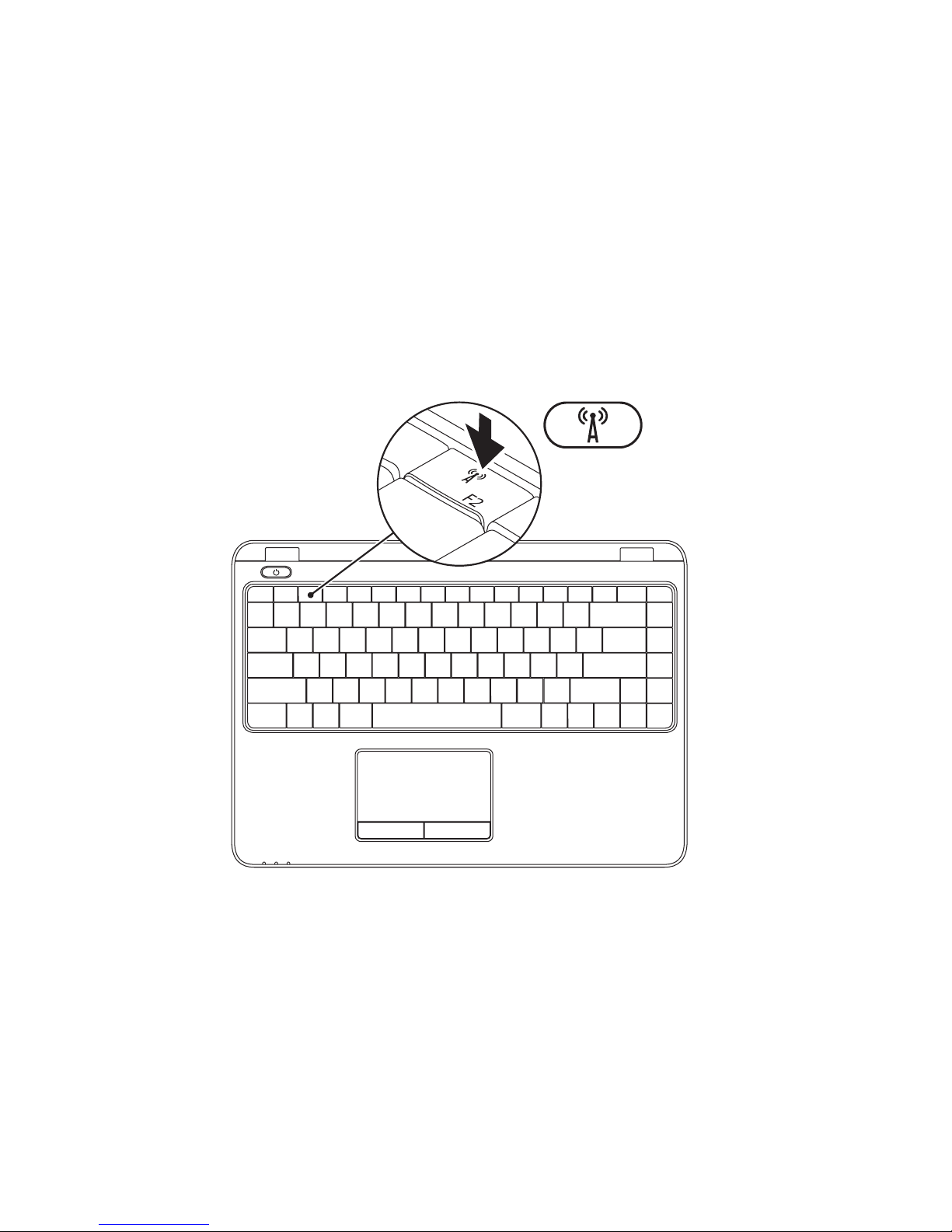

Press the wireless key2. on the keyboard.
The current wireless status is displayed on the screen.
Wireless enabled
Wireless disabled
Press the wireless key3. again to toggle between wireless enable or disable modes.
NOTE: The wireless key allows you to quickly turn off wireless radios (Wi-Fi and Bluetooth®),
such as when you are asked to disable all wireless radios on an airplane flight.

16
Setting Up Your Inspiron Laptop
Connect the External Optical Drive (Optional)
NOTE: Your computer does not have an internal optical drive. Use an external optical drive for
procedures that involve discs.
Connect the external optical drive to the USB connectors on your computer.

17
Setting Up Your Inspiron Laptop
Set Up the TV Tuner
(Optional)
NOTE: Availability of the TV tuner may vary
by region.
To set up the TV tuner for the first time:
Click1. Start → All Programs→ Windows
Media Center.
Follow the instructions on the screen.2.
Connect to the Internet
(Optional)
To connect to the Internet, you need an external
modem or network connection and an Internet
Service Provider (ISP).
If an external USB modem or WLAN adapter
is not a part of your original order, you can
purchase one at www.dell.com.

18
Setting Up Your Inspiron Laptop
Setting Up a Wired Connection
If you are using a dial-up connection,•
connect the telephone line to the optional
external USB modem and to the telephone
wall connector before you set up your
Internet connection.
If you are using a DSL or cable/satellite•
modem connection, contact your ISP
or cellular telephone service for setup
instructions.
To complete setting up your wired Internet
connection, follow the instructions in “Setting
Up Your Internet Connection” on page 19.
Setting Up a Wireless Connection
NOTE: To set up your wireless router, see
the documentation that shipped with your
router.
Before you can use your wireless Internet
connection, you need to connect to your
wireless router.
To set up your connection to a wireless router:
Windows Vista
®
Ensure that wireless is enabled on your1.
computer (see “Enable or Disable Wireless”
on page 14).
Save and close any open files, and exit any2.
open programs.
Click3. Start →Connect To.
Follow the instructions on the screen to4.
complete the setup.
