Dell Latitude 9330 Operation and maintenance manual

Latitude 9330
Setup and Specifications
Regulatory Model: P35S
Regulatory Type: P35S001
June 2022
Rev. A00

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid
the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 2022 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its
subsidiaries. Other trademarks may be trademarks of their respective owners.

Chapter 1: Set up your Latitude 9330............................................................................................ 4
Chapter 2: Views of Latitude 9330................................................................................................ 6
Right....................................................................................................................................................................................... 6
Left..........................................................................................................................................................................................6
Top.......................................................................................................................................................................................... 7
Display.................................................................................................................................................................................... 8
Bottom................................................................................................................................................................................... 9
Service Tag........................................................................................................................................................................... 9
Modes................................................................................................................................................................................... 10
Battery charge and status light .....................................................................................................................................13
Chapter 3: Specifications of Latitude 9330.................................................................................. 14
Dimensions and weight..................................................................................................................................................... 14
Processor............................................................................................................................................................................. 14
Chipset................................................................................................................................................................................. 15
Operating system...............................................................................................................................................................15
Memory................................................................................................................................................................................ 15
External ports......................................................................................................................................................................16
Internal slots........................................................................................................................................................................16
Wireless module..................................................................................................................................................................16
WWAN module....................................................................................................................................................................17
Audio..................................................................................................................................................................................... 18
Storage................................................................................................................................................................................. 18
Keyboard.............................................................................................................................................................................. 19
Camera................................................................................................................................................................................. 19
Touchpad.............................................................................................................................................................................20
Collaboration touchpad.............................................................................................................................................. 20
Power adapter.................................................................................................................................................................... 21
Battery................................................................................................................................................................................. 22
Display.................................................................................................................................................................................. 23
Fingerprint reader..............................................................................................................................................................24
Sensor ................................................................................................................................................................................. 24
GPU—Integrated.............................................................................................................................................................. 24
Multiple display support matrix...................................................................................................................................... 25
Hardware security.............................................................................................................................................................25
Operating and storage environment.............................................................................................................................25
Chapter 4: ComfortView Plus...................................................................................................... 26
Chapter 5: Keyboard shortcuts of Latitude 9330......................................................................... 27
Chapter 6: Getting help and contacting Dell................................................................................ 29
Contents
Contents 3

Set up your Latitude 9330
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
1. Connect the power adapter and press the power button.
NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press
the power button to turn on the computer.
2. Finish operating system setup.
For Ubuntu:
Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu,
search in the Knowledge Base Resource at www.dell.com/support.
For Windows:
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
●Connect to a network for Windows updates.
NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when
prompted.
●If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an
offline account.
●On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu—Recommended.
1
4 Set up your Latitude 9330

Table 1. Locate Dell apps
Resources Description
Dell Product Registration
Register your computer with Dell.
Dell Help & Support
Access help and support for your computer.
SupportAssist
SupportAssist is the smart technology that keeps your computer running at its best by optimizing
settings, detecting issues, removing viruses and notifies when you need to make system
updates. SupportAssist proactively checks the health of your system's hardware and software.
When an issue is detected, the necessary system state information is sent to Dell to begin
troubleshooting. SupportAssist is preinstalled on most of the Dell devices running Windows
operating system. For more information, see SupportAssist for Home PCs User's Guide on
www.dell.com/serviceabilitytools.
NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
Dell Update
Updates your computer with critical fixes and latest device drivers as they become available. For
more information on using Dell Update, search in the Knowledge Base Resource at www.dell.com/
support.
Dell Digital Delivery
Download software applications, which are purchased but not preinstalled on your computer.
For more information on using Dell Digital Delivery, search in the Knowledge Base Resource at
www.dell.com/support.
Set up your Latitude 9330 5

Views of Latitude 9330
Right
1. WWAN antenna (optional)
2. Nano-SIM slot (optional, only with WWAN config)
3. Universal audio port
4. USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode and Power Delivery
5. Wedge-shaped lock slot
Left
1. Thunderbolt 4 (USB Type-C) ports with DisplayPort Alt Mode / USB4 / Power Delivery
2. WWAN antenna (optional)
2
6 Views of Latitude 9330

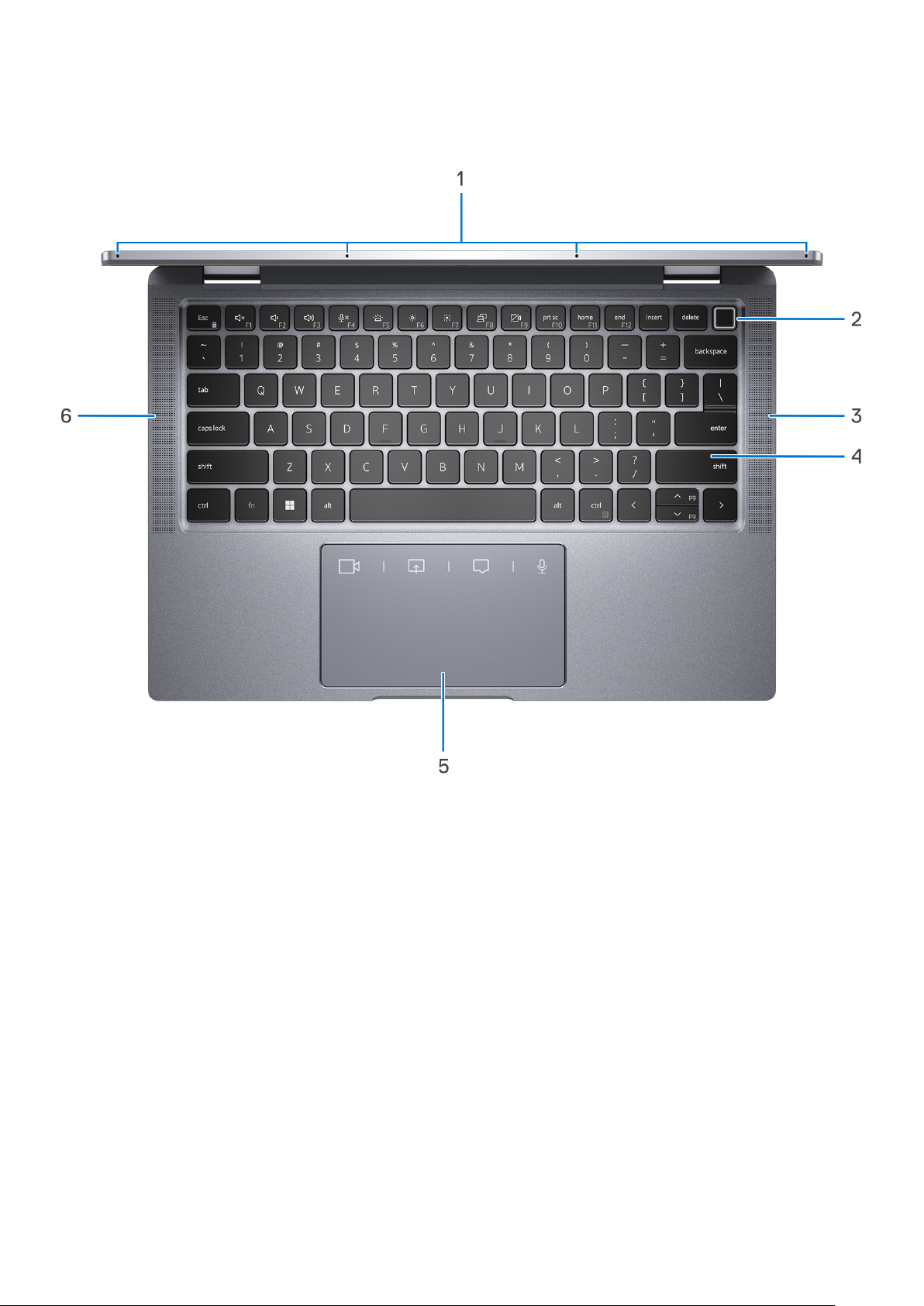

Top
1. Quad-array microphones
2. Power button with optional fingerprint reader
3. Right speaker
4. Keyboard
5. Collaboration Touchpad
6. Left speaker
Views of Latitude 9330 7

Display
1. Proximity sensors
2. IR LED
3. IR camera
4. IR LED
5. Camera-status light
6. RGB camera
7. Ambient-light sensor
8. Display
9. Battery-status light/Diagnostic-status light
8Views of Latitude 9330

Bottom
1. Speakers (Bottom firing)
2. Service Tag Label
3. Air vents
Service Tag
The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in
your computer and access warranty information.
Views of Latitude 9330 9

Modes
The following modes are applicable for your 2-in-1 computers.

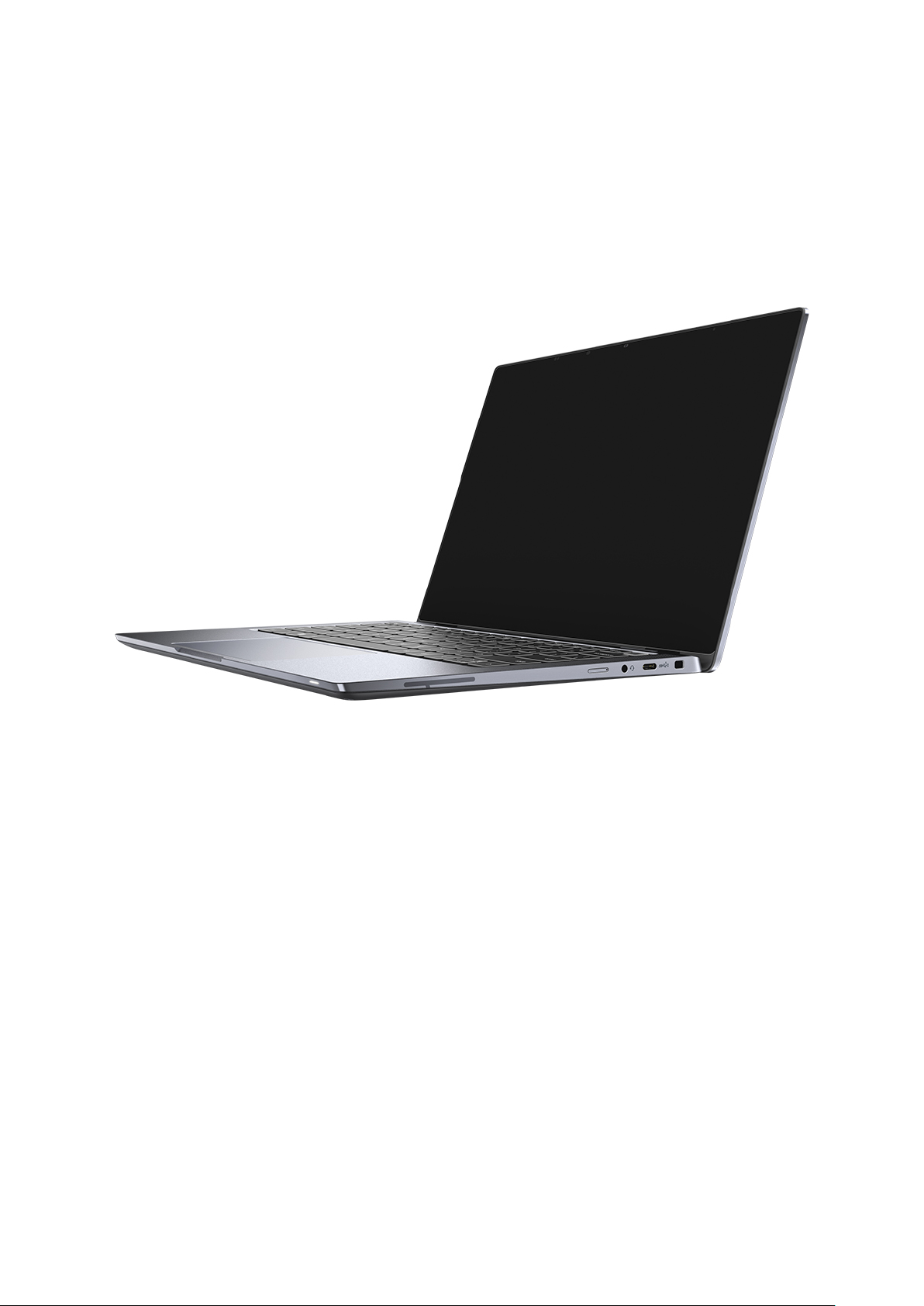

Notebook
10 Views of Latitude 9330

Tablet
Views of Latitude 9330 11

Stand
12 Views of Latitude 9330

Tent
Battery charge and status light
The following table lists the battery charge and status light behavior of your Latitude 9330.
Table 2. Battery charge and status light behavior
Power Source LED Behavior System Power State Battery Charge Level
AC Adapter Off S0 - S5 Fully Charged
AC Adapter Solid White S0 - S5 < Fully Charged
Battery Off S0 - S5 11-100%
Battery Solid Amber (590+/-3 nm) S0 - S5 < 10%
●S0 (ON) - System is turned on.
●S4 (Hibernate) - The system consumes the least power compared to all other sleep states. The system is almost at an OFF
state, expect for a trickle power. The context data is written to hard drive.
●S5 (OFF) - The system is in a shutdown state.
Views of Latitude 9330 13

Specifications of Latitude 9330
Dimensions and weight
The following table lists the height, width, depth, and weight of your Latitude 9330.
Table 3. Dimensions and weight
Description Values
Height:
Front height 8.30 mm (0.32 in.)
Rear height 14.12 mm (0.55 in.)
Width 296.35 mm (11.66 in.)
Depth 208.39 mm (8.20 in.)
Weight (maximum) ●Minimum: 1.27 kg (2.80 lb)
NOTE: The weight of your computer depends on the
configuration ordered and manufacturing variability.
Processor
The following table lists the details of the processors supported by your Latitude 9330.
Table 4. Processor
Description Option one Option two Option three
Processor type 12th Generation Intel Core
i5-1230U
12th Generation Intel Core
i5-1240U
12th Generation Intel Core
i7-1260U
Processor wattage 12 W 12 W 12 W
Processor core count 10 10 10
Processor thread count 12 12 12
Processor speed 1.00 Ghz to 4.40 GHz 1.10 GHz to 4.40 GHz 1.10 GHz to 4.70 GHz
Processor cache 12 MB 12 MB 12 MB
Integrated graphics Intel Iris XeGraphics Intel Iris XeGraphics Intel Iris XeGraphics
3
14 Specifications of Latitude 9330

Chipset
The following table lists the details of the chipset supported by your Latitude 9330.
Table 5. Chipset
Description Values
Chipset Intel P-PCH
Processor 12th Generation Intel Core i5/i7
DRAM bus width 64-bit
Flash EPROM 64 MB
PCIe bus Up to Gen 4.0
Operating system
Your Latitude 9330 supports the following operating systems:
●Windows 11 Home, 64-bit
●Windows 11 Pro, 64-bit
●Windows 11 Downgrade (Windows 10 image)
Memory
The following table lists the memory specifications of your Latitude 9330.
Table 6. Memory specifications
Description Values
Memory slots On-board
Memory type Dual-channel LPDDR5
Memory speed 5200 MHz
Maximum memory configuration 32 GB
Minimum memory configuration 8 GB
Memory configurations supported ●8 GB, 2 x 4 GB, LPDDR5, 5200 MHz, dual-channel
●16 GB, 2 x 8 GB, LPDDR5, 5200 MHz, dual-channel
●32 GB, 2 x 16 GB, LPDDR5, 5200 MHz, dual-channel
Specifications of Latitude 9330 15

External ports
The following table lists the external ports on your Latitude 9330.
Table 7. External ports
Description Values
USB ports ●Two Thunderbolt 4 (USB Type-C) ports with DisplayPort
Alt Mode and Power Delivery
●One USB 3.2 Gen 2 Type-C port with DisplayPort Alt
Mode and Power Delivery
Audio port One universal audio jack
Video port/ports Via Thunderbolt 4 (USB Type-C) ports or USB 3.2 Gen 2
Type-C port
Media-card reader Not supported
SIM-card slot One Nano-SIM card slot (optional)
Power-adapter port USB Type-C
Security-cable slot One Wedge-shaped lock slot
Internal slots
The following table lists the internal slots of your Latitude 9330.
Table 8. Internal slots
Description Values
M.2 ●One M.2 2230 slot for solid-state drive
●One M.2 3042/3052 slot for WWAN module
NOTE: To learn more about the features of different
types of M.2 cards, search in the Knowledge Base
Resource at www.dell.com/support.
Wireless module
The following table lists the Wireless Local Area Network (WLAN) module supported on your Latitude 9330.
Table 9. Wireless module specifications
Description Values
Model number Intel Wi-Fi 6 AX211 (onboard)
Transfer rate Up to 2400 Mbps
Frequency bands supported 2.4 GHz/5 GHz/6 GHz
Wireless standards ●Wi-Fi 802.11a/b/g
●Wi-Fi 4 (WiFi 802.11n)
●Wi-Fi 5 (WiFi 802.11ac)
16 Specifications of Latitude 9330

Table 9. Wireless module specifications (continued)
Description Values
●Wi-Fi 6E (WiFi 802.11ax)
Encryption ●64-bit/128-bit WEP
●AES-CCMP
●TKIP
Bluetooth Bluetooth 5.2
WWAN module
The following table lists the Wireless Wide Area Network (WWAN) module supported on your Latitude 9330.
Table 10. WWAN module specifications
Description Option one Option two
Module DW5821e. Qualcomm Snapdragon X20
Global Gigabit LTE, CAT16
DW5931e, Intel 5G 5000 Global Gigabit
NR/LTE, 3GPP
Form Factor M.2 3042 Key-B M.2 3052 Key-B
Host interface USB 3.0/2.0 PCIe Gen3
Network standard LTE FDD/TDD, WCDMA/HSPA+, GPS/
GLONASS/Beidou/Galileo
NR FR1(Sub6) FDD/TDD, LTE FDD/
TDD, WCDMA/HSPA+, GPS/GLONASS/
Galileo/BDS/QZSS
Transfer data rate Up to 1 Gbps DL (CAT16)
Up 150 Mbps UL
SA: DL 4.67Gbps / UL 1.25Gbps
NSA: DL 3.74Gbps / UL 700Mbps
LTE: DL 1.6Gbps (CAT19) / UL 150Mbps
UMTS: DL 384 kbps / UL 384 kbps
DL DC-HSPA+: 42 Mbps (CAT24) / UL
11.5 Mbps (CAT7)
Operating Frequency Bands LTE(B1, B2, B3, B4, B5, B7, B8, B12, B13,
B14, B17, B18, B19, B20, B25, B26, B28,
B29, B30, B32, B38, B39, B40, B41, B42,
B43, B46, B66)
HSPA+ (1, 2, 4, 5, 6, 8, 9, 19)
NR(n1, n2, n3, n5, n7, n8, n20, n25, n28,
n30, n38, n40, n41, n48, n66, n71, n77,
n78, n79)
LTE (B1, B2, B3, B4, B5, B7, B8, B12,
B13, B14, B17, B18, B19, B20, B25, B26,
B28, B29, B30, B32, B34, B38, B39,
B40, B41, B42, B43, B46, B48, B66,
B71*)
WCDMA/HSPA+ (1, 2, 4, 5, 8)
NOTE: Modem hardware supports
but currently disabled.
Power supply DC 3.135 V to 4.4 V, Typical 3.3 V DC 3.135 V to 4.4 V, typical 3.3 V
SIM card Supported through external SIM slot Supported through external SIM slot
eSIM with Dual SIM (DSSA) Supported (the availability of eSIM
functionality embedded on the module
is dependent on the region and specific
carrier requirements)
Supported (The availability of eSIM
functionality embedded on the module
is dependent on the region and specific
carrier requirements)
Antenna Diversity Supported Supported
Specifications of Latitude 9330 17

Table 10. WWAN module specifications (continued)
Description Option one Option two
Radio On/Off Supported Supported
Wake On Wireless Supported Supported
Temperature Normal operating temperature: -30°C to
+ 70°C
Extended Operating temperature: -40°C
to +85°C
Normal operating temperature: -10°C to
+55°C
Extended operating temperature: -30°C
to +75°C
Storage temperature: -40°C to +85°C
Antenna connector ●One WWAN Main Antenna
●One WWAN Diversity Antenna
●Two 4 x 4 MIMO Antenna
●Four WWAN Antenna
●Supported 4 x 4 MIMO Antenna
NOTE: For instructions on how to find your computer's IMEI (International Mobile Station Equipment Identity) number,
search in the Knowledge Base Resource at www.dell.com/support.
Audio
The following table lists the audio specifications of your Latitude 9330.
Table 11. Audio specifications
Description Values
Audio controller Realtek ALC711-CG
Stereo conversion Supported
Internal audio interface SoundWire
External audio interface Universal audio jack
Number of speakers Four
●Two front-firing
●Two bottom-firing
Internal-speaker amplifier Realtek ALC1319D
External volume controls Keyboard shortcut controls
Speaker output:
Average speaker output 4 x 2 W
Peak speaker output 4 x 2.5 W
Subwoofer output Not supported
Microphone Dual-array microphones
Storage
This section lists the storage options on your Latitude 9330.
Your computer supports one of the following configurations:
18 Specifications of Latitude 9330

●M.2 2230, solid-state drive
The primary drive of your computer varies with the storage configuration.
Table 12. Storage specifications
Storage type Interface type Capacity
M.2 2230, Class 35 solid-state drive PCIe NVMe Gen4 x4 Up to 1 TB
M.2 2230, Class 35 solid-state drive,
Opal self-encrypting
PCIe NVMe Gen4 x4 256 GB
Keyboard
The following table lists the keyboard specifications of your Latitude 9330.
Table 13. Keyboard specifications
Description Values
Keyboard type ●Backlit
Keyboard layout QWERTY
Number of keys ●United States and Canada: 79 keys
●United Kingdom: 80 keys
●Japan: 83 keys
Keyboard size X=18.05 mm key pitch
Y=18.05 mm key pitch
Keyboard shortcuts Some keys on your keyboard have two symbols on them.
These keys can be used to type alternate characters or to
perform secondary functions. To type the alternate character,
press Shift and the desired key. To perform secondary
functions, press Fn and the desired key.
NOTE: You can define the primary behavior of the
function keys (F1–F12) changing Function Key Behavior
in BIOS setup program.
Camera
The following table lists the camera specifications of your Latitude 9330.
Table 14. Camera specifications
Description Values
Number of cameras Two
Camera type FHD RGB + IR camera with dual digital-array microphones
Camera location Front camera
Camera sensor type CMOS sensor technology
Camera resolution:
Still image 2.07 megapixel
Specifications of Latitude 9330 19

Table 14. Camera specifications (continued)
Description Values
Video 1920 x 1080 at 30 fps
Infrared camera resolution:
Still image 0.25 megapixel
Video 640 x 400 at 30 fps
Diagonal viewing angle:
Camera 82.0 degrees
Infrared camera 75.8 degrees
Touchpad
The following table lists the touchpad specifications of your Latitude 9330.
Table 15. Touchpad specifications
Description Values
Touchpad resolution:
Horizontal 4655
Vertical 2731
Touchpad dimensions:
Horizontal 115.00 mm (4.52 in.)
Vertical 67.00 mm (2.63 in.)
Touchpad gestures For more information about touchpad gestures available
on Windows, see the Microsoft knowledge base article at
support.microsoft.com.
Collaboration touchpad
The Collaboration Touchpad enables faster access to meeting controls when using Zoom. The controls for the mic, webcam,
screen sharing, and chat are placed conveniently on the touchpad. The icons light up white or red based on the status of the
controls.
Collaboration touchpad for Zoom requires you to install the below items for full functionality:
1. Dell Optimizer version 3.1 and above
●In-app Collaboration module in Dell Optimizer
2. Zoom Client version 5.9.3 and above
Also, enable the Collaboration Touchpad in the BIOS.
During Zoom meetings, the touchpad illuminates the collaboration shortcuts and they disappear when you leave the meeting.
The shortcuts are not available when attending meetings from a browser or when you are on more than one Zoom meeting.
20 Specifications of Latitude 9330
