Dell Latitude D810 User manual

Dell™Latitude™D810
User's Guide

Notes, Notices, and Cautions
Abbreviations and Acronyms
For a complete list of abbreviations and acronyms, see the "Glossary."
Information in this document is subject to change without notice.
©2005DellInc.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
NOTE: Some features may not be available for your computer or in certain countries.
Trademarks used in this text: Dell, the DELL logo, DellNet, Dimension, Dell TravelLite, Inspiron, Latitude, OptiPlex, PowerApp, PowerEdge, PowerConnect, PowerVault, Dell Precision,
Strikezone, and Undock & Go are trademarks of Dell Inc.; Intel,Pentium, and SpeedStep are registered trademarks of Intel Corporation; Microsoft, Windows, and Outlook are registered
trademarks of Microsoft Corporation; Bluetooth is a registered trademark of Bluetooth SIG, Inc., and is used by Dell Inc. under license.; ENERGY STAR is a registered trademark of
the U.S Environmental Protection Agency. As an ENERGY STAR Partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model PP15L
May 2005P/ND5964Rev.A02

About Your Computer

Determining Your Computer's Configuration
Front View
Left Side View
Right Side View
Back View
Bottom View

Based on selections that you made when purchasing your computer, your Dell Latitude D810 came in one of two different configurations. To determine
your computer's configuration, you need to know its PPID number.
Determining Your Computer's Configuration
1. Ensure that the computer is turned off and disconnected from the electrical outlet.
2. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

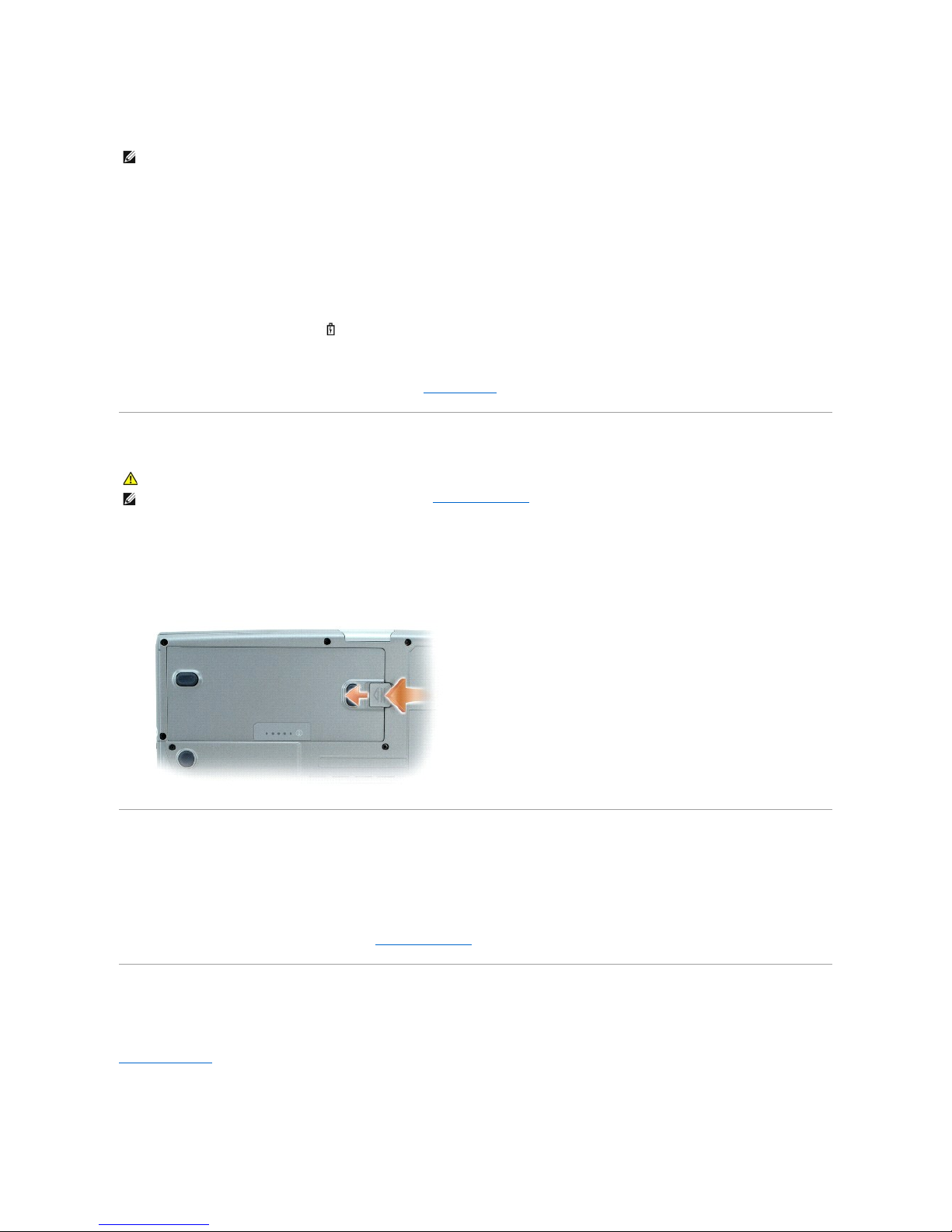

3. Slide and hold the battery-bay latch release on the bottom of the computer, and then remove the battery from the bay. See "Removing the Battery" for
a detailed image.

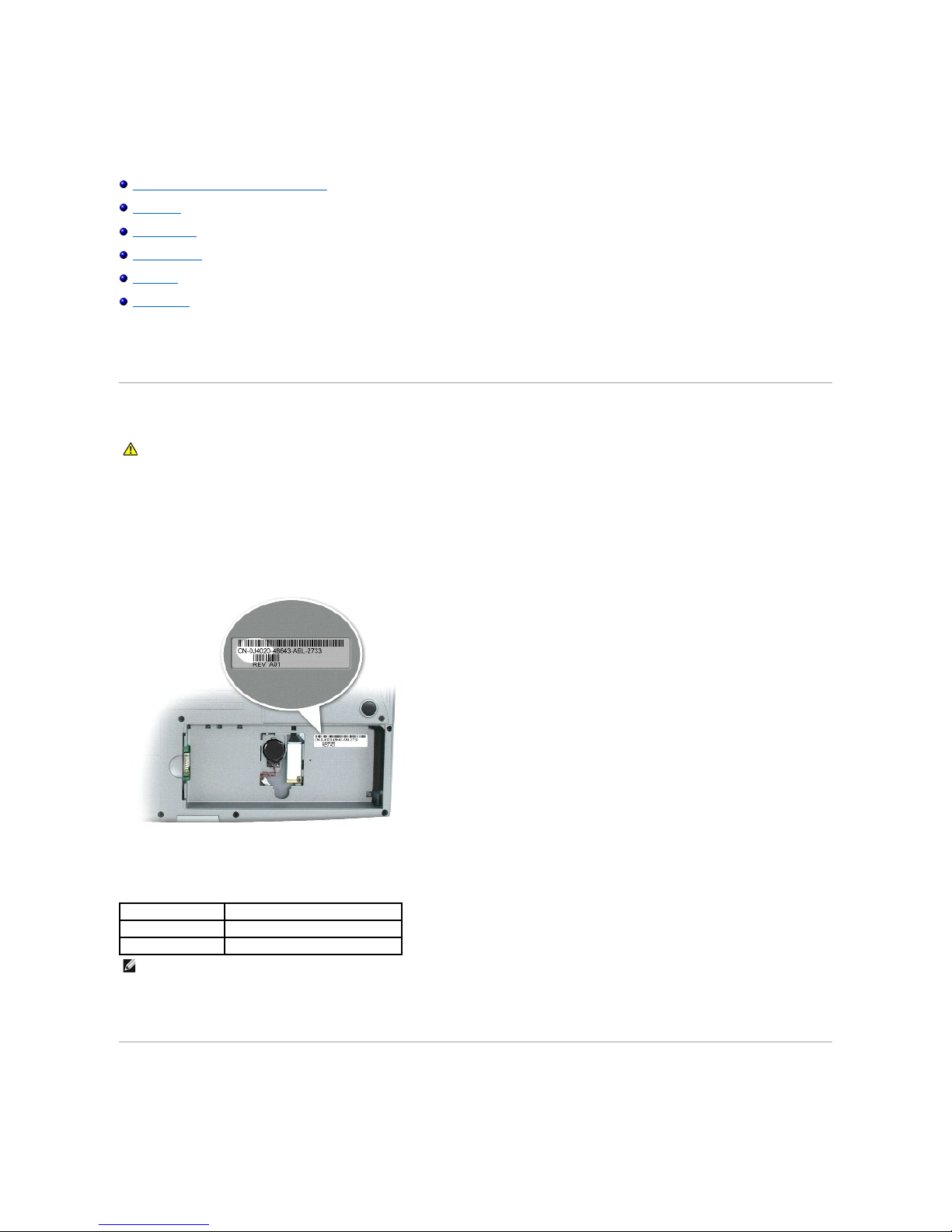

4. Find the PPID label, located beneath the main battery, as indicated in the following graphic.
The PPID number is the first number that appears on this label. The first 9 characters identify the configuration of your computer.
5. Match the first 9 characters of your PPID label to a configuration in the table below.
Use the PPID number to identify your configuration, wherever configuration differences are mentioned in your computer's documentation.
6. Print this page and circle the appropriate PPID number. Keep this for your records.
Dell recommends that you keep track of the 9-character PPID number for future reference.
Front View

CAUTION: Before performing these procedures, disconnect the modem from the telephone wall jack.
PPID Number
Configuration
CN-0Y8682
ATI Mobility Radeon X300
CN-0J4020
ATI Mobility Radeon X600
NOTE: In any communication with Dell, use the 9-character PPID number to identify your Latitude D810 configuration.



display latch —Keeps the display closed.

display —For more information about your display, see "Using the Display."

power button —Press the power button to turn on the computer or to enter or exit a power management mode.
If the computer stops responding, press and hold the power button until the computer turns off completely (which may take several seconds).

device status lights


1
display latch
8
speakers
2
display
9
track stick/touch pad buttons
3
power button
10
track stick
4
device status lights
11
volume control buttons
5
keyboard
12
mute button
6
touch pad
13
keyboard status lights
7
display latch button


NOTICE: To avoid losing data, shut down your computer instead of pressing the power button.

If the computer is connected to an electrical outlet, the light operates as follows:
¡Solid green: The battery is charging.
¡Flashing green: The battery is completely charged.
If the computer is running on a battery, the light operates as follows:
¡Off: The battery is adequately charged (or the computer is turned off).
¡Flashing orange: The battery charge is low.
¡Solid orange: The battery charge is critically low.

keyboard —The keyboard includes a numeric keypad as well as the Microsoft®Windows®logo key. For information on supported keyboard shortcuts, see
"Using the Keyboard and Touch Pad."

touch pad —Touch pad and touch pad buttons provide the functionality of a mouse. See "Using the Keyboard and Touch Pad" for more information.

display latch button —Press this button to release the display latch and open the display.

speakers —To adjust the volume of the integrated speakers, press the volume control buttons or volume control keyboard shortcuts. For more information,
see "Using the Keyboard and Touch Pad."

track stick/touch pad buttons —Track stick and touch pad buttons provide the functionality of a mouse. See "Using the Keyboard and Touch Pad" for more
information.

track stick —Track stick and track stick buttons provide the functionality of a mouse. See "Using the Keyboard and Touch Pad" for more information.

volume control buttons —Press these buttons to adjust the volume.

mute button —Press this button to turn off the volume.

keyboard status lights

The green lights located above the keyboard indicate the following:

Turns on when you turn on the computer.
Turns on when the computer reads or writes data.
NOTICE: To avoid loss of data, never turn off the
computer while the light is flashing.
Turns on steadily or blinks when the computer is in a
power management mode. It also blinks to indicate
battery charge status.
Turns on when the numeric keypad is enabled.
Turns on when wireless networking is enabled. To
enable or disable wireless networking, press

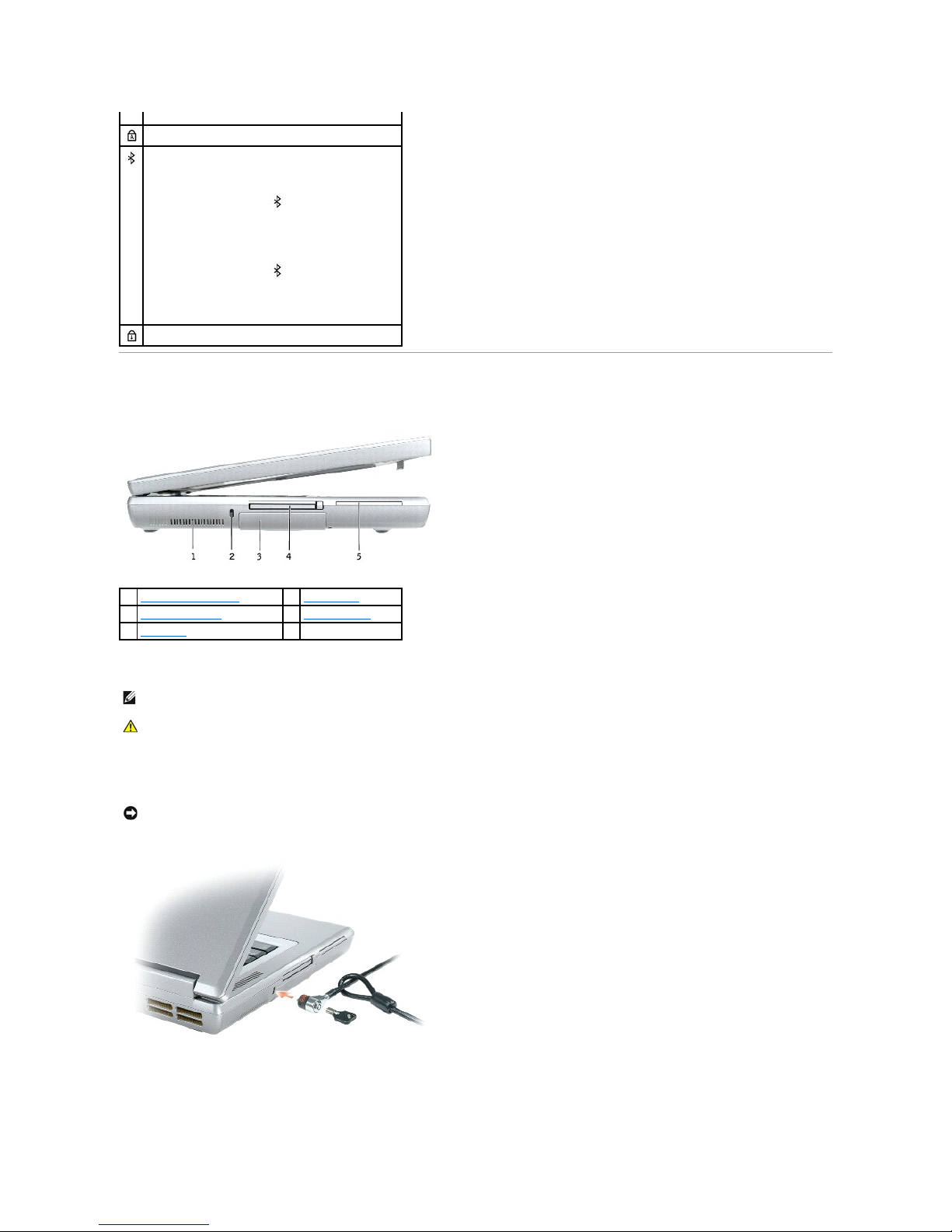

Left Side View



processor fan air vent —Computers use internal fans to create airflow through the vents. This helps prevent overheating.

security cable slot —Lets you attach a commercially available antitheft device to the computer. For more information, see the instructions included with the
device.


hard drive —Stores software and data.

<Fn><F2>.
Turns on when the uppercase letter function is enabled.
Turns on when a card with Bluetooth®wireless
technology is enabled.
NOTE: The card with Bluetooth wireless technology is
an optional feature, so the light turns on only if you
ordered the card with your computer. For more
information, see the documentation that came with your
card.
To turn off only the Bluetooth wireless technology
functionality, right-click the icon in the system tray
and select Disable Bluetooth Radio.
To quickly enable or disable all wireless devices, press
<Fn><F2>.
Turns on when the scroll lock function is enabled.
1
processor fan air vent
4
PC Card slot
2
security cable slot
5
smart card slot
3
hard drive


NOTE: The computer turns on the fan(s) when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the
computer.
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,
such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.
NOTICE: Before you buy an antitheft device, ensure that it will work with the security cable slot.

PC Card slot —Supports one PC Card, such as a modem or network adapter. The computer ships with a plastic blank installed in the slot. For more
information, see "Using PC Cards."

smart card slot —Supports one smart card. For more information, see "Using Smart Cards."

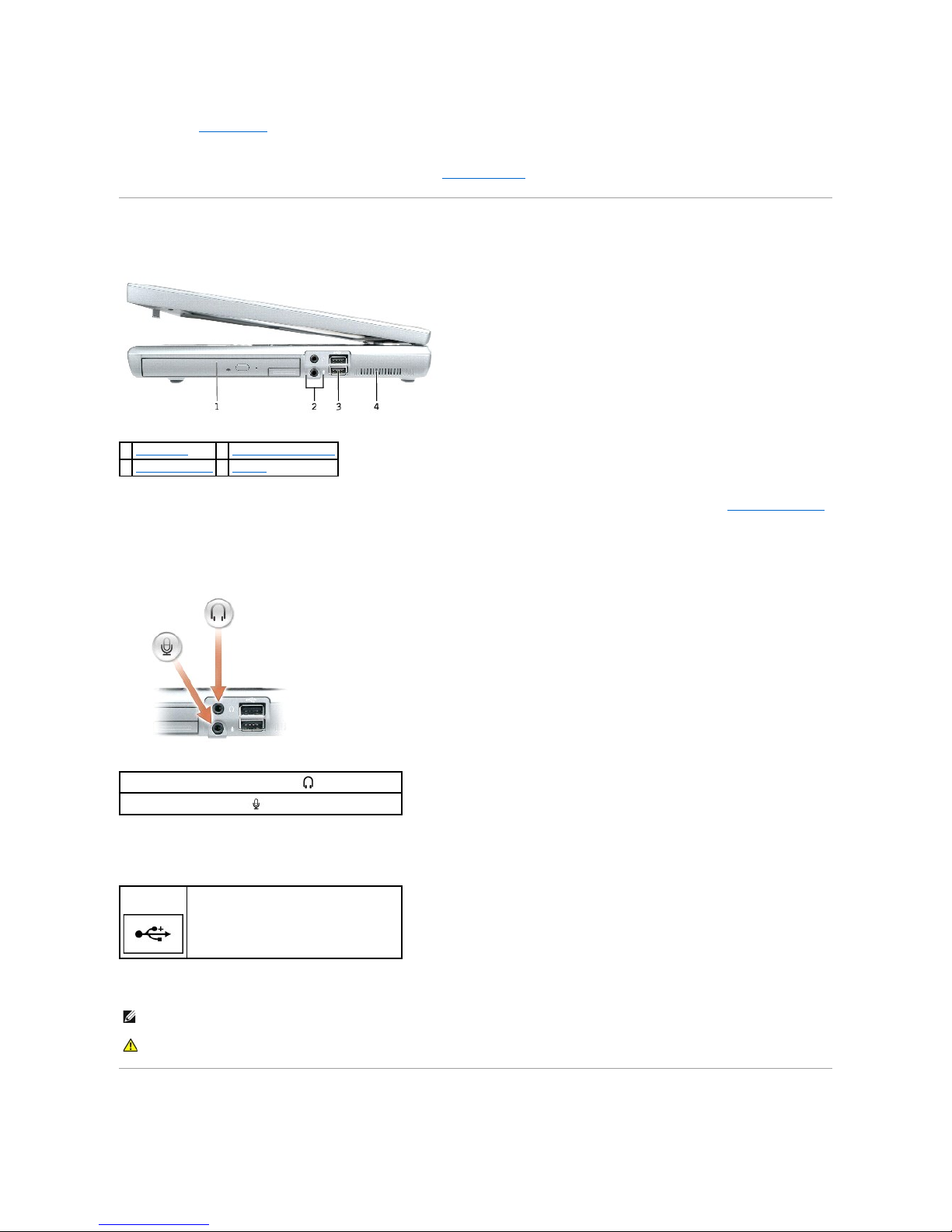

Right Side View




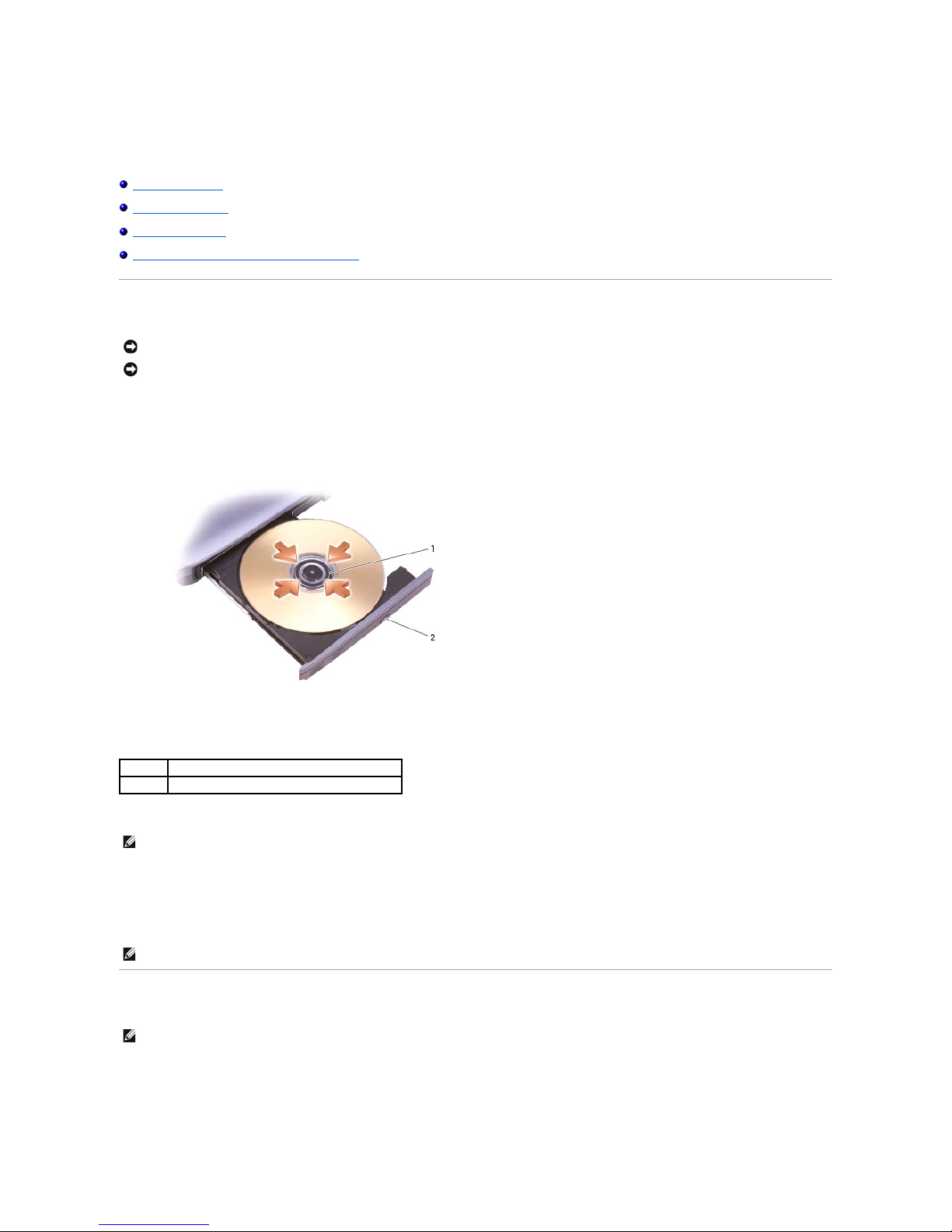

module bay —YoucaninstalldevicessuchasanopticaldriveorDellTravelLite™moduleinthemodulebay.Formoreinformation,see"Using the Module Bay."

audio connectors



USB 2.0 connectors (2)


air vent —Computers use internal fans to create airflow through the vents. This helps prevent overheating.
Back View
1
module bay
3
USB 2.0 connectors (2)
2
audio connectors
4
air vent
Attach headphones or speakers to the connector.
Attach a microphone to the connector.

Connects USB 2.0 compliant devices, such as
a mouse, keyboard, or printer.
NOTE: The computer turns on the fan(s) when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the
computer.
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,
such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.




air vent —Computers use internal fans to create airflow through the vents. This helps prevent overheating.

infrared sensor —Lets you transfer files from your computer to another infrared-compatible device without using cable connections.
When you receive your computer, the sensor is disabled. You can use system setup to enable the sensor. For information on transferring data, see Windows
Help, the Windows Help and Support Center, or the documentation that came with your infrared-compatible device.

network connector (RJ-45)


modem connector (RJ-11)


USB 2.0 connectors (2)


S-video TV-out connector

1
air vent
6
S-video TV-out connector
2
infrared sensor
7
serial connector
3
network connector (RJ-45)
8
video connector
4
modem connector (RJ-11)
9
AC adapter connector
5
USB 2.0 connectors (2)
10
processor fan air vent
NOTE: The computer turns on the fan(s) when the computer gets hot. Fan noise is normal and does not indicate a problem with the fans or the
computer.
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,
such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.
NOTICE: The network connector is slightly larger than the modem connector. To avoid damaging the computer, do not plug a telephone line in to the
network connector.

Connects the computer to a network. The two lights next to the connector indicate the status of the link and the transfer of information
on a wired network connection.
For information on using the network adapter, see the online network-adapter documentation supplied with your computer. See
"Finding Information."

If you ordered the optional internal modem, connect the telephone line to the modem connector.
For information on using the modem, see the online modem documentation supplied with your computer. See "Finding Information."

Connect USB devices, such as a mouse, keyboard, or printer. You can also connect the optional floppy drive directly to a USB connector
using the optional floppy-drive cable.

Connects your computer to a TV. Also connects digital-audio capable devices using the TV/digital-audio adapter cable. For more
information, see "Connecting Your Computer to a TV or Audio Device."


serial connector


video connector


AC adapter connector —Connects the AC adapter so that you can run the computer on AC power instead of battery power.

The AC adapter converts AC power to the DC power required by the computer. You can connect the AC adapter with your computer turned either on or off.

processor fan air vent —Computers use internal fans to create airflow through the vents. This helps prevent overheating.

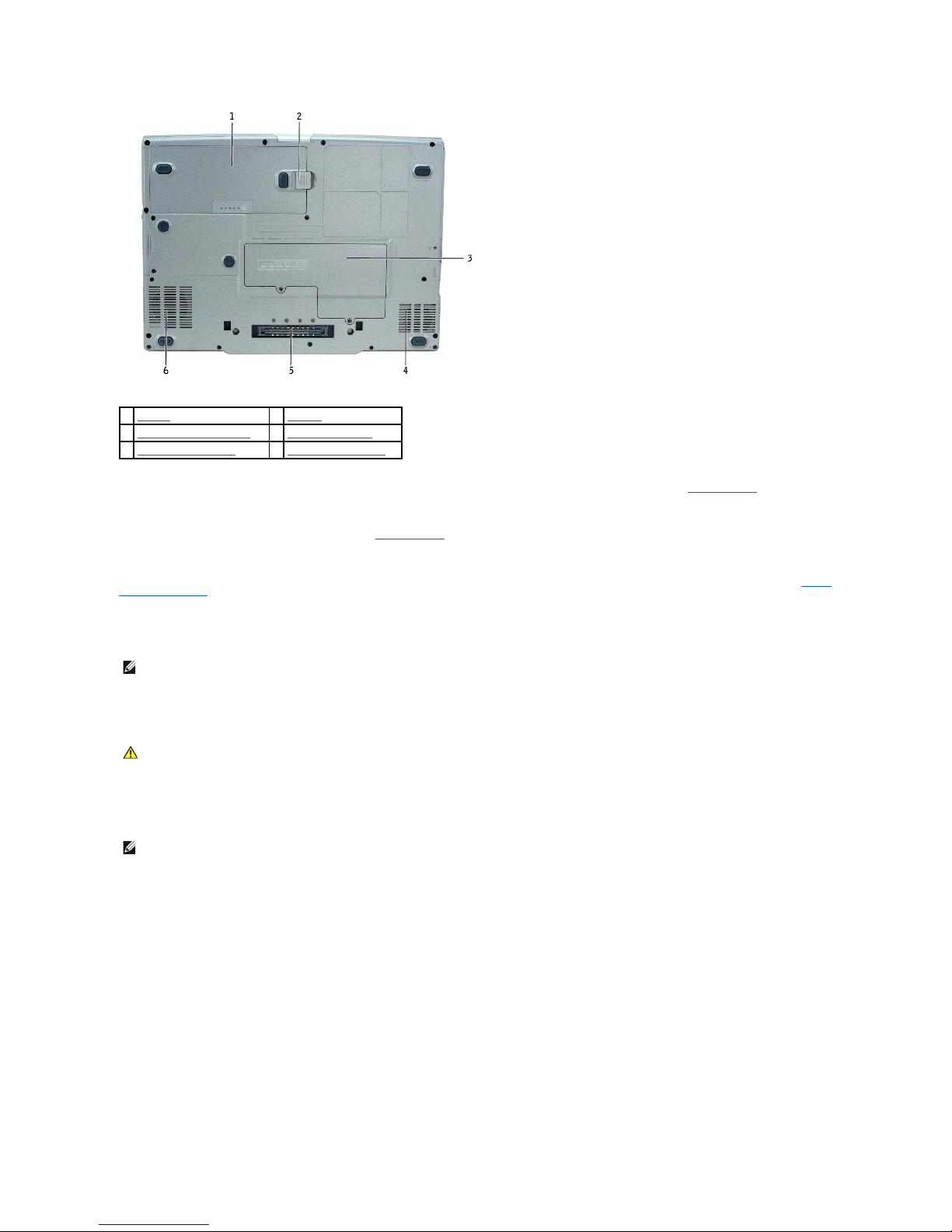

Bottom View


Connects serial devices, such as a mouse or handheld device.

Connects an external monitor. For more information, see "Using the Display."
CAUTION: The AC adapter works with electrical outlets worldwide. However, power connectors and power strips vary among countries. Using an
incompatible cable or improperly connecting the cable to the power strip or electrical outlet may cause fire or equipment damage.
NOTICE: When you disconnect the AC adapter cable from the computer, grasp the connector, not the cable itself, and pull firmly but gently to avoid
damaging the cable.
NOTE: The computer turns on the fan(s) when the computer gets hot. Fan noise is normal and does not indicate a problem with the fans or the
computer.
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,
such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.



battery —When a battery is installed, you can use the computer without connecting the computer to an electrical outlet. See "Using a Battery."

battery-bay latch release —Releases the battery. See "Using a Battery."

memory module cover —Covers the compartment that contains the optional modem, the optional Mini PCI card, and the memory (DIMM) module. See "
Adding
and Replacing Parts."

air vent —Computers use internal fans to create airflow through the vents. This helps prevent overheating.

docking device slot —Lets you attach your computer to a docking device. See the documentation that came with your docking device for additional
information.

processor fan air vent —Computers use internal fans to create airflow through the vents. This helps prevent overheating.
1
battery
4
air vent
2
battery-bay latch release
5
docking device slot
3
memory module cover
6
processor fan air vent
NOTE: The computer turns on the fan(s) when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the
computer.
CAUTION: Your computer features Undock & Go™technology that allows you to undock your computer without going into standby mode. Because
the computer may not automatically go into standby mode when it is undocked, be sure the settings in the Power Options control panel do not
prohibit the computer from going into standby mode. If you change the Power Options control panel to prohibit the computer from going into
standby mode, you greatly increase the chances of causing your battery to wear down quickly or causing your computer to overheat.
NOTE: The computer turns on the fan(s) when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the
computer.

Appendix

Macrovision Product Notice
FCC Notices (U.S. Only)
Macrovision Product Notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
FCC Notices (U.S. Only)

Most Dell computers are classified by the Federal Communications Commission (FCC) as Class B digital devices. To determine which classification applies to
your computer, examine all FCC registration labels located on the bottom, side, or back panel of your computer, on card-mounting brackets, and on the cards
themselves. If any one of the labels carries a Class A rating, your entire computer is considered to be a Class A digital device. If all labels carry an FCC Class B
rating as distinguished by either an FCC ID number or the FCC logo, ( ), your computer is considered to be a Class B digital device.

Once you have determined your computer's FCC classification, read the appropriate FCC notice. Note that FCC regulations provide that changes or
modifications not expressly approved by Dell could void your authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

lThis device may not cause harmful interference.

lThis device must accept any interference received, including interference that may cause undesired operation.
Class A

This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful
interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be
required to correct the interference at your own expense.
Class B

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause interference with radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following
measures:

lReorient or relocate the receiving antenna.

lIncrease the separation between the equipment and the receiver.

lConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.

lConsult the dealer or an experienced radio/television technician for help.
FCC Identification Information

The following information is provided on the device or devices covered in this document in compliance with FCC regulations:


lModel number: PP15L

lCompany name:
Dell Inc.
One Dell Way
Round Rock, Texas 78682 USA
512-338-4400


Alert Standard Format (ASF)


Alert Standard Format (ASF) is a Distributed Management Task Force (DMTF) management standard that specifies "pre-
operating system" or "operating system
absent" alerting techniques. The standard is designed to generate an alert on potential security and fault conditions when the operating system is in a sleep
state or the system is turned off. ASF is designed to supersede previous operating system-absent alerting technologies.

Your computer supports the following ASF alerts and remote capabilities:


For more information about Dell's ASF implementation, see ASF for Dell Portable Computers and the ASF Administrator's Guide for Dell Portable Computers, which
are available on the Dell Support website at support.dell.com.

Alert
Description
Chassis Intrusion –Physical Security Violation/Chassis Intrusion –Physical
Security Violation Event Cleared
The docking device has been opened and the PCI slot has
been compromised.
Failure to Boot to BIOS
The BIOS did not complete loading upon initiation.
System Password Violation
The system password is invalid (alert occurs after three failed
attempts).
Entity Presence
Periodic heartbeats have been transmitted to verify system
presence.

Using a Battery

Battery Performance
Checking the Battery Charge
Charging the Battery
Removing a Battery
Installing a Battery
Storing a Battery
Battery Performance

ForoptimalcomputerperformanceandtohelppreserveBIOSsettings,operateyourDell™portablecomputerwiththemainbatteryinstalledatalltimes.Use
a battery to run the computer when it is not connected to an electrical outlet. One battery is supplied as standard equipment in the battery bay.

Battery operating time varies depending on operating conditions. You can install an optional second battery in the module bay to significantly increase
operatingtime.

Operating time is significantly reduced when you perform operations including, but not limited to, the following:

lUsing optical drives, such as DVD or CD drives

lUsing wireless communications devices, PC Cards, or USB devices

lUsing high-brightness display settings, 3D screen savers, or other power-intensive programs such as 3D games

lRunning the computer in maximum performance mode

You can check the battery charge before you insert the battery into the computer. You can also set power management options to alert you when the battery
charge is low.
Checking the Battery Charge

The Dell QuickSet Battery Meter, the Microsoft®Windows®Power Meter window and icon, the battery charge gauge and health gauge, and the low-
battery warning provide information on the battery charge.

Dell QuickSet Battery Meter

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
NOTE: Batteries for portable computers are covered only during the initial 1-year period of the limited warranty for your computer. For more information
about the Dell warranty for your computer, see the Product Information Guide or separate paper warranty document that shipped with your computer.
NOTE: Battery capacity (the time it can hold a charge) decreases over time. Depending on how often the battery is used and the conditions under which
it is used, you may need to purchase a new battery during the life of your computer.
NOTE: It is recommended that you connect your computer to an electrical outlet when writing to a CD or DVD.
CAUTION: Using an incompatible battery may increase the risk of fire or explosion. Replace the battery only with a compatible battery purchased
from Dell. The lithium-ion battery is designed to work with your Dell computer. Do not use a battery from other computers with your computer.
CAUTION: Do not dispose of batteries with household waste. When your battery no longer holds a charge, call your local waste disposal or
environmental agency for advice on disposing of a lithium-ion battery. See "Battery Disposal" in the Product Information Guide.
CAUTION: Misuse of the battery may increase the risk of fire or chemical burn. Do not puncture, incinerate, disassemble, or expose the battery to
temperaturesabove65°C(149°F).Keepthebattery away from children. Handle damaged or leaking batteries with extreme care. Damaged
batteries may leak and cause personal injury or equipment damage.

If Dell QuickSet is installed, press <Fn><F3> to display the QuickSet Battery Meter.

The Battery Meter window displays status, charge level, and charge completion time for the battery in your computer.

In addition, when your computer is connected to a docking device (docked), the Battery Meter window includes a Dock Battery
tab, which displays the charge
level and current status of the docking device battery.

The following icons appear in the Battery Meter window:


For more information about QuickSet, right-click the icon in the taskbar, and click Help.
Microsoft Windows Power Meter

The Windows Power Meter indicates the remaining battery charge. To check the Power Meter, double-click the icon on the taskbar. For more information
about the Power Meter tab, see "Power Management."

If the computer is connected to an electrical outlet, a icon appears.
Charge Gauge

Before you insert a battery, press the status button on the battery charge gauge to illuminate the charge-level lights. Each light represents approximately 20
percent of the total battery charge. For example, if the battery has 80 percent of its charge remaining, four of the lights are on. If no lights appear, the battery
has no charge.
Health Gauge

The battery operating time is largely determined by the number of times it is charged. After hundreds of charge and discharge cycles, batteries lose some
charge capacity, or battery health. To check the battery health, press and hold the status button on the battery charge gauge for at least 3 seconds. If no
lights appear, the battery is in good condition, and more than 80 percent of its original charge capacity remains. Each light represents incremental
degradation. If five lights appear, less than 60 percent of the charge capacity remains, and you should consider replacing the battery. See "Specifications" for
more information about the battery operating time.
Low-Battery Warning

A low-batterywarningoccurswhenthebatterychargeisapproximately90percentdepleted.Thecomputerbeepsonce,indicatingthatminimalbattery
operating time remains. During that time, the speaker beeps periodically. If two batteries are installed, the low-battery warning means that the combined
charge of both batteries is approximately 90 percent depleted. The computer enters hibernate mode when the battery charge is at a critically low level. For
more information about low-battery alarms, see "Power Management."
NOTE: You can use your docking device to charge a computer battery. However, a battery in a docking device does not power the docking device or
computer.

The computer or docking device is running on battery power.

The computer is connected to AC power and the battery is charging.

The computer is connected to AC power and the battery is fully charged.
NOTE: When you press and hold the status button on the battery charge gauge for at least 3 seconds, the charge-level lights will first light to display
the current charge status. Then they switch to Health status where they represent incremental degradation when lit.
NOTICE: To avoid losing or corrupting data, save your work immediately after a low-battery warning. Then connect the computer to an electrical outlet.
You can also turn the computer off and install a second battery in the module bay. If the battery runs completely out of power, hibernate mode begins
automatically.

Charging the Battery

When you connect the computer to an electrical outlet or install a battery while the computer is connected to an electrical outlet, the computer checks the
battery charge and temperature. If necessary, the AC adapter then charges the battery and maintains the battery charge.

If the battery is hot from being used in your computer or being in a hot environment, the battery may not charge when you connect the computer to an
electrical outlet.

The battery is too hot to start charging if the light flashes alternately green and orange. Disconnect the computer from the electrical outlet and allow the
computer and the battery to cool to room temperature. Then connect the computer to an electrical outlet to continue charging the battery.

For more information about resolving problems with a battery, see "Power Problems."
Removing a Battery
1. Ensure that the computer is turned off and disconnected from the electrical outlet.
2. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.
3. Slide and hold the battery-bay latch release on the bottom of the computer, and then remove the battery from the bay.

Installing a Battery

Ensure that the computer is turned off. Slide the battery into the bay until the latch release clicks.

For information about installing the second battery, see "Using the Module Bay."
Storing a Battery

Remove the battery when you store your computer for an extended period of time. A battery discharges during prolonged storage. After a long storage period,
recharge the battery fully before you use it.
NOTE: WithDell™ExpressCharge™,whenthecomputeristurnedoff,theACadapterchargesacompletelydischargedbatteryto 80 percent in about 1
hour and to 100 percent in approximately 2 hours. Charge time is longer with the computer turned on. You can leave the battery in the computer for as
long as you like. The battery’s internal circuitry prevents the battery from overcharging.
CAUTION: Before performing these procedures, disconnect the modem from the telephone wall jack.
NOTE: For information about removing the second battery, see "Using the Module Bay."

Using the Module Bay

About the Module Bay
About the Device Security Screw
Removing and Installing Devices While the Computer Is Turned Off
Removing and Installing Devices While the Computer Is Running
About the Module Bay

You can install devices such as a floppy drive, optical drive, second battery, or second hard drive in the module bay.
About the Device Security Screw

YourDell™computershipswithaCD/DVDdriveinstalledinthemodulebayandadevicesecurityscrew,whichisnotinstalledintheCD/DVDdrivebut
packaged separately. When you install a module in the bay, you can install the device security screw to prevent the module from being easily removed.
Removing the Device Security Screw

If the device security screw is installed, you must remove the screw to remove the module from the bay:
1. Save and close any open files, exit any open programs, and shut down the computer.
2. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.
3. Close the display and turn the computer over.
4. Use a #1 Phillips screwdriver to remove the device security screw from the bottom of the computer.


Removing and Installing Devices While the Computer Is Turned Off
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
NOTE: You do not need to install the device security screw unless you want to prevent the module from being easily removed.
1
device security screw
2
device latch release
NOTE: If the device security screw is not installed, you can remove and install devices while the computer is running and connected to a docking device
(docked).
NOTICE: To prevent damage to devices, store them in a safe, dry place when they are not installed in the computer. Avoid pressing down on them or
placing heavy objects on top of them.

1. If the device security screw is installed, remove it.
2. Press the device latch release.
3. Pull the device out of the module bay.

4. Push the new device into the bay until it clicks.
5. Press the device latch release.

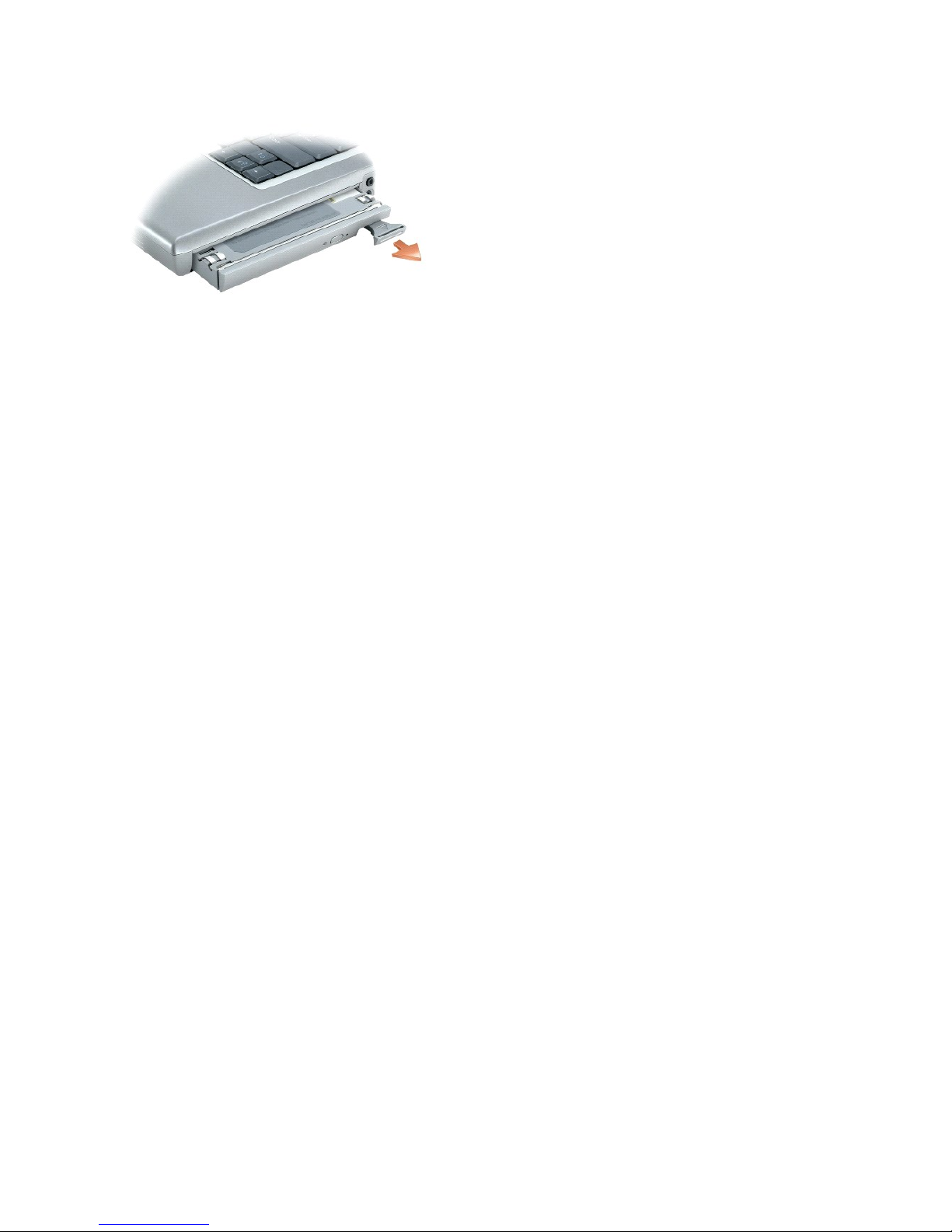

Removing and Installing Devices While the Computer Is Running
1. Before ejecting the device, double-click the Safely Remove Hardware icon on the taskbar, click the device you want to eject, and click Stop.
2. If the device security screw is installed, remove it.
3. Press the device latch release.


4. Pull the device out of the module bay.

NOTICE: To prevent damage to devices, store them in a safe, dry place when they are not installed in the computer. Avoid pressing down on them or
placing heavy objects on top of them.
1
device security screw
2
device latch release

5. Push the new device into the bay until it clicks.
The operating system automatically recognizes the device.
6. Press the device latch release.
7. If necessary, enter your password to unlock your computer.

Using CDs, DVDs, and Other Module Bay Devices

Playing a CD or DVD
Adjusting the Volume
Adjusting the Picture
Connecting Your Computer to a TV or Audio Device
Playing a CD or DVD

1. Press the eject button on the front of the drive.
2. Pull the tray out.


3. Place the disc, label side up, in the center of the tray and snap the disc onto the spindle.
4. Push the tray back into the drive.

To format CDs for storing data, to create music CDs, or to copy CDs, see the CD software that came with your computer.
Adjusting the Volume
1. Click the Start button, point to All Programs (or Programs)®Accessories®Entertainment (or Multimedia), and then click Volume Control.
2. In the Volume Control window, click and drag the bar in the Volume Control column and slide it up or down to increase or decrease the volume.

NOTICE: Do not press down on the CD or DVD tray when you open or close it. Keep the tray closed when you are not using the drive.
NOTICE: Do not move the computer when you are playing CDs or DVDs.
1
spindle
2
eject button
NOTE: If you use a module that shipped with another computer, you need to install the drivers and software necessary to play DVDs or write data. See
the software that came with your computer.
NOTE: Ensure that you follow all copyright laws when you create CDs.
NOTE: When the speakers are muted, you do not hear the CD or DVD playing.

For more information on volume control options, click Help in the Volume Control window.

The Volume Meter displays the current volume level, including mute, on your computer. Either right-click the icon in the taskbar or press the volume control
buttons to enable or disable the Volume Meter on the screen.



When the meter is enabled, adjust the volume with the volume control buttons or by pressing the following keys:

lPress <Fn> <PageUp> to increase volume.

lPress <Fn> <PageDn> to decrease volume.

lPress <Fn> <End> to mute volume.

For more information about QuickSet, right-click the icon in the taskbar and click Help.
Adjusting the Picture

If an error message notifies you that the current resolution and color depth are using too much memory and preventing DVD playback, adjust the display
properties.
Microsoft®Windows®XP
1. Click the Start button, point to Settings, and then, click Control Panel.
2. Under Pick a category, click Appearance and Themes.
3. Under Pick a task..., click Change the screen resolution.
4. In the Display Properties window, click and drag the bar in Screen resolution to change the setting to 1024 by 768 pixels.
5. Click the drop-down menu under Color quality, and then click Medium (16 bit).
6. Click OK.
Microsoft Windows 2000
1. Click the Start button, point to Settings, and then click Control Panel.
2. Double-click the Display icon and click the Set tab.
3. Click and drag the bar in Screen area to change the setting to 1024 by 768 pixels.
4. Under Color quality, click the drop-down menu and click High Color (16 bit).
5. Click Apply.
6. Click OK to save the settings and close the window.
1
volume icon
2
volume meter
3
mute icon
