Dell™Latitude™D600ServiceManual
Before You Begin
System Components
Memory Module, Mini PCI Card, and Modules
Reserve Battery
Hard Drive
Keyboard
Display Assembly and Display Latch
Palm Rest
Docking Doors
Fan
Bluetooth™Card
Microprocessor Thermal-Cooling Assembly
Microprocessor Module
Flashing the BIOS
Speakers
Base Latch
Modem
System Board
Pin Assignments for I/O Connectors
Mini Recommended Spares List
Notes, Notices, and Cautions
Information in this document is subject to change without notice.
©2003DellInc.Allrightsreserved.
ReproductioninanymannerwhatsoeverwithoutthewrittenpermissionofDellInc.isstrictlyforbidden.
Trademarks used in this text: Dell, the DELL logo, and Latitude are trademarks of DellInc.; Intel is a registered trademark of Intel Corporation; Bluetooth is a trademark owned by
Bluetooth SIG, Inc. and is used by Dell Inc. under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model PP05L
September 2009 Rev. A03
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Back to Contents Page
Before You Begin
Dell™Latitude™D600ServiceManual
Preparing to Work Inside the Computer
Recommended Tools
Computer Orientation
Screw Identification
Preparing to Work Inside the Computer
1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.
2. Save any work in progress and exit all open programs.
3. Turn off the computer and all attached devices.
4. If the computer is connected to a docking station, undock it.
5. Disconnect the computer from the electrical outlet.
6. To avoid possible damage to the system board, wait 10 to 20 seconds and then disconnect any attached devices.
7. Disconnect all other external cables from the computer.
8. Remove any installed PC Cards from the PC Card slot.
9. Close the display and turn the computer upside down on a flat work surface.
10. Slide and hold the battery-bay latch release on the bottom of the computer, and then remove the battery from the bay.
CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as
authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not
authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal
mounting bracket. Hold a component such as a microprocessor by its edges, not by its pins.
NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
NOTE: Ensure that the computer is off and not in a power management mode. If you cannot shut down the computer using the computer operating
system, press and hold the power button for 4 seconds.
NOTICE: To avoid damaging the system board, you must remove the main battery before you service the computer.
11. Remove any installed memory modules, Mini PCI cards, and modules, including a second battery if one is installed.
12. Remove the hard drive.
Recommended Tools
The procedures in this manual require the following tools:
l#1 Phillips screwdriver
l¼-inch flat-blade screwdriver
lSmall plastic scribe
lFlash BIOS update program floppy disk or CD
Computer Orientation
Screw Identification
When you are removing and replacing components, photocopy "Screw Identification" as a tool to lay out and keep track of the screws. The placemat provides
the number of screws and their sizes.
1
back
2
right
3
front
4
left
Optional Module:
(1 each)
Hard Drive:
(1 each)
Keyboard:
(2 each)
Display Assembly:
(3 each)
Display Bezel:
(6 each)
Display Panel:
(4 each)
Display Latch:
(2 each)
Palm Rest:
(3 each)
(9 each)
Fan:
(2 each)
Back to Contents Page
Speakers:
(1 each)
(1 each)
Modem:
(1 each)
System Board:
(1 each)
(1 each)
(4 each)
Back to Contents Page
Flashing the BIOS
Dell™Latitude™D600ServiceManual
1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.
2. Insert the BIOS update program floppy disk or CD, and turn on the computer.
Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the flash update is complete, the
computer will automatically reboot.
3. Press during POST to enter the system setup program.
4. Press and to reset the computer defaults.
5. Press , select Save changes and reboot, and press to save configuration changes.
6. Remove the flash BIOS update program floppy disk or CD from the drive and restart the computer.
Back to Contents Page
NOTE: If you use a BIOS update program CD to flash the BIOS, set up the computer to boot from a CD before inserting the CD.
Back to Contents Page

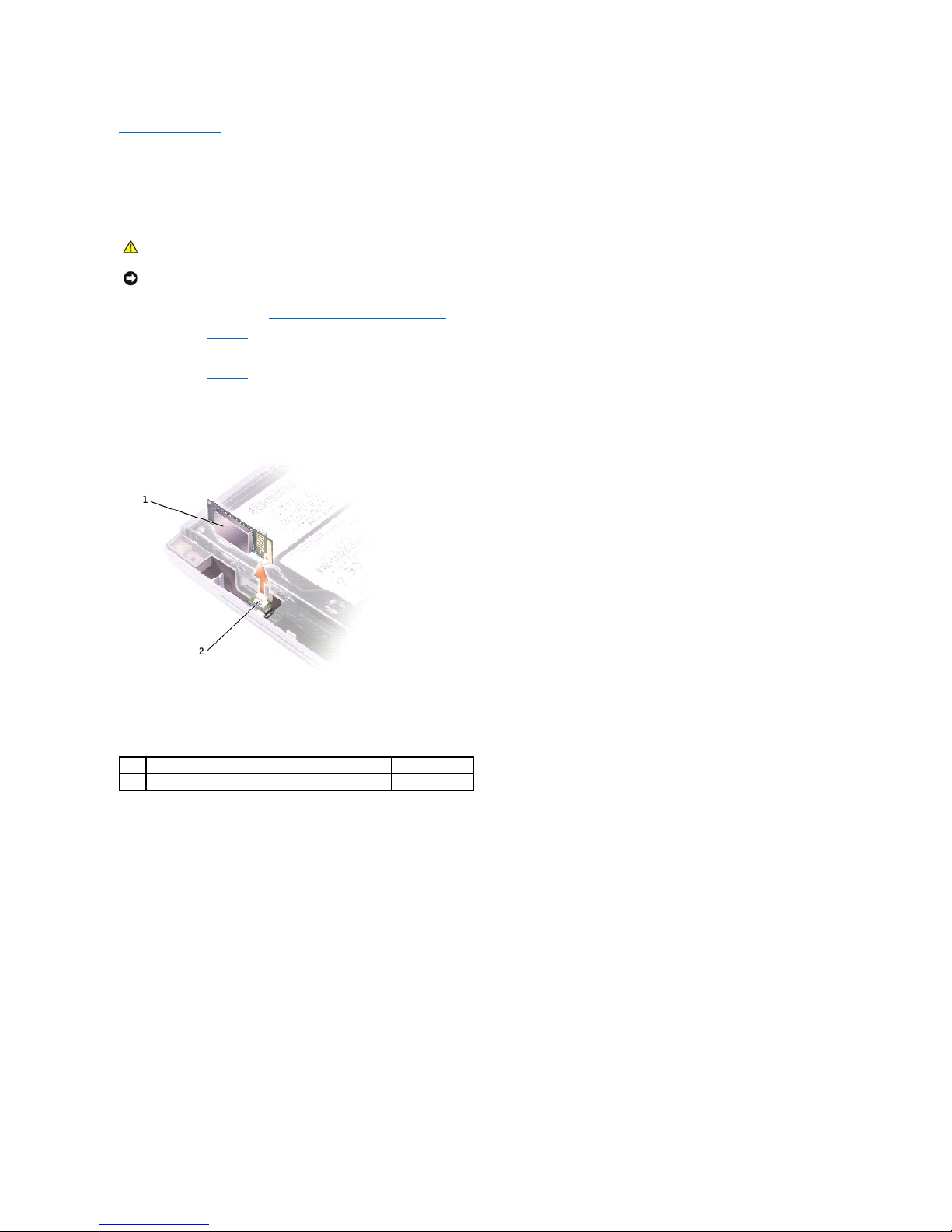

Bluetooth™Card
Dell™Latitude™D600ServiceManual
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the display assembly.
4. Remove the palm rest.
5. Remove the Bluetooth card by pulling it straight up from the system board connector.
Back to Contents Page
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
1
Bluetooth card
1U746
2
system board connector
Back to Contents Page
Microprocessor Module
Dell™Latitude™D600ServiceManual
Removing the Microprocessor Module
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the microprocessor thermal-cooling assembly.
4. To loosen the ZIF socket, use a small, flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: Do not touch the processor die. Press and hold the microprocessor down on the substrate on which the die is mounted while turning the cam
screw to prevent intermittent contact between the cam screw and microprocessor.
NOTICE: To avoid damage to the microprocessor, hold the screwdriver so that it is perpendicular to the microprocessor when turning the cam screw.
NOTICE: To ensure maximum cooling for the microprocessor, do not touch the heat transfer areas on the microprocessor thermal-cooling assembly. The
oils in your skin reduce the heat transfer capability of the thermal pads.
NOTICE: When removing the microprocessor module, pull the module straight up. Be careful not to bend the pins on the microprocessor module.
1
screwdriver
(perpendicular to
microprocessor)
2
ZIF-socket cam screw
3
ZIF socket
4
pin-1 corner
NOTE: The ZIF-socket cam screw secures the microprocessor to the system board. Take note of the arrow on the ZIF-socket cam screw.
5. Lift out the microprocessor module.
Installing the Microprocessor Module
1. Align the pin-1 corner of the microprocessor module with the pin-1 corner of the ZIF socket, and insert the microprocessor module.
When the microprocessor module is correctly seated, all four corners are aligned at the same height. If one or more corners of the module are higher
than the others, the module is not seated correctly.
2. Tighten the ZIF socket by turning the cam screw clockwise to secure the microprocessor module to the system board.
3. Replace the other computer parts you removed earlier in this procedure.
4. Update the BIOS using a flash BIOS update program floppy disk or CD. For instructions on how to flash the BIOS, see "Flashing the BIOS."
Back to Contents Page
NOTE: See Mini RSL for microprocessor part numbers.
NOTICE: Ensure that the cam lock is in the fully open position before seating the microprocessor module. Seating the microprocessor module properly in
the ZIF socket does not require force.
NOTICE: A microprocessor module that is not properly seated can result in an intermittent connection or permanent damage to the microprocessor and
ZIF socket.
NOTE: The pin-1 corner of the microprocessor module has a triangle that aligns with the triangle on the pin-1 corner of the ZIF socket.
NOTICE: You must position the microprocessor module correctly in the ZIF socket to avoid permanent damage to the module and the socket.
Back to Contents Page
Display Assembly and Display Latch
Dell™Latitude™D600ServiceManual
Display Assembly
Display Bezel
Display Panel
Display Latch
Display Assembly
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Open the display assembly approximately 180 degrees, and support the display assembly so that it does not open past this position.
4. Loosen the captive screw that secures the display cable to the system board, and release the cable from the four cable-routing clips.
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: You must remove the display assembly before you remove the palm rest.
1
M2.5 x 6-mm screws (3)
057HW
2
display cable connector
3
display
4
computer base
5
pull-tab
6
connector
5. Pull up on the pull-tab that is attached to the display cable connector to remove the connector from the system board.
6. Remove the three M2.5 x 6-mm screws.
7. Rotate the display assembly to a 90-degree angle, and lift the display assembly up and out of the computer base.
1
display
2
cable-routing clips (4)
3
display cable connector
1
display
2
computer base
Display Bezel
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the display assembly.
4. Use a plastic scribe to pry the six display bumpers out of the screw holes located on the front of the bezel.
5. Remove the six M2 x 5-mm screws located on the front of the bezel.
6. Startingatthebottomofthedisplaypanel(bytheDell™logo),useyourfingerstoseparatethebezelfromthetopcoverbyliftingtheinsideedgeof
the bezel away from the top cover.
Display Panel
1
display bumpers (6)
6R933
5
top cover
8M669
2
M2 x 5-mm screws (6)
1428U
6
flex-cable retention bracket
4270E
3
display bezel
6M873
7
flex cable
6M871
4
display panel
See MINI RSL
8
M2 x 5-mm screws (4)
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: Carefully separate the bezel from the top cover to avoid damage to the bezel.
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the display bezel.
4. Remove the two M2 x 3-mm screws from each side of the display panel, and remove the display side brackets.
5. Remove the two M2 x 5-mm screws from each side of the display panel.
6. Unsnap the cable from the top cover hook, and lift the bracket out of the display assembly.
7. Lift the display panel, and rotate the display panel out of the top cover.
8. Use the pull-tab to disconnect the bottom flex-cable connector from the inverter connector.
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by touching an unpainted metal surface on the computer.
NOTE: When you replace the display side brackets, ensure that the tabs on the brackets are facing up.
1
display panel
See MINI RSL
2
display side brackets (2)
8T145
3
M2 x 3-mm screws (4)
4270E
1
top flex-cable connector
6M871 (flex cable, flex-cable connector,
9. Press in both sides of the top display cable connector, and pull the display cable connector away from the top flex-cable connector.
Display Latch
1. Remove the keyboard.
2. Remove the display assembly.
3. Remove the display bezel.
4. Remove the two M2.5 x 4-mm screws that secure the display latch bracket to the top cover.
5. Lift the display bracket out of the top cover, and then remove the display latch.
Back to Contents Page
and pull-tab)
2
top display-cable connector
3
pull-tab on bottom flex-cable
connector
NOTICE: Disconnect the computer and any attached devices from electrical outlets, and remove any installed batteries.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by touching an unpainted metal surface on the computer.
1
top cover
8M669
2
M2.5 x 4-mm screws (2)
6240E
3
display latch bracket
Back to Contents Page
Docking Doors
Dell™Latitude™D600ServiceManual
Removing the Docking Doors
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Gently bend the docking covers and lift them away from the computer base.
Installing the Docking Doors
Slide the side of the docking covers with the spring over the longer posts.
CAUTION: Before working inside your computer, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
Back to Contents Page
1
docking doors with spring
7R316
2
longer post
Back to Contents Page
Fan
Dell™Latitude™D600ServiceManual
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the palm rest.
4. Remove the microprocessor thermal-cooling assembly.
5. Pull straight up on the fan cable connector from the system board connector.
6. Remove the two M2.5 x 8-mm screws from the fan, and pull the fan away from the system board.
Back to Contents Page
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
1
M2.5 x 8-mm screws (2)
3R690
2
fan
4R197
3
fan cable connector
4
system board connector
Back to Contents Page

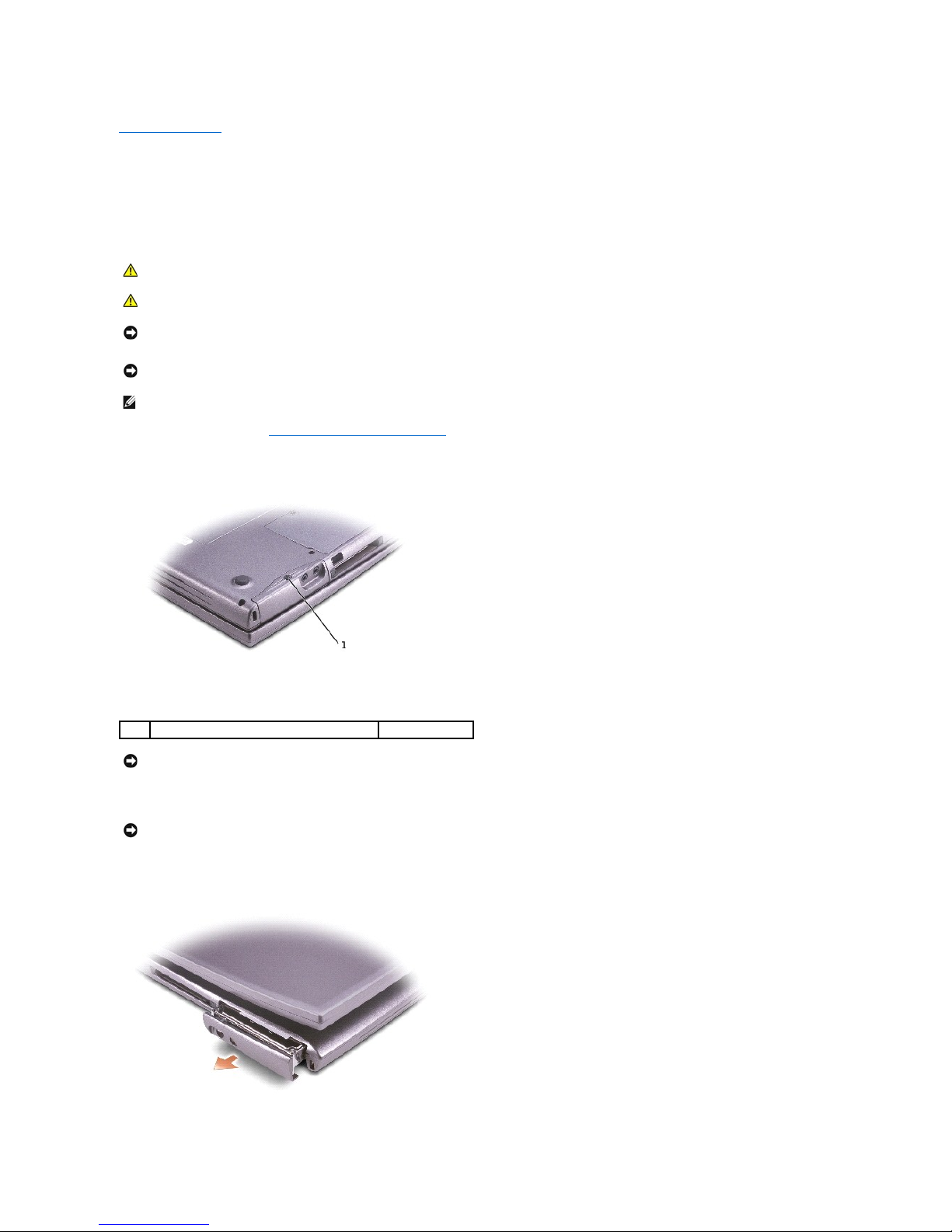

Hard Drive
Dell™Latitude™D600ServiceManual
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Turn the computer over. Use a standard #1 Phillips screwdriver to remove the M2.5 x 5-mm screw.
3. Open the display approximately 1/2 inch, as shown in the following figure.
4. Slide the hard drive out of the computer.
CAUTION: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.
CAUTION: Before working inside your computer, read the safety instructions in your System Information Guide.
NOTICE: To prevent data loss, shut down your computer before removing the hard drive. Do not remove the hard drive while the computer is on, in
standby mode, or in hibernate mode.
NOTICE: Hard drives are extremely fragile; even a slight bump can damage the drive.
NOTE: Dell does not guarantee compatibility or provide support for hard drives from sources other than Dell.
1
M2.5 x 5-mm screw
63PDH
NOTICE: If you do not open the display before you remove your hard drive, you might permanently scratch your display.
NOTICE: When the hard drive is not in the computer, store it in protective antistatic packaging. See "Protecting Against Electrostatic Discharge" in your
System Information Guide."
5. Remove the bezel screw and the bezel from the hard drive.
6. Remove the new drive from its packaging.
Save the original packaging to use when storing or shipping the hard drive.
7. Attach the bezel to the new hard drive with the bezel screw.
8. Open the display approximately 1/2 inch.
9. Press the hard drive cover down until it is fully seated in the bay, and tighten the screw.
10. Use the Operating System CD to install the operating system for your computer.
11. Use the Drivers and Utilities CD to install the drivers and utilities for your computer.
Back to Contents Page
NOTICE: If you do not open the display before you replace your hard drive, you might permanently scratch your display bezel.
NOTICE: Use firm and even pressure to slide the drive into place. If you force the hard drive into place using excessive force, you may damage the
connector.
Back to Contents Page
Keyboard
Dell™Latitude™D600ServiceManual
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Turn the computer right-side up and open it.
3. Remove the center control cover:
a. Open the display all the way (180 degrees) so that it lies flat against your work surface.
b. Starting on the right side of the computer, use a plastic scribe to pry up the center control cover. Lift it away from the computer, and lay it aside.
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
1
display
2
center control cover
3
computer base
Other manuals for Lattitude D600
6
Table of contents
Other Dell Laptop manuals
Dell
Dell INSPIRON N311Z User manual
Dell
Dell Latitude 5424 Rugged User manual
Dell
Dell P61F Operation and maintenance manual
Dell
Dell Inspiron 15 5000 Series User manual
Dell
Dell Latitude 5300 User manual
Dell
Dell Precision Mobile Workstation M4700 User manual
Dell
Dell XPS 14z User manual
Dell
Dell Latitude 7490 Operation and maintenance manual
Dell
Dell Inspiron 8000 User manual
Dell
Dell Latitude D410 User manual
Dell
Dell Vostro 500 Specification sheet
Dell
Dell Inspiron 7500 Operation and maintenance manual
Dell
Dell LOB Latitude XT2 Owner's manual
Dell
Dell Latitude 14 5414 Rugged User manual
Dell
Dell Inspiron X200 Technical manual
Dell
Dell Latitude 7310 User manual
Dell
Dell Inspiron 1520 User manual
Dell
Dell Vostro 16 5630 User manual
Dell
Dell Latitude 14 User manual
Dell
Dell Precision 5570 W3D04 User manual
