Dell Studio 0GYVXHA00 User manual

SETUP GUIDE

SETUP GUIDE
Regulatory model: P02E series Regulatory type: P02E001; P02E002

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your
computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells
you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
__________________
Information in this document is subject to change without notice.
© 2010 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell , the DELL logo, YOURS IS HERE , Solution Station , and DellConnect are trademarks of
Dell Inc.; Intel , Pentium , and Celeron are registered trademarks and Core is a trademark of Intel Corporation in the U.S.
and other countries; Microsoft , Windows , Windows Vista , and the Windows Vista start button logo are either trademarks
or registered trademarks of Microsoft Corporation in the United States and/or other countries; Blu-ray Disc is a trademark
of the Blu-ray Disc Association; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell
under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
March 2010 P/N GYVXH Rev. A00

3
Setting Up Your Studio Laptop . . . . . . . . . . .5
Before Setting Up Your Computer . . . . . . . . . 5
Connect the AC Adapter . . . . . . . . . . . . . . . . 6
Connect the Network Cable (Optional) . . . . . 7
Press the Power Button . . . . . . . . . . . . . . . . .8
Set Up Microsoft Windows. . . . . . . . . . . . . . . 9
Create System Recovery Media
(Recommended). . . . . . . . . . . . . . . . . . . . . . . 10
Install the SIM Card (Optional). . . . . . . . . . . 12
Enable or Disable Wireless (Optional). . . . . 14
Connect to the Internet (Optional) . . . . . . . . 16
Using Your Studio Laptop . . . . . . . . . . . . . .20
Right Side Features . . . . . . . . . . . . . . . . . . . . 20
Left Side Features . . . . . . . . . . . . . . . . . . . . . 24
Computer Base and Keyboard Features . . . 28
Touch Pad Gestures. . . . . . . . . . . . . . . . . . . . 30
Multimedia Controls . . . . . . . . . . . . . . . . . . . 32
Display Features . . . . . . . . . . . . . . . . . . . . . . 34
Using the Touch Screen (Optional) . . . . . . . 36
Removing and Replacing the Battery . . . . . 40
Software Features . . . . . . . . . . . . . . . . . . . . . 42
Dell DataSafe Online Backup . . . . . . . . . . . . 43
Dell Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Free Fall Sensor . . . . . . . . . . . . . . . . . . . . . . . 45
Solving Problems . . . . . . . . . . . . . . . . . . . . .46
Touch Screen Problems . . . . . . . . . . . . . . . . 46
Touch Screen Calibration . . . . . . . . . . . . . . . 47
Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Network Problems . . . . . . . . . . . . . . . . . . . . . 49
Power Problems. . . . . . . . . . . . . . . . . . . . . . . 50
Memory Problems . . . . . . . . . . . . . . . . . . . . . 52
Lockups and Software Problems . . . . . . . . . 52
Contents

4
Contents
Using Support Tools. . . . . . . . . . . . . . . . . . .55
Dell Support Center . . . . . . . . . . . . . . . . . . . . 55
My Dell Downloads . . . . . . . . . . . . . . . . . . . . 56
System Messages . . . . . . . . . . . . . . . . . . . . . 56
Hardware Troubleshooter. . . . . . . . . . . . . . . 58
Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . 59
Restoring Your Operating System . . . . . . .63
System Restore . . . . . . . . . . . . . . . . . . . . . . . 64
Dell DataSafe Local Backup. . . . . . . . . . . . . 65
System Recovery Media . . . . . . . . . . . . . . . . 67
Dell Factory Image Restore . . . . . . . . . . . . . 68
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . .71
Technical Support and Customer
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
DellConnect . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Online Services . . . . . . . . . . . . . . . . . . . . . . . 73
Automated Order-Status Service . . . . . . . . . 74
Product Information. . . . . . . . . . . . . . . . . . . . 74
Returning Items for Repair Under
Warranty or for Credit . . . . . . . . . . . . . . . . . . 75
Before You Call. . . . . . . . . . . . . . . . . . . . . . . . 76
Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . 77
Finding More Information and
Resources . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Specifications . . . . . . . . . . . . . . . . . . . . . . .80
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Macrovision Product Notice. . . . . . . . . . . . . 93
Information for NOM, or Official Mexican
Standard (Only for Mexico). . . . . . . . . . . . . . 94
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

5
This section provides information about setting
up your Studio 1745/1747/1749 laptop.
Before Setting Up Your
Computer
When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.
Restricting airflow around your laptop may
cause it to overheat. To prevent overheating
ensure that you leave at least 10.2 cm (4 inches)
at the back of the computer and a minimum of
5.1 cm (2 inches) on all other sides. You should
never place your computer in an enclosed
space, such as a cabinet or drawer when it is
powered on.
WARNING: Do not block, push objects
into, or allow dust to accumulate in
the air vents. Do not place your Dell™
computer in a low-airflow environment,
such as a closed briefcase, or on fabric
surfaces, such as carpets or rugs, while
it is powered on. Restricting the airflow
can damage the computer, deteriorate the
computer performance, or cause a fire.
The computer turns on the fan when the
computer gets hot. Fan noise is normal and
does not indicate a problem with the fan or
the computer.
CAUTION: Placing or stacking heavy or
sharp objects on the computer may result
in permanent damage to the computer.
Setting Up Your Studio Laptop

6
Setting Up Your Studio Laptop
Connect the AC Adapter
Connect the AC adapter to the computer and then plug it into a wall outlet or surge protector.
WARNING: The AC adapter works with electrical outlets worldwide. However, power
connectors and power strips vary among countries. Using an incompatible cable or
improperly connecting the cable to a power strip or electrical outlet may cause fire or
permanent damage to your computer.
NOTE: Connect the power cord to the adapter firmly and ensure that the light on the adapter is
on when you turn on power.

7
Setting Up Your Studio Laptop

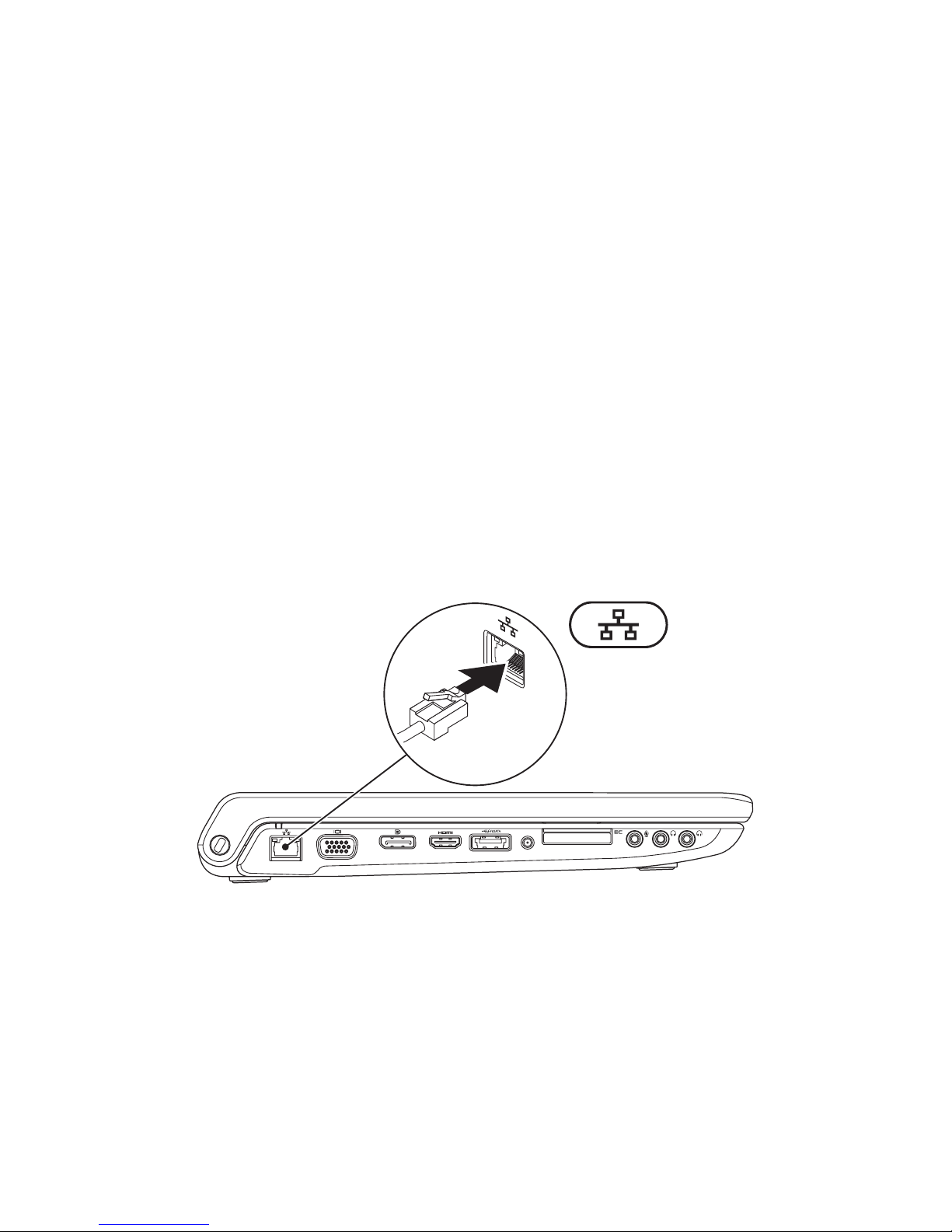

Connect the Network Cable (Optional)
To use a wired network connection, connect the network cable.

8
Setting Up Your Studio Laptop
Press the Power Button

9
Setting Up Your Studio Laptop
Set Up Microsoft Windows
Your Dell computer is preconfigured with the Microsoft®Windows®operating system. To set
up Microsoft Windows for the first time, follow the instructions on the screen. These steps are
mandatory and may take some time to complete. The Windows setup screens will take you through
several procedures including accepting license agreements, setting preferences, and setting up an
Internet connection.
CAUTION: Do not interrupt the operating system’s setup process. Doing so may render your
computer unusable and you will need to reinstall the operating system.
NOTE: For optimal performance of your computer, it is recommended that you download and
install the latest BIOS and drivers for your computer available at support.dell.com.
NOTE: For more information on the operating system and features, see
support.dell.com/MyNewDell.

10
Setting Up Your Studio Laptop
Create System Recovery Media (Recommended)
NOTE: It is recommended that you create a system recovery media as soon as you set up
Microsoft Windows.
The system recovery media can be used to restore your computer to the operating state it was in
when you purchased the computer, while preserving data files (without the need of the Operating
System disc). You can use the system recovery media if changes to the hardware, software, drivers,
or other system settings have left the computer in an undesirable operating state.
You will require the following to create the system recovery media:
Dell DataSafe Local Backup•
USB key with a minimum capacity of 8 GB or DVD-R/DVD+R/Blu-ray Disc• ™
NOTE: Dell DataSafe Local Backup does not support rewritable discs.

11
Setting Up Your Studio Laptop
To create a system recovery media:
Ensure that the AC adapter is connected (see “Connect the AC Adapter” on page1. 6).
Insert the disc or USB key in the computer.2.
Click3. Start → Programs→Dell DataSafe Local Backup.
Click4. Create Recovery Media.
Follow the instructions on the screen.5.
NOTE: For information on using the system recovery media, see “System Recovery Media” on
page 67.

12
Setting Up Your Studio Laptop
Install the SIM Card (Optional)
NOTE: Installing a SIM card is not required if you are using an EVDO card to access the
Internet.
Installing a Subscriber Identity Module (SIM) card on your computer allows you to connect to the
Internet. To access the Internet you must be within the network of your cellular service provider.
To install the SIM card:
Turn off your computer.1.
Remove the battery (see “Removing and Replacing the Battery” on page2. 40).
In the battery bay, slide the SIM card into the SIM card slot.3.
Replace the battery (see “Removing and Replacing the Battery” on page4. 40).
Turn on your computer.5.
To remove the SIM card, press and eject the SIM card.

13
Setting Up Your Studio Laptop
1SIM card
2SIM card slot
3battery bay
1
23

14
Setting Up Your Studio Laptop

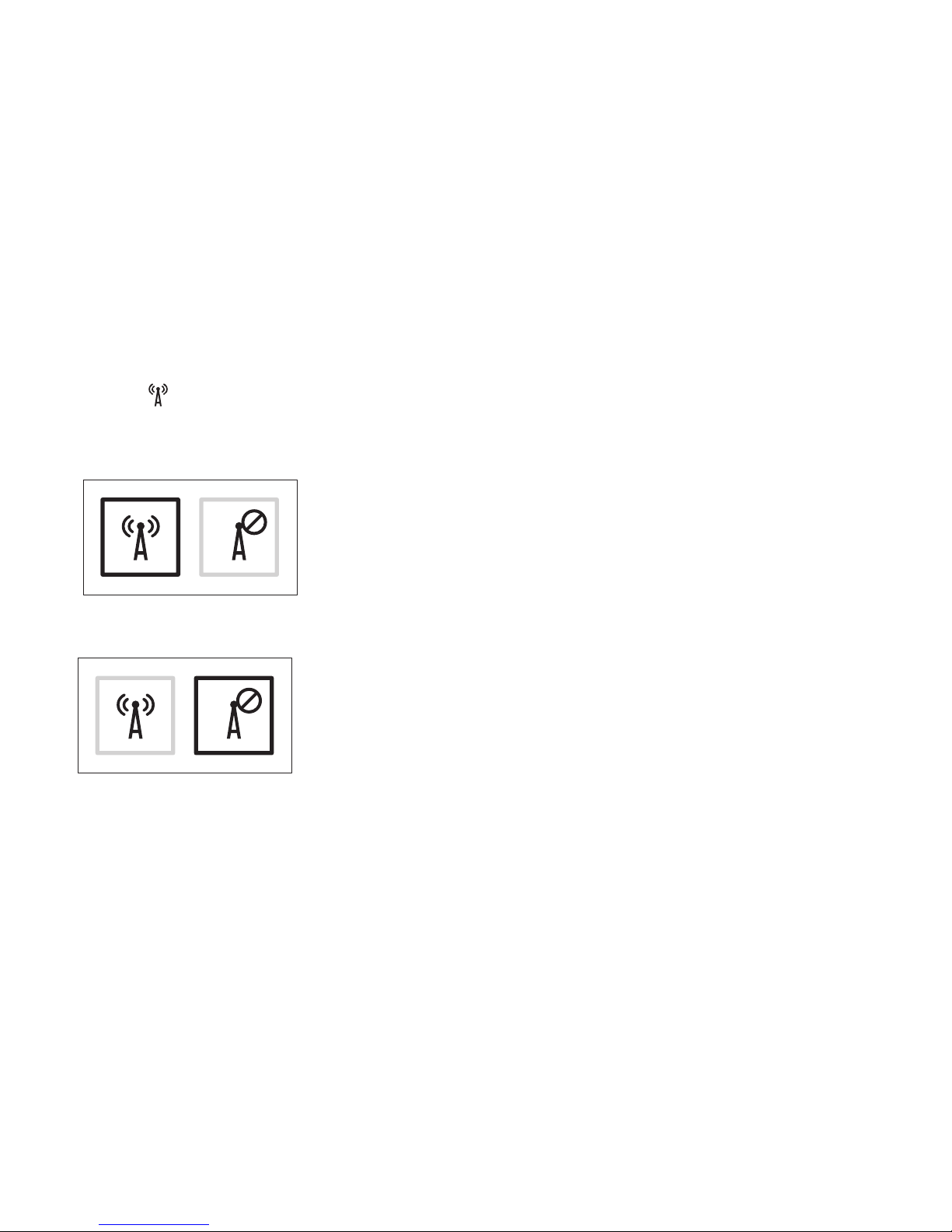

Enable or Disable Wireless (Optional)
Press the key or press the <Fn><F2> keys on the keyboard to enable or disable wireless. The
wireless on or off icons appear on the screen to indicate the status.
Wireless on:
Wireless off:
For information on changing the behavior of the Fn key, see “Multimedia Controls” on page 32.

15
Setting Up Your Studio Laptop

16
Setting Up Your Studio Laptop
Connect to the Internet
(Optional)
To connect to the Internet, you need an external
modem or network connection and an Internet
Service Provider (ISP).
If an external USB modem or WLAN adapter
is not a part of your original order, you can
purchase one at www.dell.com.
Setting Up a Wired Connection
If you are using a dial-up connection,•
connect the telephone line to the optional
external USB modem and to the telephone
wall connector before you set up your
Internet connection.
If you are using a DSL or cable/satellite•
modem connection, contact your ISP
or cellular telephone service for setup
instructions.
To complete setting up your wired Internet
connection, follow the instructions in “Setting
Up Your Internet Connection” on page 18.

17
Setting Up Your Studio Laptop
Setting Up a Wireless Connection
NOTE: To set up your wireless router, see
the documentation that shipped with your
router.
Before you can use your wireless Internet
connection, you need to connect to your
wireless router.
To setup your connection to a wireless router:
Windows
®
7
Ensure that wireless is enabled on your1.
computer (see “Enable or Disable Wireless”
on page 14).
Save and close any open files, and exit any2.
open programs.
Click3. Start →Control Panel.
In the search box, type4. network, and
then click Network and Sharing Center→
Connect to a network.
Follow the instructions on the screen to5.
complete the setup.
Windows Vista
®
Ensure that wireless is enabled on your1.
computer (see “Enable or Disable Wireless”
on page 14).
Save and close any open files, and exit any2.
open programs.
Click3. Start →Connect To.
Follow the instructions on the screen to4.
complete the setup.

18
Setting Up Your Studio Laptop
Setting Up Your Internet Connection
ISPs and ISP offerings vary by country. Contact
your ISP for offerings available in your country.
If you cannot connect to the Internet but have
successfully connected in the past, the Internet
Service Provider (ISP) might have a service
outage. Contact your ISP to check the service
status, or try connecting again later.
Have your ISP information ready. If you do not
have an ISP, the Connect to the Internet wizard
can help you get one.
To set up your Internet connection:
Windows 7
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel.
In the search box, type3. network, and then
click Network and Sharing Center→Set up
a new connection or network→Connect to
the Internet.
The Connect to the Internet window appears.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and4.
use the setup information provided by your
ISP to complete the setup.
