SETUP GUIDE

SETUP GUIDE
Model DCRM
SETUP GUIDE

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your
computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells
you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
If you purchased a Dell™n Series computer, any references in this document to Microsoft®Windows®operating systems
are not applicable.
__________________
Information in this document is subject to change without notice.
© 2009 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell , the DELL logo, YOURS IS HERE, Studio XPS, Dell On Call, and DellConnect are trademarks
of Dell Inc.; Intel is a registered trademark and Core is a trademark of Intel Corporation in the U.S. and other countries;
Microsoft , Windows , Windows Vista, and Windows Vista start button logo are either trademarks or registered trademarks
of Microsoft Corporation in the United States and/or other countries; Blu-ray Disc is a trademark of the Blu‑ray Disc
Association; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
July 2009 P/N KYX1Y Rev. A00

3
Setting Up Your Studio XPS Desktop . . . . . .5
Before Setting Up Your Computer . . . . . . . . . 7
Connect the Display . . . . . . . . . . . . . . . . . . . . 8
Connect the Keyboard and Mouse. . . . . . . . 10
Connect the Network Cable (Optional) . . . . 11
Connect the Power Cable . . . . . . . . . . . . . . . 12
Press the Power Button . . . . . . . . . . . . . . . . 13
Set Up Microsoft Windows Vista . . . . . . . . . 13
Connect to the Internet (Optional) . . . . . . . . 14
Using Your Studio XPS Desktop . . . . . . . . .16
Front View Features. . . . . . . . . . . . . . . . . . . . 16
Back View Features. . . . . . . . . . . . . . . . . . . . 19
Back Panel Connectors. . . . . . . . . . . . . . . . . 20
Software Features . . . . . . . . . . . . . . . . . . . . . 22
Dell Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Solving Problems . . . . . . . . . . . . . . . . . . . . .26
Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Network Problems . . . . . . . . . . . . . . . . . . . . . 27
Power Problems. . . . . . . . . . . . . . . . . . . . . . . 28
Memory Problems . . . . . . . . . . . . . . . . . . . . . 30
Lockups and Software Problems . . . . . . . . . 31
Using Support Tools. . . . . . . . . . . . . . . . . . .33
Dell Support Center . . . . . . . . . . . . . . . . . . . . 33
System Messages . . . . . . . . . . . . . . . . . . . . . 34
Hardware Troubleshooter. . . . . . . . . . . . . . . 36
Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . 36
Restoring Your Operating System . . . . . . .40
System Restore . . . . . . . . . . . . . . . . . . . . . . . 40
Dell Factory Image Restore . . . . . . . . . . . . . 42
Operating System Reinstallation . . . . . . . . . 44
Contents

4
Contents
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . .46
Technical Support and Customer
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
DellConnect™. . . . . . . . . . . . . . . . . . . . . . . . . 47
Online Services . . . . . . . . . . . . . . . . . . . . . . . 48
Automated Order‑Status Service . . . . . . . . . 49
Product Information. . . . . . . . . . . . . . . . . . . . 49
Before You Call. . . . . . . . . . . . . . . . . . . . . . . . 52
Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . 53
Finding More Information and
Resources . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Specifications . . . . . . . . . . . . . . . . . . . . . . .56
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Macrovision Product Notice. . . . . . . . . . . . . 61
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

5
This section provides information about setting up your Studio XPS™ 435T/9000 and connecting
peripherals.
WARNING: Before you begin any of the procedures in this section, read the safety information
that shipped with your computer. For additional safety best practices information, see the
Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
Setting Up Your Studio XPS Desktop

6
Setting Up Your Studio XPS Desktop
NOTE: Your computer’s Service Tag is
located on a label under the FlexBay panel
on the front of your computer. Use this
code to identify your computer when you
access the Dell Support website or contact
technical support.
WWW.DELL.COM
Service Tag: XXXXX Express Service Code: XXX–XXX–XX

7
Setting Up Your Studio XPS Desktop
Before Setting Up Your Computer
When positioning your computer, ensure that you allow easy access to a power source, adequate
ventilation, and a level surface to place your computer.
Restricting airflow around your computer may cause it to overheat. To prevent overheating ensure
that you leave at least 10.2 cm (4 inches) at the back of the computer and a minimum of 5.1 cm
(2 inches) on all other sides. You should never place your computer in an enclosed space, such as
a cabinet or drawer when it is powered on.

8
Setting Up Your Studio XPS Desktop
Connect the Display
Your computer does not have an integrated
video connector. You must use the connector
available on the video card in the expansion
slot to connect to the display.

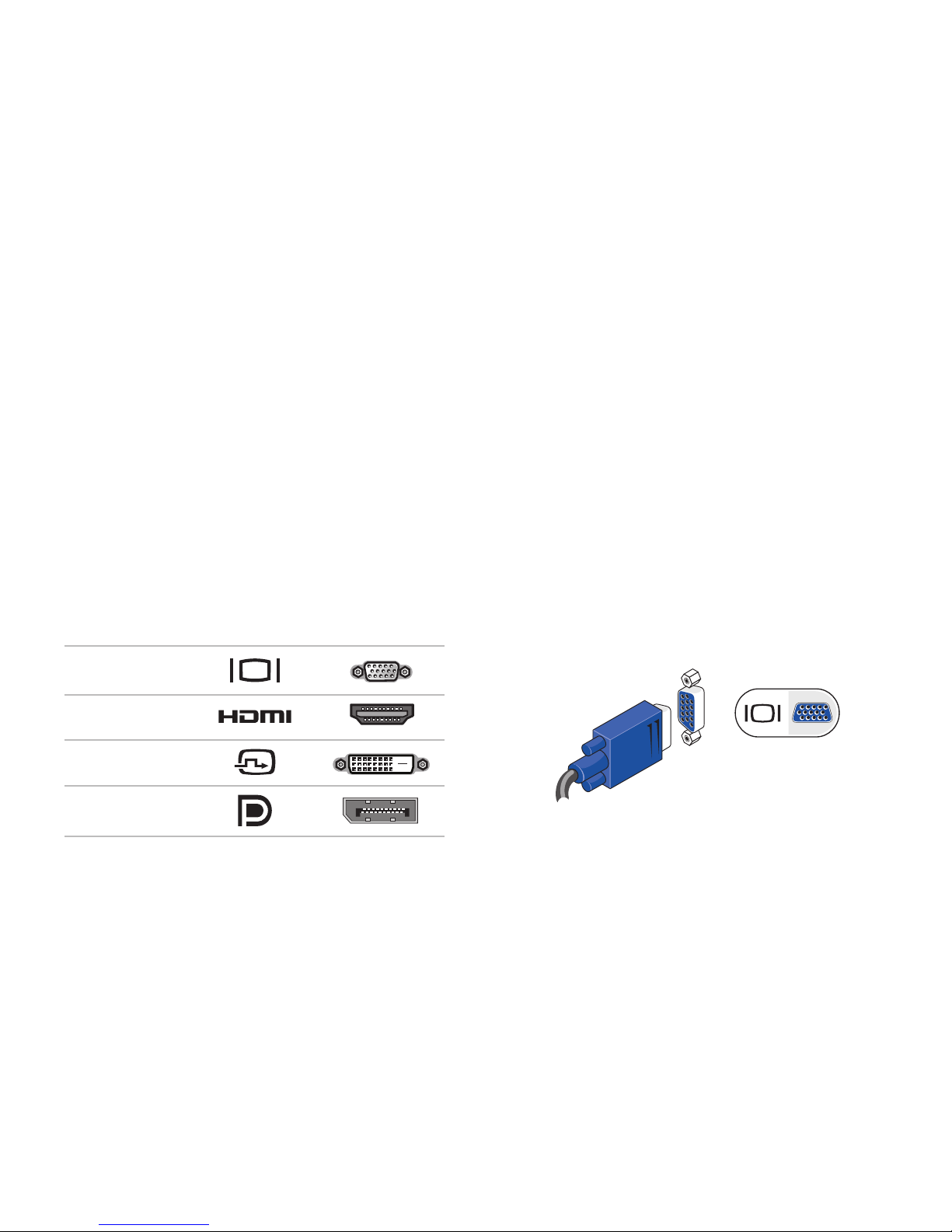

Connect the Video Cable to the Display
Check your TV or monitor to see which type of
connectors are available. Refer to the following
table when identifying the connectors on your
display to select the connection type you
will use.
VGA
HDMI
DVI
DisplayPort
Connect the display using either the VGA
connector, the DVI connector, the HDMI
connector, or the DisplayPort connector.
The HDMI connector is a high‑performance
digital connector that carries both video and
audio signals for displays such as TVs and
monitors with integrated speakers. The VGA
connector carries only video signals for displays
such as monitors and projectors.
Connect Using the VGA Connector
Connect the display using a VGA cable (which
usually has blue connectors at both ends).
If your computer has a DVI connector, use the
VGA cable (with blue connectors at both ends)
with a DVI‑to‑VGA adapter (white connector).

9
Setting Up Your Studio XPS Desktop
You can purchase a DVI‑to‑VGA adapter from
the Dell website at www.dell.com.
Connect Using the DVI Connector
Connect the display using a DVI cable.
You can purchase additional HDMI and DVI
cables from the Dell website at www.dell.com.
Connect Using the HDMI Connector
Connect the display using an HDMI cable.
Connect Using the DisplayPort
Connector
Connect the display using a DisplayPort cable.
NOTE: Do not connect devices to the
DisplayPort connector and the HDMI
connector at the same time.
NOTE: For more information on connecting
the display, see the documentation that
shipped with your display.

10
Setting Up Your Studio XPS Desktop

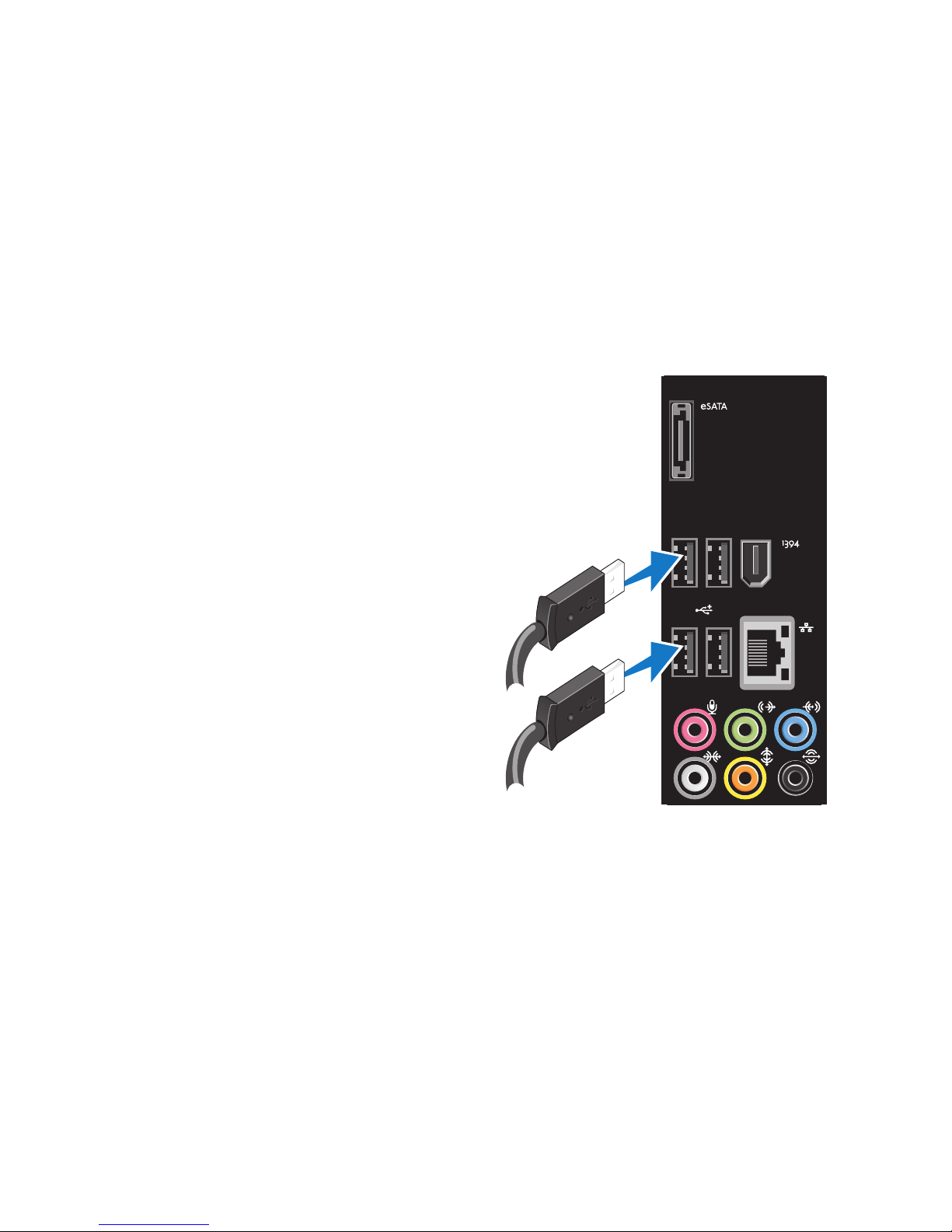

Connect the Keyboard and
Mouse
Connect the USB keyboard and mouse to the
USB connectors on the back panel of your
computer.

11
Setting Up Your Studio XPS Desktop
Connect the Network Cable
(Optional)
A network connection is not required to
complete your computer setup, but if you have
an existing network or Internet connection that
uses a cable connection (such as a broadband
device or Ethernet jack), you can connect it
now.
NOTE: Use only an Ethernet cable to
connect to the network connector (RJ45
connector). Do not plug a telephone
cable (RJ11 connector) into the network
connector.
To connect your computer to a network or a
broadband device, connect one end of the
network cable to the network port or the
broadband device. Connect the other end of the
network cable to the network connector (RJ45
connector) on the back panel of your computer.
A click indicates that the network cable has
been securely attached.

12
Setting Up Your Studio XPS Desktop
Connect the Power Cable

13
Setting Up Your Studio XPS Desktop
Press the Power Button Set Up Microsoft Windows
Vista
To set up Windows Vista®for the first time
follow the instructions on the screen. These
steps are mandatory and may take some time
to complete. The screens will take you through
several procedures including accepting license
agreements, setting preferences, and setting up
an Internet connection.
CAUTION: Do not interrupt the operating
system’s setup process. Doing so may
render your computer unusable and you
will need to reinstall the operating system.
NOTE: It is recommended that you
download and install the latest BIOS and
drivers for your computer available on the
Dell Support website at support.dell.com.

14
Setting Up Your Studio XPS Desktop
Connect to the Internet
(Optional)
To connect to the Internet, you need an external
modem or network connection, and an Internet
Service Provider (ISP).
If an external USB modem or WLAN adapter
is not a part of your original order, you can
purchase one from the Dell website at
www.dell.com.
Setting Up a Wired Connection
If you are using a dial‑up connection,•
connect the telephone line to the external
USB modem (optional) and to the telephone
wall connector before you set up your
Internet connection.
If you are using a DSL or cable/satellite•
modem connection, contact your ISP
or cellular telephone service for setup
instructions.
To complete setting up your wired Internet
connection, follow the instructions in “Setting
Up Your Internet Connection” on page 15.
Setting Up a Wireless Connection
NOTE: To set up your wireless router, see
the documentation that shipped with your
router.
Before you can use your wireless Internet
connection, you need to connect to your
wireless router.
To set up your connection to a wireless router:
Save and close any open files, and exit any1.
open programs.
Click2. Start →Connect To.
Follow the instructions on the screen to3.
complete the setup.

15
Setting Up Your Studio XPS Desktop
Setting Up Your Internet Connection
ISPs and ISP offerings vary by country. Contact
your ISP for offerings available in your country.
If you cannot connect to the Internet but have
successfully connected in the past, the ISP
might have a service outage. Contact your ISP
to check the service status, or try connecting
again later.
Have your ISP information ready. If you do not
have an ISP, the Connect to the Internet wizard
can help you get one.
NOTE: The following instructions are
applicable to the Windows default view,
so they may not apply if you set your Dell™
computer to the Windows Classic view.
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel.
Click3. Network and Internet→ Network and
Sharing Center→ Setup a Connection→
Connect to the Internet.
The Connect to the Internet window appears.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and4.
use the setup information provided by your
ISP to complete the setup.

16
Using Your Studio XPS Desktop
This section provides information about the features available on your Studio XPS™ Desktop.

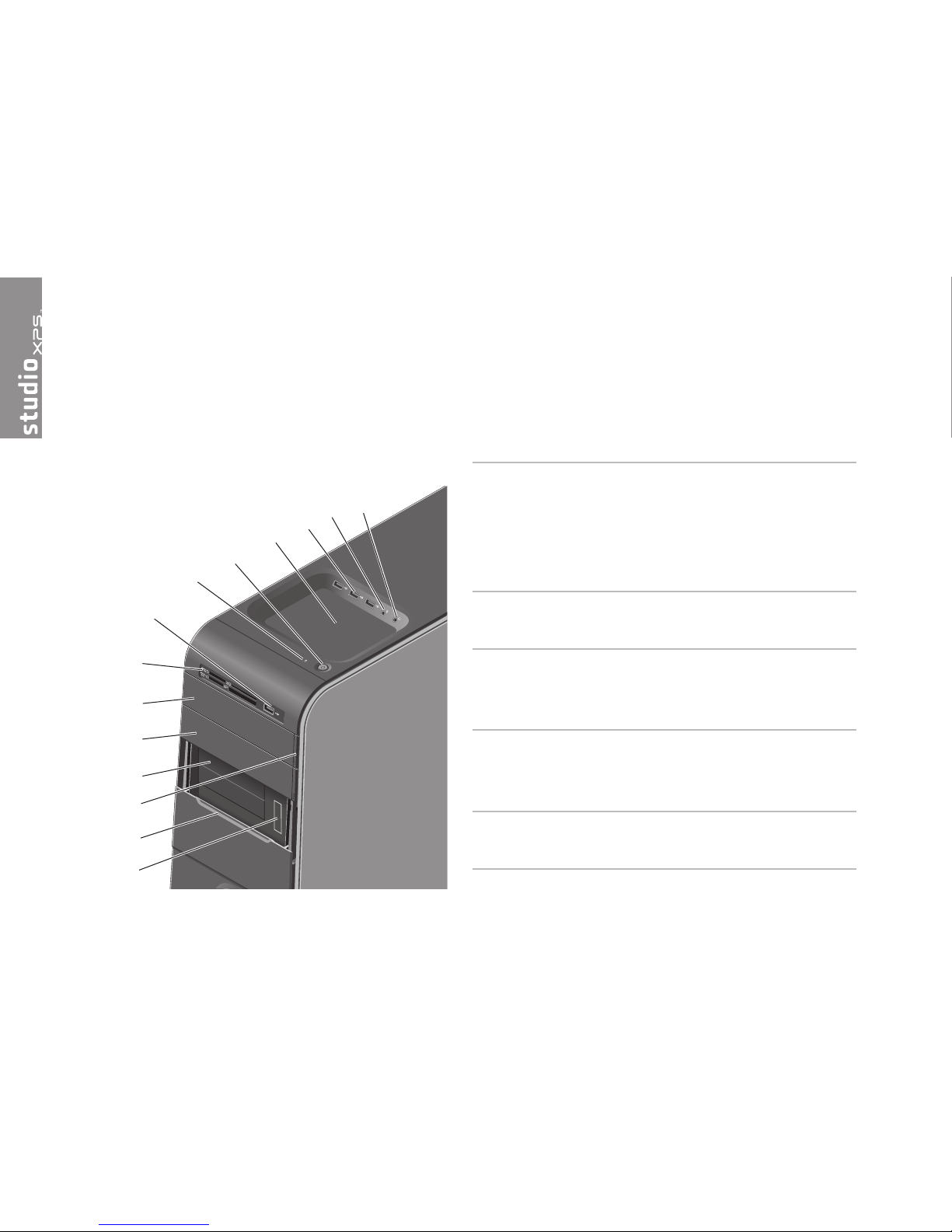

Front View Features
12 14
9
8
7
10
13
5
3
1
6
11
2
4
1Service Tag and Express Service Code
(located on a label under the FlexBay
panel) — Used to identify your computer
when you access the Dell Support
website or call technical support.
2FlexBay panel — Covers the FlexBay
slots.
3Optical drive eject button — Press the
marked portion on the lower end of the
button to eject the disc.
4FlexBay slots (2) — Supports a floppy
drive, a Media Card Reader, or an
additional hard drive.
5Optical drive bay — Can contain an
additional optical drive.

17
Using Your Studio XPS Desktop
6Optical drive — Plays or records only
standard‑size (12 cm) CDs, DVDs, and
Blu‑ray Discs.
7Media Card Reader — Provides a fast
and convenient way to view and share
digital photos, music, and videos stored
on a memory card.
8USB 2.0 connector — Connects
to USB devices that are connected
occasionally such as memory keys,
digital cameras, and MP3 players.
9Hard drive activity light — Turns on
when the computer reads or writes data.
A blinking blue light indicates hard drive
activity.
CAUTION: To avoid loss of data,
never turn off the computer while
the hard drive activity light is
blinking.
10 Power button and light — Turns the
power on or off when pressed. The light
in the center of this button indicates the
power state:
Off — the computer is either turned•
off or is not receiving power.
Blinking white — the computer is in•
sleep state.
Solid white — the computer is on.•
Blinking amber — there may be a•
problem with the system board.
Solid amber — there may be a•
problem with either the system board
or power supply.
NOTE: For information on power
problems, see “Power Problems” on
page 28.
11 Accessory tray — Used to place devices
or secure cables to avoid clutter.

18
Using Your Studio XPS Desktop
12 USB 2.0 connectors (3) — Connects
to USB devices that are connected
occasionally such as memory keys,
digital cameras, and MP3 players.
13 Line-in or microphone connector —
Connects to a microphone for voice or to
an audio cable for audio input.
14 Headphone connector — Connects
to headphones.
NOTE: To connect to a powered speaker
or sound system, use the audio out or
S/PDIF connector on the back of your
computer.
