Dell™ LCD TV
Owner's Manual
W3207C_UM_EN.book Page 1 Friday, June 30, 2006 10:42 AM

Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your TV.
NOTICE: A NOTICE indicates either potential damage to hardware and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
_____________________
Information in this document is subject to change without notice.
© 2006 Dell Inc. All rights reserved.
Reproduction of this document in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
TSXT technology is incorporated under license from SRS Labs, Inc.
Trademarks used in this text: Dell, the DELL logo; TruSurround XT, SRS, and symbol are trademarks of SRS Labs, Inc.
Dell, Dimension, OptiPlex, Dell Precision, Latitude, Inspiron, DellNet, PowerApp, PowerEdge, PowerConnect, PowerVault, and EMC3are
trademarks of Dell Inc.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
July 2006 Rev. A00
W3207C_UM_EN.book Page 2 Friday, June 30, 2006 10:42 AM

Contents 3
FILE LOCATION: C:\Documents and Settings\cherylyuan\Ƈ¦±\FM\W3201_eyUM.fm
DELL CONFIDENTIAL – PRELIMINARY 6/30/06 – FOR PROOF ONLY
www.dell.com | support.dell.com
Contents
1About Your TV
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Left View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Caring for Your TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2Setting Up Your TV
Proper Location for Your TV . . . . . . . . . . . . . . . . . . . . . . . . 13
Connecting Your TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3Your Remote Control
Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Using Your Remote Control . . . . . . . . . . . . . . . . . . . . . . . . 22
Using Your TV With a Universal or Learning Remote Control . . . . . . . . . 24
4Using the TV Menu
Using Your Remote Control With the TV Menu . . . . . . . . . . . . . . . 25
Selecting Your TV Menu Language . . . . . . . . . . . . . . . . . . . . . 26
Input Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Picture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
W3207C_UM_EN.book Page 3 Friday, June 30, 2006 10:42 AM

4Contents
www.dell.com | support.dell.com
FILE LOCATION: C:\Documents and Settings\cherylyuan\Ƈ¦±\FM\W3201_eyUM.fm
DELL CONFIDENTIAL – PRELIMINARY 6/30/06 – FOR PROOF ONLY
www.dell.com | support.dell.com
5Troubleshooting Problems With Your TV
Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
General Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
TV Menu Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Remote Control Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Using the Self-Test Feature when Connected to a Computer . . . . . . . . . 39
Problems When Using the TV as a Monitor . . . . . . . . . . . . . . . . . 39
6Specifications for Your TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
W3207C_UM_EN.book Page 4 Friday, June 30, 2006 10:42 AM

FILE LOCATION: C:\Documents and Settings\cherylyuan\Ƈ¦±\FM\ch1e.fm
DELL CONFIDENTIAL – PRELIMINARY 6/30/06 – FOR PROOF ONLY
About Your TV 5
1
About Your TV
Front View

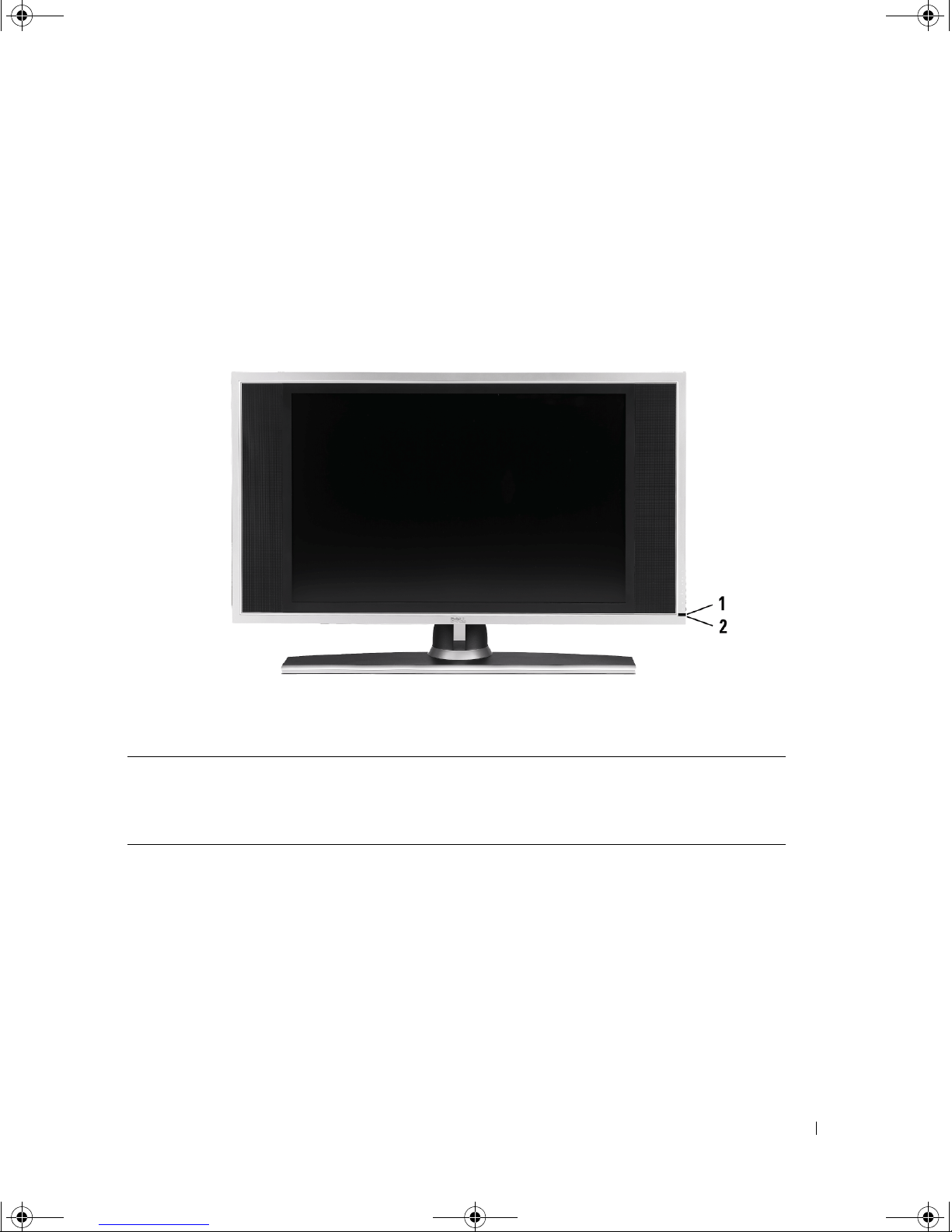

1IR Receiver Senses the signal from the remote control
2Power indicator light
(LED) The light is blue when the TV is on and amber when the TV is
in power save mode
W3207C_UM_EN.book Page 5 Friday, June 30, 2006 10:42 AM

FILE LOCATION: C:\Documents and Settings\cherylyuan\Ƈ¦±\FM\ch1e.fm
DELL CONFIDENTIAL – PRELIMINARY 6/30/06 – FOR PROOF ONLY
About Your TV 6
Right View

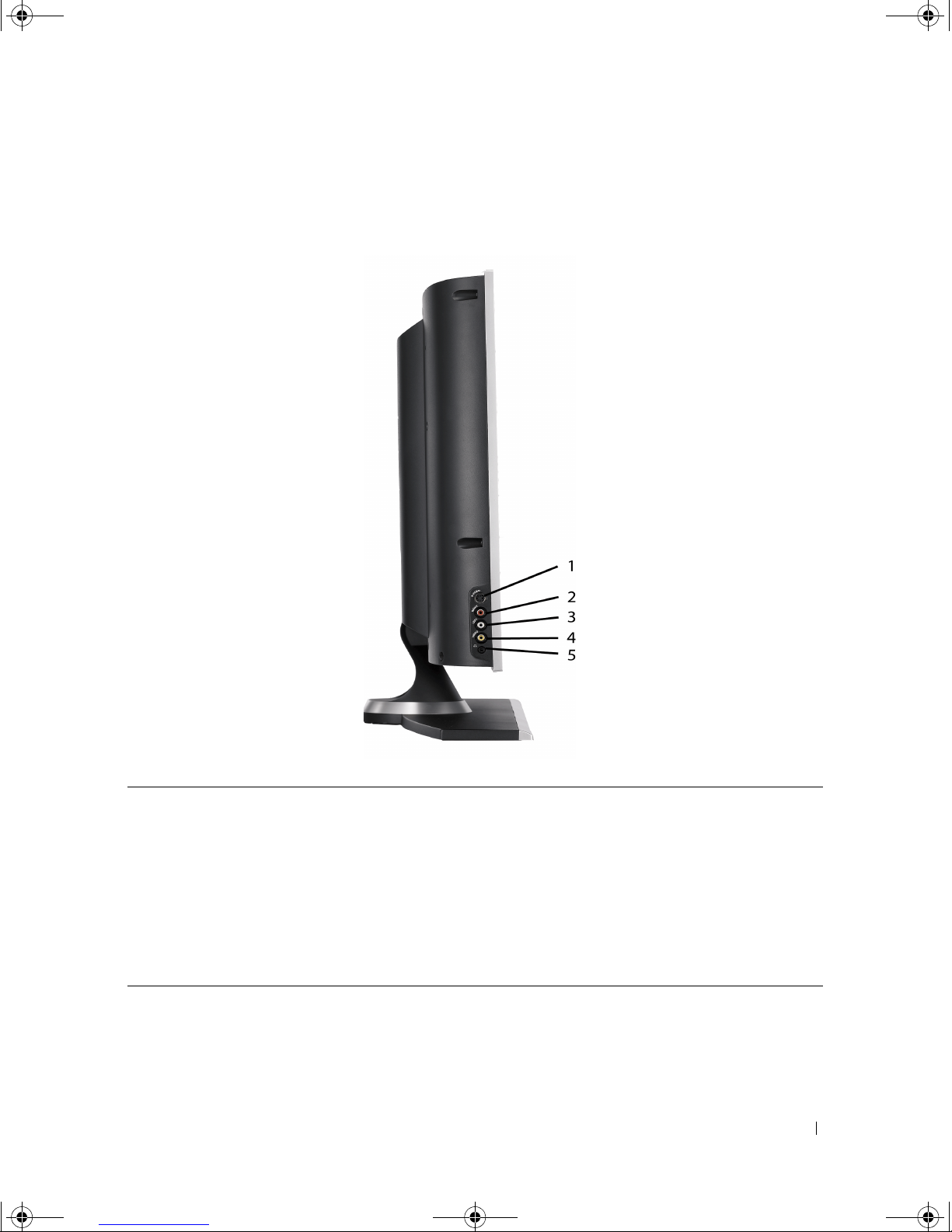

1S-Video input (SIDE) Use this to connect devices such as a video game system, a digital
camera, or a DVD player
2Audio connector (R) Use this connector if you have connected a device to the
composite connector (SIDE) or the S-Video connector (SIDE)
3Audio connector (L) Use this connector if you have connected a device to the
composite connector (SIDE) or the S-Video connector (SIDE)
4Composite video connector (SIDE) Use this to connect devices such as VCR or DVD player
5Headphone Use this connector to connect the Headphone
W3207C_UM_EN.book Page 6 Friday, June 30, 2006 10:42 AM

About Your TV 7
FILE LOCATION: C:\Documents and Settings\cherylyuan\Ƈ¦±\FM\ch1e.fm
DELL CONFIDENTIAL – PRELIMINARY 6/30/06 – FOR PROOF ONLY
www.dell.com | support.dell.com
Left View

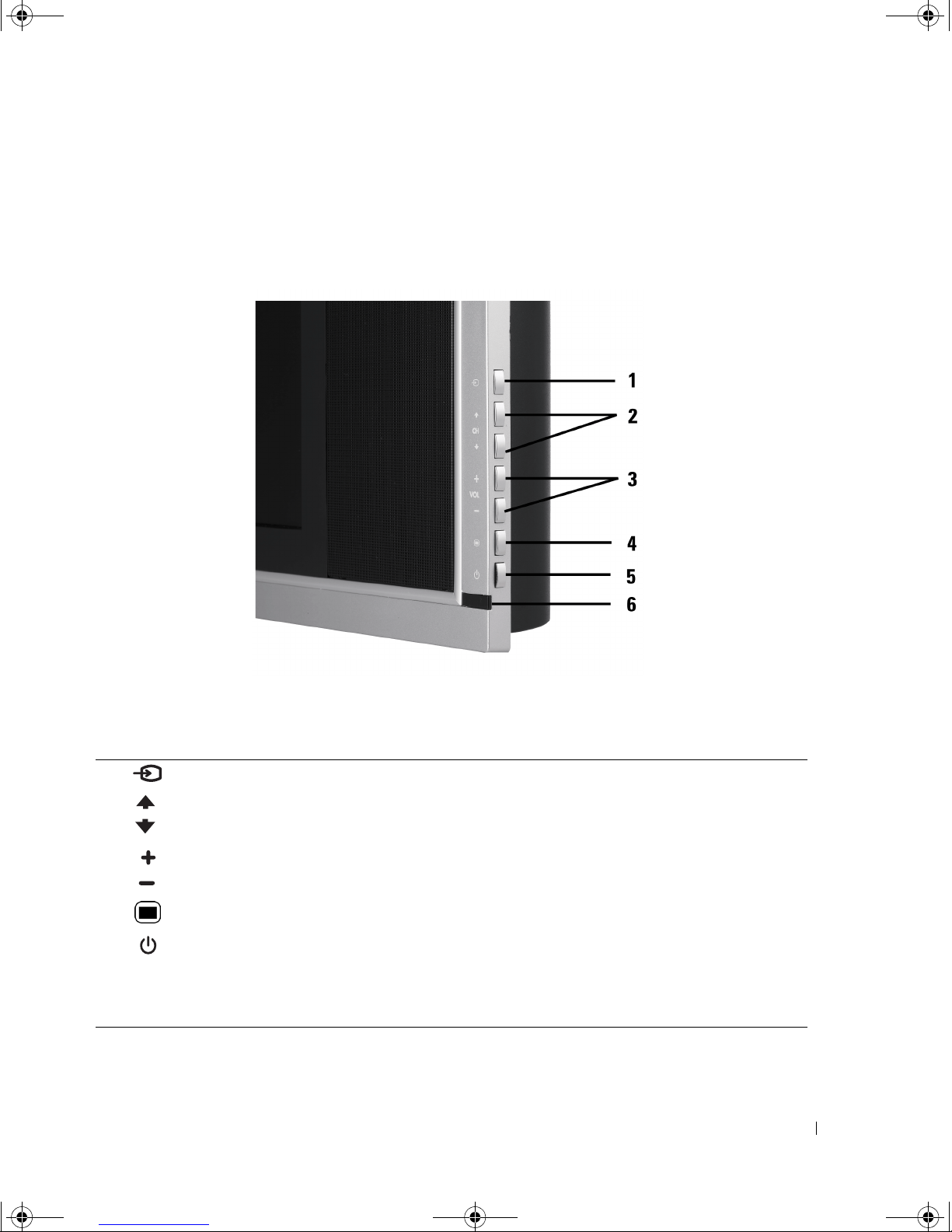

1Input Source button Push to display the Input Select menu
2Channel up/down
button Push to select the previous/next channel or navigate through the TV Menu
3Volume up/down
button Push to increase/decrease the volume or to select a TV Menu option
4TV Menu button Push to display the TV Menu
5Power button and light
(LED) Push to turn the TV on and off
The power light is blue when the TV is on and amber when it is in
power saving mode
6IR receiver Senses the signal from the remote control
W3207C_UM_EN.book Page 7 Friday, June 30, 2006 10:42 AM

8About Your TV
www.dell.com | support.dell.com
FILE LOCATION: C:\Documents and Settings\cherylyuan\Ƈ¦±\FM\ch1e.fm
DELL CONFIDENTIAL – PRELIMINARY 6/30/06 – FOR PROOF ONLY
Rear View
1DVIaudioconnectors
(L/R) Connect to the DVI audio connectors if you have connected a device such as a DVD player or set-top box to the HDMI connectors with a
DVI to HDMI interchange cable
2 HDMI connectors Connect devices such as a DVD player or set-top box
3Video Graphics Array
(VGA) connector
Connect to the VGA cable from your computer to the TV
4 Audio connector for
VGA Connect the audio cable from your computer to the TV
5 Composite video and
audio-out connectors Connect a device such as a VCR if you have connected an antenna or cable TV through the ANT/Cable connector
W3207C_UM_EN.book Page 8 Friday, June 30, 2006 10:42 AM

About Your TV 9
FILE LOCATION: C:\Documents and Settings\cherylyuan\Ƈ¦±\FM\ch1e.fm
DELL CONFIDENTIAL – PRELIMINARY 6/30/06 – FOR PROOF ONLY
www.dell.com | support.dell.com
6 S-Video connectors
(AV2) Connect devices such as a video game system or a DVD player
7 Component audio and
video connectors
(AV4)
Connect devices such as a DVD player, set-top box, or cable TV box
8 Power connector Connect your power cord
9 NTSC connector Connect an antenna or a cable TV box
10 HDTV connector Connect an antenna for the digital tuner when using Digital TV
(HDTV connector)
11 Composite video and
audio connectors
(AV1)
Connect devices such as a VCR or DVD player
12 Component audio and
video connectors
(AV3)
Connect devices such as a DVD player, set-top box, or cable TV box
W3207C_UM_EN.book Page 9 Friday, June 30, 2006 10:42 AM

10 About Your TV
www.dell.com | support.dell.com
FILE LOCATION: C:\Documents and Settings\cherylyuan\Ƈ¦±\FM\ch1e.fm
DELL CONFIDENTIAL – PRELIMINARY 6/30/06 – FOR PROOF ONLY
Package Contents
NOTE: If you need additional cables, contact Dell.
Caring for Your TV
CAUTION: Only a licensed technician should service the TV. Do not disassemble the TV. Before
cleaning the TV, unplug it from the electrical outlet.
• To clean the surface of the panel, slightly dampen a soft, clean, lint-free cloth with water.

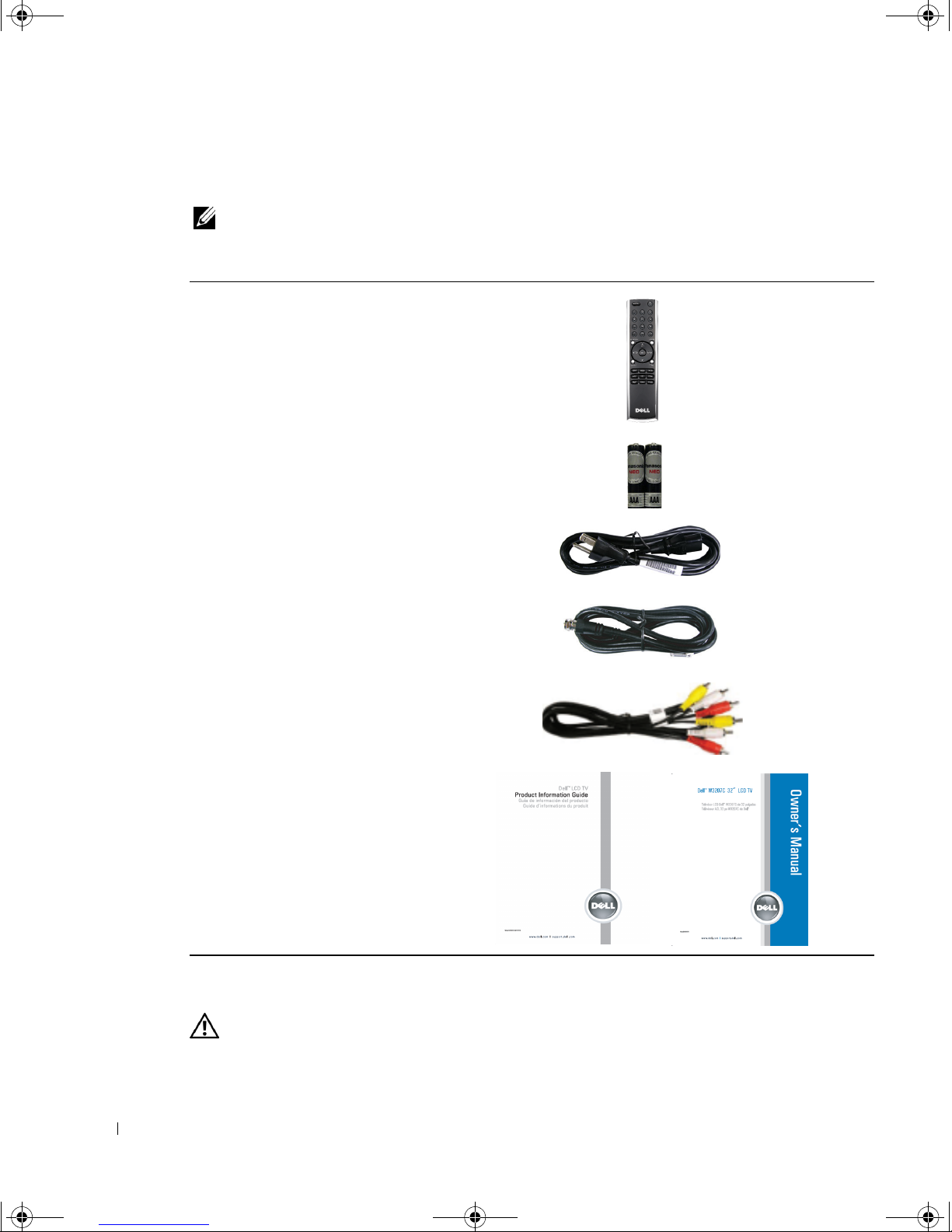

Remote control
AAA batteries (2)
Power cord
Antenna (coaxial) cable
Composite cables
Documentation
W3207C_UM_EN.book Page 10 Friday, June 30, 2006 10:42 AM
