Dell C5519QA User manual

Monitor Model: C5519QA
Regulatory Model: C5519Qc
Dell C5519QA
User’s Guide

NOTE: A NOTE indicates important information that helps you make
better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss
of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
Copyright © 2022 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other
trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their
respective owners.
2022 – 11
Rev. A00

Contents
About your monitor ......................... 6
Package Contents . . . . . . . . . . . . . . . . . . . . . .6
Product Features . . . . . . . . . . . . . . . . . . . . . . 7
Identifying parts and controls . . . . . . . . . . . . . . . .8
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Back view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Bottom view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Monitor specifications . . . . . . . . . . . . . . . . . . . 12
Resolution specifications . . . . . . . . . . . . . . . . . . . . . . 14
Support video mode. . . . . . . . . . . . . . . . . . . . . . . . . 14
Preset display modes . . . . . . . . . . . . . . . . . . . . . . . . 14
Electrical specifications. . . . . . . . . . . . . . . . . . . . . . . 15
Physical characteristics. . . . . . . . . . . . . . . . . . . . . . . 16
Environmental characteristics . . . . . . . . . . . . . . . . . . . 17
Plug and Play capability. . . . . . . . . . . . . . . . . . . . . . . 18
LCD monitor quality & pixel policy. . . . . . . . . . . . . 18
Setting up the monitor .......................19
Connecting your monitor . . . . . . . . . . . . . . . . . 19
Connecting the VGA cable . . . . . . . . . . . . . . . . . . . . . 19
Connecting the HDMI cable. . . . . . . . . . . . . . . . . . . . . 19
Connecting the DP cable . . . . . . . . . . . . . . . . . . . . . . 20
Connecting the USB cable . . . . . . . . . . . . . . . . . . . . . 20

Connecting the audio cable (optional purchase) . . . . . . . . . . 20
Wall mounting . . . . . . . . . . . . . . . . . . . . . . . 21
Remote control . . . . . . . . . . . . . . . . . . . . . . . 22
Inserting the batteries in the remote control . . . . . . . . . . . 23
Handling the remote control . . . . . . . . . . . . . . . . . . . . 24
Operating range of the remote control . . . . . . . . . . . . . . 24
Operating the monitor ...................... 25
Power on the monitor . . . . . . . . . . . . . . . . . . . 25
Using the control buttons . . . . . . . . . . . . . . . . . 26
OSD controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Using the On-Screen Display (OSD) menu . . . . . . . . 28
Accessing the OSD menu . . . . . . . . . . . . . . . . . . . . . . 28
OSD warning messages . . . . . . . . . . . . . . . . . . 40
Dell ethernet/web management for monitors. . . . . . . 43
OSD and Power button lock . . . . . . . . . . . . . . . . 49
Troubleshooting ............................51
Self-test . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Built-in diagnostics . . . . . . . . . . . . . . . . . . . . 53
Product-specific problems . . . . . . . . . . . . . . . . 57
Appendix................................. 58
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . 58
Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . 59
Setting up your monitor . . . . . . . . . . . . . . . . . . 60
Setting display resolution to 3840 x 2160 (maximum) . . . . . . .60
Dell computer . . . . . . . . . . . . . . . . . . . . . . . 61

Non-Dell computer . . . . . . . . . . . . . . . . . . . . . . . . . 61
Maintenance guidelines . . . . . . . . . . . . . . . . . . 62
Cleaning your display . . . . . . . . . . . . . . . . . . . . . . . . 62
Pin assignments . . . . . . . . . . . . . . . . . . . . . . 63

6 |About your monitor
About your monitor
Package Contents
Your monitor ships with all the components shown below. Ensure that you have
received all the components and Contacting Dell if anything is missing.
NOTE: Some items may be optional and may not ship with your
monitor. Some features or media may not be available in certain
countries.
Monitor
Remote control & Batteries (AAA x 2)
Power cable (varies by countries)
VGA cable
HDMI cable

About your monitor |7
DP cable (DP to DP)
USB 3.0 upstream cable (enables the USB
ports on the monitor)
Cable clips: 3 pcs
• Quick Setup Guide
• Safety, Environmental, and Regulatory
Information (SERI)
Product Features
The Dell C5519QA flat panel monitor has an active matrix, Thin-Film Transistor
(TFT), Liquid Crystal Display (LCD), and LED backlight. The monitor’s features
include:
• C5519QA: 1386.84 mm (54.6 in.) viewable area display (measured
diagonally), 3840 x 2160 resolution, plus full-screen support for lower
resolutions.
• Video Electronics Standards Association (VESA) 400 mm x 400 mm
mounting holes for flexible mounting solutions.
• Plug and play capability if supported by your system.
• Digital connectivity with DisplayPort and HDMI.
• On-Screen Display (OSD) adjustments for ease of set-up and screen
optimization.
• Security lock slot
• Asset Management Capability.
• ≤0.5 W in the Standby Mode.

8 |About your monitor
• Optimize eye comfort with a flicker-free screen.
WARNING: The possible long-term effects of blue light emission
from the monitor may cause damage to the eyes, including eye
fatigue, digital eye strain, and so on. ComfortView feature is designed
to reduce the amount of blue light emitted from the monitor to
optimize eye comfort.
Identifying parts and controls
Front view
1
1IR lens (with LED indicator)

About your monitor |9
Back view
1
2
3
4
5
6
7
DELL C5519QA
SVCTag:
xxxxxxx
ExpressService
Code:
xxxxxx xxx x
S/N:XXXXXXXX
XXXXXXXXXXXX
XXX
Dateof Mfg: August. 2022
FlatPanelMonitor /Monitor Plano Panel /Moniteur écran plat
ModelNo./Modelo /N°de modelo: C5519Qc
courantmunied'une mise à la terre.
Q40G055N-700-06AXXP
MadeinChina/
ForUKonly: One Creechurch Place, London EC3A 5AF
100-240V 50/60Hz,2.5A
Input Ra�ng /Entrada /Daya Tegangan /Tension d’entrée:
Label Description Use
1VESA mounting holes (400
mm x 400 mm)
To mount the monitor.
2Regulatory label List of approved regulatory labels.
3AC power connector To connect the monitor power cable.
4Function buttons (For more
information, see Operating the
monitor)
Use the keys on the back of the monitor
to adjust the image settings.
5Security lock slot Secures monitor with security lock.
6Screw Hole For accessory mounting.
7Cable clips position Sticking cable clips on these positions to
organize the cables.

10 |About your monitor
Side view
2
3
4
5
6
7
8
9
11
12
1
10
Label Description Use
1Audio line-out port Connect to external audio peripherals.
Only supports 2-channel audio.
NOTE:
The audio line-out port does not
support headphones.
2Audio line-in port Analog audio (two channel) input.
3VGA connector Connect your computer with VGA cable.
4DP connector Connect your computer with DP cable.
5HDMI 1 connector Connect your computer with HDMI cable.
6HDMI 2 connector
7USB dedicated
charging port
USB 3.0 with 10 W - Power supply (5 V/2.0 A)
8USB 3.0
downstream port
Connect your USB device.
You can only use this connector after you have
connected the USB cable to the computer and
USB upstream connector on the monitor.

About your monitor |11
9USB 3.0
downstream port
Connect your USB device.
You can only use this connector after you have
connected the USB cable to the computer and
USB upstream connector on the monitor.
10 USB 3.0 upstream
port
Connect the USB cable that comes with your
monitor to the computer. Once this cable is
connected, you can use the USB downstream
connectors on the monitor.
11 RS232 connector Remote management and control of monitor via
RS232
12 RJ-45 port Remote Network Management and control of
monitor via RJ-45.

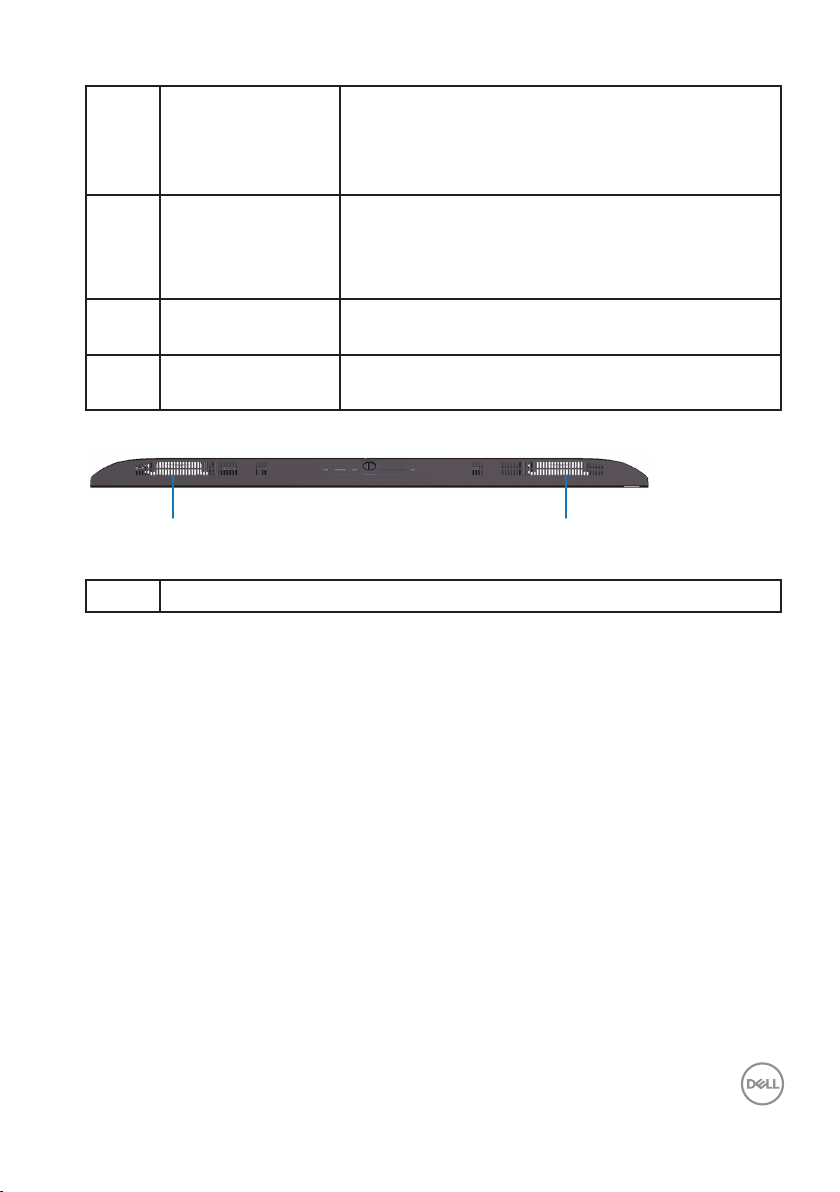

Bottom view
1 1
1Speakers

12 |About your monitor
Monitor specifications
Model C5519QA
Screen type Active matrix - TFT LCD
Panel type Vertical alignment
Aspect ratio 16:9
Viewable image
Diagonal
Horizontal, Active area
Vertical, Active area
Area
1386.8 mm (54.6 in.)
1209.6 mm (47.6 in.)
680.4 mm (26.8 in.)
823011.8 mm2 (1275.7 in.2)
Pixel pitch 0.315 mm (W) * 0.315 mm (H)
Pixel per inch (PPI) 80
Viewing angle
Horizontal
Vertical
178° (typical)
178° (typical)
Luminance output 350 cd/m² (typical)
Contrast ratio 4000:1 (typical)
Faceplate coating Antiglare with hard-coating 3H, 2% Haze
Backlight LED light bar system
Response time 8 ms typical (G to G)
Color depth 1.07 billion colors (typical)
Color gamut
National Television Standards Committee (NTSC)
72% (Commission Internationale de L’Eclairage (CIE)
1931)
NOTE: Color gamut (typical) is based on
CIE1976 (82%) and CIE1931 (72%) test
standards.
Built-in devices
• USB 3.0 super-speed hub (with 1 x USB 3.0
upstream port)
• 3 x USB 3.0 downstream ports (including 1 x USB
3.0 BC1.2 charging port, support 2.0 A)

About your monitor |13
Ports and connectors
• 1 x Audio line out port
• 1 x Audio line in port
• 1 x VGA port
• 1 x DisplayPort version 1.2
• 2 x HDMI port version 2.0
• 1 x USB Dedicated charging port
• 2 x USB 3.0 downstream ports
• 1 x USB 3.0 upstream port
• 1 x RS232
• 1 x RJ-45
Border width (edge of monitor to active area)
Top/Left/Right
Bottom
15.7 mm (0.61 in.)
25.55 mm (1.01 in.)
Dell Display Manager
compatibility Yes
Security Security lock slot (cable lock sold separately)
Cable management Yes

14 |About your monitor
Resolution specifications
Model C5519QA
Horizontal scan range 30 kHz to 160 kHz (automatic)
Vertical scan range 23 Hz to 80 Hz (automatic)
Maximum preset resolution 3840 x 2160 at 60 Hz
Support video mode
Model C5519QA
Video display capability
(HDMI&DP playback)
480p, 576p, 720p, 1080p, 1080i, 2160p
Preset display modes
Display mode
Horizontal
frequency
(kHz)
Vertical
frequency
(Hz)
Pixel clock
(MHz)
Sync polarity
(Horizontal/
Vertical)
VESA, 720 x 400 31.5 70.0 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.3 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1600 x 900 55.5 60.0 97.8 +/-
VESA, 1920 x 1080 67.5 60.0 148.5 +/+
VESA, 3840 x 2160 67.5 30.0 297.0 +/+
VESA, 3840 x 2160 135.0 60.0 594.0 +/+

About your monitor |15
Electrical specifications
Model C5519QA
Video input signals • Analog RGB, 0.7 Volts +/- 5%, positive polarity at
75 ohm input impedance
• HDMI 2.0, 600 mV for each differential line, 100
ohm input impedance per differential pair
• DisplayPort 1.2, 600 mV for each differential line,
100 ohm input impedance per differential pair
AC input voltage /
frequency / current
100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz /
2.5 A (typical)
Inrush current 120 V: 30 A (Max.) at 0 °C (cold start)
240 V: 60 A (Max.) at 0 °C (cold start)
Power Consumption 0.3 W (O Mode)1
0.4 W (Standby Mode)1
84.4 W (On Mode)1
200 W (Max)2
85 W (Pon)3
Not Applicable (TEC)3
1. As dened in EU 2019/2021 and EU 2019/2013.
2. Max brightness and contrast setting with maximum power loading on all USB ports.
3. Pon : Power consumption of On Mode as dened in Energy Star 8.0 version.
TEC: Total energy consumption in kWh as dened in Energy Star 8.0 version.
This document is informational only and reflects laboratory performance. Your
product may perform differently, depending on the software, components and
peripherals you ordered and shall have no obligation to update such information.
Accordingly, the customer should not rely upon this information in making
decisions about electrical tolerances or otherwise. No warranty as to accuracy or
completeness is expressed or implied.

16 |About your monitor
NOTE: This monitor is ENERGY STAR certified.
This product qualifies for ENERGY STAR in the factory default settings which can be
restored by “Factory Reset” function in the OSD menu. Changing the factory default
settings or enabling other features may increase power consumption that could exceed the
ENERGY STAR specified limit.
Physical characteristics
Model C5519QA
Signal cable type • Digital: DisplayPort, 20 pins
• Digital: HDMI, 19 pins
• Analog: D-Sub, 15 pins
• Universal Serial Bus: USB, 9 pins
Dimensions
Height
Width
Depth
721.5 mm (28.41 in.)
1241.0 mm (48.86 in.)
64.8 mm (2.55 in.)
Weight
Weight with packaging 27.57 kg (60.78 lb)
Weight with cables 21.38 kg (47.13 lb)
Weight without cables (For
wall mount or VESA mount
considerations - no cables)
20.50 kg (45.19 lb)

About your monitor |17
Environmental characteristics
Model C5519QA
Compliant standards
• ENERGY STAR certified monitor
• RoHS-compliant
• TCO Certified
• BFR/PVC free monitor (excluding external cables)
• Arsenic-free glass and Mercury-free for the panel only
Temperature
Operating 0 °C to 40 °C (32 °F to 104 °F)
Non-operating • Storage: -20 °C to 60 °C (-4 °F to 140 °F)
• Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity
Operating 10 % to 80 % (non-condensing)
Non-operating • Storage: 10 % to 90 % (non-condensing)
• Shipping: 10 % to 90 % (non-condensing)
Altitude
Operating (maximum) 5,000 m (16,400 ft) max
Non-operating (maximum) 12,192 m (40,000 ft) max
Thermal dissipation • 684.00 BTU/hour (maximum)
• 307.80 BTU/hour (typical)

18 |About your monitor
Plug and Play capability
You can install the monitor in any Plug and Play-compatible system. The monitor
automatically provides the computer system with its Extended Display Identification Data
(EDID) using Display Data Channel (DDC) protocols so the system can configure itself and
optimize the monitor settings. Most monitor installations are automatic, you can select
different settings if desired. For more information about changing the monitor settings, see
Operating the monitor.
LCD monitor quality & pixel policy
During the LCD Monitor manufacturing process, it is not uncommon for one or
more pixels to become fixed in an unchanging state which are hard to see and
do not affect the display quality or usability. For more information on Dell monitor
quality and pixel policy, see Dell support site at www.dell.com/support/
monitors.

Setting up the monitor |19
Setting up the monitor
Connecting your monitor
WARNING: Before you begin any of the procedures in this section,
follow the Safety instructions.
To connect your monitor to the computer:
1. Turn off your computer.
2. Connect the HDMI/DP/VGA/USB cable from your monitor to thecomputer.
3. Switch on your monitor.
4. Select the correct input source at monitor OSD Menu and turn on your
computer.
Connecting the VGA cable
DELL C5519QA
SVCTag:
xxxxxxx
ExpressService
Code:
xxxxxxxxx x
S/N:XXXXXXXX
XXXXXXXXXXXX
XXX
DateofMfg: August. 2022
FlatPanelMonitor/Monitor Plano Panel /Moniteur écran plat
ModelNo./Modelo/N°de modelo: C5519Qc
courantmunied'unemise à la terre.
Q40G055N-700-06AXXP
MadeinChina/
ForUKonly:One Creechurch Place, London EC3A 5AF
100-240V 50/60Hz,2.5A
Input Ra�ng /Entrada /Daya Tegangan /Tension d’entrée:
Connecting the HDMI cable
DELL C5519QA
SVCTag:
xxxxxxx
ExpressService
Code:
xxxxxxxxx x
S/N:XXXXXXXX
XXXXXXXXXXXX
XXX
DateofMfg: August. 2022
FlatPanelMonitor/Monitor Plano Panel /Moniteur écran plat
ModelNo./Modelo/N°de modelo: C5519Qc
courantmunied'unemise à la terre.
Q40G055N-700-06AXXP
MadeinChina/
ForUKonly:One Creechurch Place, London EC3A 5AF
100-240V 50/60Hz,2.5A
Input Ra�ng /Entrada /Daya Tegangan /Tension d’entrée:

20 |Setting up the monitor
Connecting the DP cable
DELL C5519QA
SVCTag:
xxxxxxx
ExpressService
Code:
xxxxxxxxx x
S/N:XXXXXXXX
XXXXXXXXXXXX
XXX
DateofMfg: August. 2022
FlatPanelMonitor/Monitor Plano Panel /Moniteur écran plat
ModelNo./Modelo/N°de modelo: C5519Qc
courantmunied'unemise à la terre.
Q40G055N-700-06AXXP
MadeinChina/
ForUKonly:One Creechurch Place, London EC3A 5AF
100-240V 50/60Hz,2.5A
Input Ra�ng /Entrada /Daya Tegangan /Tension d’entrée:
Connecting the USB cable
DELL C5519QA
SVCTag:
xxxxxxx
ExpressService
Code:
xxxxxxxxx x
S/N:XXXXXXXX
XXXXXXXXXXXX
XXX
DateofMfg: August. 2022
FlatPanelMonitor/Monitor Plano Panel /Moniteur écran plat
ModelNo./Modelo/N°de modelo: C5519Qc
courantmunied'unemise à la terre.
Q40G055N-700-06AXXP
MadeinChina/
ForUKonly:One Creechurch Place, London EC3A 5AF
100-240V 50/60Hz,2.5A
Input Ra�ng /Entrada /Daya Tegangan /Tension d’entrée:
Connecting the audio cable (optional purchase)
DELL C5519QA
SVCTag:
xxxxxxx
ExpressService
Code:
xxxxxxxxx x
S/N:XXXXXXXX
XXXXXXXXXXXX
XXX
DateofMfg: August. 2022
FlatPanelMonitor/Monitor Plano Panel /Moniteur écran plat
ModelNo./Modelo/N°de modelo: C5519Qc
courantmunied'unemise à la terre.
Q40G055N-700-06AXXP
MadeinChina/
ForUKonly:One Creechurch Place, London EC3A 5AF
100-240V 50/60Hz,2.5A
Input Ra�ng /Entrada /Daya Tegangan /Tension d’entrée:
