Before you begin
You can connect up to four 4K external displays or one 8K display using the Thunderbolt 4 (USB-C) ports and HDMI port
available on your Precision 3580.
Before you begin, ensure that you:
●Check the graphics options on your computer.
●Check the ports available on your external displays and decide on the mode of connection.
Check the graphics options on your computer
The number of external displays that are supported depends on the type of graphics card available on your computer.
For more information about the graphics card available on your computer, run Dell SupportAssist on your computer, or scan your
hardware at www.dell.com/support.
The following are the graphic options that may be installed in your computer:
●Intel Iris Xe Graphics (Integrated graphics)
●Intel UHD Graphics (Integrated graphics)
●NVIDIA RTX A500 (Discrete graphics)
Modes of connection
Depending on the connectors available on your external display, you can connect the displays to the Thunderbolt 4 (USB-C)
ports or HDMI port on your computer using:
●HDMI cable
●Thunderbolt 4 cables, adapters, or docking stations
●USB-C cables, adapters, or docking stations
NOTE: To experience the full resolution supported by your external displays, use appropriate cables. For example, use
DisplayPort or HDMI cables for 4K and above resolution.
NOTE: USB-C or Thunderbolt docking stations can be used to connect external displays to the computer using a single
USB-C cable, while charging the computer. For more information about the types of docking stations available from Dell,
see the knowledge base article 000124295 at www.dell.com/support.
NOTE: USB-C adapters can also be used to connect external displays to the computer, though these do not allow power
charging simultaneously. For more information about the types of USB-C adapters available from Dell, see the knowledge
base article 000125728 at www.dell.com/support.

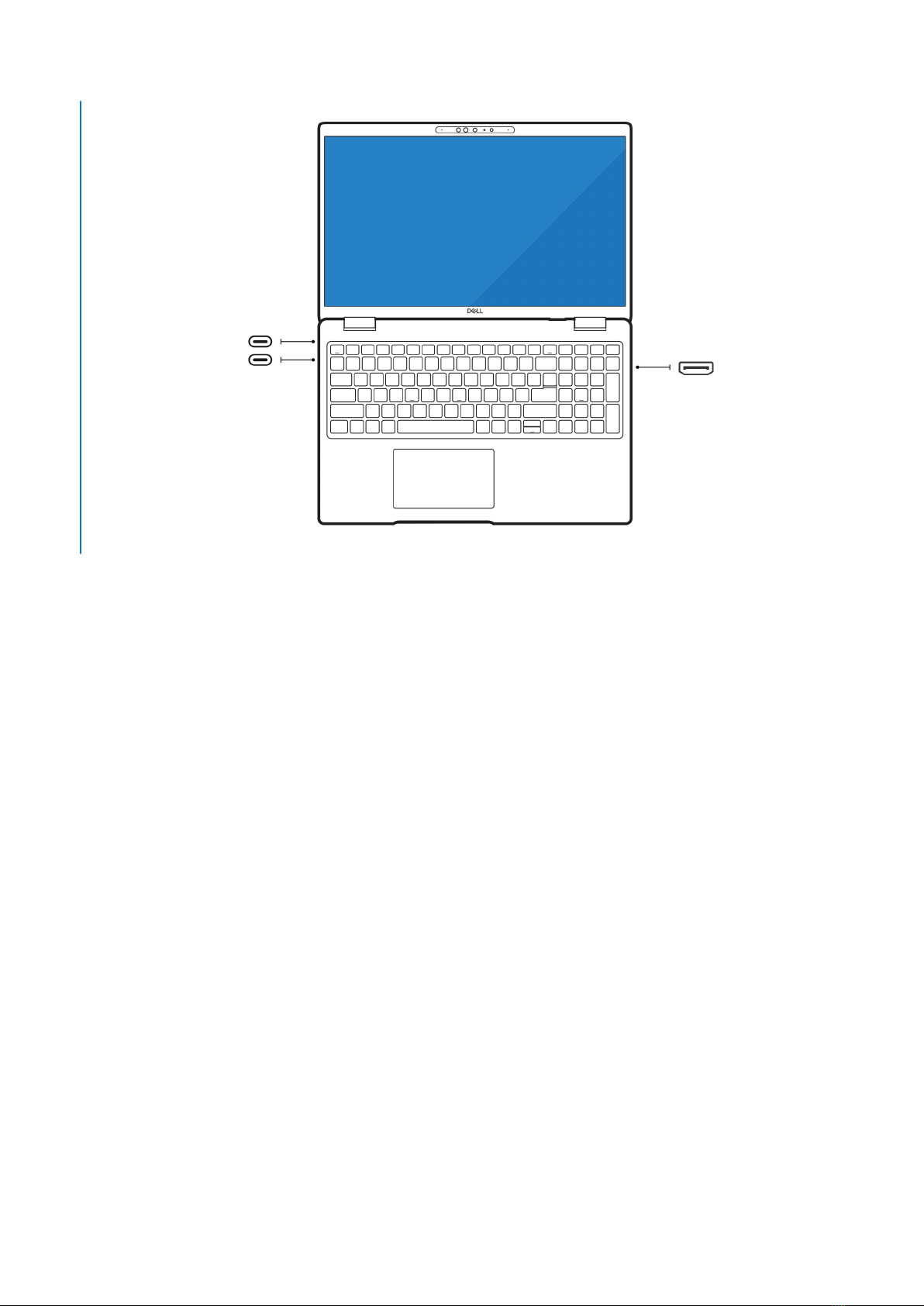

These are the Thunderbolt 4 (USB-C) ports and HDMI port available on your computer:
NOTE: The devices connected to the ports on the left side of the computer have priority over the ports on the right. While
connecting external displays, it is recommended that you connect the displays to the left ports.
USB-C and Thunderbolt 4 USB-C ports available on your computer
NOTE: When connecting a display indirectly using an adapter or docking station, it is recommended that you connect the
display to the docking station first, then connect the docking station to the Thunderbolt 4 (USB-C) port on your computer.
1
4 Before you begin

Turn off the internal display
There may be instances where you may want to turn off the computer's internal display to connect more external displays.
You can turn off the display of your computer by using the Intel HD Graphics Command Center.
To turn off the computer's display:
1. In the Windows search bar, type Intel Graphics Command Center and press <Enter>.
2. Accept the Intel Graphics Command Center software license agreement.
3. On the Intel Graphics Command Center window, click Display. The list of active displays is listed under the Connected
Displays section.
4. Click the ellipsis (...) at the upper right corner of your primary display, then click Extend > Display 2.
5. Click the ellipsis (...) at the upper right corner of display 2, then click Make Display Primary.
6. Click the ellipsis (...) at the upper right corner of your computer's display, then click Disable.
Before you begin 5

Connect external displays
You can connect up to four external displays to the Thunderbolt 4 (USB-C) ports and HDMI port on your computer.
The number of displays supported depends on the following:
●Whether you are using integrated graphics or discrete graphics.
●If the internal display is enabled or disabled.
●Your docking station may also limit the number of supported external displays. Check the documentation that came with your
docking station.
The following table summarizes the number of supported external displays:
Table 1. Display support (up to 4K/60 Hz)
Graphics card Supported external
displays with computer
internal display on
Supported external
displays with computer
internal display off
Intel UHD Graphics (Integrated graphics) 3 4
Intel Xe Graphics (Integrated graphics) 3 4
NVIDIA RTX A500 3 4
Table 2. Display support (up to 8K/60 Hz)
Graphics card Supported external
displays with computer
internal display on
Supported external
displays with computer
internal display off
Intel UHD Graphics (Integrated graphics) 1 1
Intel Xe Graphics (Integrated graphics) 1 1
NVIDIA RTX A500 1 1
Integrated graphics
Connecting external displays to Precision 3580
NOTE: When connecting a display indirectly using an adapter or docking station, it is recommended that you connect the
display to the docking station first, then connect the docking station to the Thunderbolt 4 (USB-C) port on your computer.
With the computer display turned on
You can connect external displays directly to Thunderbolt 4 (USB-C) ports and HDMI port, or up to two external displays using a
docking station.
●Connect an external display using a direct USB-C or Thunderbolt cable:
2
6 Connect external displays

●Connect an external display using a direct HDMI cable:
●Connect an external display using a USB-C to Thunderbolt/HDMI/DisplayPort adapter:
Connect external displays 7

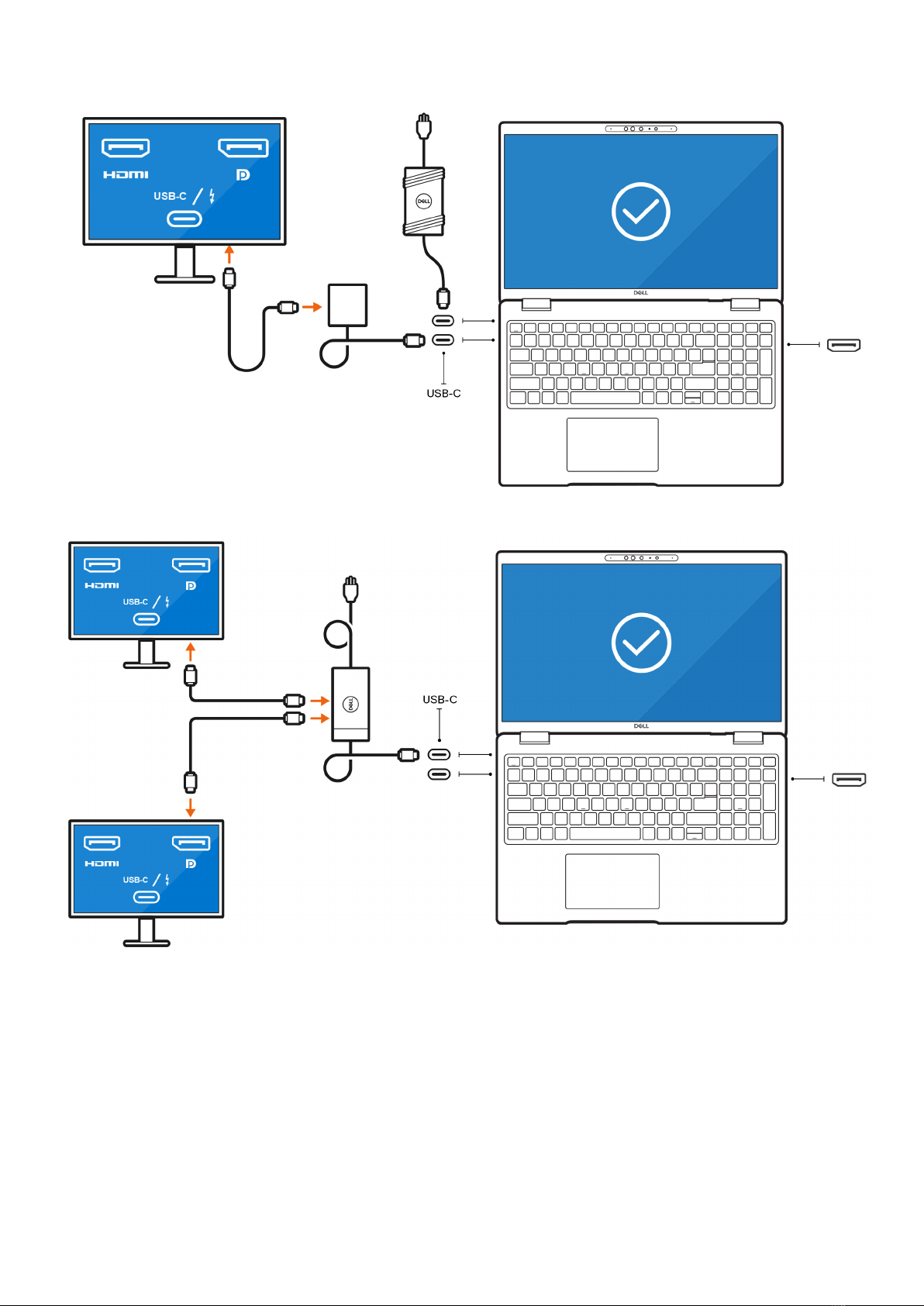

●Connect up to two external displays using a USB-C docking station:
●Connect up to three external displays using direct USB-C or Thunderbolt cables and a direct HDMI cable:
8Connect external displays

●Connect up to three external displays using a USB-C docking station:
With the computer display turned off
NOTE: Ensure that you turn off the computer's internal display before connecting the external displays. For more
information, see Turn off the internal display.
NOTE: Connect and configure at least one external display before disabling the computer internal display.
You can connect external displays using the Thunderbolt 4 (USB-C) ports and HDMI port.
●Connect up to four external displays using a USB-C docking station and a direct HDMI cable:
Connect external displays 9

●Connect two external displays using a docking station and two more external displays using a USB-C to HDMI/DisplayPort/
Thunderbolt 4 adapter:
10 Connect external displays

Troubleshooting
The display output resolution cannot reach 4K@60 Hz while connecting
the display monitor with a HDMI-to-DP or DP-to-HDMI dongle from the
docking station to the system
Question
When I connect a display monitor to the computer using an HDMI-to-DP or DP-to-HDMI dongle from a Dell WD19/WD22
Thunderbolt docking station, the display output resolution cannot reach 4K@60 Hz (only 4K@30 Hz).
Cause
This is due to a hardware limitation while connecting dongles to the Dell WD19/WD22 (Limited Graphic bandwidth) Thunderbolt
docking station.
Workaround
Connect the monitor directly to the HDMI or DP ports on the Thunderbolt docking station.
Connect external displays 11
