Dell™E2211H/E2311HmonitorUser'sGuide
Notes, Notices, and Cautions




Information in this document is subject to change without notice.
©2010DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELLlogoaretrademarksofDellInc;Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in
the United States and/or other countries, Intel is a registered trademark of Intel Corporation in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices,
Inc. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the
ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model E2211Hb/E2311Hf.
August 2010 Rev. A00
About Your Monitor
Setting Up the Monitor
Operating the Monitor
Troubleshooting
Appendix
NOTE: A NOTE indicates important information that helps you make better use of your monitor.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury or death.

Back to Contents Page

About Your Monitor
Dell™E2211H/E2311HmonitorUser'sGuide

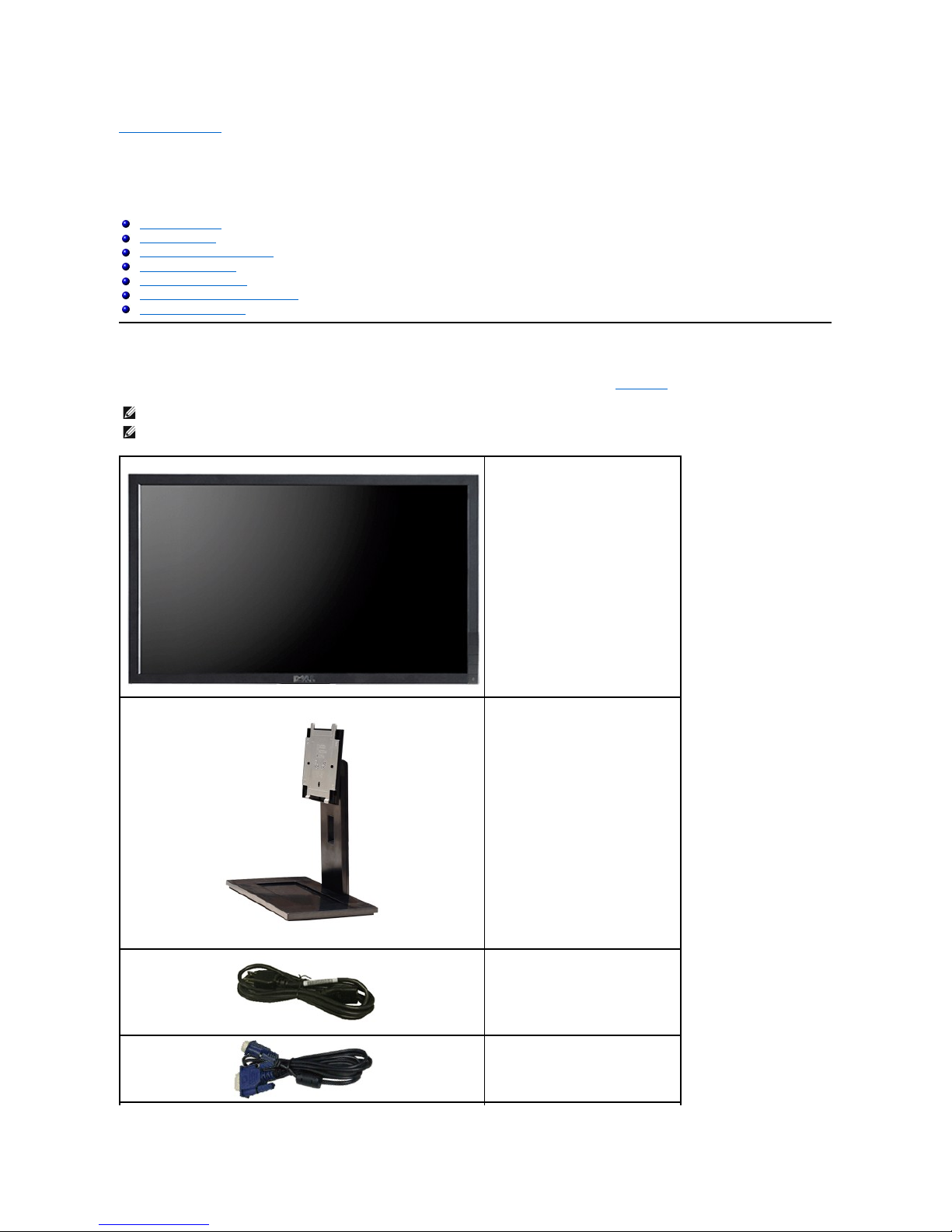

Package Contents
Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.
Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
LCD Monitor Quality and Pixel Policy
Maintenance Guidelines
NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.
NOTE: To set up with any other stand, please refer to the respective stand setup guide for setup instructions.

lMonitor
lStand
lPower Cable
lVGA Cable


Product Features
The Dell™E2211H/E2311H flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD), and LED backlight. The monitor
features include:
■E2211H: 54.52cm(21.5inch)viewableareadisplay(Measureddiagonally).1920x1080resolution,plusfull-screen support for lower resolutions.
■E2311H: 58.42cm(23inch)viewableareadisplay(Measureddiagonally).1920x1080 resolution, plus full-screen support for lower resolutions.
■Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side.
■Tilt adjustment capability.
■RemovablepedestalandVideoElectronicsStandardsAssociation(VESA™)100mmmountingholesforflexiblemountingsolutions.
■Plug and play capability if supported by your system.
■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■Software and documentation media includes an information file (INF), Image color Matching File (ICM), PowerNap software application and product
documentation.
■Energy Saver feature for Energy Star compliance.
■Security lock slot.
■Asset Management Capability.
■Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.
■EPEAT Gold Rating.
■Halogen Reduced.
■Arsenic-free glass and Mercury-free panel.
■Energy Gauge shows the energy level being consumed by the monitor in real time.
■PowerNap Software included (comes in the CD shipped with the monitor).
Identifying Parts and Controls
Front View

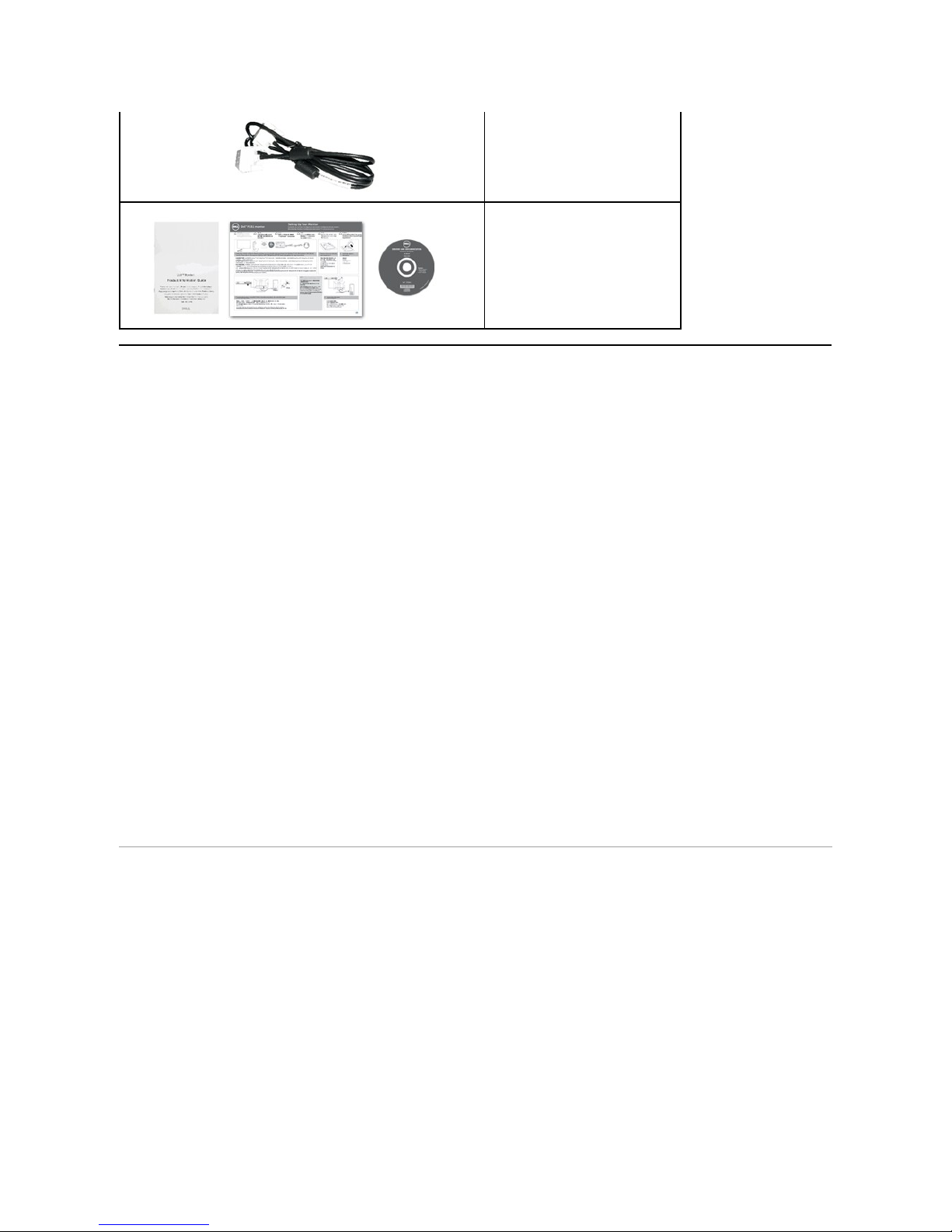

lDVI Cable
lDrivers and Documentation media
lQuick Setup Guide
lProduct and Safety Information Guide

Back View


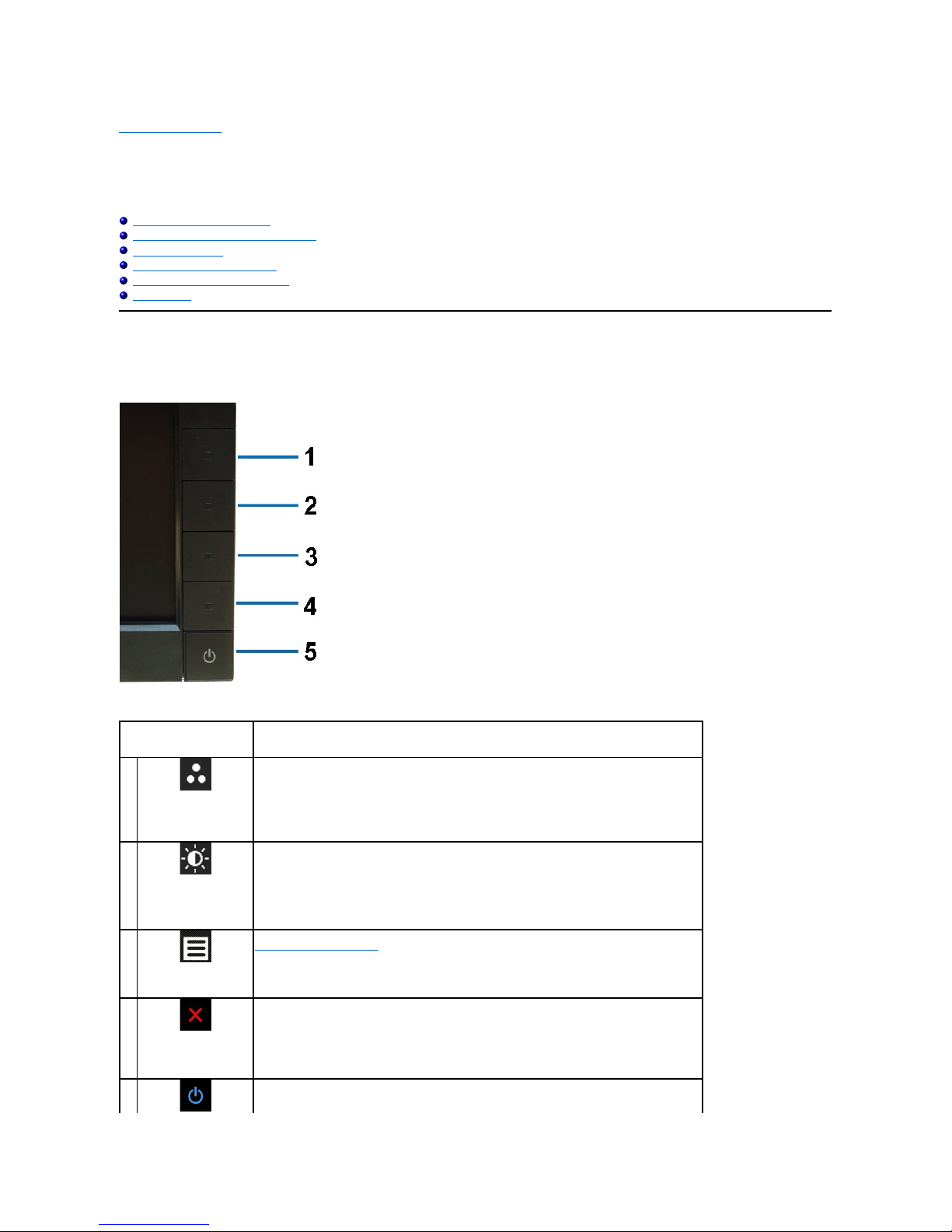

Front View
Front panel controls
Label
Description
1
Preset Modes (default, but configurable)
2
Brightness & Contrast (default, but configurable)
3
Menu
4
Exit
5
Power button (with power light indicator)
Back view
Back view with monitor stand
Label
Description
Use
1
VESA mounting holes (100 mm x 100 mm -
behind attached VESA Plate)
Wall mount monitor using VESA-compatible wall mount kit (100 mm x 100 mm)
2
Regulatory label
Lists the regulatory approvals.
3
Stand release button
Release stand from monitor.
4
Security lock slot
Secures monitor with security cable lock.
5
Dell Soundbar mounting brackets
Attaches the optional Dell Soundbar.
6
Barcode serial number label
Refer to this label if you need to contact Dell for technical support.
7
Cable management slot
Use to organize cables by placing them through the slot.

Side View
Bottom View



Right view
Bottom view
Bottom view with monitor stand
Label
Description
Use
1
AC power cord connector
Connect the power cable
2
DVI connector
Connect your computer DVI cable
3
VGA connector
Connect your computer VGA cable
4
Stand lock feature
To lock the Stand to the Monitor
Monitor Specifications
Flat Panel Specifications
Model
E2211H
E2311H
Screen type
Active matrix - TFT LCD
Active matrix - TFT LCD
Panel type
TN
TN
Screen dimensions
21.5 inches (21.5-inch viewable image size)
23 inches (23-inch viewable image size)
Preset display area:
476.64 (H) X 268.14 (V) mm
509.76 (H) X 286.74 (V) mm
Horizontal
476.64 mm (18.77 inches)
509.76 mm (20.07 inches)

*[E2211H] color gamut (typical) is based on CIE1976 (81%) and CIE1931 (68%) test standards.
** [E2311H] color gamut (typical) is based on CIE1976 (81%) and CIE1931 (68%) test standards.
Vertical
268.14 mm (10.56 inches)
286.74 mm (11.29 inches)
Pixel pitch
0.248 mm
0.265 mm
Viewing angle
160°(vertical)typ,170°(horizontal)typ
160°(vertical)typ,170°(horizontal)typ
Luminance output
250 cd/m ²(typ)
250 cd/m ²(typ)
Contrast ratio
1000 to 1 (typ)
1000 to 1 (typ)
Faceplate coating
Antiglare with hard-coating 3H
Antiglare with hard-coating 3H
Backlight
LED edgelight system
LED edgelight system
Response Time
5 ms typical
5 ms typical
Color depth
16.7 million colors
16.7 million colors
Color gamut (Typical)
81%*
81%**
Resolution Specifications
Video Supported Modes

Model
E2211H
E2311H
Horizontal scan range
30 kHz to 83 kHz (automatic)
30 kHz to 83 kHz (automatic)
Vertical scan range
56Hzto75Hz(automatic)
56Hzto75Hz(automatic)
Maximum resolution
1920 x 1080 at 60 Hz
1920 x 1080 at 60 Hz
Model
E2211H
E2311H
Video display capabilities (DVI playback)
480p, 480i, 576p, 576i, 720p, 1080p and 1080i
480p, 480i, 576p, 576i, 720p, 1080p and 1080i

Preset Display Modes

Display Mode
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(Horizontal/Vertical)
720 x 400
31.5
70.0
28.3
-/+
640 x 480
31.5
60.0
25.2
-/-
640 x 480
37.5
75.0
31.5
-/-
800 x 600
37.9
60.0
40.0
+/+
800 x 600
46.9
75.0
49.5
+/+
1024 x 768
48.4
60.0
65.0
-/-
1024 x 768
60.0
75.0
78.8
+/+
1152 x 864
67.5
75.0
108.0
+/+
1280 x 1024
64.0
60.0
108.0
+/+
1280 x 1024
80.0
75.0
135.0
+/+
1920 x 1080
67.5
60.0
148.5
+/+
Electrical Specifications

Model
E2211H/E2311H
Video input signals
Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm input impedance
Digital DVI-
D TMDS, 600mV for each differential line, positive polarity at 50 ohm input
impedance
Synchronization input signals
Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG
(Composite SYNC on green)
AC input voltage/frequency/current
100 to 240 VAC/50 or 60 Hz +3 Hz/1.5 A (Max.)
Inrush current
120V:30A (Max.)
240V:60A (Max.)

Physical Characteristics

Model
E2211H
E2311H
Connector type
15-pin D-subminiature, blue connector; DVI-
D, white connector
15-pin D-subminiature, blue connector; DVI-D,
white connector
Signal cable type
Digital: Detachable, DVI-D, Solid pins,
shipped detached from the monitor
Analog: Detachable, D-Sub, 15 pins,
shipped attached to the monitor
Digital: Detachable, DVI-D, Solid pins, shipped
detached from the monitor
Analog: Detachable, D-Sub, 15 pins, shipped
attached to the monitor
Dimensions (with stand)
Height
380.4 mm (14.98 inches)
402.59 mm (15.85 inches)
Width
514.8 mm (20.27 inches)
547.97 mm (21.57 inches)
Depth
158.9 mm (6.25 inches)
163.86 mm (6.45 inches)
Dimensions (without stand)
Height
306.3 mm (12.06 inches)
325.07 mm (12.80 inches)
Width
514.8 mm (20.27 inches)
547.97 mm (21.57 inches)
Depth
61.5 mm (2.42 inches)
61.5 mm (2.42 inches)
Stand dimensions
Height
296.8 mm (11.68 inches)
310.39 mm (12.22 inches)
Width
258.9 mm (10.09 inches)
265.86 mm (10.47 inches)
Depth
158.9 mm (6.25 inches)
163.86 mm (6.45 inches)
Weight
Weight with packaging
5.30 kg (11.68 lb)
5.81 kg (12.81 lb)
Weight with stand assembly and cables
4.24 kg (9.34 lb)
4.70 kg (10.36 lb)
Weight without stand assembly
(For wall mount or VESA mount considerations -no
cables)
2.98 kg (6.56 lb)
3.36 kg (7.41 lb)
Weight of stand assembly
0.97 kg (2.14 lb)
1.05 kg (2.31 lb)

Environmental Characteristics

Model
E2211H
E2311H
Temperature
Operating
0°Cto40°C
0°Cto40°C
Non-operating
Storage: -20°Cto60°C(-4°Fto140°F)
Shipping: -20°Cto60°C(-4°Fto140°F)
Storage: -20°Cto60°C(-4°Fto140°F)
Shipping: -20°Cto60°C(-4°Fto140°F)
Humidity
Operating
10% to 80% (non-condensing)
10% to 80% (non-condensing)
Non-operating
Storage: 5% to 90% (non-condensing)
Shipping: 5% to 90% (non-condensing)
Storage: 5% to 90% (non-condensing)
Shipping: 5% to 90% (non-condensing)
Altitude
Operating
4,850 m (15,902 ft) max
4,850 m (15,902 ft) max
Non-operating
12,192 m (40,000 ft) max
12,192 m (40,000 ft) max
Thermal dissipation
95.54 BTU/hour (maximum)
68.24 BTU/hour (typical)
102.36 BTU/hour (maximum)
81.89 BTU/hour (typical)
Power Management Modes

IfyouhaveVESA'sDPM™compliancedisplaycardorsoftwareinstalledinyourPC,themonitorcanautomaticallyreduceitspowerconsumptionwhennotinuse.Thisis
referred to as Power Save Mode
*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The
following table shows the power consumption and signaling of this automatic power saving feature:
E2211H
VESA Modes
Horizontal Sync
Vertical Sync
Video
Power Indicator
Power Consumption
Normal operation
Active
Active
Active
Blue
20 W (typical)/28 W (maximum)
Active-off mode
Inactive
Inactive
Blanked
Amber
Less than 1.0 W
Switch off
-
-
-
Off
Less than 0.5 W

Back to Contents Page

Appendix
Dell™E2211H/E2311HmonitorUser'sGuide
Safety Instructions
FCC Notice (U.S. Only) and Other Regulatory Information
Contacting Dell

WARNING: Safety Instructions
For information on safety instructions, see the Product Information Guide.
FCC Notices (U.S. Only) and Other Regulatory Information
For FCC notices and other regulatory information, see the regulatory compliance website located at: http://www.dell.com/regulatory_compliance.
Contacting Dell
For customers in the United States, call 800-WWW-DELL (800-999-3355).
Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be
available in your area. To contact Dell for sales, technical support, or customer service issues:

Back to Contents Page
WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock,
electrical hazards, and/or mechanical hazards.
NOTE:
If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
1.
Visit support.dell.com.
2.
Verify your country or region in the Choose A Country/Region drop-downmenuatthebottomofthepage.
3.
Click Contact Us on the left side of the page.
4.
Select the appropriate service or support link based on your need.
5.
Choose the method of contacting Dell that is convenient for you.

Back to Contents Page
Help on PowerNap Installation
To install PowerNap succesfully, follow these steps:-
Back to Contents Page
1.CheckOperatingSystemRequirements
Windows XP, Windows Vista®, Windows®7
2. Install Entech API
Install
3.InstallPowerNapSoftware
Install

Back to Contents Page
Setting Up Your Monitor
Dell™E2211H/E2311Hmonitor
IfyouhaveaDell™desktoporaDell™portablecomputerwithinternetaccess
1. Go to http://support.dell.com,enteryourservicetag,anddownloadthelatestdriverforyourgraphicscard.
2. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1920 X 1080 again.
Back to Contents Page
NOTE:
Ifyouareunabletosettheresolutionto1920x1080,pleasecontactDell™toinquireaboutaGraphicsAdapterthatsupportstheseresolutions.

Back to Contents Page
Setting Up Your Monitor
Dell™E2211H/E2311Hmonitor
IfyouhavenonDell™desktop,portablecomputer,orgraphiccard
In Windows XP:
1. Right-click on the desktop and click Properties.
2. Select the Settings tab.
3. Select Advanced.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com ).
6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1920 X 1080 again.
In Windows Vista®or Windows®7:
1. Right-click on the desktop and click Personalization.
2. Click Change Display Settings.
3. Click Advanced Settings.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com ).
6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1920 X 1080 again.
Back to Contents Page
NOTE:
If you are unable to set the resolution to 1920 x 1080, please contact the manufacturer of your computer or consider purchasing a graphics adapter that will
supportthevideoresolutionof1920x1080.

Back to Contents Page

Operating the Monitor
Dell™E2211H/E2311HmonitorUser'sGuide
Using the Front Panel Controls
Using the On-Screen Display (OSD) Menu
PowerNap Software
Setting the Maximum Resolution
Using the Dell Soundbar (Optional)
Using the Tilt
Using the Front Panel Controls
Use the control buttons on the front of the monitor to adjust the characteristics of the image being displayed. As you use these buttons to adjust the controls,
an OSD shows the numeric values of the characteristics as they change.
The following table describes the front panel buttons:
Front panel Button
Description
1
Shortcut key/ Preset
Modes
Use this button to choose from a list of preset color modes.
2
Shortcut key /
Brightness/Contrast
Use this button to directly access the "Brightness/Contrast" menu.
3
Menu
Use the MENU button to launch the on-screen display (OSD) and select the OSD Menu. See
Accessing the Menu System.
4
Exit
Use this button to go back to the main menu or exit the OSD main menu.
5
Use the Power button to turn the monitor on and off.
The Blue LED indicates the monitor is on and fully functional. An amber LED indicates DPMS power

Using the On-Screen Display (OSD) Menu

Accessing the Menu System

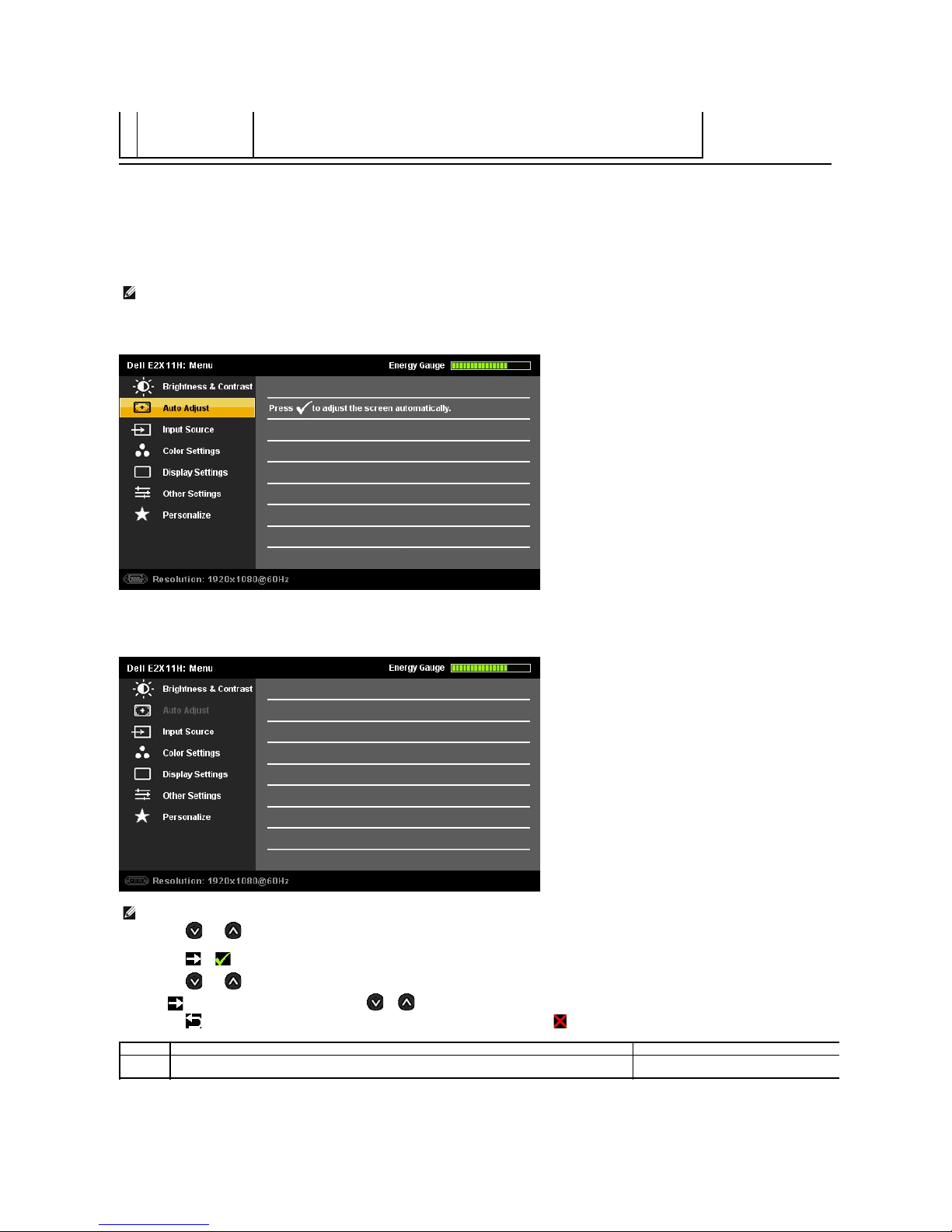

Main Menu for Analog (VGA) Input
or
Main Menu for Digital (DVI-D) Input

Power
(withpowerlight
indicator)
save mode.

NOTE: IfyouchangethesettingsandtheneitherproceedtoanothermenuorexittheOSDmenu,themonitorautomaticallysavesthosechanges.The
changes are also saved if you change the settings and then wait for the OSD menu to disappear.
1.
Press the MENU button to launch the OSD menu and display the main menu.
NOTE: AUTO ADJUST is only available when you use the analog (VGA) connector.
2.
Press the and buttons to move between the setting options. As you move from one icon to another, the option name is highlighted. See the
following table for a complete list of all the options available for the monitor.
3.
Press the or button once to activate the highlighted option.
4.
Press the and buttons to select the desired parameter.
5.
Press toentertheslidebarandthenusethe or button, according to the indicators on the menu, to make your changes.
6.
Press the button once to return to the main menu to select another option or press the button two or three times to exit from the OSD menu.
Icon
Menu and Submenus
Description

Energy Gauge
This meter shows the energy level being consumed by the monitor in real time. When the meter is green, it indicates the monitor is
consuming low energy level. When the energy consumed increases, the meter will change to yellow and subsequently red.

Brightness/Contrast
Use t
his menu to activate Brightness/Contrast adjustment.

Brightness
Brightness adjusts the luminance of the backlight.
Press the
button to increase brightness and Press the

NOTE:
Brightness control will be greyed out during "Screen dim" in PowerNap option when screen saver is activated.

Contrast
Adjust Brightness first, and then adjust Contrast only if further adjustment is necessary.
Press the button to increase contrast
and
The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.
