Dell U2211H User manual

Dell™U2211H/U2311HMonitorUser'sGuide
Notes, Notices, and Cautions

Information in this document is subject to change without notice.
©2010DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELLlogoaretrademarksofDellInc;Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in
the United States and/or other countries, Intel is a registered trademark of Intel Corporation in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices,
Inc. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the
ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model U2211Ht /U2311Hb
May 2010 Rev. A01
About Your Monitor
Setting Up the Monitor
Operating the Monitor
Troubleshooting
Appendix
NOTE:
A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury,or death.

Back to Contents Page

About Your Monitor
Dell™U2211H/U2311HMonitorUser'sGuide
Package Contents
Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.

Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
Universal Serial Bus (USB) Interface
LCD Monitor Quality and Pixel Policy
Maintenance Guidelines
NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in certain countries.
NOTE: To set up with anyother stand, please refer to the respective stand setup guide for setup instructions.
lMonitor
lStand
lPower Cable


Product Features
The U2211H / U2311H flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:
■546.1 mm (21.5-inch)viewableareadisplay(Measureddiagonally).1920 x 1080 resolution, plus full-screen support for lower resolutions.
■584.2 mm (23-inch)viewableareadisplay(Measureddiagonally).1920 x 1080 resolution, plus full-screen support for lower resolutions.
■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.
■Tilt, swivel, vertical extension and rotate adjustment capability.
■Removable pedestal and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.
■Plug and play capability if supported by your system.
■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■Software and documentation media includes an information file (INF), Image color Matching File (ICM), and product documentation.
■Energy Saver feature for Energy Star compliance.
■Security lock slot.
■Asset Management Capability.
■Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.
■EPEAT Silver Rating.
■Halogen Reduced.
Identifying Parts and Controls
Front View
lVGA Cable (attached to the monitor)
lDVI Cable
lUSB up stream cable (enables the USB ports on the monitor)

lDrivers and Documentation media
lQuick Setup Guide
lProduct and Safety Information Guide

Back View

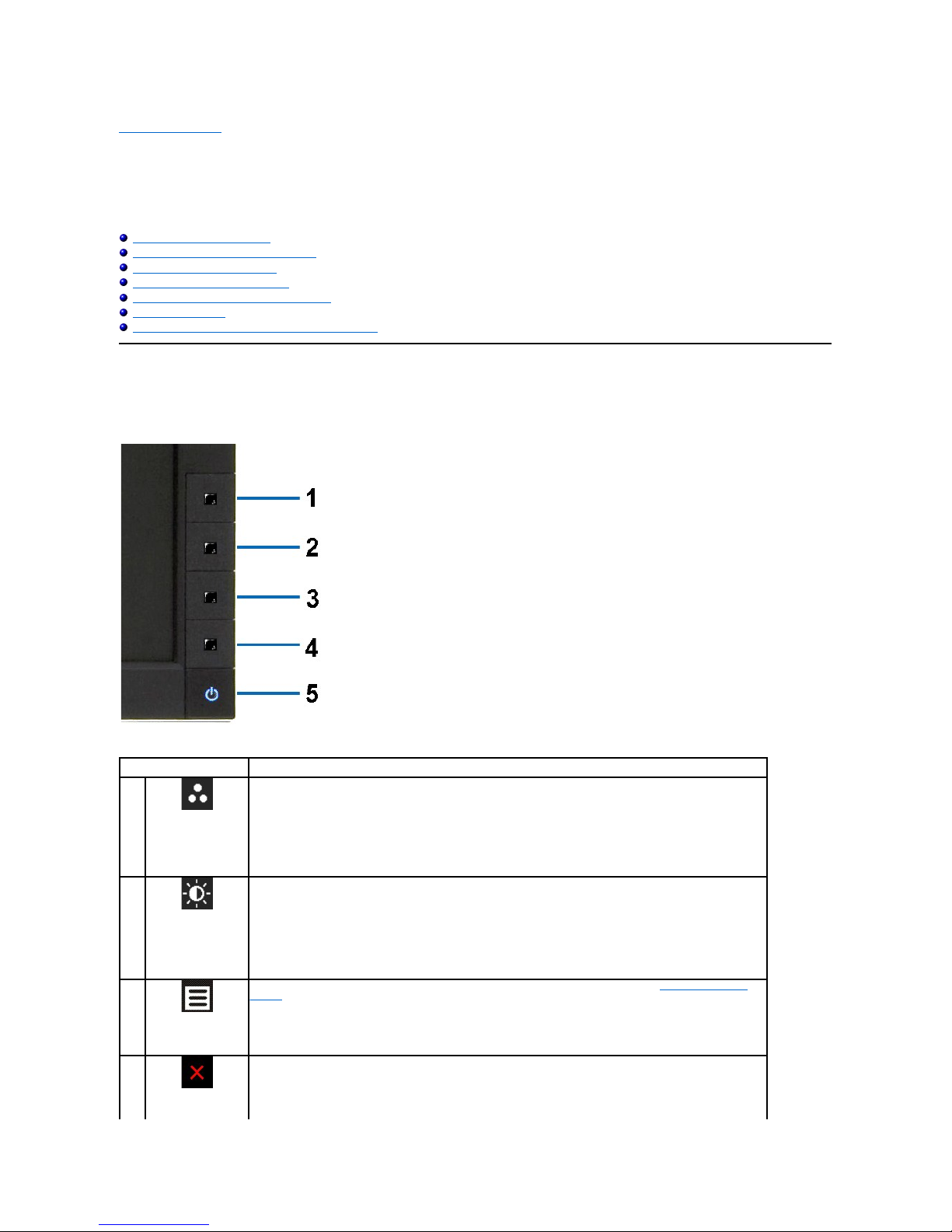

Front View
Front panel controls
Label
Description
1
Preset Modes (default, but configurable)
2
Brightness & Contrast (default, but configurable)
3
Menu
4
Exit
5
Power (with power light indicator)
Back view
Back view with monitor stand
Label
Description
Use
1
VESA mounting holes (100 mm x 100 mm -
behind attached VESA Plate)
Wall mount monitor using VESA-compatible wall mount kit (100 mm x 100 mm)
2
Regulatory label
Lists the regulatory approvals.
3
Stand release button
Release stand from monitor.
4
Security lock slot
Secures monitor with security cable lock
5
Dell Soundbar mounting brackets
Attaches the optional Dell Soundbar.
6
Barcode serial number label
Refer to this label if you need to contact Dell for technical support.

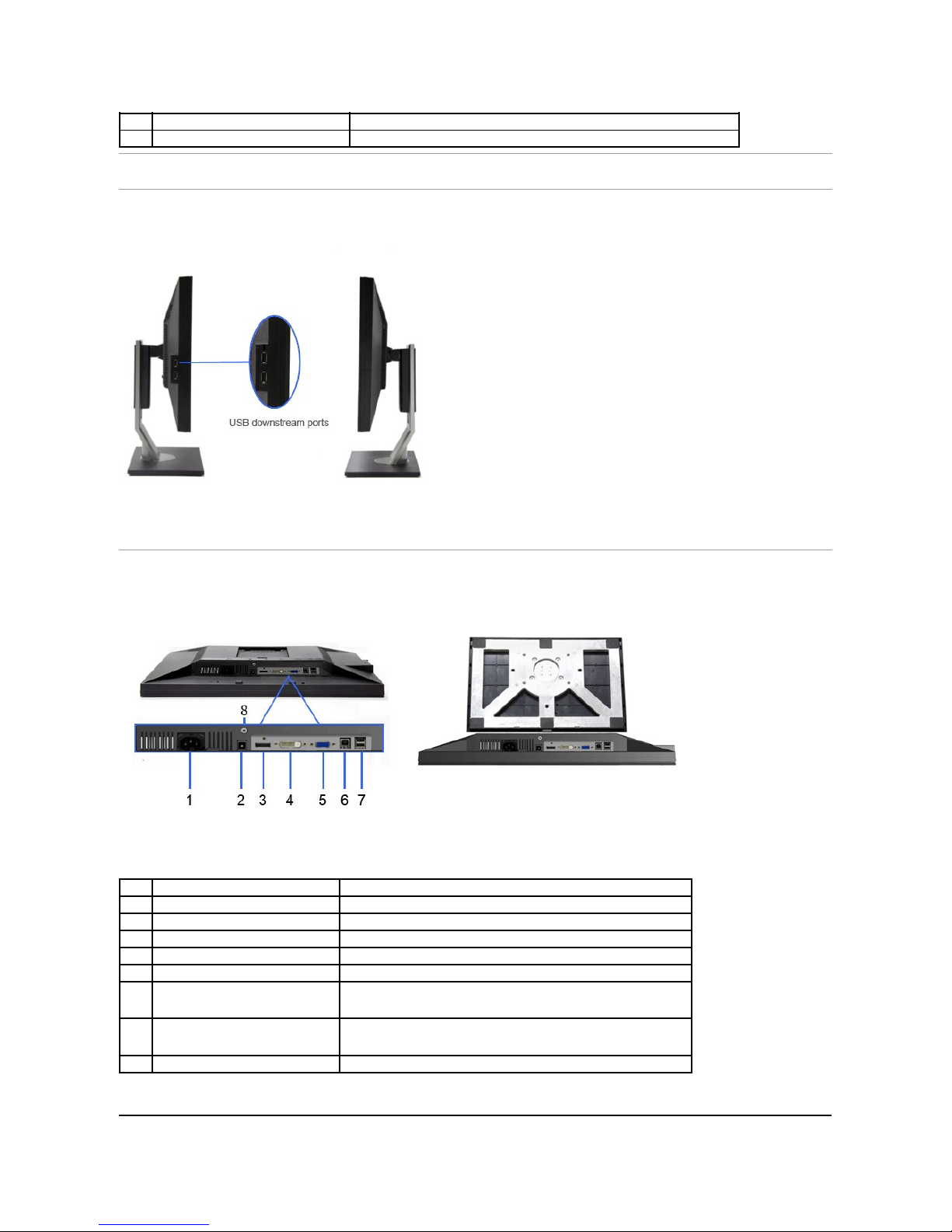

Side View
Bottom View
7
USB downstream ports
Connect your USB devices.
8
Cable management slot
Use to organize cables by placing them through the slot.
Left view
Right view
Bottom view
Bottom view with monitor stand
Label
Description
Use
1
AC power cord connector
Connect the power cable
2
DC power connector for Dell Soundbar.
Connect the power cord for the soundbar (optional)
3
DisplayPort connector
Connect your computer DP cable
4
DVI connector
Connect your computer DVI cable
5
VGA connector
Connect your computer VGA cable
6
USB upstream port
Connect the USB cable that came with your monitor to the monitor and the
computer. Once this cable is connected,you can use the USB connectors on
the side and bottom of the monitor.
7
USB downstream ports
Connect your USB devices. You can only use this connector after you have
connected the USB cable to the computer and USB upstream connector on
the monitor.
8
Stand lock feature
To lock the Stand to the Monitor

Monitor Specifications
Flat Panel Specifications
*[U2211H] color gamut (typical) is based on CIE1976 (82%) and CIE1931 (72%) test standards.
*[U2311H] color gamut (typical) is based on CIE1976 (82%) and CIE1931 (72%) test standards.
Resolution Specifications
Supported Video Modes
Preset Display Modes
U2211H
Model
U2211H
U2311H
Screen type
Active matrix - TFT LCD
Active matrix - TFT LCD
Panel type
IPS
IPS
Screen dimensions
546.1 mm (21.5-inches viewable image size)
584.2 mm (23-inches viewable image size)
Preset display area:
475.2 (H) X 267.3 (V) mm
509.2 (H) X 286.4 (V) mm
Horizontal
475.2 mm (18.7 inches)
509.2 mm (20.05 inches)
Vertical
267.3 mm (10.5 inches)
286.4 mm (11.28 inches)
Pixel pitch
0.2475 mm
0.265 mm
Viewing angle
178°(vertical)typical
178°(horizontal)typical
178°(vertical)typical
178°(horizontal)typical
Luminance output
250 CD/m²(typical)
300 CD/m²(typical)
Contrast ratio
1000 to 1 (typical), 10000 to 1 (typical Dynamic Contrast
On)
1000 to 1 (typical), 10000 to 1 (typical Dynamic Contrast On)
Faceplate coating
Antiglare with hard-coating 3H
Antiglare with hard-coating 3H
Backlight
2-CCFL edgelight system
4-CCFL edgelight system
Response Time
8 ms gray-to-gray (typical)
8 ms gray-to-gray (typical)
Color depth
16.7 million colors
16.7 million colors
Color Gamut
82%*
82%*
Model
U2211H
U2311H
Horizontal scan range
30 kHz to 83 kHz
(automatic)
30 kHz to 83 kHz
(automatic)
Vertical scan range
56Hzto75Hz
(automatic)
56Hzto75Hz
(automatic)
Maximum preset
resolution
1920 x1080 at 60 Hz
1920 x1080 at 60 Hz
Model
U2211H
U2311H
Video display capabilities (DVI & DP playback)
480p, 576p, 720p, 1080p,
480i, 576i, 1080i
480p,
576p,
720p,
1080p,
480i,
576i,
1080i
Display Mode
Horizontal Frequency
(kHz)
Vertical Frequency (Hz)
Pixel Clock (MHz)
Sync Polarity (Horizontal/Vertical)
VESA, 720 x 400
31.5
70.0
28.3
-/+
VESA, 640 x 480
31.5
60.0
25.2
-/-
VESA, 640 x 480
37.5
75.0
31.5
-/-

U2311H
Electrical Specifications
Physical Characteristics
VESA, 800 x 600
37.9
60.3
40.0
+/+
VESA, 800 x 600
46.9
75.0
49.5
+/+
VESA, 1024 x 768
48.4
60.0
65.0
-/-
VESA, 1024 x 768
60.0
75.0
78.8
+/+
VESA, 1152 x 864
67.5
75.0
108.0
+/+
VESA, 1280 x 1024
64.0
60.0
108.0
+/+
VESA, 1280 x 1024
80.0
75.0
135.0
+/+
VESA, 1600 x 1200
75.0
60.0
162.0
+/+
VESA, 1920 x 1080
67.5
60.0
148.5
+/+
Display Mode
Horizontal Frequency
(kHz)
Vertical Frequency (Hz)
Pixel Clock (MHz)
Sync Polarity (Horizontal/Vertical)
VESA, 720 x 400
31.5
70.0
28.3
-/+
VESA, 640 x 480
31.5
60.0
25.2
-/-
VESA, 640 x 480
37.5
75.0
31.5
-/-
VESA, 800 x 600
37.9
60.3
40.0
+/+
VESA, 800 x 600
46.9
75.0
49.5
+/+
VESA, 1024 x 768
48.4
60.0
65.0
-/-
VESA, 1024 x 768
60.0
75.0
78.8
+/+
VESA, 1152 x 864
67.5
75.0
108.0
+/+
VESA, 1280 x 1024
64.0
60.0
108.0
+/+
VESA, 1280 x 1024
80.0
75.0
135.0
+/+
VESA, 1600 x 1200
75.0
60.0
162.0
+/+
VESA, 1920 x 1080
67.5
60.0
148.5
+/+
Model
U2211H / U2311H
Video input signals
Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm input
impedance
Digital DVI-D TMDS, 600mV for each differential line, positive polarity at
50 ohm input impedance
DP 1.1a signal input support
Synchronization input signals
TTL levels required and separate syncs (including Trigger points), SOG
(Composite SYNC on green)
AC input
voltage/frequency/current
100 to 240 VAC / 50 or 60 Hz +3 Hz / 1.5 A (Typical)
Inrush current
120 V : 30 A (Max.)
240 V : 60 A (Max.)
Model
U2211H
U2311H
Connector type
15-pin D-subminiature, blue connector;
DVI-D, white connector; DP, black
connector.
15-pin D-subminiature, blue connector;
DVI-D, white connector; DP, black
connector.
Signal cable type
Digital: Detachable, DVI-D, Solid pins,
shipped detached from the monitor
Analog: attachable, D-Sub, 15pins,
shipped attached to the monitor
Digital: Detachable, DVI-D, Solid pins,
shipped detached from the monitor
Analog: attachable, D-Sub, 15pins,
shipped attached to the monitor
Dimensions (with stand)
Height (extended)
447.6 mm (17.62 inches)
456.16 mm (17.96 inches)
Height (compressed)
347.6 mm (13.69 inches)
356.16 mm (14.02 inches)
Width
514.4 mm (20.25 inches)
547.97 mm (21.57 inches)
Depth
184.1 mm (7.25 inches)
184.1 mm (7.25 inches)
Dimensions (without stand)
Height
305.9 mm (12.04 inches)
325.07 mm (12.80 inches)

Environmental Characteristics

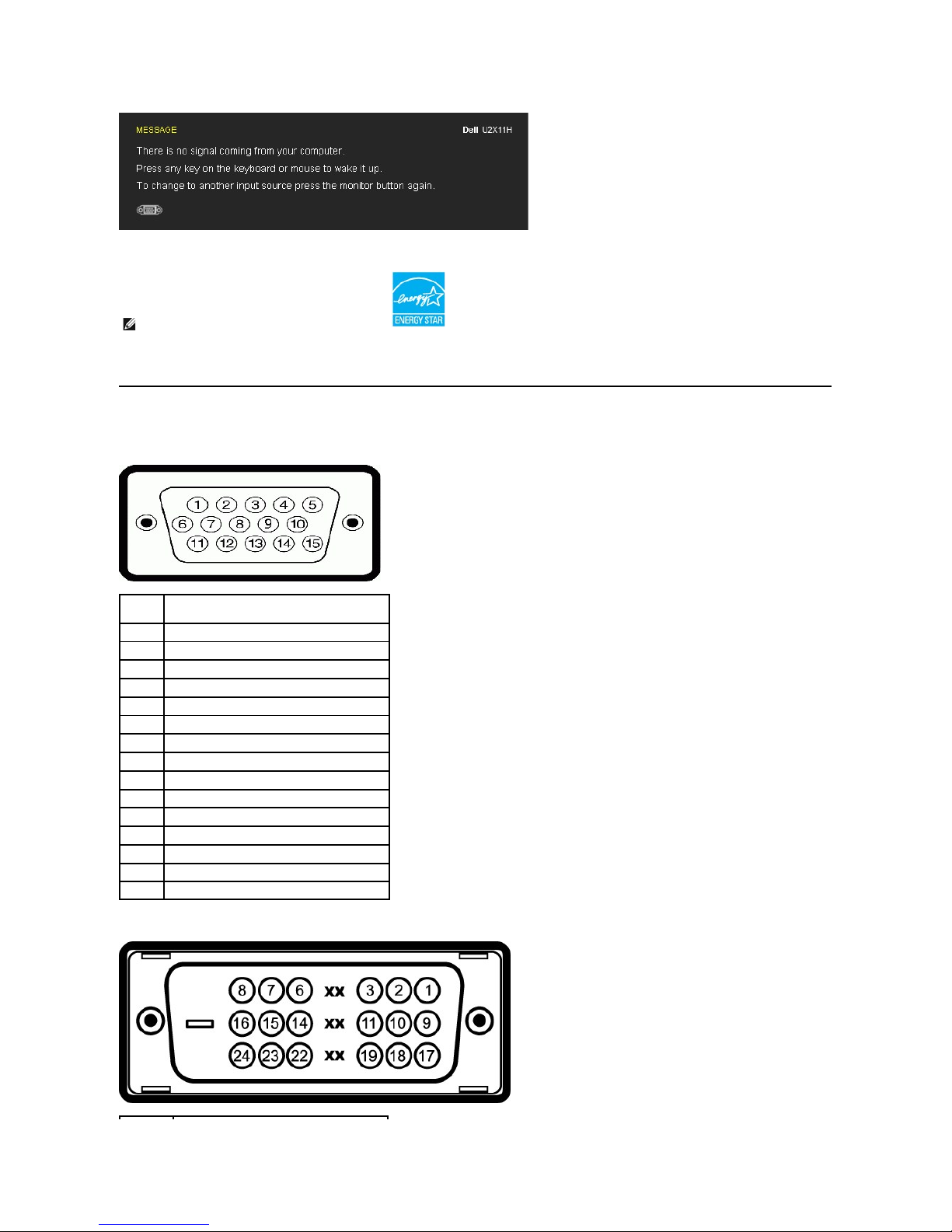

Power Management Modes
IfyouhaveVESA'sDPM™compliancedisplaycardorsoftwareinstalledinyourPC,themonitorcanautomaticallyreduceitspowerconsumptionwhennotin
use. This is referred to as Power Save Mode*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes
functioning. The following table shows the power consumption and signaling of this automatic power saving feature:
U2211H
U2311H
The OSD will only function in the normal operation mode. When any button is pressed in Active-off mode, one of the following messages will be displayed:
Width
514.4 mm (20.25 inches)
547.97 mm (21.57 inches)
Depth
65.00 mm (2.56 inches)
65.00 mm (2.56 inches)
Stand dimensions
Height (extended)
363.60 mm (14.31 inches)
370.47 mm (14.59 inches)
Height (compressed)
323.50 mm (12.74 inches)
331.32 mm (13.04 inches)
Width
279.90 mm (11.02 inches)
279.90 mm (11.02 inches)
Depth
184.10 mm (7.25 inches)
184.10 mm (7.25 inches)
Weight
Weight with packaging
16.85 lbs (7.65 kg)
18.14 lbs (8.23 kg)
Weight with stand assembly and cables
14.22 lbs (6.45 kg)
15.45 lbs (7.01 kg)
Weight without stand assembly
(For wall mount or VESA mount considerations -
no cables)
9.97 lbs (4.52 kg)
10.34 lbs (4.69 kg)
Weight of stand assembly
3.88 lbs (1.76 kg)
4.06 lbs (1.84 kg)
Model
U2211H
U2311H
Temperature
Operating
0°to40°C
0°to40°C
Non-operating
Storage: -20°to60°C(-4°to140°F)
Shipping: -20°to60°C(-4°to140°F)
Storage: -20°to60°C(-4°to140°F)
Shipping: -20°to60°C(-4°to140°F)
Humidity
Operating
10% to 80% (non-condensing)
10% to 80% (non-condensing)
Non-operating
Storage: 5% to 90% (non-condensing)
Shipping: 5% to 90% (non-condensing)
Storage: 5% to 90% (non-condensing)
Shipping: 5% to 90% (non-condensing)
Altitude
Operating
4,850 m (15,902 ft) max
4,850 m (15,902 ft) max
Non-operating
12,192 m (40,000 ft) max
12,192 m (40,000 ft) max
Thermal dissipation
187.67 BTU/hour (maximum)
75.07 BTU/hour (typical)
235.44 BTU/hour (maximum)
112.60 BTU/hour (typical)
VESA Modes
Horizontal Sync
VerticalSync
Video
Power Indicator
Power Consumption

Normal
operation
Active
Active
Active
Blue
55W (maximum) **
22W (typical)
Active-off mode
Inactive
Inactive
Blanked
Amber
Less than 1.0 W
Switch off
-
-
-
Off
Less than 1.0 W
VESA Modes
Horizontal Sync
VerticalSync
Video
Power Indicator
Power Consumption

Normal operation
Active
Active
Active
Blue
69W (maximum) **
33W (typical)
Active-off mode
Inactive
Inactive
Blanked
Amber
Less than 1.0 W
Switch off
-
-
-
Off
Less than 1.0 W

Activate the computer and the monitor to gain access to the OSD.
* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
** Maximum power consumption with max luminance, Dell Soundbar, and USB active.
Pin Assignments
VGA Connector
DVIConnector
NOTE: This monitor is ENERGY STAR®-compliant.

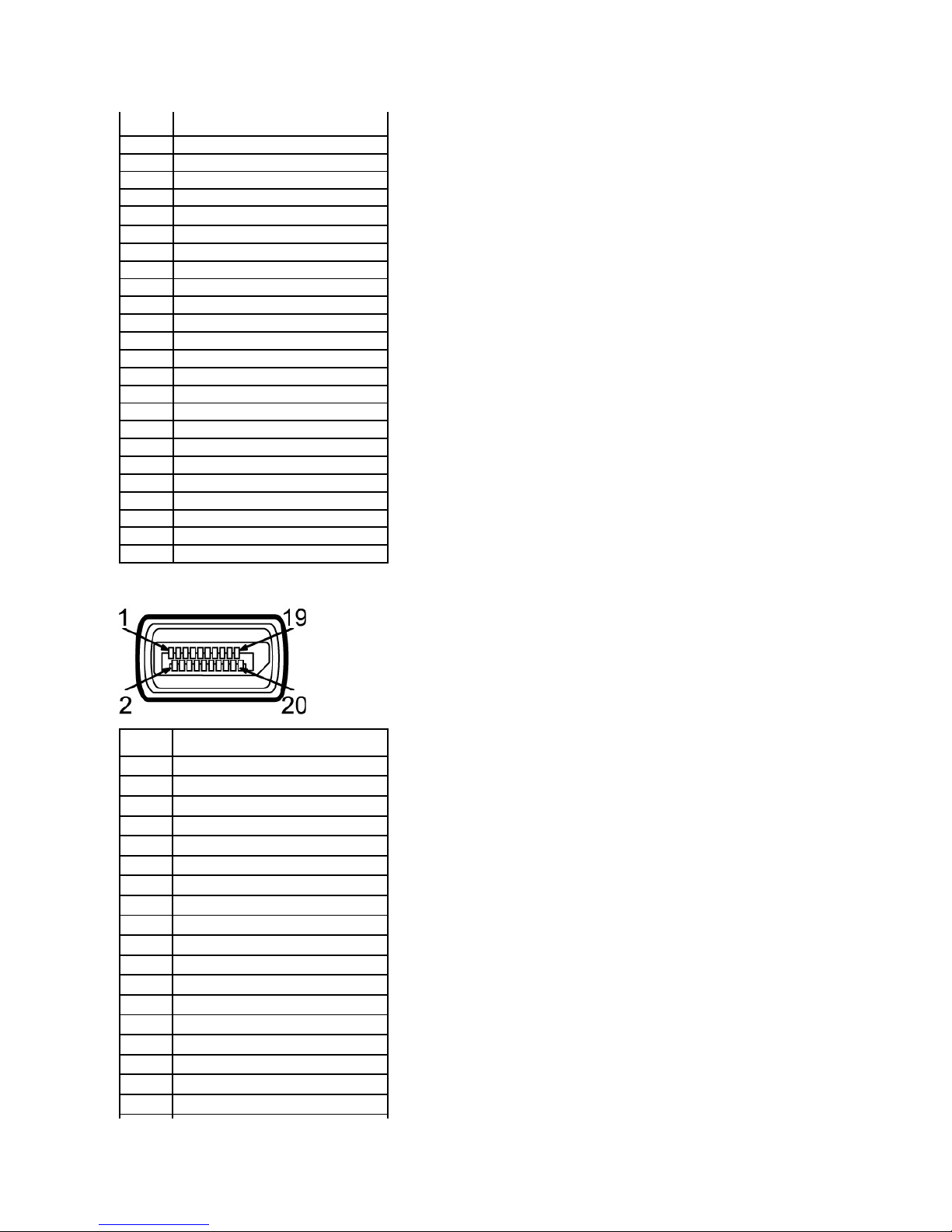

Pin
Number
15-pin Side of the Connected Signal Cable
1
Video-Red
2
Video-Green
3
Video-Blue
4
GND
5
Self-test
6
GND-R
7
GND-G
8
GND-B
9
Computer 5V/3.3V
10
GND-sync
11
GND
12
DDC data
13
H-sync
14
V-sync
15
DDC clock

DisplayPort Connector
Pin
Number
24-pin Side of the Connected Signal Cable
1
TMDS RX2-
2
TMDS RX2+
3
TMDS Ground
4
Floating
5
Floating
6
DDC Clock
7
DDC Data
8
Floating
9
TMDS RX1-
10
TMDS RX1+
11
TMDS Ground
12
Floating
13
Floating
14
+5V/+3.3V power
15
Selftest
16
Hot Plug Detect
17
TMDS RX0-
18
TMDS RX0+
19
TMDS Ground
20
Floating
21
Floating
22
TMDS Ground
23
TMDS Clock+
24
TMDS Clock-
Pin
Number
20-pin Side of the Connected Signal Cable
1
ML0(p)
2
GND
3
ML0(n)
4
ML1(p)
5
GND
6
ML1(n)
7
ML2(p)
8
GND
9
ML2(n)
10
ML3(p)
11
GND
12
ML3(n)
13
GND
14
GND
15
AUX(p)
16
GND
17
AUX(n)
18
HPD

Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display
Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor
installations are automatic; you can select different settings if desired. For more information about changing the monitor settings, see Operating the Monitor.
Universal Serial Bus (USB) Interface
This section gives you information about the USB ports that are available on the left side of your monitor.
USB Upstream Connector
USB Downstream Connector
USB Ports
l1 upstream -back
l4 downstream -2 on back; 2 on left side
LCD Monitor Quality and Pixel Policy
19
DP_PWR Return
20
+3.3V DP_PWR
NOTE: This monitor supports High-Speed Certified USB 2.0 interface.
Transfer speed
Data Rate
Power Consumption
High speed
480 Mbps
2.5W(Max.,eachport)
Full speed
12 Mbps
2.5W(Max.,eachport)
Low speed
1.5 Mbps
2.5W(Max.,eachport)
Pin Number
4-pin Side of the Connector
1
DMU
2
VCC
3
DPU
4
GND
Pin Number
4-Pin Side of the Signal Cable
1
VCC
2
DMD
3
DPD
4
GND
NOTE:USB2.0functionalityrequiresaUSB2.0-
capablecomputer
NOTE:
The monitor's USB interface works only when the monitor is on or in power save mode. If you turn off the monitor and then turn it on, the attached peripherals may
take a few seconds to resume normal functionality.

During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and
do not affect the display quality or usability. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: support.dell.com.
Maintenance Guidelines
Cleaning Your Monitor
For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:
lTo clean your antistatic screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the
antistatic coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
lUse a lightly-dampened,warmclothtocleanthemonitor.Avoidusingdetergentofanykindassomedetergentsleaveamilkyfilmonthemonitor.
lIf you notice white powder when you unpack your monitor, wipe it off with a cloth.
lHandleyourmonitorwithcareasadarker-colored monitor may scratch and show white scuff marks more than a lighter-coloredmonitor.
lTo help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.


Back to Contents Page
WARNING: Read and follow the safety instructionsbeforecleaningthemonitor.
WARNING:Beforecleaningthemonitor,unplugthemonitorpowercablefromtheelectricaloutlet.

Back to Contents Page

Appendix
Dell™U2211H/U2311HMonitorUser'sGuide
Safety Instructions
FCC Notice (U.S. Only) and Other Regulatory Information
Contacting Dell

WARNING: Safety Instructions
For information on safety instructions, see the Product Information Guide.
FCC Notices (U.S. Only) and Other Regulatory Information
For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com\regulatory_compliance.
Contacting Dell
For customers in the United States, call 800-WWW-DELL (800-999-3355).
Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be
available in your area. To contact Dell for sales, technical support, or customer service issues:

Back to Contents Page
WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock,
electrical hazards, and/or mechanical hazards.
NOTE:
If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
1.
Visit support.dell.com.
2.
Verify your country or region in the Choose A Country/Region drop-downmenuatthebottomofthepage.
3.
Click Contact Us on the left side of the page.
4.
Select the appropriate service or support link based on your need.
5.
Choose the method of contacting Dell that is convenient for you.

Back to Contents Page
Setting Up Your Monitor
Dell™U2211H/U2311HMonitor
IfyouhaveaDell™desktoporaDell™portablecomputerwithinternetaccess
1. Go to http://support.dell.com,enteryourservicetag,anddownloadthelatestdriverforyourgraphicscard.
2. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1920 x 1080 (for U2211H) or 1920 x 1080 (for U2311H) again.
Back to Contents Page
NOTE:Ifyouareunabletosettheresolutionto1920x1080(forU2211H)or1920x1080(forU2311H),pleasecontactDell™toinquireaboutaGraphics
Adapterthatsupportstheseresolutions.

Back to Contents Page
Setting Up Your Monitor
Dell™U2211H/U2311HMonitor
IfyouhaveanonDell™desktop,portablecomputer,orgraphicscard
In Windows XP:
1. Right-click on the desktop and click Properties.
2. Select the Settings tab.
3. Select Advanced.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com ).
6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1920 x 1080 (for U2211H) or 1920 x 1080 (for U2311H) again.
In Windows Vista®or Windows®7:
1. Right-click on the desktop and click Personalization.
2. Click Change Display Settings.
3. Click Advanced Settings.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com ).
6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1920 x 1080 (for U2211H) or 1920 x 1080 (for U2311H) again.
Back to Contents Page
NOTE:
U2211H: If you are unable to set the resolution to 1920 x 1080, please contact the manufacturer of your computer or consider purchasing a graphics
adapter that will support the video resolution of 1920 x 1080.
U2311H: If you are unable to set the resolution to 1920 x 1080, please contact the manufacturer of your computer or consider purchasing a graphics
adapterthatwillsupportthevideoresolutionof1920x1080.

Back to Contents Page

Operating the Monitor

Dell™U2211H/U2311HMonitorUser'sGuide
Using the Front Panel Controls
Using the On-Screen Display (OSD) Menu
Setting the Maximum Resolution
Using the Dell Soundbar (Optional)
Using the Tilt, Swivel, and Vertical Extension
Rotating the monitor
Adjusting the Rotation Display Settings of Your System
Using the Front Panel
Use the control buttons on the front of the monitor to adjust the characteristics of the image being displayed. As you use these buttons to adjust the controls,
an OSD shows the numeric values of the characteristics as they change.
The following table describes the front panel buttons:
Front panel Button
Description
1
Shortcut
key/
Preset
Modes
Use this button to choose from a list of preset color modes.
2
Shortcut key /
Brightness/Contrast
Use this button to directly access the "Brightness/Contrast" menu.
3
Menu
Use the MENU button to launch the on-screen display (OSD) and select the OSD Menu. See Accessing the Menu
System.
4
Exit
Use this button to go back to the main menu or exit the OSD main menu.

Using the On-Screen Display (OSD) Menu

Accessing the Menu System
1. Push the button to launch the OSD menu and display the main menu.
Main Menu for analog (VGA) Input
or
Main Menu for digital (DVI) Input
or
Main Menu for display (DP) Input
5
Power
(withpowerlight
indicator)
Use the Power button to turn the monitor on and off.
The Blue LED indicates the monitor is on and fully functional. An amber LED indicates DPMS power save mode.

NOTE: IfyouchangethesettingsandtheneitherproceedtoanothermenuorexittheOSDmenu,themonitorautomaticallysavesthosechanges.The
changes are also saved if you change the settings and then wait for the OSD menu to disappear.

2.Push the and buttons to move between the setting options. As you move from one icon to another, the option name is highlighted. See the
followingtableforacompletelistofalltheoptionsavailableforthemonitor.
3.Push the buttononcetoactivatethehighlightedoption.
4.Push and button to select the desired parameter.
5. Push to enter the slide bar and then use the and buttons, according to the indicators on the menu, to make your changes.
6.Select the button to return to the main menu.
NOTE: Auto Adjust is only available when you use the analog (VGA) connector.
Icon
Menu and
Submenus
Description


Brightness/Contrast
Use this menu to activate Brightness/Contrast adjustment.

Brightness
Brightness adjusts the luminance of the backlight.
Push the button to increase brightness and push the button to decrease brightness (min 0 ~ max 100).
Contrast
Adjust Brightness first, and then adjust Contrast only if further adjustment is necessary.
Push the button to increase contrast and push the button to decrease contrast (min 0 ~ max 100).
The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.
Dynamic Contrast
Dynamic Contrast adjusts the contrast ratio to 10000:1.
Push the button to select the Dynamic Contrast "On" or "Off" .
Note
:DynamicContrastprovideshighercontrastifyouchooseGamepreset,MoviePreset,SportsPresetandNaturePreset.


Auto Adjust
Even though your computer recognizes your monitor on startup, the Auto Adjustment
function optimizes the display settings for use
with your particular setup.
Auto Adjustment allows the monitor to self-
adjust to the incoming video signal. After using Auto Adjustment, you can further tune
your monitor by using the Pixel Clock (Coarse) and Phase (Fine) controls under Image Settings.


NOTE: Inmostcases,AutoAdjustproducesthebestimageforyourconfiguration.
NOTE: Auto Adjust option is only available when you are using the analog (VGA) connector.
Input Source
Use the Input Source menu to select between different video signals that may be connected to your monitor.


Auto Select
Push to select the Auto Select, the monitor will auto detect either VGA input or DVI-D input or DislpayPort input.
VGA
Select VGA input when you are using the analog (VGA) connector. Push to select the VGA input source.
DVI-D
Select DVI-D input when you are using the Digital (DVI) connector. Push to select the DVI input source.
DisplayPort
Select DisplayPort input when you are using the DisplayPort (DP) connector. Push
to select the DisplayPort input source.

Color Settings
Use the Color Settings to adjust the color setting mode and color temperature.
There are different color setting sub-menus for VGA/DVI-D and Video input.

Input Color Format
Choose the RGB option if monitor is connected to a computer or a DVD using a VGA or DVI cable. Choose the YPbPr option if monitor is
connected to a DVD by a YPbPr to VGA or YPbPr to DVI cable or if the DVD color output setting is not RGB.

Gamma
Allows you to set the color mode to PC or MAC.



Mode Selection
You can choose Graphics or Video according to the input signal.
lGraphics: Select this mode if your monitor is connected to your computer.
lVideo: Select this mode if your monitor is connected to a DVD player.


Preset Modes
When you select Graphics, you can choose Standard, Multimedia, Game, Warm, Cool, or Custom (RGB);
lStandard: Loads the monitor's default color settings. This is the default preset mode.
lMultimedia: Loads color settings ideal for multimedia applications.
lGame: Loads color settings ideal for most gaming applications.
lWarm: Increase the color temperature. The screen appears warmer with a red/yellow tint.
lCool: Decreases the color temperature. The screen appears cooler with a blue tint.
lCustom (RGB): Allows you to manually adjust the color settings. Press the and
buttons to adjust the three colors
(R, G, B) values and create your own preset color mode.
When you select Video, you can choose Movie, Game, Sports, or Nature preset:
lMovie: Loads color settings ideal for movies. This is the default preset mode.
lGame: Loads color settings ideal for game.
lSports: Loads color settings ideal for sports.
lNature: Loads color settings ideal for nature.

Hue
This feature can shift color of video image to green or purple. This is used to adjust the desired flesh tone color. Use or
adjust the hue from '0' to '100'.
