A Dell™ Technical White Paper
Dell™
│
Datacenter Infrastructure Engineering
By Chris Kitten and Jose L. Flores
July 2010

Cable Routing Procedures for Dell™ PowerEdge™ R715 Systems
Page ii
THIS WHITE PAPER IS FOR INFORMATIONAL PURPOSES ONLY, AND MAY CONTAIN TYPOGRAPHICAL
ERRORS AND TECHNICAL INACCURACIES. THE CONTENT IS PROVIDED AS IS, WITHOUT EXPRESS
OR IMPLIED WARRANTIES OF ANY KIND.
© 2010 Dell Inc. All rights reserved. Reproduction of this material in any manner whatsoever without
the express written permission of Dell Inc. is strictly forbidden. For more information, contact Dell.
Dell , the DELL logo, the DELL badge, and PowerEdge are trademarks of Dell Inc.

Cable Routing Procedures for Dell™ PowerEdge™ R715 Systems
Page 1
Contents
Introduction ........................................................................................................................................................... 2
Section 1: Cabling a Dell™ PowerEdge™ R715 With a Cable Management Arm (CMA).......................... 2
1.1 Connecting the CMA Cables to the System ....................................................................................... 2
1.2 Routing the Power Cables Through the Strain Reliefs...................................................................... 3
1.3 Routing the Cables Through the CMA................................................................................................. 3
1.4 Left-Side Mounting Instructions ........................................................................................................... 3
1.5 Right-Side Mounting Instructions......................................................................................................... 5
Section 2: Cabling a Dell™ PowerEdge™ R715 System Without a CMA .................................................... 6
2.1 Routing the Cables .................................................................................................................................. 6
2.2 Removing the CMA Brackets for Shallow Racks ................................................................................ 6
Section 3: Replacing a Power Supply on a PowerEdge™ R715 System With a CMA ................................7
3.1 Replacing a Power Supply with a Left-Side Mounted CMA ..............................................................7
3.2 Replacing a Power Supply with a Right-Side Mounted CMA ...........................................................7
Table of Figures
Figure 1: System with Cables Installed .................................................................................................................. 2
Figure 2: Routing Power Cables Through the Strain Reliefs ............................................................................. 3
Figure 3: Routing the Cables Through the CMA ................................................................................................. 4
Figure 4: Left-Side Mounted CMA Installation..................................................................................................... 4
Figure 5: Right-Side Mounted CMA Installation .................................................................................................. 5
Figure 6: Cable Routing Without a CMA............................................................................................................... 6
Figure 7: Removing the CMA Brackets for Shallow Racks................................................................................. 6
Figure 8: Replacing the Power Supply ...................................................................................................................7

Cable Routing Procedures for Dell™ PowerEdge™ R715 Systems
Page 2
Introduction
This white paper covers recommended cable routing procedures for Dell™ PowerEdge™ R715
systems in the following racks:
•PowerEdge™ 4820/4220/2420
•PowerEdge™ 4210/2410
If you are using the optional CMA, following these procedures will allow you to extend the system
from the rack for service without powering down or disconnecting the cables. If you are not using the
CMA, following these procedures will ensure secure attachment and strain relief of the cables behind
the system. For guidelines on how to route cables within the rack, refer to the Dell
Best Practices
Guide for Rack Enclosure
white paper.
Section 1: Cabling a Dell™ PowerEdge™ R715 With a Cable Management
Arm (CMA)
This section details how to cable a PowerEdge™ R715 system using a CMA. If you are cabling the
system without the optional CMA, refer to Section 2.
Follow the instructions contained in the
Rack Installation Guide in the rail kit to install the server into
the rack. Once installed, use these instructions to install the cables. All illustrations in the following
sections were created using a PowerEdge™ R715 system.
NOTE: PowerEdge™ R715 systems are not compatible with previous generation rails and CMAs.
1.1 Connecting the CMA Cables to the System
Attach the CMA tray to the back of the rails as described in the CMA Installation Instructions provided
in the CMA kit. Connect all applicable cables to the rear of the system and verify that all connections
are secure. See Figure 1.

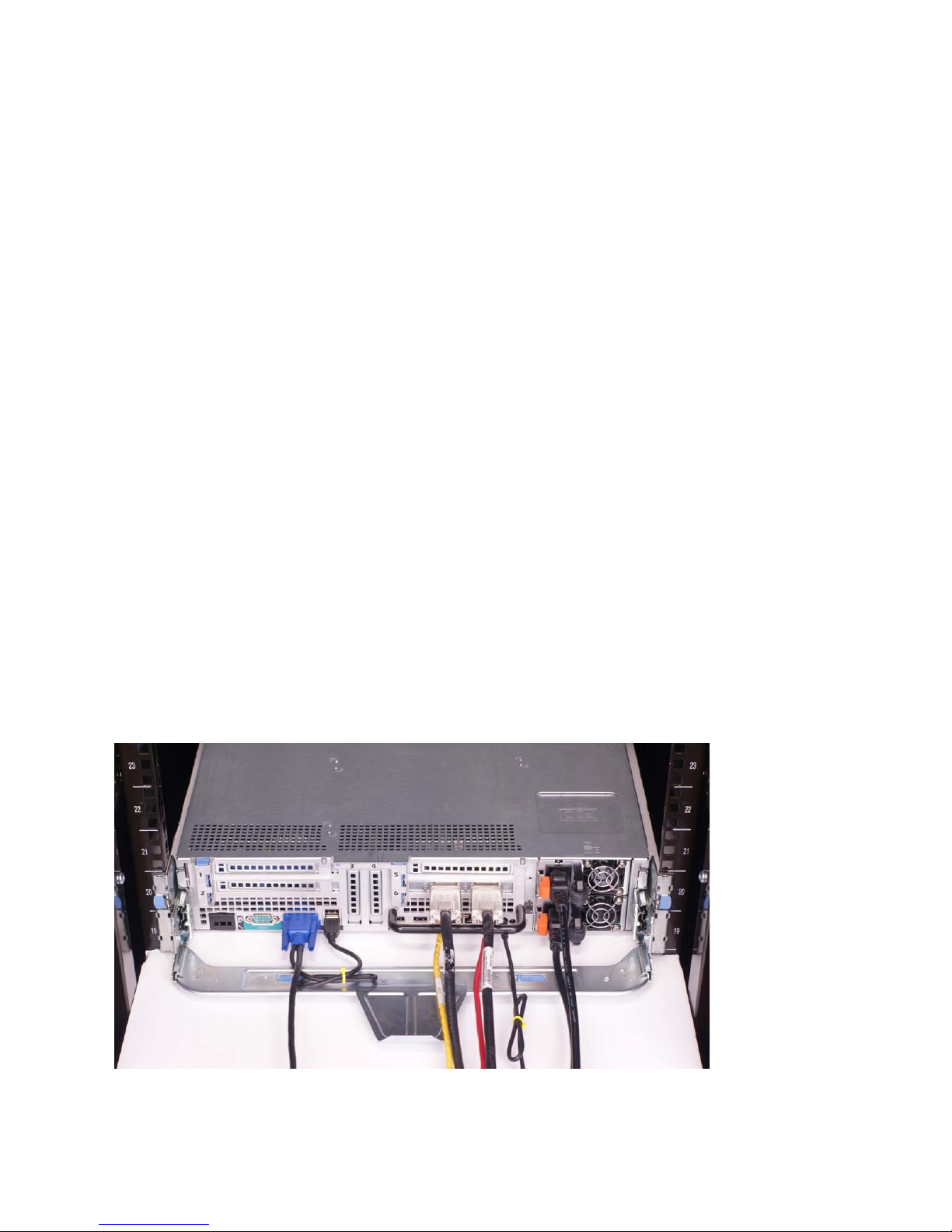

Figure 1: System with Cables Installed

Cable Routing Procedures for Dell™ PowerEdge™ R715 Systems
Page 3
1.2 Routing the Power Cables Through the Strain Reliefs
After you have installed the tray and cables, route the power cables through the strain reliefs located
on the power supply handles as shown in Figure 2.

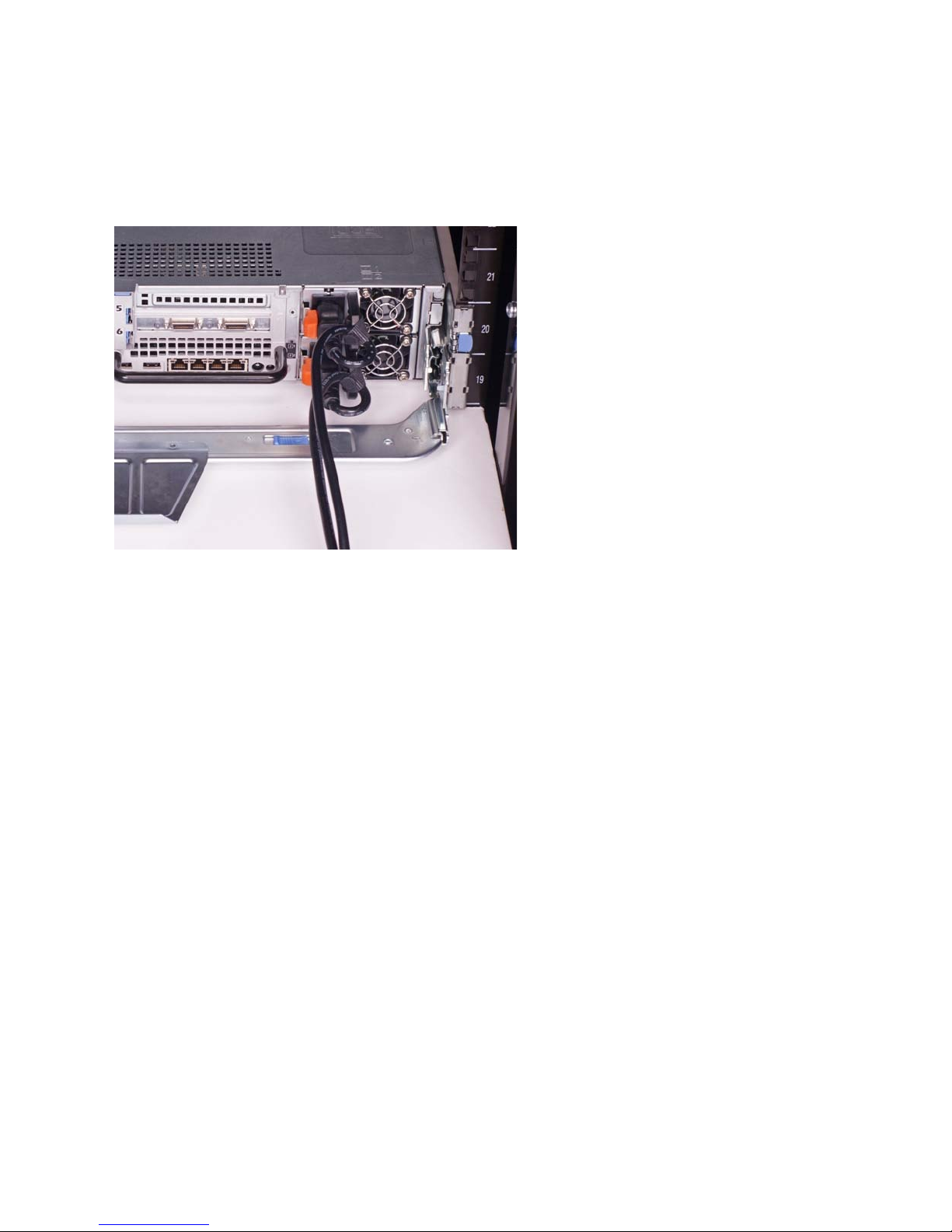

Figure 2: Routing Power Cables Through the Strain Reliefs
1.3 Routing the Cables Through the CMA
You can install the CMA on either the rear right or rear left side of the rails. Mounting the CMA on the
side that is opposite of the power supplies (left-side mount) is recommended; otherwise, the CMA
must be disconnected, to some extent, in order to remove the power supplies. Refer to Section 3 for
details on power supply replacement.
NOTE: For guidelines on how to route cables within the rack, refer to the Dell
Best Practices Guide for
Rack Enclosures
white paper .
1.4 Left-Side Mounting Instructions
1. Install the CMA on the rear left side of the rails by attaching both CMA housings to the attachment
brackets on the rails.
2. Route the cables through the CMA while avoiding twisting the cables. Use the hook and loop
straps on the CMA to secure the cables. See Figure 3.
3. For left-side mounting, if the cable bundle includes a keyboard, video, and mouse (KVM) dongle,
place the dongle inside the CMA basket.
4. Once you have routed all the cables through the CMA, dress the cable slack between the back of
the system and the entrance of the CMA using the tie wraps (shown in yellow in all illustrations)
provided in the CMA kit.
5. Clip off the excess length of material from the tie wraps. Make sure that the heads of the tie wraps
are positioned so as to avoid interference with adjacent systems. Return the CMA to the closed
(retracted) position.
6. Extend the system out of the rack to verify that there is sufficient slack in the cables on both ends
of the CMA.
See Figure 4 for an example of a completed left-side mounted CMA installation.

Cable Routing Procedures for Dell™ PowerEdge™ R715 Systems
Page 4

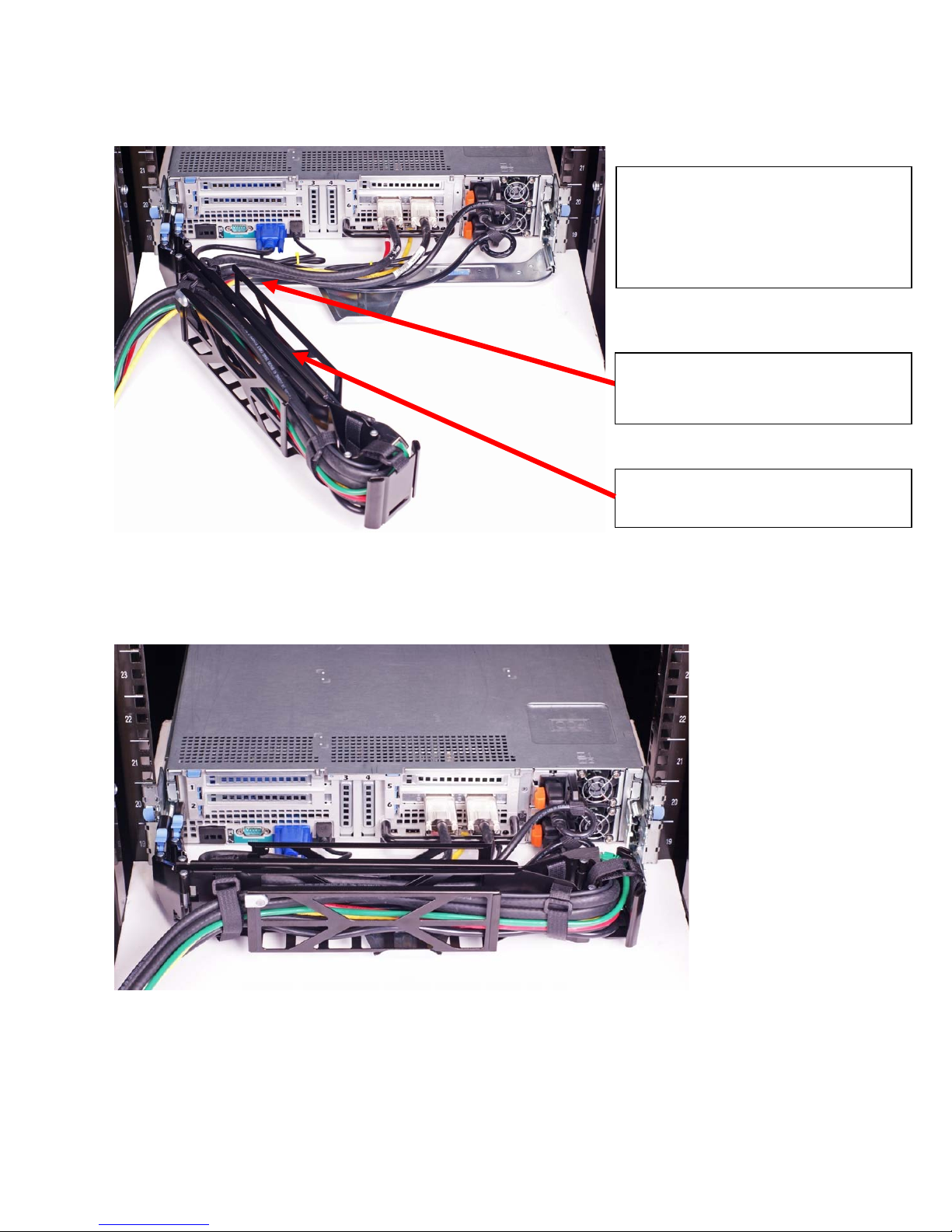

Figure 3: Routing the Cables Through the CMA
Figure 4: Left-Side Mounted CMA Installation
Cables entering the CMA should have
a small amount of slack to avoid cable
strain when the CMA is extended.
NOTE: Do not store excess cable
slack inside the CMA. The cable may
protrude through the CMA, thus
causing binding and potentially
damaging the cable.
KVM dongle placed inside the basket
for Left-Side Mounting.

Cable Routing Procedures for Dell™ PowerEdge™ R715 Systems
Page 5
1.5 Right-Side Mounting Instructions
1. Install the CMA on the rear right side of the rails by attaching both CMA housings to the
attachment brackets on the rails.
2. Route the cables through the CMA while avoiding twisting the cables. Use the hook and loop
straps on the CMA to secure the cables.
3. If the cable bundle includes a keyboard, video, and mouse (KVM) dongle, the cable may be too
short for the dongle to be placed in the CMA basket. Route the remainder of the cable beyond
the dongle through the CMA. DO NOT secure the dongle to the outside of the CMA as this may
restrict the ability of the CMA to support full extension of the rails without causing damage to the
dongle.See Figure 5.
4. Once you have routed all the cables through the CMA, dress the cable slack between the back of
the system and the entrance of the CMA using the tie wraps (shown in yellow in all illustrations)
provided in the CMA kit.
5. Clip off the excess length of material from the tie wraps. Make sure that the heads of the tie wraps
are positioned so as to avoid interference with adjacent systems. Return the CMA to the closed
(retracted) position.
6. Extend the system out of the rack to verify that there is sufficient slack in the cables on both ends
of the CMA.

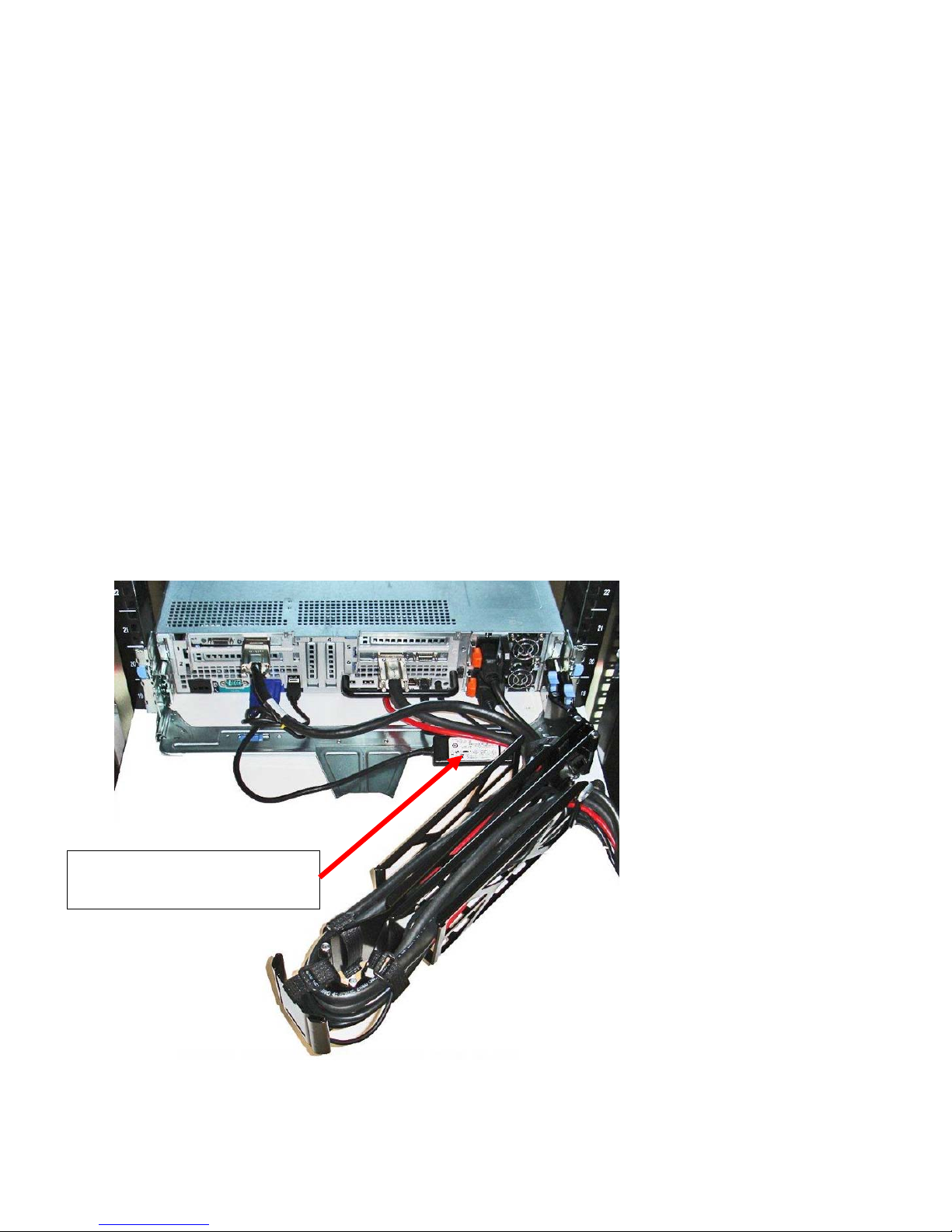

Figure 5: Right-Side Mounted CMA Installation
KVM dongle placed outside the
basket for Right-Side Mounting.

Cable Routing Procedures for Dell™ PowerEdge™ R715 Systems
Page 6
Section 2: Cabling a Dell™ PowerEdge™ R715 System Without a CMA
NOTE: The CMA on Dell™ PowerEdge™ R715 systems is optional. Without the CMA installed, the
system must be powered down and all cables disconnected before it can be removed from the rack.
2.1 Routing the Cables
1. Connect all applicable cables to the rear of the system and verify that all connections are secure.
2. Using the hook and loop straps supplied with the rail kit, bundle the cables and secure them to
either the left or right CMA attachment brackets as described in the
Rack Installation Instructions .
See Figure 6 for an example of data cables secured to the left CMA bracket and power cables
secured to the right CMA bracket.
3. It is recommended that the cables be secured to the outer brackets, but cables may be secured to
the inner brackets as well if desired.
Figure 6: Cable Routing Without a CMA
2.2 Removing the CMA Brackets for Shallow Racks
If you are installing the system into a shallow rack (less than 1 meter deep) and you will not be
installing a CMA, the outer CMA brackets may be removed if necessary in order to allow the rails to fit
properly into the rack. Remove the brackets by using a #2 Phillips screwdriver to remove the screws
used to attach them to the rails as shown in Figure 7.
Figure 7: Removing the CMA Brackets for Shallow Racks

Cable Routing Procedures for Dell™ PowerEdge™ R715 Systems
Page 7
Section 3: Replacing a Power Supply on a PowerEdge™ R715 System With a
CMA
3.1 Replacing a Power Supply with a Left-Side Mounted CMA
1. If the bottom power supply must be replaced, then remove the tray from underneath the CMA
as described in the
CMA Installation Instructions provided with the CMA kit. If the top power
supply must be replaced, this step can be skipped.
2. Swing the CMA to its service position.
3. Disconnect the power cord from the power supply and disengage the strain relief.
4. Replace the power supply.
5. Plug in the power cord, re-engage the strain relief, replace the CMA support tray (if it was
removed), and return the CMA to the closed (retracted) position.
3.2 Replacing a Power Supply with a Right-Side Mounted CMA
1. If the bottom power supply must be replaced, then remove the tray from underneath the CMA
as described in the
CMA Installation Instructions provided with the CMA kit. If the top power
supply must be replaced, this step can be skipped.
2. Swing the CMA to its service position.
3. Disconnect the power cord from the power supply and disengage the strain relief.
4. Disconnect both CMA attachment housings from the rail as shown in Figure 8.
5. While supporting the CMA with one hand, remove and replace the power supply with the
other hand as shown in Figure 8.
6. Reconnect the CMA attachment housings to the rail.
7. Plug in the power cord, re-engage the strain relief, replace the CMA support tray (if it was
removed), and return the CMA to the closed (retracted) position.

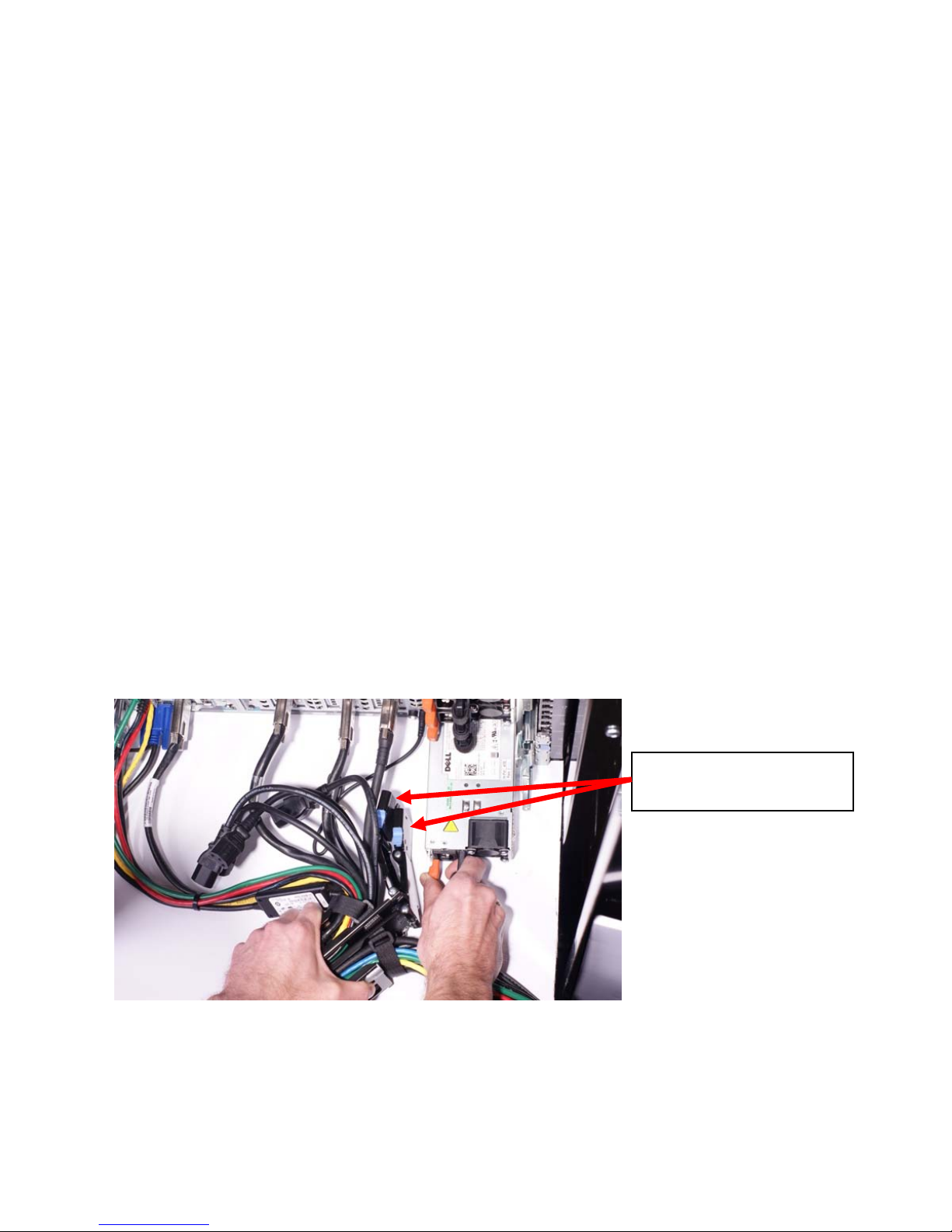

Figure 8: Replacing the Power Supply
CMA attachment housings
have been disconnected.
