Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of
data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
______________
Information in this document is subject to change without notice.
© 2013 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission
of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of
Dell Inc. AMD® is a registered trademark and AMD Opteron™ is a trademark of
Advanced Micro Devices, Inc. Red Hat Enterprise Linux® and Enterprise Linux® are
registered trademarks of Red Hat, Inc. in the United States and/or other countries.
Novell® is a registered trademark and SUSE™ is a trademark of Novell Inc. in the United
States and other countries. Citrix® and XenServer® are either registered trademarks or
trademarks of Citrix Systems, Inc. in the United States and/or other countries. VMware®
is a registered trademarks or trademarks of VMWare, Inc. in the United States or other
countries.
Other trademarks and trade names may be used in this publication to refer to either the
entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Regulatory Model B03S
November 2013 P/N 4JG39 Rev. A05

Getting Started With Your System | 3
CAUTION: Restricted Access Location
This server is intended for installation only in restricted access locations as
defined in Cl. 1.2.7.3 of IEC 60950-1: 2001 where both these conditions apply:
• Access can only be gained by service persons or by users who have been
instructed about the reasons for the restrictions applied to the location and
about any precautions that shall be taken.
• Access is through the use of a tool or lock and key, or other means of
security, and is controlled by the authority responsible for the location.
Installation and Configuration
WARNING: Before performing the following procedure, review and follow the
safety instructions that came with the system.
Unpacking the System
Unpack your system and identify each item.
Installing the Tool-Less Rail Solution
WARNING: Whenever you need to lift the system, get others to assist you.
To avoid injury, do not attempt to lift the system by yourself.
WARNING: The system is not fixed to the rack or mounted on the rails.
To avoid personal injury or damage to the system, you must adequately
support the system during installation and removal.
WARNING: To avoid a potential electrical shock hazard, a third wire safety
grounding conductor is necessary for the rack installation. The rack
equipment must provide sufficient airflow to the system to maintain proper
cooling.
CAUTION: When installing rails in a square-hole rack it is important to
ensure that the square peg slides through the square holes.

Getting Started With Your System | 4
1 Align the end pieces of the rails on the vertical rack flanges to seat
the pegs in the bottom hole of the first U and the top hole of the
second U. Engage the back end of the rails until the latches lock in
place.
NOTE: The rails can be used in both square-hole (item 1 in the following figure)
and round-hole racks (item 2 in the following figure).

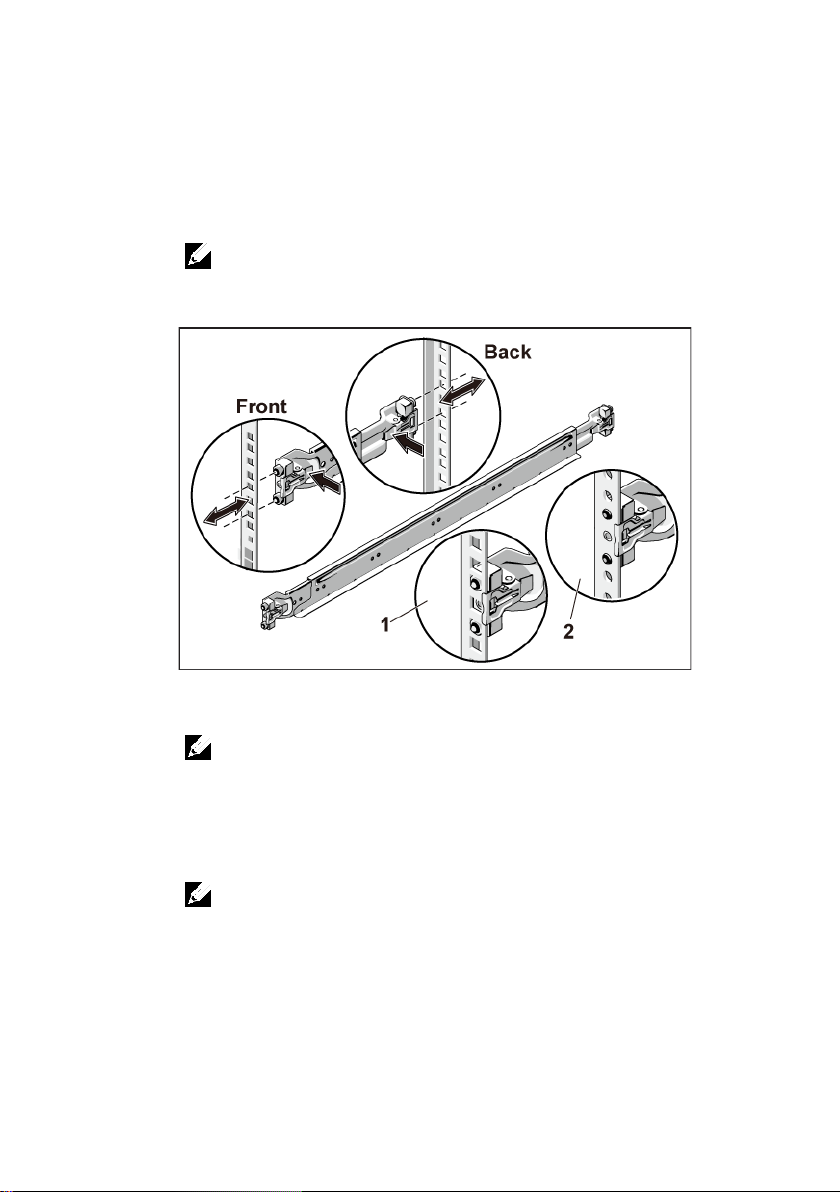

Figure 1. Pushing the Latch Release Buttons
2 Repeat Step 1 to position and seat the front end pieces on the vertical
flanges.
NOTE: To remove the rails, pull on the latch release button on the end piece
midpoint and unseat each rail.
3 Slide the system into the rack.
4 If present, remove the chassis stabilizer shipping bracket (optional)
from the rack.
NOTE: To transport systems already installed in the rack, ensure that the two
chassis stabilizer shipping brackets (optional) are in place.

Getting Started With Your System | 5

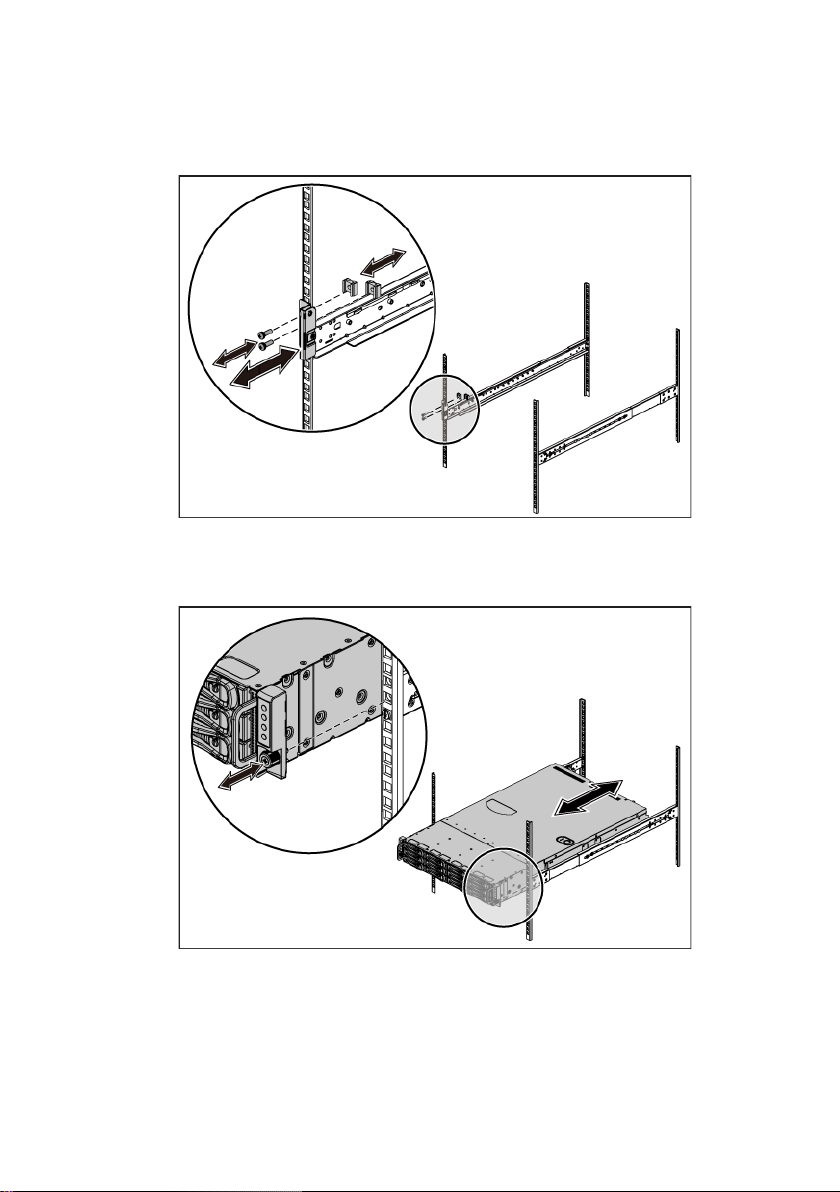

Figure 2. Installing the Chassis Stabilizer Shipping Brackets
5 Tighten the thumbscrews to secure the ears of the system to the front
of the rack flanges.
Figure 3. Installing the Chassis onto the Rack.

Getting Started With Your System | 6
Optional-Connecting the Keyboard, Mouse, and Monitor
Figure 4. Optional—Connecting the Keyboard, Mouse and Monitor
Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable to
plug into each connector. Be sure to tighten the screws (if any) on the monitor’s
cable connector.

Getting Started With Your System | 7
Connecting the Power Cable(s)
Figure 5. Connecting the Power Cable
Connect the system’s power cable(s) to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor. Plug the other end of the
power cables into a grounded electrical outlet or a separate power source such as
an uninterrupted power supply or a power distribution unit.

Getting Started With Your System | 8
Turning on the System

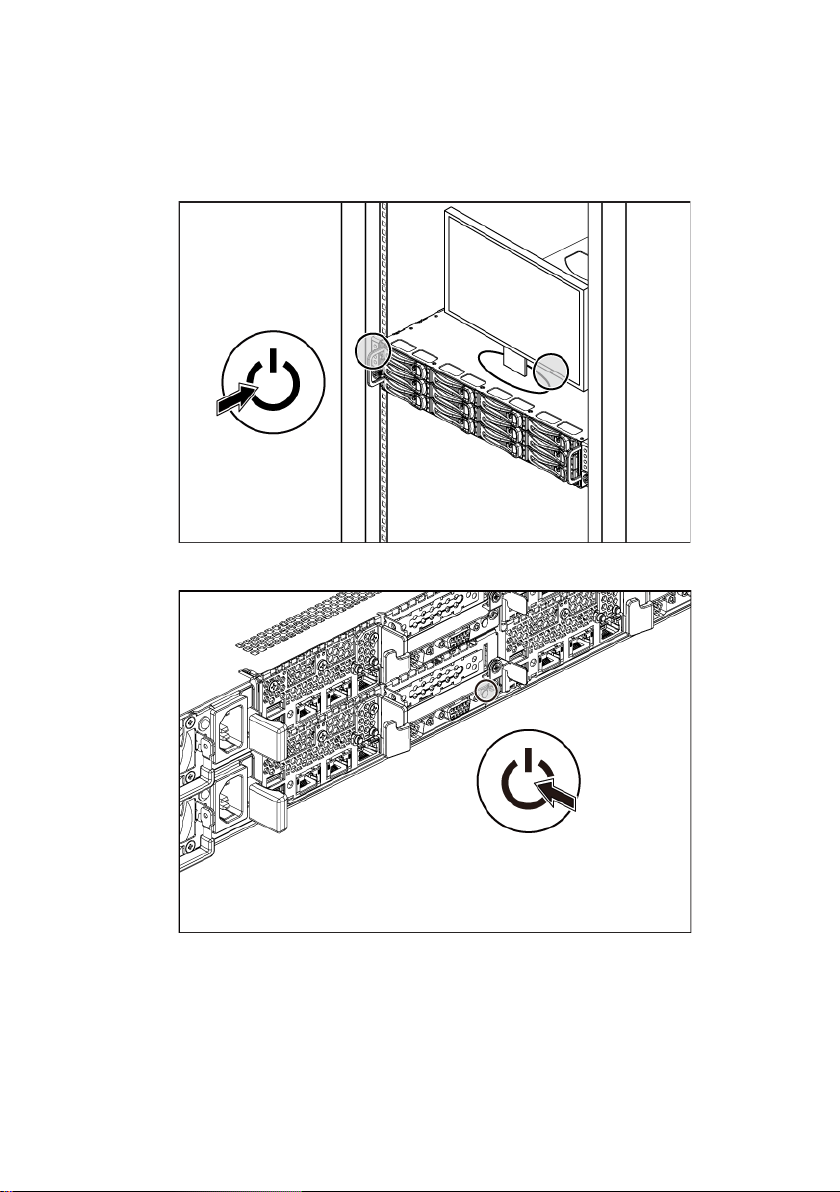

Figure 6. Pressing the Power Button on the Front of the System and the Monitor
Figure 7. Pressing the Power Button on the Back of the System
Press the power button(s) either on the front or back of the system and on the
monitor. The power indicators should light.

Getting Started With Your System | 9
Complete the Operating System Setup
To install an operating system for the first time, see the installation and
configuration documentation for your operating system. Be sure the operating
system is installed before installing hardware or software not purchased with the
system.
NOTE: For the latest information on supported operating systems, see
dell.com/ossupport .
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with your
system. Warranty information may be included within this document or as a
separate document.
The Hardware Owner’s Manual provides information about system features and
describes how to troubleshoot the system and install or replace system
components. This document is available at dell.com/support/manuals .
Dell systems management application documentation provides information
about installing and using the systems management software. This document is
available online at
dell.com/support/manuals .
NOTE: Always check for updates on dell.com/support/manuals and read the
updates first because they often supersede information in other documents.

Getting Started With Your System | 10
NOM Information (Mexico Only)
The following information is provided on the device described in this document
in compliance with the requirements of the official Mexican standards (NOM):
Importer Dell Inc. de México, S.A. de C.V.
Paseo de la Reforma 2620-11° Piso
Col. Lomas Atlas
11950 México, D.F.
Model number
B03S
Supply voltage 100-240 V AC with 470 W/750
W/1100 W Power
200-240 V AC with 1400 W Power
Frequency
50/60 Hz
Current consumption 6.5-3.5 Amps with 470 W Power
8.6 Amps with 1400 W Power
9.5-5.0 Amps with 750 W Power
12-6.7 Amps with 1100 W Power

Getting Started With Your System | 11
Technical Specifications
Processor (Per System Board)
Processor type One or two AMD C32 Series processors
One or two AMD Opteron 4000 Series
processors
One or two AMD Opteron 4200 Series
processors
One or two AMD Opteron 4300 Series
processors
Expansion Bus (Per System Board)
Bus type
PCI Express Generation 2
Expansion slots
PCIe
One x16, half-length, half-height
Daughter card PCIe
One x8, custom slot
Memory (Per System Board)
Architecture 12 x DDR3 800/1066/1333/1600* MHz
registered memory modules with /ECC
Memory module sockets
12 x DDR3 DIMM sockets
Memory module capacities
2 GB, 4 GB, 8 GB, or 16 GB
Minimum RAM
12 GB
Maximum RAM
192 GB
NOTE: System memory working frequency is up to 1333MT/s only.
Drives
Hard drives Up to twelve 3.5-inch, hot-swappable SAS/
SATA drives or up to twenty four 2.5-inch,
hot-swappable SAS/SATA/SSD drives
NOTE: SAS hard drives are supported by add-on card.

Getting Started With Your System | 12
Connectors (Per System Board)
Back
NIC
Two RJ-45 (10/100/1000 Mbps Ethernet)
Serial
9-pin, DTE, 16550-compatible
USB
Two 4-pin, USB 2.0-compliant
Video
15-pin D-Sub VGA
Management port Dedicated Ethernet port for remote
management access
Video (Per System Board)
Video type On-board AST2050 video controller or
AST1100
Video memory
8 MB
Power
AC power supply (per power supply)
Wattage
470 W
Voltage 100-240 VAC, 50-60 Hz, input current
range: 6.5-3.5 Amps
Heat dissipation
2390 BTU/hr maximum
Wattage
750 W
Voltage 100-240 VAC, 50-60 Hz, input current
range: 9.5-5.0 Amps
Heat dissipation
3414 BTU/hr maximum
Wattage
1023 W low line/1100W high line
Voltage 100-240 VAC, 50-60 Hz, input current
range: 12.0-6.7 Amps
Heat dissipation
4575 BTU/hr maximum
Wattage
1400 W
Voltage 200-240 VAC, 50-60 Hz, maximum input
current: 9.6 Amps
Heat dissipation
5432 BTU/hr maximum

Getting Started With Your System | 13
Maximum inrush current Initial In-rush Current cannot exceed
55 Amps (peak). Secondary In-rush
Current cannot exceed 35 Amps (peak).
Battery (per system board)
System battery
CR 2032 3.0-V lithium ion coin cell
RAID battery (optional)
3.7-V lithium ion battery pack
Physical
Height
8.76 cm (3.45 in)
Width
44.8 cm (17.6 in)
Depth
75.1 cm (29.47 in)
Weight (maximum
configuration)
33.67 kg (74.2 lb)
Weight (empty)
15.11 kg (33.32 lb)
Environmental
NOTE: For additional information about environmental measurements for specific system
configurations, see
www.dell.com/environmental_datasheets .
Temperature
Operating 10° to 35°C (50° to 95°F) with a maximum
temperature gradation of 10°C per hour
NOTE: For altitudes above 2950 feet, the maximum
operating temperature is derated 1°F/550 ft.
Storage –40° to 65°C (–40° to 149°F) with a
maximum temperature gradation of 20°C per
hour
Relative humidity
Operating 20% to 80% (noncondensing) with a
maximum humidity gradation of 10% per
hour
Storage
5% to 90% (noncondensing)
Maximum vibration
Operating
0.26 Grms at 5–350 Hz
Storage
1.93 Grms at 10–500 Hz for 15 min

Getting Started With Your System | 14
Maximum shock
Operating One shock pulse in the positive z axis
(one pulse on each side of the system) of
31 G for 2.6 ms in the operational orientation
Storage Six consecutively executed shock pulses in
the positive and negative x, y, and z axes
(one pulse on each side of the system) of
71 G for up to 2 ms;
Six consecutively executed shock pulses in
the positive and negative x, y, and z axes
(one pulse on each side of the system) of
27 G faired square wave pulse with velocity
change at 235 inches/second
(597 centimeters/second)
Altitude
Operating –16 to 3,048 m (–50 to 10,000 ft)
NOTE: For altitudes above 2950 feet, the maximum
operating temperature is derated 1°F/550 ft.
Storage
–16 to 10,600 m (–50 to 35,000 ft)
Airborne contaminant level
Class
G2 or lower as defined by ISA-S71.04-1985

Dell PowerEdge
C6105
系统使用入门

注、小心和警告
注：“注”表示可以帮助您更好地使用计算机的重要信息。
小心：“小心”表示如果不遵循说明，就有可能损坏硬件或导致数据丢失。
警告：“警告”表示可能会导致财产损失、人身伤害甚至死亡。
______________
本文档中的信息如有更改，恕不另行通知。
© 2013 Dell Inc. 保留所有权利。
未经 Dell Inc. 书面许可，严禁以任何形式复制这些材料。
本文中使用的商标：Dell™、DELL 徽标和 PowerEdge™ 是Dell Inc. 的商标。
AMD® 和AMD Opteron™ 分别是 Advanced Micro Devices, Inc. 的注册商标和商标。
Red Hat Enterprise Linux® 和Enterprise Linux® 是Red Hat, Inc. 在美国和/或其他国
家/地区的注册商标。Novell® 和SUSE™ 分别是 Novell Inc. 在美国和其他国家/地区
的注册商标和商标。Citrix® 和XenServer® 是Citrix Systems, Inc. 在美国和/或其他
国家/地区的注册商标或商标。VMware® 是VMware, Inc. 在美国或其他国家/地区的
注册商标。
本出版物中可能使用其他商标和产品名称来指拥有相应商标和产品名称的公司或其
产品。Dell Inc. 对不属于自己的商标和商品名称不拥有任何专有权。
管制型号 B03S
2013 年11 月P/N 4JG39 Rev. A05

系统使用入门 | 17
小心：受限访问位置
此服务器仅用于安装在由 IEC 60950-1: 2001 的Cl. 1.2.7.3 定义的满足下列两个条
件的受限访问位置中：
•仅维修人员或对该位置施加限制的理由以及应当采取的防备措施已完全领
会的用户，方可对此服务器进行访问。
•访问是通过使用工具或锁和钥匙，或其它安全手段来实现，并且由负责该
位置的管理机构来控制。
安装和配置
警告：执行下列步骤之前，请先阅读并遵循系统随附的安全说明。
打开系统包装
打开系统包装并识别每项物品。
安装免工具拆装滑轨解决方案
警告：需要提起系统时，请让其他人进行协助。为避免受伤，请勿尝试独
自提起系统。
警告：系统并未固定到机架上，也并没有安装在滑轨上。为避免人身伤害
或系统损坏，在安装和拆卸时，必须给系统提供足够的支撑。
警告：为避免可能的电击伤害，安装机架时需要第三根导线安全接地线。
机架设备必须为系统提供足够的通风以维持适当的冷却效果。
小心：在方孔机架中安装滑轨时，务必确保方形插销穿过方孔。

系统使用入门 | 18
1 在机架垂直凸缘上对齐滑轨的尾段，将插销分别插入第一个 U 型螺栓
的底孔中和第二个 U 型螺栓的顶孔中。使滑轨后端卡入，直到闩锁锁
定到位。
注：
滑轨在方孔机架（下图中的项目 1）和圆孔机架（下图中的项目 2）
中均可使用。
图1. 按压闩锁释放按钮
2 重复步骤 1，在垂直凸缘上定位和插入前尾段。
注：
要卸下滑轨，请拔起尾段正中央的闩锁释放按钮并取出每根滑
轨。
3 将系统滑入到机架中。
4 如果存在用于运输时稳固机箱的支架（可选），请将其从机架上卸下。
注：要运输已经安装在机架上的系统，请确保安装两个运输时稳固机
箱的支架（可选）。
