Dell PowerEdge T110 II User manual

Dell PowerEdge
T110 II Systems
Getting Started
With Your System
系统使用入门
開始使用系統
Memulai Dengan Sistem Anda
はじめに
시스템 시작 안내서

Dell PowerEdge
T110 II Systems
Getting Started
With Your System
Regulatory Model E11S Series

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better
use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss
of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
____________________
Information in this publication is subject to change without notice.
© 2010 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.
Intel
®
and Xeon
®
are registered trademarks of Intel Corporation in the U.S. and other countries.
Microsoft® and Windows Server®are either trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries. Red Hat®and Red Hat Enterprise Linux®
are registered trademarks of Red Hat, Inc. in the United States and other countries.
VMware®is a registered trademark of VMWare, Inc. in the United States or other countries.
Citrix®and XenServer®are registered trademarks of Citrix Systems, Inc. in the United States and/or
other countries. SUSE ™ is a trademark of Novell, Inc. in the United States and other countries.
Other trademarks and trade names may be used in this publication to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Regulatory Model: E11S Series
December 2010 P/N DHY8H Rev. A01

Getting Started With Your System 3
Installation and Configuration
WARNING: Before performing the following procedure, review the safety
instructions that came with the system.
Unpacking the System
Unpack your system and identify each item.
Optional—Connecting the Keyboard, Mouse, and Monitor

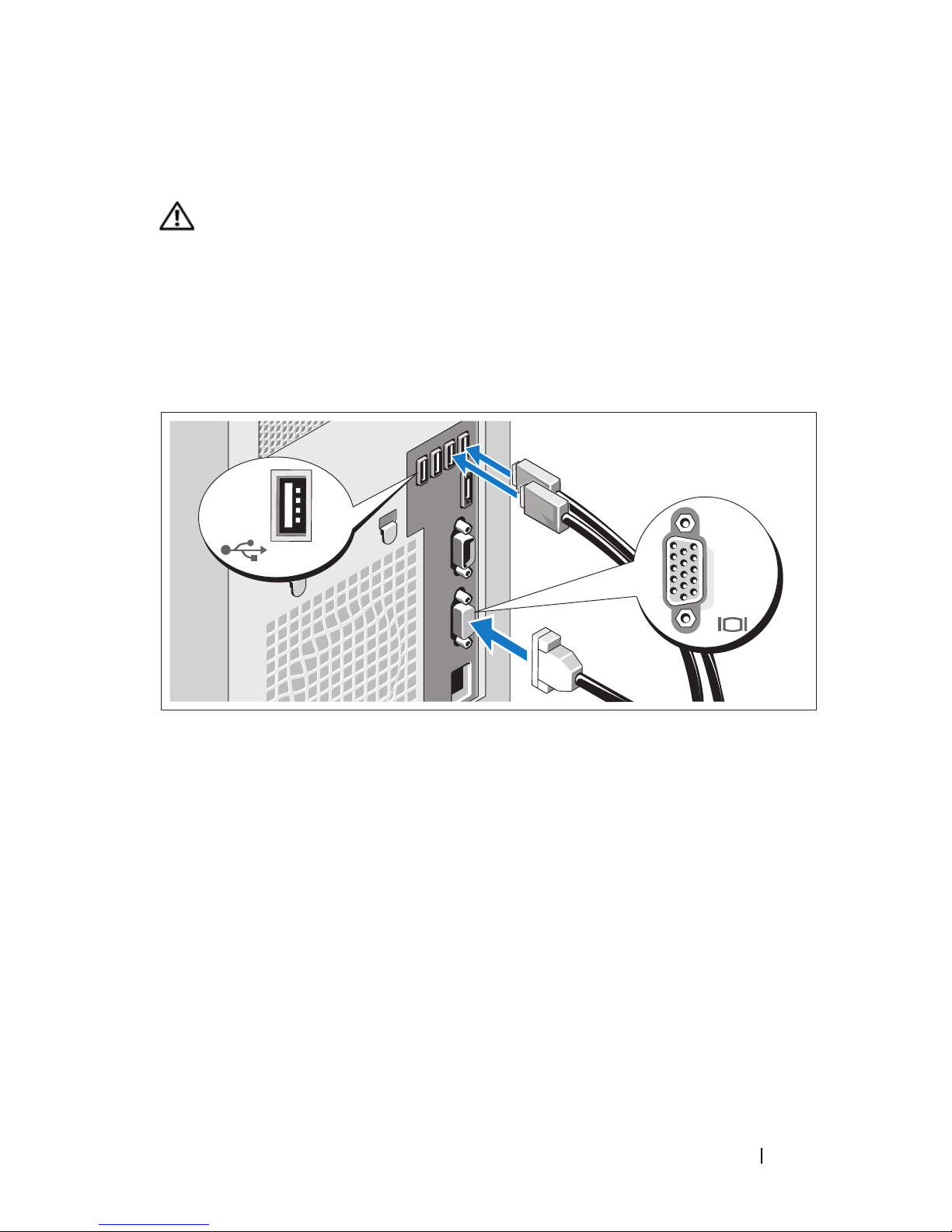

Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable
to plug into each connector. Be sure to tighten the screws (if any) on the
monitor's cable connector.

4Getting Started With Your System
Connecting the Power Cable
Connect the system’s power cable to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor.
Securing the Power Cable

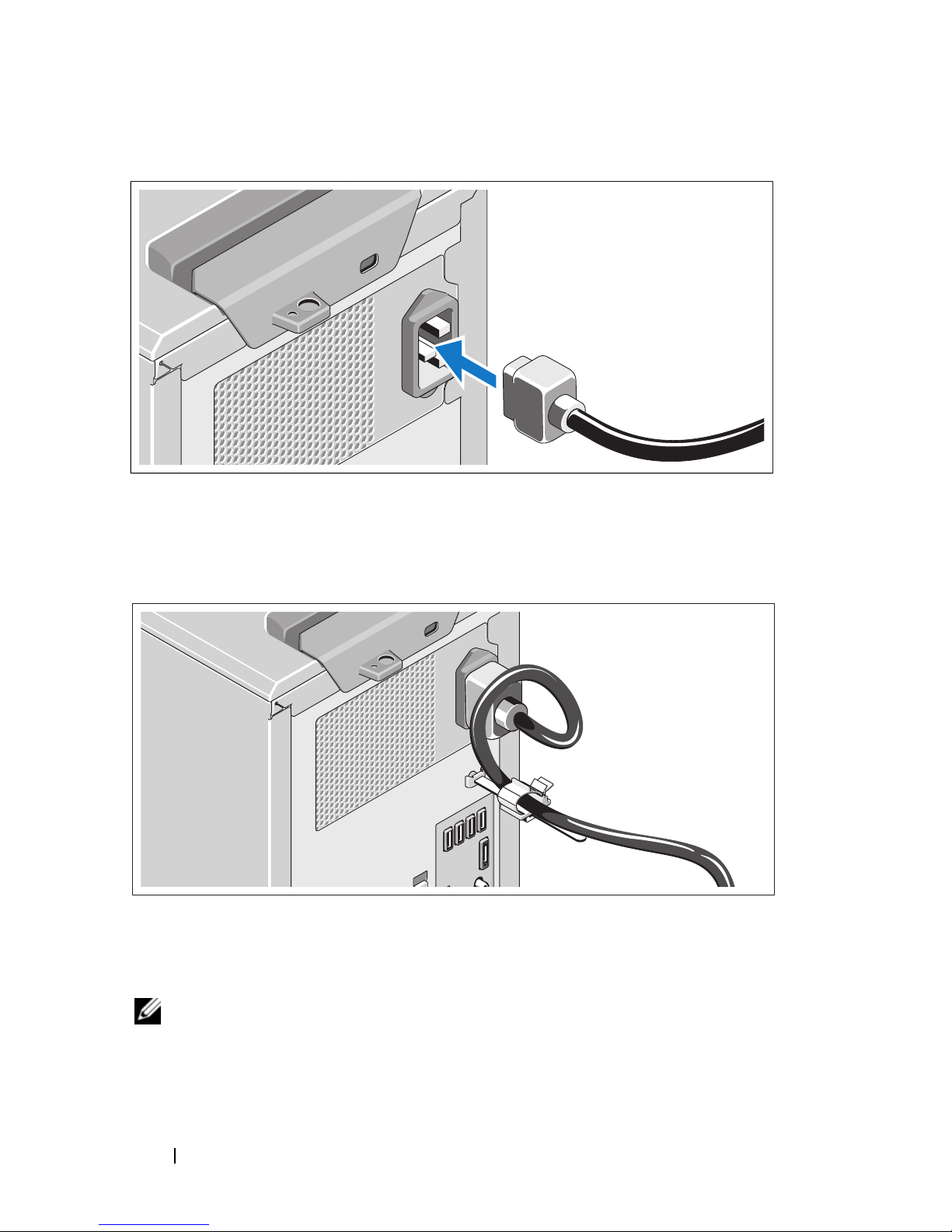

Bend the system power cable into a loop, as shown in the illustration,
and attach to the cable clasp.
Plug the other end of the power cable into a grounded electrical outlet or a
separate power source such as an uninterruptible power supply (UPS) or a
power distribution unit (PDU).
NOTE: Ensure that the system is connected to a stand-alone power source with
stable power supply for better performance.

Getting Started With Your System 5
Turning On the System

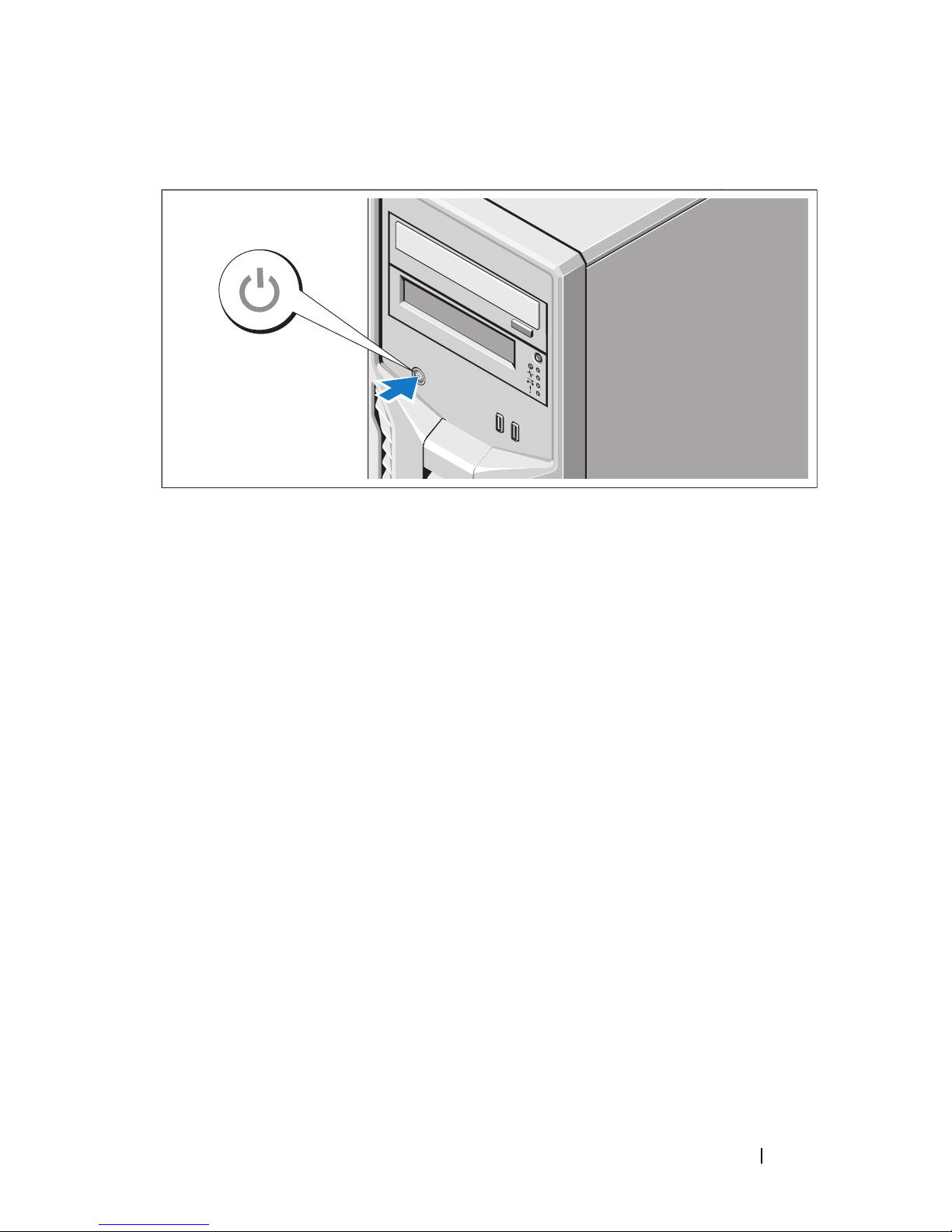

Press the power button on the system. The power indicator should light.
Complete the Operating System Setup
If you purchased a preinstalled operating system, see the operating system
documentation that ships with your system. To install an operating system for
the first time, see the installation and configuration documentation for your
operating system. Be sure the operating system is installed before installing
hardware or software not purchased with the system.
Supported Operating Systems
• Microsoft Windows Small Business Server 2011 (x64) Standard and
Essential Editions
• Microsoft Windows Server 2008 R2 SP1 (x64) Standard and
Foundation Editions
• Microsoft Windows Server 2008 R2 (x64) Standard and
Foundation Editions
• Microsoft Windows Server 2008 (x86) Standard Edition with SP2
• Microsoft Windows Server 2008 (x64) Standard Edition with SP2
• Microsoft Windows Server 2008 R2 SP1 (x64) with Hyper-V for
Standard Edition

6Getting Started With Your System
• Microsoft Windows Server 2008 SP2 (x64) with Hyper-V for
Standard Edition
• Microsoft Windows Server 2008 R2 (x64) with Hyper-V for
Standard Edition
• Red Hat Enterprise Linux Server 6.0 (x64)
•SUSE
Linux Enterprise Server 11 SP1 (x64)
• VMware ESX Version 4.1 Update 1 (Classic)
• VMware ESXi Version 4.1 Update 1 (Embedded)
• Citrix XenServer v5.6 Feature Pack 1
NOTE: For the latest information on supported operating systems,
see support.dell.com.
Dell Software License Agreement
• Before using your system, please read the Dell Software License
Agreement that came with your system.
• You must consider any CD, DVD, or diskette set of Dell installed
software as BACKUP copies of the software installed on your
system’s hard-disk drive.
• If you do not accept the terms of the agreement, please call the customer
assistance telephone number. For customers in the United States,
call 800-WWW-DELL (800-999-3355). For customers outside the
United States, visit
support.dell.com and select your country or region
from the top of the page.

Getting Started With Your System 7
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with
your system. Warranty information may be included within this document or
as a separate document.
• The Owner’s Manual provides information about system features
and describes how to troubleshoot the system and install or replace
system components. This document is available online at
support.dell.com/manuals .
• Any media that ships with your system that provides documentation and tools
for configuring and managing your system, including those pertaining to the
operating system, system management, system updates, and system
components that you purchased with your system.
NOTE: Always check for updates on support.dell.com/manuals and read the
updates first because they often supersede information in other documents.
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does not
perform as expected, see your Owner’s Manual. Dell offers comprehensive
hardware training and certification. See dell.com/training for more information.
This service may not be offered in all locations.
Información de la NOM (sólo para México)
La información que se proporciona a continuación aparece en el dispositivo
descrito en este documento, en cumplimiento de los requisitos de la Norma
Oficial Mexicana (NOM):
Importador:
Número de modelo: E11S
Voltaje de alimentación: 100 V CA–240 V CA
Frecuencia: 50 Hz/60 Hz
Consumo eléctrico: 9.0 A–4.5 A

8Getting Started With Your System
Technical Specifications
Processor
Processor type One Intel Xeon processor E3-1200 product family
or
One Intel Core i3-2100 product family
or
One Intel Pentium processor (when available)
Expansion Bus
Bus type PCI Express Generation 2
Expansion slots Slot 1: PCIe x8 (x8 routing), half-length
Slot 2: PCIe x16 (x8 routing), full-length
Slot 3: PCIe x8 (x4 routing), half-length
Slot 4: PCIe x1 (x1 routing), half-length
Memory
Architecture 1066 MHz or 1333 MHz DDR3 unbuffered Error
Correcting Code (ECC) DIMMs
Memory module sockets Four 240-pin
Memory module capacities 1 GB, 2 GB, 4 GB, or 8 GB
Minimum RAM 1 GB
Maximum RAM 32 GB
Drives
Hard drives Up to four 3.5-inch, cabled SAS or SATA
internal drives
Optical drive Optional internal SATA DVD-ROM or
SATA DVD+/-RW
Optional external USB DVD-ROM
NOTE: DVD devices are data only.
Tape drive One optional internal half-height tape
backup device

Getting Started With Your System 9
Connectors
Back
NIC One RJ-45 (for integrated 1 GB NIC)
Serial 9-pin, DTE, 16550-compatible
USB Four 4-pin, USB 2.0-compliant
Video 15-pin VGA
eSATA One 7-pin connector
Front
USB Two 4-pin, USB 2.0-compliant
Internal
USB Two 4-pin, USB 2.0-compliant
Video
Video type Matrox G200, integrated in Winbond WPCM450
Video memory 8 MB
Power
AC power supply (per power supply)
Wattage 305 W
Voltage 100 VAC–240 VAC, 50 Hz/60 Hz, 9.0 A–4.5 A
Heat dissipation 1300 BTU/hr maximum
Maximum inrush current Under typical line conditions and over the entire
system ambient operating range, the inrush
current may reach 35 A per power supply for
10 ms or less.
Batteries
System battery CR 2032 3.0-V lithium coin cell

10 Getting Started With Your System
Physical
Height 42.03 cm (16.55 in)
Width 18.90 cm (7.44 in)
Depth 46.38 cm (18.25 in)
Weight 16.1 kg (35.49 lb)
Environmental
NOTE: For additional information about environmental measurements for specific
system configurations, see dell.com/environmental_datasheets.
Temperature
Operating 10 °C to 35 °C (50 °F to 95 °F) with a maximum
temperature gradation of 10 °C per hour
NOTE: For altitudes above 2950 feet, the maximum
operating temperature is derated 1 ºF/550 ft.
Storage –40 °C to 65 °C (–40 °F to 149 °F) with
a maximum temperature gradation
of 20 °C per hour
Relative humidity
Operating 20% to 80% (noncondensing) with a maximum
humidity gradation of 10% per hour
Storage 5% to 95% (noncondensing)
Maximum vibration
Operating 0.26 Grms at 5 Hz–350 Hz for 15 min
Storage 1.87 Grms at 10 Hz–500 Hz for 15 min

Getting Started With Your System 11
Maximum shock
Operating One shock pulse in the positive z axis (one pulse
on each side of the system) of 31 G for 2.6 ms in
the operational orientation
Storage Six consecutively executed shock pulses in
the positive and negative x, y, and z axes
(one pulse on each side of the system) of 71 G for
up to 2 ms
Six consecutively executed shock pulses in the
positive and negative x, y, and z axes (one pulse
on each side of the system) of 32 G faired square
wave pulse with velocity change at
270 inches/second (686 centimeters/second)
Altitude
Operating –16 m to 3048 m (–50 ft to 10,000 ft)
NOTE: For altitudes above 2950 feet, the maximum
operating temperature is derated 1 ºF/550 ft.
Storage –16 m to 10,600 m (–50 ft to 35,000 ft)
Airborne contaminant level
Class G1 as defined by ISA-S71.04-1985
Environmental (continued)
