Installation And Configuration
WARNING: Before performing the following procedure, review the safety instructions that came with the blade
server or enclosure.
Unpacking The System
Unpack your blade server or enclosure and identify each item.
Installing The Rails And Enclosure

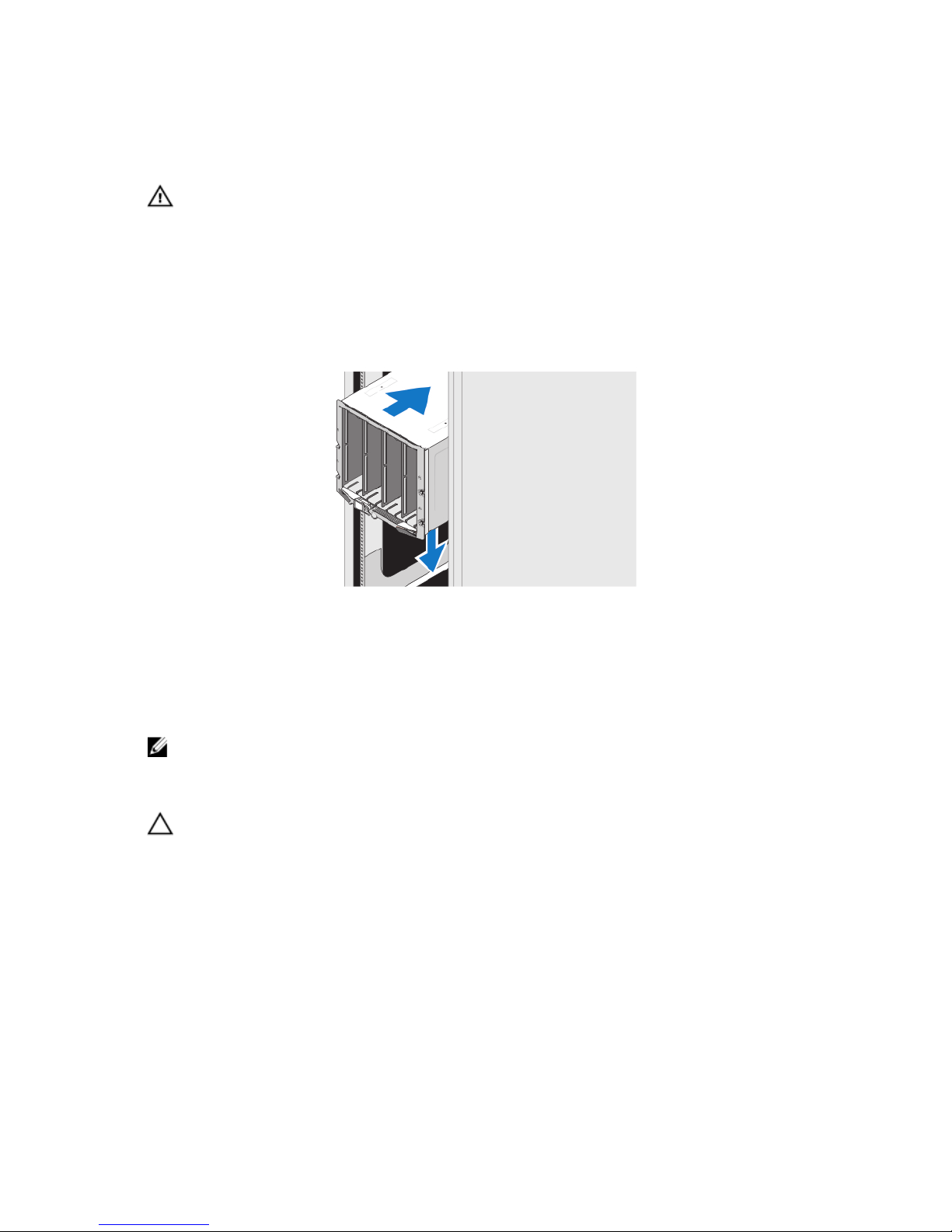

Figure 1. Installing the Enclosure in the Rack
Assemble the rails and install the enclosure in the rack, following the safety instructions and the rack installation
instructions provided with the enclosure.
Installing A Sleeve In The Enclosure
NOTE: This procedure applies only to PowerEdge M420.
A sleeve includes up to four quarter-height blades to function as a system. Depending on your order, the sleeve may
ship with the blades preinstalled.
CAUTION: Exercise utmost care when installing or removing the sleeve to prevent damage to the internal
components. To ensure protection for the electronic components inside, follow the Electrostatic Discharge (ESD)
guidelines.
3

Figure 2. Installing a Sleeve
NOTE: Before you install or remove a sleeve from the enclosure, ensure that the top slot of the sleeve (Blade a) is
empty. You can install a blade in the top slot (Blade a) after you install the sleeve in the enclosure.
Remove the orange cover from the sleeve handle. Slide the sleeve into the enclosure and lift the sleeve handle to the top
position to secure the sleeve in the enclosure.
NOTE: To ensure optimal thermal performance, do not replace the cover on the sleeve handle after the sleeve is
installed in the enclosure. Reinstall the cover only if the sleeve is not installed in the enclosure.
Installing A Quarter-Height Blade In A Sleeve
CAUTION: Install a blade blank in all empty blade slots to maintain proper thermal conditions.
Slide the blade into the sleeve and rotate the blade handle upward to secure the blade in the sleeve.
Figure 3. Installing a Quarter-Height Blade
Installing A Full Or Half-Height Blade
CAUTION: Install a blade blank in all empty blade slots to maintain proper thermal conditions.
4

Figure 4. Installing a Half-Height Blade
NOTE: The above figure shows installation of a half-height blade. The procedure for installing a full-height blade is
identical to installing a half-height blade.
Beginning at the top, slide the blades into the enclosure from left to right. When the blade is securely installed, the blade
handle returns to the closed position.
Connecting The CMC And iKVM Modules
Figure 5. Connecting the Modules
Connect the serial cable and network cable(s) from the management system to the CMC module. If a second optional
CMC module is installed, connect it as well.
Connect the keyboard, mouse, and monitor to the optional iKVM module.
5

Connecting The System To Power
Figure 6. Connecting Power to the System
Connect the system’s power cables to the system power supplies.
CAUTION: To prevent the power cables from being disconnected accidentally, use the plastic clip on each power
supply to secure the power cable to the power supply, and use the strap to secure the power cable to the strain-
relief bar.
CAUTION: For AC power supply, do not plug the power cables directly into a power outlet; you must use a PDU. For
optimal system functionality, a minimum of three power supplies are required.
Plug the other end of the power cables of the AC power supplies into a power distribution unit (PDU). For DC power
supplies, plug the other end of the power cables to a branch-protected DC power source.
NOTE: The power supply units must have the same maximum output power.
NOTE: AC and DC power supplies cannot be mixed in an enclosure.
Turning On The Enclosure
Figure 7. Enclosure Power Button
Press the power button on the enclosure. The power indicator should light.
6

Turning On The Blades
Figure 8. Turning on a Blade
Press the power button on each blade, or power on the blades using the systems management software.
Complete The Operating System Setup
If you purchased a preinstalled operating system, see the documentation associated with the operating system. To
install an operating system for the first time, see the installation and configuration documentation for your operating
system. Be sure the operating system is installed before installing hardware or software not purchased with the system.
NOTE: See dell.com/ossupport for the latest information on supported operating systems.
Dell Software License Agreement
Before using your system, read the Dell Software License Agreement that came with your system. You must consider
any media of Dell-installed software as BACKUP copies of the software installed on your system’s hard drive. If you do
not accept the terms of the agreement, call the customer assistance telephone number. For customers in the United
States, call 800-WWW-DELL (800-999-3355). For customers outside the United States, visit support.dell.com and select
your country or region from the bottom of the page.
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with your system. Warranty information may be
included within this document or as a separate document.
• The Owner’s Manual provides information about system features and describes how to troubleshoot the system
and install or replace system components. This document is available online at support.dell.com/manuals.
• For the Owner’s Manuals and Installation Guides for Dell EqualLogic hardware, go to support.equallogic.com.
• The rack documentation included with your rack solution describes how to install your system into a rack, if
required.
• Any media that ships with your system that provides documentation and tools for configuring and managing your
system, including those pertaining to the operating system, system management software, system updates, and
system components that you purchased with your system.
7

NOTE: Always check for updates on support.dell.com/manuals and read the updates first because they often
supersede information in other documents.
NOTE: When upgrading your system, it is recommended that you download and install the latest BIOS, drivers, and
systems management firmware on your system from support.dell.com.
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does not perform as expected, see your Owner’s
Manual . Dell offers comprehensive hardware training and certification. See dell.com/training for more information. This
service may not be offered in all locations.
NOM Information
The following information is provided on the device described in this document in compliance with the requirements of
the official Mexican standards (NOM):
Importer: Dell Inc. de México, S.A. de C.V.
Paseo de la Reforma 2620 -11º Piso
Col. Lomas Altas
11950 México, D.F.
Model number: BMX01
Supply voltage: 100 V CA to 240 V CA or –(48–60) V DC
Frequency: 50 Hz/60 Hz or N/A
Current consumption: 16 A (x6) or 75 A (x6)
Model number: FHB
Supply voltage: 12 V DC
Current consumption: 75 A
Model number: HHB
Supply voltage: 12 V DC
Current consumption: 37 A
Model number: QHB
Supply voltage: 12 V DC
Current consumption: 35 A
Technical Specifications
NOTE: For additional specifications, see your system Owner's Manual .
8

Power — Blades
Coin-cell battery 3 V CR2032 Lithium coin cell
Power — Enclosure
AC/DC power supply (per power supply module)
Wattage 2360 W and 2700 W
Connector IEC C20
Heat dissipation 1205 BTU/hr (maximum)
Maximum inrush current Under typical line conditions and over the entire system
ambient operating range, the inrush current may reach
55 A per power supply for 10 ms or less.
System Voltage Requirements
NOTE: This system is also designed to be connected to
IT power systems with a phase to phase voltage not
exceeding 230 V.
43 A, 200 V AC to 240 V AC, 50 Hz/60 Hz (2360 W power
supply)
16 A, 100 V AC to 240 V AC, 50 Hz/60 Hz (2700 W power
supply)
DC/DC power supply (per power supply module)
Wattage 2700 W
Connector Molex # 394260002 at PSU end,
mating connector Molex # 39422-0012
Heat dissipation 1205 BTU/hr (maximum)
Maximum inrush current Under typical input voltage conditions and over the
entire system ambient operating range, the inrush
current may reach 120 A per power supply for 10 ms or
less.
System Voltage Requirements 75 A, 48 V DC to 60 V DC
NOTE: Heat dissipation is calculated using the power
supply wattage rating.
Physical — Blades
PowerEdge M915
Height 38.5 cm (15.2 inch)
Width 5 cm (2 inch)
Depth 48.6 cm (19.2 inch)
Weight (maximum) 12.7 kg (28 lb)
PowerEdge M910
Height 38.5 cm (15.2 inch)
Width 5 cm (2 inch)
Depth 48.6 cm (19.2 inch)
Weight (maximum) 13.1 kg (29 lb)
9

Physical — Blades
PowerEdge M820
Height 38.5 cm (15.2 inch)
Width 5 cm (2 inch)
Depth 48.6 cm (19.2 inch)
Weight (maximum) 14.5 kg (31.9 lb)
PowerEdge M710 and M610x
Height 38.5 cm (15.2 inch)
Width 5 cm (2 inch)
Depth 48.6 cm (19.2 inch)
Weight (maximum) 11.1 kg (24.5 lb)
PowerEdge M710HD and M620
Height 18.9 cm (7.4 inch)
Width 5 cm (2 inch)
Depth 48.6 cm (19.2 inch)
Weight (maximum) 7.4 kg (16.3 lb)
PowerEdge M610
Height 18.9 cm (7.4 inch)
Width 5 cm (2 inch)
Depth 48.6 cm (19.2 inch)
Weight (maximum) 5.2 kg to 6.4 kg (11.5 lb to 14.0 lb)
PowerEdge M520
Height 18.9 cm (7.4 inch)
Width 5 cm (2 inch)
Depth 48.6 cm (19.2 inch)
Weight (maximum) 6.4 kg (14.1 lb)
PowerEdge M420
Sleeve
Height 39.5 cm (15.6 inch)
Width 5 cm (2 inch)
Depth 44.3 cm (17.4 inch)
Weight 3 kg (6.61 lb)
Blade
Height 9.75 cm (3.8 inch)
Width 5 cm (2 inch)
Depth 45.8 cm (18 inch)
10

Physical — Blades
Weight (maximum) 2.3 kg (5.07 lb)
Physical — Enclosure
Height 44.0 cm (17.3 inch)
Width 44.7 cm (17.6 inch)
Depth 75.5 cm (29.7 inch)
Weight (maximum) 200.5 kg (442 lb)
Weight (empty) 44.6 kg (98.1 lb)
Environmental
NOTE: For additional information about environmental measurements for specific system configurations, see
dell.com/environmental_datasheets.
Temperature
Operating Continuous operation: 10 °C to 35 °C at 10% to 80%
relative humidity (RH), with 26 °C max dew point. De-rate
maximum allowable dry bulb temperature at 1 °C per 300
m (1 °F per 550 ft) above 900 m (2952.75 ft).
NOTE: For information on supported expanded
operating temperature range and configurations,
see support.dell.com/manuals.
Storage –40 °C to 65 °C (–40 °F to 149 °F) with a maximum
temperature gradation of 20 °C per hour
Relative humidity
Operating 10% to 80% relative humidity (RH), with 26 °C max dew
point
Storage 5% to 95% (noncondensing) at a maximum wet bulb
temperature of 38 °C (100.4 °F)
Maximum vibration
Operating 0.26 Grms at 5 Hz to 350 Hz for 15 min
Storage 1.54 Grms at 10 Hz to 250 Hz for 15 min
Maximum shock
Operating One shock pulse in the positive z axis (one pulse on each
side of the system) of 31 G for up to 2.6 ms
Storage Six consecutively executed shock pulses in the positive
and negative x, y, and z axes (one pulse on each side of
the system) of 71 G for up to 2 ms
Altitude
Operating –15.2 m to 3048 m (–50 ft to 10,000 ft)
11

Environmental
NOTE: For altitudes above 2950 ft, the maximum
operating temperature is derated 1 ºF per 550 ft.
Storage –15.2 m to 10,668 m (–50 ft to 35,000 ft)
Airborne contaminant level
Class G1 as defined by ISA-S71.04-1985
