Dell PowerEdge R815 User manual

Dell™ PowerEdge™
R815 Systems
Getting Started
With Your System
系统使用入门
Memulai Dengan Sistem Anda
はじめに
시스템시작하기

Dell™ PowerEdge™
R815 Systems
Getting Started
With Your System
Regulatory Model E05S series

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use
of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data
if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
____________________
Information in this document is subject to change without notice.
© 2009 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and PowerEdge are trademarks of Dell Inc.;
AMD,AMD Opteron, and combinations thereof are trademarks of Advanced Micro Devices, Inc.;
Microsoft, Hyper-V, Windows, and Windows Server are either trademarks or registered trademarks
of Microsoft Corporation in the United States and/or other countries; SUSE is a registered trademark
of Novell, Inc., in the United States and other countries; VMware is a registered trademark of
VMware, Inc. in the United States and/or other jurisdictions; Citrix and XenServer are trademarks of
Citrix Systems, Inc. and/or more of its subsidiaries, and may be registered in the United States Patent
and Trademark Office and in other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Regulatory Model E05S series
November 2009 P/N HC3PJ Rev. A00

Getting Started With Your System 3
Installation and Configuration
WARNING: Before performing the following procedure, review the safety
instructions that came with the system.
Unpacking the System
Unpack your system and identify each item.
Assemble the rails and install the system in the rack following the safety
instructions and the rack installation instructions provided with your system.

4Getting Started With Your System
Optional – Connecting the Keyboard, Mouse, and Monitor
Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable
to plug into each connector. Be sure to tighten the screws (if any) on the
monitor’s cable connector.
Connecting the Power Cable(s)
Connect the system’s power cable(s) to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor.

Getting Started With Your System 5
Securing the Power Cable(s)
Bend the system power cable into a loop as shown in the illustration and secure
the cable to the bracket using the provided strap. Plug the other end of the
power cable into a grounded electrical outlet or a separate power source such as
an uninterrupted power supply (UPS) or a power distribution unit (PDU).
Turning On the System
Press the power button on the system and the monitor. The power indicators
should light.

6Getting Started With Your System

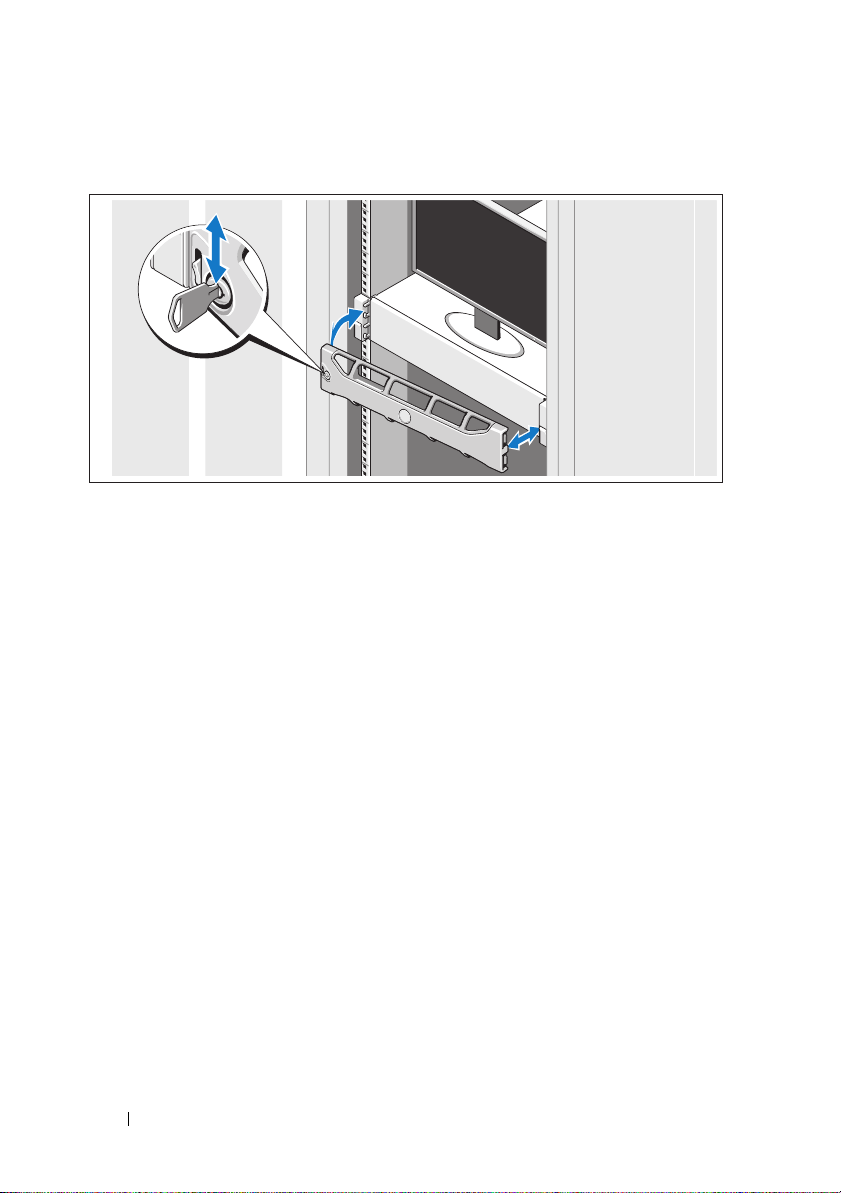

Installing the Optional Bezel
Install the bezel (optional).
Complete the Operating System Setup
If you purchased a preinstalled operating system, see the operating system
documentation that ships with your system. To install an operating system for
the first time, see the installation and configuration documentation for your
operating system. Be sure the operating system is installed before installing
hardware or software not purchased with the system.
Supported Operating Systems
• Microsoft
®
Windows Server
®
2008 Standard, Enterprise, and Datacenter
(x64) editions
• Microsoft Windows Server 2008 Standard and Enterprise (x86) editions
• Microsoft Windows Server 2008 Standard and Enterprise (x86) editions
with SP2
• Microsoft Windows Server 2008 Standard, Enterprise, and Datacenter
(x64) editions with SP2
• Microsoft Windows Server 2008 R2 Standard, Enterprise,
and Datacenter (x64) editions with SP2

Getting Started With Your System 7
• Microsoft Windows HPC Server 2008 (x64)
• Microsoft Windows HPC Server 2008 (x64) with SP2
• Microsoft Windows HPC Server 2008 R2 (x64) with SP2
• Microsoft Windows Server 2003 R2 Standard and Enterprise (x86)
editions
• Microsoft Windows Server 2003 R2 Standard, Enterprise,
and Datacentre (x64) editions
• Microsoft Windows Essential Business Server Standard and
Premium (x64) editions
• Microsoft Windows Essential Business Server Standard and
Premium (x86) editions
• Microsoft Hyper-V™ Server 2008
• Microsoft Hyper-V Server 2008 R2
•SUSE
®
Linux Enterprise Server 11 (x86_64)
• SUSE Linux Enterprise Server 10 (x86_64) with SP2
• SUSE Linux Enterprise Server 10 (x86_64) with SP3
•Solaris
®
10 (x86_64) (when available)
• Solaris 10 U7/U8 (x86_64)
•VMware
®
vSphere
®
4.0 Update 1
•Citrix
®
XenServer™ 6.0 (when available)
NOTE: For the latest information on supported operating systems,
see support.dell.com.

8Getting Started With Your System
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with
your system. Warranty information may be included within this document or
as a separate document.
• The rack documentation included with your rack solution describes
how to install your system into a rack.
•The
Hardware Owner’s Manual provides information about system
features and describes how to troubleshoot the system and install or
replace system components. This document is available online at
support.dell.com/manuals .
• Any media that ships with your system that provides documentation
and tools for configuring and managing your system, including those
pertaining to the operating system, system management software,
system updates, and system components that you purchased
with your system.
NOTE: Always check for updates on support.dell.com/manuals and read the
updates first because they often supersede information in other documents.
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does
not perform as expected, see your Hardware Owner’s Manual. Dell™ offers
comprehensive hardware training and certification. See www.dell.com/training
for more information. This service may not be offered in all locations.

Getting Started With Your System 9
Información de la NOM (sólo para México)
La información que se proporciona a continuación aparece en el dispositivo
descrito en este documento, en cumplimiento de los requisitos de la Norma
Oficial Mexicana (NOM):
Technical Specifications
Importador:
Número de modelo: E05S series
Voltaje de
alimentación: 100–240 V CA
Frecuencia: 50/60 Hz
Consumo eléctrico: 8–4.0 A
Processor
Processor type Up to four AMD Opteron™ 6000 Series processors
Expansion Bus
Bus type PCI Express Generation 2
Expansion slots Riser 1
Slot 1: x8 link with x16 physical connector,
9.5-inch length, standard height
Slot 2: x4 link with x8 physical connector,
low-profile with a standard height bracket
System Board
Slot 3: x8 link with x8 physical connector,
low-profile
Slot 4: x8 link with x8 physical connector,
low-profile
Riser 2
Slot 5: x8 link with x16 physical connector,
9.5-inch length, standard height
Slot 6: x8 link with x16 physical connector,
9.5-inch length, standard height

10 Getting Started With Your System
Memory
Architecture 1333 MHz DDR3 registered and unregistered
ECC DIMMs
Memory module sockets Thirty two 240-pin
Memory module capacities 1 GB, 2 GB, 4 GB, 8 GB, or 16 GB
(when available)
RDIMMs (single, dual, or quad-rank depending
on capacity)
Minimum RAM 4 GB (per processor)
Maximum RAM 512 GB (with four processors)
Drives
Hard drives Up to six 2.5-inch, internal hot-swappable SAS,
SATA, or SSD drives
Diskette drive Optional external USB 1.44 MB
Optical drive One optional slimline SATA DVD-ROM or
DVD+RW drive
NOTE: DVD devices are data only.
Flash drive Optional internal USB
Optional internal dual SD module
Optional vFlash card (with iDRAC6 Enterprise card)
Connectors
Back
NIC Four RJ-45 (for integrated 1 GB NICs)
NIC (management NIC) One optional management NIC port on iDRAC6
Enterprise card
Serial 9-pin, DTE, 16550-compatible
USB Four 4-pin, USB 2.0-compliant
Video 15-pin VGA
vFlash One optional vFlash memory card slot on iDRAC6
Enterprise card

Getting Started With Your System 11
Front
Video 15-pin VGA
USB Two 4-pin, USB 2.0-compliant
Internal
USB One 4-pin, USB 2.0-compliant
SD Two optional internal SD modules
Video
Video type Integrated Matrox G200 with iDRAC6
Video memory 8 MB (shared with iDRAC application memory)
Power
AC power supply
Wattage 1100 W
Voltage 100-240 VAC, 50/60 Hz, auto-ranging
Heat dissipation 4012 BTU/Hr
Maximum inrush current Under typical line conditions and over the entire
system ambient operating range, the inrush current
may reach 55 A per power supply for 10 ms or less
Batteries
System battery CR 2032 3.0-V lithium coin cell
Physical
Height 8.64 cm (3.40 in)
Width 44.05 cm (17.34 in) without bezel
48.24 cm (18.99 in) with bezel
Depth 72.06 cm (28.37 in) without bezel
75.56 cm (29.75 in) with bezel
Weight (maximum
configuration)
26.1 kg (57.54 lb)
Weight (empty) 21.15 kg (46.64 lb)
Connectors (continued)

12 Getting Started With Your System
Environmental
NOTE: For additional information about environmental measurements for specific
system configurations, see www.dell.com/environmental_datasheets.
Temperature
Operating 10° to 35°C (50° to 95°F) with a maximum
temperature gradation of 10°C per hour
NOTE: For altitudes above 2950 feet, the maximum
operating temperature is derated 1ºF/550 ft.
Storage –40° to 65°C (–40° to 149°F) with a maximum
temperature gradation of 20°C per hour
Relative humidity
Operating 20% to 80% (noncondensing) with a maximum
humidity gradation of 10% per hour
Storage 5% to 95% (noncondensing)
Maximum vibration
Operating 0.26 G at 5–350 Hz for 15 min
Storage 1.54 G at 10–250 Hz for 15 min
Maximum shock
Operating One shock pulse in the positive z axis (one pulse on
each side of the system) of 31 G for 2.6 ms in the
operational orientation
Storage Six consecutively executed shock pulses in the
positive and negative x, y, and z axes (one pulse on
each side of the system) of 71 G for up to 2 ms
Altitude
Operating –16 to 3,048 m (–50 to 10,000 ft)
NOTE: For altitudes above 2950 feet, the maximum
operating temperature is derated 1ºF/550 ft.
Storage –16 to 10,600 m (–50 to 35,000 ft)
Airborne Contaminant Level
Class G2 or lower as defined by ISA-S71.04-1985

Dell™ PowerEdge™
R815 系统
系统使用入门
管制型号 E05S 系列

注、小心和警告
注：“注”表示可以帮助您更好地使用计算机的重要信息。
小心：“小心”表示如果不遵循说明，就有可能损坏硬件或导致数据
丢失。
警告：
“警 ”表示可能会造成财产损失、人身伤害甚至死亡。
____________________
本说明文件中的信息如有更改，恕不另行通知。
© 2009 Dell Inc. 版权所有，翻印必究。
未经 Dell Inc. 书面许可，严禁以任何形式复制这些材料。
本文中使用的商标：Dell、DELL 标和 PowerEdge 是Dell Inc. 的商标； AMD、AMD
Opteron 及其组合是 Advanced Micro Devices, Inc. 的商标； Microsoft、Hyper-V、Windows 和
Windows Server 是Microsoft Corporation 在美国和 /或其他国家的 商标或注册商标； SUSE 是
Novell, Inc. 在美国和其他国家的注册商标； VMware 是VMware, Inc. 在美国和 /或其他辖区
的注册商标； Citrix 和XenServer 是Citrix Systems, Inc. 和/或其子公司的商标，可能已在美
国或其他国家的专利和商标局进行注册。
本说明文件中述及的其它商标和产品名称是指拥有相应商标和产品名称的公司或其制造的
产品。 Dell Inc. 对其它公司的商标和产品名称不拥有任何所有权。
管制 Model E05S 系列
2009 年11 月P/N HC3PJ Rev. A00

系统使用入门 15
安装和配置
警告：
执行下列步骤之前，请查看系统随附的安全说明。
打开系统包装
打开系统包装并确认各个组件。
遵循系统随附的安全说明和机架安装说明，在机架中组装滑轨并安装系统。

16 系统使用入门
可选 –连接键盘、鼠标和显示器
接键盘、鼠标和显示器（可选）。
系统背面的 接器附有图标，指示要插入每个 接器的电缆。请确保拧紧显
示器电缆 接器上的螺钉（如果有）。
连接电源电缆
将系统电源电缆 接至系统，如果使用显示器，则将显示器电源电缆 接至
显示器。

系统使用入门 17
固定电源电缆
如图所示，将系统电源电缆弯曲成一个环状，并使用所提供的腕带将其固定
到支架。将电源电缆的另一端插入接地的电源插座或单独的电源，如不间断
电源设备
(UPS)
或配电装置
(PDU)
。
开启系统
按下系统和显示器的电源按钮。电源指示灯将会亮起。

18 系统使用入门
安装可选挡板
安装挡板（可选）。
完成操作系统安装
如果购买了预安装的操作系统，请参阅系统随附的操作系统说明文件。第一
次安装操作系统时，请参阅操作系统的安装和配置说明文件。在安装并非随
系统购买的硬件或软件之前，确保已安装操作系统。
支持的操作系统
•Microsoft
®
Windows Server
®
2008
标准版、企业版和
Datacenter (x64)
版
•Microsoft Windows Server 2008 标准版和企业
(x86)
版
•Microsoft Windows Server 2008 标准版和企业
(x86)
版（含
SP2
）
•Microsoft Windows Server 2008
标准版、企业版和
Datacenter (x64)
版
（含
SP2
）
•Microsoft Windows Server 2003 R2
标准版、企业版 和
Datacenter (x64)
版（含
SP2
）
•Microsoft Windows HPC Server 2008 (x64)
•Microsoft Windows Web Server 2008 (x64)
版（含
SP2
）
•Microsoft Windows HPC Server 2008 R2 (x64) 版（含
SP2
）
