Dell™ PowerEdge™
R200 Systems
Getting Started
With Your System
Guide de mise en route
Primeiros passos com o sistema
Procedimientos iniciales con el sistema

Dell™ PowerEdge™
R200 Systems
Getting Started
With Your System

Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use
of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data
and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury,
or death.
____________________
Information in this document is subject to change without notice.
© 2007 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly
forbidden.
Trademarks used in this text: Dell, the DELL logo, and PowerEdge are trademarks of Dell Inc.
Intel, Pentium, and Celeron are registered trademarks and Core is a trademark of Intel Corporation
Microsoft, Windows, and Windows Server are either trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries Red Hat is a registered trademark of Red Hat,
Inc. SUSE is a registered trademark of Novell Inc. in the United States and other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Model SVP
August 2007 P/N MP148 Rev. A00

Getting Started Guide 3
System Features
The major hardware and software features of your system include:
• 1U/1S rack-mountable chassis with support for static rails and sliding rails.
NOTE: Use the System Setup program to view processor information.
See "Using the System Setup Program" in your Hardware Owner’s Manual.
• One of the following processors:
–Intel
®
Celeron
®
– Intel Pentium
®
Dual-Core™
– Intel Core 2 Duo™
– Dual-Core Intel Xeon
®
Processor 3000 Series
– Quad-Core Intel Xeon Processor 3200 Series.
• A minimum of 512 MB of 667-MHz or 800-MHz DDR2 SDRAM memory,
upgradable to a maximum of 8 GB by installing combinations of 512-MB,
1-GB, or 2-GB unbuffered ECC memory modules in four memory module
sockets on the system board.
• One of the following riser card options:
– One full-height, half-length, x8 lane PCIe expansion slot and one full-
height, half-length PCIe expansion slot with a x8 connector but with
a x4 lane capability.
– One full-height, half-length, 133MHz/64 bit PCI-X expansion slot and
one full-height, half-length, x8 lane PCIe expansion slot, which
includes a connector for an optional remote access controller (RAC)
card.
• One 3.5-inch CD, DVD, or combination CD-RW/DVD in a peripheral
drive bay.
• Support for the following internal hard-drive configurations:
– Up to two internal, 1-inch high, SATA hard drives with the integrated
drive controllers.
– Up to two internal, 1-inch high optional Serial-Attached SCSI (SAS)
hard drives with an optional SAS controller card.
• Optional remote access controller for remote systems management.
This option requires a riser card with support for PCI-X and PCIe RAC
connectors.
• Optional USB flash drive emulates a diskette drive or hard drive.
• One 345-W power supply.

4Getting Started Guide
• Two integrated Gigabit Ethernet network adapters, capable of supporting
10-Mbps, 100-Mbps, and 1000-Mbps data rates.
• Two system cooling fans, one power-supply cooling fan, and one optional
PCI fan for systems with a SAS/RAID controller.
• Serial connector for console redirection support.
• Security features, including chassis-intrusion detection and keylock on
the optional bezel.
• Systems management software/circuitry that monitors critical system
voltages and temperatures.
• Back-panel connectors include keyboard, video, mouse, serial, two USB,
and two NIC connectors.
• Front-panel connectors include one VGA and two USB connectors. For
more information about specific features, see "Technical Specifications"
on page 11.
The following software is included with your system:
• A System Setup program for viewing and changing system configuration
information. For more information, see "Using the System Setup Program"
in the
Hardware Owner’s Manual .
• Enhanced security features, including a system and setup passwords are
available through the System Setup program.
• Video drivers for displaying application programs in high-resolution
modes.
• Systems management software and documentation CDs.

Getting Started Guide 5
Supported Operating Systems
• Microsoft
®
Windows Server
®
2008 Web, Standard, and Enterprise
(32-bit x86) Editions (
when available )
• Microsoft Windows Server 2008 Web, Standard, Small Business Server
(Premium and Standard), and Enterprise (x64) Editions (
when available )
• Microsoft Windows Server 2003 Web, Standard, Small Business Server
(Premium and Standard), and Enterprise (32-bit x86) Editions
(SP1 and SP2)
• Microsoft Windows Server 2003 Standard and Enterprise (x64) Editions
• Microsoft Windows Server 2003 R2 Standard, Small Business Server
(Premium and Standard), and Enterprise (32-bit x86) Editions
• Microsoft Windows Server 2003 R2 Standard and Enterprise (x64)
Editions
•RedHat
®
Enterprise Linux ES (versions 4 and 5) (x86_32)
• Red Hat Enterprise Linux ES (versions 4 and 5) (x86_64)
•SUSE
®
Linux Enterprise Server 9 (SP2 or later) (x86_64)
• SUSE Linux Enterprise Server 10 (x86_64)
Other Information You May Need
CAUTION: The Product Information Guide provides important safety and
regulatory information. Warranty information may be included within this
document or as a separate document.
• The Rack Installation Instructions or Rack Installation Guide included
with your rack solution describes how to install your system into a rack.
• The
Hardware Owner’s Manual provides information about system
features and describes how to troubleshoot the system and install or
replace system components. The
Hardware Owner’s Manual is available
on the CDs that came with your system or on
support.dell.com .
• CDs included with your system provide documentation and tools
for configuring and managing your system.
• Systems management software documentation describes the features,
requirements, installation, and basic operation of the software.

6Getting Started Guide
• Operating system documentation describes how to install (if necessary),
configure, and use the operating system software.
• Documentation for any components you purchased separately provides
information to configure and install these options.
• Updates are sometimes included with the system to describe changes
to the system, software, and/or documentation.
NOTE: Always check for updates on support.dell.com and read the updates
first because they often supersede information in other documents.
• Release notes or readme files may be included to provide last-minute
updates to the system or documentation or advanced technical reference
material intended for experienced users or technicians.
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does
not perform as expected, see your Hardware Owner’s Manual.
Dell Enterprise Training and Certification is available; see
www.dell.com/training for more information. This service may not be offered
in all locations.
Installation and Configuration
CAUTION: Before performing the following procedure, read and follow the safety
instructions and important regulatory information in your Product Information
Guide.
CAUTION: Whenever you need to lift the system, get others to assist you.
To avoid injury, do not attempt to lift the system by yourself.
This section describes the steps to set up your system for the first time.

Getting Started Guide 7

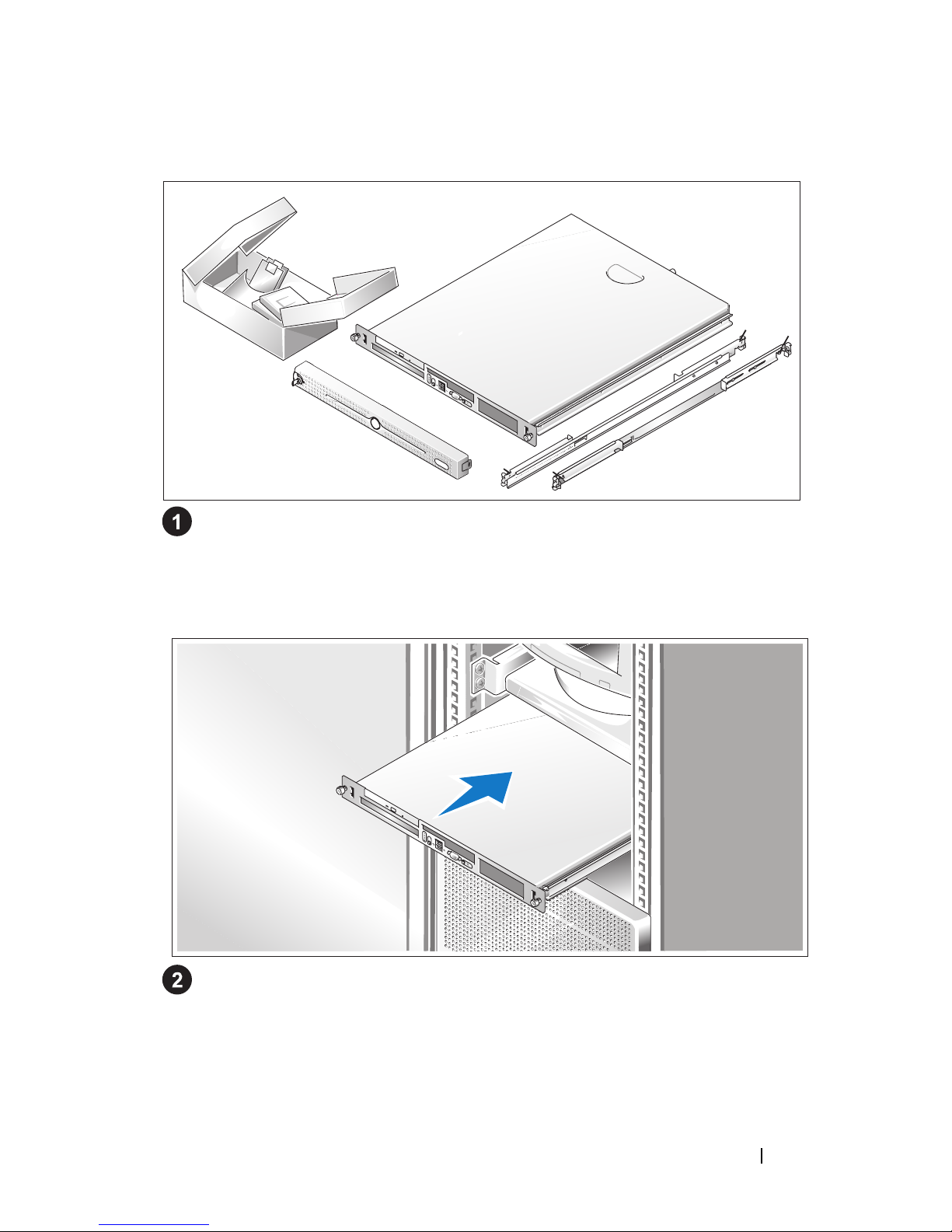

Unpacking the System
Unpack your system and identify each item.
Keep all shipping materials in case you need them later.
Installing the Rails and System in a Rack
Once you have read the "Safety Instructions" located in the rack
installation documentation for your system, install the rails and
the system in the rack.
See your rack installation documentation for instructions on installing
your system in a rack.

8Getting Started Guide
Connecting the Keyboard, Mouse, and Monitor
Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating
which cable to plug into each connector. Be sure to tighten the screws
(if any) on the monitor's cable connector.

Getting Started Guide 9
Connecting the Power
Connect the system’s power cable(s) to the system. Attach the cable
retention clip to the back of the system, run the cable through the cable
retention clip as shown, and close the clip.
Plug the other end of the cable into a grounded electrical outlet or a
separate power source such as an uninterrupted power supply (UPS)
or a power distribution unit (PDU).

10 Getting Started Guide
Turning on the System
Turn on the system and monitor (optional).
Press the power button on the system and the monitor. The power
indicators should light. Adjust the monitor’s controls until the displayed
image is satisfactory.
Installing the Bezel
Install the bezel (optional).

Getting Started Guide 11
Complete the 0perating System Setup
If you purchased a preinstalled operating system, see the operating system
documentation that ships with your system. To install an operating system for
the first time, see the documentation that came with your operating system.
Be sure the operating system is installed before installing hardware or software
not purchased with the system.
Technical Specifications
Processor
Processor type One Intel
®
Celeron
®
processor
or
One
Intel Core ™ 2 Duo processor
or
One Intel Pentium
®
Dual-Core processor
or
Dual-Core Intel Xeon®3000 Sequence processor
or
Quad-Core Intel Xeon 3200 Sequence processor
Front-side bus speed
Intel Celeron 800 MHz minimum
Intel Pentium Dual-Core 800 MHz minimum
Intel Core 2 Duo 800 MHz minimum
Dual-Core Intel Xeon 3000
Sequence
1333 MHz minimum
Quad-Core Intel Xeon 3200
Sequence
1066 MHz minimum
Internal cache
Intel Celeron 512 KB
Intel Pentium Dual-Core at least 1 MB
Intel Core 2 Duo at least 2 MB
Dual-Core Intel Xeon 3000
Sequence
4MB Minimum
Quad-Core Intel Xeon 3200
Sequence
2x4MB (8MB) Minimum

12 Getting Started Guide
Expansion Buses
Bus type PCI-X, PCIe
Expansion slots - Two optional riser cards
Riser 1
PCIe One full-height, half-length, x8 lane PCIe slot
PCIe One full-height, half-length, x4 lane PCIe slot
residing on a x8 lane connector
Riser 2
PCI-X One full-height, half-length,
64-bit, 133MHz PCI-X slot
PCIe One full-height, half-length, x8 lane PCIe slot
Memory
Architecture Up to four unbuffered DDR2 677/800 MHz
SDRAM memory modules with ECC
Memory module sockets Four 240-pin
Memory module capacities 512 MB, 1 GB, or 2 GB
Minimum RAM 512 MB (one 512-MB module)
Maximum RAM 8 GB
Drives
Hard Drives
SATA Up to two 1-inch high drives
SAS Up to two optional internal 1-inch high drives
with optional SAS controller card
Optical drive DVD, or combination CD-RW/DVD in a
peripheral drive bay
NOTE: DVD devices are data only.
USB flash drive One optional drive that emulates a diskette drive
or hard drive

Getting Started Guide 13
Connectors
Externally accessible
Back
Network adapter Two RJ-45 (for integrated 1-Gigabit network
adapters)
PS/2-style keyboard 6-pin mini-DIN
PS/2-compatible mouse 6-pin mini-DIN
Serial 9 pin
USB Two 4-pin, USB 2.0 compliant
Video 15-pin VGA
Front
Video 15-pin VGA
USB Two 4-pin, USB 2.0 compliant
Internally accessible
SATA channels Three 7 pin
Video
Video type Integrated ATI ES1000 VGA controller
Video memory 32MB DDR II
Power
AC power supply
Wattage 345 W
Voltage 100–240 VAC, 50/60 Hz
Maximum inrush current Under typical line conditions and over the entire
system ambient operating range, the inrush
current may reach 25 A for 10 ms or less.
System battery CR 2032 3.0-V lithium coin cell

14 Getting Started Guide
Physical
Height 4.2 cm (1.68 in)
Width 44.6 cm (17.6 in)
Depth
With optional bezel 57.6 cm (22.7 in)
Without optional bezel 54.6 cm (21.5 in)
Weight (maximum configuration) 11.8 kg (26 lb)
Environmental
NOTE: For additional information about environmental measurements for specific
system configurations, see www.dell.com/environmental_datasheets.
Temperature
Operating 10° to 35°C (50° to 95°F)
Storage –40° to 65°C (–40° to 149°F)
Relative humidity
Operating 20% to 80% (noncondensing) with a maximum
humidity gradation of 10% per hour
Storage 5% to 95% (noncondensing)
Maximum vibration
Operating 0.26 G at 5–350 Hz for 15 min
Storage 1.54 G at 10–250 Hz for 15 min
Maximum shock
Operating One shock pulse in the positive z axis (one pulse
on each side of the system) of 31 G for up to
2.6 ms
Storage Six consecutively executed shock pulses in the
positive and negative x, y, and z axes (one pulse
on each side of the system) of 71 G for up to 2 ms
Altitude
Operating –16 to 3048 m (–50 to 10,000 ft)
Storage –16 to 10,600 m (–50 to 35,000 ft)

Systèmes Dell™
PowerEdge™ R200
Guide de mise en route

Remarques, avis et précautions
REMARQUE : Une REMARQUE indique des informations importantes qui peuvent
vous aider à mieux utiliser votre ordinateur.
AVIS : Un AVIS vous avertit d'un risque de dommage matériel ou de perte
de données et vous indique comment éviter le problème.
PRÉCAUTION : Une PRÉCAUTION indique un risque potentiel d'endommagement
du matériel, de blessure corporelle ou de mort.
____________________
Les informations contenues dans ce document peuvent être modifiées sans préavis.
© 2007 Dell Inc. Tous droits réservés.
La reproduction de ce document de quelque manière que ce soit sans l'autorisation écrite de Dell Inc.
est strictement interdite.
Marques utilisées dans ce document : Dell , le logo DELL et PowerEdge sont des marques de Dell Inc. ;
Intel, Pentium et Celeron sont des marques déposées de Intel Corporation ; Core est une marque de
Intel Corporation ;
Microsoft , Windows et Windows Server sont des marques ou des marques déposées
de Microsoft Corporation aux États-Unis et ou dans d'autres pays ;
Red Hat est une marque déposée
de Red Hat, Inc. ;
SUSE est une marque déposée de Novell Inc. aux États-Unis et dans d'autres pays.
Tous les autres noms de marques et marques commerciales utilisés dans ce document se rapportent
aux sociétés propriétaires de ces marques et de ces noms ou à leurs produits. Dell Inc. décline tout
intérêt dans l'utilisation des marques déposées et des noms de marques ne lui appartenant pas.
Modèle SVP
Août 2007 N/P MP148 Rév. A00

Guide de mise en route 17
Caractéristiques du système
Les principales caractéristiques du système sur le plan matériel et logiciel
sont les suivantes :
• Châssis 1U/1S montable en rack avec support pour rails statiques
et coulissants.
REMARQUE : Pour afficher les informations concernant le processeur,
utilisez le programme de configuration du système. Voir “Using the System
Setup Program” (Utilisation du programme de configuration du système),
dans le document Hardware Owner's Manual (Manuel du propriétaire).
• L'un des processeurs suivants :
–Intel
®
Celeron
®
– Intel Pentium
®
Dual-Core™
– Intel Core 2 Duo™
– Intel Xeon
®
Dual-Core série 3000
– Intel Xeon Quad-Core série 3200
• Mémoire minimale : 512 Mo, sous forme de barrettes de mémoire SDRAM
DDR2 à 667 ou 800 MHz. Extensible via l'installation de barrettes de
mémoire ECC sans tampon (de 512 Mo, 1 Go ou 2 Go) dans les quatre
emplacements mémoire de la carte système. Le maximum autorisé est
de 8 Go.
• L'une des cartes de montage suivantes, disponibles en option :
– Deux logements d'extension PCIe pour carte de mi-longueur/pleine
hauteur : un logement x8 et un autre équipé d'un connecteur x8
mais utilisable uniquement en x4.
– Deux logements d'extension pour carte de mi-longueur/pleine
hauteur : un logement PCI-X (133 MHz/64 bits) et un logement
PCIe x8 comprenant un connecteur pour le contrôleur d'accès distant
(RAC) en option.
• Un lecteur 3,5 pouces de CD, DVD ou CD-RW/DVD installé dans
une baie de périphérique

18 Guide de mise en route
• Prise en charge des configurations suivantes pour les disques durs
internes :
– Jusqu'à deux disques durs SATA internes d'une hauteur de 1 pouce,
avec les contrôleurs de lecteur intégrés.
– Jusqu'à deux disques durs SAS (Serial-Attached SCSI) internes
d'une hauteur de 1 pouce (en option) avec une carte contrôleur SAS
(également en option).
• Contrôleur d'accès à distance (en option) permettant la gestion de
systèmes à distance. Cette option requiert une carte de montage prenant
en charge les connecteurs RAC PCI-X et PCIe.
• Lecteur flash USB en option émulant un lecteur de disquette ou un disque
dur.
• Un bloc d'alimentation de 345 W.
• Deux cartes réseau Ethernet Gigabit intégrées pouvant prendre en charge
des débits de données de 10, 100 et 1000 Mbps.
• Deux ventilateurs système, un ventilateur pour le bloc d'alimentation et
un ventilateur PCI en option pour les systèmes équipés d'un contrôleur
SAS/RAID.
• Un connecteur série assurant la prise en charge de la redirection de
console.
• Des fonctions de sécurité telles que la détection des intrusions dans le
châssis et le verrou du cadre en option.
• Des circuits/logiciels de gestion de systèmes surveillant les tensions et les
températures critiques.
• Le panneau arrière contient le connecteur du clavier, de la souris, ainsi
qu'un connecteur vidéo, le port série, deux connecteurs USB et deux
connecteurs de NIC.
• Le panneau avant comprend deux connecteurs USB et un connecteur
VGA. Pour plus d'informations sur des caractéristiques spécifiques,
voir “Spécifications techniques”, à la page 24.
