Dell PowerEdge R415 User manual

Dell PowerEdge R415 Systems
Getting Started
With Your System
系统使用入门
Memulai Dengan Sistem Anda
はじめに
시스템 시작 안내서

Dell PowerEdge R415 Systems
Getting Started
With Your System
Regulatory Model E07S Series

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use
of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data
if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
____________________
Information in this publication is subject to change without notice.
© 2010 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.
AMD®is a registered trademark and AMD Opteron™ is a trademark of Advanced Micro Devices, Inc.
Microsoft®, Windows®, Windows Server®, and Hyper-V™ are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries. Red Hat Enterprise
Linux®and Enterprise Linux®are registered trademarks of Red Hat, Inc. in the United States and/or
other countries. Novell®is a registered trademark and SUSE™ is a trademark of Novell Inc. in the
United States and other countries. Citrix®and XenServer®are either registered trademarks or
trademarks of Citrix Systems, Inc. in the United States and/or other countries. VMware®is a registered
trademark of VMWare, Inc. in the United States or other countries.
Other trademarks and trade names may be used in this publication to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Regulatory Model E07S Series
June 2010 P/N JT55R Rev. A00

Getting Started With Your System 3
Installation and Configuration
WARNING: Before performing the following procedure, review the safety
instructions that came with the system.
Unpacking the System
Unpack your system and identify each item.
Installing the Rails and System in a Rack
Assemble the rails and install the system in the rack following the safety
instructions and the rack installation instructions provided with your system.

4Getting Started With Your System
Optional – Connecting the Keyboard, Mouse, and Monitor
Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable
to plug into each connector. Be sure to tighten the screws (if any) on
the monitor's cable connector.
Connecting the Power Cable(s)
Connect the system’s power cable(s) to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor.

Getting Started With Your System 5

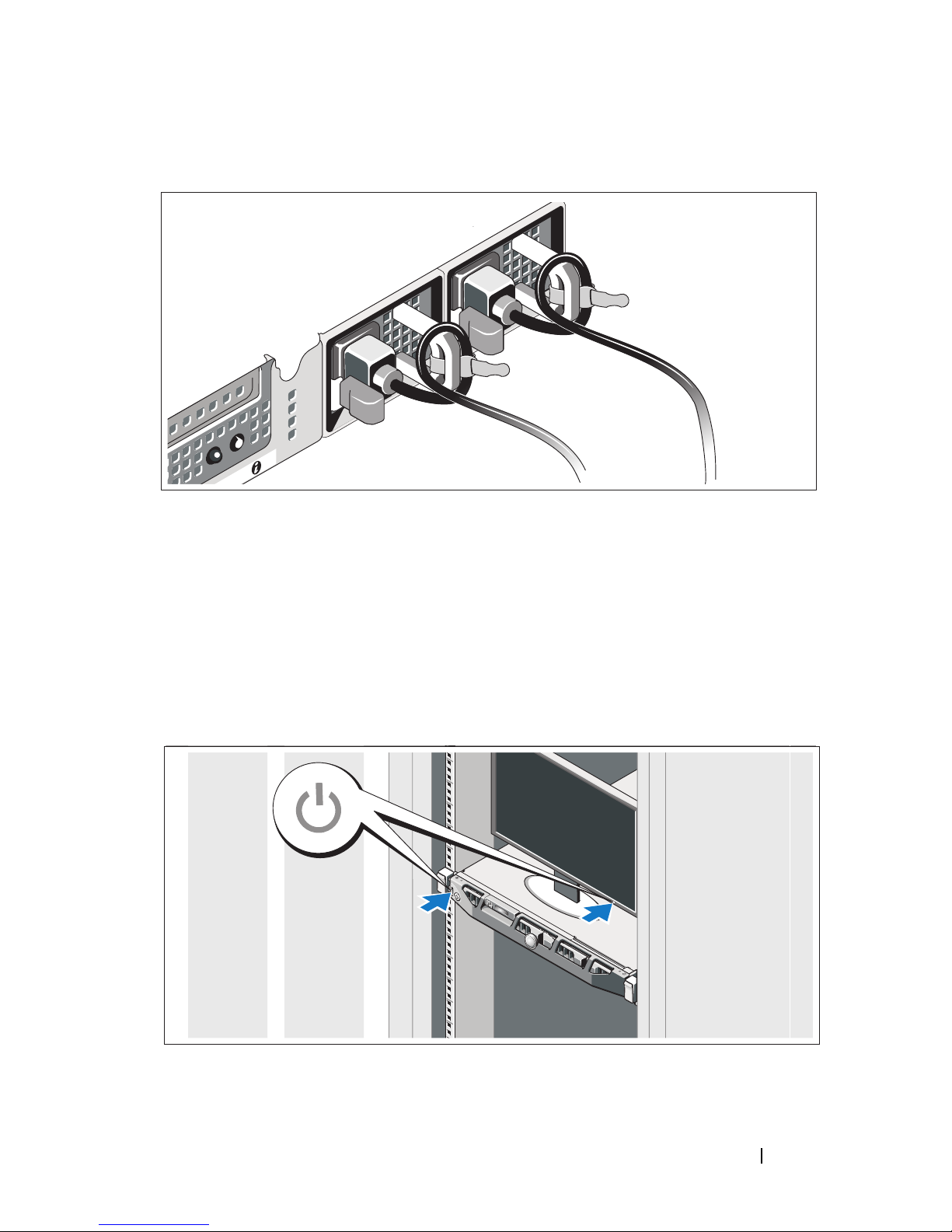

Installing the Power Cord Retention Bracket
Attach the power cord retention bracket on the right bend of the power
supply handle. Bend the system power cable into a loop as shown in the
illustration and attach to the bracket’s cable clasp.
Plug the other end of the power cable(s) into a grounded electrical outlet
or a separate power source such as an uninterrupted power supply (UPS)
or a power distribution unit (PDU).
Turning On the System
Press the power button on the system and the monitor. The power indicators
should light.

6Getting Started With Your System

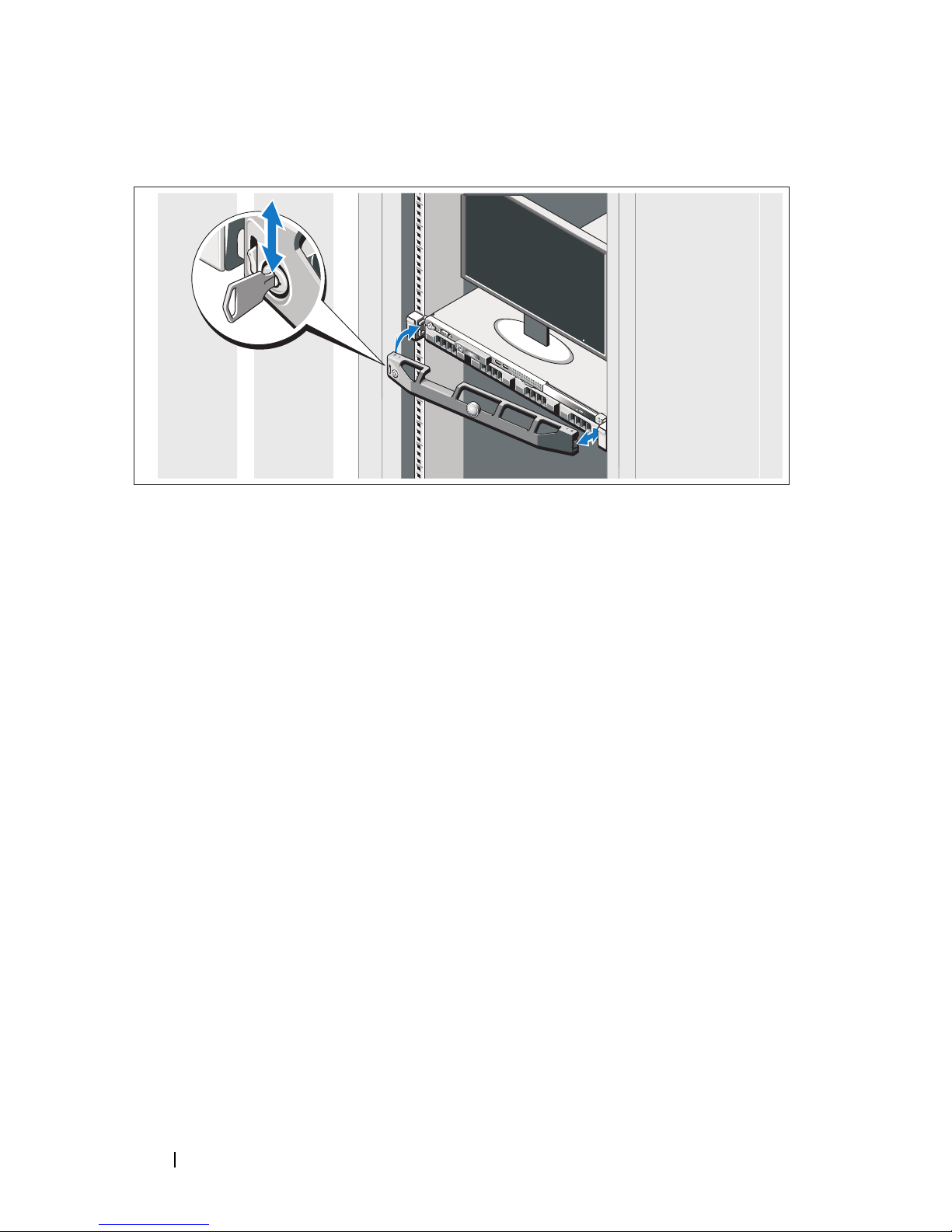

Installing the Optional Bezel
Install the bezel (optional).
Complete the Operating System Setup
If you purchased a preinstalled operating system, see the operating system
documentation that ships with your system. To install an operating system
for the first time, see the installation and configuration documentation for
your operating system. Be sure the operating system is installed before
installing hardware or software not purchased with the system.

Getting Started With Your System 7
Supported Operating Systems
• Microsoft Windows Server 2008 SP2 Web, Standard, and Enterprise (x86)
Editions
• Microsoft Windows Server 2008 SP2 Web, Standard, Enterprise,
and Datacenter (x64) Editions
• Microsoft Windows Server 2008 R2 Web, Standard, Enterprise,
and Datacenter (x64) Editions
• Microsoft Windows Server 2008 R2 HPC (x64) Edition
• Red Hat Enterprise Linux 5.5 Standard (x86_64), Advanced Platform
(x86_64), and HPC Editions
• SUSE Linux Enterprise Server 11 SP1 (x86_64)
• SUSE Linux Enterprise Server 10 SP3 (x86_64)
• VMware ESX 4.0 Update 2 Classic Edition
• VMware ESXi 4.0 Update 2 Installable Edition
• VMware ESX 4.1 Classic Edition
• VMware ESXi 4.1 Installable Edition
• Citrix XenServer 5.6 Enterprise Edition
• Microsoft Hyper-V Windows Server 2008 R2 (stand-alone)
• Microsoft Windows Server 2008 R2 Hyper-V role
NOTE: For the latest information on supported operating systems,
see dell.com/ossupport.

8Getting Started With Your System
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with your
system. Warranty information may be included within this document or as a
separate document.
• The rack documentation included with your rack solution describes how to
install your system into a rack.
•The
Hardware Owner’s Manual provides information about system features
and describes how to troubleshoot the system and install or replace system
components. This document is available online at
support.dell.com/manuals .
• Dell systems management application documentation provides
information about installing and using the systems management software.
NOTE: Always check for updates on support.dell.com/manuals and read the
updates first because they often supersede information in other documents.
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does not
perform as expected, see your Hardware Owner’s Manual. Dell offers
comprehensive hardware training and certification. See dell.com/training for
more information. This service may not be offered in all locations.
Información de la NOM (sólo para México)
La información que se proporciona a continuación aparece en el dispositivo
descrito en este documento, en cumplimiento de los requisitos de la Norma
Oficial Mexicana (NOM):
Importador:
Número de modelo: Series E07S
Voltaje de alimentación 100–240 V CA
Frecuencia: 50/60 Hz
Consumo eléctrico: 7–3,5 A

Getting Started With Your System 9
Technical Specifications
Processor
Processor type Up to two AMD Opteron 4000 series
Expansion Bus
Bus type PCI Express Generation 2
Expansion slots Riser 1
Slot 1: x16 link with x16 physical connector,
half-length, full height.
Memory
Architecture 800/1066/1333 MHz DDR3 SDRAM
registered, unregistered, and low voltage Error
Correcting Code (ECC) DIMMs.
Memory module sockets Eight 240-pin
Memory module capacities 1 GB, 2 GB, 4 GB, or 8 GB
Minimum RAM 1 GB (one processor) or
2 GB (two processors)
Maximum RAM 32 GB (one processor) or
64 GB (two processors)
Drives
Hard drives Up to four 3.5", cabled or hot-swap SAS or
SATA internal drives
or
Up to four 2.5", hot-swap SAS or
SSD internal drives in 3.5" carrier
Optical drive One optional internal slimline SATA
DVD-ROM or DVD+/-RW drive.
Optional external USB DVD-ROM.
NOTE: DVD devices are data only.

10 Getting Started With Your System
Connectors
Back
NIC Two RJ-45 (for integrated 1 GB NICs)
Serial 9-pin, DTE, 16550-compatible
USB Two 4-pin, USB 2.0-compliant
Video 15-pin VGA
Front
Video 15-pin VGA
USB Two 4-pin, USB 2.0-compliant
Internal
USB Two 4-pin, USB 2.0-compliant
Video
Video type Matrox G200, integrated in Winbond
WPCM450
Video memory 8 MB
Power
AC power supply (per power supply)
Wattage 480 W (non-redundant power supply)
500 W (redundant power supply)
Voltage 100-240 VAC, 50/60 Hz, 7.5-3.8 A
(non-redundant power supply)
100-240 VAC, 50/60 Hz, 7-3.5 A
(redundant power supply)
Heat dissipation 1637 BTU/hr maximum
(non-redundant power supply)
1706 BTU/hr maximum
(redundant power supply)
Maximum inrush current Under typical line conditions and over
the entire system ambient operating range,
the inrush current may reach 25 A per power
supply for 10 ms or less.

Getting Started With Your System 11
Batteries
System battery CR 2032 3.0-V lithium coin cell
Physical
Height 4.3 cm (1.69")
Width 43.4 cm (17.09")
Depth 62.7 cm (24.69")
Weight (maximum configuration) 15.9 kg (35.02 lb)
Weight (empty) 5.96 kg (13.12 lb)
Environmental
NOTE: For additional information about environmental measurements for specific
system configurations, see dell.com/environmental_datasheets.
Temperature
Operating 10° to 35°C (50° to 95°F) with a maximum
temperature gradation of 10°C per hour
NOTE: For altitudes above 2950 feet, the
maximum operating temperature is derated
1ºF/550 ft.
Storage –40° to 65°C (–40° to 149°F) with a
maximum temperature gradation of 20°C
per hour
Relative humidity
Operating 20% to 80% (noncondensing) with a
maximum humidity gradation of 10%
per hour
Storage 5 to 95% (noncondensing) with a maximum
humidity gradation of 10% per hour.
Maximum vibration
Operating 0.26 Grms at 5–350 Hz for 15 min
Storage 1.87 Grms at 10–500 Hz for 15 min
Power (continued)

12 Getting Started With Your System
Maximum shock
Operating One shock pulse in the positive z axis
(one pulse on each side of the system) of
31 G for 2.6 ms in the operational orientation
Storage Six consecutively executed shock pulses in
the positive and negative x, y, and z axes
(one pulse on each side of the system) of
71 G for up to 2 ms, and Square Wave 32G,
270 in/sec
Altitude
Operating –16 to 3,048 m (–50 to 10,000 ft)
NOTE: For altitudes above 2950 feet,
the maximum operating temperature is
derated 1ºF/550 ft.
Storage –16 to 10,668 m (–50 to 35,000 ft)
Airborne Contaminant Level
Class G1 or lower as defined by ISA-S71.04-1985
Environmental (continued)

Dell PowerEdge R415 系统
系统使用入门
管制型号：E07S 系列

注、小心和警告
注：“注”表示可以帮助您更好地使用计算机的重要信息。
小心：“小心”表示如果不遵循说明，就有可能损坏硬件或导致数据
丢失。
警告：
“警 ”表示可能会造成财产损失、人身伤害甚至死亡。
____________________
本说明文件中的信息如有更改，恕不另行通知。
© 2010 Dell Inc. 版权所有，翻印必究。
未经 Dell Inc. 书面许可，严禁以任何形式复制这些材料。
本文中使用的商标：
Dell™、
DELL 标和 PowerEdge™是Dell Inc. 的商标。
AMD®是AMD
Opteron™分别是 Advanced Micro Devices, Inc. 的注册商标和商标。
Microsoft®、
Windows®、
Windows Server®和Hyper-V™是Microsoft Corporation 在美国和 /或其它国家 /地区的商标
或注册商标。 Red Hat Enterprise Linux®和Enterprise Linux®是Red Hat, Inc. 在美国和 /或
其它国家 /地区的注册商标。Novell®和SUSE™分别是 Novell Inc. 在美国和其它国家 /地区
的注册商标和商标。Citrix®和XenServer®是Citrix Systems, Inc. 在美国和 /或其它国家 /地
区的注册商标或商标。 VMware®是VMware, Inc. 在美国或其它国家 /地区的注册商标。
本说明文件中述及的其它商标和产品名称是指拥有相应商标和产品名称的公司或其制造的
产品。 Dell Inc. 对其它公司的商标和产品名称不拥有任何所有权。
管制型号：E07S 系列
2010 年6 月P/N JT55R Rev. A00

系统使用入门 15
安装和配置
警告：
执行下列步骤之前，请查看系统随附的安全说明。
打开系统包装
打开系统包装并检查各个组件。
在机架中安装滑轨和系统
遵循系统随附的安全说明和机架安装说明，在机架中组装滑轨并安装系统。

16 系统使用入门
可选 –
连接键盘、鼠标和显示器
接键盘、鼠标和显示器（可选）。
系统背面的 接器附有图标，指示要插入每个 接器的电缆。请确保拧紧显
示器电缆 接器上的螺钉（如果有）。
连接电源电缆
将系统电源电缆 接至系统，如果使用显示器，则将显示器电源电缆 接至
显示器。

系统使用入门 17
安装电源线固 支架
在电源设备手柄的右侧拐弯处上方 接电源线固定支架。如示意图所示，
将系统电源电缆弯曲成环状，并 接至支架的电缆挂钩。
将电源电缆的另一端插入接地的电源插座或单独的电源，如不间断电源设备
(UPS)
或配电装置
(PDU)
。
开启系统
按下系统和显示器的电源按钮。电源指示灯将会亮起。

18 系统使用入门
安装可选挡板
安装挡板（可选）。
完成操作系统安装
如果购买了预安装的操作系统，请参阅系统随附的操作系统说明文件。第一
次安装操作系统，请参阅操作系统的安装和配置说明文件。请确保先安装操
作系统，然后再安装未预装的硬件或软件。
