Dell POWEREDGE R710 User manual

Dell™ PowerEdge™
R710 Systems
Getting Started
With Your System
系统使用入门
Memulai Dengan Sistem Anda
はじめに
시스템시작하기

Dell™ PowerEdge™
R710 Systems
Getting Started
With Your System

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use
of your computer.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2008 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Dell, the DELL logo, and PowerEdge are trademarks of Dell Inc.; Citrix and XenServer are trademarks
of Citrix Systems, Inc. and/or more of its subsidiaries, and may be registered in the United States
Patent and Trademark Office and in other countries. Intel and Xeon are registered trademarks of Intel
Corporation in the U.S. and other countries; Microsoft, Hyper-V, Windows,and Windows Server are
either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other
countries. Red Hat and Enterprise Linux are registered trademarks of Red Hat, Inc. in the United States
and other countries; SUSE is a registered trademark of Novell, Inc., in the United States and other
countries. VMware is a registered trademark of VMware, Inc. in the United States and/or other
jurisdictions.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Model E02S
December 2008 P/N DP855 Rev. A01

Getting Started With Your System 3
Installation and Configuration
WARNING: Before performing the following procedure, review the safety
instructions that came with the system.
Unpacking the System
Unpack your system and identify each item.

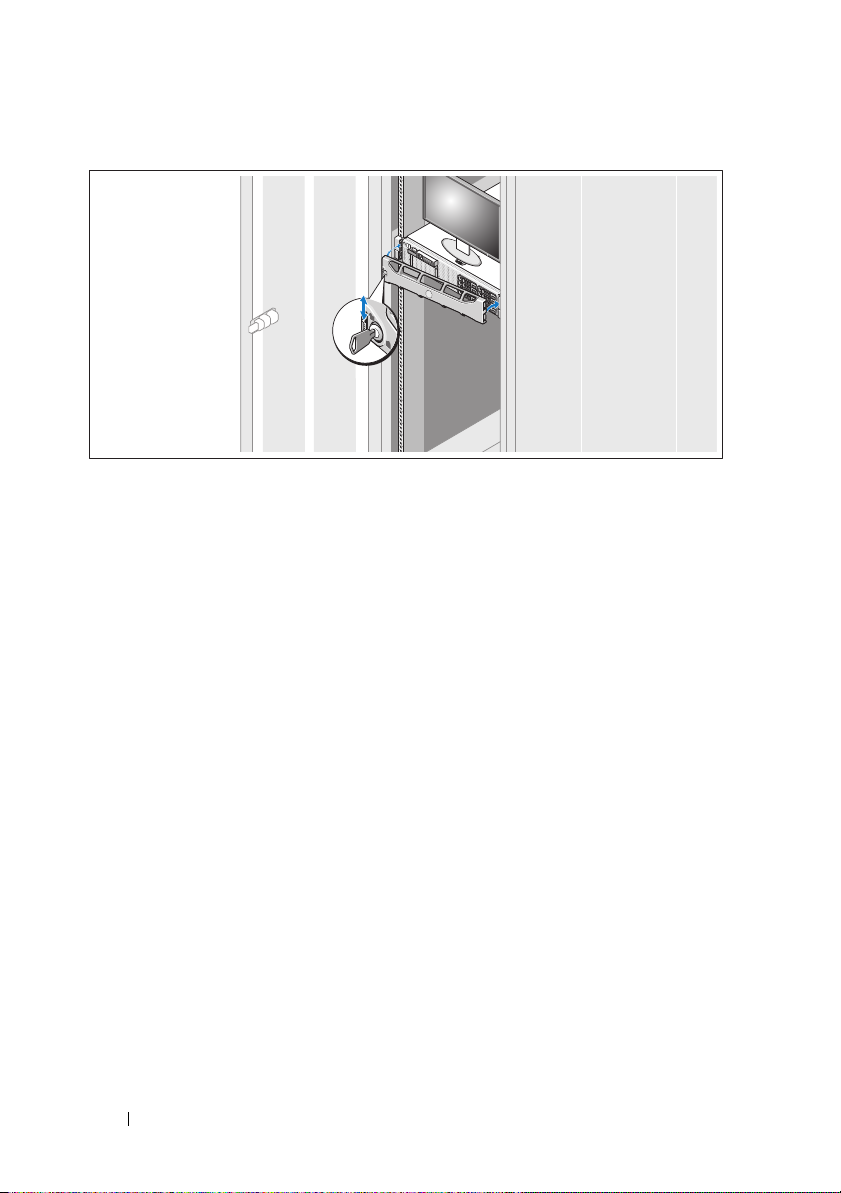

Installing the Rails and System in a Rack
Assemble the rails and install the system in the rack following the safety
instructions and the rack installation instructions provided with your system.

4Getting Started With Your System

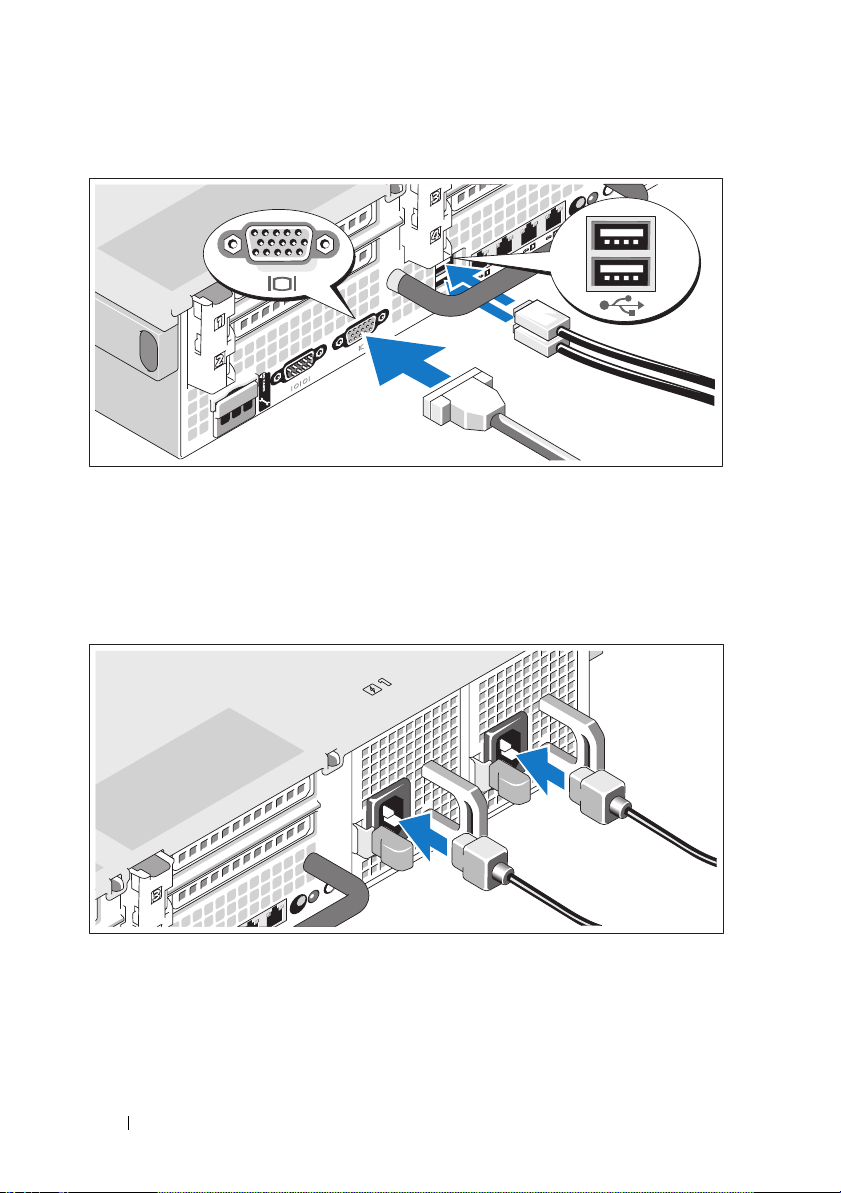

Optional – Connecting the Keyboard, Mouse, and Monitor
Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable
to plug into each connector. Be sure to tighten the screws (if any) on the
monitor's cable connector.
Connecting the Power Cables
Connect the system’s power cable(s) to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor.

Getting Started With Your System 5

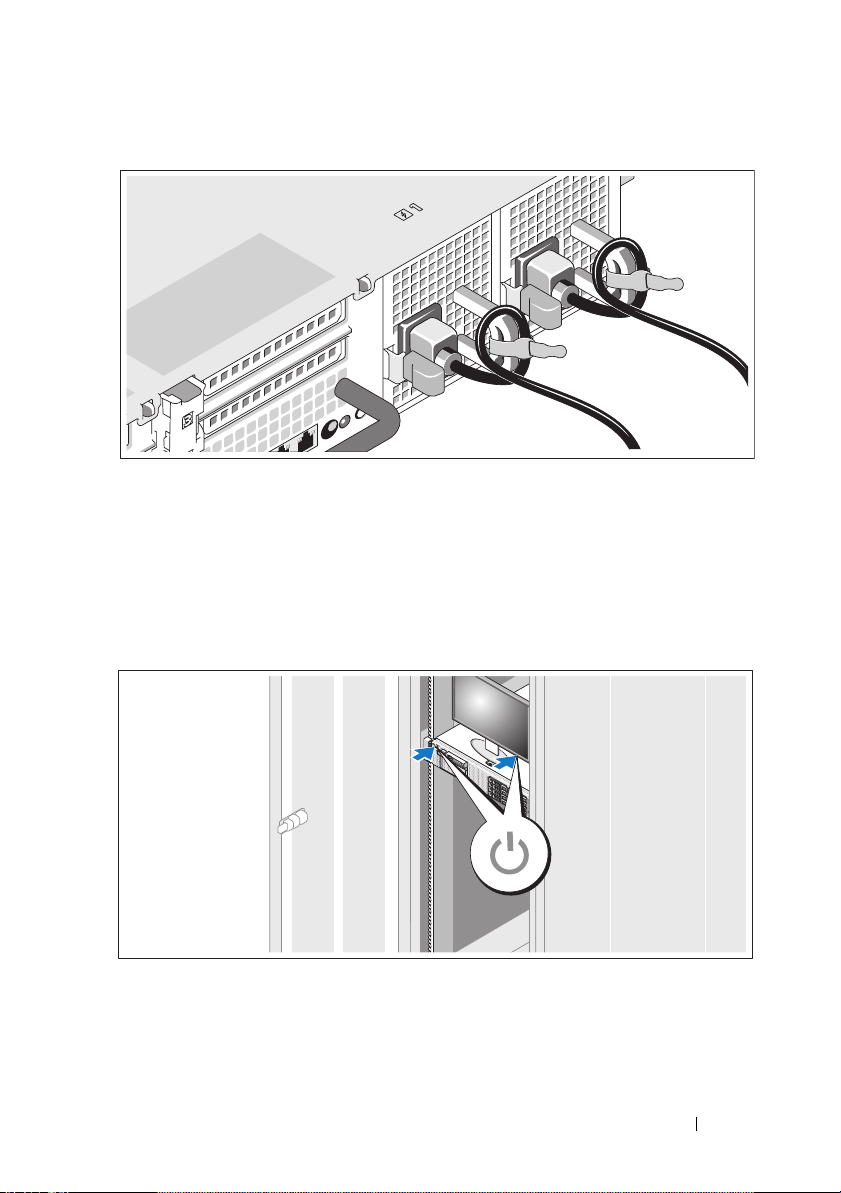

Securing the Power Cord
Bend the system power cable into a loop as shown in the illustration and
secure the cable to the bracket using the provided strap.
Plug the other end of the power cables into a grounded electrical outlet or
a separate power source such as an uninterruptible power supply (UPS) or
a power distribution unit (PDU).
Turning on the System
Press the power button on the system and the monitor. The power indicators
should light.

6Getting Started With Your System
Installing the Optional Bezel
Install the bezel (optional).
Complete the 0perating System Setup
If you purchased a preinstalled operating system, see the operating system
documentation that ships with your system. To install an operating system for
the first time, see the installation and configuration documentation for your
operating system. Be sure the operating system is installed before installing
hardware or software not purchased with the system.
• Citrix
®
XenServer
™
5.0 with hotfix 1 or later
• Microsoft
®
Windows Server
®
2008 Hyper-V
™
• Microsoft Windows Server 2008 Web, Standard, and Enterprise
(32-bit x86) Gold editions
• Microsoft Windows Server 2008 Web, Standard, Enterprise, and
Datacenter (x64) Gold editions
• Microsoft Window Small Business Server 2008, Standard and Premium
(x64) editions.
• Microsoft Windows Server 2003 Web, Standard, and Enterprise
(32-bit x86) editions with SP2
• Microsoft Windows Server 2003 Standard and Enterprise (x64) editions
with SP2

Getting Started With Your System 7
• Microsoft Windows Server 2003 R2 Standard and Enterprise (32-bit x86)
editions with SP2
• Microsoft Windows Server 2003 R2 Standard, Enterprise,
and Datacenter (x64) editions with SP2
• Microsoft Windows Small Business Server 2003 R2 Standard
and Premium editions with SP2
•RedHat
®
Enterprise Linux
®
ES and AS 4.7 (x86)
• Red Hat Enterprise Linux ES and AS 4.7 (x86_64)
• Red Hat Enterprise Linux 5.2 Server (x86_32)
• Red Hat Enterprise Linux 5.2 Server (x86_64)
• SUSE Linux Enterprise Server 10 SP2 (x86_64)
•VMware
®
ESX Version 4.0 and 3.5, Update 4 (when available)
• VMware ESXi Version 4.0 and 3.5, Update 4 (when available)
NOTE: For the latest information on supported operating systems,
see www.dell.com.
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with your
system. Warranty information may be included within this document or as
a separate document.
• The rack documentation included with your rack solution describes how to
install your system into a rack.
• The
Hardware Owner’s Manual provides information about system
features and describes how to troubleshoot the system and install or
replace system components. This document is available online at
support.dell.com.
• Any media that ships with your system that provides documentation and
tools for configuring and managing your system, including those
pertaining to the operating system, system management software, system
updates, and system components that you purchased with your system.
NOTE: Always check for updates on support.dell.com and read the updates
first because they often supersede information in other documents.

8Getting Started With Your System
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does not
perform as expected, see your Hardware Owner’s Manual. Dell
™
offers
comprehensive hardware training and certification. See www.dell.com/training
for more information. This service may not be offered in all locations.
Información de la NOM (sólo para México)
La información que se proporciona a continuación aparece en el dispositivo
descrito en este documento, en cumplimiento de los requisitos de la Norma
Oficial Mexicana (NOM):

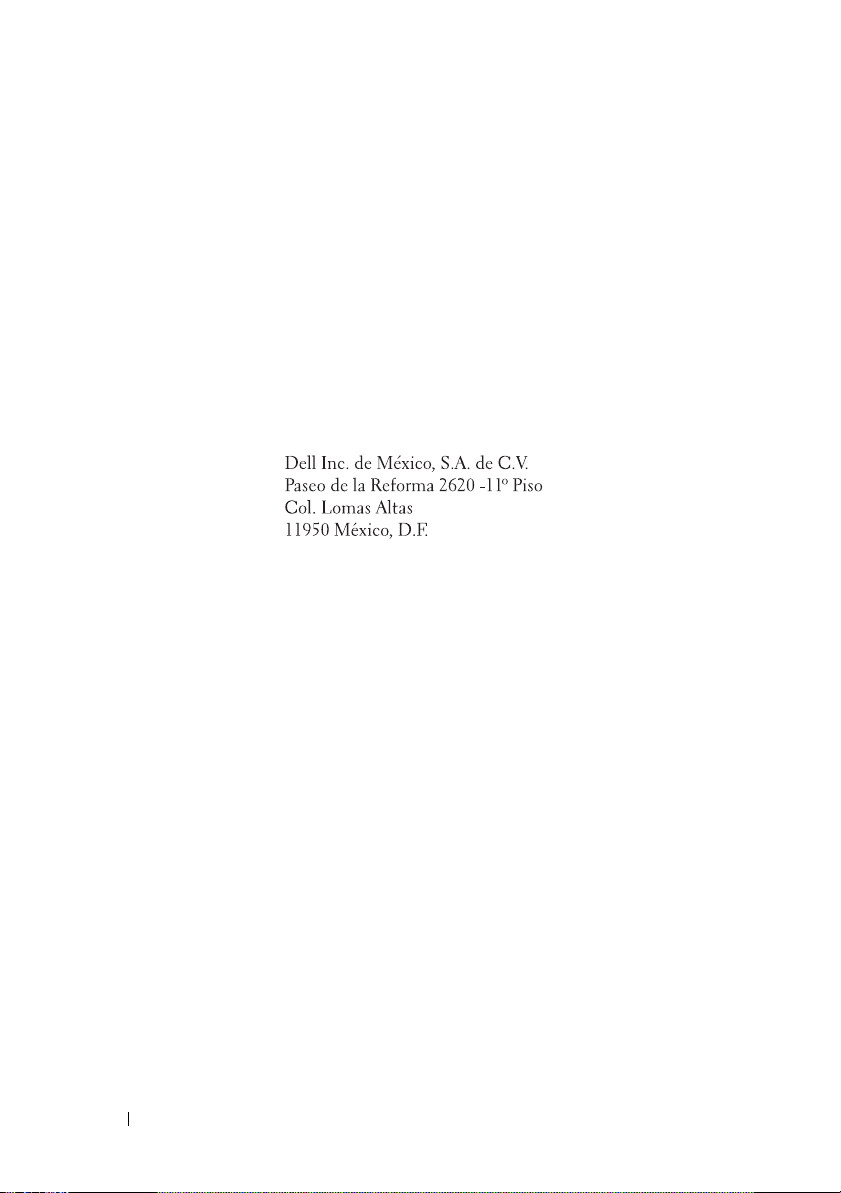

Importador:
Número de modelo: E02S
Voltaje de
alimentación:
100-240 V CA
Frecuencia: 50/60 Hz
Consumo eléctrico: 7,0-3,5 A

Getting Started With Your System 9
Technical Specifications
Processor
Processor type One or two quad- or dual-core Intel
®
Xeon
®
processors
Expansion Bus
Bus type PCI Express Generation 2
Expansion slots via
riser card:
Riser 1 (Center Riser)
One full-height, 9.5-inch length, x4 link (slot 1)
NOTE: This slot can be upgraded to 12.2 inches.
One low-profile, 9.5-inch length, x4 link (slot 2)
Riser 2 (Left Riser) Two full-height, 9.5-inch length, x8 link (slot 3 and 4)
or
One full-height, 9.5-inch length, x16 link (slot 3)
NOTE: Support for up to 25W is available only on the first
two cards installed in the system; any additional cards
installed in the system must be 15W or under.
Memory
Architecture 800, 1066, or 1333 MHz DDR3 registered or unbuffered
Error Correcting Code (ECC) DIMMs. Support for
Advanced ECC or Memory Optimized operation.
Memory module
sockets
Eighteen 240-pin
Memory module
capacities
1 GB and 2 GB UDIMMs, and 2 GB, 4 GB,
or 8 GB RDIMMs
(single, dual, or quad-rank dependent on capacity)
Minimum RAM 1 GB with a single processor (1 DIMM per processor)
Maximum RAM 96 GB (with quad-rank 8 GB RDIMM), 144 GB
(with dual-rank 8 GB RDIMM), or 24 GB (with 2 GB
UDIMMs)

10 Getting Started With Your System
Drives
Hard drives Up to six 3.5-inch, internal, hot-swappable SAS or SATA
hard drives without optional internal tape drive support
or
Up to four 3.5-inch, internal, hot-swappable SAS or
SATA hard drives with optional internal tape drive support
or
Up to eight 2.5-inch, internal, hot-swappable SAS or
SATA hard drives with optional internal tape drive
support
Diskette Drive Optional external USB 1.44-MB drive
Optical drive One optional internal slimline SATA DVD-ROM or
DVD+RW drive
Optional external USB DVD
NOTE: DVD devices are data only
Internal Tape Drive One optional half-height tape back-up device
Flash Drive Optional internal USB
Optional internal Secure Digital (SD) memory card
Optional external SD memory card
Connectors
Back
NIC Four RJ-45 10/100/1000 Mbps Ethernet
Serial 9-pin, DTE, 16550-compatible
USB Two 4-pin, USB 2.0-compliant
Video 15-pin VGA
Optional external
VFlash card
One flash memory card slot on the back panel
Front
Video 15-pin VGA
USB Two 4-pin, USB 2.0-compliant
Internal
USB One 4-pin, USB 2.0-compliant
Optional internal
SD module
One internal flash memory card slot

Getting Started With Your System 11
Video
Video type Integrated Matrox G200
Video memory 8 MB shared
Power
AC Power Supply (per power supply)
Wattage 870 W (High Output)
570 W /200840 KB (Energy Smart)
Voltage 90–264 VAC, autoranging, 47-63 Hz
Heat dissipation 2968.6 BTU/hr maximum (High Output)
1944.9 BTU/hr maximum (Energy Smart)
Maximum inrush
current
Under typical line conditions and over the entire system
ambient operating range, the inrush current may reach
55 A per power supply for 10 ms or less.
Batteries
System battery CR 2032 3.0-V lithium coin cell
RAID battery
(optional)
3.7-V lithium ion battery pack
Physical
Height 8.64 cm (3.4 in)
Width 48.24 cm (18.99 in) with rack latches
44.31 cm (17.4 in) without rack latches
Depth 72.06 cm(28.4 in) with power supplies and bezel
68.07 cm(26.8) without power supplies and bezel
Weight (maximum
configuration)
26.1 kg (57.54 lb)
Weight (empty) 17.7 kg (39 lb)

12 Getting Started With Your System
Environmental
NOTE: For additional information about environmental measurements for specific
system configurations, see www.dell.com/environmental_datasheets
Temperature
Operating 10° to 35°C (50° to 95°F) with a maximum temperature
gradation of 10°C per hour
NOTE: For altitudes above 2950 feet, the maximum operating
temperature is derated 1°F/550 ft.
Storage –40° to 65°C (–40° to 149°F) with a maximum temperature
gradation of 20°C per hour
Relative humidity
Operating 20% to 80% (non-condensing) with a maximum humidity
gradation of 10% per hour
Storage 5% to 95% (non-condensing) with a maximum humidity
gradation of 10% per hour
Maximum vibration
Operating 0.26 Gms from 5–350 Hz for 5 minutes in operational
orientations
Storage 1.54 Gms from 10–250 Hz for 10 minutes in all orientations
Maximum shock
Operating Half sine shock in all operational orientations of 31 G plus
or minus 5% with a pulse duration of 2.6 ms plus or minus
10%
Storage Half sine shock on all six sides of 71 G plus or minus 5%
with a pulse duration of 2 ms plus or minus 10%
Square wave shock on all six sides of 27 G with a velocity
change at 235 in/sec or greater
Altitude
Operating –16 to 3,048 m (–50 to 10,000 ft)
NOTE: For altitudes above 2950 feet, the maximum operating
temperature is derated 1°F/550 ft.
Storage –16 to 10,600 m (–50 to 35,000 ft)

Dell™ PowerEdge™
R710 系统
系统使用入门

注、小心和警告
注：“注”表示可以帮助您更好地使用计算机的重要信息。
警告：
“警告”表示可能会导致财产损失、人身伤害甚至死亡。
____________________
本说明文件中的信息如有更改，恕不另行通知。
© 2008 Dell Inc. 版权所有，翻版必究。
未经 Dell Inc. 书面许可，严禁以任何形式复制这些材料。
Dell、 DELL 徽标和 PowerEdge 是Dell Inc. 的商标； Citrix 和XenServer 是Citrix Systems, Inc.
和/或其 个子公司的商标，并可能已在美国专利商标局和其它国家和地区注册。 Intel 和
Xeon 是Intel Corporation 在美国 和其它国家和地区的注册商标； Microsoft、Hyper-V、
Windows 和Windows Server 是Microsoft Corporation 在美国和 /或其它国家 /地区的商标或注
册商标。Red Hat 和Enterprise Linux 是Red Hat, Inc. 在美国和其它国家和地区的注册商标；
SUSE 是Novell, Inc. 在美国和其它国家和地区的注册商标。 VMware 是VMware, Inc. 在美国
和/或其它管辖区域的注册商标。
本说明文件中述及的其它商标和产品名称是指拥有相应商标和产品名称的公司或其制造的
产品。 Dell Inc. 对本公司的商标和产品名称之外的其它商标和产品名称不拥有任何专有权。
型号 E02S
2008 年12 月P/N DP855 Rev.A01

系统使用入门 15
安装和配置
警告：
执行下列步骤 前，请阅读系统随附的安全说明。
打开系统包装
打开系统包装并识别每件物品。
在机架中安装滑轨和系统
遵循系统随附的安全说明和机架安装说明组装滑轨并在机架中安装系统。

16 系统使用入门
可选 —连接键盘、鼠标和显示器
接键盘、鼠标和显示器（可选）。
系统背面的 接器附有图标，这些图标指示了要插入每个 接器的电缆。
确保拧紧显示器的电缆 接器上的螺钉（如果有）。
连接电源电缆
将系统电源电缆 接至系统，如果使用显示器，将显示器电源电缆 接至
显示器。

系统使用入门 17
固定电源
如图所示，将系统电源电缆弯曲成一个环路，并使用所提供的腕带将其固
定到支架。
将电源线的另一端插入接地的电源插座或一个单独的电源，如不间断电源
设备 (UPS) 或配电装置 (PDU)。
开启系统
按下系统和显示器的电源按钮。电源指示灯将会亮起。

18 系统使用入门
安装可选挡板
安装挡板（可选）。
完成操作系统安装
如果购买了预安装的操作系统，请参阅随系统提供的操作系统说明文件。
第一次安装操作系统时，请参阅操作系统的安装和配置说明文件。请确保
先安装操作系统，然后再安装未预装的硬件或软件。
•Citrix
®
XenServe™ 5.0
，附带热修复程序
1
或更高版本
•Microsoft
®
Windows Server
®
2008 Hyper-V™
•Microsoft Windows Server 2008 Web
、
Standard
和
Enterprise
（
32
位
x86
）
Gold
版
•Microsoft Windows Server 2008 Web 、
Standard
、
Enterprise
和
Datacenter (x64) Gold
版
•Microsoft Windows Small Business Server 2008 Standard 和
Premium
(x64)
版
•Microsoft Windows Server 2003 Web 、
Standard
和
Enterprise
（
32
位
x86
）版（含
SP2
）
•Microsoft Windows Server 2003 Standard 和
Enterprise (x64)
版
（含
SP2
）
•Microsoft Windows Server 2003 R2 Standard 和
Enterprise
（
32
位
x86
）
版（含
SP2
）
