Dell Networking
W-ClearPass
Policy Manager 6.0
Quick Start Guide

Mar 2013 | 0511278-01 Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide
Copyright Information
Copyright
© 2013 Aruba Networks, Inc. Aruba Networks trademarks include the Aruba Networks logo, Aruba Networks®, Aruba
Wireless Networks®, the registered Aruba the Mobile Edge Company logo, and Aruba Mobility Management
System®. Dell™, the DELL™ logo, and PowerConnect™ are trademarks of Dell Inc.
All rights reserved. Specifications in this manual are subject to change without notice.
Originated in the USA. All other trademarks are the property of their respective owners.
Open Source Code
Certain Aruba products include Open Source software code developed by third parties, including software code
subject to the GNU General Public License (GPL), GNU Lesser General Public License (LGPL), or other Open
Source Licenses. Includes software from Litech Systems Design. The IF-MAP client library copyright 2011
Infoblox, Inc. All rights reserved. This product includes software developed by Lars Fenneberg, et al. The Open
Source code used can be found at this site:
http://www.arubanetworks.com/open_source
Legal Notice
The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate
other vendors’ VPN client devices constitutes complete acceptance of liability by that individual or corporation for
this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken against it
with respect to infringement of copyright on behalf of those vendors.

Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide 3
Contents
Configuring Policy Manager 5
Installing Policy Manager 5
Server Port Overview 5
Server Port Configuration 5
A Subset of Useful CLI Commands 7
Accessing Policy Manager 9
Accessing Help 10
Checking Basic Services 11
802.1x Wireless Use Case 13
Configuring the Service 13
Web Based Authentication Use Case 19
Configuring the Service 19
MAC Authentication Use Case 25
Configuring the Service 26

4 Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide

Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide 5
Chapter 1
Configuring Policy Manager
This Quick Start Guide for the Dell Networking W-ClearPass Policy Manager System (Policy Manager) describes the
steps for installing the appliance using the Command Line Interface (CLI) and using the User Interface (UI) to ensure
that the required services are running.
Installing Policy Manager
The Policy Manager server requires initial port configuration.
Server Port Overview
Policy Manager Backplane
P—Power Button; A—Serial port; B—Management port; C—Data port
as described in the following table:
Key Port Description
A Serial Configures the Policy Manager appliance initially, via hardwired
terminal.
B - eth1 Management (gigabit
Ethernet)
Provides access for cluster
administration and appliance
maintenance via web access, CLI, or
internal cluster communications.
Configuration required.
C - eth2 Data (gigabit Ethernet)
Provides point of contact for RADIUS,
TACACS+, Web Authentication and
other data-plane requests.
Configuration optional. If not
configured, requests redirected to the
management port.
Server Port Configuration
Before starting the installation, gather the following required information:

6 Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide
Required Item Item Information
Hostname (Policy Manager
server)
Management Port IP Address
Management Port Subnet Mask
Management Port Gateway
Data Port IP Address (optional) Data Port IP Address must not be in the same subnet as
the Management Port IP Address
Data Port Gateway (optional)
Data Port Subnet Mask
(optional)
Primary DNS
Secondary DNS
NTP Server (optional)
To set up the Policy Manager appliance:
1. Connect and power on.
Using the null modem cable provided, connect a serial port on the appliance to a terminal, then connect power
and switch on. The appliance immediately becomes available for configuration.
Use the following parameters for the serial port connection:
lBit Rate: 9600
lData Bits: 8
lParity: None
lStop Bits: 1
lFlow Control: None
2. Login.
Later, you will create a unique appliance/cluster administration password. For now, use the preconfigured
credentials:
login: appadmin
password: eTIPS123
This starts the Policy Manager Configuration Wizard.
3. Configure the appliance.
Replace the bolded placeholder entries in the following illustration with your local information:
Enter hostname: hyperion.us.arubanetworks.com
Enter Management Port IP Address: 192.168.5.10
Enter Management Port Subnet Mask: 255.255.255.0
Enter Management Port Gateway: 192.168.5.1
Enter Data Port IP Address: 192.168.7.55
Enter Data Port Subnet Mask: 255.255.255.0
Enter Data Port Gateway: 192.168.7.1
Enter Primary DNS: 198.168.5.3

Enter Secondary DNS: 192.168.5.1
4. Change your password.
Use any string of at least six characters:
New Password:************
Confirm Password:************
Going forward, you will use this password for cluster administration and management of the appliance.
5. Change system date/time.
Do you want to configure system date time information [y|n]: y
Please select the date time configuration options.
1) Set date time manually
2) Set date time by configuring NTP servers
Enter the option or press any key to quit: 2
Enter Primary NTP Server: pool.ntp.org
Enter Secondary NTP Server: time.nist.gov
Do you want to configure the timezone? [y|n]: y
Once the timezone information is entered, you are asked to confirm the selection.
6. Commit or restart the configuration.
Follow the prompts:
y[Y] to continue
n[N] to start over again
q[Q] to quit
Enter the choice: Y
Successfully configured Policy Manager appliance
**************************************************************
* Initial configuration is complete.
* Use the new login password to login to the CLI.
* Exiting the CLI session in 2 minutes. Press any key to exit now.
A Subset of Useful CLI Commands
The CLI provides a way to manage and configure Policy Manager information. Refer to Appendix A: Command Line
Interface in the User Guide for more detailed information on the CLI.
The CLI can be accessed from the console using a serial port interface or remotely using SSH:
*****************************************************************************************
* *
* Dell W-ClearPass Policy Manager 6.0.2.49062 *
* *
*****************************************************************************************
Logged in as group Local Administrator
[[e-mail]]#
The following subset of CLI commands may be useful at this point:
lTo view the Policy Manager data and management port IP address, and DNS configuration:
[appadmin]# show ip
lTo reconfigure DNS or add a new DNS:
[appadmin]# configure dns <primary> [secondary] [tertiary]
lTo reconfigure or add management and data ports:
[appadmin]# configure ip <mgmt | data > <ipadd> netmask <netmask address> gateway <gateway address>
where:
Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide 7

8 Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide
Flag/Parameter Description
ip <mgmt|data> <ip address> lNetwork interface type: mgmt or data
lServer ip address.
netmask <netmask address> Netmask address.
gateway <gateway address> Gateway address.
lTo configure the date (time and time zone optional):
[appadmin]# configure date –d <date> [-t <time>] [-z <timezone>]
lTo configure the hostname to the node:
configure hostname <hostname>
lIf you are using Active Directory to authenticate users, be sure to join the Policy Manager appliance to that
domain as well.
ad netjoin <domain-controller.domain-name> [domain NETBIOS name]
where:
Flag/Parameter Description
<domain-controller. domain-
name> Required.
Host to be joined to the domain.
[domain NETBIOS name] Optional.

Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide 9
Chapter 2
Accessing Policy Manager
Use Firefox 3.0 (or higher) or Internet Explorer 7.0.5 (or higher) to perform the following steps:
1. Open the administrative interface.
Navigate to https://<hostname>/tips (where <hostname> is the hostname you configured during the initial
configuration).

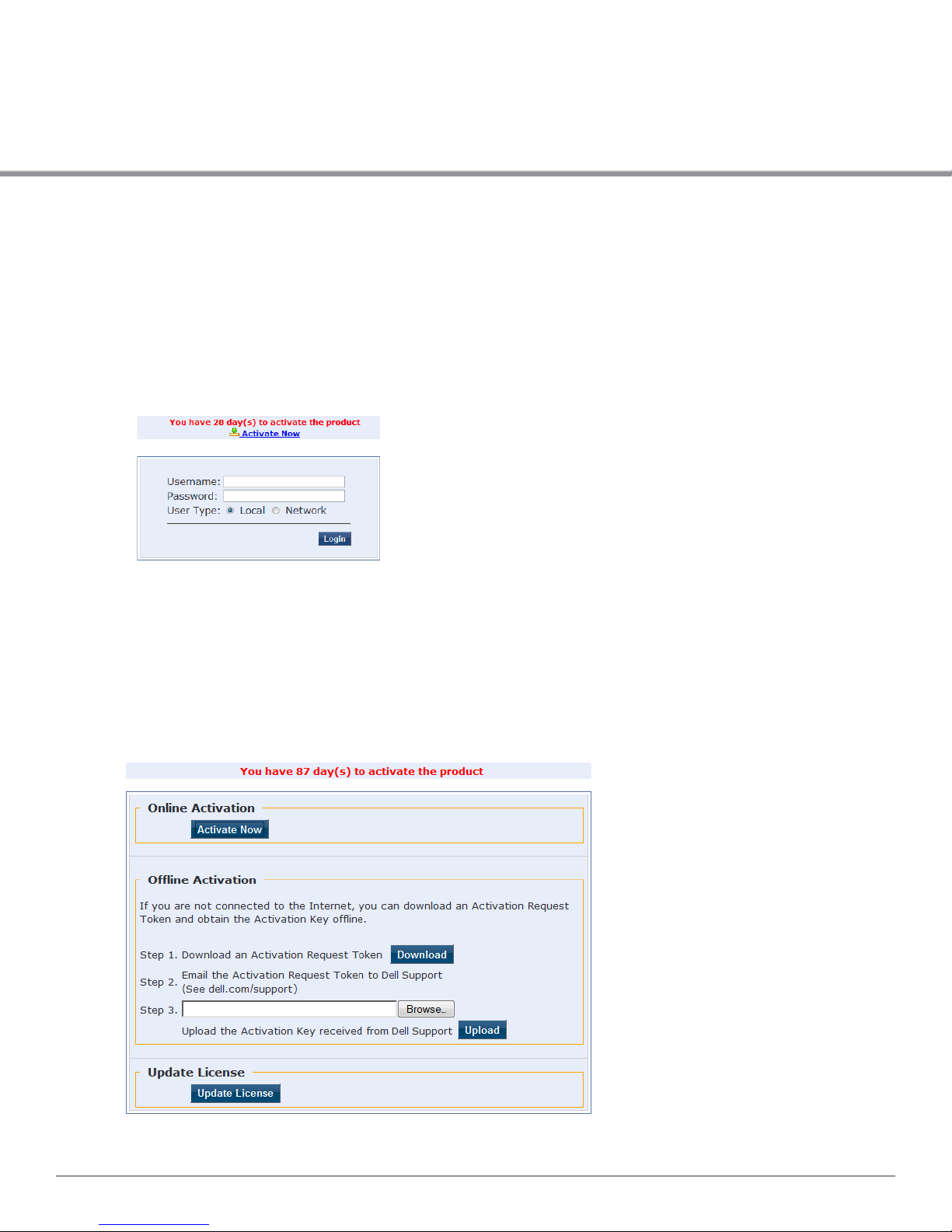

2. Enter License Key.
3. Click on the Activate Now link.
4. Activate the product.
If the appliance is connected to the Internet, click on the Activate Now button. If not, click on the Download
button to download the Activation Request Token. Contact Dell Support and provide your technician with the
downloaded token in an email attachment. Once you receive the Activation Key from Dell Support, save it to a
known location on your computer. Come back to this screen and click on the Browse button to select the
Activation Key. Upload the key by clicking on the Upload button.
The product is now activated.

10 Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide

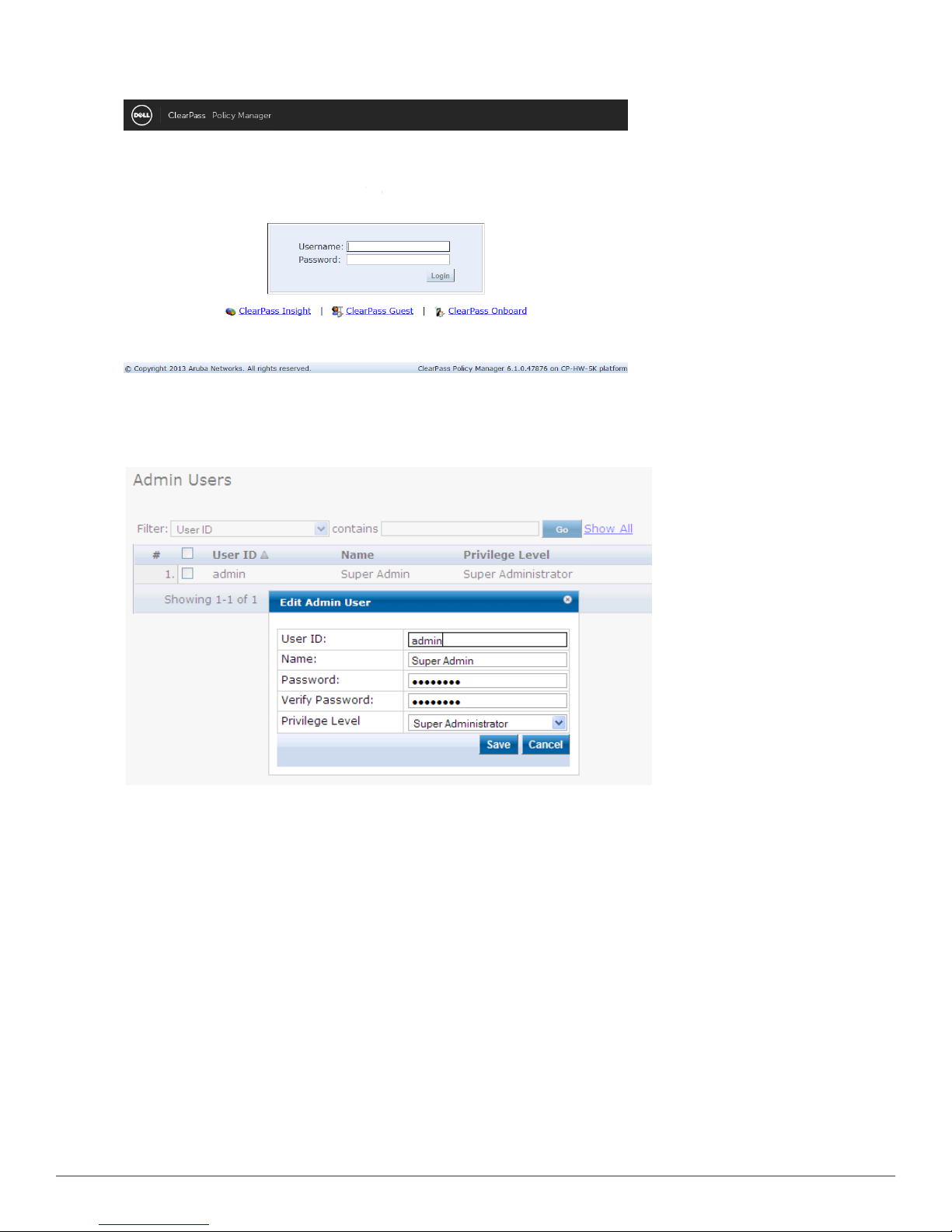

5. Login. Username: admin, Password: eTIPS123
6. Change the password.
Navigate to Administration > Admin Users, then use the Edit Admin User popup to change the administration
password.
Accessing Help
The Policy Manager User Guide (in PDF format) is built within the help system here:
https://<hostname>/tipshelp/html/en/
(where <hostname> is the hostname you configured during the initial configuration.)
All Policy Manager user interface screens have context-sensitive help. To access context-sensitive help, click on the
Help link at the top right hand corner of any screen.

Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide 11
Chapter 3
Checking Basic Services
To check the status of service, navigate to Administration > Server Configuration, then click on a row to select a
server:
lThe System tab displays server identity and connection parameters.
lThe Service Control tab displays all services and their current status. If a service is stopped, you can use its
Start/Stop button (toggle) to restart it.
You can also start an individual service from the command line,
service start <service-name>
or all services from the command line,
service start all
The following three use cases illustrate the process of configuring Policy Manager for basic 802.1x, WebAuth, and
MAC Bypass Services:
802.1x Wireless Use Case on page 13
Web Based Authentication Use Case on page 19
MAC Authentication Use Case on page 25

12 Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide

Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide 13
Chapter 4
802.1x Wireless Use Case
The basic Policy Manager Use Case configures a Policy Manager Service to identify and evaluate an 802.1X request
from a user logging into a Wireless Access Device. The following image illustrates the flow of control for this Service.

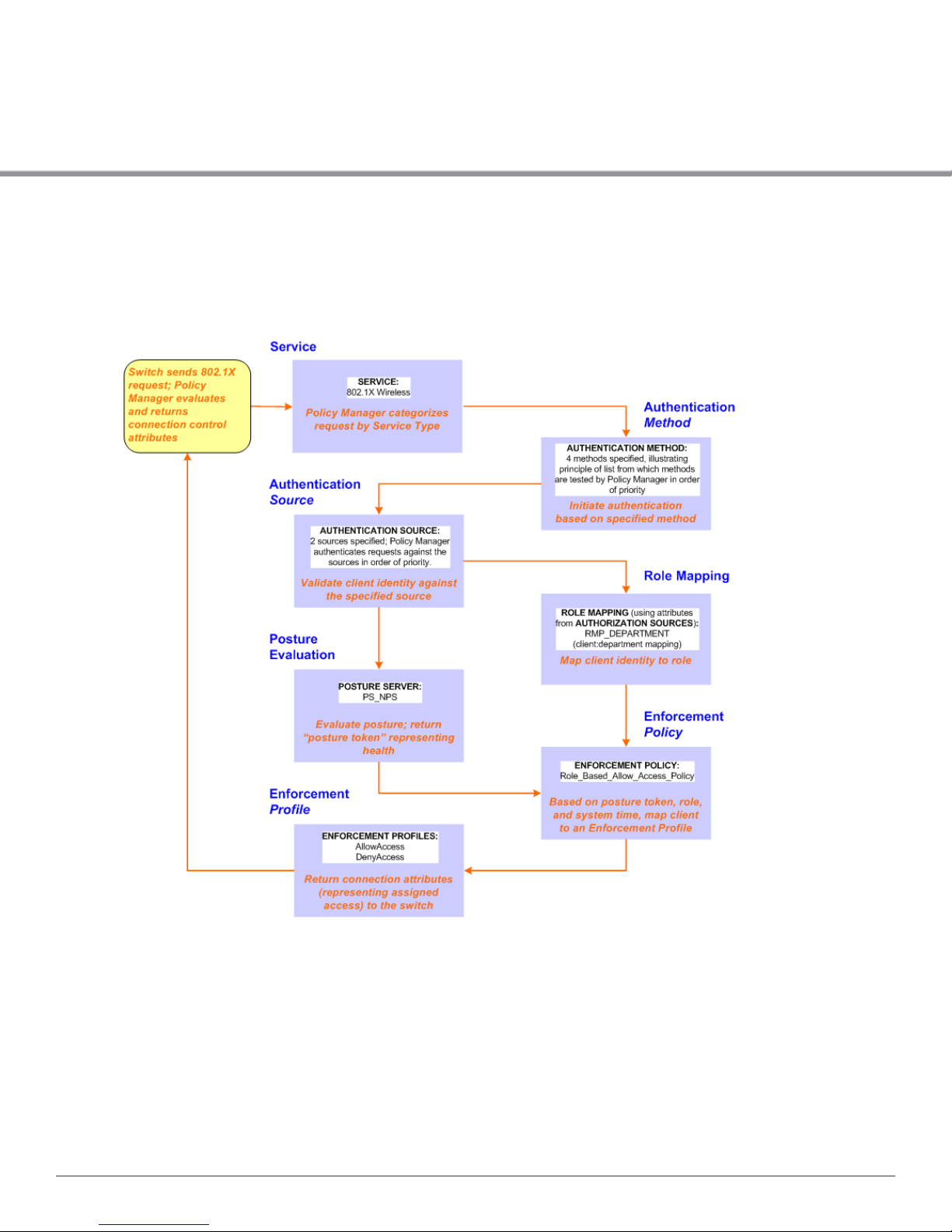

Figure 1: Flow of Control, Basic 802.1X Configuration Use Case
Configuring the Service
Follow the steps below to configure this basic 802.1X service:
1. Create the Service
The following table provides the model for information presented in Use Cases, which assume the reader’s ability
to extrapolate from a sequence of navigational instructions (left column) and settings (in summary form in the
right column) at each step. Below the table, we call attention to any fields or functions that may not have an
immediately obvious meaning.

14 Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide
Policy Manager ships with fourteen preconfigured Services. In this Use Case, you select a Service that supports
802.1X wireless requests.

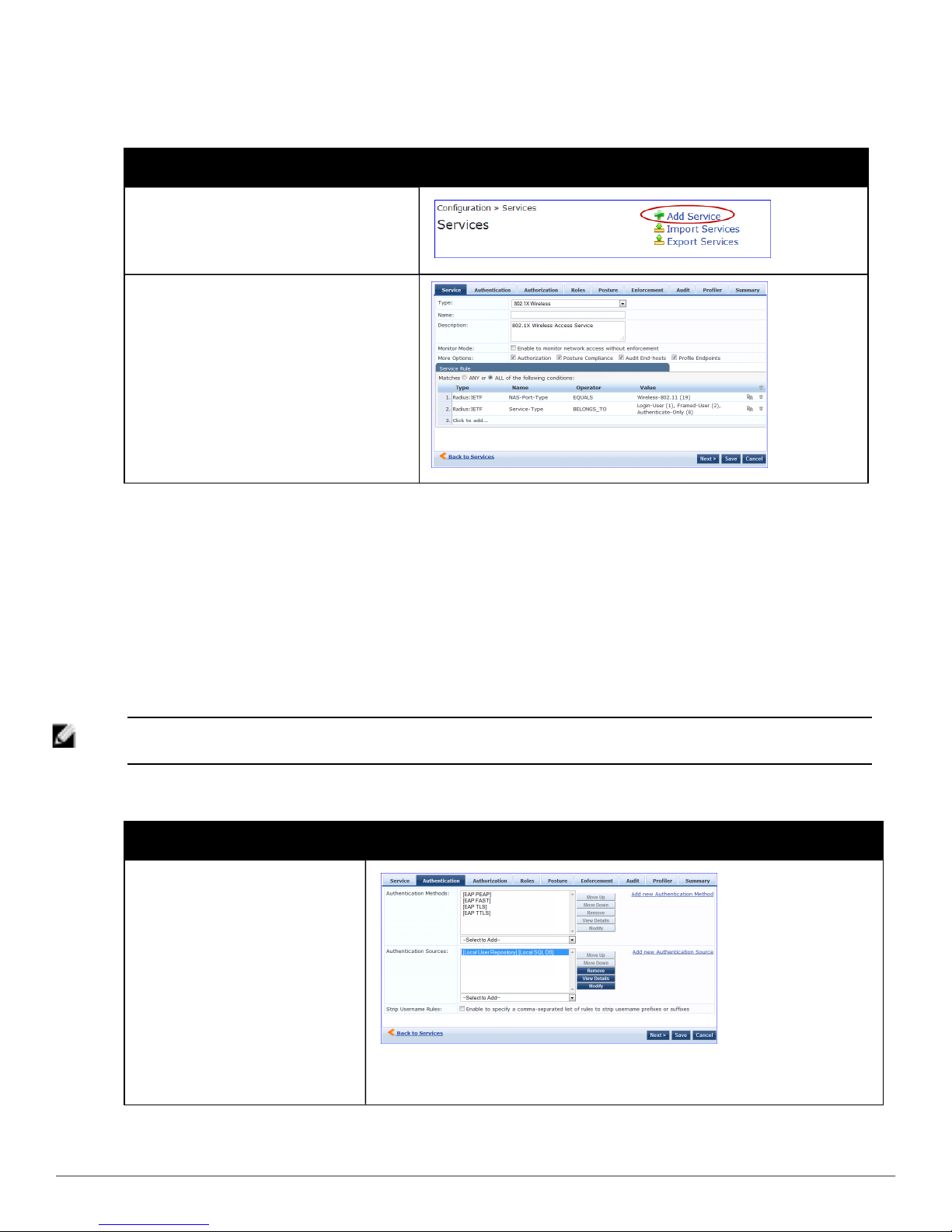

Table 1: 802.1X - Create Service Navigation and Settings
Navigation Settings
Create a new Service:
lServices >
lAdd Service (link) >
Name the Service and select a pre-configured
Service Type:
lService (tab) >
lType (selector): 802.1X Wireless >
lName/Description (freeform) >
lUpon completion, click Next (to
Authentication)
The following fields deserve special mention:
nMonitor Mode: Optionally, check here to allow handshakes to occur (for monitoring purposes), but without
enforcement.
nService Categorization Rule: For purposes of this Use Case, accept the preconfigured Service Categorization
Rules for this Type.
2. Configure Authentication.
Follow the instructions to select [EAP FAST], one of the pre-configured Policy Manager Authentication
Methods, and Active Directory Authentication Source (AD), an external Authentication Source within your
existing enterprise.
NOTE: Policy Manager fetches attributes used for role mapping from the Authorization Sources (that are associated with the
authentication source). In this example, the authentication and authorization source are one and the same.

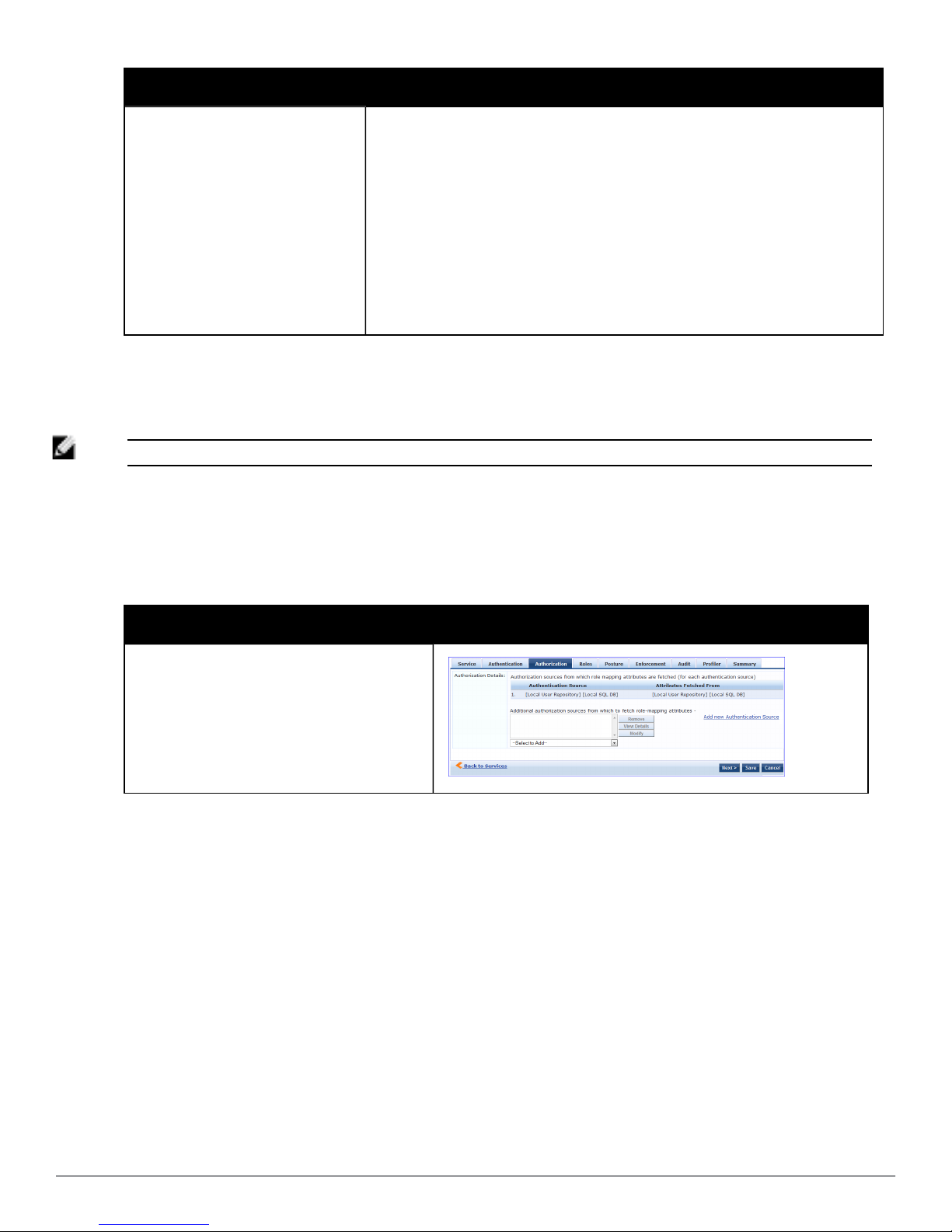

Table 2: Configure Authentication Navigation and Settings
Navigation Settings
Select an Authentication Method and
an Active Directory server (that you
have already configured in Policy
Manager):
lAuthentication (tab) >
lMethods (Select a method from
the drop-down list)
lAdd >
lSources (Select drop-down list):
[Local User Repository] [Local SQL
DB]
[Guest User Repository] [Local SQL
DB]

Navigation Settings
[Guest Device Repository] [Local
SQL DB]
[Endpoints Repository] [Local SQL
DB]
[Onboard Devices Repository]
[Local SQL DB] >
[Admin User Repository] [Local
SQL DB] >
AmigoPod AD [Active Directory>
lAdd >
lUpon completion, Next (to
configure Authorization)
The following field deserves special mention:
nStrip Username Rules: Optionally, check here to pre-process the user name (to remove prefixes and suffixes)
before sending it to the authentication source.
NOTE: To view detailed setting information for any preconfigured policy component, select the item and click View Details.
3. Configure Authorization.
Policy Manager fetches attributes for role mapping policy evaluation from the Authorization Sources. In this use
case, the Authentication Source and Authorization Source are one and the same.
Table 3: 802.1X - Configure Authorization Navigation and Settings
Navigation Settings
lConfigure Service level authorization source.
In this use case there is nothing to configure.
Click the Next button.
lUpon completion, click Next (to Role
Mapping).
4. Apply a Role Mapping Policy
Policy Manager tests client identity against role-mapping rules, appending any match (multiple roles acceptable)
to the request for use by the Enforcement Policy. In the event of role-mapping failure, Policy Manager assigns a
default role.
In this Use Case, create the role mapping policy RMP_DEPARTMENT that distinguishes clients by department
and the corresponding roles ROLE_ENGINEERING and ROLE_FINANCE, to which it maps:
Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide 15

16 Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide

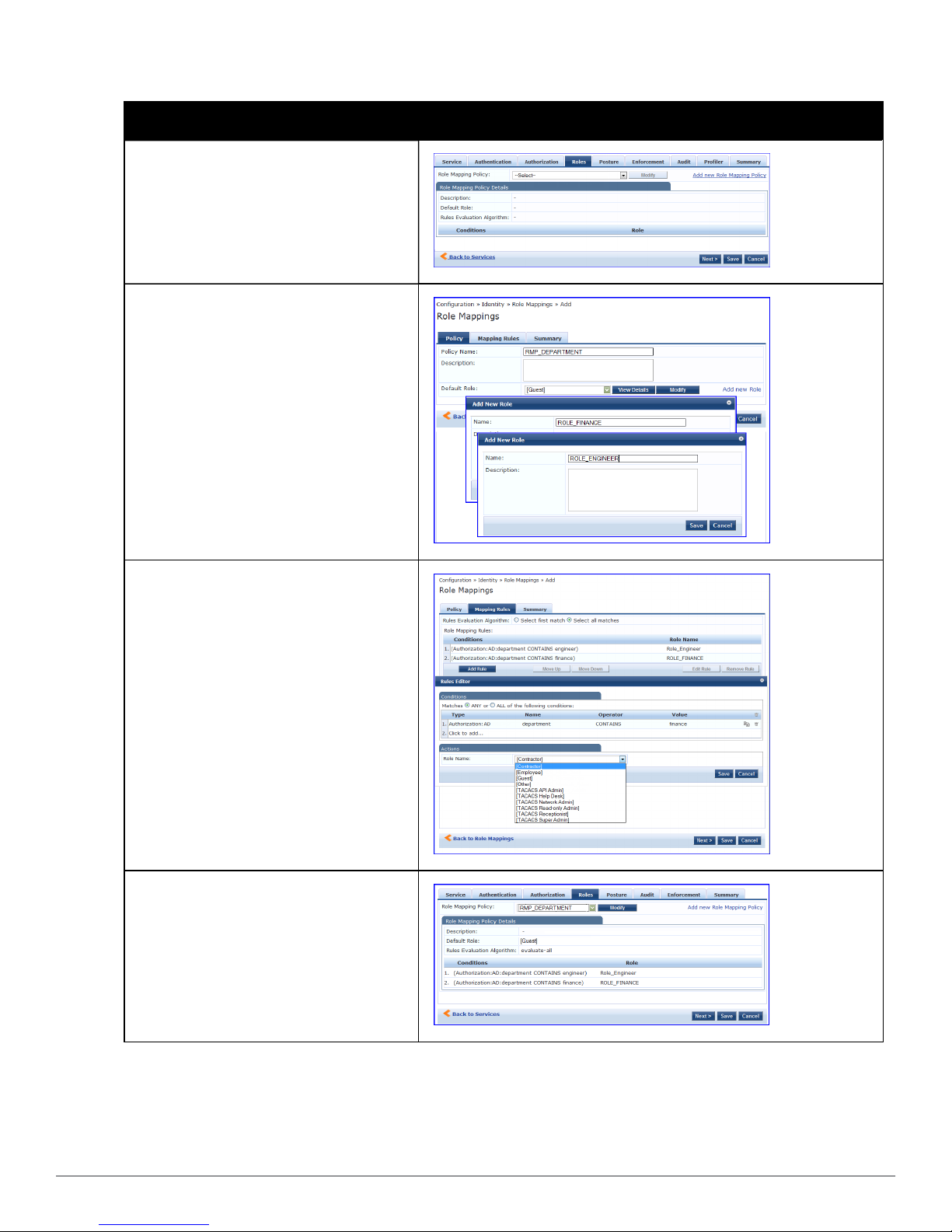

Table 4: Role Mapping Navigation and Settings
Navigation Settings
Create the new Role Mapping Policy:
lRoles (tab) >
lAdd New Role Mapping Policy (link) >
Add new Roles (names only):
lPolicy (tab) >
lPolicy Name (freeform): ROLE_ENGINEER >
lSave (button) >
lRepeat for ROLE_FINANCE >
lWhen you are finished working in the Policy
tab, click the Next button (in the Rules
Editor)
Create rules to map client identity to a Role:
lMapping Rules (tab) >
lRules Evaluation Algorithm (radio button):
Select all matches >
lAdd Rule (button opens popup) >
lAdd Rule (button) >
lRules Editor (popup) >
lConditions/ Actions: match Conditions to
Actions (drop-down list) >
lUpon completion of each rule, click the
Save button ( in the Rules Editor) >
lWhen you are finished working in the
Mapping Rules tab, click the Save button (in
the Mapping Rules tab)
Add the new Role Mapping Policy to the
Service:
lBack in Roles (tab) >
lRole Mapping Policy (selector): RMP_
DEPARTMENT >
lUpon completion, click Next (to Posture)
5. Configure a Posture Server

NOTE: For purposes of posture evaluation, you can configure a Posture Policy (internal to Policy Manager), a Posture Server
(external), or an Audit Server (internal or external). Each of the first three use cases demonstrates one of these options; here, the
Posture Server
Policy Manager can be configured for a third-party posture server, to evaluate client health based on vendor-
specific credentials, typically credentials that cannot be evaluated internally by Policy Manager (that is, not in the
form of internal posture policies). Currently, Policy Manager supports the following posture server interface:
Microsoft NPS (RADIUS).
Refer to the following table to add the external posture server of type Microsoft NPS to the 802.1X service:

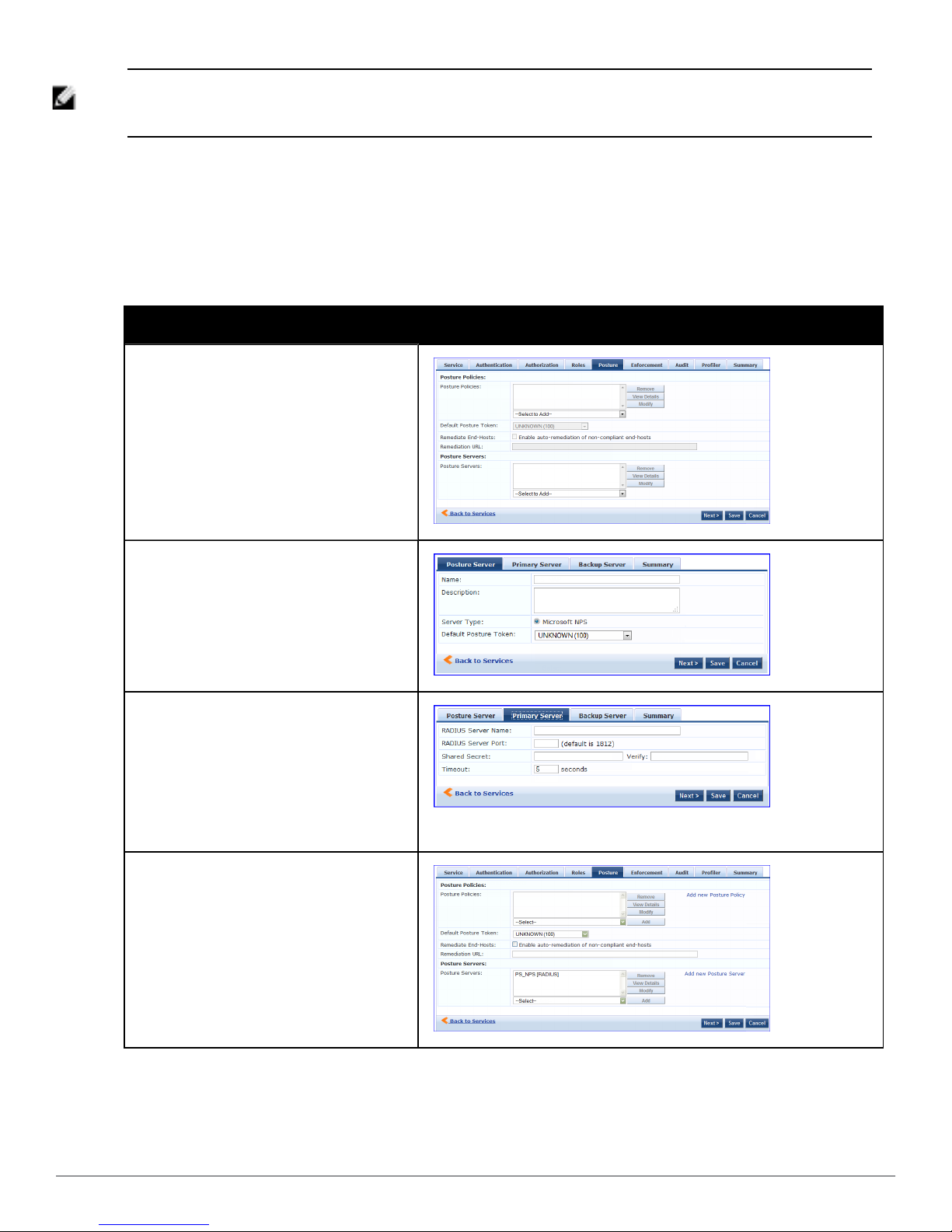

Table 5: Posture Navigation and Settings
Navigation Setting
Add a new Posture Server:
lPosture (tab) >
lAdd new Posture Server (button) >
Configure Posture settings:
lPosture Server (tab) >
lName (freeform): PS_NPS
lServer Type (radio button): Microsoft NPS
lDefault Posture Token (selector): UNKOWN
lNext (to Primary Server)
Configure connection settings:
lPrimary/ Backup Server (tabs): Enter
connection information for the RADIUS
posture server.
lNext (button): from Primary Server to
Backup Server.
lTo complete your work in these tabs, click
the Save button.
Add the new Posture Server to the Service:
lBack in the Posture (tab) >
lPosture Servers (selector): PS_NPS, then
click the Add button.
lClick the Next button.
6. Assign an Enforcement Policy
Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide 17

18 Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide
Enforcement Policies contain dictionary-based rules for evaluation of Role, Posture Tokens, and System Time to
Evaluation Profiles. Policy Manager applies all matching Enforcement Profiles to the Request. In the case of no
match, Policy Manager assigns a default Enforcement Profile.
Table 6: Enforcement Policy Navigation and Settings
Navigation Setting
Configure the Enforcement Policy:
lEnforcement (tab) >
lEnforcement Policy (selector): Role_
Based_Allow_Access_ Policy
For instructions about how to build such an Enforcement Policy, refer to Configuring Enforcement
Policies"Configuring Enforcement Policies" in the Dell Networking W-ClearPass Policy Manager User Guide .
7. Save the Service.
Click Save. The Service now appears at the bottom of the Services list.

Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide 19
Chapter 5
Web Based Authentication Use Case
This Service supports known Guests with inadequate 802.1X supplicants or posture agents. The following figure
illustrates the overall flow of control for this Policy Manager Service.
Figure 2: Flow-of-Control of Web-Based Authentication for Guests
Configuring the Service
Perform the following steps to configure Policy Manager for WebAuth-based Guest access.
1. Prepare the switch to pre-process WebAuth requests for the Policy Manager Dell WebAuth service.
Refer to your Network Access Device documentation to configure the switch such that it redirects HTTP
requests to the Dell Guest Portal , which captures username and password and optionally launches an agent that
returns posture data.

20 Dell Networking W-ClearPass Policy Manager 6.0 | Quick Start Guide
2. Create a WebAuth-based Service.

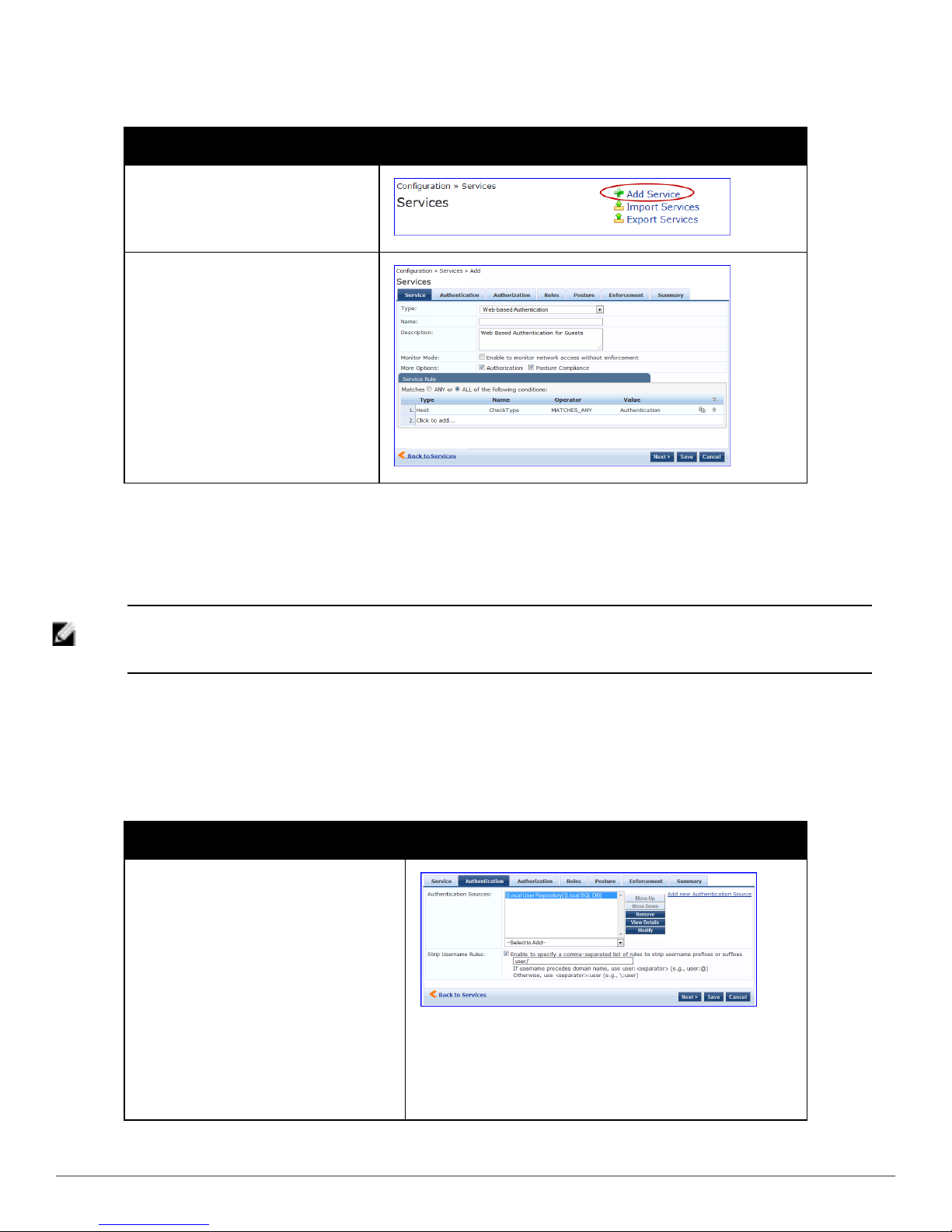

Table 7: Service Navigation and Settings
Navigation Settings
Create a new Service:
lServices >
lAdd Service >
Name the Service and select a pre-
configured Service Type:
lService (tab) >
lType (selector): Dell Web-Based
Authentication >
lName/Description (freeform) >
lUpon completion, click Next.
3. Set up the Authentication.
a. Method: The Policy Manager WebAuth service authenticates WebAuth clients internally.
b. Source: Administrators typically configure Guest Users in the local Policy Manager database.
4. Configure a Posture Policy.
NOTE: For purposes of posture evaluation, you can configure a Posture Policy (internal to Policy Manager), a Posture Server
(external), or an Audit Server (internal or external). Each of the first three use cases demonstrates one of these options. This use
case demonstrates the Posture Policy.
As of the current version, Policy Manager ships with five pre-configured posture plugins that evaluate the health
of the client and return a corresponding posture token.
To add the internal posture policy IPP_UNIVERSAL_XP , which (as you will configure it in this Use Case, checks
any Windows XP clients to verify the most current Service Pack).
Table 8: Local Policy Manager Database Navigation and Settings
Navigation Settings
Select the local Policy Manager database:
lAuthentication (tab) >
lSources (Select drop-down list): [Local
User Repository] >
lAdd >
lStrip Username Rules (check box) >
lEnter an example of preceding or
following separators (if any), with the
phrase “user” representing the username
to be returned. For authentication, Policy
Manager strips the specified separators
and any paths or domains beyond them.
lUpon completion, click Next (until you
reach Enforcement Policy).
