Dell Powerconnect W-ClearPass Hardware Appliances User manual

Dell Networking
W-ClearPass
Policy Manager 6.0
User Guide

2 Dell Networking W-ClearPass Policy Manager 6.0 | User Guide
Copyright Information
Copyright
© 2013 Aruba Networks, Inc. Aruba Networks trademarks include the Aruba Networks logo, Aruba Networks®, Aruba
Wireless Networks®, the registered Aruba the Mobile Edge Company logo, and Aruba Mobility Management
System®. Dell™, the DELL™ logo, and PowerConnect™ are trademarks of Dell Inc.
All rights reserved. Specifications in this manual are subject to change without notice.
Originated in the USA. All other trademarks are the property of their respective owners.
Open Source Code
Certain Aruba products include Open Source software code developed by third parties, including software code
subject to the GNU General Public License (GPL), GNU Lesser General Public License (LGPL), or other Open
Source Licenses. Includes software from Litech Systems Design. The IF-MAP client library copyright 2011
Infoblox, Inc. All rights reserved. This product includes software developed by Lars Fenneberg, et al. The Open
Source code used can be found at this site:
http://www.arubanetworks.com/open_source
Legal Notice
The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate
other vendors’ VPN client devices constitutes complete acceptance of liability by that individual or corporation for
this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken against it
with respect to infringement of copyright on behalf of those vendors.

Contents
About Dell Networking W-ClearPass Policy Manager 11
Powering Up and Configuring Policy Manager Hardware 13
Server Port Overview 13
Server Port Configuration 14
Powering Off the System 15
Resetting Passwords to Factory Default 16
Generating Support Key for Technical Support 16
Policy Manager Dashboard 19
Monitoring 23
Access Tracker 23
Viewing Session Details 25
Accounting 26
OnGuard Activity 35
Analysis and Trending 37
Endpoint Profiler 37
System Monitor 38
Audit Viewer 40
Event Viewer 43
Data Filters 44
Add a Filter 45
Policy Manager Policy Model 49
Services Paradigm 49
Viewing Existing Services 52
Adding and Removing Services 52
Links to Use Cases and Configuration Instructions 53
Policy Simulation 54
Add Simulation Test 56
Import and Exporting Simulations 59
Import Simulations 59
Export Simulations 60
Export 60
ClearPass Policy Manager Profile 61
Device Profile 61
Collectors 61
DHCP 62
Sending DHCP Traffic to CPPM 62
Dell Networking W-ClearPass Policy Manager 6.0 | User Guide 3

4 Dell Networking W-ClearPass Policy Manager 6.0 | User Guide
ClearPass Onboard 62
HTTP User-Agent 62
Configuration 63
MAC OUI 63
ActiveSync Plugin 63
CPPM OnGuard 63
SNMP 63
802.1x Wireless Use Case 67
Configuring the Service 67
Web Based Authentication Use Case 73
Configuring the Service 73
MAC Authentication Use Case 79
Configuring the Service 80
TACACS+ Use Case 83
Configuring the Service 83
Single Port Use Case 87
Services 89
Architecture and Flow 89
Start Here Page 90
Policy Manager Service Types 92
Services 101
Adding Services 102
Modifying Services 104
Reordering Services 106
Authentication and Authorization 109
Architecture and Flow 109
Configuring Authentication Components 110
Adding and Modifying Authentication Methods 111
PAP 113
MSCHAP 114
EAP-MSCHAP v2 114
EAP-GTC 115
EAP-TLS 116
EAP-TTLS 118
EAP-PEAP 119
EAP-FAST 121
MAC-AUTH 126
CHAP and EAP-MD5 127

Adding and Modifying Authentication Sources 127
Generic LDAP or Active Directory 129
Kerberos 140
Generic SQL DB 141
Token Server 145
Static Host List 147
HTTP 148
Identity: Users, Endpoints, Roles and Role Mapping 153
Architecture and Flow 153
Configuring a Role Mapping Policy 154
Configuring a Role Mapping Policy 154
Adding and Modifying Role Mapping Policies 155
Policy Tab 155
Mapping Rules Tab 156
Adding and Modifying Roles 158
Local Users, Guest Users, Onboard Devices, Endpoints, and Static Host List Configuration 159
Adding and Modifying Local Users 159
Additional Available Tasks 160
Adding and Modifying Guest Users 161
Onboard Devices 163
Adding and Modifying Endpoints 164
Adding and Modifying Static Host Lists 166
Additional Available Tasks 167
Posture 169
Posture Architecture and Flow 169
Configuring Posture 171
Adding and Modifying Posture Policies 172
Configuring Posture Policy Plugins 173
ClearPass Windows Universal System Health Validator - NAP Agent 176
ClearPass Windows Universal System Health Validator - OnGuard Agent 192
ClearPass Linux Universal System Health Validator - NAP Agent 192
ClearPass Linux Universal System Health Validator - OnGuard Agent 195
ClearPass Mac OS X Universal System Health Validator - OnGuard Agent 195
Windows Security Health Validator - NAP Agent 197
Windows Security Health Validator - OnGuard Agent 198
Windows System Health Validator - NAP Agent 199
Windows System Health Validator - OnGuard Agent 199
Adding and Modifying Posture Servers 199
Dell Networking W-ClearPass Policy Manager 6.0 | User Guide 5

6 Dell Networking W-ClearPass Policy Manager 6.0 | User Guide
Microsoft NPS 200
Audit Servers 203
Architecture and Flow 203
Configuring Audit Servers 204
Built-In Audit Servers 205
Adding Auditing to a Policy Manager Service 205
Modifying Built-In Audit Servers 206
Custom Audit Servers 207
NESSUS Audit Server 207
NMAP Audit Server 209
Nessus Scan Profiles 211
Post-Audit Rules 215
Enforcement 217
Enforcement Architecture and Flow 217
Configuring Enforcement Profiles 218
RADIUS Enforcement Profiles 221
RADIUS CoA Enforcement Profiles 223
SNMP Enforcement Profiles 224
TACACS+ Enforcement Profiles 224
Application Enforcement Profiles 226
CLI Enforcement Profile 227
Agent Enforcement Profiles 228
Post Authentication Enforcement Profiles 228
Configuring Enforcement Policies 229
Network Access Devices 233
Adding and Modifying Devices 233
Adding a Device 233
Additional Available Tasks 237
Adding and Modifying Device Groups 237
Additional Available Tasks 240
Adding and Modifying Proxy Targets 240
Add a Proxy Target 241
Additional Available Tasks 242
Administration 243
Admin Users 244
Add User 244
Import Users 245
Export Users 246

Export 246
Admin Privileges 246
Import Admin Privileges 246
Export Admin Privileges 247
Export 247
Server Configuration 247
Set Date/Time 248
Change Cluster Password 250
Manage Policy Manager Zones 251
NetEvents Targets 252
Make Subscriber 252
Upload Nessus Plugins 253
Cluster-Wide Parameters 254
Collect Logs 256
Viewing Log Files 257
Backup 258
Restore 259
Shutdown/Reboot 260
Drop Subscriber 260
System Tab 260
Multiple Active Directory Domains 262
Services Control Tab 264
Service Parameters Tab 264
System Monitoring Tab 272
Network Interfaces Tab 273
Creating GREtunnels 273
Creating VLAN 274
Log Configuration 275
Local Shared Folders 277
Application Licensing 278
Adding a License 279
Activating an Application License 279
Updating a License 280
SNMP Trap Receivers 280
Add SNMP Trap Server 281
Import SNMP Trap Server 282
Export all SNMP Trap Servers 282
Export a Single SNMPTrap Server 283
Dell Networking W-ClearPass Policy Manager 6.0 | User Guide 7

8 Dell Networking W-ClearPass Policy Manager 6.0 | User Guide
Syslog Targets 283
Add Syslog Target 284
Import Syslog Target 284
Export Syslog Target 285
Export 285
Syslog Export Filters 285
Add Syslog Filter 286
Import Syslog Filter 288
Export Syslog Filter 289
Export 289
Messaging Setup 289
Endpoint Context Servers 291
MDM Servers 292
Server Certificate 293
Create Self-Signed Certificate 294
Create Certificate Signing Request 296
Export Server Certificate 298
Import Server Certificate 298
Certificate Trust List 298
Add Certificate 299
Revocation Lists 299
Add Revocation List 300
RADIUS Dictionaries 301
Import RADIUS Dictionary 302
Posture Dictionaries 302
TACACS+ Services 303
Fingerprints 304
Attributes 305
Add Attribute 306
Import Attributes 307
Export Attributes 308
Export 308
OnGuard Settings 308
Guest Portal 310
Update Portal 312
Install Update dialog box 314
Updating the Policy Manager Software 315
Upgrade the Image on a Single Policy Manager Appliance 316

Upgrade the Image on All Appliances 316
Command Line Configuration 317
Available Commands 317
Cluster Commands 319
drop-subscriber 320
list 320
make-publisher 320
make-subscriber 321
reset-database 321
set-cluster-passwd 321
set-local-passwd 322
Configure Commands 322
date 322
dns 323
hostname 323
ip 323
timezone 324
Network Commands 324
ip 324
nslookup 325
ping 325
reset 326
traceroute 326
Service commands 327
<action> 327
Show Commands 328
all-timezones 328
date 328
dns 328
domain 329
hostname 329
ip 329
license 329
timezone 330
version 330
System commands 330
boot-image 330
gen-support-key 331
Dell Networking W-ClearPass Policy Manager 6.0 | User Guide 9

10 Dell Networking W-ClearPass Policy Manager 6.0 | User Guide
install-license 331
restart 331
shutdown 332
update 332
upgrade 332
Miscellaneous Commands 333
ad auth 333
ad netjoin 334
ad netleave 334
ad testjoin 334
alias 334
backup 335
dump certchain 335
dump logs 336
dump servercert 336
exit 337
help 337
krb auth 337
krb list 338
ldapsearch 338
restore 338
quit 339
Rules Editing and Namespaces 341
Namespaces 341
Variables 347
Operators 348
Software Copyright and License Statements 351
PostgreSQL Copyright 351
GNU LGPL 351
GNU GPL 357
Lighthttpd License 362
Apache License 362
OpenSSL License 365
OpenLDAP License 371
gSOAP Public License 372

Dell Networking W-ClearPass Policy Manager 6.0 | User Guide 11
Chapter 1
About Dell Networking W-ClearPass
Policy Manager
The Dell Networking W-ClearPass Policy Manager platform provides role- and device-based network access control
across any wired, wireless and VPN. Software modules for the Dell Networking W-ClearPass Policy Manager
platform, such as Guest, Onboard, Profile, OnGuard, QuickConnect, and Insight simplify and automate device
configuration, provisioning, profiling, health checks, and guest access.
With built-in RADIUS, SNMP and TACACS+ protocols, Dell Networking W-ClearPass Policy Manager provides
device registration, device profiling, endpoint health assessments, and comprehensive reporting to automatically
enforce user and endpoint access policies as devices connect to the network.

12 Dell Networking W-ClearPass Policy Manager 6.0 | User Guide

Dell Networking W-ClearPass Policy Manager 6.0 | User Guide 13
Chapter 2
Powering Up and Configuring Policy
Manager Hardware
The Policy Manager server requires initial port configuration. Its backplane contains three ports.
Server Port Overview
Figure 1: Policy Manager Backplane
The ports in the figure above are described in the following table:
Table 1: Device Ports
Key Port Description
A Serial Configures the ClearPass Policy Manager appliance initially, via hardwired terminal.
B -
eth0
Management
(gigabit Ethernet)
Provides access for cluster administration and appliance maintenance via web
access, CLI, or internal cluster communications.
Configuration required.
C -
eth1
Data (gigabit
Ethernet)
Provides point of contact for RADIUS, TACACS+, Web Authentication and other data-
plane requests.
Configuration optional. If not configured, requests redirected to the management
port.

14 Dell Networking W-ClearPass Policy Manager 6.0 | User Guide
Server Port Configuration
Before starting the installation, gather the following information that will need, write it in the table below, and keep
it for your records:
Table 2: Required Information
Requirement Description
Hostname) Policy Manager
server)
Management Port IP Address
Management Port Subnet
Mask
Management Port Gateway
Data Port IP Address (optional) Data Port IP Address must not be in the same subnet as the Management Port IP
Address
Data Port Gateway (optional)
Data Port Subnet Mask
(optional)
Primary DNS
Secondary DNS
NTP Server (optional)
Perform the following steps to set up the Policy Manager appliance:
1. Connect and power on
Using the null modem cable provided, connect a serial port on the appliance to a terminal, then connect power
and switch on. The appliance immediately becomes available for configuration.
Use the following parameters for the serial port connection:
lBit Rate: 9600
lData Bits: 8
lParity: None
lStop Bits: 1
lFlow Control: None
2. Login
Later, you will create a unique appliance/cluster administration password. For now, use the following
preconfigured credentials:
login: appadmin
password: eTIPS123
This starts the Policy Manager Configuration Wizard.

3. Configure the Appliance
Replace the bolded placeholder entries in the following illustration with your local information:
Enter hostname:verne.xyzcompany.com
Enter Management Port IP Address: 192.168.5.10
Enter Management Port Subnet Mask: 255.255.255.0
Enter Management Port Gateway: 192.168.5.1
Enter Data Port IP Address: 192.168.7.55
Enter Data Port Subnet Mask: 255.255.255.0
Enter Data Port Gateway: 192.168.7.1
Enter Primary DNS: 198.168.5.3
Enter Secondary DNS: 192.168.5.1
4. Change your password
Use any string of at least six characters:
New Password:************
Confirm Password: ************
Going forward, you will use this password for cluster administration and management of the appliance.
5. Change the system date/time
Do you want to configure system date time information [y|n]: y
Please select the date time configuration options.
1) Set date time manually
2) Set date time by configuring NTP servers
Enter the option or press any key to quit: 2
Enter Primary NTP Server: pool.ntp.org
Enter Secondary NTP Server: time.nist.gov
Do you want to configure the timezone? [y|n]: y
After the timezone information is entered, you are asked to confirm the selection.
6. Commit or restart the configuration
Follow the prompts:
Proceed with the configuration [y[Y]/n[N]/q[Q]
y[Y] to continue
n[N] to start over again
q[Q] to quit
Enter the choice:Y
Successfully configured Policy Manager appliance
*************************************************************
* Initial configuration is complete.
* Use the new login password to login to the CLI.
* Exiting the CLI session in 2 minutes. Press any key to exit now.
When your Policy Manager system is up and running, navigate to the Administration > Agents and Software
Updates > Software Updates page to view and download any available software updates. Refer to "Updating the Pol-
icy Manager Software " on page 315 for more information.
Powering Off the System
Perform the following to power off the system gracefully without logging in:
Dell Networking W-ClearPass Policy Manager 6.0 | User Guide 15

16 Dell Networking W-ClearPass Policy Manager 6.0 | User Guide
lConnect to the CLI from the serial console via the front serial port and enter the following:
login: poweroff
password: poweroff
This procedure gracefully shuts down the appliance.
Resetting Passwords to Factory Default
Administrator passwords in Policy Manager can be reset to factory defaults by logging into the CLI as the
apprecovery user. The password to log in as the apprecovery user is dynamically generated.
Perform the following steps to generate the recovery password:
1. Connect to the Policy Manager appliance via the front serial port (using any terminal program). See "Server Port
Configuration " on page 14 for details.
2. Reboot the system. See the restart command.
3. When the system restarts, it waits at the following prompt for 10 seconds:
Generate support keys? [y/n]:
Enter ‘y’ at the prompt. The system prompts you with the following choices:
Please select a support key generation option.
1) Generate password recovery key
2) Generate a support key
3) Generate password recovery and support keys
Enter the option or press any key to quit:
4. To generate the recovery key, select option 1 (or 3, if you want to generate a support key, as well).
5. Once the password recovery key is generated, email the key to Dell technical support. A unique password will be
generated from the recovery key and emailed back to you.
6. Enter the following at the command prompt:
[apprecovery]app reset-passwd
*******************************************************
* WARNING: This command will reset the system account *
* passwords to factory default values *
*******************************************************
Are you sure you want to continue? [y/n]: y
INFO - Password changed on local node
INFO - System account passwords have been reset to
factory default values
Generating Support Key for Technical Support
To troubleshoot certain critical system level errors,Dell technical support might need to log into a support shell .
Perform the following steps to generate a dynamic support password:
1. Log into the Command Line Interface (CLI) and enter the command: system gen-support-key. See gen-
support-key for details.
2. Connect to the Policy Manager appliance via the front serial port (using any terminal program). See "Server Port
Configuration " on page 14 for details.
3. Reboot the system. See the restart command.

4. When the system restarts it waits at the following prompt for 10 seconds:
Generate support keys? [y/n]:
Enter ‘y’ at the prompt. The system prompts with the following choices:
Please select a support key generation option.
1) Generate password recovery key
2) Generate a support key
3) Generate password recovery and support keys
Enter the option or press any key to quit:
5. To generate the support key, select option 2 (or 3, if you want to generate a password recovery key, as well).
6. Once the password recovery key is generated, email the key to Dell technical support. A unique password can now
be generated by Dell technical support to log into the support shell.
Dell Networking W-ClearPass Policy Manager 6.0 | User Guide 17

18 Dell Networking W-ClearPass Policy Manager 6.0 | User Guide

Dell Networking W-ClearPass Policy Manager 6.0 | User Guide 19
Chapter 3
Policy Manager Dashboard
The Policy Manager Dashboard menu allows you to display system health and other request related statistics. Policy
Manager comes pre-configured with different dashboard elements. The screen on the right of the dashboard menu is
partitioned into five fixed slots. You can drag and drop any of the dashboard elements into the five slots. The
dashboard elements are listed below:
This shows a graph of all requests processed by
Policy Manager over the past week. This includes
RADIUS, TACACS+ and WebAuth requests. The
default data filter “All Requests” is used to plot this
graph. Clicking on each bar in the graph drills down
into the Access Tracker and shows the requests for
that day.
This shows a graph of the “Healthy” vs. “Unhealthy”
requests over the past week. Healthy requests are
those requests where the health state was deemed to
be healthy (based on the posture data sent from the
client). Unhealthy requests are those requests whose
health state was deemed to be quarantined (posture
data received but health status is not compliant) or
unknown (no posture data received). This includes
RADIUS and WebAuth requests. The default data
filters “Health Requests” and “Unhealthy Requests”
are used to plot this graph. Clicking on each circle on
the line graph drills down into the Access Tracker
and shows the healthy or unhealthy requests for that
day.
This shows a graph of the “Failed” vs. “Successful”
requests over the past week. This includes RADIUS,
WebAuth and TACACS+ requests. The default data
filters “Failed Requests” and “Successful Requests”
are used to plot this graph. Clicking on each circle on
the line graph drills down into the Access Tracker
and shows the failed or successful requests for that
day.
This shows a table of the last few authentications.
Clicking on a row drills down into the Access Tracker
and shows requests sorted by timestamp with the
latest request showing first.

20 Dell Networking W-ClearPass Policy Manager 6.0 | User Guide

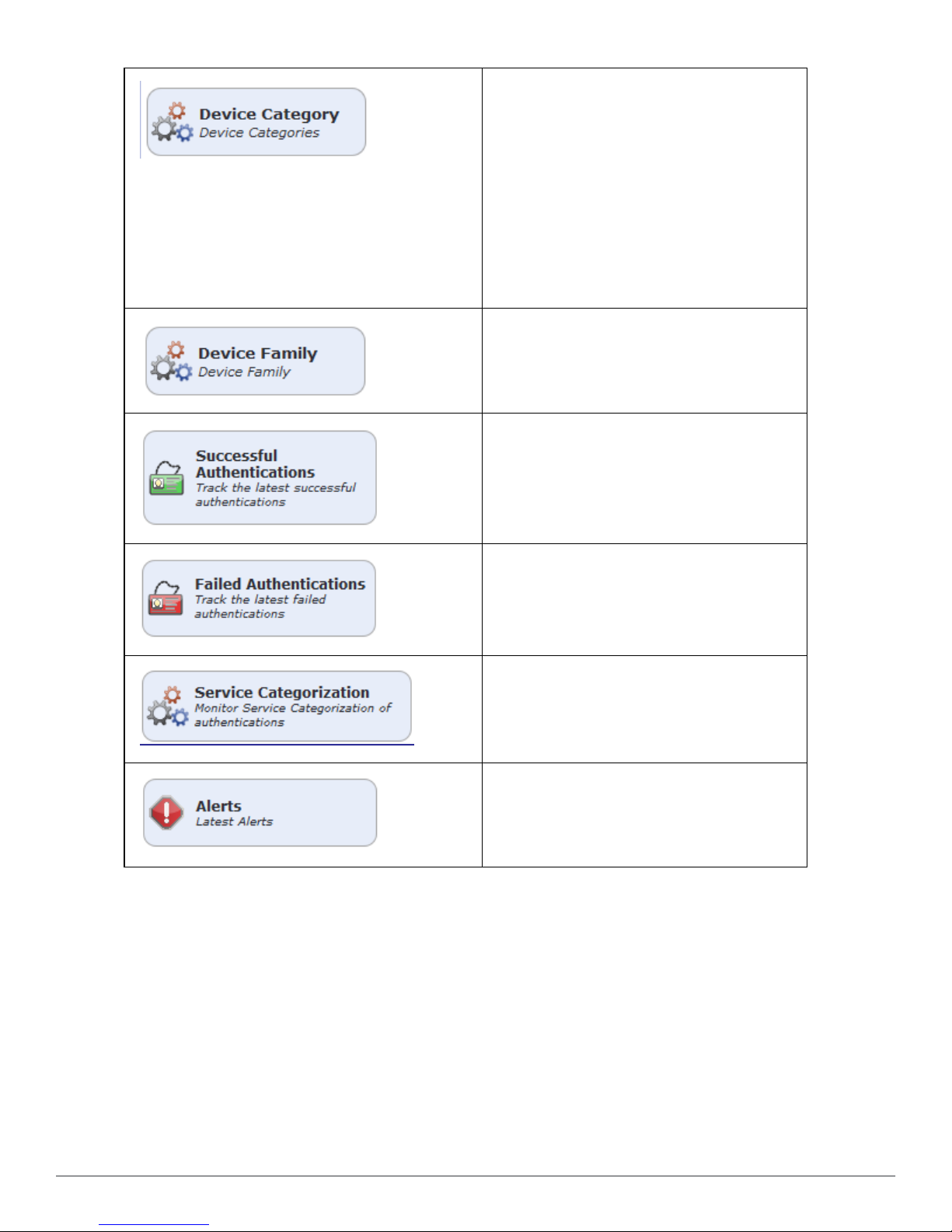

This chart shows the graph of all profiled devices
categorized into built in categories – Smartdevices,
Access Points, Computer, VOIP phone, Datacenter
Appliance, Printer, Physical Security, Game Console,
Routers, Unknown and Conflict.
Unknown devices are devices that the profiler was
not able to profile.
Conflict indicates a conflict in the categorization of
the device. For example, if the device category
derived from the HTTP User Agent string does not
match with the category derived from DHCP
fingerprinting, a conflict is flagged, and the device is
marked as Conflict.
The Device Family widget allows you to drill down
further into each of the built-in device categories. For
example, selecting SmartDevice shows the different
kinds of smartdevices identified by Profile.
This shows a table of the last few successful
authentications. Clicking on a row drills down into
the Access Tracker and shows successful requests
sorted by timestamp with the latest request showing
first.
This shows a table of the last few failed
authentications. Clicking on a row drills down into
the Access Tracker and shows failed requests sorted
by timestamp with the latest request showing first.
This shows a bar chart with each bar representing an
Policy Manager service requests were categorized
into. Clicking on a bar drills down into the Access
Tracker and shows the requests that were
categorized into that specific service.
This shows a table of last few system level events.
Clicking on a row drills down into the Event Viewer
