Dell Force10 Z9000 User manual

Dell Force10 Z9000 System
Quick Start Guide
Regulatory Model: Z9000

Dell Force10 Z9000 System
Quick Start Guide
Regulatory Model: Z9000

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use
of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of
data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
If you purchased a Dell n Series computer, any references in this publication to
Microsoft
Windows operating systems are not applicable.
____________________
Information in this publication is subject to change without notice.
© 2011 Dell Inc. All rights reserved.
Reproduction of these materials in anymanner whatsoever without the written permissionof Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, OptiPlex™, Latitude™,
PowerEdge™, PowerVault™, PowerConnect™, OpenManage™, EqualLogic™, KACE™,
FlexAddress™ and Vostro™ are trademarks of Dell Inc. Intel
®
, Pentium
®
, Xeon
®
, Core™ and
Celeron
®
are registered trademarks of Intel Corporation in the U.S. and other countries. AMD
®
is a
registered trademark and AMD Opteron™, AMD Phenom™, and AMD Sempron™ are trademarks
of Advanced Micro Devices, Inc. Microsoft®, Windows®, Windows Server®, MS-DOS®and
WindowsVista®areeithertrademarksorregisteredtrademarksofMicrosoftCorporationintheUnited
States and/or other countries. Red Hat Enterprise Linux®and Enterprise Linux®are registered
trademarks of Red Hat, Inc. in the United States and/or other countries. Novell®is a registered
trademarkand SUSE ™ is atrademarkof NovellInc. in theUnited Statesandothercountries.Oracle®
is a registered trademark of Oracle Corporation and/or its affiliates. Citrix®, Xen®, XenServer®and
XenMotion®areeitherregisteredtrademarksortrademarksofCitrixSystems,Inc.intheUnitedStates
and/or other countries. VMware®, Virtual SMP®, vMotion®, vCenter®, and vSphere®are registered
trademarks or trademarks of VMWare, Inc. in the United States or other countries.
Othertrademarksandtradenamesmaybeusedinthispublicationtorefertoeithertheentitiesclaiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Regulatory Model: Z9000
2011 - 9 P/N 00G3CM Rev. A00

About this Guide 3
About this Guide
This document is intended as a Quick Start Guide to get new systems up and
running and ready for configuration. For complete installation and configuration
information, refer to the following documents:
Documentation Z9000
Hardwareinstallation andpower-up
instructions
Installing the Z9000 System
Software configuration FTOS Configuration Guide for the Z9000
Command line interface FTOS Command Reference for the Z9000
Latest updates FTOS Release Notes for the Z9000 System

4About this Guide

Installing the Hardware 5
1
Installing the Hardware
This guide assumes all site preparation has been performed before installing the
chassis.
Installing the Z9000 Chassis in a Rack or
Cabinet
To install the Z9000 system, Dell Force10 recommends that you complete the
installation procedures in the order presented below.
Always handle the system and its components with care. Avoid dropping the
Z9000 chassis or its field replaceable units.
For proper ventilation, position the Z9000 chassis in an equipment rack (or
cabinet) with a minimum of five inches (12.7 cm) of clearance around exhaust
vents. When two Z9000 systems are installed near each other, position the two
chassis at least 5 inches (12.7 cm) apart to permit proper airflow. The acceptable
ambient temperature ranges are listed in the Environmental Parameters section.
CAUTION: Always wear an ESD-preventive wrist or heel ground strap when
handling the Z9000 and its components. As with all electrical devices of this
type, take all necessary safety precautions to prevent injury when installing
this system. Electrostatic discharge (ESD) damage can occur if components
are mishandled.
Attach Mounting Brackets
The Z9000 is shipped with mounting brackets (rack ears) and required screws
for rack or cabinet installation. The brackets are enclosed in a package with the
chassis.
Step Task
1Take the brackets and screws out of their packaging.

6Installing the Hardware
Install chassis into rack or cabinet
Attach a Ground Cable
Use a single M4x0.7 screw for attaching a ground cable to the chassis. The cable
itself is not included. Dell Force10 recommends a 6AWG one-hole lug, #10 hole
size, 63" spacing (not included in shipping) to properly ground the chassis. The
one-hole lug must be a UL recognized, crimp-type lug.
NOTE: The rack installation ears are not suitable for grounding.
CAUTION: Grounding conductors must be made of copper. Do not use
aluminum conductors.
2Attach the brackets to the sides of the chassis on either side, using four
screws for each bracket.
Attach the bracket so that the “ear” faces to the outside of the chassis.

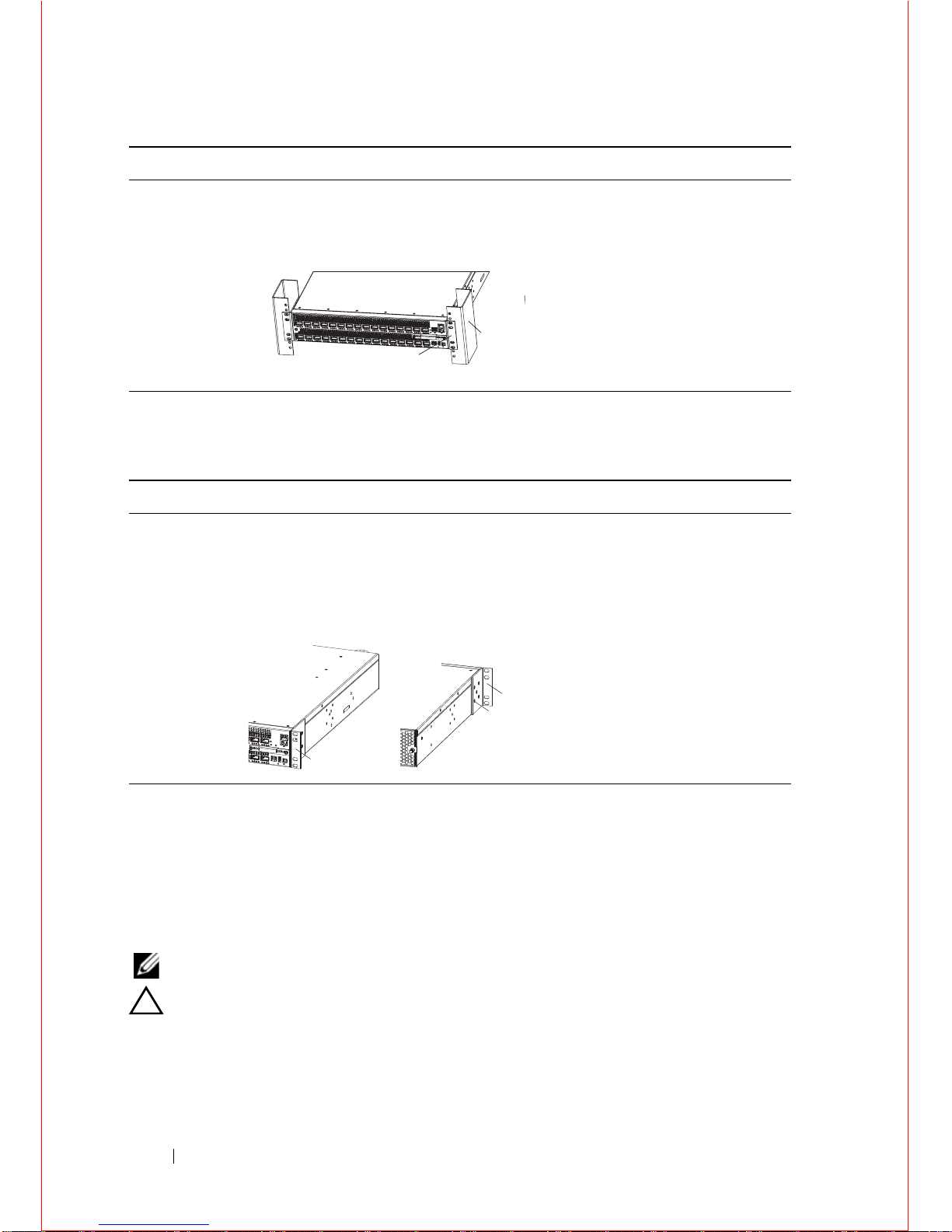

Step Task
1Dell Force10 recommends that one person hold the Z9000 chassis in
place while a second person attaches the brackets to the posts.
2Attach the bracket "ears" to the rack or cabinet posts, using two screws
for each bracket. Ensure the screws are tightened firmly. The example
here shows the mounting on the I/O side, but either side can be used.
Step Task
Rack/Cabinet
Post
Rack/Cabinet
Mounting Ears
I/O side
View from I/O side
Connect to
rack/cabinet
(ears)
View from PSU side Screws
Connect to
rack/cabinet
(ears)

Installing the Hardware 7
NOTE: Coat the one-hole lug with an anti-oxidant compound prior to crimping.
Bring any un-plated mating surfaces to a shiny finish, and coat with an anti-oxidant
prior to mating. Plated mating surfaces must be clean and free from contamination.
Install the QSFP+ Optics
The Z9000 has 32 QSFP+ optical ports. For supported optics, refer to
http://www.force10networks.com/products/specifications.asp.
CAUTION: Electrostatic discharge (ESD) damage can occur if components
are mishandled. Always wear an ESD-preventive wrist or heel ground strap
when handling the Z9000 and its components.
WARNING: Follow all warning labels when working with optical fibers.
Always wear eye protection when working with optical fibers. Never look
directly into the end of a terminated or unterminated fiber or connector as it
may cause eye damage.
Step Task
1Take the (1) M4x0.7 screw from the package.
2Cut cable to desired length. Cable length must facilitate the proper
operation of fault interrupt circuits. Dell Force10 recommends using the
shortest cable route allowable.
3Attach the one-hole lug to the chassis as shown, using the supplied
screw with captive internal tooth lock washer. The screw should be
torqued to 20 in-lbs.
4Attach the other end of the ground cable to a suitable ground point. The
rack installation ears are not a suitable grounding point.
Step Task
1Position the optic so it is in the correct position. (The optic has a key that
prevents it from being inserted incorrectly.
40G/4x10G
QSFP+ ports
Grounding
point

8Installing the Hardware
Splitting QSFP Ports to SFP+ Ports
The Z9000 supports splitting a single 40G QSFP port into four 10G SFP+ ports
using one of the supported breakout cables.
You must enter the stack-unit portmode command for the system to recognize
the port type change. For example: stack-unit stack-unit port number
portmode quad
• stack-unit : Enter the stack member unit identifier of the stack member to
reset. Range: 0-11
•
number : Enter the port number of the 40G port to be split. Range: 0-31
Important Points
• Splitting a 40G port into 4x10G port is supported only on a standalone unit.
• Split ports cannot be used as stack-link to stack a Z9000.
• Split ports Z9000 unit cannot be a part of any stacked system.
• The unit number with the split ports must be the default (stack-unit 0). This
can be verified using the
show system brief command. If the unit ID is
different than 0, then it must be renumbered to 0 before ports are split, by
entering in EXEC mode:
stackunit id renumber 0
• The quad port must be in a default configuration before it can be split into
4x10G ports. The 40G port is lost in the running-configuration when the port
is split, so be sure the port is also removed from other L2/L3 feature
configurations.
• The system must be reloaded after issuing the CLI for the change to take
effect.

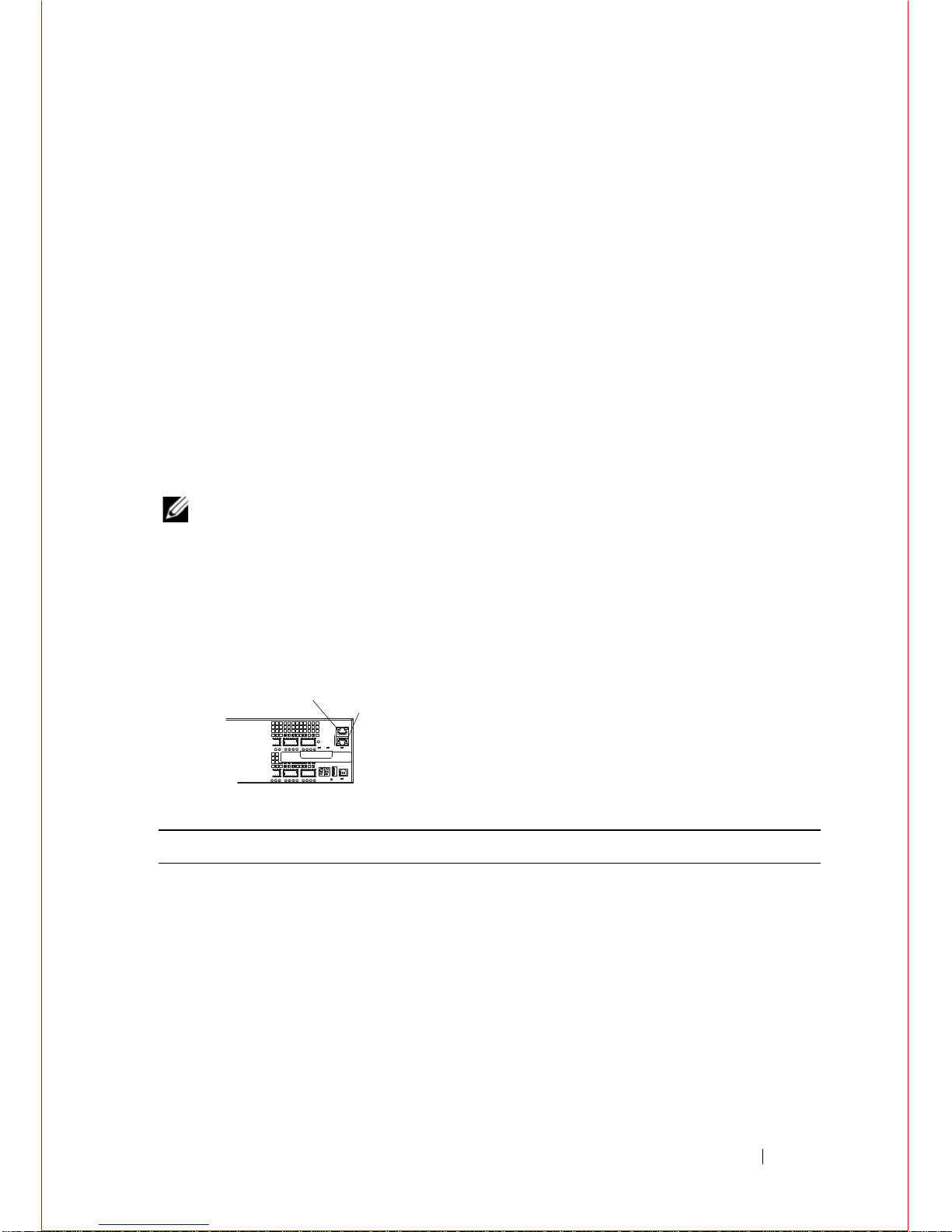

Install the Solid State Drive
The Z9000 includes a Solid State Drive (SSD) that acts as another storage
device. The SSD is shipped installed with the Z9000 system, and is located in a
slot on the lower-right area on the I/O side.
2Insert the optic into the port until it gently snaps into place.
NOTE: Both rows of QSFP+ ports require that the 40G optics be
inserted with the tabs facing up.
Step Task

Installing the Hardware 9
Power Up Sequence
Supply Power and Power Up the System
Dell Force10 recommends re-inspecting your system prior to powering up.
Verify that:
• The equipment is properly secured to the rack and properly grounded.
• The equipment rack is properly mounted and grounded.
• The ambient temperature around the unit (which may be higher than the
room temperature) is within the limits specified for the Z9000.
• There is sufficient airflow around the unit.
• The input circuits are correctly sized for the loads and that sufficient
overcurrent protection devices are used.
• All protective covers are in place.
NOTE: A US AC power cable is included in the shipping container for powering
up an AC power supply. All other power cables must be ordered separately.
CAUTION: Electrostatic discharge (ESD) damage can occur if components
are mishandled. Always wear an ESD-preventive wrist or heel ground strap
when handling the Z9000 and its components.
When the chassis powers up, the fans come on at high speed. The fan speed
slows as the system boots up.
The SYS LED does not light up until the boot-up sequence is complete. When
the boot-up is complete, the SYS LED is steadily lit green.
AC Power
Connect the plug to each AC power connector, making sure that the power cord
is secure.
As soon as the cable is connected between the Z9000 and the power source, the
chassis is powered-up; there is no on/off switch.
DC Power
To connect the plug to the DC power connector, follow the steps below:

10 Installing the Hardware
As soon as the cable is connected between the Z9000 and the power source, the
chassis is powered-up; there is no on/off switch.
Fans
The Z9000 comes from the factory with 1 power supply and 4 fan modules
installed in the chassis. The fan modules are hot-swappable, if 2 or more fans are
installed and running.
The fan speed increases and decreases automatically based upon the system's
state and temperature. The switch never intentionally turns off the fans. Use the
show logging command to see the log messages.
Z9000 Specifications
Chassis Physical Design
Step Task
1Remove the small plastic cover from the DC connectors.
2Ensure that the power source is turned off. Do not attach the DC cable to
the DC connectors while the power source is on.
3Attach the connectors to the PSUs, making sure that the connections are
secure.
4Replace the plastic cover over the DC connectors.
Parameter Specifications
Height 3.48 inches (8.8 cm)
Width 17.32 inches (44.0 cm)
Depth 24.00 inches (61.00 cm)
Rack clearance required Front: 5-inches (12.7 cm)
Rear: 5-inches (12.7 cm)
Thermal dissipation 2654 BTH/h (270W)

Installing the Hardware 11
Environmental Parameters
AC Power Requirements
DC Power Requirements
Power Supplies
The Z9000 is designed to support two hot-swappable power supplies.
NOTE: If using a single PSU, you must install a blank plate in the other PSU slot.
Dell Force10 recommends using PSU0, if installing only one power supply.
WARNING: To prevent electrical shock, make sure the Z9000 is grounded
properly. If you do not ground your equipment correctly, excessive emissions
may result. Use a qualified electrician to ensure that the power cables meet
your local electrical requirements.
WARNING: Electrostatic discharge (ESD) damage can occur if components
are mishandled. Always wear an ESD-preventive wrist or heel ground strap
when handling the Z9000 and its components.
Parameter Specifications
Temperature 32° to 104°F (0° to 40°C)
-40° to 158°F (-20° to 70°C)
Maximum altitude No performance degradation to 10,000 feet
(3,048 meters)
Relative humidity 10 to 85% non-condensing
Parameter Specifications
Nominal Input Voltage 100 to 240 VAC, 50/60 Hz
Maximum AC Power Supply Input
Current 8.00 A @ 100/120VAC 4.00 A @ 200/240 VAC
Maximum System Power Input 789 W
Parameter Specifications
Nominal Input Voltage 36 to 72 VDC
Maximum Power Supply Input
Current 2.8A @ 36 VDC 1.85 A @ 72 VDC
Maximum System Power Input 360 W

12 Installing the Hardware
CAUTION: Remove the power cable from the modules prior to removing the
module itself. Power must not be connected prior to insertion in the chassis.
WARNING: Prevent exposure and contact with hazardous voltages. Do not
attempt to operate this system with the safety cover removed.
CAUTION: Be sure that the DC power source is turned OFF before attaching
the cables to the DC connectors on the Z9000.
Install a New DC Power Supply
The power supply modules should slide into the slots smoothly. Do not force a
module into a slot. This may damage the power supply or the Z9000 chassis.
Step Task
1Take the power supply unit out of the shipping box.
2Remove the small plastic cover over the DC cable connectors. Do not
throw the cover away; you will replace it when installation is complete.
3Ensure that the DC power source is turned OFF.
4Using the grab handle, slide the unit into the power supply bay.
5Tighten the securing screw on the side of the PSU.
6Attach power cables.
7Replace the small plastic cover over the DC cable connectors.
8Turn the DC power source ON.
DC cable
connectors Grab
Handle
PSU1
PSU0 Fan Modules
Securing
Screw

Installing the Software 13
2
Installing the Software
Navigating CLI Modes
The FTOS prompt changes to indicate the CLI mode. You must move linearly
through the command modes, with the exception of the end command which
takes you directly to EXEC Privilege mode; the exit command moves you up
one command mode level.
Console Access
NOTE: You must have a password configured on a virtual terminal line before you
can Telnet into the system. Therefore, you must use a console connection when
connecting to the system for the first time.
Serial Console
The RJ-45/RS-232 console port is labeled on the Z9000 chassis. It is in the
upper right-hand side, as you face the I/O side of the chassis.
Step Task
1Install an RJ-45 copper cable into the console port.
2Connect the other end of the cable to the DTE terminal server.
RJ-45/RS-232
Console Port
Primary Management
(Ethernet) Port

14 Installing the Software
Accessing the RJ-45 console port with a DB-9 adapter
You can connect to the console using an RJ-45 to RJ-45 rollover cable and an
RJ-45 to DB-9 female DTE adapter to a terminal server (for example, PC).
Table 2-1 lists the pin assignments.
3Terminal settings on the console port cannot be changed in the software and are
set as follows:
9600 baud rate
No parity
8 data bits
1 stop bit
No flow control
Table 2-1. Pin Assignments Between the Console and a DTE Terminal Server
Z-Series
Console Port RJ-45 to RJ-45 Rollover Cable RJ-45 to DB-9 Adapter Terminal Server Device
Signal RJ-45 Pinout RJ-45 Pinout DB-9 Pin Signal
RTS 1 8 8 CTS
NC 2 7 6 DSR
TxD 3 6 2 RxD
GND 4 5 5 GND
GND 5 4 5 GND
RxD 6 3 3 TxD
NC 7 2 4 DTR
CTS 8 1 7 RTS
Step Task

Installing the Software 15
Default Configuration
A version of the Dell Force10 Operating System (FTOS) is pre-loaded onto the
chassis, however the system is not configured when you power up for the first
time (except for the default hostname, which is Force10). You must configure
the system using the Command Line Interface (CLI).
Configure Layer 2 (Data Link) Mode
Use the switchport command in INTERFACE mode to enable Layer 2 data
transmissions through an individual interface. The user can not configure
switching or Layer 2 protocols such as spanning tree protocol on an interface
unless the interface has been set to Layer 2 mode.
To view the interfaces in Layer 2 mode, use the show interfaces switchport
command in the EXEC mode.
Configure a Host Name
The host name appears in the prompt. The default host name is Force10.
• Host names must start with a letter and end with a letter or digit.
• Characters within the string can be letters, digits, and hyphens.
To configure a host name:
Step Task Command Syntax Command Mode
1Enable the interface. no shutdown INTERFACE
2Place the interface in
Layer 2 (switching)
mode.
switchport INTERFACE
Task Command Syntax Command Mode
Create a new host name. hostname name CONFIGURATION

16 Installing the Software
Access the System Remotely
You can configure the system to be accessed remotely by Telnet. The Z-Series
has a dedicated management port and a management routing table that is
separate from the IP routing table.
Configure the Management Port IP Address
Assign IP addresses to the management ports in order to access the system
remotely.
NOTE: Assign different IP addresses to each RPM’s management port.
Configure a Management Route
Define a path from the system to the network from which you are accessing the
system remotely. Management routes are separate from IP routes and are only
used to manage the system through the management port.
Step Task
1Configure an IP address for the management port.
2Configure a management route with a default gateway.
3Configure a username and password.
Step Task Command Syntax Command Mode
1Enter INTERFACE
mode for the
Management port.
interface ManagementEthernet
slot/port CONFIGURATION
2Assign an IP address
to the interface. ip address ip-address/mask INTERFACE
3Enable the interface. no shutdown INTERFACE

Installing the Software 17
Configure a Username and Password
Configure a system username and password to access the system remotely.
Configure the Enable Password
The EXEC Privilege mode is unrestricted by default. Configure a password as a
basic security measure. There are two types of enable passwords:
• enable password stores the password in the running/startup configuration
using a DES encryption method.
• enable secret is stored in the running/startup configuration in using a
stronger, MD5 encryption method.
Dell Force10 recommends using the enable secret password.
Task Command Syntax Command Mode
Configure a
management route to
the network from
which you are
accessing the system.
management route ip-address/mask
gateway CONFIGURATION
Task Command Syntax Command Mode
Configure a username
and password to
access the system
remotely.
username username password
[encryption-type]CONFIGURATION
Task Command Syntax Command Mode
Create a password to
access EXEC
Privilege mode.
enable [password | secret] [level level]
[encryption-type] password CONFIGURATION

18 Installing the Software
Create a Port-based VLAN
The Default VLAN as VLAN 1 is part of the system startup configuration and
does not require configuration. To configure a port-based VLAN, you must
create the VLAN and then add physical interfaces or port channel (LAG)
interfaces to the VLAN.
NOTE: After you create a VLAN, you must assign interfaces in Layer 2 mode to
the VLAN to activate the VLAN.
Use the show vlan command in the EXEC privilege mode to view the
configured VLANs.
Assign Interfaces to a VLAN
To view just the interfaces that are in Layer 2 mode, enter the show interfaces
switchport command in the EXEC privilege mode or EXEC mode.
To tag frames leaving an interface in Layer 2 mode, you must assign that
interface to a port-based VLAN to tag it with that VLAN ID. To tag interfaces,
use these commands in the following sequence:
Use the untagged command to move untagged interfaces from the Default
VLAN to another VLAN:
Task Command Syntax Command Mode
Configure a port-based VLAN. interface vlan vlan-id CONFIGURATION
Step Task Command Syntax Command Mode
1Access the
INTERFACE VLAN
mode of the VLAN to
which you want to
assign the interface.
interface vlan vlan-id CONFIGURATION
2Enable an interface to
include the IEEE
802.1Q tag header.
tagged interface INTERFACE
