Dell PowerConnect M8428-k User manual

Dell 10Gb Ethernet Pass Through -k for M1000e
User Manual
Rev 1.0

16 Port Pass Through Module
Document Number: 3303
Rev 1.0
2
____________________
Information in this SXEOLFDWLRQ is subject to change without notice.
© 2010 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.
Other trademarks and trade names may be used in this SXEOLFDWLRQ to refer to either the entities claiming the mark and names or their
products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
Dec. 2010 Rev: A00

Dell -10GbE PTM Rev 1.0
3
Table of Contents
Intended Audience 5
Conventions 5
Chapter 1 Overview 6
1.1 Features 6
1.2 Serial Number and Product Version Information 7
Chapter 2 Installation and Basic Operation 8
2.1 Unpacking the Pass Through Module 8
2.2 Insertion and Removal of the PTM 8
2.2.1 PTM Insertion 8
2.2.2 PTM Removal 9
2.3 Connecting the External Ports 9
2.3.1 10 Gigabit Ethernet SFP+ Modules 9
2.3.2 Installation and Removal of Optical Transceiver Modules 9
2.4 LED Indicators 10
2.4.1 System LEDs 10
2.4.2 Port LEDs 10
2.4.3 Installation Safety Warnings 12
2.4.4 Mechanical Installation 13
2.4.5 Cable Installation 13
Chapter 3 Troubleshooting 14
Appendix A Specifications 15
A.1 Mechanical Drawing with Dimensions 17
Appendix B Supported Cables and Media Types 18
Appendix C EMC Certification Statements 19
C.1 FCC Statements (USA) 19
C.2 EN Statements (Europe) 19
C.3 ICES Statements (Canada) 20
C.4 VCCI Statements (Japan) 20
C.5 KCC Certification (Korea) 20
Appendix D Interface Connector Pinouts 22
D.1 SFP+ Interface 22

Rev 1.0
4
Related Documentation
The documentation set accompanying the DEll Pass Through Module includes the following:
Table 1 - Reference Documents and Web Sites
Revision History
Firmware and Firmware Update Tools support.dell.com
Dell Pass Through Module SoftwareUser Manual support.dell.com
Latest Supported Cables and Optical Modules See Supported Cables and Media Types on page 18
in this document
Table 2 - Revision History
Revision Date Description
1.0 April 01st,
2011 Initial Release

Dell -10GbE PTM Rev 1.0
5
About this Manual
This manual describes the installation and basic use of the Dell 10Gb Ethernet Pass Through -k 16
port module for blade servers.
Intended Audience
This manual is intended for users and system administrators responsible for installing and setting
up the Dell 10Gb Ethernet Pass Through -k module for blade servers.
Conventions
The terms downlink (internal–from servers) and uplink (external–out to the world) are used
throughout the document.
The term PTM is used to indicate the Dell 10Gb Ethernet Pass Through -k module.
Caution: This symbol indicates the possibility of physical injury to the user or
installer.

OverviewRev 1.0
6
1Overview
The PTM is an I/O module designed for the PowerEdge M1000e Dell Chassis. The product pro-
vides 10Gigabit connectivity for blade servers to Ethernet LANs. The product supports the follow-
ing Ethernet protocols.
Each front panel port provides connectivity to the blade with the corresponding number in the
chassis.

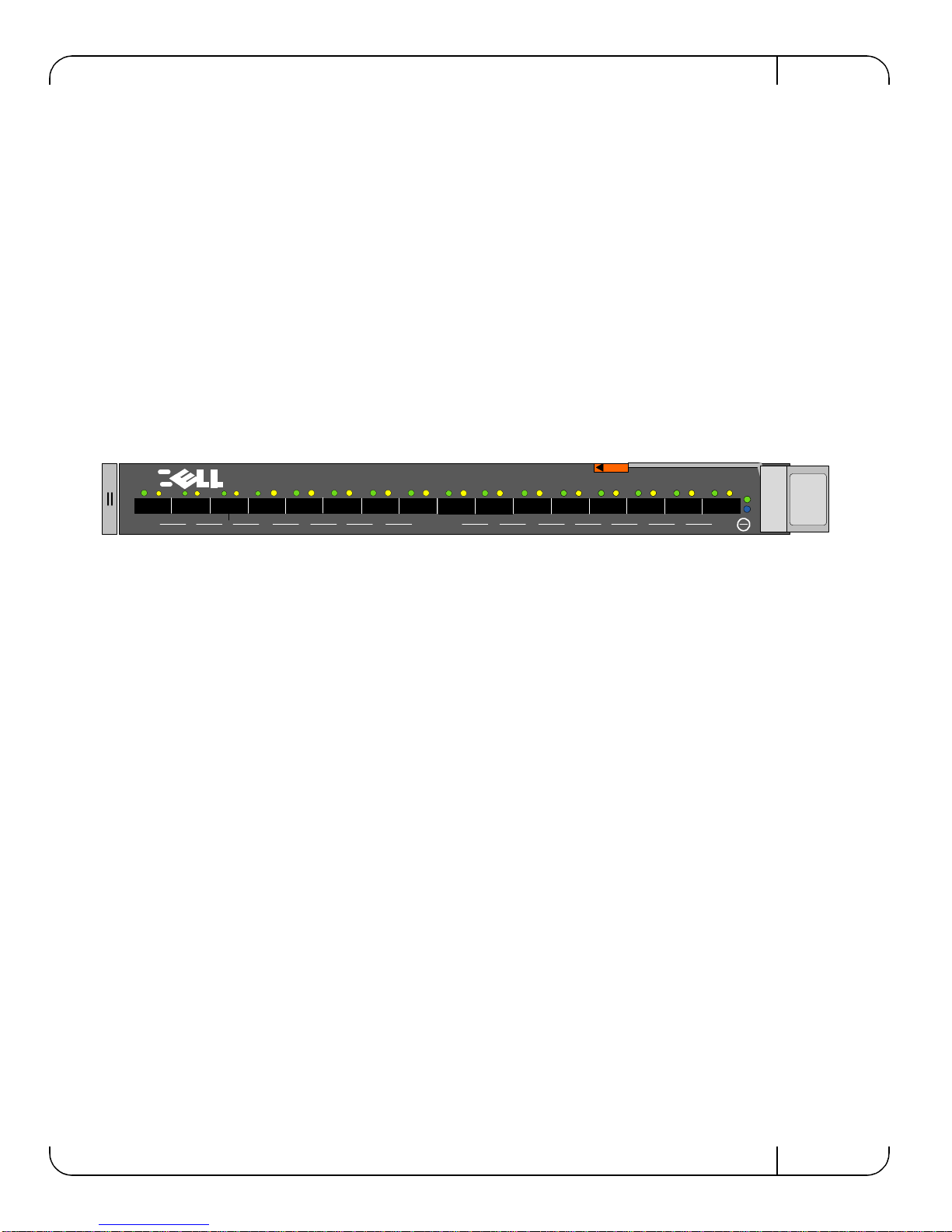

Figure 1: Dell 10Gb Ethernet Pass Through -k module Front Panel
1.1 Features
The PTM feature set includes:
Internal Links
• 16 ports of 10Gb Ethernet 10GBASE-KR through the backplane
External links
• 16 SFP+ front panel ports of 10Gb Ethernet
IEEE and Other Ethernet Standards Compliance
• IEEE 802.3ae 10Gigabit Ethernet support
• IEEE 802.3ap Ethernet Operation over Electrical Backplanes
• Including KR startup protocol and Forward Error Correction (FEC) support
• Supports KR auto-negotiation
• Jumbo Frames up to 9K support
Connectors and Cabling
• Twin Axial Pair connector
• Optical modules for SR and LR
• All ports support active cables
Table 3 - Protocols
Physical Connections Pass Through -k Protocol
Blade Servers to PTM (Internal Links) KR
Front Panel Ports (External Links) 10G XFI
9
10
11 12 13 14 15 16
1 2 3 4 5 6 7 8
D
D
D
10 Gb Ethernet Pass Through -k

Dell -10GbE PTM Rev 1.0
7
Front Panel Indicators
• Per port status LEDs: Link Up, Link Activity
• System status LEDs: Power Supply, Status
1.2 Serial Number and Product Version Information
The serial number and product version information are found on the label seen in the figure below.
Figure 2: Generic Product label

Installation and Basic OperationRev 1.0
8
2Installation and Basic Operation
2.1 Unpacking the Pass Through Module
Before you install your new PTM, unpack it and make sure that there is no visible damage that
may have occurred during shipping. Your package should contain the following items:
• Dell 10Gb Ethernet Pass Through -k module for Blade Servers
• This Users Manual
The PTM is shipped without optical modules.
If anything in the package is damaged or missing, please contact your customer representative
immediately.
2.2 Insertion and Removal of the PTM
The Dell 10Gb Ethernet Pass Through -k module may be plugged into fabric slots A1, A2, B1, B2,
C1, and C2.
Determine which slot to use, based on desired system configuration.
2.2.1 PTM Insertion
Insert the PTM into the chassis as shown in the following diagram:

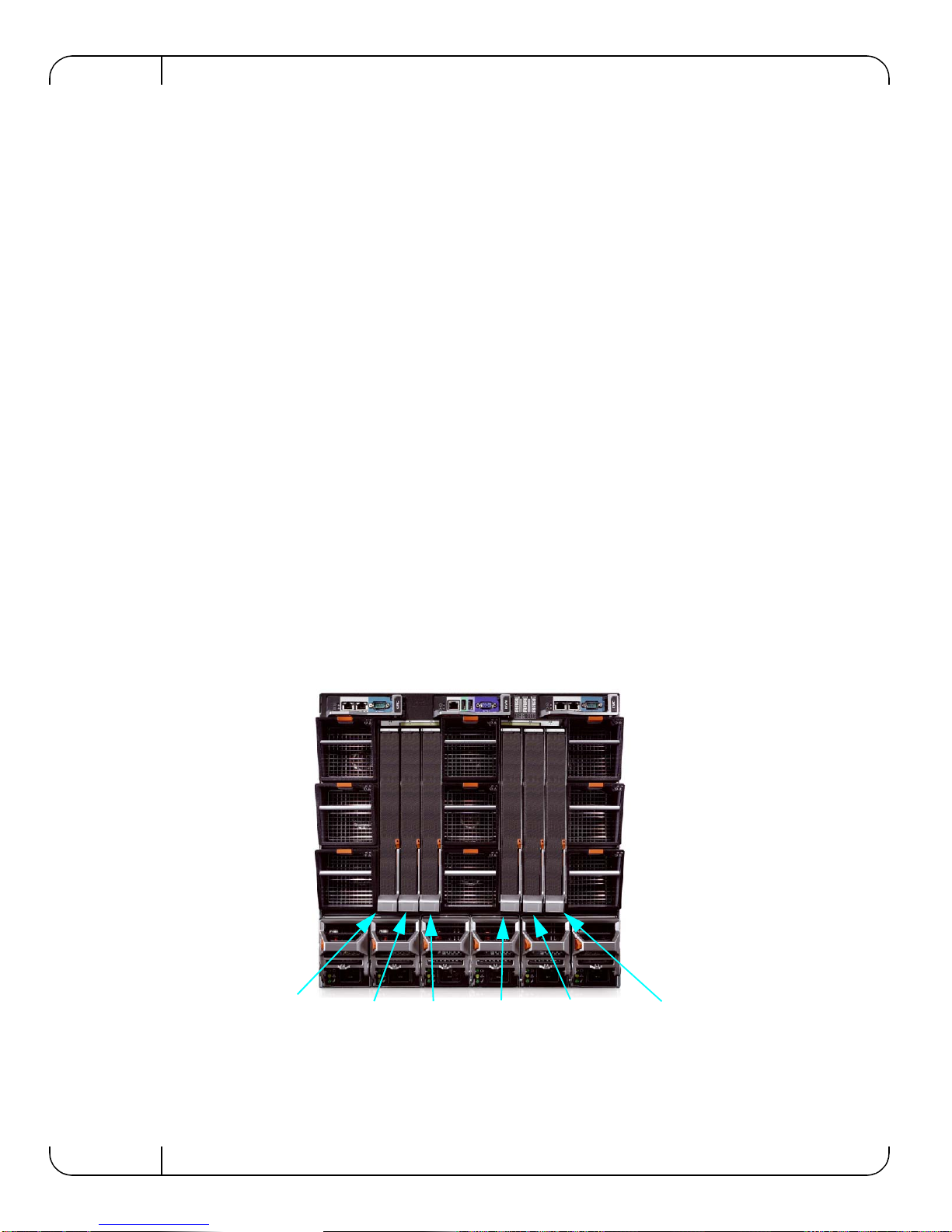

Figure 3: Dell Chassis Slots for the PTM
Slot A1 Slot B1 Slot C1 Slot A2
Slot B2Slot C2

Dell -10GbE PTM Rev 1.0
9
The PTM supports hot-insertion into the chassis. If the PTM is inserted to a powered chassis, the
power LED (green) should turn on immediately.
2.2.2 PTM Removal
The PTM supports hot-removal. It may be removed when the chassis is powered on or off.
The PTM must not be removed during a firmware update process.
Note: Firmware update is in progress when the Yellow LED is blinking.
2.3 Connecting the External Ports
The PTM front panel presents 16 SFP+ ports. Each port provides connectivity to a server with the
respective number. Figure 4 shows the front panel view of the PTM.

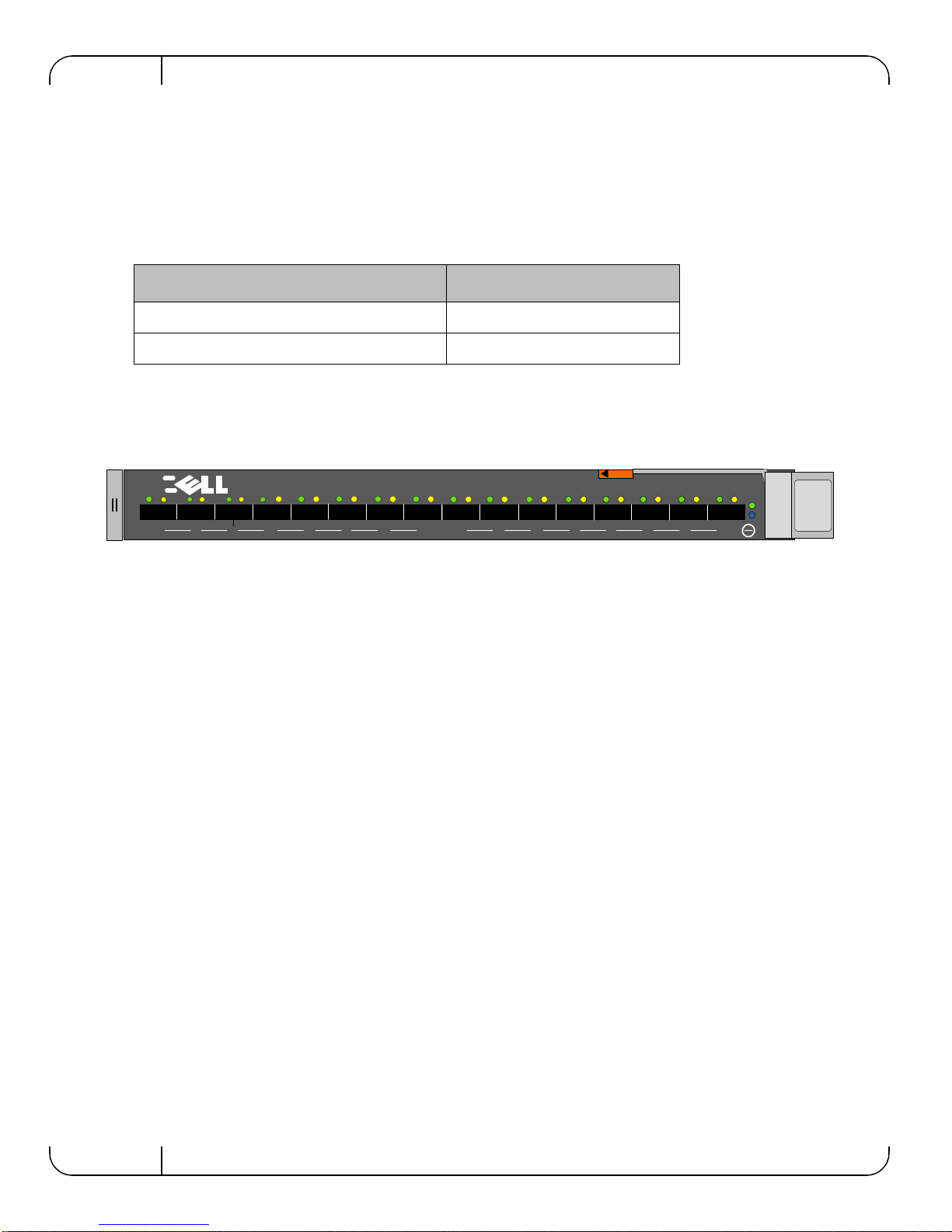

Figure 4: Dell 10Gb Ethernet Pass Through -k module Front Panel
2.3.1 10 Gigabit Ethernet SFP+ Modules
The PTM supports SFP+ modules for 10 Gigabit Ethernet, with 10GBASE-SR and 10GBASE-LR
PHYs. SFP+ modules must be approved for use with this PTM. Modules not approved may not
work. See Supported Cables and Media Types on page 19 for lists of approved Direct Attached
Copper cables (DACs) and optical modules.
2.3.2 Installation and Removal of Optical Transceiver Modules
Optical transceiver modules have a locking mechanism which can be opened or closed.
To insert the module into the cage:
1. Open the module’s locking mechanism.
2. Make sure that the male connectors on the module aligns with the female connector inside of
the cage. Also check that there is no dirt or foreign matter in the module or in the cage.
3. Insert the module into the adapter card module cage.
4. Close the locking Mechanism.
To remove the module from the cage:
1. Unlock the locking mechanism by opening the handle.
2. Pull the module out of the cage.
9
10
11 12 13 14 15 16
1 2 3 4 5 6 7 8
D
D
D10 Gb Ethernet Pass Through -k

Installation and Basic OperationRev 1.0
10
2.4 LED Indicators
2.4.1 System LEDs
The system status LEDs indicate whether the PTM is receiving power from the chassis, and the
state of the PTM.
There are two system LEDs on the end of the module. The LED indications and meanings are
explained in the figure and table below.
Figure 5: Indicator LEDs
Table 4 - PTM states and LED configurations:
2.4.2 Port LEDs
The PTM has two I/O LEDs per port. The I/O LEDs are located on the I/O panel. The green LED,
when lit, indicates that the driver is running and a valid physical connection between nodes exists.
If the green LED is blinking, it indicates a problem with the physical link. The yellow LED when
lit, indicates a valid data activity link, this is the logical link. The yellow LED illuminates when the
LED Module Status
Indication Status Power
OFF OFF OFF
OFF ON Boot in Progress
PTM not ready
Blinking Blue
BLINKING BLUE ON The CMC is identifying
the newly installed PTM
ON BLUE ON PTM is on and operating Normally
ON or BLINKING
Yellow ON FW update is in progress or Fault in System
Self-diagnosed
ON or BLINKING
Yellow OFF Fault in System CMC-detected
The IO Module is on and
ready when this LED is
green.
This LED can be blue or Yel-
low. A fault is indicated when
the Yellow LED is blinking.
See Table 4.

Dell -10GbE PTM Rev 1.0
11
network is discovered over the physical link. A valid data activity link without data transfer is des-
ignated by a constant yellow LED indication. A valid data activity link with data transfer is desig-
nated by a blinking yellow LED indication. If the LEDs are not active, either the physical link or
the logical link (or both) connections have not been established.
Figure 6: Physical and Logical Link Indications

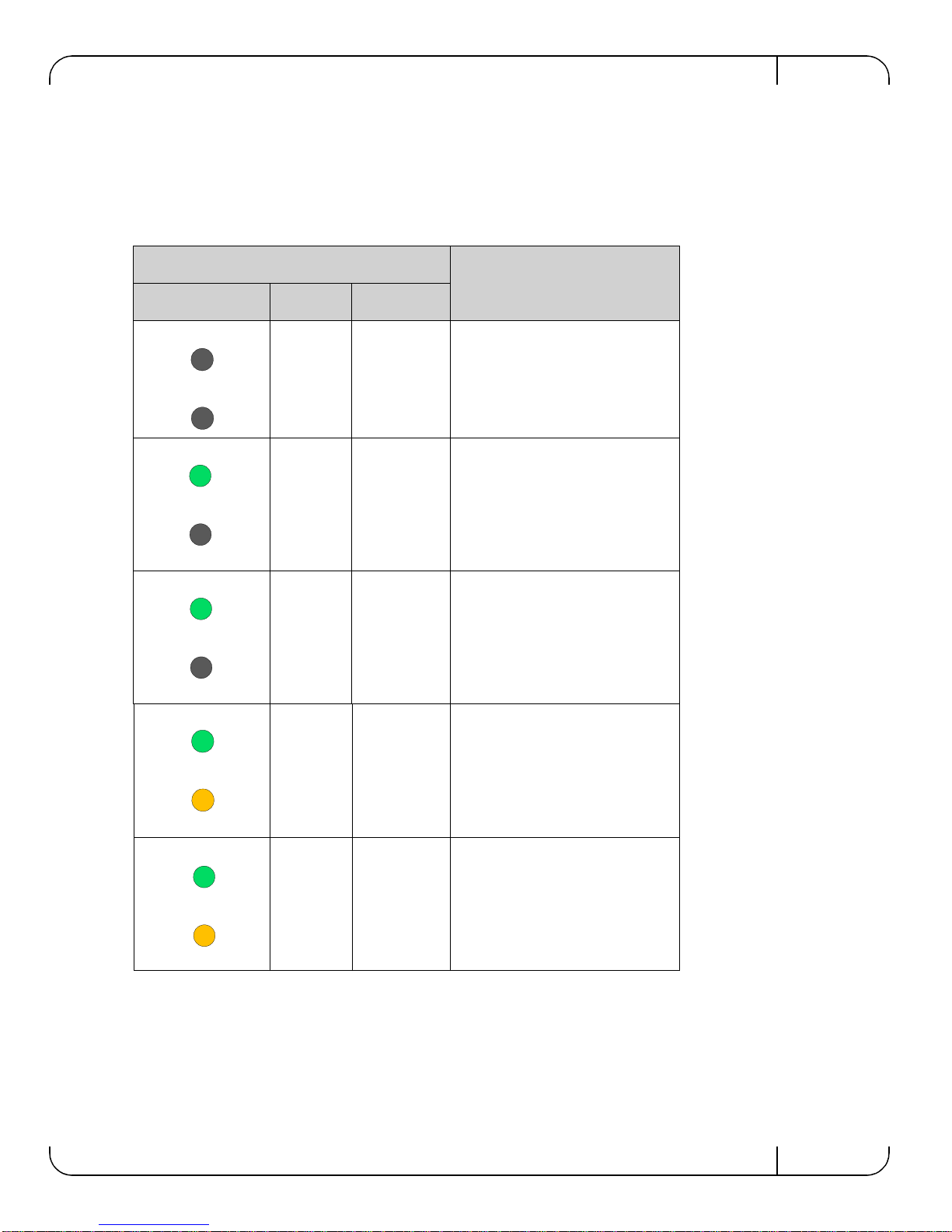

LED Port Status
Indication Green
Yellow
OFF OFF OFF
ON OFF Physical link up
No logical link
BLINKING OFF Problem with the physical link
No logical link
ON ON Physical link up
Logical link up, no data transfer
ON BLINKING Physical link up
Logical link up, with data transfer

Installation and Basic OperationRev 1.0
12
2.4.3 Installation Safety Warnings
1. Installation Instructions
2. Over-temperature
3. During Lightning - Electrical Hazard
4. Copper Direct Attached SFP+ Cable Connecting/Disconnecting
5. Equipment Installation
6. Equipment Disposal
7. Local and National Electrical Codes
8. Hazardous Radiation Exposure
Read all installation instructions before connecting the equip-
ment to the power source.
This equipment should not be operated in an area with an ambi-
ent temperature exceeding the maximum recommended: 40°C
(104°F). An air flow of 9CFM at this maximum ambient temper-
ature is required.
During periods of lightning activity, do not work on the equip-
ment or connect or disconnect cables.
Copper Direct Attached SFP+ cables are heavy and not flexible,
as such they should be carefully attached to or detached from the
connectors. Refer to the cable manufacturer for special warnings
and instructions.
This equipment should be installed, replaced, or serviced only
by trained and qualified personnel.
Disposal of this equipment should be in accordance to all
national laws and regulations.
This equipment should be installed in compliance with local and
national electrical codes.
Caution – Use of controls or adjustment or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.

Dell -10GbE PTM Rev 1.0
13
2.4.4 Mechanical Installation
2.4.4.1 To install the PTM
1. Make sure that there is no foreign matter or dirt in the back plane connector or in the chassis slot.
2. Push the PTM into the chassis. Make sure that the ears on the latch hook onto the latching bar.
3. Push the latch handle towards the orange latch release until it locks.
2.4.4.2 To remove the PTM
1. Push the orange latch release and the latch handle will pop out
2. Pull the handle out until it is 90 degrees from the front of the PTM.
3. Pull the PTM out of the chassis.
2.4.5 Cable Installation
All cables can be inserted or removed with the unit powered on. To insert a cable, press the con-
nector into the port receptacle until the connector is firmly seated. The GREEN LED indicator,
above each SFP+ port, will light when the physical connection is established (that is, when the unit
is powered on and a cable is plugged into the port with the other end of the connector plugged into
a functioning port). After plugging in a cable, lock the connector using the latching mechanism
particular to the cable vendor. When a logical connection is made the yellow light will come on.
When data is being transferred the yellow light will blink.
To remove, disengage the locks and slowly pull the connector away from the port receptacle. Both
LED indicators will turn off when the cable is unseated.
Cable lengths should be used which allow for routing horizontally around to the side of the chassis
before bending upward or downward in the rack.
CLASS 1 LASER PRODUCT and reference to the most recent laser
standards:
IEC 60825-1:2007/03 y EN 60825-1:2007
Always install and remove cables by pushing or pulling the cable and
connector in a straight line with the pass through module.
Cables, especially long copper cables, can weigh a substantial amount.
Make sure that the weight of the cable is supported on its own and not
hanging from the pass through module.

TroubleshootingRev 1.0
14
3 Troubleshooting
As soon as a pass through module is plugged in make sure that the status LED shows green.
The power LED for the pass through module shuts off:
1. Check that the there is adequate ventilation.
2. Make sure that there is nothing blocking the front or rear of the chassis and that the fan mod-
ules and ventilation holes are not blocked (especially dust over the holes).
3. If you find dust blocking the holes it is recommended to clean the fan unit and remove the dust
from the front and rear panels of the pass through module using a vacuum cleaner.
4. Remove and Reinstall the PTM.

Rev 1.0
16
Appendix A: Specifications
Table 5 - Dell 10Gb Ethernet Pass Through Module Specification Data
Physical Power and Environmental
Size:
W X D X H
Weight:
SerDes Speeds:
Connectors and
Cabling:
Optical Cable:
External Port Types:
Internal Port Types:
Air Flow:
24.7 cm X 28.5 cm X 2.9 cm
1.978kg
10 Gb/s per port
SFP+
Direct attached copper cables sup-
ported
Optical cables supported
DAC (SFP+)
KR
3CFM @ 30
o
C ambient temperature
9CFM @ 40
o
C ambient temperature
Maximum
Power:
Typ Power:
Temperature:
Humidity:
Altitude:
Shock:
Vibration:
Power through
SFP+:
Latency:
Latency (with-
out FEC)
Latency (with
FEC)
40.55W passive cables
56.73W active cables
34.41W passive cables
50.59W active cables
0° to 40° Celsius
10% - 90% non-condensing
max 1W per port
90ns
290ns
(FEC is an optional require-
ment in IEEE802.3ap).

Dell -10GbE PTM Rev 1.0
17
Protocol Support Regulatory Compliance
Ethernet:
Blade Servers to
PTM (Internal
Links):
QoS:
IEEE 802.3ae 10Gigabit Ethernet
support
IEEE 802.3ap Ethernet Operation
over Electrical Backplanes
8 Priority Queues for Ethernet
Safety:
EMC
(Emissions):
Environmental:
UL60950
C-UL to CAN/CSA 22 2
No.60950-1
TUV/GS to EN 60950-1,
Amendment A1-A4, A11
CB-IEC60950-1, all coun-
try deviations
CC 47CFR Part 15 Class A
EN 55022 Class A
ICES-003 Class A
VCCI Class A
AS/NZS CISPR 22 Class A
CISPR 22 Class A
EN 55024
EN 300386
CE
EU: IEC 60068-2-64: Ran-
dom Vibration
EU: IEC 60068-2-29:
Shocks, Type I / II
EU: IEC 60068-2-32: Fall
Test
Table 5 - Dell 10Gb Ethernet Pass Through Module Specification Data
Physical Power and Environmental

Rev 1.0
18
A.1: Mechanical Drawing with Dimensions
All dimensions are in centimeters.
Figure 7: Mechanical Drawing
23.023.0
24.7
2.9
5.5

Dell -10GbE PTM Rev 1.0
19
Appendix B: Supported Cables and Media Types
The following cables and optical modules are approved for the Dell PTM.
Table 6 - Direct Attached Cables (DAC)
DPN Reference Length (m) Speed Molex Custom PN
K585N SFP-H10GB-CU1M 1 10.3125Gbps 74752-9093
J564N SFP-H10GB-CU3M 3 10.3125Gbps 74752-9094
H603N SFP-H10GB-CU5M 5 10.3125Gbps 74752-9096
G840N SFP-H10GB-CU7M 7 10.3125Gbps 74752-9098
R620M 30 AWG 0.5 10.3125Gbps 74752-1051
G692K 30 AWG 1 10.3125Gbps 74752-1101
P540M 30 AWG 2 10.3125Gbps 74752-1201
Y984J 28 AWG 3 10.3125Gbps 74752-2301
N651M 28 AWG 4 10.3125Gbps 74752-2401
C855K 28 AWG 5 10.3125Gbps 74752-3501
Table 7 - Optical Modules
DPN Reference Speed Manufacturer
N743D ASSY,XCVR,SFP+,LC-LC,SFP+SR 10.3125Gbps Finisar
T307D ASSY,XCVR,SFP+,LC-LC,SFP+LR 10.3125Gbps Finisar
W365M ASSY,XCVR,SFP+,LC-LC,SFP+SR,AV 10.3125Gbps Avago
W373M ASSY,XCVR,SFP+,LC-LC,SFP+LR,AV 10.3125Gbps Avago

Rev 1.0
20
Appendix C: EMC Certification Statements
Table 8 lists the approved certification status per bridge in different regions of the world.
C.1: FCC Statements (USA)
Class A Statements:
§ 15.21
Statement
Warning! Changes or modifications to this equipment not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
§15.105(a)
Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable pro-
tection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio commu-
nications. Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
C.2: EN Statements (Europe)
EN55022 Class A Statement:
Table 8 - Bridge Certification Status
Pass through Module P/N FCC
Class
(USA)
EN
Class
(Europe)
ICES
Class
(Canada)
VCCI
(Japan) cTUVus KCC CB c-Tick
Dell 10GbE Pass Through -k A A A A
Warning: This is a class A product. In a domestic environment this product
may cause radio interference in which case the user may be required to
take adequate measuresmeasures.

Dell -10GbE PTM Rev 1.0
21
C.3: ICES Statements (Canada)
Class A Statement:
“This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.”
C.4: VCCI Statements (Japan)
Class A Statement:
C.4.1: Translation
"This is a Class A product based on the standard of the Voluntary Control Council for Interference
by Information Technology Equipment (VCCI). If this equipment is used in a domestic environ-
ment, radio interference may occur, in which case the user may be required to take corrective
actions."
C.5: KCC Certification (Korea)
Korea's "Regulation for Certification of Information and Communication Equipment," requires
EMC testing and certification for many electronic products. Korean EMC certifications are issued
by Radio Research Laboratory (RRL), which is organized under the Ministry of Information and
Communications (MIC). EMC testing includes electromagnetic emissions (EMI) and susceptibil-
ity (EMS). Certified equipment is labeled with the MIC mark and certification number.
