DeLonghi DMFPSII Quick guide

INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
distributed by
DèLonghi
Pty Ltd
OVENS

2
Dear Customer,
Thank you for having purchased and given your
preference to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They
will also provide a means by which to make full use of
the features offered by your appliance.
Please keep this booklet in a safe place. It may be
useful in future, either to yourself or to others in the
event that doubts should arise relating to its operation.
This appliance must be used only for the task it has
explicitly been designed for, that is for cooking
foodstuffs. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or
illogical use of the appliance or be faulty installation.
PRODUCT LABEL

3
CONTENTS
Precautions and recommendations................................................” 4
Installation......................................................................................” 5
Multifunction oven - Use and care ................................................” 12
Plurifunction oven - Use and care.................................................” 24
Cleaning and maintenance............................................................” 32
USING THE OVEN FOR THE FIRST TIME
You are advised to carry out the following operations:
■Furnish the interior of the oven.
■Switch the empty oven ON at maximum temperature for about two hours to
eliminate traces of grease and smell from the components.
■Clean the interior of the oven with a cloth soaked in water and neutral
detergent and dry thoroughly.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR
USE OF ELECTRICAL APPLIANCES
Use of any electrical appliance implies the necessity to follow a series of fundamental
rules. In particular:
■Never touch the appliance with wet hands or feet;
■Do not operate the appliance barefooted;
■The appliance is not intended for use by young children or infirm persons
with supervision
■Young children should be supervised to ensure they do not play with the
appliance
The manufacturer cannot be held responsible for any damages caused by improper,
incorrect or illogical use of the appliance.

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not damaged.
In case of doubt, do not use it and consult your supplier or a professionally qualified tech-
nician.
Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not
be left around within easy reach of children, as these may cause serious injuries.
■Do not attempt to modify the technical characteristics of the appliance as this
may become dangerous to use.
■Do not carry out cleaning or maintenance operations on the appliance without
having previously disconnected it from the electric power supply.
■After use, ensure that the knobs are in the off position.
■Do not allow children or other incapable people to use the appliance without
supervision.
■During use the appliance becomes hot. Care should be taken to avoid touching
heating elements inside the oven.
■Keep children away from the cooker when it is in use.
■Some appliances are supplied with a protective film on steel and aluminium parts.
This film must be removed before using the appliance.
■Fire risk! Do not store flammable material in the oven.
■Make sure that electrical cables connecting other appliances in the proximity of
the oven become entrapped in the oven door.
■Do not line the oven walls with aluminium foil. Do not place baking trays or the
drip tray on the base of the oven chamber.
■The manufacturer declines all liability for injury to persons or damage to property
caused by incorrect or improper use of the appliance.
■WARNING: Taking care NOT to lift the oven by the door handle.
■IMPORTANT NOTE: This appliance shall not be used as a space
heater, especially if installed in marine craft or caravans.
This oven has been designed and constructed in accordance with the following codes
and specifications:
AS/NZS 3350-1 General Requirements for Domestic electrical appliances
AS/NSZ 3350-2-6 Particular Requirements for Domestic electrical cooking appliances
AS/NSZ 1044 Electromagnetic Compatibility Requirements.
4

INSTALLATION
CAUTION:
■ This appliance must be installed in accordance with these installation
instructions.
■ This appliance shall only be serviced by authorized personnel.
■ This appliance is to be installed only by an authorised person.
■ Incorrect installation, for which the manufacturer accepts no responsibil-
ity, may cause personal injury of damage.
■ Always disconnect the oven from mains power supply before carrying
out any maintenance operations or repairs.
N.B. • The connection of the appliance to earth is mandatory.
• For connection to the mains, do not use adapters, reducers or
branching devices as they can cause overheating and burning.
If the installation requires alterations to the domestic electrical system call a qualified
electrician. He should also check that the socket cable section is suitable for the power
drawn by the appliance.
ELECTRICAL REQUIREMENTS
■The oven is supplied without a power supply plug and therefore if you are
not connecting directly to the mains, a standardized plug suitable for the
load must be fitted.
■Connection to the mains must be carried out by qualified personnel in
accordance with current regulations.
■The appliance must be connected to the mains checking that the voltage
corresponds to the value given in the rating plate and that the electrical
cable sections can withstand the load specified on the plate.
■The plug must be connected to an earthed socket in compliance with safety
standards.
■The appliance must be connected directly to the mains placing a two pole
switch with minimum opening between the contacts of 3 mm between the
appliance and the mains.
■The power supply cable must not touch the hot parts and must be
positioned so that it does not exceed 75°C at any point.
■Once the appliance has been installed, the switch or socket must always be
accessible.
■ If the supply cord is damaged it must be replaced by the
manufacturer or its Service Agent or a similarly qualified person in
order to avoid a hazard.
5

REPAIRS
REPLACING THE POWER SUPPLY CABLE
■Unhook the terminal board cover by inserting a screwdriver into the two
hooks “A” (fig. 2).
■Open the cable gland by unscrewing screw “F” (fig. 3), unscrew the
terminal screws and remove the cable.
■The new supply cable, of suitable type and section, is connected to the
terminal board following the diagram fig. 1.
FEEDER CABLE SECTION TYPE HO5RR-F
230 V 3 x 1,5 mm2
A
F
230 V
E
N
L1(L )2
Figure 2 Figure 3
Figure 1
6

S1S2
F1 PR
1
6
4
9
3
8
2
7
5
10
11
C
G
S
V
CIR
TM
CF
N/7
1
1a
L/8
LF
TL
T
N
L
M
Cod. 1131279
1a
6a
4a
9a
3a
8a
2a
7a
5a
10a
11a

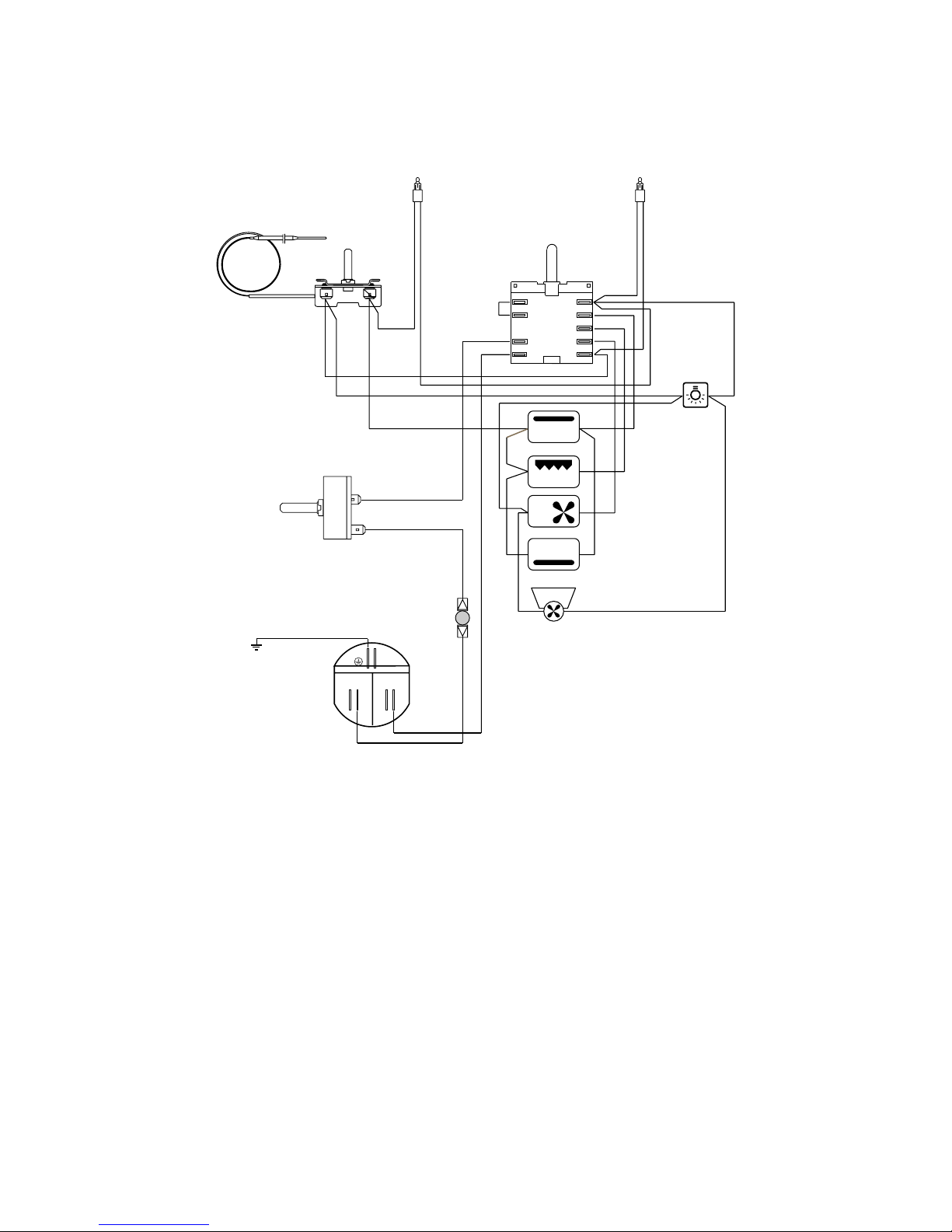

ELECTRIC DIAGRAM - multifunction OVENS Figure 4
F1 Oven switch
TM Oven thermostat
TL Thermal overload
PR Electronic programmer
LF Oven lamp
S1 Thermostat pilot lamp
S2 Line pilot lamp
C Top element
G Grill element
S Bottom element
V Fan
CIR Circular element
CF Cooling fan
M Terminal block
T Earth connection 7

ELECTRIC DIAGRAM - plurifunction OVENS
1
1a
4
4a
3
3a
2
2a
5
5a
CC
LF
C
G
S
V
TL
TE
S1S2
F1
TCF
N
L
M
Cod. 1131332
Figure 5
F1 Oven switch
TE Oven thermostat
LF Oven lamp
CC Oven cut-off
S1 Line pilot lamp
S2 Thermostat pilot lamp
TL Thermal overload
M Terminal block
C Top element
G Grill element
S Bottom element
CF Cooling fan
V Fan
T Earth connection
8

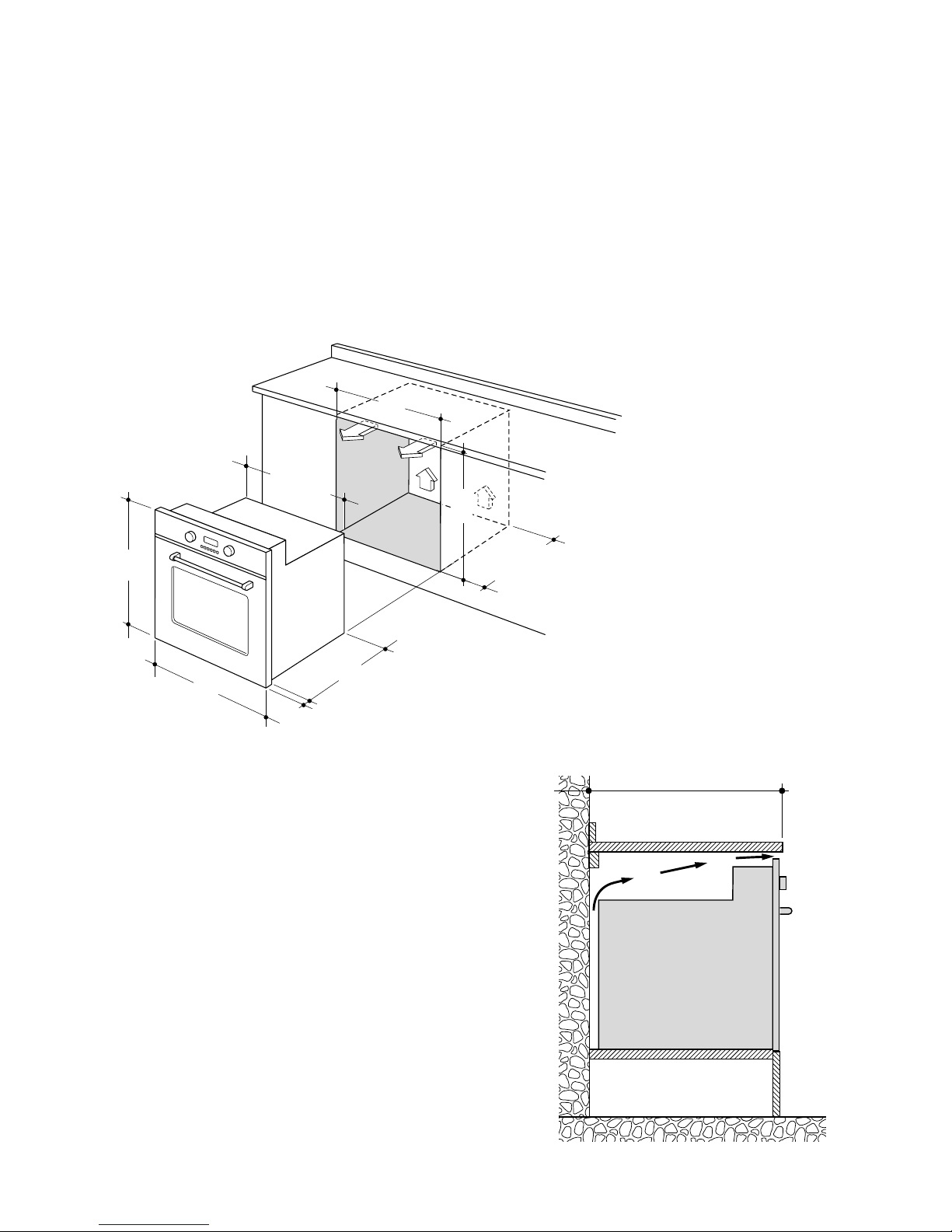

FITTING THE OVEN INTO A
BASE
The space available should be of the
dimensions shown in the figure 6.
Arrangements should be made for an
adequate supply of the air to the oven
to avoid overheating (fig. 7).
560
550 min
591
594
594
540
20
536 min
600
The walls surround-
ing the oven must
be made of heat-
resistant material.
Both the veneered
plastic and the adhe-
sive used must be
resistant to tempera-
tures of 120°C in
order to prevent
unsticking and defor-
mation.
FITTING REQUIREMENTS
WARNING: Taking care NOT to lift the oven by the door handle.
The oven must be built-in in a standard module of furniture of 60 cm width and
depth.
It is to be fit up in a module having the clearance as shown in the pictures.
On the lower side, the oven must lay on supports standing the oven weight.
The ovens are secured by four screws that pass through the surround. They must
locate firmly and squarely in the edges of the cabinet or add panels to achieve a
secure location.
Figure 6
Figure 7
9

560
50
585
FITTING THE OVEN INTO A
COLUMN
The cabinet should have the
dimensions as per fig. 8.
Furthermore it is necessary that the
oven is provided with a chimney as per
fig. 9.
If the column unit reaches the ceiling
an outlet must be provided through
which air can flow to the outside
; ;
50 mm
50 550
Figure 8
Figure 9
10

11
OVEN DOOR
LOWER TRIM
AIR FLOW
IMPORTANT:
Please take extra care not to damage the lower trim of the oven.
Ensure the oven sits on wooden blocks or similar supports when it is removed from
the carton as shown in above diagram. This will prevent any damage to the lower
trim.
Should the lower trim become damaged, straighten the trim and ensure the oven
door opens fully without obstruction from the lower trim.
After installation check the lower trim is still undamaged.
The space between the bottom of the door & the lower trim is important to allow
proper air circulation into the oven.
The oven door should be opened slowly to it’s fully open position ensuring there is
adequate clearance between the bottom of the door and the lower trim.
The manufacturer does not accept responsibility for any damage to the oven
resulting from incorrect installation.
Figure 10

USE and CARE
CAUTION:
■This appliance must be used only for the task it has explicitly been designed
for, that is for domestic cooking of foodstuffs. Any other form of usage is to
be considered as inappropriate and therefore dangerous.
■Do NOT place combustible materials or products on this appliance at any
time.
Figure 12
MULTIFUNCTION OVEN
SLIDING SHELVES
■They facilitate the insertion and removal of shelves during cooking. These
shelves support all accessory trays and are dishwasher safe.
■The shelves stop when pulled out to the maximum position.
■The sliding shelves can be removed easily by unscrewing the fixing screws
and detaching them from the oven walls.
■Removing the sliding shelves improves access to the oven ceiling for clean-
ing (after the grill heating element has been lowered).
12
Figure 10

USING THE OVEN FOR THE FIRST TIME
■Slide in the catalytic liners and sliding shelves on the oven wall as in Fig.
11.
■Slide in the grease filter on the back of the oven as in Fig. 14.
■Position the shelf and tray on the sliding shelves (fig. 13).
■To eliminate traces of grease and smell from the components it is necessary
to pre-heat the oven at the maximum temperature.
•For 60 minutes in the position, for 30 minutes in the position and
for another 15 minutes in the position.
■Slide off the sliding shelves and the catalytic liners to the oven wall as in
Fig. 11. The grill is secured to the rear wall of the oven on a hinge system
that allows it to be lowered to allow proper access when cleaning the oven
ceiling (fig. 12).
■Clean the inside of the oven with a cloth soaked in water and neutral
detergent and dry thoroughly.
GREASE FILTER
■A special screen is provided at the back of the oven to catch grease parti-
cles, mainly when meat is being roasted (fig. 14).
■When baking pastry etc. this filter should be removed.
■Always clean the filter after cooking as any solid residues on it might
adversely affect the oven performance.
Figure 14
Figure 13
13

14
A
U
T
O
P

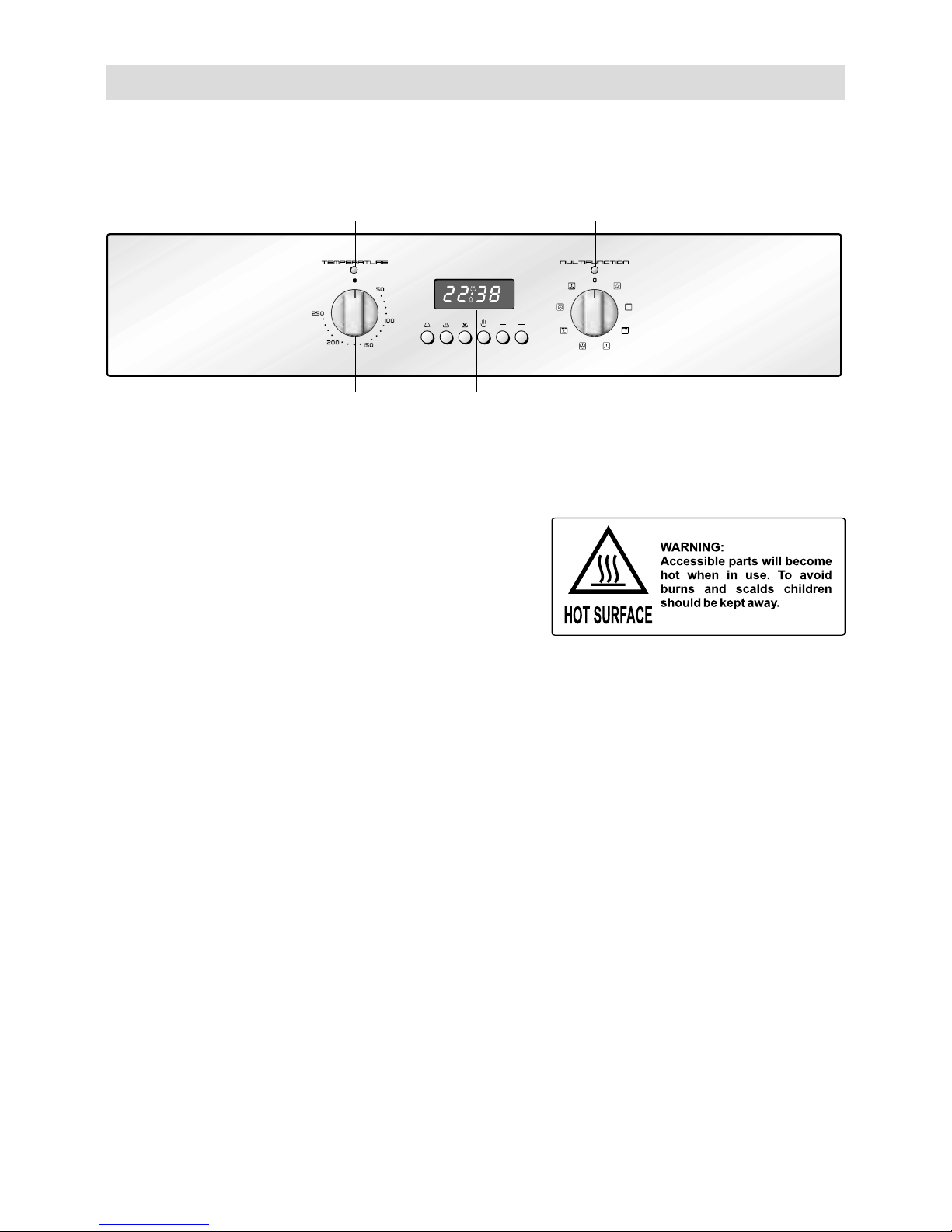

Digital electric
programmer
Cooking with multifunction oven
Thermostat
Power on light
Temperature light
Function selector
Figure 15
GENERAL FEATURES
With your new Multi-Function oven it is possi-
ble to cook a variety of food using the 7 dif-
ferent cooking functions.
These 7 functions are obtained using a com-
bination of the 4 different heating elements
plus a defrost function using the fan only.
OPERATING PRINCIPLES
Heating and cooking in the MULTI-FUNCTION oven are obtained in the following
ways:
a. by normal convection
The heat is produced by the upper and lower heating elements.
b. by forced convection
The fan draws in air contained within the oven housing at the rear of the oven
and forces it over the circular heating element. The hot air envelops the food in
the oven givin faster and more even cooking before it is drawn back into the
housing to repeat the cycle. It is possible to cook several dishes simultaneously
due to the even distribution of heat within the oven.
c. by forced semi-convection
The heat produced by the top and bottom heating elements is distributed
throughout the oven by the fan.
d. by radiant heat
The food is grilled by the infra red grill element.
e. by radiant heat and ventilation
The food is grilled by the grill element is distributed throughout the oven
f. by ventilation
The food is defrosted by using the fan only function without heat.

15
TRADITIONAL CONVECTION COOKING
The upper and lower heating elements come on. The heat being dispersed by
natural convection. The temperature range must be set between 50°C and 250°C
using the thermostat.
The oven must be preheated before cooking.
Ideal for:
Food that requires the same degree of cooking both inside and out, for example
roasts, spare pork ribs, meringues etc.

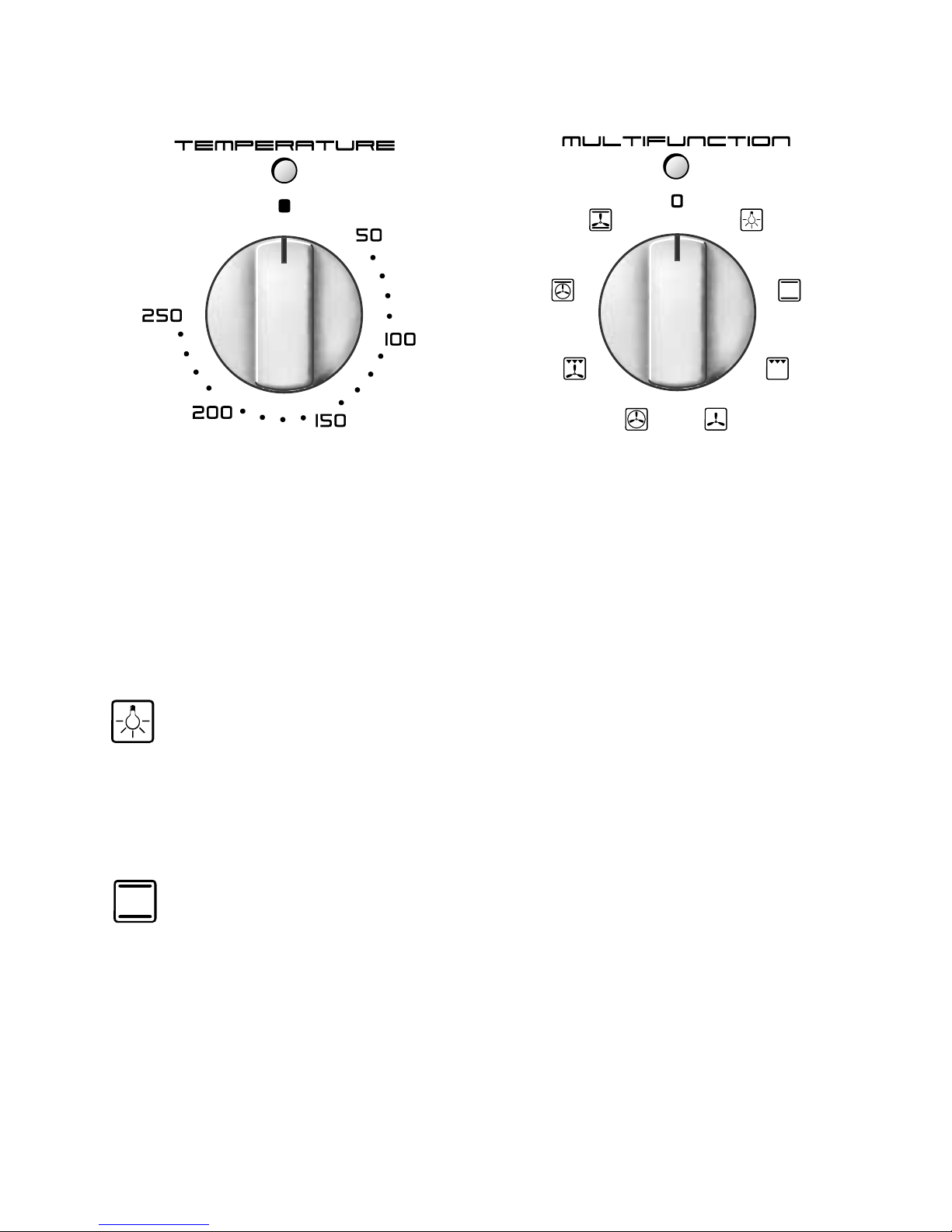

FUNCTION SELECTOR KNOB
Rotate the knob clockwise to set the
oven for one of the following func-
tions.
OVEN LIGHT
By setting the knob to this position, only the oven light comes on.
It remains on in all the cooking modes.
THERMOSTAT KNOB
This only sets the cooking temperature
and does not switch the oven on.
Rotate clockwise until the required
temperature is reached (from 50 to
250°C).
Figure 16

DEFROST
Only the oven fan comes on. Use with the thermostat knob set to “”- other tem-
perature have no effect. The food is thawed by ventilation without heating.
Ideal for:
Quick thawing of frozen foods; one kg requires approximately 1 hour.
Thawing times vary according to the quantity and type of food to be thawed.
GRILLING
The infrared grill element at the top of the oven comes on. The heat is dispersed by
radiation.
Use with the oven door closed and the thermostat knob to position between 50°C
and 200°C max.
For cooking hints, see the chapter “USE OF THE GRILL”.
Recommended for:
Intense grilling, browning, cooking au gratin and toasting etc.
FAN GRILL
Both the grill and the fan come on. Most of the cooking is done by grilling and then
the hot air circulated around the oven. The oven door should be kept closed.
The temperature can be set between 50°C and 200°C max.
The oven should be preheated for 5 minutes before cooking. For further cooking
hints see “GRILLING AND COOKING AU GRATIN”.
Ideal for:
Quick sealing in of food juices for example such as hamburger, chicken pieces, chops.
FAN FORCED
The circular element and fan come on. The heat is dispersed by forced convection
and the temperature can be varied to between 50°and 250°C via the thermostat
knob. The oven does not require preheating.
Recommended for:
Food which has to be well-cooked outside and soft or rosy inside, for example
lasagne, lamb, roast beef, whole fish etc.
16

MAINTAINING TEMPERATURE AFTER COOKING OR
SLOWLY HEATING FOODS
The upper element, the circular element and the fan come on.
The heat is circulated by forced convection with greater intensity in the upper part.
The temperature can be set to between 50°and 140°C via the thermostat knob.
Recommended for:
Keeping food warm after any type of cooking. Slow heating of cooked food.
MULTI-FUNCTION
The upper and lower heating elements come on and the fan come on - the heat
from the element being circulated by the fan.
The temperature range can be set to between 50°and 250°C using the thermo-
stat.
Ideal for:
Large bulky quantities of food that require even cooking throughout for example
large roasts, turkey, roast turkey, cakes etc.
COOKING ADVICE
Remember to keep children away from the appliance when you use the grill or oven,
since these parts become very hot.
STERILIZATION
Sterilization of foods to be preserved, in full and hermetically sealed jars, is done in
the following way:
a. Set the switch to position .
b. Set the thermostat knob to position 185 °C and preheat the oven.
c. Fill the dripping pan with hot water.
d. Set the jars onto the dripping pan making sure they do not touch each other and
the door and set the thermostat knob to position 135 °C.
When sterilization has begun, that is, when the contents of the jars start to bubble,
turn off the oven and let cool.
Check your recycle book for full instructions.
WARMING BREAD
Set the switch to position and the thermostat knob to position 150°C.
Bread becomes fragrant again if wet with a few drops of water and put into the
oven for about 10 minutes at the highest temperature.
17

USE OF THE GRILL
Preheat the oven for about 5 minutes with the door closed.
Introduce the food to be cooked, positioning the rack as close to the grill as possi-
ble.
The dripping pan should be placed under the rack to catch the cooking juices
and fats.
ROASTING
To obtain classical roasting, it is necessary to remember:
■that it is advisable to maintain a temperature between 180°and 200 °C.
■that the cooking time depends on the quantity and the type of foods.
GRILLING AND “AU GRATIN”
As the hot air completely covers the food to be cooked, grilling may be done with
the food on the rack in the oven. The knob should be switched to position .
The thermostat should be set to 50°C and 200°C max and the oven pre-heated.
The food should be placed on a rack in the oven for the required cooking time.
Adding a few dabs of butter before the end of the cooking time gives the golden
“au gratin”effect.
SIMULTANEOUS COOKING OF DIFFERENT FOODS
The oven set on position can cook several different foods together. Foods as
diverse as fish and cakes can be cooked together without the cross transference of
flavours. This is because the fats and cooking smell that would normally be
deposited on the different foods are oxidised and are not absorbed by the foods.
The cooking temperature of the foods, however must be within 20°-25°C of each
other. The food with the longest cooking time will be put into the oven first and
the other foods are added as necessary according to their cooking times.
WARNING: Accessible parts may become hot when the grill is used.
Children should be kept away.
18

A
U
T
O
P
Figure 17
Electronic programmer
The electronic programmer is a device which groups together the following func-
tions:
■24 hours clock with illuminated display
■Timer (up to 23 hours and 59 minutes)
■Program for automatic oven cooking
■Program for semi-automatic oven cooking

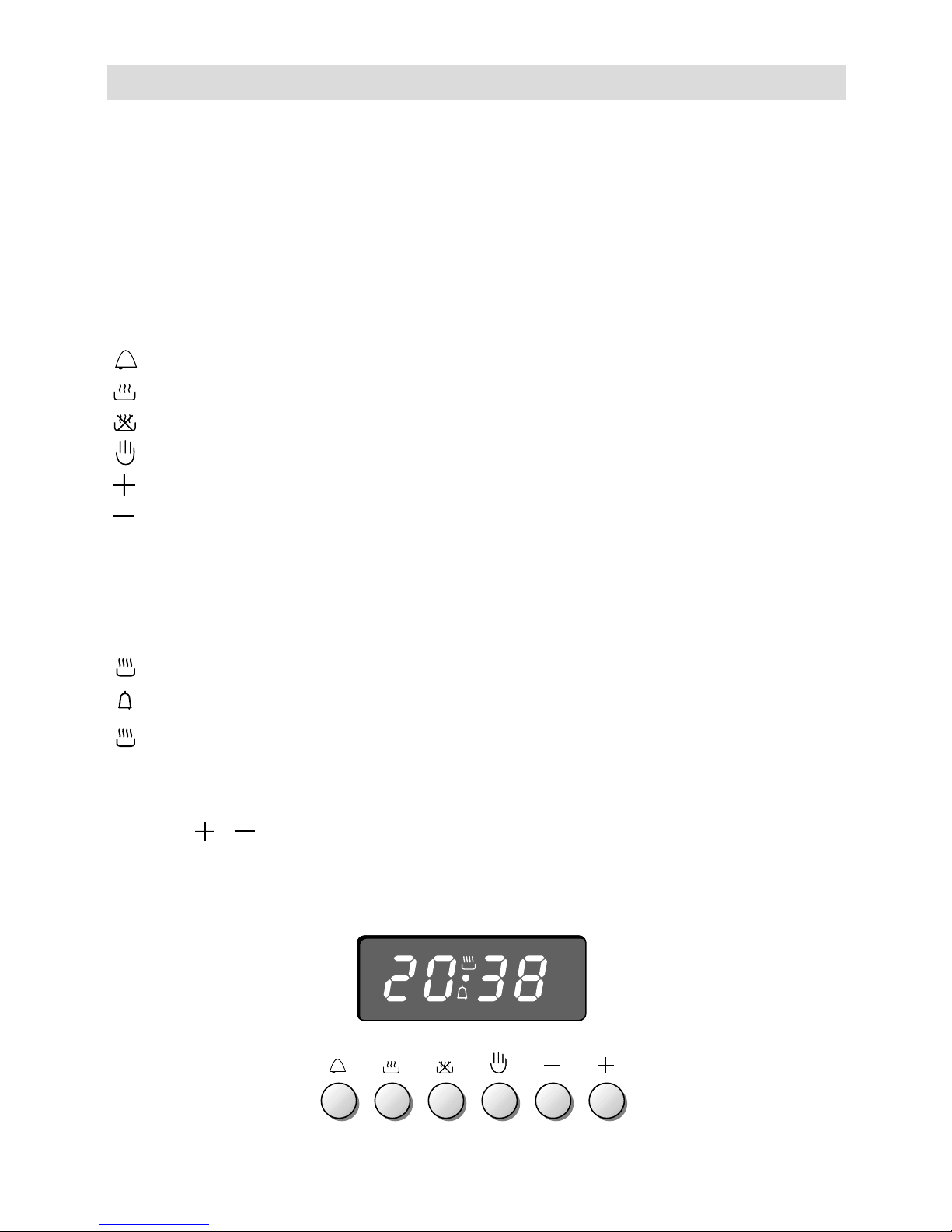

Description of the buttons:
Timer
Cooking time
End of cooking time
Manual position; and cancels the set program
Plus function to increase the number shown on the display
Minus function to decrease the number shown on the display or to change the
buzzer frequency
Description of the illuminated symbols:
AUTO -flashing - Programmer in automatic position but not programmed
AUTO - always illuminated - Programmer in automatic position with program inserted.
Automatic cooking taking place
Timer in operation
and AUTO - flashing - Program error.
(The time of day lies between the calculated cooking start and end time).
Note:
Select a function by the respective button and, in 5 seconds, set the required time
with the / buttons (“one-hand”operation).
A power cut will reset the clock to zero and cancels the set programs.
19

Figure 18
Figure 19

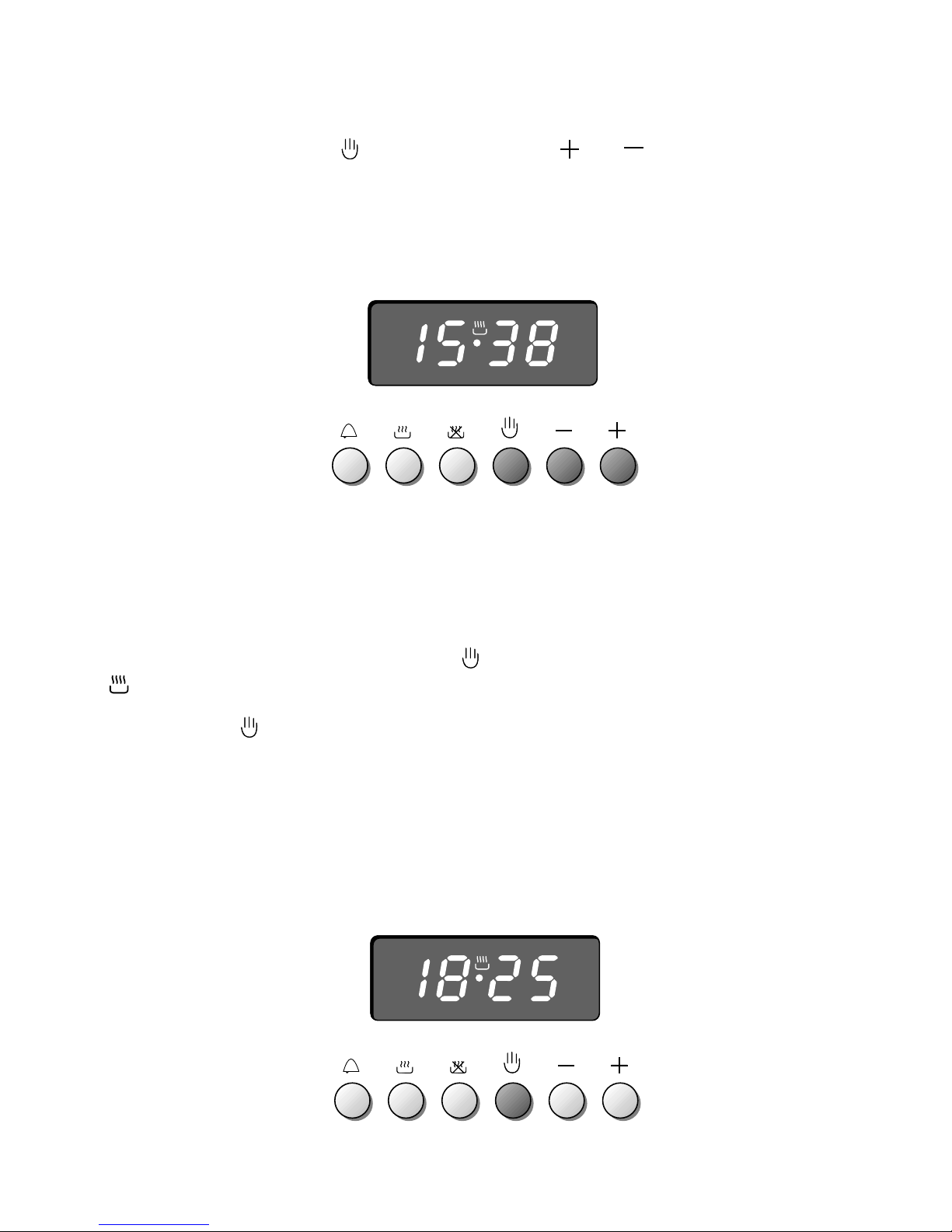

ELECTRONIC CLOCK (fig. 18)
The illuminated figures on the clock represent hours and minutes on 24 hour clock.
When first connected, or after a power failure, three zeros will flash on the display.
To set the time press the button and then the or
Please note that changing the hour button deletes any cooking program.
NORMAL COOKING WITHOUT THE USE OF THE PROGRAMMER
To manually use the oven without the aid of the programmer, it is necessary to cancel
the flashing AUTO by pushing the button (
AUTO will be switched off and the symbol
will come on - Fig. 19).
Attention: If the AUTO symbol is on, a cooking program has already been programmed.
By pressing the you can cancel the set program & switch to manual mode.
If the oven is switched on, you must manually switch it off.
20
