Instruction Manual
1. Safety Instructions
•L frame (PML) and Open frame (PMB) options are to be manufactured by Delta and not to be
reconfigured by users from the standard enclosed configuration.
•To ensure sufficient convection cooling, always maintain a safety distance of ≥20mm from all
ventilated surfaces while the device is in operation.
•The device is not recommended to be placed on low thermal conductive surface like plastic.
•Ensure the mounted device is kept at ≥ 4mm safety distance at all sides from other components
and equipments (Refer to Fig. 5).
•Enclosure of the device can become very hot depending on the ambient temperature and load of
the power supply. Do not touch the device while it is in operation or immediately after power is
turned OFF. Risk of burning!
•Do not touch the terminals while power is being supplied. Risk of electric shock.
•Prevent any foreign metal, particles or conductors from entering the device during installation. It
may cause electric shock, safety hazard, fire or product failure.
•The power supply must be mounted by metal screws onto a grounded metal surface. It is highly
recommended that the Earth terminal on the connector be connected to the grounded surface.
For Open Frame type of installation, ensure the power supply’s Protective Earthing (Marked “PE”
in Fig. 5) point is connected to the system’s Protective Earthing (PE). It is recommended that the
input FG (Fig. 1 location 1 ) be connected to the system’s PE.
•Warning (For Standard Terminal Block and Front Face Terminal Block products): When connecting
the device, secure Earth connection before connecting L and N. When disconnecting the device,
remove L and N connections before removing the Earth connection.
2. Device Descriptions
Refer to Fig. 1.:
1 Input & Output terminal block connector
2 DC voltage adjustment potentiometer
3 DC OK control LED (Green)
3. Installation of the Device
Refer to Fig. 2.:
A Mounting holes for the power supply (device). The device shall be mounted on minimum of 2
mounting holes using M3 screw of minimum 5mm length.
B This surface belongs to customer’s end system or panel where the device is mounted.
C Connector
•PM☐-☐V☐W1AA / PM☐-☐V☐W1AG: Use flexible cable (stranded or solid) of AWG No. 22-12.
User should calculate and select the suitable wire specification (type/quantity/diameter) according to
actual output current. The torque at the Connector shall not exceed 13Kgf.cm. The insulation
stripping length should not exceed 0.275” or 7mm (Refer to Fig. 3).
•PM☐-☐V☐W1AH: Use flexible cable (stranded or solid) of AWG No. 28-18. Please refer to
Table 1 for the recommended Housing and Terminal.
Connector (Board Mounting) Housing Terminal
Input (JST) B3P5-VH(LF)(SN) VHR-5N SVH-21T-P1.1
Output (JST) B2P3-VH(LF)(SN) VHR-3N
4. Installation of Mounting Accessories
•For PMT and PML Series (Refer to Fig. 4): Only use M3 screw ≤ 3mm through the base mounting
holes. This is to keep a safe distance between the screw and internal components. Recommended
mounting tightening torque: 4~7Kgf.cm.
•For PMB Series: (Refer to Fig. 5): The mounting holes on any mounting accessories for the device
should be kept at a diameter of < 6.5mm. This is to ensure sufficient safety distance between the
mounting screw and the components around the mounting holes on the PCBA. Therefore, the
diameter of the mounting screw should be kept at < 6.5mm.
☐
☐
☐
☐
☐
☐
D1 = 4.0 mm Min.
D2 = 6.0 mm Min. (For PMB Series)
Fig. 5. Assembly Reference
Standard Terminal Block
•PMT-
V
W1AG:
Front Face Terminal Block
•PMT-
V
W1AH:
Harness Connector
•PML-
V
W1AA/AG/AH:
L Frame (without cover)
•PMB-
V
W1AA/AG/AH:
Open Frame (without cover
and chassis)

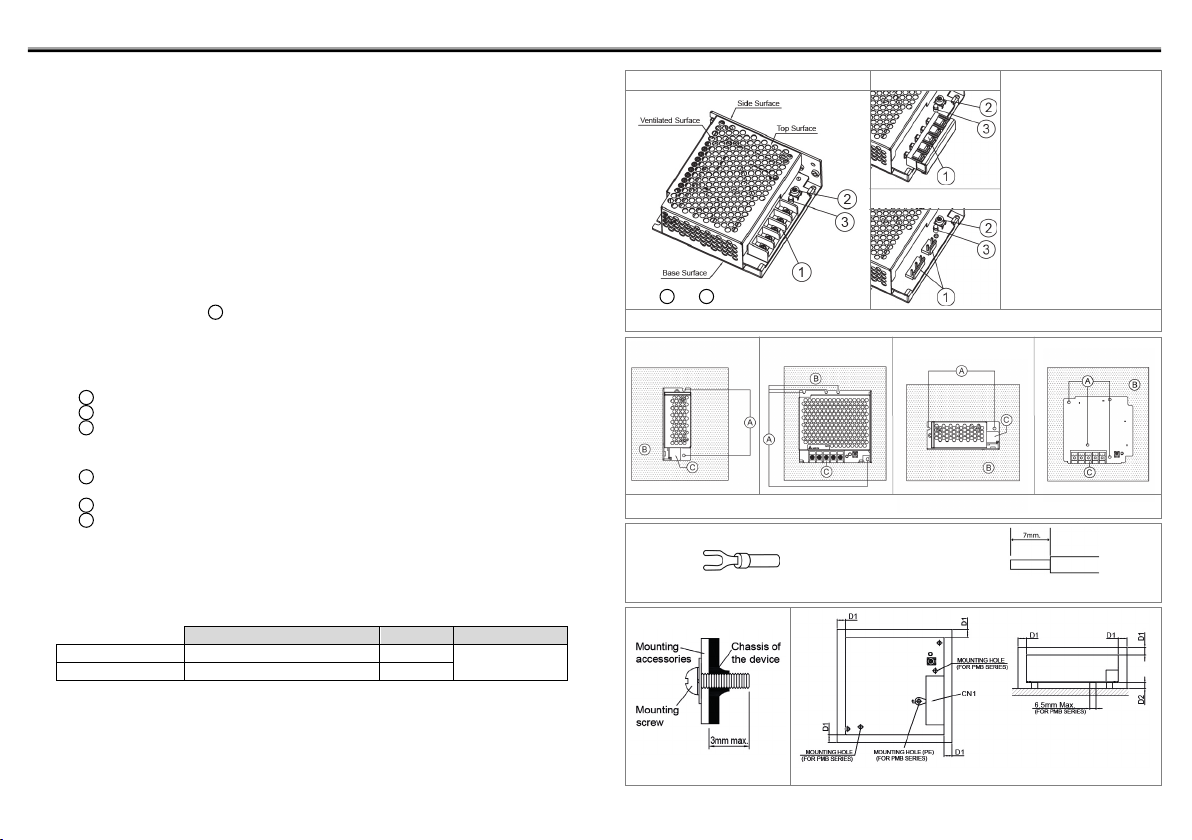

Fig. 1. Device Descriptions
Note: 2 and 3 are swapped for some models.
Fig. 2. Mounting Orientation
Side Mounting (Horizontal)
