Delta Thermie HD-FL Series User manual

DELTA THERMIE
Users Manual
Aluminium Radiator
HD-FL Serie
Please read this manual carefully before use

IMPORTANT SAFEGUARDS
When using an electrical appliance, basic safety precautions should
always be observed, including the following:
READ ALL INSTRUCTIONS BEFORE USING
WARNING: To reduce the risk of fire, electrical shock, or
injury to person:
1. The product is for household use only.
2. Connect the appliance to single-phase AC supply of the voltage
specified on the rating plate.
3. In order to avoid overheating do not cover the heater.
4. Never leave the heater unattended while it is in use. Always turn
the product to the OFF position and unplug it from the electrical
outlet when not in use.
5. Extreme caution is necessary when any heater is used by or near
children, invalids or elderly person and whenever the heater is left
operating and unattended.
6. The heater must not be located immediately below an electrical
Socket-outlet.
7. Do not run cord under carpeting and do not cover cord with
throw rugs, runners or the like. Arrange cord away from traffic area
and where it will not be tripped over.
8. Do not operate the heater with a damaged cord or plug, or after
the heater malfunctions, has been dropped, or damaged in any
manner.
9. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or a similarly qualified person in
order to avoid a hazard.
10. Avoid the use of an extension cord as this may overheat and

cause a risk of fire.
11. Use the heater in a well-ventilated area. Do not insert or allow
objects to enter any ventilation or exhaust opening. To prevent a
possible fire, do not block air intakes or exhaust openings in any
manner. Do not use on soft surfaces, like a bed, where openings
may become blocked. Use the heater on flat, dry surfaces only.
12. Do not place this heater near flammable materials, surfaces or
substances, as there may be a risk of fire. Keep the above
flammable materials, surfaces or substances at least 1m from the
front of the product and keep them away from the sides and rear.
13. Do not use the heater in any areas where petrol, paint or other
flammable liquids are stored e.g. Garages or workshops as a hot,
arcing or sparking parts inside the heater.
14. Don’t use this heater in the immediate surroundings of a bath, a
shower or a swimming pool with floor standing mode. Never locate
the heater where it may fall into bathtub or other water container.
15. Never touch the heater with wet hand. The heater should be
installed so that can not be touched by a person using a bath or
shower.
16. This heater is hot when in use. To avoid burns and personal
injury, do not let bare skin touch hot surfaces.
17. Before moving the heater, please must unplugged it and let it
cool down for 15 minutes. If provided, use handles when moving
the product.
18. Be sure that no other appliances are in use on the same
electrical circuit as your product as an overload can occur.
19.This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a
person responsible for their safety.
20.Children should be supervised to ensure that they do not play
with the appliance.
21. This heater is filled with a precise quantity of special oil.
22. Repair requiring opening of the oil container are only to be
made by the manufacturer or his service agent who should be
contacted if there is an oil leakage.
23. Regulations concerning the disposal of oil when scrapping the
appliance have to be followed.
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
SPECIFICATIONS
MODEL NO NET SIZE RATED VOLTAGE RATED POWER
HD-FL-4 490X590X80mm ~230V/50Hz 600W
HD-FL-5 570X590X80mm ~230V/50Hz 900W
HD-FL-7 730X590X80mm ~230V/50Hz 1200W
HD-FL-9 890X590X80mm ~230V/50Hz 1500W
HD-FL-11 1050X590X80mm ~230V/50Hz 1800W

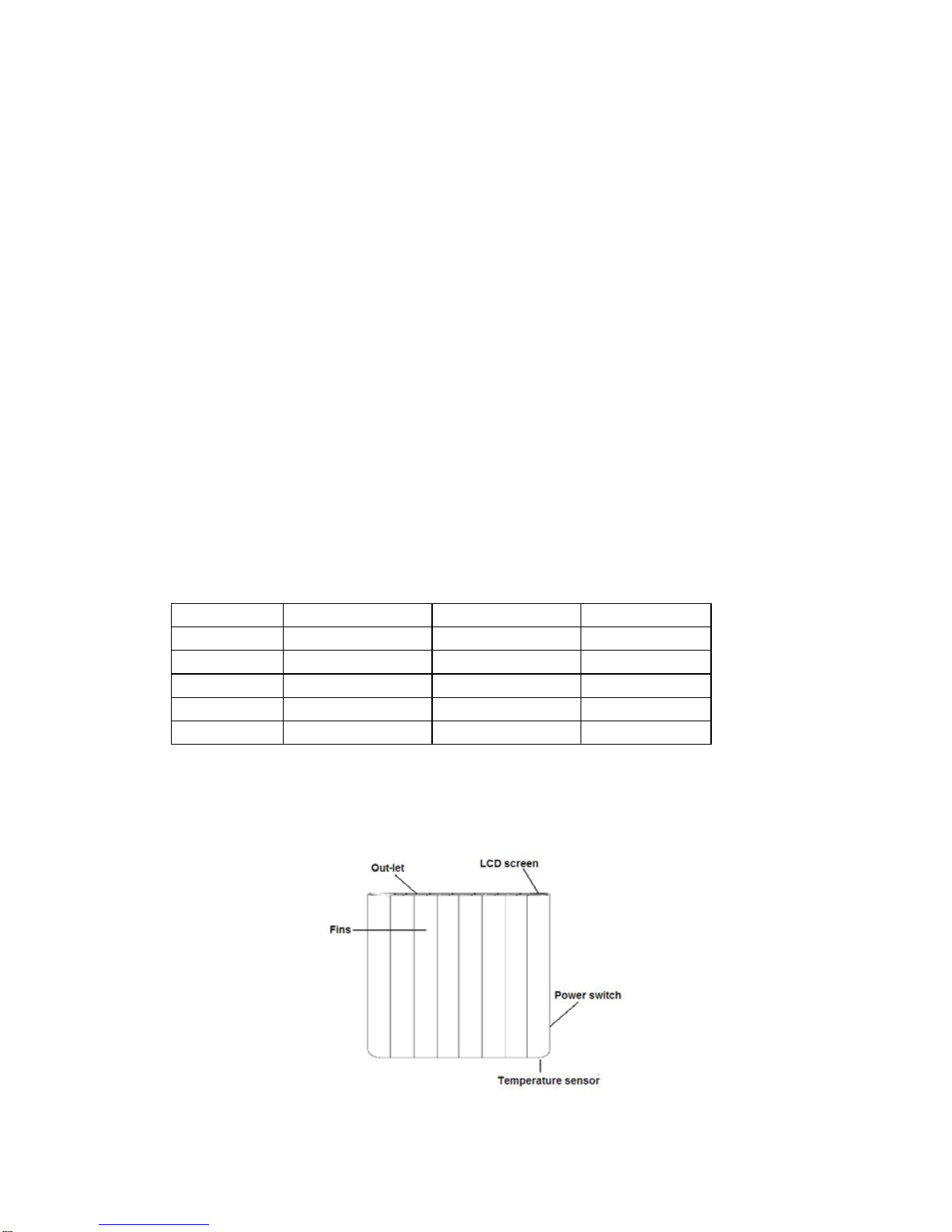

STRUCTURE AND PARTS

CHARACTERISTIC
1. 1 heat setting
2. Over heating protection
3. With digital LCD
4. Room temperature setting
5. Room temperature sensor
6. Digital clock, digital week calendar
7. Multi-running mode:
daily program mode, weekly program mode, free use mode
8. Anti-frost function
9. Wall-mount use
INSTALLATION
Used as wall-mounted:

(1) Drill holes on the wall according to the picture.
Warning: Be sure to keep the distance between the
heater and floor, wall and so on accordingly.
(2) Fit the fasten tube in the holes.
(3) Fit the up-hook on the wall with screws.
(4) Hang the unit on the up-hook.
(5) Fit the bottom hook between 2 fins at the bottom of unit.
(6) Fasten he bottom hook with screw.
The distance of hanging hole is as follows:
Model HD-FL-4 HD-FL-5 HD-FL-7 HD-FL-9 HD-FL-11
L(mm) 160 240 400 560 720

INSTRUCTIONS FOR USE
Warning：Before using the heater make sure that it is
mounted tightly on the wall. Damage may occur if it is
placed on an incline or decline.
The control system is with following functions:
1. With digital LCD to let you know the working situation of the
unit.
2. Room temperature setting to enable you to set the desired
room temperature.
3. Room temperature sensor to control the heating of the unit
according to your desired room temperature.
4. Digital clock, digital week calendar.
5. Multi-running mode:
daily program mode, weekly program mode, free use mode
6. Anti-frost function
Control panel and LCD screen
Control panel:
There are total 5 buttons on the control panel as follows:
------Power stand by switch
------Date and time settings; Timer settings; Shift the working
mode
------Select running mode;
Set program;

------Increasing;
------Decreasing;
Screen:
Clock, Date, Program name,
Target temperature, Comfort, Economic,
Anti-frost, Stand by, buttons lock, heating,
program setting, timer, program contents,
solid time mark
Rationale:
There are 3 running modes: free , daily ~ and
weekly .
Free use mode( ): It will include normal mode and timer
mode ;
Daily mode( ~ ): There are total 9 daily programs.

Every program is combined with 3 working modes:
comfort( and ), economic( and )and
anti-frost( and empty).
every day(24hours) is divided into 24 segments evenly. Every
segments will be filled in with one working mode to combine a daily
program. All the setting for daily program will be kept in memory by
the unit. If a daily program is selected, the unit will repeat this
program every day.
Weekly mode:
Selecting one daily program ( from daily programs P1-P9) for every
day in a week to combine a weekly program.
How to use:

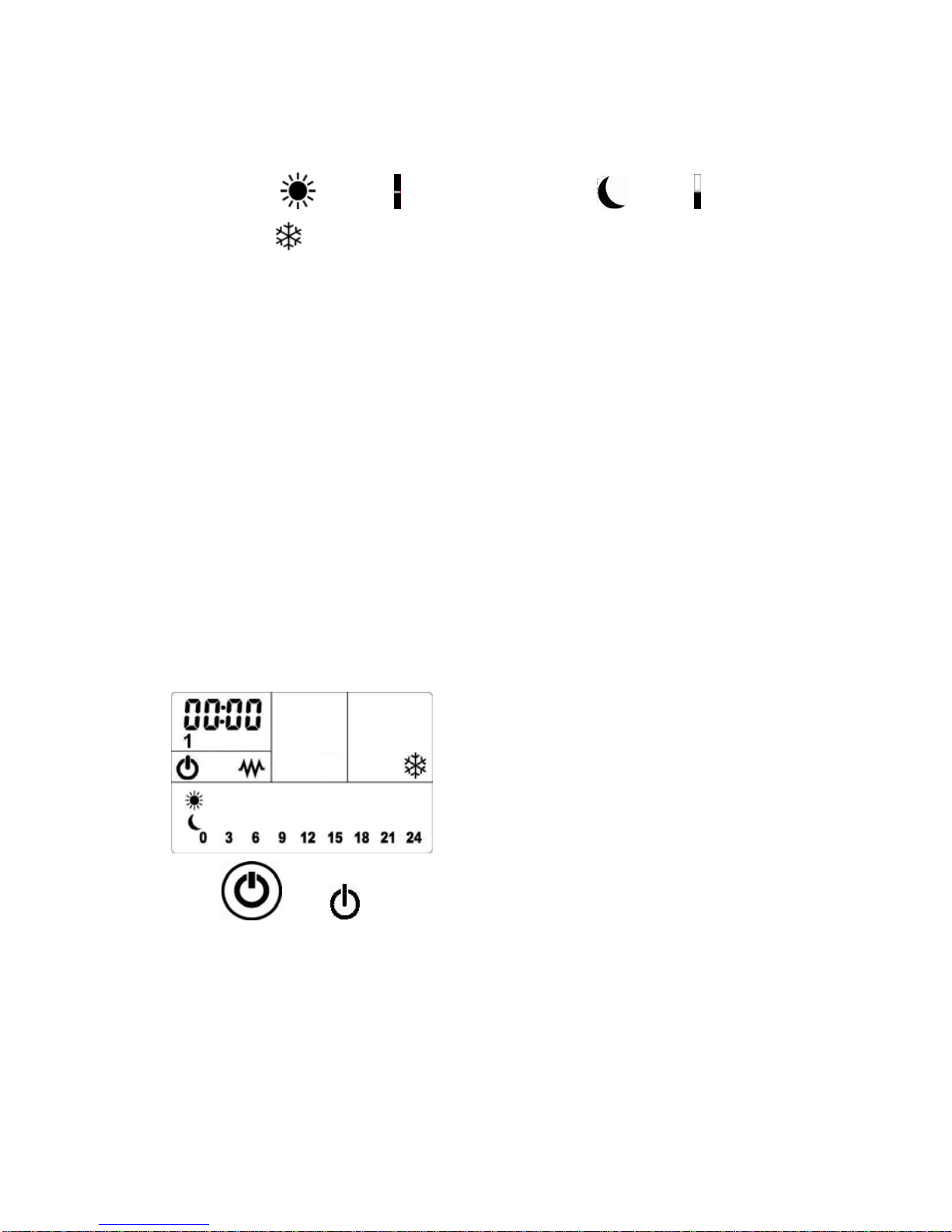

1. Plug and switch on the unit. For the first time use, the screen will
showed as follows:
Press ,then disappeared and unit get into free normal
mode(note: units always get into free normal mode from stand
by mode).
2-1.Free program:
For the first time use, the screen will showed as follows:

2-1-1.Time setting:
Press ,the hour start to twinkle, use or to select hour (0
~ 23). Press again, the minutes start to twinkle, use
or to select minute( 0 to 59); Pressed again, date
start to twinkle, use or to select date (1-Monday,
2-Tuesday, 3-Wednesday, 4-Thursday, 5-Friday,
6-Saturday, 7-Sunday); Finally press to confirm and
finish the setting.
(Note: If press or without releasing, you can achieve
rapid increasing or decreasing;
If there is no pressing, the twinkle would stop after 5 seconds and
setting will be finished automatically.)
2-1-2. Temperature setting:
Press or to set the target temperature directly and at
this moment the temperature starts to twinkle. Press or
to set the target temperature. Temperature adjustable range is

from 10 ℃~ 35 ℃.
(Note: If press or without releasing, you can achieve
rapid increasing or decreasing;
If there is no pressing, the twinkle would stop after 5 seconds and
setting will be finished automatically.)
2-1-3.Timer setting(timer mode):
Long-press (3 seconds) till the showed. Same time the
clock will turn to 00:00 and start to twinkle. This means the timer
setting starts (as following):
Press or to set the timer length by every press with half
an hour (30 minutes). The maximum timer length is 24 hours.
When the timer is over, the unit would enter into standby mode .
(Note: If press or without releasing, you can achieve
rapid increasing or decreasing;
If there is no pressing, the twinkle would stop after 5 seconds and
setting will be finished automatically.)
You can also set time and temperature same as 2-1-1 and 2-1-2.

Quit from timer mode: long press button (3 seconds) until the
disappeared. The unit automatically return back to free
normal mode.
(Note: Once the machine exit free program (enter the day, week
program, or standby), and then return to the free program, the unit
always enters into the free normal mode first. The original timing
model was automatically canceled).

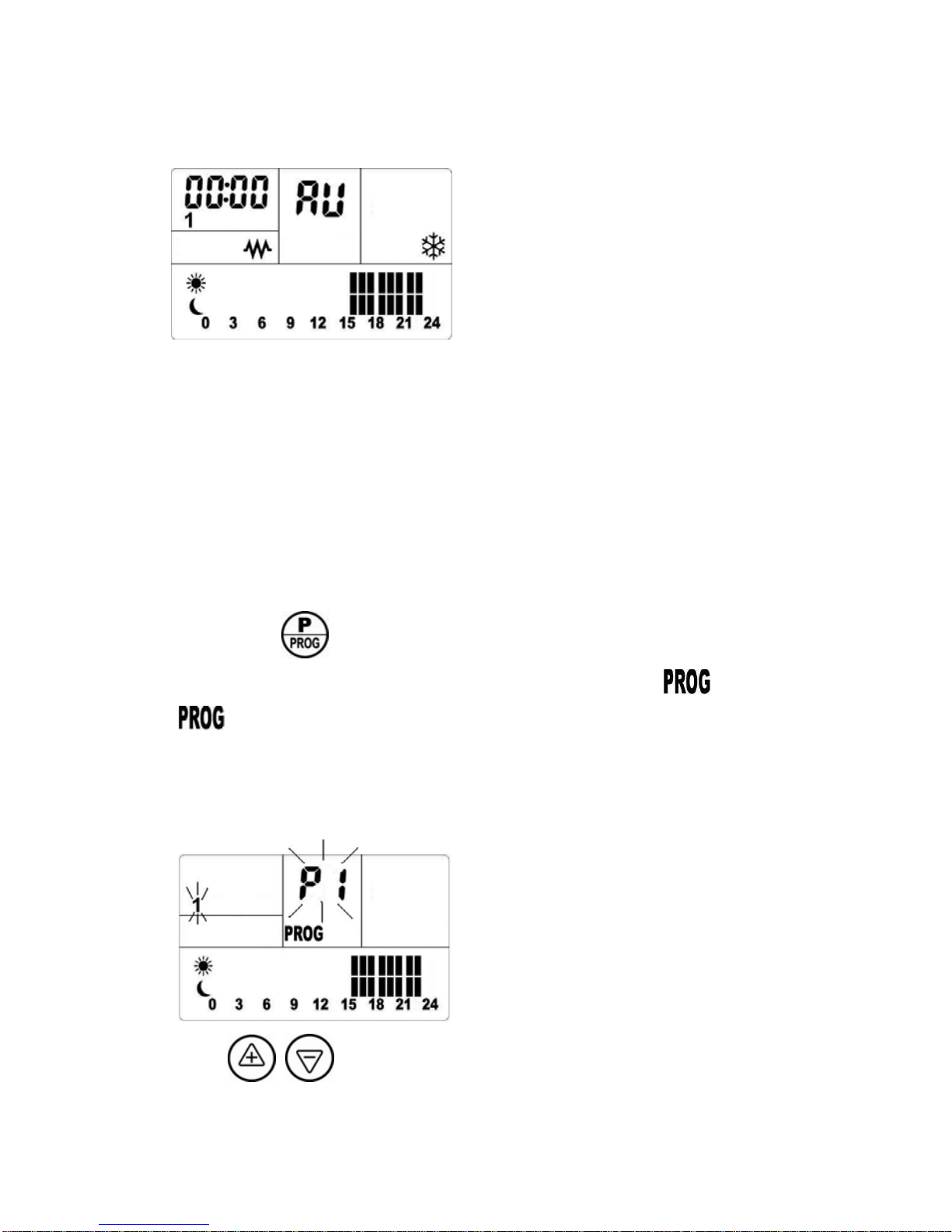

2-2.running mode selecting:
Press to get into program selecting (Program No. start to
twinkle). Pressed or to select running mode
(-~- )and then press to confirm it . The unit
would run following the new selection program.
Note: During this period, if there is no pressing, the selection is
automatically completed 5 seconds later.
2-3. Day program
Day program has three kinds of working modes:
Comfort mode :( and program content displayed ),
adjustable range from 10 ℃~ 35 ℃;
Economic mode: ( and program content displayed ),
adjustable range of 10 ℃~ 35 ℃; the temperature should no
higher than comfortable temperature;

Anti-frost mode: ( and program content displayed empty ),
7 ℃, it’s inherent and non-adjustable.
If a daily program was chosen for the work program, the unit
will repeat the program every day.
Different program used for the first time as follows:
P1：P2：
P3：P4：
P5：P6：
P7：P8：
P9：

2-3-1. Time setting:
Same as 2-1-1, then the unit will automatically adjust to the
current time and running accordingly.
2-3-2. Temperature setting:
Long-press (3 seconds) until twinkle, at the same time
the original comfort temperature start to twinkle. Press ,
to set the target comfort temperature. Press to confirm, and
start to twinkle, the original economic temperature also starts
to twinkle. Press , to set the target economic
temperature. Use to confirm it temperature setting is
completed, the unit come back to run under comfort mode.
The temperature will be kept into the memory.
(Note: During this period, if there is no pressing, the settng is
automatically completed 5 seconds later.)

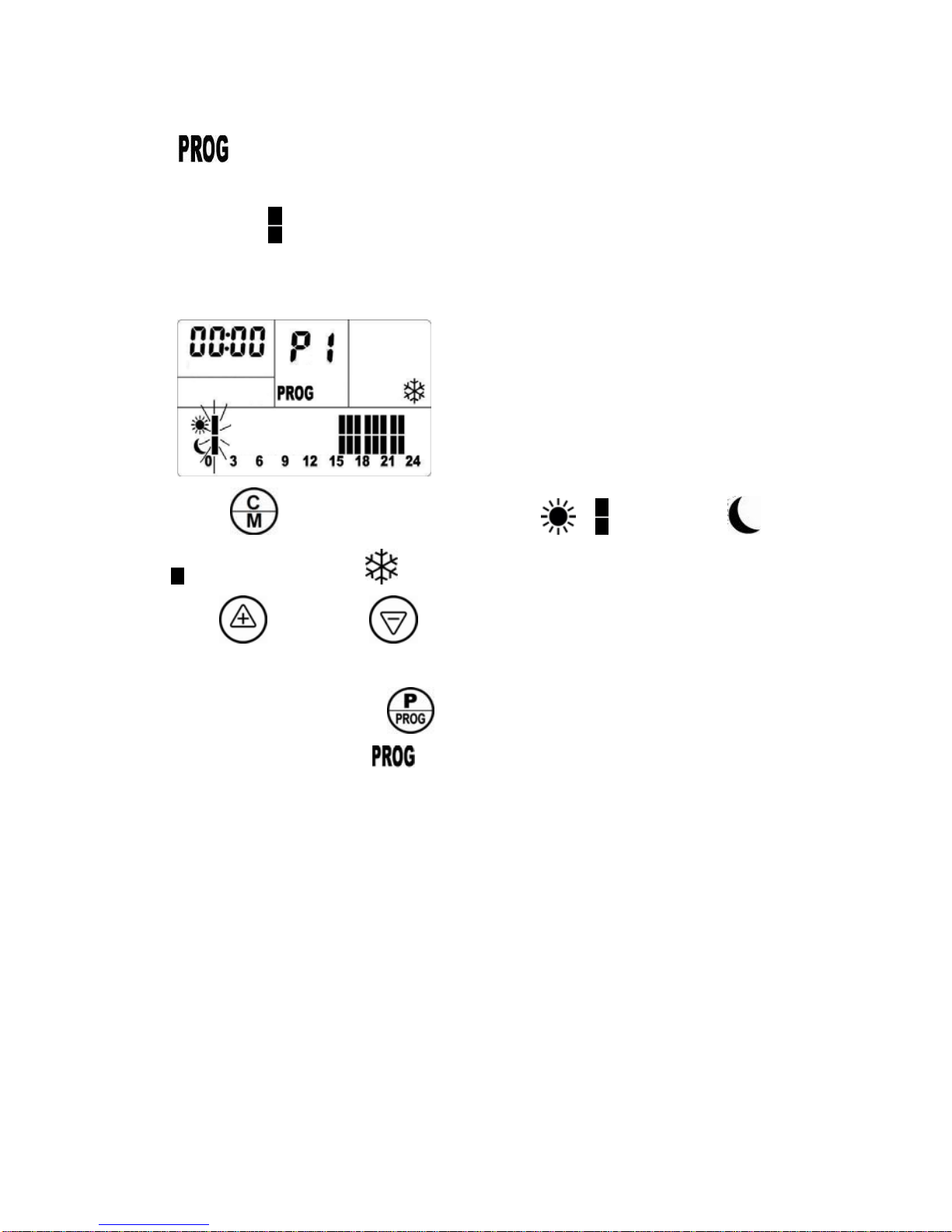

2-3-3. Setting Daily program:
Press to choose the program (from ~ ) which you
want to set. Then long-press (3 seconds) to enter the
program settings, at this time displayed on the screen

(will showed until the setting is completed, the heating will
stop during the setting). The date does not show , time is 00:00.
The mark starts to twinkle rapidly at the first segment of
selected program, such as following (when the selected daily
program is P1):
Press to select the working mode ( ，for comfort; ，
for the economic; , empty for the anti-frost), then
Press (forward), (back) to copy the mode into every
segment(press without releasing can achieve fast-forward or
fast-back). Finally press to confirm the program content and
exit program setting. Disappear; the unit comes back to
normal work.
Note: daily program setting, the hour will go ahead or return back
according to the mark.
Settings can be terminated at any time during setting. The new
content will be retained.
the new program will be kept into the memory and replace the
original program.
2-4. Week program:
You may select week program according 2-2. the first use as

following:
2-4-1．Time setting
Same as 2-1-1, then the unit will automatically adjust to the
current time and running accordingly.
2-4-2．Temperature setting：
Same as 2-3-2
2-4-3. Setting weekly program:
Long-press (3 seconds) to enter weekly program setting, the
time and working mode are no longer displayed, showed
(displayed until the setting finished, the unit stopped heating
during the setting), Monday marking begin to twinkle, program
name of Monday also twinkl (corresponding program content also
shows). The screen is as follows:
Press ,to select the daily program from P1~P9 for

Monday (1). Press to confirm and automatically enter the
Tuesday (2).With same method you can select a daily program for
everyday in a week . Finally press to complete week program
settings. Then Disappear and the unit will run according to
new weekly program.
Note: Settings can be terminated at any time during setting. The
new content will be retained.
3, Factory pre-setting:
The unit is with a factory pre-setting as follows:
Date: 1 (Monday) clock: 00:00
Anti-frost: 7 ℃
Free mode temperature: 10 ℃
Daily program Temperature: Comfort: 22 economy: 17℃℃
Weekly program : 1 ~ 5 (Mon-Fri): P1
6 (Saturday): P2
7 (Sunday): P3

Note: Press to power on, the unit would come back to factory
pre-setting.
4. Other notes：
(1) The screen is with back light. It will extinguish after 1 minute
if you didn’t press any button. It will light up if you press any
button.
(2) Unit is with button lock function. The buttons will be locked

() after 1 minute if you didn’t press any button.
Open lock: press and at same time.
(3) Time will be clean to 00:00 if you unplugged unit or cut off
the power.
(4) This heater includes an overheat protection system that
shuts off the heater when parts of the heater are getting
excessively hot.
(5) will showed only the unit is heating.
(6) The units will always get into free normal mode from
standby mode;
The unit will return to latest running mode due to
suddenly power off after power come back.
MAINTENANCE
1. Always remove the plug from the socket-outlet and allow the
heater to cool down before clean it.
2. Wipe the exterior surface of the heater occasionally with a soft
damp cloth (not dripping wet) and dry the exterior surface before
operating the heater.
WARNING:
Do not immerse the heater in water.
Do not use any cleaning chemicals such as detergents and
abrasives. Do not allow the interior to get wet as this
could create a hazard.
3. Light accumulated may be removed from the heater with a soft
dry cloth.
4. To store away the heater, put the heater back into its original

package and store it in a clean dry place.
5. In case of malfunction or doubt, do not try to repair the heater
yourself, it may result in a fire hazard or electric shock.
CONFORMITY WITH DIRECTIVES
This product is CE marked to denote conformity with Directives
73/23/EEC (Low Voltage) and 89/336/EEC (Electromagnetic
Compatibility), as amended.
Waste electrical products should not be disposed of
with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for
recycling advice.
