OPERATOR’S MANUAL
ACTUATOR
DA10
Dethmers Manufacturing CompanyDethmers Manufacturing Company
Dethmers Manufacturing CompanyDethmers Manufacturing Company
Dethmers Manufacturing Company
DOING OUR BEST TO PROVIDE YOU THE BEST
ASSEMBLY
CALIBRATION
OPERATION
REPLACEMENT PARTS
READ complete manual CAREFULLY
BEFORE attempting operation.
3-25-99
BH20002 Rev.4
DEMCO • Dethmers Mfg. Co. • 4010 320th St. • P.O. Box 189 • Boyden, IA 51234
PH: [phone] or [phone] • Toll Free: 1-800-543-3626 • FAX: [phone]
www.demco-products.com

Page 2
NOTES

Page 3

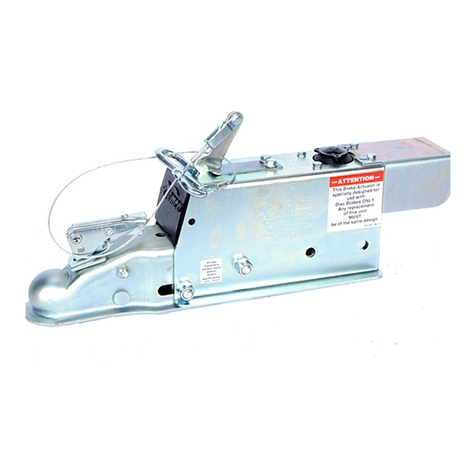

DEMCO MODEL DA10 ACTUATOR
•Review following instructions before installation and use of hydraulic brake
actuator.
•Dealers or distributors must review these instructions with ultimate user.
•Failure to follow these instructions, or failure to properly maintain braking
system after installation, can result in loss of braking action.
WARNING: To Prevent Serious Injury or Death
Table of Contents
Generalinformation ............................................................................................................3
Safety, Signal Words ..........................................................................................................4
Equipment Safety Guidelines .............................................................................................5
Safety Sign Locations.........................................................................................................6
Safety Sign Care ................................................................................................................7
Remember .........................................................................................................................7
Before Operation ................................................................................................................8
During Operation .............................................................................................................. 8-9
FollowingOperation...........................................................................................................10
Highway and Transport Operations ................................................................................ 10-11
Performing Maintenance ................................................................................................... 11
Bolt Torque ........................................................................................................................12
Actuator Parts Breakdown and Parts List ..........................................................................13
DA10 Outer Case Options.................................................................................................14
Actuator Installation and Maintenance............................................................................ 15-16
Demco Brake Products Limited Warranty..........................................................................17
Demco Brake Products Limited Warranty Cont. ................................................................18
Model DA10 is a heavy duty surge brake actuator for trailers with two or four wheels.
Whenbrakesareappliedonthetowingvehicle,forwardinertiaoftrailertowardtowing
vehicle applies brakes on trailer in direct relation to manner brakes are applied on
towing vehicle. Brake towing vehicle hard and brakes on trailer are applied hard.
Master cylinder push rod spring assembly protects system from hydraulic pressure
overload.

Page 4
SAFETY
TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS
MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING
YOUR PERSONAL SAFETY AND SAFETY OF OTHERS. FAILURE TO FOLLOW
THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.
THIS SYMBOL MEANS
ATTENTION
BECOME ALERT
YOUR SAFETY IS INVOLVED!
SIGNAL WORDS
Note use following signal words DANGER,
WARNING, and CAUTION with safetymessages.
Appropriatesignalwordforeachhasbeenselected
using following guidelines:
DANGER:
Indicates an imminently hazardous situation that,
if not avoided, will result in death or serious injury.
This signal word is to be limited to most extreme
situationstypicallyformachine components which,
for functional purposes, cannot be guarded.
WARNING:
Indicates a potentially hazardous situation that, if
not avoided, could result in death or serious injury,
and includes hazards that are exposed when
guards are removed. It may also be used to alert
against unsafe practices.
CAUTION:
Indicates a potentially hazardous situation that, if
notavoided,mayresultinminorormoderateinjury.
It may also be used to alert against unsafe
practices.
Ifyouhavequestions not answered inthismanual,requireadditionalcopies,orif your manual isdamaged,
please contact your dealer or Dethmers Mfg. Co., P.O. Box 189, 4010 320th Street, Boyden, IA 51234
ph: [phone] or [phone] Toll Free: 1-800-543-3626 Fax: [phone]
http://www.demco-products.com

Page 5
SAFETY...YOU CAN LIVE WITH IT
EQUIPMENT SAFETY GUIDELINES
Every year many accidents occur which could have been avoided by a few seconds of
thought and a more careful approach to handling equipment. You the operator, can avoid
many accidents by observing and following precautions in this section. To avoid personal
injury, study the following precautions and insist those working with you, or you yourself,
follow them.
In order to provide a better view, certain illustrations in this manual may show an assembly
withasafetyshieldremoved.However, equipment should never be operated in this condition.
Keep all shields in place. If shield removal becomes necessary for repairs, replace shield
prior to use.
Replace any caution, warning, danger or instruction safety decal that is not readable or is
missing. Location of such decals is indicated in this booklet.
Do not attempt to operate this equipment under the influence of alcohol or drugs.
Review safety instructions with all users.
Operator should be a responsible adult. DO NOT ALLOW PERSONS TO OPERATE OR
ASSEMBLE THIS UNIT UNTIL THEYHAVE DEVELOPEDA THOROUGH UNDERSTANDING OF
SAFETY PRECAUTIONSAND HOW IT WORKS.
Do not paint over, remove, or deface any safety signs or warning decals on your equipment.
Observe all safety signs and practice instructions on them.
Never exceed limits of a piece of machinery. If its ability to do a job, or to do so safely is in
question-DON'T TRY IT.

Page 6
SAFETY SIGN LOCATIONS
Typesofsafetysignandlocationsonequipmentareshowninillustrationbelow.Goodsafety
requires that you familiarize yourself with various safety signs, type of warning, and area or
particular function related to that area, that requires your SAFETY AWARENESS.
BRAKES ON
DO NOT TOW
11/98
BRAKES OFF
TOWABLE
BH21003
This decal positioned as shown
Part # BH21003

Page 7
SAFETY SIGN CARE
• Keep safety signs clean and legible at all times.
• Replace safety signs that are missing or have become illegible.
• Replacement parts that displayed a safety sign should also display safety sign.
• Safety signs are available from your distributor, dealer parts department, or factory.
How to install safety signs:
• Be sure that installation area is clean and dry.
• Decide on exact position before you remove backing paper.
• Remove smallest portion of split backing paper.
• Align decal over specified area and carefully press small portion with exposed sticky
backing in place.
• Slowly peel back remaining paper and carefully smooth remaining portion of decal into
place.
• Small air pockets can be pierced with a pin and smoothed out using piece of decal
backing paper.
REMEMBER
Your best assurance against accidents is a careful and responsible operator. If there is any
portion of this manual or function you do not understand, contact your local authorized dealer
or manufacturer.

Page 8
BEFORE OPERATION:
• Carefully study and understand this manual.
• Always wear protective clothing and substantial shoes.
• Give equipment a visual inspection for any loose bolts, worn parts, or cracked welds, and
make necessary repairs. Follow maintenance safety instructions included in this manual.
• Be sure there are no tools lying on or in equipment.
• Do not use equipment until you are sure that area is clear, especially around children and
animals.
• Don't hurry learning process or take equipment for granted. Ease into it and become familiar
with your new equipment.
• Practice operation of your equipment and its attachments. Completely familiarize yourself
and other operators with its operation before using.
• Make sure that brakes are evenly adjusted.
• Make sure tow rating on vehicle is high enough for what it is towing.
• Do not allow anyone to stand between tongue or hitch and towing vehicle when
backing up to equipment.
• Securely attach to towing vehicle. Use appropriately sized hitch ball and/or hitch pin with a
mechanical retainer and attach safety chains.
• Criss cross chains under tongue and secure to draw bar cage, mounting loops,
or bumper frame.
DURING OPERATION
• SAFETY CHAINS If equipment is going to be transported on a public highway, safety
chains should be obtained and installed. Always follow state and local regulations
regarding safety chains and auxiliary lighting when towing equipment on a public highway.
Be sure to check with local law enforcement agencies for your own particular regulations.
Only safety chains (not an elastic or nylon/plastic tow straps) should be used to retain
connection between towing and towed equipment in event of separation of primary
attaching system.
• Install safety chains by criss crossing chains under tongue and secure to draw bar cage,
mounting loops, or bumper frame.

Page 9
• Beware of bystanders, PARTICULARLY CHILDREN! Always look around to make sure it is
safe to start engine of towing vehicle or move equipment. This is particularly important with higher
noise levels, as you may not hear people shouting.
• NO PASSENGERS ALLOWED- Do not carry passengers anywhere on or in equipment.
• Do not clean, lubricate, or adjust your equipment while it is moving.
• When halting operation, even periodically, set towing vehicles parking brake, shut off engine,
and remove the ignition key.
• Be extra careful when using on inclines.
•MANEUVER TOWING UNIT AT SAFE SPEEDS.
• Avoidloosegravel,rocks,andholes,theycanbedangerousforequipmentoperationormovement.
• Allow for overall length when making turns.
• Keep all bystanders and pets clear of work area.
• Operate towing vehicle from operators seat only.
• Never leave running equipment attachments unattended.
• As a precaution, always recheck hardware on equipment following every 100 hours or 50 miles.
Correct all problems. Follow maintenance safety procedures.

Page 10
FOLLOWING OPERATION
• Following operation, or when unhitching, stop towing vehicle, set brakes,
shut off the engine and remove ignition key.
• Store unit in an area away from human activity.
• Do not permit children to play on or around stored unit.
• Make sure all parked units are on a hard, level surface and engage all safety devices.
• Wheel chocks may be needed to prevent unit from rolling.
HIGHWAY AND TRANSPORT OPERATIONS
• Adopt safe driving practices:
- Always drive at a safe speed relative to local conditions and ensure that your speed is low
enough for an emergency stop.
- Reduce speed prior to turns to avoid risk of overturning.
- Always keep towing vehicle in gear to provide engine braking when going downhill. Do not
coast.
- Do not drink and drive!
• Comply with state and local laws governing highway safety on public roads.
• Use approved accessory lighting, flags and necessary warning devices to protect operators of
other vehicles on highway during transport. Various safety lights and devices are available
from your dealer.
• Local laws should be checked for all highway lighting and marking requirements.
• Plan your route to avoid heavy traffic.
• Beasafe andcourteousdriver.Alwaysyieldto oncomingtrafficinallsituations,including narrow
bridges, intersections, etc.
• Be observant of bridge loading ratings. Do not cross bridges rated lower than the gross weight
at which you are operating.

Page 11
• Watch for obstructions overhead and side to side while transporting.
• Always operate equipment in a position to provide maximum visibility at all times. Make
allowancesforincreased lengthandweightofequipmentwhen makingturnsand/orstopping.
• Good Maintenance is your responsibility. Poor maintenance is an invitation to trouble.
• Make sure there is plenty of ventilation. Never operate engine of towing vehicle in
a closed building. Exhaust fumes may cause asphyxiation.
• Before working on this unit, stop towing vehicle, set parking brakes, shut off engine
and remove ignition key.
• Be certain all moving parts and attachments have come to a complete stop before
attempting to perform maintenance.
•Always use safety supports and block wheels. Never use a jack to support unit.
• Always use proper tools or equipment for job at hand.
• Use extreme caution when making adjustments.
• Follow torque chart in this manual when tightening bolts and nuts.
• Openings in skin and minor cuts are susceptible to infection from brake fluid.
Without immediate medical treatment, serious infection and reactions can occur.
• Replace all shields and guards after servicing and before moving.
• After servicing, be sure all tools, parts and service equipment are removed.
• Do not allow grease or oil to build up on the actuator.
• When replacing bolts, refer to owners manual.
• Refer to bolt torque chart for head identification marking.
• Where replacement parts are necessary for periodic maintenance and servicing,
genuine factory replacement parts must be used to restore your equipment to original
specifications. Manufacturer will not claim responsibility for use of unapproved parts
or accessories and other damages as a result of their use.
• If equipment has been altered in any way from original design, manufacturer does
not accept any liability for injury or warranty.
• A fire extinguisher and first aid kit should be kept readily accessible while performing
maintenance on this equipment
PERFORMING MAINTENANCE

Page 12
BOLT TORQUE
TORQUE DATA FOR STANDARD NUTS, BOLTS, AND CAPSCREWS.
Tighten all bolts to torques specified in chart unless otherwise noted. Check tightness of bolts
periodically, using bolt chart as guide. Replace hardware with same grade bolt.
NOTE: Unless otherwise specified, high-strength Grade 5 hex bolts are used throughout assembly
of equipment. Bolt Torque for Standard bolts *
GRADE 2 GRADE 5 GRADE 8
“A” lb-ft (N.m) lb-ft (N.m) lb-ft (N.m)
1/4” 6 (8) 9 (12) 12 (16)
5/16” 10 (13) 18 (25) 25 (35)
3/8” 20 (27) 30 (40) 45 (60)
7/16” 30 (40) 50 (70) 80 (110)
1/2” 45 (60) 75 (100) 115 (155)
9/16” 70 (95) 115 (155) 165 (220)
5/8” 95 (130) 150 (200) 225 (300)
3/4” 165 (225) 290 (390) 400 (540)
7/8” 170 (230) 420 (570) 650 (880)
1” 225 (300) 630 (850) 970 (1310)
Torque figures indicated are valid for
non-greased or non-oiled threads and
heads unless otherwise specified.
Therefore, do not grease or oil bolts or
capscrews unless otherwise specified
in this manual. When using locking
elements, increase torque values
by 5%.
* GRADE or CLASS value for bolts
and capscrews are identified by their
head markings.
Torque Specifications
CLASS 8.8 CLASS 9.8 CLASS 10.9
“A” lb-ft (N.m) lb-ft (N.m) lb-ft (N.m)
6 9 (13) 10 (14) 13 (17)
7 15 (21) 18 (24) 21 (29)
8 23 (31) 25 (34) 31 (42)
10 45 (61) 50 (68) 61 (83)
12 78 (106) 88 (118) 106 (144)
14 125 (169) 140 (189) 170 (230)
16 194 (263) 216 (293) 263 (357)
18 268 (363) -- -- 364 (493)
20 378 (513) -- -- 515 (689)
22 516 (699) -- -- 702 (952)
24 654 (886) -- -- 890 (1206)
Bolt Torque for Metric bolts *
GRADE-2 GRADE-5 GRADE-8
8.8 10.9
9.8
CLASS 8.8 CLASS 9.8 CLASS 10.9

Page 13
5398 Master Cylinder Repair Kit
(gasket 05681 included)
444
3
1
6
44
49
8
8
25
5
7
9
9
9
22 23
13
21
10
11
14 14
16
19
18
17
24
20
15
15
24
MODEL DA10 ACTUATOR PARTS BREAKDOWN
*1. 05972 1 Inner Slider Tb. Chan. Down (Shown)
*- 05335 - Inner Slider Tube Channel Center
*- 09670 - Inner Slider Tube Channel Up
2. 05987 1 Top Wear Pad
3. 05988 1 Bottom Wear Pad
4. 02206 12 1/4"-20UNC x 1/2" Flat Head Screw
5. SB12426 2 Damper Shock
6. 05973 1 Front Shock Pin
7. 03875 1 Outer Case (03875 shown see page 14 for others)
8. 05986 2 Connecting Pin
9. 02363 6 5/32" x 1-1/4" Cotter Pin
10. 05974 1 Rear Shock Pin
11. *05693 1 Emergency Lever Spring
12. 05424 2 5/16" External Tooth Lock Washer
13. 05961 2 5/16"-18UNC x 5/8" Hex Head Bolt Gr.5
14. 01076 4 1/4"-20UNC x 3/4" Hex Head Bolt Gr.5
15. 00057 4 1/4" Lock Washer
16. *05951 1 Emergency Lever
17. 05989 1 Push Rod Assembly
18. 05680 1 Master Cylinder
19. 05681 - Replacement Master Cyl. Gasket ONLY
20. SB12098 1 1/8" pipe - 3/16" Inverted Flare Fitting w/ orifice
21. 03876 1 Master Cylinder Cap w/ Diaphragm and O-Ring
-05849 - O-Ring (replacement)
22. * 05408 1 3/32" Cable with hooks (both ends)
-SB10555 - Replacement S-hooks ONLY
23. 03866 1 Lever Guide
-BH21003 - Replacement Towable/Not Towable Decal
24. 05687 1 Master Cyl. Protective Boot
REF.
NO. PART NO. QTY. DESCRIPTION
DA10 OPTIONS
25. 05593 1 Clevis
26. 09557 1 Pintle Ring (6 Ton Capacity)
27. 02434 2 5/8"-11UNC x 4 1/2" Hex Head Bolt Gr.5
28. 03730 4 5/8"-11UNC Stover Lock Nut
29. 02587 2 5/8"-11UNC Nylon Insert Lock Nut
*30. 05823 1 2" Bulldog Coupler Welded to Clevis Channel
*- 05557 1 2-5/16" Bulldog Coupler Welded to Clevis Channel
*31. 07138 1 2-5/16" Lever Lock Coupler Slider Tube
32. 03420 1 Inner Slide Tube w/ Flat Plate
33. 04051 4 5/8"-11 UNC x 1-1/2" Hex Head Bolt Gr.5
34. 07678 1 2-5/16" Lever Lock Coupler
35. 07203 1 20000# Forged Yoke (while supplies last)
Please order replacement parts by PART NO. and DESCRIPTION.
29
29
27 33
33
28
28
29
29
-5401 - Lever Replacement Kit (incl. items w/*)
-5398 - Master Cylinder Repair Kit w/ gasket
32
31
2 5/6” RATED AT 10000#
34
2 5/16” RATED AT 10000#
27
27
RATED AT 10000#
35
33
33
30
33
33 28
28
2 5/16” RATED AT 10000#
27
26
RATED AT 10000#
33
33
25
33
RATED AT 10000#
33
28
Model DA10 ACTUATOR PARTS LIST
2” RATED AT 7000#
Standard Outer
Case Shown,
See Page 14 for
Other Options
12
Items marked with * are
available in primed or
plated. Please specify
which when ordering

Page 14
0944309418
07414
05334
0711305971
03875 05332
OUTER CASE OPTIONS
09536

Page 15
DEMCO MODEL DA10 BRAKE ACTUATOR
INSTALLATION
Model DA10 is completely assembled and ready to bolt into place.
1. DA10 actuators come with various mounting channels available.
2. Connect and tighten all brake lines.
3. Fill master cylinder (#18) with DOT 3 or 4 brake fluid.
4. Bleed brake system using a pressure-type brake bleeder or manually, as follows:
a. Remove two 5/16" hex head bolts (#13) and lock washers (#12) that hold lever guide
(#23)and flat emergencyleverspring (#11). Removeleverguide and emergencyleverspring.
Using short strokes, pull forward on emergency lever (#16), pumping master cylinder until
brake fluid within master cylinder stops bubbling.
b. Attach a bleeder hose to bleeder valve on one of the wheels and submerge other end of hose
into a transparent container partially filled with brake fluid. Loosen bleeder valve one turn
and, watching hose in transparent container, use emergency leverto pump master cylinder
as long as air bubbles continue to leave the hose. When bubbles stop, close bleeder valve,
movetonextwheel,andrepeatprocessuntilallbrakeshavebeenbled.(Note:Checkfluidlevel
in master cylinder frequently while bleeding brakes (every 4 or 5 strokes). Refill as necessary
to keep level above half full.)
• Review all of the following instructions before installation and use of hydraulic brake
actuator.
• Dealers or Distributors must review these instructions with ultimate user.
• Failure to follow these instructions, or failure to properly maintain braking system after
installation, can result in loss of braking action which could cause severe property damage,
personal injury or death.
To Prevent Serious Injury Or Death:
Do not weld on the outer case without disassembling actuator, damage
to inner slider tube will occur.
To avoid personal injury or death, do not exceed lowest of (1) the rated
capacity of Model DA10 actuator, or (2) rated capacity of ball and hitch
being used, or (3) trailer's Gross Vehicle Weight Rating (GVWR).
Model DA10 brake actuator has a maximum load rating of 10,000 lbs.
GVWR and 800 lbs. tongue load.
WARNING
WARNING
CAUTION

Page 16
MAINTENANCE
1. Frequently check brake fluid level. (Fluid must be approved, clean and uncontaminated.)
2. Make sure actuator mounting bolts are secure.
3. Inspect actuator, replace bent, worn or damaged parts.
4. Be constantly aware ofsystems brakingquality, makeperiodicchecksasdescribed in brakes owners
manual. Consult certified brake specialist to make necessary adjustments or repairs. Failure to do so
could result in loss of braking.
SERVICING THE EMERGENCY LEVER
If emergency lever (#16) of actuator is applied, it can be disengaged by using a screwdriver to lift
upward on front of flat emergency lever spring (#11) while pulling lever forward until released.
Athoroughinspectionofemergencylever,emergencyleverspring,andcablewithS-hooksisrequired.
Damaged parts must be replaced as follows:
a. Remove Cable S-hook (#22) from emergency lever (#16), emergency lever guide (#23) and flat
emergency lever spring (#11), then pull lever out of actuator outer case (#7) through cross-slot in top.
b. Install new emergency lever through cross-slot in top of outer case. Attach new emergency lever
spring and emergency lever guide.
c. Insert S-hook on emergency cable (#22) into hole in emergency lever (#16) and squeeze shut.
d. Add adequate brake fluid to master cylinder and bleed brake system per instructions 4-6
in installation section.
5. Oncebleedingis completed, refillmaster cylinder andattach cap(#21) securely. Replace
emergency lever spring, lever guide, lock washers and 5/16" hex head bolts.
6. Test brakes by pulling emergency lever (#16) forward until it locks into its second notch
position.(Levershouldbeapproximatelystraight up.) Attempt to rotatewheelsinaforward
direction. If any wheels rotate, brakes must be adjusted. To adjust brakes, release
emergencyleverfromlockedposition, seteachwheelsbrakeadjustmentup2or 3notches
(perinstructionsinappropriatebrakeclustermanual).Repeattestprocedureasnecessary.

Page 17
1. Extent and Duration of this Warranty:
Your Demco brake product is warranted to be free from defects in materials and workmanship under normal use
and service for a period of one year after date of purchase by original owner when properly installed, used and
maintained by purchaser.
When this Demco brake product is used as part of complete Demco braking system (actuators, brake lines, and
back plates), Demco warrants system to be free from defects in materials and workmanship for two years when
properly installed, used, and maintained by purchaser.
Any part of Demco brake system found to be defective in materials or workmanship will be repaired or replaced at
manufacturers option without charge for parts or labor to original owner.
2. Manufacturer and Warrantor of Actuator:
Dethmers Manufacturing Co.
4010 320th Street
P.O. Box 189
Boyden, IA 51234
[phone]
3. Repair or Replacement Procedure:
If your Demco brake product develops a defect during warranty period, promptly notify Dethmers Manufacturing
Co. customer service department. Until such notice is received, warrantor will not be responsible for any repair or
replacement.
Upon receipt of timely notice from you, warrantor will have a choice of options in replacing any part it determines
to be defective:
a) Warrantor may require you at your own expense to deliver or ship part to its factory or authorized
dealer. Any defective part will be repaired or replaced and returned to you or your autho
rized dealer free of charge. Any part returned to warrantor and found not to be defective will be returned
to you freight collect with explanation.
b) Warrantor may ship a new part to dealer to be exchanged free of charge for defective
part returned by you.
c) Warrantor may ship or deliver a replacement part to you at your address.
4. Limitations on Warranty Coverage:
Coverage under this warranty will be effective only when a copy of original invoice, showing date and location of
purchase, accompanies any claim for warranty.
Warrantor has no liability whatsoever and this warranty is null and void if any Demco brake product has been
misassembled or subjected to damage or neglect, negligence, misuse, accident or operated in any way contrary
to operating and maintenance instructions as specified in Demco owners manual for that product.
This warranty does not cover any product that has been altered or modified so as to affect the product’s
operation, performance or durability, or that has been modified to change intended use of product.
In addition, warranty does not extend to repairs made necessary by abnormal use, damage, unreasonable
use including failure to provide reasonable and necessary maintenance, or by use of parts, accessories or
other equipment which are incompatible with Demco brake products or affect its operation, performance
or durability.
DEMCO BRAKE PRODUCTS - LIMITED WARRANTY

Page 18
DEMCO BRAKE PRODUCTS - LIMITED WARRANTY CONTINUED
DISCLAIMER
This warranty does not cover:
1) normal wear and tear.
2) road film or gravel damage to paint.
3) paint.
4) rust damage.
5) any Demco brake product that has been loaded in excess of load capacity stated on identification
label.
6) Accessory parts, materials or components.
Warrantor has a policy of continuous product improvement. We reserve the right to change or
improve design of any Demco brake product, including but not limited to state of the art changes,
without assuming any obligation to modify any product previously manufactured.
Warrantor assumes no responsibility to owner for loss of use of product, loss of time, inconve
nience or other damage consequential or otherwise, including, but not limited to expense for
gasoline, expense of transporting product to dealer and expense of returning product, mechanics
travel time, telephone, telegram, fax, overnight delivery, or postage charges, road service/towing
charges, rental during time warranty repairs are being performed, travel, lodging, loss or damage
to personal property or loss of revenue or earnings.
5. Limitations of Implied Warranties:
All implied warranties, if any, expire and terminate upon expiration of this warranty. Some states
do not alloW limitation on how long an implied warranty lasts, so this limitation may not apply to
you.
6. Limitation of Consequential Damages:
Warrantor’s responsibility under this warranty extends solely to repair or replacement of your
Demco brake product and its component parts. Warrantor does not assume responsibility for, nor
shall it be liable for, any special, incidental or consequential damages. Some states do not allow
exclusion or limitation of incidental or consequential damages, so above exclusion or limitation
may not apply to you.
7. Purchasers Rights:
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
8. Exclusive Warranty:
This is the only express warranty made by Dethmers Manufacturing Co. on your Demco product
and no agent, employee, or other person is allowed to change or add to this warranty.This war
ranty extends solely to repair or replacement of your Demco brake product and its component
parts. Warrantor does not assume any liability or responsibility not expressly covered by this
limited warranty.This warranty supersedes all prior warranties, written or implied.
No other express warranty has been made or will be made on behalf of warrantor with respect to
Demco brake product or its instruction, operation, repair or replacement.Warrantor shall not be
responsible for damage, loss or damage to personal property, whether direct or indirect, and
whether arising in contract or tort.

Page 19
NOTES

Page 20
DETHMERS MFG. COMPANY
P.O. BOX 189
4010 320th St., BOYDEN, IA. 51234
PH: [phone] or [phone]
FAX: [phone]
TOLL FREE: 1-800-54DEMCO (1-800-543-3626)
www.demco-products.com
