Denafrips Terra mclk User manual

V1.0

16th Sept 2021

TERRA MCLK

OWNER’S MANUAL

Contents

1. INSTALLATION & SAFETY INSTRUCTIONS ........................................................................... 2

2. INTRODUCTION .................................................................................................................. 3

3. OPERATING INSTRUCTION .................................................................................................. 4

3.1 Quick Start Guide ........................................................................................................ 4

3.2 Front Panel .................................................................................................................. 5

3.3 Rear Panel ................................................................................................................... 0

4. SPECIFICATIONS .................................................................................................................. 1

5. WARRANTY ......................................................................................................................... 2

1. INSTALLATION & SAFETY INSTRUCTIONS

This MCLK is designed and built to provide trouble-free performance, but as with all

electronic devices it is necessary to observe a few precautions:

 Unpack the MCLK carefully.

 Position the MCLK on a stable, horizontal surface, i.e. sturdy rack.

 The MCLK supports voltage 100-125VAC or 220-250VAC worldwide voltage. Please

select the correct voltage prior to connecting the power cord. Please connect the AC

power cord with earth(ground) pin unless it is absolutely required to reduce hum

from the ground loops of the connected devices.

 Always ensure that when disconnecting and reconnecting your audio equipment the

mains supply is turned off.

 Position the power cord and signal interconnects where they are not likely cause trip

and fall hazard.

 Do not use the MCLK near water, or place water-filled containers on the MCLK. Entry

of liquid into the MCLK is hazardous and may cause electric shock and/or fire hazard.

 Do not place the unit under direct sunlight or heat source.

 Do not remove any covers or try to gain access to the inside. There are no user

adjustments or fuses to change without qualification.

 Clean regularly with a damp soft cloth. Do not use any cleaning agents as it might

damage the surface finishing.

 The electronics in modern hi-fi equipment is complex and may, therefore, be

adversely affected or damaged by lightning. For protection of the audio system

during electrical storms, disconnect the mains plugs.

2. INTRODUCTION

Thank you for purchasing the DENAFRIPS TERRA MCLK.

The TERRA MCLK is our premium MASTER CLOCK GENERATOR.

Equipped with the advanced FPGA, and the dual OCXO operating at audio frequencies

45.1584Mhz, 49.152Mhz, encapsulated in a metal shielded casing, located at the centre of

the MCLK.

These OCXO are specially designed for high-end audio applications with ultra-low phase-

noise and ultra-accuracy. The dual OCXO are powered by the o-core transformer, multi-

stages linear regulator, supplying constant current to the OCXO. The adequate power

reserves ensure the superior linearity and stability of the OCXO.

3. OPERATING INSTRUCTION

3.1 Quick Start Guide

Package Contents

 TERRA MCLK

Connection

 Power: Use a proper AC power cord, connect it to the MCLK power socket.

 Output: 75ohms BNC outputs of various clock frequencies are available. Please refer

to the details in section 3.2 & 3.3.

WARNING

 Please power off all equipment prior connection/disconnection of cables.

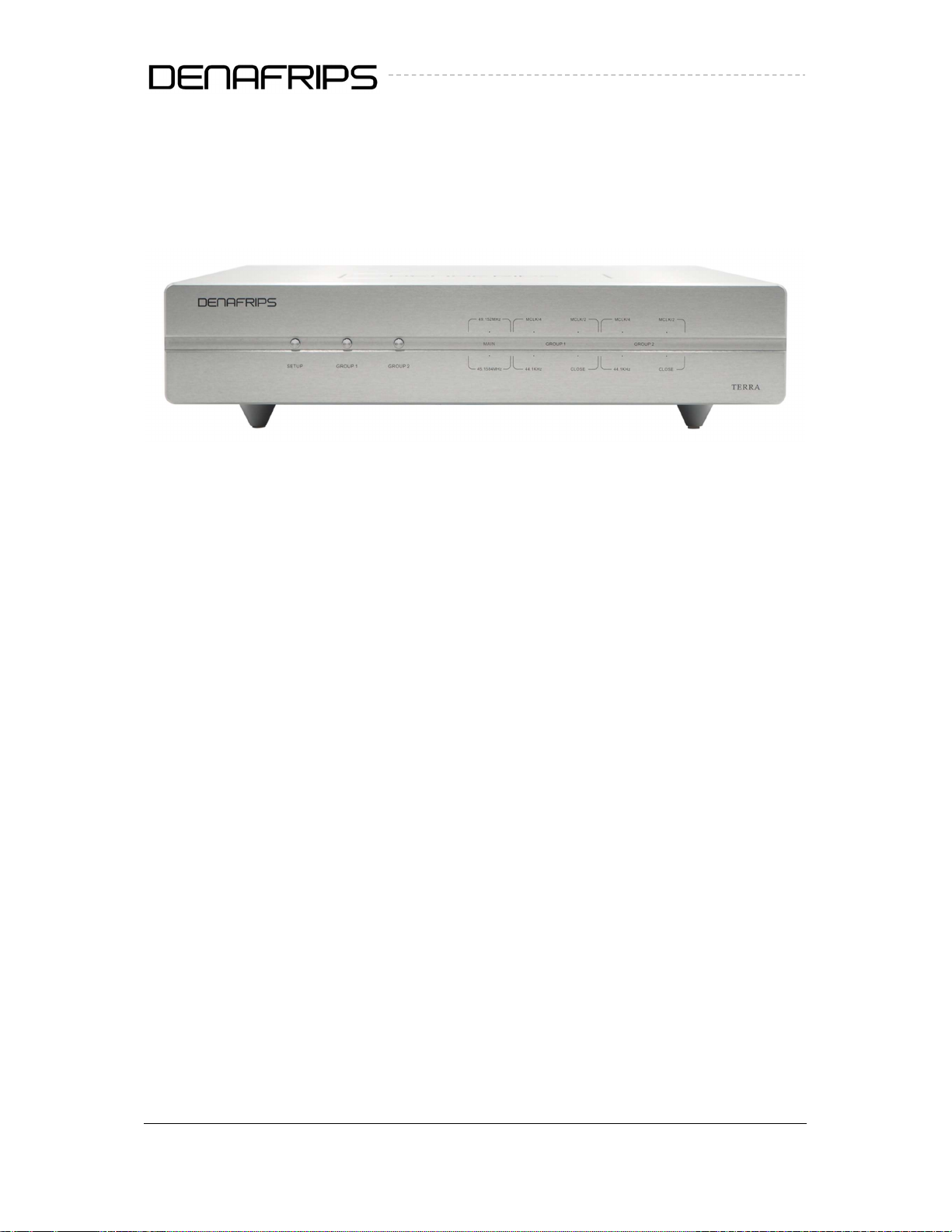

3.2 Front Panel

Figure 1. Front Panel

(1) SETUP Button

Press the button once to enter configuration mode to setup the output frequency. Press the

button once again to confirm and exit configuration mode.

(2) GROUP 1 / GROUP 2

Toggle the GROUP 1 / GROUP 2 buttons to setup the output frequency as detailed in the

following Table 1.

(3) MAIN LED

The LEDs display the main output frequency 45.1584MHz, 49.152MHz.

(4) GROUP 1 / GROUP 2 LED

The LEDs display the configured frequency of GROUP 1 / GROUP 2 as detailed in the

following Table 1.

2 3

BNC OUTPUT

CONNECTOR

CONFIGURATION

GROUP1 GROUP2

MCLK/2 MCLK/4 44K1 CLOSE MCLK/2 MCLK/4 44K1 CLOSE

45.1584 MHz 1/2

Fixed Output 45.1584 MHz Fixed Output 45.1584 MHz

49.152 MHz 1/2

Fixed Output 49.152 MHz Fixed Output 49.152 MHz

MCLK 1

22.5792 MHz 11.2896 MHz 44.1kHZ N/A

MCLK 2

22.5792 MHz 11.2896 MHz 44.1kHZ N/A

MCLK 3

24.576 MHz 12.288 MHz 48kHZ N/A

MCLK 4

24.576 MHz 12.288 MHz 48kHZ N/A

Table 1. Output Frequency Configuration

Example:

1. Press SETUP button once to enter configuration mode

2. Toggle GROUP1 button to, MCLK/2/4, 44K1, CLOSE LEDs on/off as the button is being toggled.

3. Leave the LED at 44K1. Press SETUP button once to confirm the setting and exit configuration mode.

4. Output frequencies of BNC Connectors “MCLK1 and MCLK4” will be 44.1kHz and 48kHz respectively.

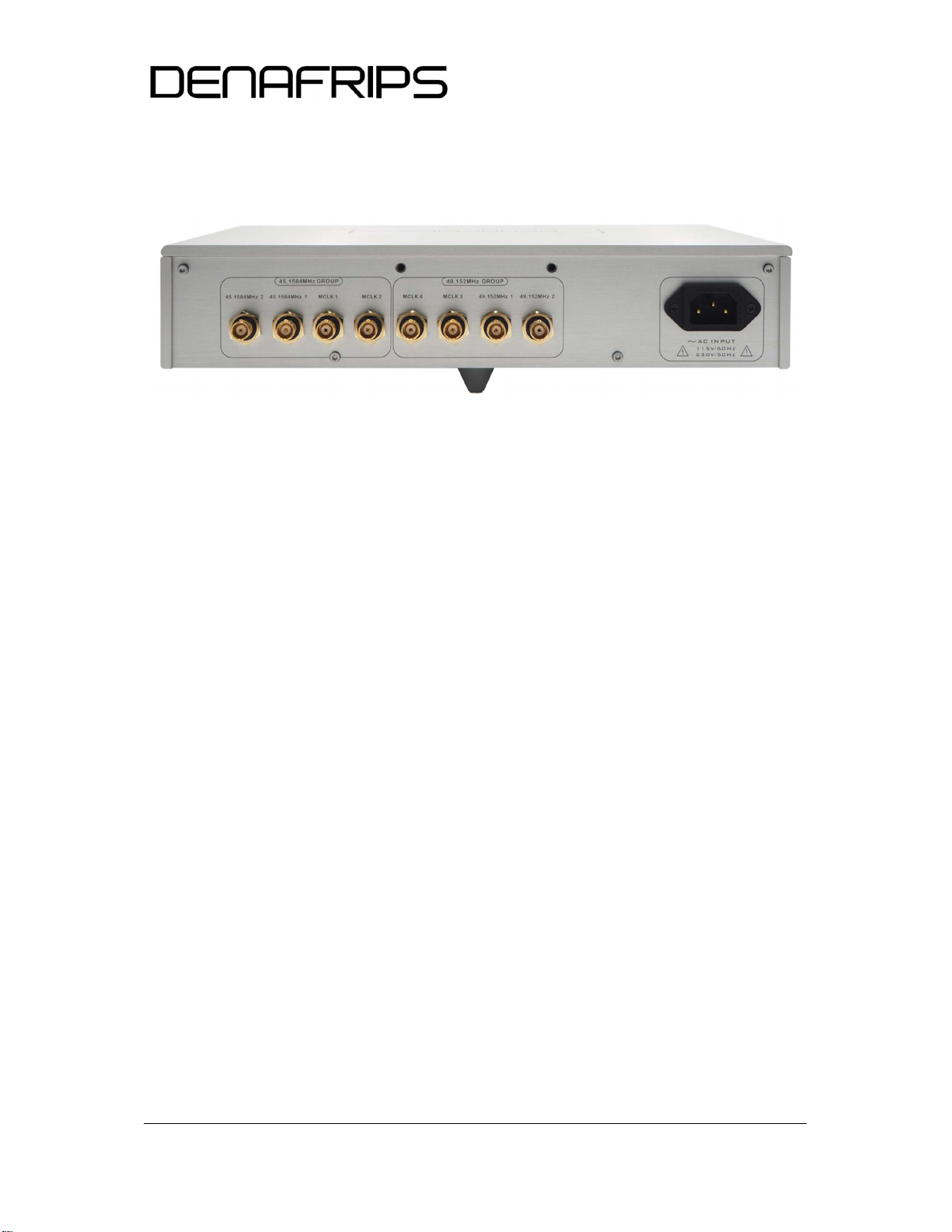

3.3 Rear Panel

Table 2. Read Panel

Description:

(1) AC Power Supply

CAUTION! TERRA supports AC mains 100-125VAC or 220-250VAC worldwide voltage. Please

select the correct voltage prior to connecting the power cord. The voltage selector is located

at the bottom of the unit. Please use a good quality power cord with earth/ground pin

connected

(2) GROUP1 OUTPUT

Connected the BNC 75ohms clock cable from the output to the external device. Please note

that the clock frequency must be matched. Refer to Table 1. Output Frequency

Configuration

(3) GROUP2 OUTPUT

Connected the BNC 75ohms clock cable from the output to the external device. Please note

that the clock frequency must be matched. Refer to Table 1. Output Frequency

Configuration

4. SPECIFICATIONS

Description Parameters

Highlight Ultra Low Jitter OCXO

Adjustable Output Frequencies

Small Form Factor

Clock Out (Fixed) 45.1548MHz x 2

49.152Mhz x 2

Clock Out (Adjustable)

44.1kHz, 48kHz

11.2896MHz, 12.288MHz

22.5792MHz, 24.576MHz

Output Connector

BNC, 75ohms

AC Power Requirement 100-240VAC, 50/60Hz (Manual Selector)

Power Consumption

≤20W

Dimension

340W x 260D x 66H mm (Feet +18mm)

Weight

6 Kg

Color

Silver / Black

Warranty 36 Months

Highlight

Ultra Low Jitter OCXO

Adjustable Output Frequencies

Small Form Factor

5. WARRANTY

DENAFRIPS TERRA purchased from the Authorized Distributor comes with 36 months of

warranty from the date of purchase / delivery (whichever later).

Defective

Within

Warranty Policy

First 30 Days

DENAFRIPS

to bear both way shipping fee.

Within 1st Year Customer to bear one-way shipping fee. DENAFRIPS shall

cover the return shipping fee.

Out of Warranty Customer to bear both way shipping cost. DENAFRIPS to

provide repair / maintenance services at cost.
