Thank you for purchasing this Denon product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories

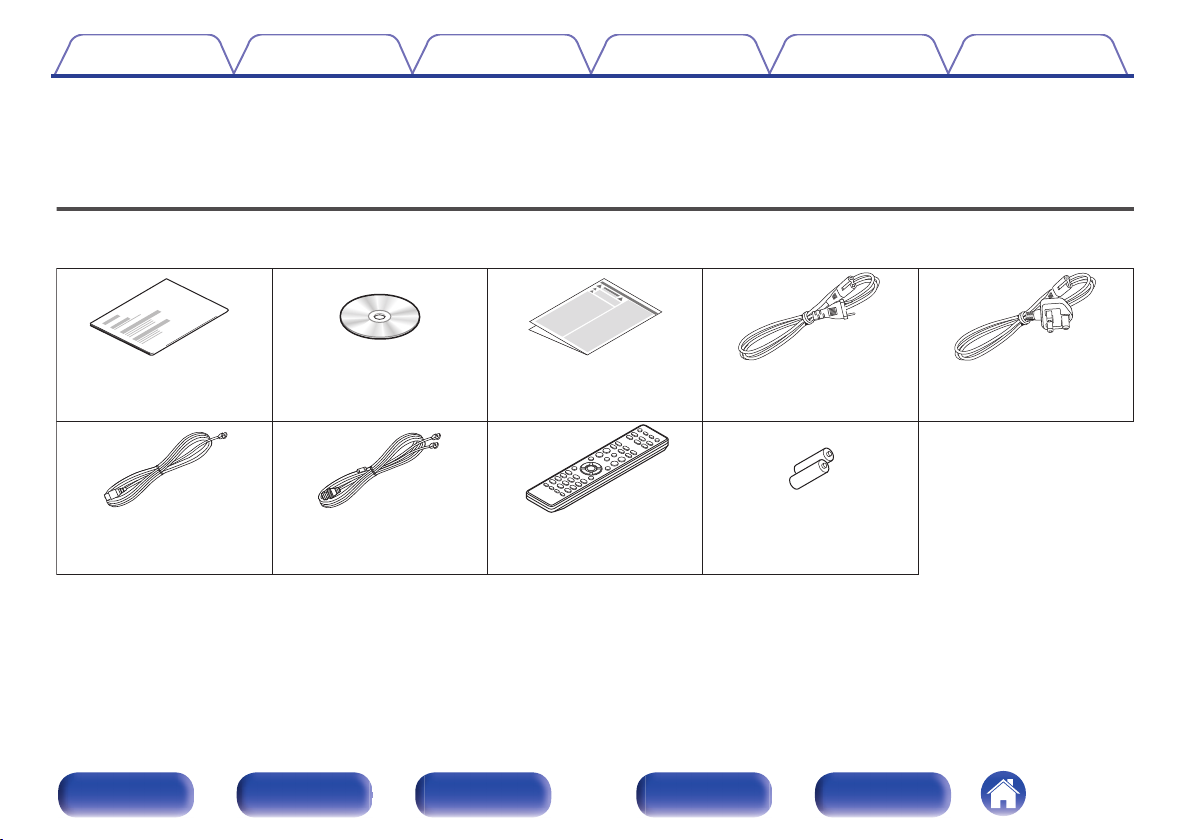

Check that the following parts are supplied with the product.
.
Quick Start Guide CD-ROM
(Owner’s Manual)
Safety Instructions Power cord
(for continental model only)
Power cord
(for RCD-M40DAB only)
FM indoor antenna
(for continental model only)
FM/DAB indoor antenna
(for RCD-M40DAB only)
Remote control unit
(RC-1204)
R03/AAA batteries
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

Inserting the batteries
ARemove the rear lid in the direction of the arrow and remove it.
.
BInsert two batteries correctly into the battery compartment as indicated.
.
R03/AAA batteries
CPut the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°
Approx. 7 m
30°
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

Features
0High quality amplifier stressing sound quality
Equipped with a 30 W + 30 W (6 Ω/Ohms) high-quality amplifier circuits.
0Direct Play for iPod® and iPhone® via USB
Music data from an iPod can be played back if you connect the USB
cable supplied with the iPod via the USB port of this unit, and also an
iPod can be controlled with the Remote control unit for this unit.
0Weight and Dramatic sound
The board and circuit configuration has been redesigned to achieve
lower impedance. Since stable current is supplied to the power amp
and other sections, it is possible to realize as much as 30 watts of
power.
0Simple & Straight circuit design for sound purity and free of
coloration
Denon’s popular M series gives you high sound quality based on the
simple & straight concept. Circuitry is uncomplicated, signal paths are
short, and all adverse influences on sound quality have been minimized.
This unit also provides the Auto standby mode, where it goes into the
standby state when there is no operation for 15 minutes.
0Playback of a variety of formats stored on a USB device
Supports playback of USB memory devices on which MP3, WMA,
FLAC or MPEG-4 AAC files are recorded. The unit’s display can display
the title of the track and the name of the artist of the current track.
0Low standby power consumption
Designed with the environment in mind, the unit consumes just 0.3 W
while in standby mode.
0Remote control unit
This unit is shipped with a remote control unit that has large buttons for
frequently used functions, allowing you to quickly find the desired
function.
0High quality headphone Amp with Amp gain control
This unit is equipped with a high-quality headphone amplifier on which
the gain can be adjusted. A variety of headphones are supported.
02 digital (optical) inputs for TV or digital gear
You can connect audio from a TV or a media player digitally to enjoy
impressive, high-quality sound.
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

Part names and functions

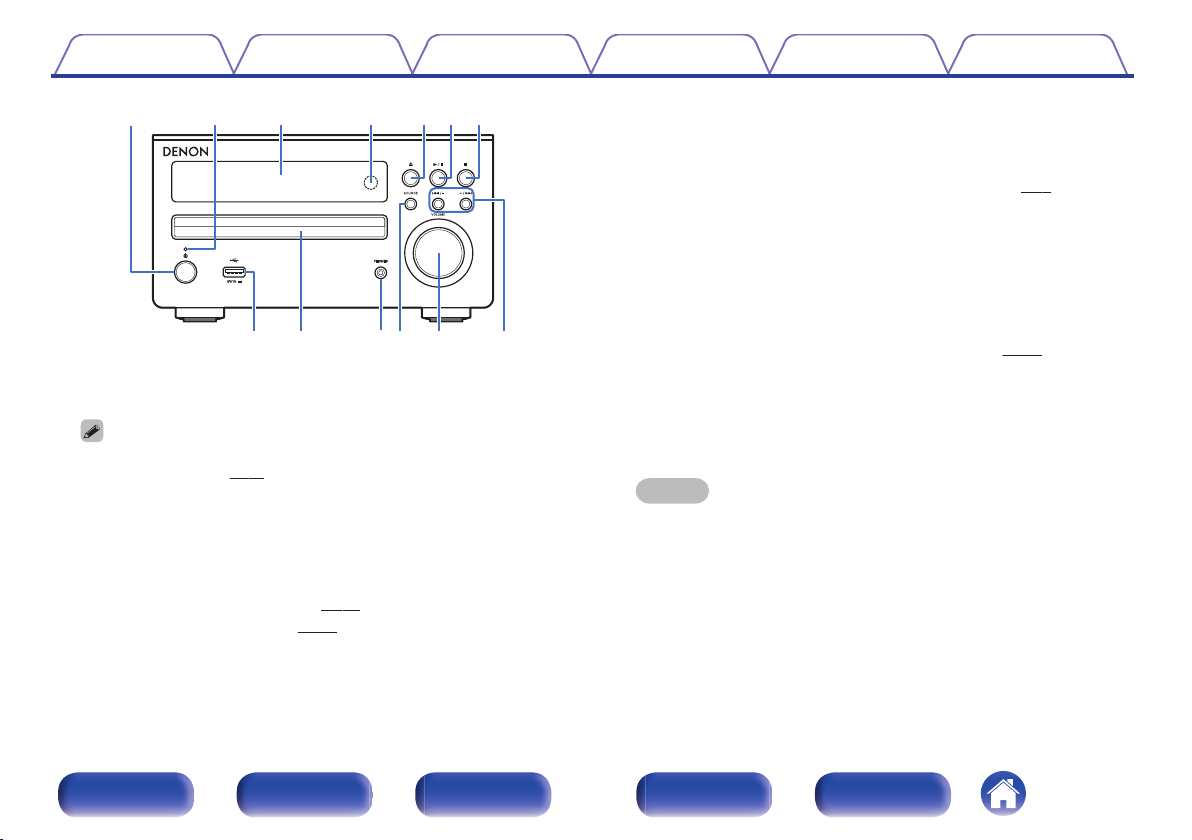

Front panel
.
RCD-M40DAB
i
q w e r t y u
o Q
0
Q
1
Q
2
Q
3
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

.
Q
0
Q
1
Q
2
Q
3
io
qwe rtyu
APower operation button (X)
Turns power to this unit on and off (standby).
0When CLOCK MODE is turned on, this button switches between normal mode
and Clock mode. (v p. 58)
BPower indicator
The power indicator changes as shown below according to the status
of the unit.
0Power on : Green
0Normal Standby : Off
0iPod charge standby : Red (v p. 45)
0Alarm standby: Orange (v p. 55)
CDisplay
Various information is displayed here.
DRemote control sensor
This receives signals from the remote control unit. (v p. 6)
EDisc tray open/close button (5)
Used to open/close the disc tray.
FPlay/Pause button (1/3)
GStop button (2) (for continental model only)
Band/Stop button (2) (for RCD-M40DAB model only)
HUSB port
Used to connect iPod or USB memory devices. (v p. 20)
IDisc tray
Tray used to insert a compact disc.
JHeadphones jack (PHONES)
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
KSOURCE button
These select the input source.
LVOLUME knob
This adjusts the volume level.
MReverse-skip/Forward-skip buttons
Preset/Tuning buttons (8/–, +/9)
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Display
.
u i
ytrewq
APlayback mode indicators
1 : During Playback
3 : During pause
BTone indicators
SDB: Lights when the super dynamic bass function is set to “ON”.
TONE: Lights when the tone (BASS/TREBLE) is being adjusted.
CTuner reception mode indicators
DTOTAL indicator
Lights when the total number of tracks and total time of the CD are
displayed.
EPlay mode indicator
FTimer operation indicator
GInformation display
Various information is displayed here.
HRemote control signal reception indicator
Lights when a signal is received from the remote control.
Contents Connections Playback Settings Tips Appendix
