Denon DVD-2900 User manual

DVD Audio/Video & Super Audio CD Player with PureProgressiveTM Circuit
NEW MODEL INFORMATION

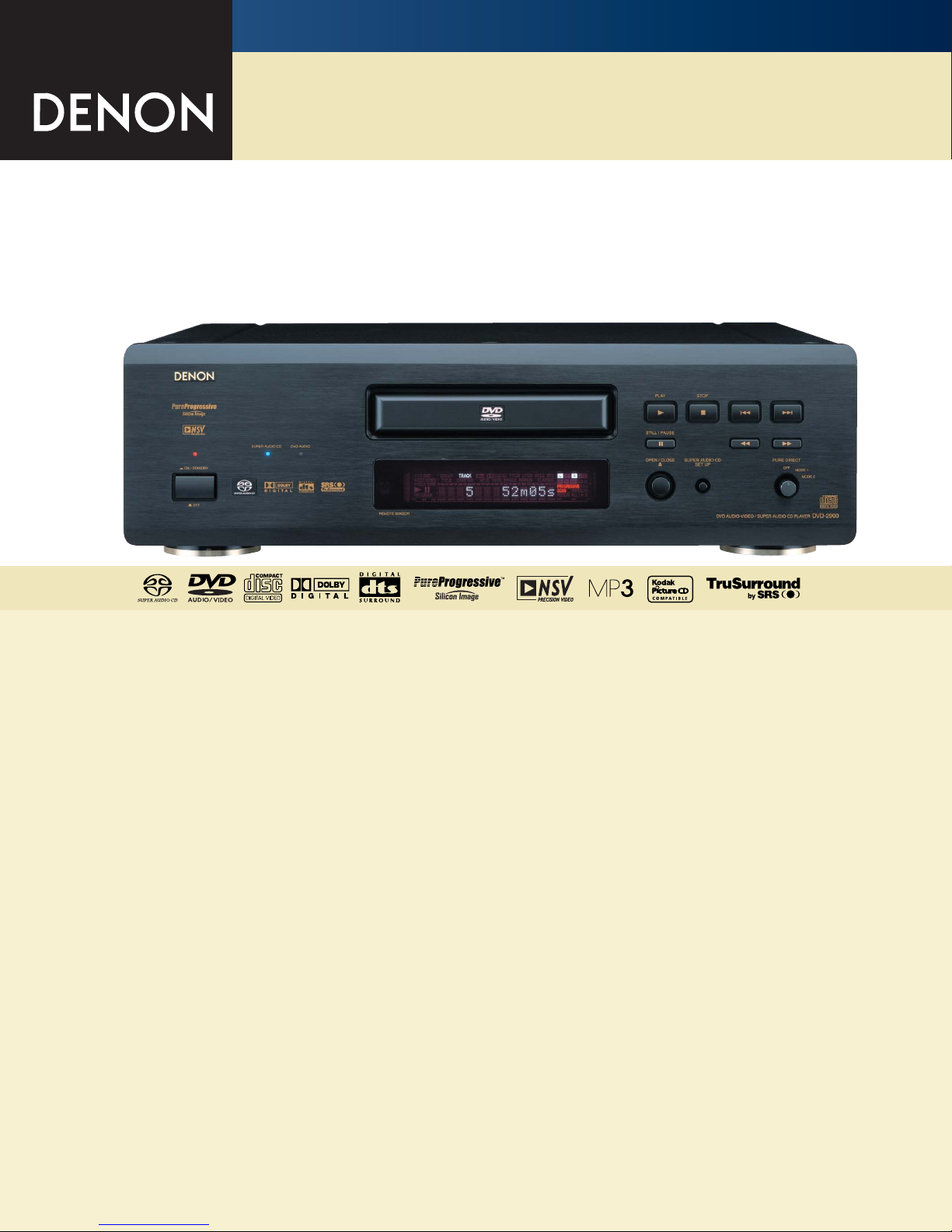

DVD-2900
DVD Audio/Video & Super Audio CD Player
The DVD-2900 is endowed with PureProgressiveTM technology to unleash the full impact of DVD-Video picture
quality. The DVD-2900 also uses a 12-bit, 108-MHz video D/A converter to faithfully preserve the delicate low-level
signals often lost during D/A conversion. With these advanced video image technologies, the DVD-2900 will reproduce
with the highest resolution, DVD images on Progressive-compliant monitors and projectors. For sound, it is high
quality audio D/A conversion and Digital Bass Management that will bring out the best of not only Super Audio CD
and DVD-Audio discs, but your entire CD collection as well.


■ Super Audio CD
DENON supports Super Audio CD, the new-generation media format, with the
DVD-2900.
Super Audio CD is recorded using the DSD (Direct Stream Digital) method,
based on a concept that differs from PCM. Since DSD records signal output
from the Delta-Sigma modulator as is, it is recorded as the compressional wave
of a 1-bit pulse signal at the sampling rate of 2.8224 MHz.
The DSD format has a dynamic range of 120 dB (the audible band) and covers
a playback frequency that extends to as much as 100 kHz, enabling playback
that is extremely close to the original waveform. DSD is capable of recording all
sound that exists in the natural world. To bring out the maximum potential of
this sonic experience, the DVD-2900 incorporates a dedicated DSD decorder
for Super Audio CD playback. The DVD-2900 supports Super Audio CD multi-
channel discs capable of recording up to 6 channels of data at full specifica-
tions. It also supports Single Layer, Dual Layer, and Hybrid Layer discs.
■ New PureProgressive™ Circuit
The DVD-2900's interlace to progressive converter is the new SiI504 Converter
with PureProgressive™ circuitry from Silicon Image. The SiI504 features faster
moving picture detection and improved film/video mode recognition capability.
High-speed processing: This Sil504 Progressive Converter is capable of
processing 6 billion operations per second, providing the finest in motion-adap-
tive de-interlacing.
Moving picture detection: PureProgressive™ features 2:3 pulldown detec-
tion, which converts 24-fps Film based material to 60-fps TV/Video playback,
while also detecting Video based material, animation and graphics.
PureProgressive™ is capable of reproducing DVD-Video discs containing both
Film and Video material, as well as high picture quality progressive video
sources, while avoiding the flickering caused by detection delays of these differ-
ent formats. In processing moving video signals, a conventional progressive
converter performs detection on a full frame-by-frame basis, while
PureProgressive™ stores 4 fields of video signals in a 64-Mbit SDRAM buffer,
enabling the detection and processing on a pixel-by-pixel basis to achieve
greater precision in discriminating between moving and still pictures.
Improved 2:3 pulldown detection: There are cases in which 2:3 pulldown data
signals on DVD-Video discs are not in sync.
The PureProgressive™ converter will quickly detect the non-sequential points
and perform appropriate corrective measures at high speed to minimize picture flick-
ering.
It is now also possible to select Level Detection or Flag Detection as the
detection method used for Film and Video material. If an incorrect flag was
recorded or the difference between the video level and noise level is very small
and distinctions on the disc are difficult to detect, this selection ensures optimum
detection capability and minimizes picture quality degradation.
■12-bit, 108-MHz Video D/A Converter
An extremely high-speed video D/A converter is a critical component in superior
quality digital video playback. The DVD-2900 therefore uses a 12-bit, 108-MHz
video D/A converter to ensure highly accurate playback of delicate, low-level
video signals and give you a vivid picture that is faithful in every detail.
Oversampling of 4x is used for both Progressive and Interlaced video signals,
allowing more detailed D/A conversion. Higher quality picture reproduction is
also possible thanks to a filter with flexible shutout characteristics that is used
for the analog filter in the latter stage. Furthermore, the DVD-2900 uses two
separate video D/A converters to process Progressive and Interlaced signals.
This eliminates mutual interference between the Progressive and Interlaced
signals.
■Noise Shaped Video (NSV)
The NSV feature works in the digital domain to reduce noise in the video signal fre-
quency band in order to enhance video signal linearity.
■Super Sub Alias Filter
The S/N ratio can be improved when unwanted signals of higher than 6.75
MHz following D/A conversion are cut. The DVD-2900 thus uses a Super Sub
Alias Filter that produces flat characteristics, ensuring that adverse influences
do not affect video signals inside the essential frequency band, and folding noise
is eliminated. In the DVD-2900, the Super Sub Alias Filter is applied to the chro-
ma signal as well as the luminance signal, improving color reproduction.
■Thorough Vibration-resistant Design
Since the high-density data recorded on DVD must be read with absolute accu-
racy, vibrations from outside or from internal sources, such as the power sup-
ply, will adversely affect sound and picture quality. A variety of designs have
been incorporated in the DVD-2900 to suppress these unwanted vibrations:
• The DVD mechanism section in the main chassis has been divided in a two-
box construction to further protect it from vibrations.
■Burr-Brown 24-bit, 192-kHz Audio D/A Converter
The DVD-2900 uses a 24-bit, 192-kHz audio D/A converter that is well protected
from noise caused by fluctuations in current from the power supply. Since the level
of quantization noise within the frequency range is uniform for all frequencies, this
D/A converter ensures that all the sound you hear is as clear and noise-free as
possible.
TENTATIVE

■Pure Direct Mode
The DVD-2900 includes two Pure Direct modes that further improves sound qual-
ity. For example, during analog audio output, Pure Direct can turn off digital sig-
nal outputs, video signal outputs, and the front panel display which can easily
influence the sound quality of the analog audio signals. The user can define
which operations are to be turned off and store those preferences in memory.
■Digital Bass Management
When playing DVD-Video, DVD-Audio or Super Audio CD sources, it is possible to
preset speaker configurations. The crossover point is fixed at 80 Hz with 12 dB high
and 24 dB low pass filter slopes.
■SRS True Surround
The DVD-2900 is equipped with SRS's True Surround circuit, a high-grade sur-
round virtualizer that lets you enjoy the excitement of 5-channel audio with only
using 2 speakers.
■Newly-Developed Loading Mechanism for Suppression of Vibrations
The newly-developed loading mechanism uses a guide and tray painted with pro-
tein material that is highly resistant to vibrations in order to prevent unwanted
vibrations to the tray.
■Specially Selected Parts for High Sound and Picture Quality
■DVD-R/RW (DVD-Video Recording Mode) Playback (*1)
■CD-R/RW (MP3 / JPEG) Playback (*1)
The DVD-2900 supports the CD-R/RW format. It plays finalized CD-R/RW discs con-
taining MP3 audio files. It also reads still photos in the JPEG format taken by a digi-
tal camera.
■Brilliant Black
DVD-2900 can pass below black video (PLUGE) via the progressive or interlace
video outputs for correct monitor setup and optimum picture quality.
■A Wealth of Picture Quality Adjustment Functions
Contrast, Brightness, Hue, Sharpness, and Gamma can be adjusted as desired
by the user.
■Kodak Picture CD
The DVD-2900 also plays Picture CDs (Kodak format only).
■On Screen Display
■RS-232C Port (Third-party system controls only)
Includes a RS-232C port to support an AMX, Crestron integrated control system.
■Remote IN/OUT Terminals
*Design and specifications are subject to change without notice.
*“Dolby”, “Dolby Digital”, “Pro Logic”, and the double-D device are registered trademarks of Dolby Laboratories Licensing Corporation.
*DTS is registered trademarks of DTS Technology.
*PureProgressiveTM Technology brought to you by Silicon Image, Inc.
*NSV and Super Sub Alias Filter are registered trademarks of Analog Devices,Inc.
*Kodak is a trademark of Eastman Kodak Company.
*Super Audio CD is a registered trademark of Sony.
NEW MODEL INFORMATION DVD-2900
DENON ELECTRONICS (USA), INC.
19 CHAPIN ROAD, P.O. BOX 867, PINE BROOK, NJ 07058-9777 USA
TEL: [phone] www.usa.denon.com
DENON CANADA INC.
505 APPLE CREEK BLVD. UNIT 5 MARKHAM, ONTARIO L3R 5B1 CANADA
TEL: [phone] www.denon.ca
DENON, LTD.
3-16-11 YUSHIMA, BUNKYO-KU, TOKYO 113-0034 JAPAN
13181202 A
(*1) Discs that have been poorly finalized following recording may be only partially playable or not playable at all.
Specifications
■Video Section
Signal system ...................... NTSC/PAL selectable
Disc played .......................... DVD Audio, DVD Video, DVD-R/RW (DVD Video), Super Audio CD, Video CD,
Music CD, CD-R/RW (AUDIO/MP3/JPEG), Picture CD
Video outputs....................... 1 Set Composite video output:
1 Vp-p (with 75 ohms load)
1 Set S-Video output:
Y; 1 Vp-p (with 75 ohms load), C; 0.286 Vp-p (NTSC)
1 Set Component Video Output: Y, Cb/Pb, Cr/Pr:
Y; 1.0 Vp-p (with 75 ohms load),
Cb/Pb; 0.648 Vp-p (with 75 ohms load),
Cr/Pr; 0.648 Vp-p (with 75 ohms load)
■Audio Section
Audio outputs ...................... 1 Set Analog Front Channel (FL/FR) Ouput,
1 Set Analog Multi Channel (FL/FR/C/SL/SR/C/SW)Output,
1 Set Optical Digital Output,
1 Set Coaxial Digital Output,
Signal-to-noise ratio ............ 118 dB
Dynamic range .................... 110 dB
Total harmonic distortion .... 0.0009 %
■General
Power supply ...................... AC 120 V, 60 Hz
Power consumption ............ 27 W
Dimensions ......................... 434 (W) x 137 (H) x 343 (D) mm, 17.1” (W) x 5.2” (H) x 13.5” (D)
Weight.................................. 8.0 kg, 17.6 lbs
