Denon DHT-788BA User manual

AVR-788 Main Features
The Latest HD Video Support
• HDMI1.3a Deep Color, xvYcc support
• HDMI audio support, Dolby Digital, DTS and multi channel PCM
• 1080p video pass through
MultEQ Auto setup and Room EQ
• New tower type microphone for more accurate measuring
• Up to six measurement points
• High level resolution filters for satellite speakers and sub woofer
Denon Design Solutions for Maximizing Content Quality
• Identical quality and power for all 7 channels, 90W x 7ch
• Discrete devices for ultimate performance in each block
Digital Media Connectivity
• Network Audio/Photo Ready (optional ASD-3N/3W)
• iPod Audio/Photo and Video playback (optional ASD-1R/3N/3W)
• Compressed Audio Restorer for MP3/WMA/AAC formats
• XM Ready
Ease-of-Use
• 3 Quick Select Buttons
• Simple back panel layout
Boston Acoustics MCS130 Features
Two way design front and center speakers
• Dual 3 1/2” mid-bass drivers and 1” soft dome tweeter
• Reduced Baffle Diffraction Design for wider , smoother dispersion
• MagnaGuard video shielding
• Adjustable footings
• 5-way gold-plated binding posts
• Built-in wall mount brackets
• Changeable grilles to match your environment (optional)
Two way design surround speaker
• 3 1/2” mid-bass driver
• 1” soft dome tweeter
• Reduced Baffle Diffraction Design for wider, smoother dispersion
• MagnaGuard video shielding
• Adjustable footings
• 5-way gold-plated binding posts
• Built-in wall mount brackets
• Changeable grilles to match your environment (optional)
Matching Sub woofer
• 10” down-firing design
• 200 watt power amplifier
• Deep Channel Design (DCD) for more bass from less amplifier
power
DHT-788BA
Home Theater System
5.1 Home Theater System featuring AVR-788 HDMI receiver
and Boston Acoustics Horizon MCS 130 speaker system.
Bullet points
™
®

17211207 A
Denon Brand Company
D&M Building, 2-1 Nisshin-cho, Kawasaki-ku, Kawasaki-shi,
Kanagawa, 210-8569, Japan
www.denon.com
Denon Electronics (USA), LLC.
100 Corporate Drive, Mahwah, New Jersey 07430 USA
TEL: [phone] usa.denon.com
Denon Canada Inc.
505 Apple Creek Blvd, Unit 5, Markham, Ontario, Canada L3R 5B1
TEL: [phone] ca.denon.com

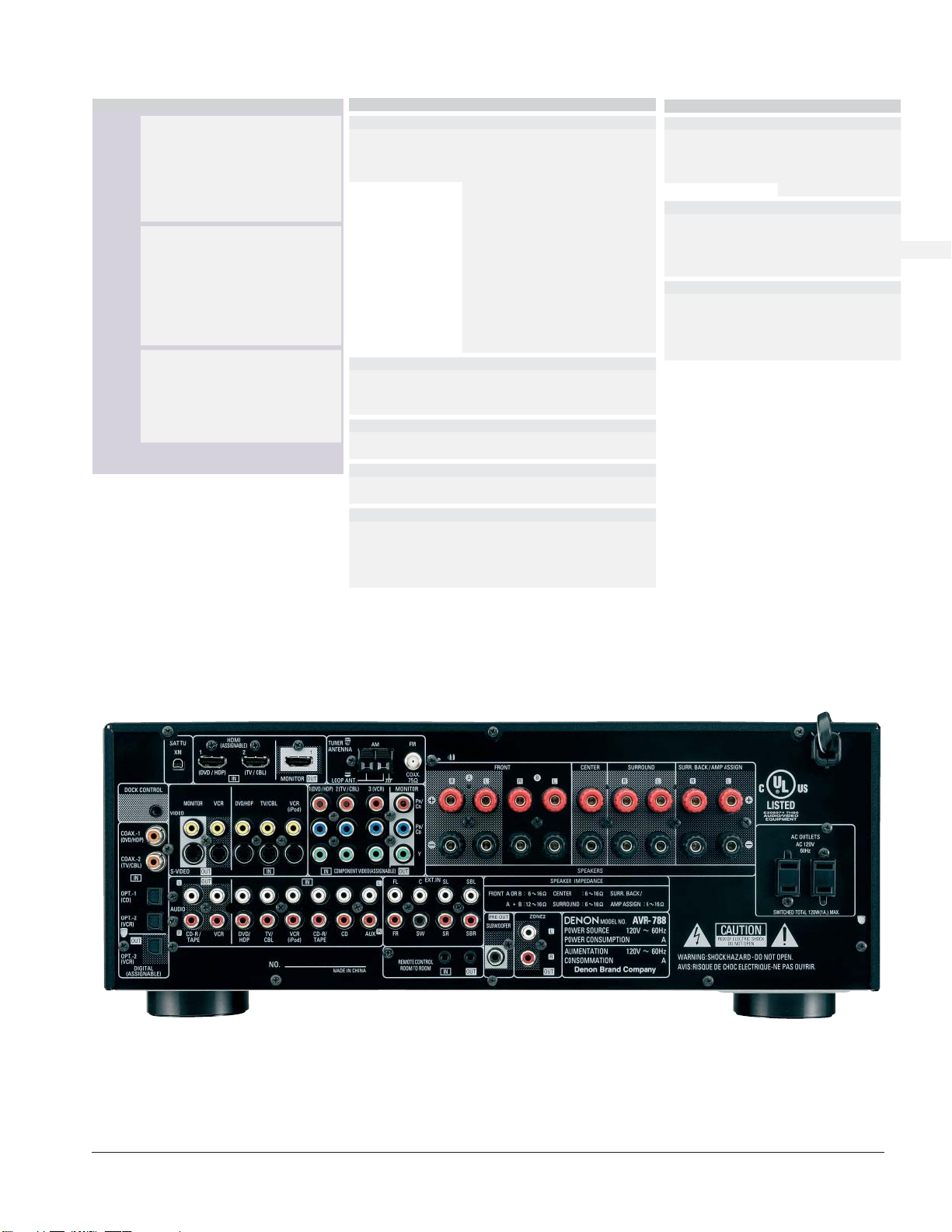

AVR-788 Input / Output Terminals:
IN HDMI x 2
Component x 3
S-Video x 3
Composite x 4
Analog Audio (Tuner included) x 8
Analog EXT. Input 7.1ch
Digital OPTICAL x 2
Digital COAXIAL x 2
OUT HDMI Monitor x 1
Component Monitor x 1
S-Video Monitor x 1
REC x 1
Composite Monitor x 1
REC x 1
Analog Audio REC x 2
Zone 2 x 1
Audio PRE out (Sub woofer) x 1
Others Dock Control Port x 1
XM Connector x 1
FM Tuner Antenna x 1
AM Tuner Antenna x 1
Remote In/Out x 1
AVR-788 Main Specifications:
Power amplifier section
Rated output *THD figures are power amp stage values.
Front L/R 90 W + 90 W
(8 ohms, 20Hz - 20kHz, THD 0.08 %)
125 W + 125 W
(6 ohms, 1 kHz, THD 0.7%)
Center 90 W
(8 ohms, 20Hz - 20kHz, THD 0.08 %)
125 W
(6 ohms, 1 kHz, THD 0.7%)
Surround L/R 90 W + 90 W
(8 ohms, 20Hz - 20kHz, THD 0.08 %)
125 W + 125 W
(6 ohms, 1 kHz, THD 0.7%)
Surround Back L/R 90 W + 90 W
(8 ohms, 20Hz - 20kHz, THD 0.08 %)
125 W + 125 W
(6 ohms, 1 kHz, THD 0.7%)
Preamplifier section
Input sensitivity/impedance 200 mV / 47 k ohms
Frequency response 10 Hz ~ 100 kHz — +1, –3 dB (DIRECT mode)
S/N Ratio 98 dB (IHF-A weighted, DIRECT mode)
FM section
Tuning frequency range 87.5 - 107.9 MHz
Usable sensitivity 1.0 μV (11.2 dBf)
AM section
Tuning frequency range 520 - 1710 kHz
Usable sensitivity 18 μV
General
Power supply AC 120 V, 60 Hz
Dimensions (W x H x D) 434 x 171 x 383 mm
17-3/32” x 6-47/64” x 15-5/64”
Weight 11.2 kg, 24.7 lbs
MCS 130 Main Specifications:
LCR Speakers
Nominal Impedance 8 ohms.
Dimensions (WxHxD) 127 x 352 x 103 mm
5” x 13-7/8” x 4-1/16”
Weight 2.27 kg, 5 lbs / each
Surround Speakers
Nominal Impedance 8 ohms
Dimensions (WxHxD) 140 x 214 x 102 mm
5-1/2” x 8-7/16” x 4”
Weight 1.36kg, 3 lbs / each
Subwoofer
Power supply AC 120 V, 60 Hz
Dimensions (WxHxD) 419 x 349 x 419 mm
16-1/2” x13-3/4” x 16-1/2”
Weight 14.15kg, 31 1/4 lbs
• Design and specications are subject to change without notice.
