S-102/S-302
DVD Home Entertainment System
New model information
Powerful sound and high definition digital image reproduction.
With S-102/302 Series, a simple and smart way to enjoy
your home entertainment begins.
Easy to get started
S-102/302 consists simply of the main unit, two speakers and a slim sub-
woofer. Hook up S-102/302 to your TV. Simply follow the Quick Setup Sheet
found in the box for easy connection.
• Enjoy your home theater, experience the breathtaking images and dynamic
surround sounds of movies like never before.
All you need are three speakers to capture the full-scale dynamic sounds
of movies and concerts. In general, surround sound reproduction at movie
theater is done through multiple speakers, and in the home though 5.1
channel speaker system. With S-102/302 all that is needed are two
speakers and the slim subwoofer to enjoy the surround sounds of movie
theaters easily. Even when you use your headphones the S-102/302 will
create an intimate surround sound experience, without disturbing others.
Enjoy different types of music in better
sound-all on one system.
• Listen to your CDs
Feel the powerful bass you’ve never experienced from a system in this class.
Your MP3 and WMA music files that you recorded on to CD-Rs and CD-
RWs will also amaze you.
• Enjoy your DVDs
The S-102/302 is fully loaded with the high quality image technology of
Denon DVD players. It will give you sharper, cleaner images, even the
largest of screens.
• Listen to FM/AM radio
• Listen to your portable player
The S-102/302 lets you connect your iPod®, or other portable devices to the
‘portable in’ terminal. The S-302’s USB terminal in front allows you to connect a
USB player directly. To charge your iPod® while in use and to enjoy full
control of your iPod®, use one of the optional docking stations from Denon.
(ASD-3N/ASD-3W/ASD-1R)
• Listen to your music files stored in your PC wirelessly (S-302)
• Listen to your internet radio wirelessly (S-302)
Smart Operation
• The self-explanatory operation
Playing DVDs and CDs are both one key operations-they don’t require compli
cated procedures. The most frequently used buttons are all placed and identi
fied on useful and noticeable locations of the main unit and a remote controller.
• The remote controller follows your instincts.
The included remote controller allows you to operate not only the S-102/302,
TVs, cable TV tuners, and satellite broadcasting tuners.
• Family-friendly GUI (graphic user interface)
Easy-to-follow GUI shown on your TV monitor will navigate you to the
content you want without any confusion.
-Multi-language
Smart Theater
• High definition reproduction
S-102/302 is equipped with the newest digital interface HDMI output terminal,
which lets you transmit high definition digital images to the latest generation
HD Displays.
• High quality progressive scan
• The S-102/302 uses top caliber technology to reproduce the finest video images.
• Analogue to HDMI up conversion (S-302)
• i/p conversion and up scaling up to 1080p
Smart Sound
• Powerful and dynamic sound reproduction
Even with its compact size, its dynamic sound is evident from the bottom to
the top. Denon’s experienced electronics engineering and latest technology
make everything alive as ever. Simply be impressed by the power with quality.
• High quality sound reproduction from Denon
The Denon original AL24 Processing technology found on our A/V receivers
and DVD/CD players is built into the S-102/302, which allows more natural
sound reproduction of digitalized music signals.
• Denon original high quality drive mechanism
With equipment like DVD player, which operate by spinning discs at high
speeds, vibration occurs in the process can badly affect the quality of
sounds and images. S-102/302’s DVD drive mechanism together with its
careful chassis construction actualize stable disc rotation and concise signal
reading, thereby adding further to the finest in sound and image production.
• High quality sound tuned speakers
The S-102/302 speakers were targeted to have internationally accepted
sound reproduction excellent for both music and movie. The volume level of
the slim yet powerful subwoofer can be adjusted if ever required.
Smart Network (S-302)
• network connectivity
The WiFi certified S-302 allows you to reach more content of your choice
from internet radio to music files in your PC without being wired. Just browse
and play from your favorite location of the system.
-Music client function (AAC, MP3, WAV, WMA lossless9), FLAC
-Plays photo libraries in PC
-Plays internet radio
-Network setup (Web Control) function
*The optional ASD-3W when used together with the S-102 enables the S-102
to do the same network functionality of the S-302.
Bullet points
S-102 S-302
S102_302_E3.qxd 8/22/07 15:18 Page 1

00000000 A
Denon Brand Company
D&M Building, 2-1 Nisshin-cho, Kawasaki-ku, Kawasaki-shi,
Kanagawa, 210-8569, Japan
www.denon.com
Specifications
Main unit
DVD Section
Signal system NTSC/PAL
Playable discs DVD-Video, VCD, CD-DA, CD-R/RW(*2), DVD-R/RW(*2),
DVD+R/RW(*2)
Video Section
Video In Composite x 2, S-Video x 2
Monitor Out Composite x 1, S-Video x 1, Component 1
Video output level/Impedance (DVD only)
Standard Video terminal
1 Vp-p/75 ohm
S-Video Connector
Y (Brightness) signal: 1 Vp-p/ 75Ω/ohms
C (Color) signal: 0.286 Vp-p/ 75Ω/ohms
Component Connector
Y (Brightness) signal: 1 Vp-p/ 75Ω/ohms
CB/PB (Blue) signal: 0.648 Vp-p/ 75Ω/ohms
CR/PR (Red) signal: 0.648 Vp-p/ 75Ω/ohms
Audio Section
Rated power output S-102: 35 W + 35 W (4 ohms)
S-302: 50 W + 50 W (4 ohms)
Input Sensitivity/Input Impedance
100 mV/47 kΩ/ohms
Signal-to-Noise Ratio 92 dB (STEREO MODE, DIRECT MODE: ON)
Tuner Section
FM
Frequency range 87.5 – 107.9 Mhz
Effective sensitivity 1.5 µV/75 ohm (14.7 dBf)
AM
Frequency range 520 – 1710 kHz
Effective sensitivity 20 µV
General
Power supply AC 120V, 60 Hz
Power consumption 51 W (S-102), 78 W (S-302)
(At Standby: Approximately 0.3 W)
Dimensions 380 (W) x 93 (H) x 293 (D) mm (14-61/64" x 3-21/32" x 11-17/32" ) (S-102)
380 (W) x 97 (H) x 301 (D) mm (14-61/64" x 3-13/16" x 11-27/32" ) (S-302)
Weight 3.8 kg (8 lbs 6 oz) (S-102), 4.3 kg (9 lbs 7.7 oz) (S-302)
Speaker system
Type 2 way 2 speakers, Closed Box / Low-leakage-flux (S-102)
2 way 3 speakers, Closed Box / Low-leakage-flux (S-302)
Woofer 8 cm Cone Bass-mid x 1 (S-102), 8 cm Cone Bass-mid x 2 (S-302)
Tweeter 2.5 cm High range x 1 (S-102), 2.5 cm High range x 1 (S-302)
Frequency Range 80 Hz – 30 kHz (S-102), 80 Hz – 90 kHz (S-302)
Magnetic shields Yes
Dimensions 103 (W) x 258 (H) x 76 (D) mm (4-1/16” x 10-5/32” x 2-63/64”) (S-102)
131 (W) x 335 (H) x 76 (D) mm (5-5/32” x 13-3/16” x 2-63/64”) (S-302)
Weight 2.0 kg/unit (4 lbs 14 oz)
Subwoofer
Type Reflex Box, Low-leakage-flux, Built-in Amplifier
Speaker 16 cm Cone x1
Power 70 W (S-102), 100 W (S-302)
Magnetic Shields Yes
Dimensions 212 (W) x 378 (H) x 408 (D) mm (8-11/32" x 14-7/8" x 16-1/16")
(including foot) (S-102)
212 (W) x 378 (H) x 406 (D) mm (8-11/32" x 14-7/8" x 15-63/64")
(including foot) (S-302)
Weight 10.5 kg (23 lbs 2.4 oz) (including base) (S-102)
11.2 kg (24 lbs 11.1 oz) (including base) (S-302)
(*1) Version 1.3 compliant. HDMI audio output capacity is dependent on the monitor being used.
HDMI outputs is HDCP compliant. Video cannot be viewed if connected to a monitor that does not support HDCP; video can be viewed only on HDCP-compliant monitors.
(*2) Discs that have been poorly finalised following recording may be only partially playable or not playable at all.
*Design and specifications are subject to change without notice.
*“Dolby”, “Dolby Digital-EX”, “Pro Logic IIx”, and the double-D device are registered trademarks of Dolby Laboratories Licensing Corporation.
*“DTS”, “DTS-ES ES” and “Neo:6” are trademarks of Digital Theater System, Inc.
*”DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.
*HDCD®,High Definition Compatible Digital® and Microsoft® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
*”DCDi™” is a trademark of Faroudja, a division of Genesis Microchip Inc.
*HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
*NSV and Super Sub Alias Filter are registered trademarks of Analog Devices,Inc.
*"WMA"(Windows Media Audio) is a audio codec developed by Microsoft® in the United States of America.
* “Windows Media™” , “Windows®” are trademarks of Microsoft Corporation, Inc.
*KODAK is a trademark of Eastman Kodak Company.
*iPod is a trademark of Apple, Inc., registered in the U.S. and other countries.
Component
S-Video
Composite
Analog audio
Digital OPT
Digital COAX
Wi-Fi
USB
iPod ready
Dock Control
- 1
22
22
23
11
-1
-1
-1
-1
11
HDMI
Component
S-Video
Composite
Digital OPT
RS-232C
Ethernet
11
11
11
11
-1
-1
-1
IN OUT
Others

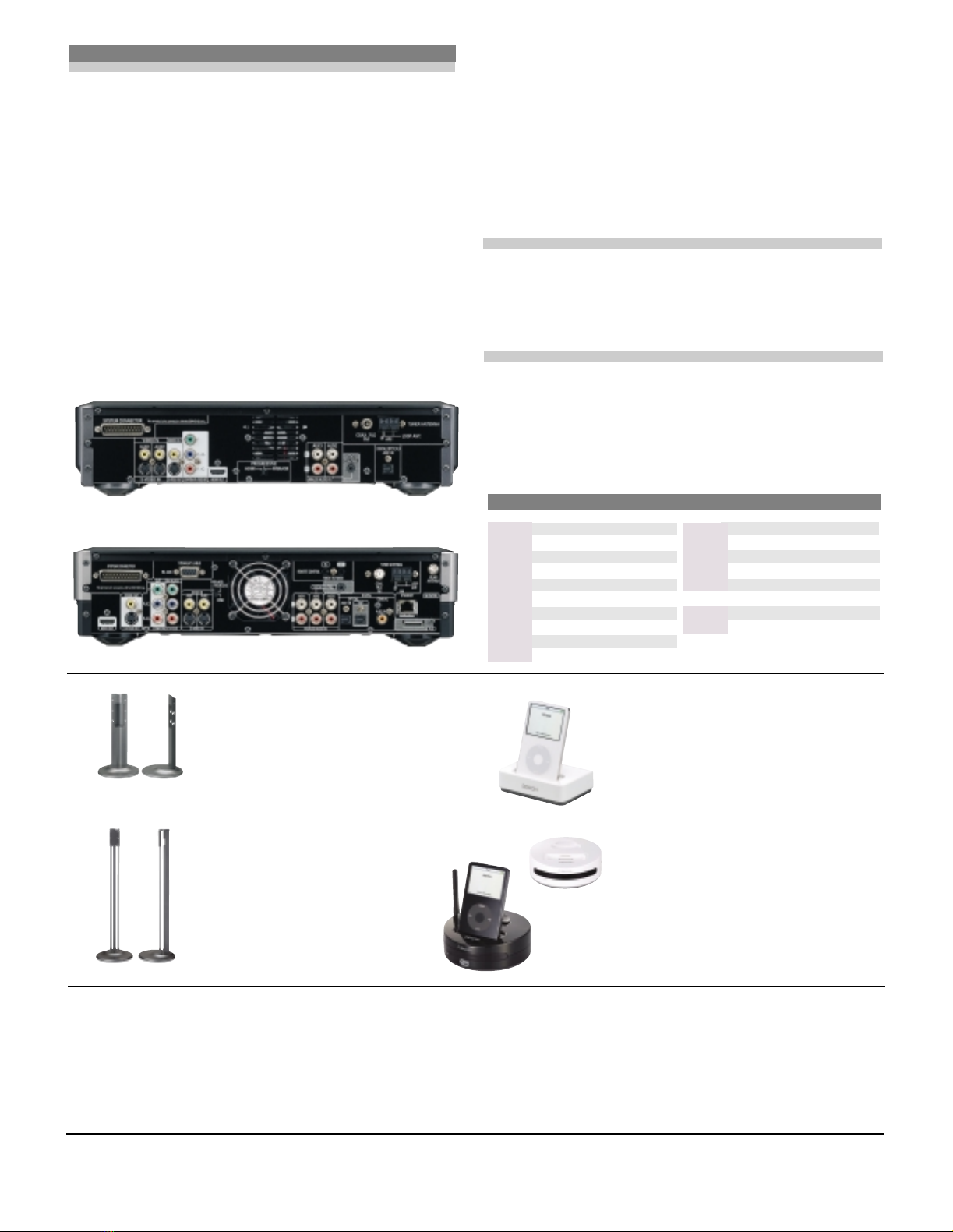

Input / Output terminals
S-102
S-302
Shelf Speaker Stand for S-102/302
ASF-S05 (Optional)
Dimensions 205 (W) x 378.5 (H) x 205 (D) mm
(8-5/64" x 14-29/32" x 8-5/64")
Weight 1.5 kg/unit (3 lbs 4.9 oz)
Floor Speaker Stand for S-102/302
ASF-S07 (Optional)
Dimensions 300 (W) x 1,022 (H) x 300 (D) mm
(11-13/16" x 40-15/64" x 11-13/16")
Weight 7.3 kg/unit (16 lbs 1.5 oz)
Control Dock for iPod®
ASD-1R (Optional)
• Playback with ‘Command and Control’ of your iPod
• Recharge your iPod
• Black version is available
For more details, Please refer to page 11, or visit
http://blog.denon.com/asd-1r/
Control Dock for iPod®
ASD-3W/ASD-3N (Optional)
• Playback Music/Photo File from PC Music Server
• Wi-Fi connectivity (ASD-3W only)
• Internet radio
• GUI (Graphical User Interface) operation
• iPod command and control
• Available in Black, or White
Please visit to latest Compatible lists http://blog.denon.com/asd-3/
