Denon DHT-S316 User manual

.
DHT-S316
HOME THEATER SYSTEM
Owner’s Manual
Contents Connections Playback Settings Tips Appendix
1

Accessories 4
Inserting the batteries 5
Operating range of the remote control unit 5
Features 6
Part names and functions 7
Sound bar 7
Subwoofer 10
Remote control unit 11
Connections
Positioning 12
Positioning the sound bar 12
Positioning the subwoofer 14
Connecting a TV 15
Connection 1: TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) 16
Connection 2: TV equipped with an HDMI connector and
incompatible with the ARC / TV equipped with an optical digital
connector 17
Connection 3: TV equipped with an HDMI connector and
incompatible with the ARC / TV equipped with an analog
connector 18
Connecting the power cords 19
Playback
Enjoying television, movies and music 20
Status LED table 21
Listening to music on a Bluetooth device 22
Pairing a Bluetooth device for the first time 22
Pairing with other Bluetooth devices 23
Listening to music with a paired Bluetooth device 23
Settings
Settings 24
Adjusting the volume 24
Adjusting the subwoofer volume 24
Selecting a listening mode 25
Turning off the sound temporarily 25
Setting the Bluetooth standby function 25
Auto standby function 26
Volume limiter function 26
Contents Connections Playback Settings Tips Appendix
2

Tips
Troubleshooting 27
Power does not turn on / Power is turned off 28
Operations cannot be performed through the remote control unit 28
No sound comes out 29
Bluetooth playback does not work 30
The HDMI Control function does not work 30
Resetting factory settings 31
Appendix
About HDMI 32
Trademark information 33
Specifications 34
Sound bar 34
Subwoofer 36
Contents Connections Playback Settings Tips Appendix
3

Thank you for purchasing this Denon product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.

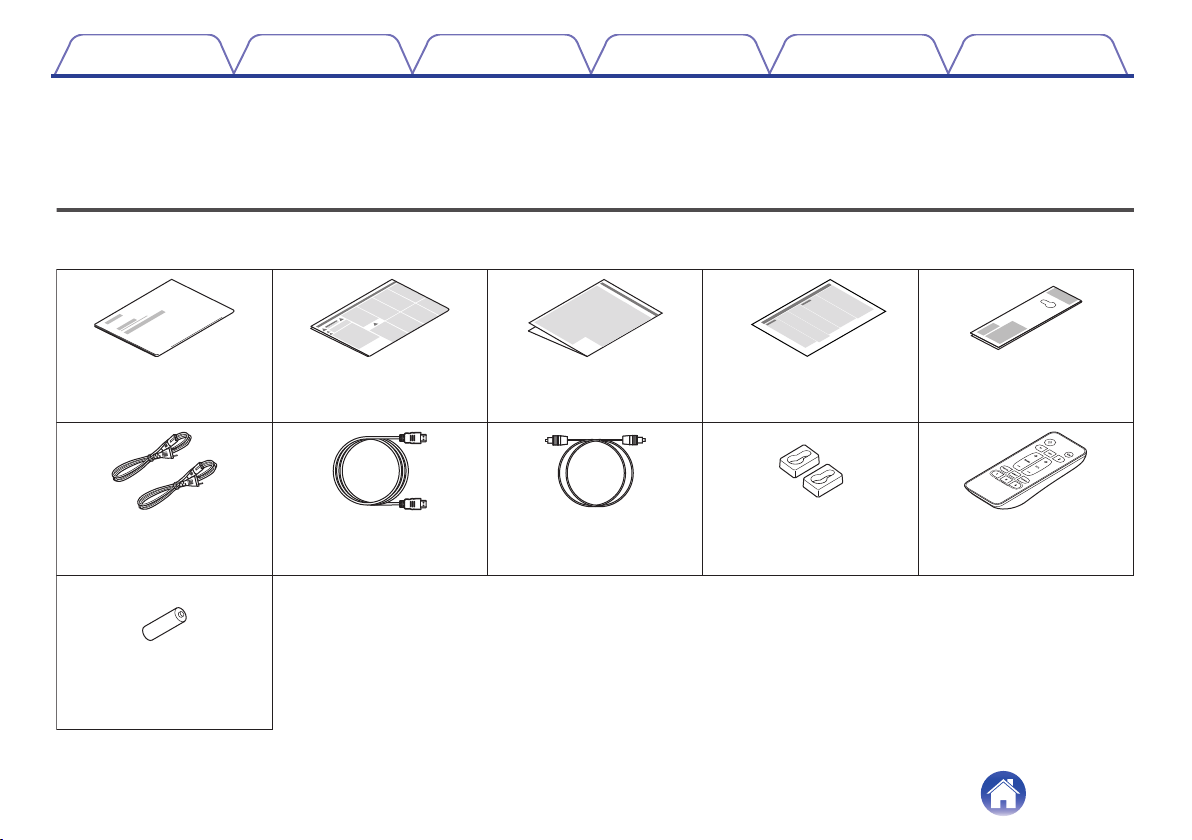

Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide Safety Instructions Cautions on Using Batteries Notes on radio Wall mount template
Remote control unit
(RC-1230)
Wall mount spacersOptical digital cableHDMI cablePower cords
R03/AAA battery
Contents Connections Playback Settings Tips Appendix
4

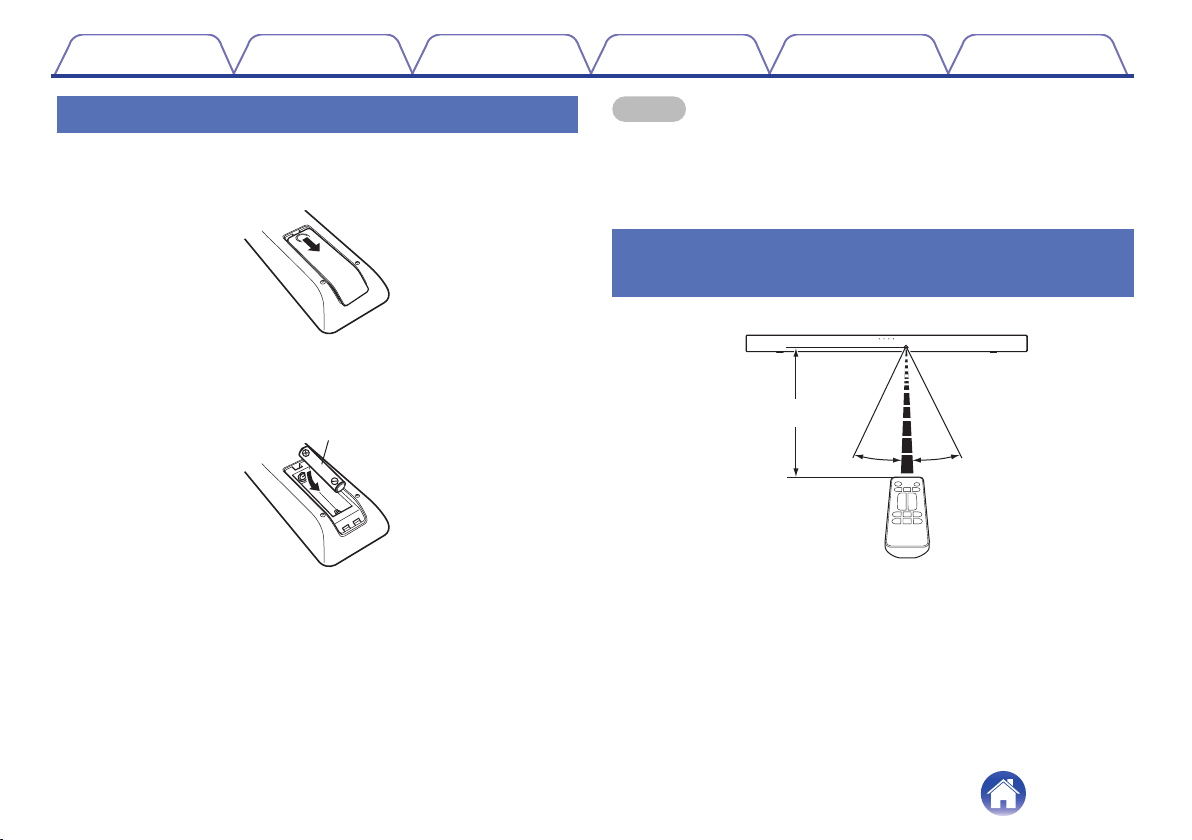

Inserting the batteries
1Slide the rear cover off the remote control unit in the
arrow direction.
.
2Insert 1 battery into the battery compartment as
indicated.
.
Battery
3Put the rear cover back on.
NOTE
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°
30°
Approx. 7 m
Contents Connections Playback Settings Tips Appendix
5

Features
0Two-way sound bar with wireless subwoofer: Powerful, dynamic
Denon home theater sound
Easy Setup: Quickly connect to your TV with the supplied HDMI or
Optical cables.
Wireless Subwoofer: Powerful bass without the cables. Place the
subwoofer within 9 m of the sound bar for optimal enjoyment.
5 cm Low-profile Design: At 5 cm tall, the Denon DHT-S316 fits most
spaces and can be placed in front of your TV without blocking your TV’s
bottom edge or IR remote sensor.
0Exceptional sound clarity for your TV, Blu-ray, gaming system
and favorite music sources
HDMI with Audio Return Channel: Send audio from your TV’s built-in
apps, on-board tuner or HDMI connections over a single cable when
you connect your TV’s HDMI ARC output to the sound bar using the
included HDMI cable.
Digital Audio Optical Input: Effortlessly connect your Blu-ray, gaming
or other device with the included Optical cable.
Analog Auxiliary Input: Connect any source compatible with a 3.5 mm
input and listen through the DHT-S316.
Bluetooth: Connect your smartphone or tablet to the DHT-S316 to
wirelessly stream music and other audio.
0Immerse yourself in a realistic home theater experience
Dolby Digital and DTS Decoding: Virtual surround technology creates
a powerful, realistic multi-channel home theater experience.
Denon Dialogue Enhancer: Never miss a word of your favorite TV
show or movie, Denon Dialogue Enhancer improves dialogue
intelligibility - ideal for movies and TV shows. Turn up the dialogue
without having to adjust overall volume.
Contents Connections Playback Settings Tips Appendix
6

Part names and functions
Sound bar

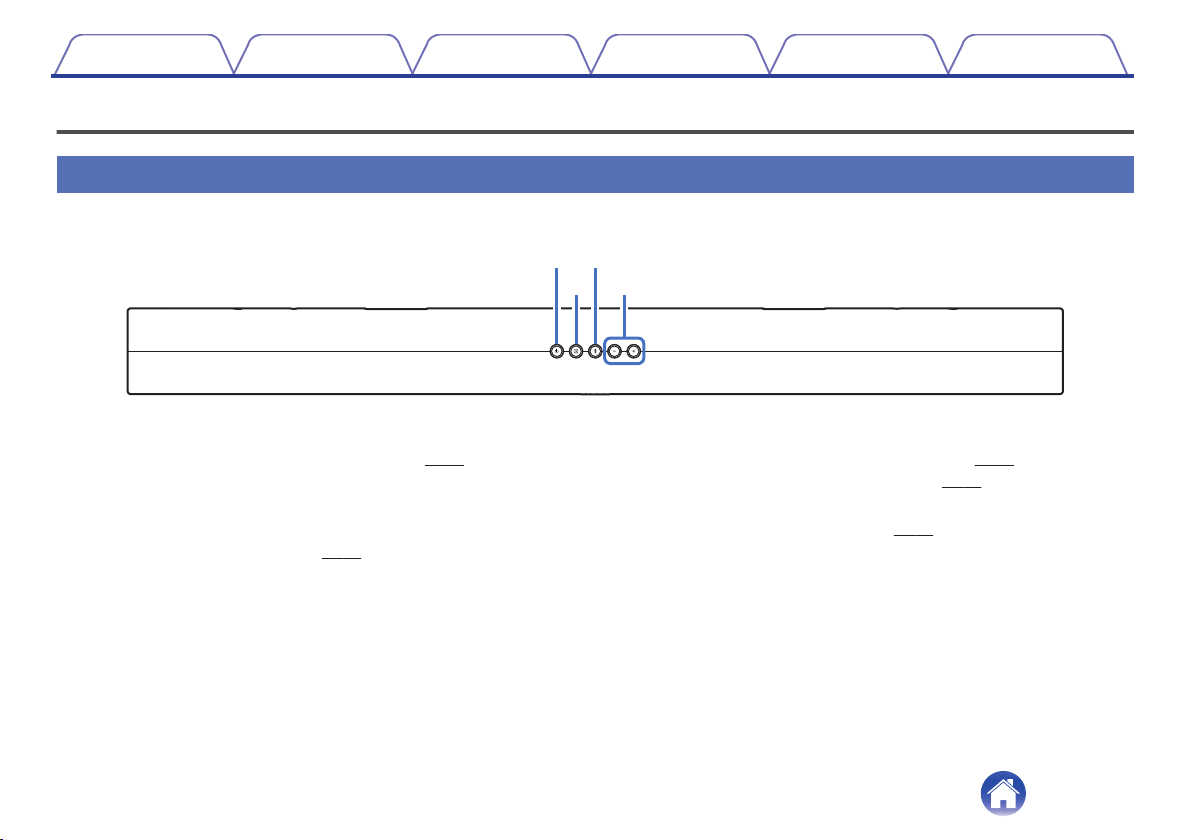

oTop panel
.
eq
rw
APower operation button (c)
Turns the sound bar power on/off (standby). (v p. 20)
Links to sound bar power and turns the subwoofer power on/off
(standby).
BInput source button (d)
This selects the input source. (v p. 20)
Switches the input source each time the button is pressed.
CBluetooth button (g)
0Switches the input source to “Bluetooth”. (v p. 22)
0Used to pair with Bluetooth devices. (v p. 22)
DVolume buttons (+, –)
These adjusts the volume level. (v p. 24)
Contents Connections Playback Settings Tips Appendix
7

oFront panel
.
qw
AStatus LED
Displays the status of input source / input signal / listening mode, etc.
(v p. 21)
BRemote control sensor
This receives signals from the remote control unit. (v p. 5)
oBottom panel
.
q
AUSB port
Service terminal. Not used in normal operation.
Contents Connections Playback Settings Tips Appendix
8

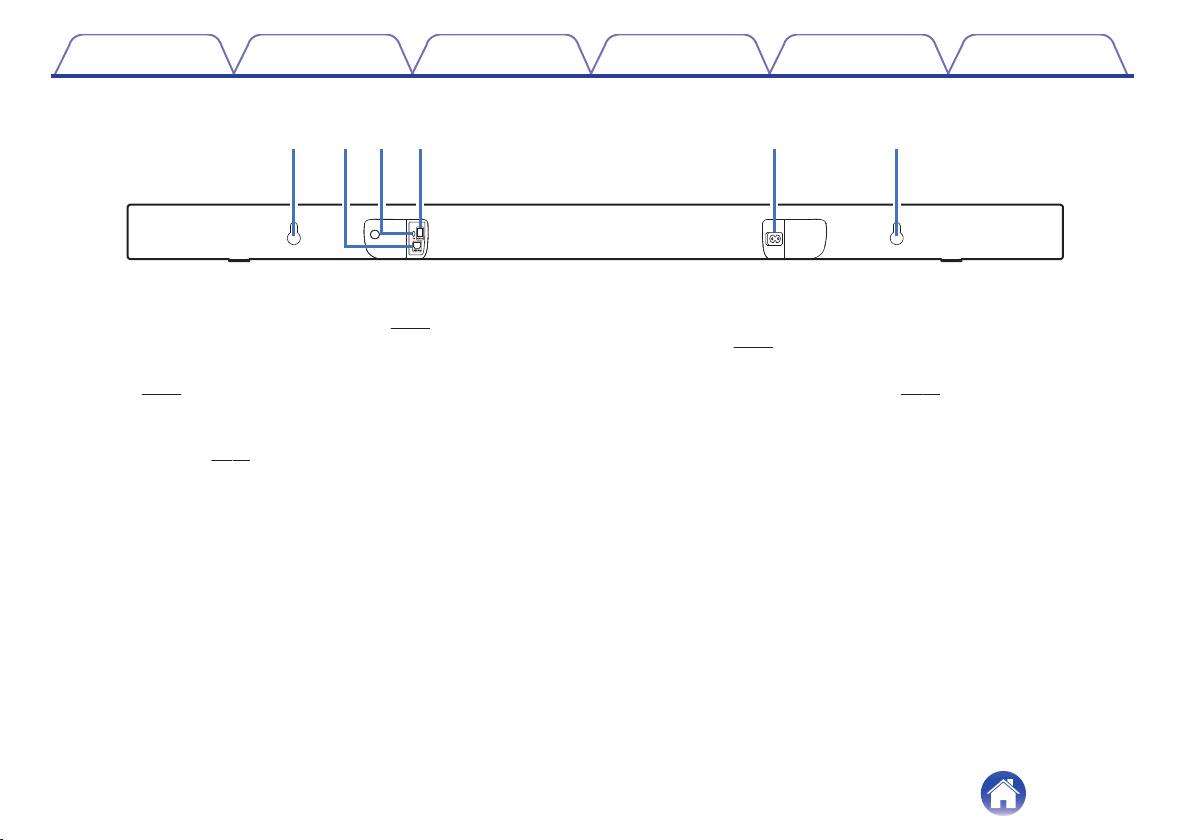

oRear panel
.
rtqqwe
AWall hook hole
Used to mount the sound bar on a wall. (v p. 13)
BHDMI connector (TV (ARC))
Use the included HDMI cable to connect an ARC function-compatible
TV. (v p. 16)
CAUX audio input connector
Use a commercially available 3.5 mm stereo audio cable to connect an
audio device. (v p. 18)
DOptical digital input connector (TV OPTICAL)
Use the included optical digital cable to a TV with an optical digital
terminal. (v p. 17)
EAC inlet
Used to connect the power cord. (v p. 19)
Contents Connections Playback Settings Tips Appendix
9

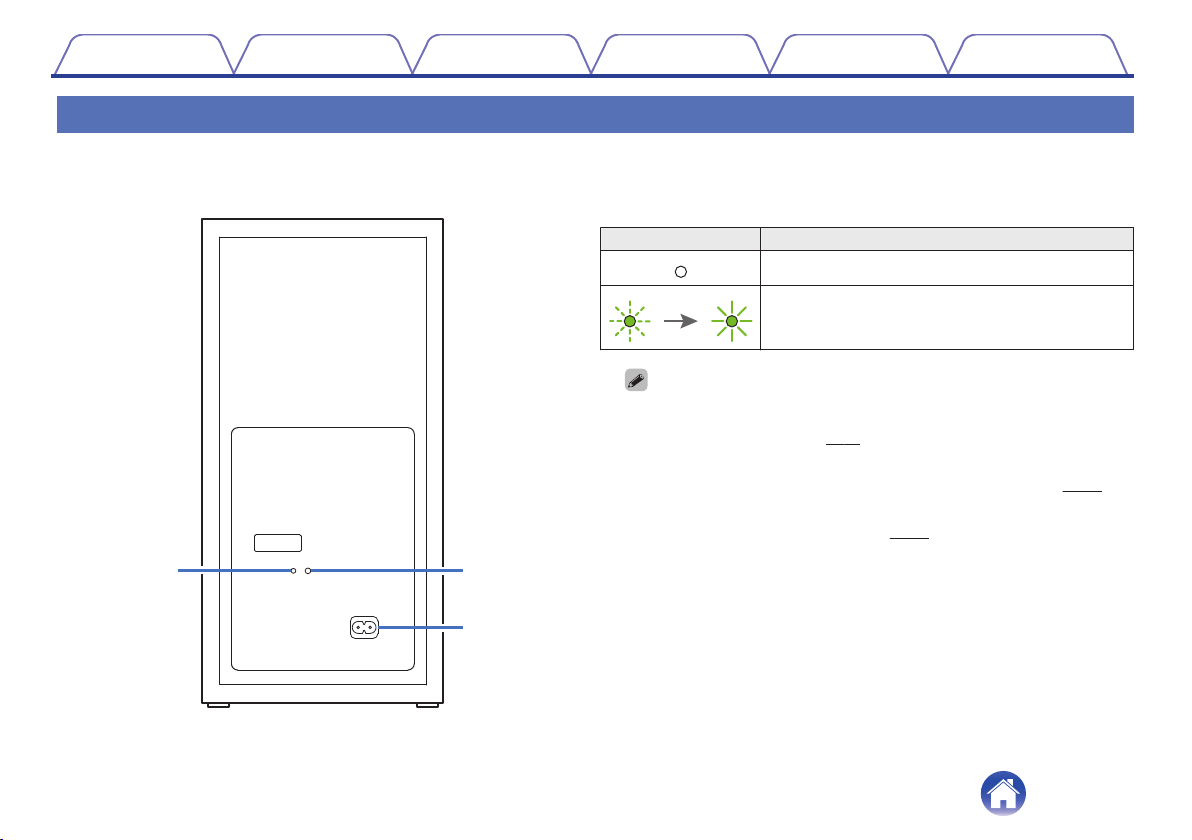

Subwoofer
oRear panel
AStatus LED
Displays subwoofer status.
LED indication Status
.
When subwoofer power is on/off (standby)
.
When the sound bar and subwoofer are wirelessly
connected
0The sound bar and subwoofer are wirelessly connected as the factory default.
If no audio is output from the subwoofer, wirelessly connect the sound bar
and subwoofer again. (v p. 29)
BBAR SYNC button
Used to wirelessly connect the sound bar and subwoofer. (v p. 29)
CAC inlet
Used to connect the power cord. (v p. 19)
qw
e
Contents Connections Playback Settings Tips Appendix
10

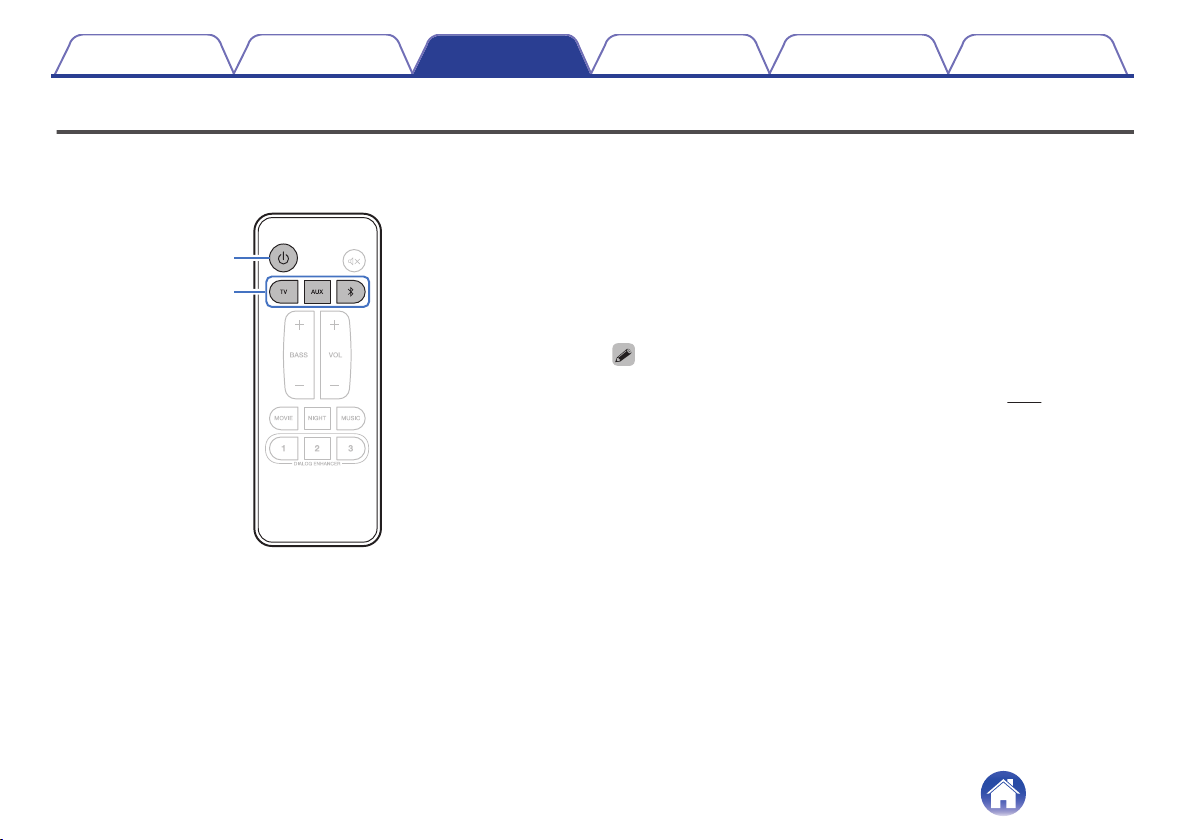

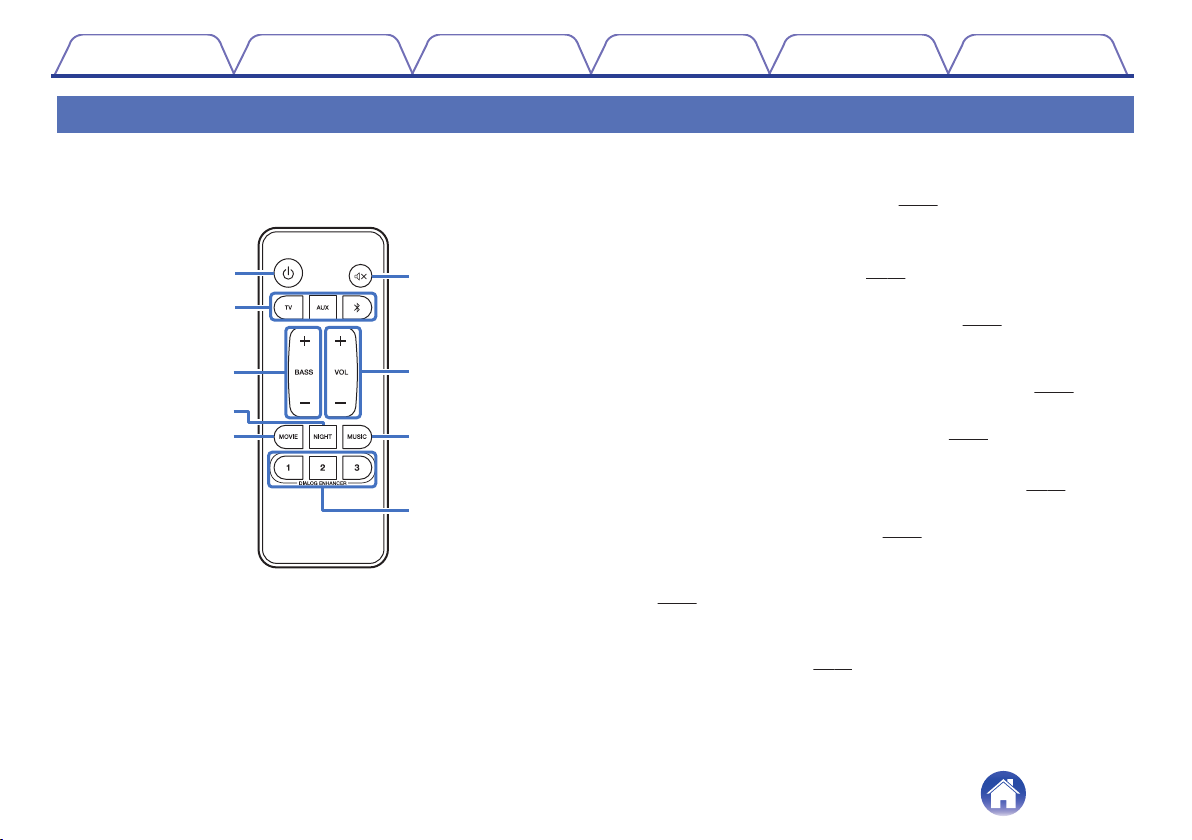

Remote control unit
This section mainly explains remote control operations.
APower button (c)
Turns the sound bar power on/off. (v p. 20)
Links to sound bar power and turns the subwoofer power on/off.
BInput source buttons (TV, AUX, g)
This selects the input source. (v p. 20)
CButton to adjust subwoofer (BASS +, -)
Adjusts the volume level for the subwoofer. (v p. 24)
DNight mode button (NIGHT)
Compresses the dynamic range (difference between loud and soft
sounds) to make audio easier to hear at low volumes. (v p. 25)
EMovie mode button (MOVIE)
Enjoy movie theater-like surround sound. (v p. 25)
FMute button (h)
This mutes the output audio. Press again to unmute. (v p. 25)
GVolume buttons (VOL +, –)
These adjusts the volume level. (v p. 24)
HMusic mode button (MUSIC)
Enjoy the full presence of a wide, encompassing acoustic field.
(v p. 25)
IDialog enhancer buttons (DIALOG ENHANCER 1 - 3)
Adjust the volume of dialog in movies, vocals in music, etc. so these can
be heard more easily. (v p. 25)
Can be set to 3 levels. Set this to the desired value.
t
e
i
o
u
y
q
w
r
Contents Connections Playback Settings Tips Appendix
11

Positioning

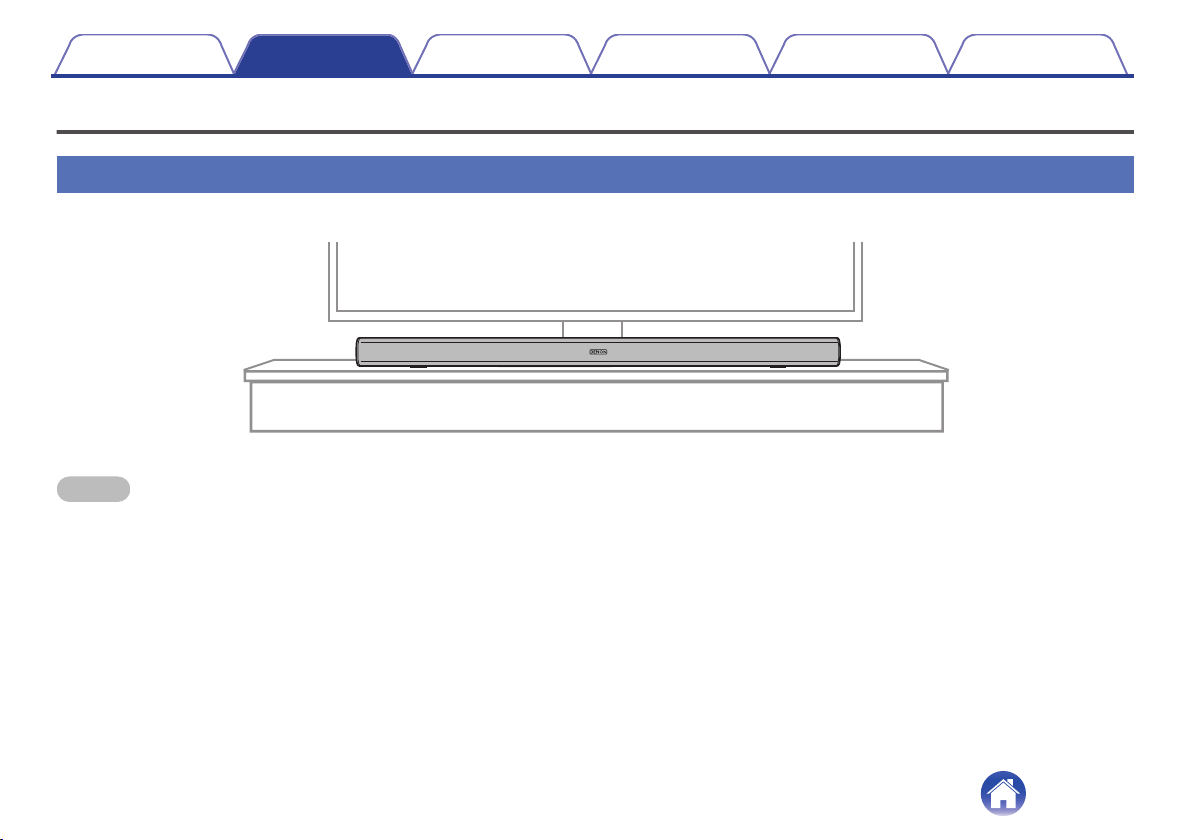

Positioning the sound bar
Position the sound bar in front of your TV, etc., on a flat surface.
.
NOTE
0When positioning the sound bar in front of your TV, make sure the sound bar does not obstruct the TV’s remote control light sensor, etc.
Contents Connections Playback Settings Tips Appendix
12

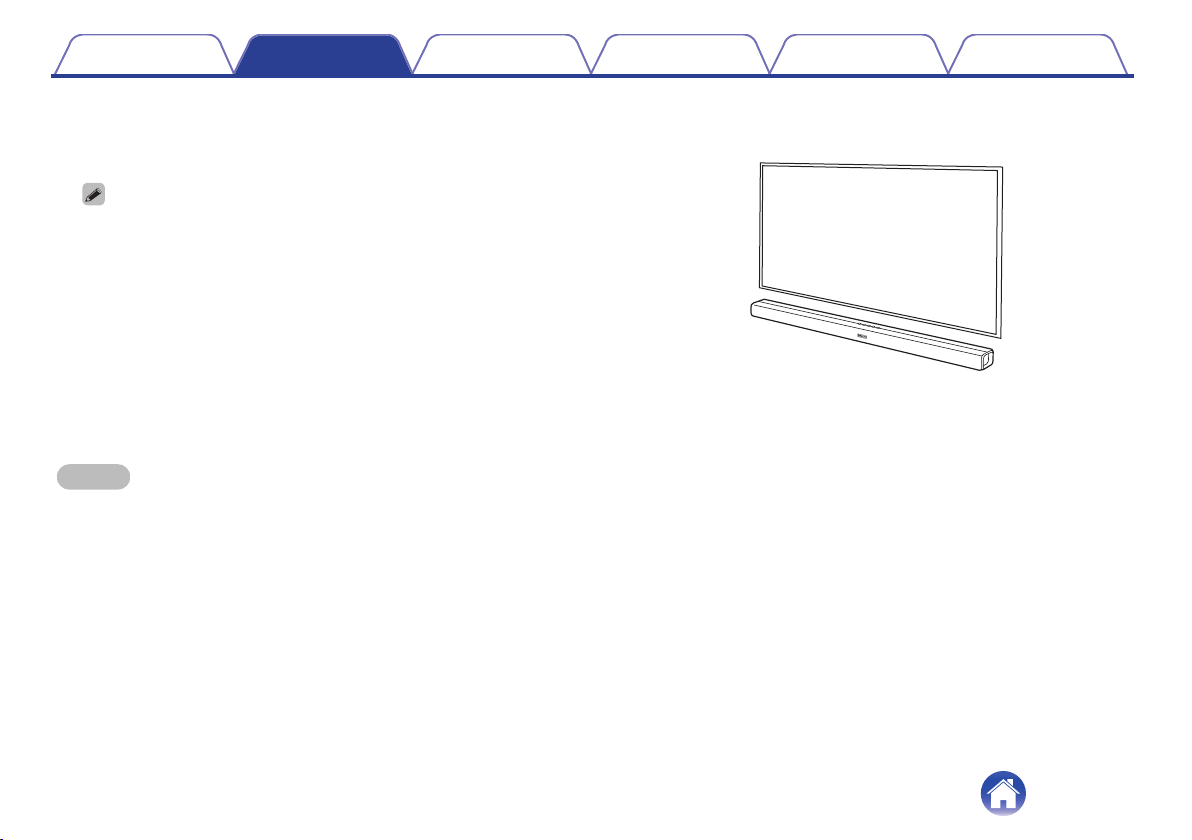

oWhen hanging the sound bar on a wall
The sound bar has a wall hook hole to hang it on a wall. When hanging
it on a wall, position it in a flat, vertical position.
0When hanging it on a wall, use the included wall mount template.
[How to use the wall mount template]
AAffix the template to the location you would like to mount the sound bar.
BScrew in the wall mount screws by following the template.
Consult a construction professional about the proper wall mount screws for
the material and strength of your wall.
CRemove the template from the wall.
DMount the included wall mount spacer on the spine of the sound bar.
Mounting the wall mount spacer creates a space for cords to pass through
between the sound bar and the wall.
EMount the sound bar on the wall.
.
NOTE
0To ensure safety, request a contractor perform the mounting work when mounting onto a wall.
0In order to use the unit safely, do not place items on or hang items from the unit.
0Be sure to fix connection cables to the wall to ensure that cannot be pulled or tripped over causing this unit to fall. Check that the unit is mounted safely after the mounting
work is complete.
0Also, periodically check the safety of this unit and whether there is a possibility that the unit may fall.
0Denon cannot accept any responsibility for damage, injury or accidents caused by problems with the mounting location or mounting method.
Contents Connections Playback Settings Tips Appendix
13

Positioning the subwoofer
Position the subwoofer in a flat location near the sound bar.
.
Contents Connections Playback Settings Tips Appendix
14

Connecting a TV
How to connect a TV depends on the connectors and functions equipped on the TV.
0Enable the TV’s HDMI control function when using an HDMI cable to connect this device to your TV. (See the TV Owner’s Manual for details.)
0Turn off the TV’s speaker or minimize the volume when using this device.
0HDMI cable connection is recommended, but connection can be performed without an HDMI cable.
NOTE
0Make sure all devices are off when connecting.
0Do not plug device power cords into an outlet until all devices have been connected.
Contents Connections Playback Settings Tips Appendix
15

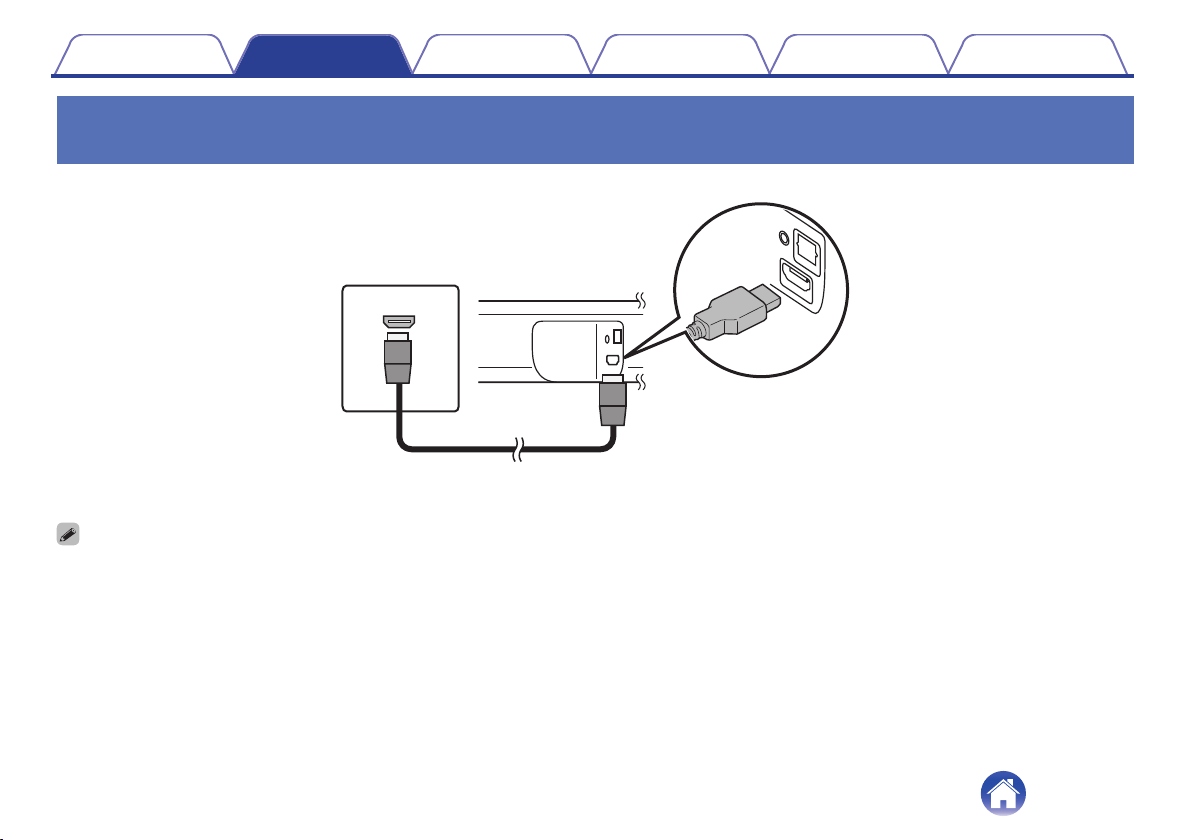

Connection 1: TV equipped with an HDMI connector and compatible with the ARC
(Audio Return Channel)
Use the included HDMI cable to connect this device to an ARC function-compatible TV.
.
TV(OPTI CAL)AUX
TV(HDMI A RC)
HDMI INPUT
(ARC)
TV(OPTICAL)
TV(HDMI ARC)
AUX
TV
HDMI cable (included)
Soundbar
(Rear panel)
0The TV also needs to be compatible with the ARC function.
Contents Connections Playback Settings Tips Appendix
16

Connection 2: TV equipped with an HDMI connector and incompatible with the ARC /
TV equipped with an optical digital connector
Use the included HDMI and optical digital cables to connect this device to your TV.
.
79237,&$/$8;
79+'0,$5&
OPTICAL
OUTPUT
HDMI
INPUT
79237,&$/
79+'0,$5&
$8;
TV
Soundbar
(Rear panel)
Optical digital cable (included)
HDMI cable (included)
0Line up the optical digital cable with the shape of the terminal to insert.
Contents Connections Playback Settings Tips Appendix
17

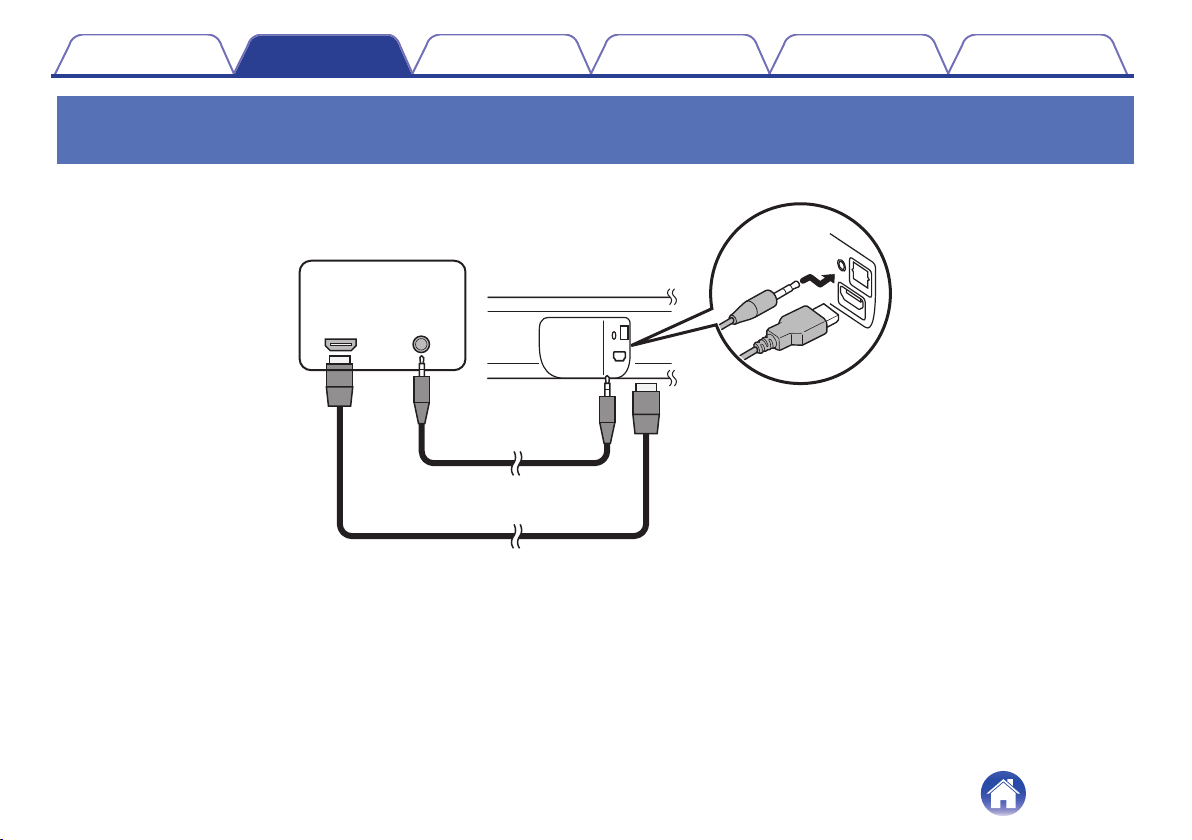

Connection 3: TV equipped with an HDMI connector and incompatible with the ARC /
TV equipped with an analog connector
Use the included HDMI cable and a commercially available 3.5 mm stereo audio cable to connect this device to your TV.
.
79237,&$/$8;
79+'0,$5&
AUX
AUDIO OUT
HDMI
INPUT
79237,&$/
79+'0,$5&
$8;
TV
Soundbar
(Rear panel)
HDMI cable (included)
3.5 mm stereo audio cable
Contents Connections Playback Settings Tips Appendix
18

Connecting the power cords
After completing all the connections, insert the power plug into the power outlet.
.
Subwoofer
Soundbar (Rear panel)
Power cord (included)
Power cord (included)
Connect to household power outlet
(AC 230 V, 50/60 Hz)
Contents Connections Playback Settings Tips Appendix
19

Enjoying television, movies and music
.
X
Input source
buttons
1Turn on the power of the TV and connected devices.
2Press c to turn on power to the unit.
3Press the input source button.
4Play the device connected to this unit.
For details, see the relevant device manual.
0Connect an HDMI control-compatible TV and this device via HDMI and enable the
HDMI control to enable linked control from either device. (v p. 32)
Contents Connections Playback Settings Tips Appendix
20
