Dent Fix Equipment DF-800BR User manual

DF-800BR
INSTRUCTION MANUAL
HOT STAPLER
A little about the DF-800BR Hot Stapler
Other Products from Dent Fix
© Copyright 2012 Dent Fix Corporation 1611 W. 135th St., Gardena, CA 90249
Dent Fix Equipment is proud to say we manufacture
the DF-800BR Hot Stapler in the USA. We do this to
guarantee its superior quality and ensure it lives up
to the standards we put into every Dent Fix product. Your DF-800BR Hot
Stapler has a 5 year warranty which gives you the peace of mind that Dent
Fix stands behind all their products and more importantly: You, our valued
customer.
From our manufacturing facilities in sunny southern California we proudly ship our products
to every corner of the US and all over the world. For over 33 years Dent Fix has exclusively
produced and offered premier repair solutions for the collision and body shop repair indus-
try. This winning philosophy is what we believe in and is the reason why Dent Fix products
are so highly respected. We are excited to provide you the Technician with the products that
increase your efficiency and profitability with higher quality results.
Paintless Dent Repair Glue Pulling Kit
DENT FIX PRODUCTS SOLVE PROBLEMS - SINCE 1979
DINGS, DENTS, HAIL AND WEATHER DAMAGE are all eas-
ily repaired whether on steel or aluminum panels. Access
to the back panel is not necessary; glue pullers are the
easiest means of paintless dent repair. This kit includes ev-
erything you see here organized in a rugged blow molded
case.
DF-DM550DX
WELD • PULL • TWIST
This 220v dent removal station is perfect for light to heavy
pulls. Leverage puller for power and precision pulls. Slide
hammer rod for tapping action. Bear Claws and Wiggle
Wire for crease pulling. Optional stand DF-509 not pictured.
DF-505
Made
in the USA

1. Plugintotheproper110voltelectricaloutlet.
2. ChoosethesuitableDentFixBreakaway®StapleClips®(seechartbelow)andsetintothetip
oftheprongs. (SeeImage1)
3. Jointheadjacentpiecesoftherepairareatogethertorestoretheoriginalform.
4. Presstheswitchbuttononthegripandholdinpositiononplasticabout5secondsuntilthe
StapleClips®ishotenoughtomelttheplasticandpresstheStapleClips®gentlytoset.The
LEDlightwilllightupwhenON/OFFSwitch. (SeeImage2)
WHEN PRESSED TOO HARD THE STAPLECLIPS® CAN BEND OR
PENETRATE THROUGH THE REPAIR AREA.
APPLY LIGHT, CONTROLLED PRESSURE.
5. WhentheStapleClips®ishalfwaythroughtherepairsurface,youmaygivealittletwisttothe
SandZStapleClips®tolocklaterallyintheplastic,thenreleasetheOn/OffSwitchbuttonon
thegrip.Waitforafewsecondsuntiltherepairedgetsfirm.Next,drawtheStapleClips®out
oftheprongs. (SeeImage3)
6. Whenrepairingdamagedareaswithconsiderablelength,pleaserepeattheprocedure2-5at
intervalsof1-3cm.
7. WithaglovedhandsimplysnapofftheDentFixBreakaway®StapleClips®. (SeeImage7)
BE AWARE OF FRAGMENTS.
WEAR SAFETY GOGGLES WHEN YOU SNAP OFF BREAKWAY® STAPLECLIPS®.
8. Makesurethetipiscooledbeforeputtingthetoolaway.
9. Grindoffexcessorfileanyremainingstapleabovetheservice,usingasanderorgrinder.
10. SmoothridgesorfillanygapswiththeplasticrodsandFinishingIronincludedinthekit.
11. Finishasnecessaryandusualwithtextureandpaint.

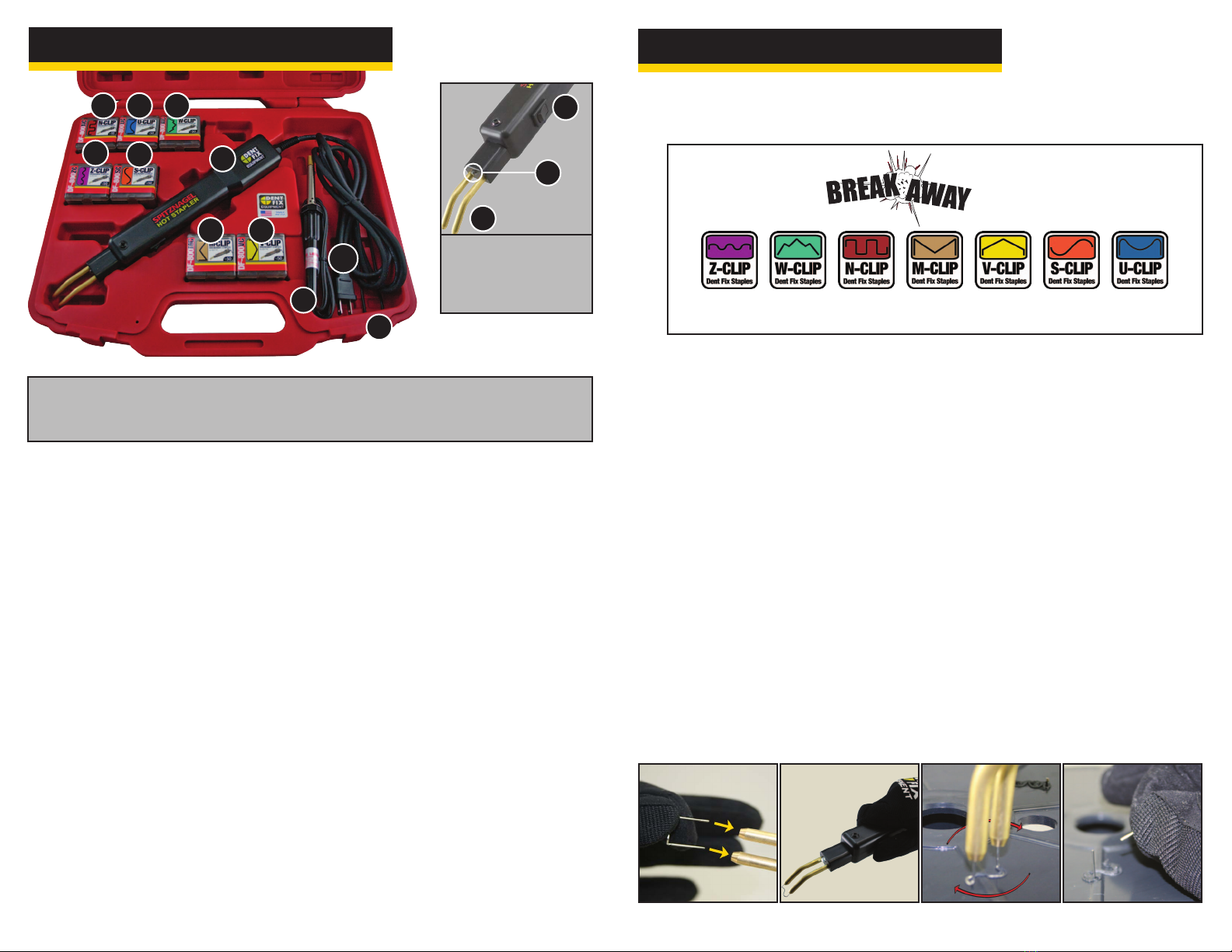

Getting to Know Your DF-800BR Deluxe Kit
a.HotStaplerunit
b.N-ClipStaples
c.U-ClipStaples
ONCE A STAPLE IS SET AND THE SWITCH IS TURNED ON, THE TEMPERATURE CAN
REACH 1,022° F. IF NOT HANDLED
PROPERLY CAN CAUSE BURNING, BLINDNESS AND/OR A FIRE
SAFETY PRECAUTIONS:
•Wearheat-resistantgloveswhenworking.
•Beforesettingthestaple,makesurethattipoftheprongiscold.
•DonottouchstaplewithbarehandswhenitissetandON/OFFswitchisengaged.
•Donotusenearcombustiblematerials.
•Notifythepeoplearoundyoutobecautiousofthehightemperaturesandavoidapproach-
ingyouwhenweldingorstapling.
•Donotusewithwethands.
•Donotsoakthisproductinwaterorotherliquids.
•Donotuseinwetordamplocations.
•Wheneverthetoolisnotbeingused,foranextendedperiodunplugunitfromwallsocket.
•Therepairareaisexposedtohightemperatures.Beawareofandavoidcontactwithmelt-
edplastic.
OPERATION PRECAUTIONS:
•Thisproductwasdesignedfortheplasticrepair.Donotuseitforpurposesotherthanthe
originalusage.
•Thedeviceshouldbeusedwithauthorizedstaples/clips.
•Neverdisassemble.
•Donotuseinwetordamplocations.
•StaplewillbecomeextremelyhotwhenON/OFFSwitchisengaged.
•Whenyoupluginordisconnecttheplug,pleaseholdtheplugitself.(Donotpullthecable.)
Hot Stapler Operation Procedure
d.W-ClipStaples
e.Z-ClipStaples
f.S-ClipStaples
g.M-ClipStaples
h.V-ClipStaples
i.FinishingIron
b.
a.
c. d.
e. f.
g. h.
i.
j.
n.
l.
m.
j.PlasticRods
k.LEDLight
l.On/OffSwitch
m.ElectricalPlug
n.Prongs
k. DENT FIX STAPLECLIPS®
®
Stitch
Tears
Grip
Corner
Large
Surface
Outside
Corner
Inside
Corner
Stitch
Holes
Rounded
Corner
Image1-Step2 Image2-Step4 Image3-Step5 Image4-Step7
DF-800ZC DF-800WC DF-800NC DF-800MC DF-800VC DF-800SC DF-800UC
