DentLight FUSION User manual

LED Curing Light System
Powered by Patented Focus Beam Technology
Setting New Standards through Innovation
FUSION
INSTRUCTIONS FOR USE

Product Information
Description and Indications for Use
Fusion Curing Light System is a source of illumination for curing photo-activated dental restorative materials
and adhesives. The system has an interchangeable LED light head that preconfigures as: 1) FUSION with a
peak wavelength of 440 –480 nm; 2) FUSION Plus with center wavelengths of 395-480 nm. These operating
instructions provide recommendations and guidelines for the intended use of the light. Please read them
carefully.

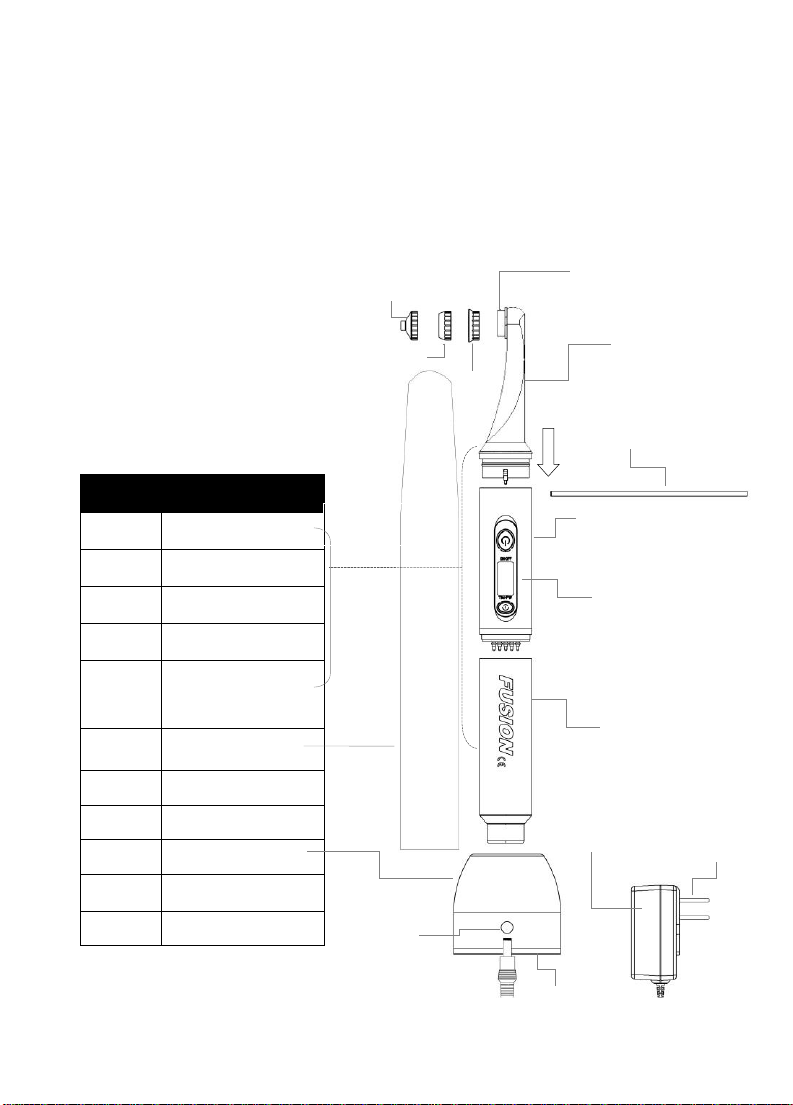

System Components
FUSION Curing Light System consists of a curing
Handpiece (LED Light Head, Main Control, and
Battery Assembly), Charging Stand, Curing
Caps①②, Power Adapter, Light Shield, 100
Barrier Sleeves, Stand Sticky Pad, and
Instructions for Use.
Quantity
Description
1
Standard Head①
1
Plus Head②
1
Main Control
1
Battery Assembly
3
Curing Caps①② (3mm,
9mm, 13mm/each)
1
Barrier Sleeves
(1 pack of 100)
1
Power Adapter
1
Light shield
1
Charging Stand
1
Stand Sticky Pad
1
Instructions for Use
Marked components included in:
①: FUSION Standard Kit
②: FUSION Plus Kit
③: FUSION Grand Kit
DC Power Plug
Lens Module
360 degree Swivel
LED Light Head
3mm
9mm
13mm
Curing Caps
Light Shield
Main Control
Stand Sticky Pad
Plug Receptor
Power Adapter
Handpiece
Country Blade
LCD
Battery Assembly

Product Safety Warnings and Cautions
Prior to installation and activation of the light, please read these instructions carefully and follow safety
procedures as well as the specific safety comments and recommendations presented throughout the
instructions for use. The manufacturer accepts no liability for any damage resulting from the improper use of
this unit and/or for any purpose other than those covered by these instructions.
1. CAUTION! FUSION lights produce high intensity light. Prolonged exposure to the skin, oral mucosa, or pulp
can result in irritation or injury.
-Do not place light in direct contact with unprotected gingival, oral mucous membrane or skin.
-Do not place light directly on the same tooth segment for more than 6 seconds in Plasma Power Mode.
-If long exposure cannot be avoided, direct a stream of air over the tooth surface from an air syringe or
high-speed vacuum tip, adjust to Pulse Power Mode or adjust curing distance.
2. CAUTION! Do not look directly at light emitted from the device. Do not use FUSION lights without suitable
eye protection for the operator, assistant and patient. Use Light Shield, Protective Goggles, and/or Curing Caps.
Exposure must be restricted to the area of the oral cavity for which the clinical treatment is intended.
3. CAUTION! FUSION must be used with “Single Use” Barrier Sleeves to avoid cross contamination.
Replace Barrier Sleeve after each patient treatment is completed. This sleeve also prevents composite/residue
material from adhering to the surface of the lens and degrading the curing performance.
4. Products marked “Single Use” on the labeling are intended for single use only. Discard properly after each use.
5. DO NOT operate the unit in the proximity of flammable mixtures. Use in well-ventilated area.
6. Keep solvents, flammable liquids, and sources of intense heat away from FUSION as they may damage internal
and external parts, the seals or the buttons on the control panel.
7. DO NOT autoclave or immerse the unit in any kind of ultrasonic bath, disinfectant, cleaning solution or any kind of
liquid. Do not spray liquids directly onto the light and prevent liquids from entering FUSION open area such as
Keypad, Charging Stand and its connectors as this may damage or short-circuit the device and can cause
potential hazard for operator and/or patient.
8. Caution: Federal law restricts this device to sale by or the order of a licensed dentist.
Glossary of Symbols
A number of symbols are used on the device, accessories and throughout this manual, it is important that the
user/operator of FUSION understands the meaning of each symbol to avoid possible injury to the operator or/and
patient.
Symbol is used to alert you to consult instructions for use. Understand all safety messages that follow
this symbol to avoid injury to the operator and/or patient.
Attention, consult accompanying documents
Waste Electrical and Electronics Equipment (WEEE)
Type BF Applied Medical Equipment
Protection Class II- Double insulated
Manufacturer
European Authorized Representative
Date of Manufacturing
Atmospheric Pressure Limitation

DC Voltage
Humidity Limitation
Single Use Only
Keep Dry
Temperature Limitation
For Licensed Dental Professional Use Only!
SN
Serial Number
REF
Product Number
Start Up
Assemble Handpiece
Upon receiving your FUSION,
remove all components from
the package and examine
them. If damage is apparent, please contact your authorized DentLight distributor from whom your light was purchased.
Attach the Battery Assembly to the Main Control by screwing the Battery Assembly clockwise into the Main Control. A
short beep upon connection indicates that the light is battery powered and the LCD display should automatically power on.
Adjust the 360º swivel LED Light Head to a comfortable curing position and ensure good connection with the Main Control.
The modular LED Light Head quick connects to Main Control with easy twist Push/Pull. Light is now ready for use.
Operation and Setting
FUSIONs use advanced Metal Keypad and LCD interface. ON/OFF Key starts and stops the light. TM/PW Key sets the
Operation Time and Power Mode. FUSION defaults in Pulse Power Mode (green backlit LCD and flash MODE symbol)
with 5 second timer. Press TM/PW Key to select a Digital Timer of your choice. Press and hold TM/PW Key for 2 seconds
and release to change power to Plasma Power Mode (white backlit LCD with steady MODE symbol) and vice versa.
Plasma Power Mode allows the fastest curing. Pulse Power Mode maintains the peak power and generates the minimum
heat by lowering the average power in half with a 50/50 on and off duty cycle. Built-in settings are shown in the table
below. After starting, Digital Timer counts down and the light makes an audible beep every 5 seconds. Press ON/OFF Key
anytime to stop.
MODE
Plasma Power
Pulse Power
Digital Timer
(seconds)
3
3*
5
10
20
60
Backlit LCD
White
Green
To Change
Power Mode
Press/hold TM/PW Key for 2 seconds then release
* Sequential curing 6 times (3s cure, 5s period) for brackets/veneers.
Built-in Self-Protection FUSION has built in self-protection on low
battery and overheats. Low battery is indicated with low Battery Bars
(one or no bars). Low battery triggers one beep a minute ahead of
self-protection shutdown. Light then goes to sleep mode. Overheating
(above 50°C at the light tip) is indicated with a flashing Thermometer
symbol, an audible warning beep together with a red backlit LCD.
Light shuts off when overheat is triggered. The light will be
deactivated until the temperature is restored back below 38°C.
Battery Protection Temperature Overheat
Check connection
Replace battery
Allow cool down
Thermometer
Metal Keypad
ON/OFF
MODE
DIGITAL TIMER
BATTERY BARS
TM/PW

Curing Recommendations
Please follow the method below to check the performance of the device. For specific resin, sealants and bonding materials,
perform a timed curing test outside the mouth using a 3mm washer or hardness disk. Cure from the top for the
recommended time and reverse the disk. Using a sharp instrument, compare the hardness of the disk to the hardness of
the top composite - it should feel exactly the same if well cured. For general guidance, use recommended curing times
below. The time required to cure can then be determined. It is highly recommended to test the device using radiometer
periodically to track the performance of the device. For general guidance, use recommended curing times below. For
reduced heat or shrinkage, use Pulse Power Mode and replace 3sec with 5sec curing times below.
Recommended Cure Times (seconds) - Plasma Power Mode
Manufacturer
3M
Ivoclar
Dentsply
Kerr
Resin Brand
Filtek Supreme
Plus
Heliomolar
Tetric
EvoCeram
TPH3
XRV
Herculite
Color/Shade
A3E
C6D
A3
A2
A3
DY
A3
YB
Cure
Times
Per layer
3
3x3
3
3
3
3
3
3
Final layer
3x2
3x4
3x2
3x2
3x2
3x2
3x2
3x2
To bond brackets, use 1) 3 seconds in Plasma Mode for single bracket; 2) 3x2 seconds in Plasma Mode for band or tube;
3) 3 seconds in Pulse Mode for a quadrant.
Battery Care
Keep FUSION on the Charging Stand when not in
use. Connect DC Power Plug to Plug Receptor on the
Charging Base. Peel off Stand Sticky Pad and secure
Charging Stand on a table counter for easy one-handed pick up. Alternatively connect DC Power Plug directly to the
back end of the Handpiece to charge and power on the unit. Separate Battery Assembly from Main Control in case of
long-term storage (>2 months).
LCD screen lights green while charging. LCD backlight turns off when fully charged. It is completely safe to have the light
stand on the Charging Stand all the times. Battery Bar displays three full bars when the battery is fully charged. In normal
operation, Battery Bar drops from three to two bars while running and returns to full bar upon completion of a cycle.
BATTERY DISPOSAL: The Battery Assembly contains a Lithium ion (Li-ion) battery. When the battery is at the end
of its life, recycle or dispose it according to national, state and local regulations.
Techniques
Lens Module: Always use disposable Barrier Sleeves to protect lenses from liquid and
composite damages. Replace Lens Module immediately if it: a) has cured resin or
residue; b) is scratched or cloudy. Align and lock flat edge of Lens Tool (optional
accessary) to flat edge of Lens Module. Turn Lens Tool counter-clockwise and unscrew
Lens Module. Replace damaged lens with a new Lens Module by reversing the steps.
Do not overtight the thread and O-rings underneath.
Light Shield or curing cap: Slide in Light Shield from the LED Light Head to the Handpiece into proper position.
Snap on curing cap before barrier sleeve. Light shield and curing cap functions as protective filter to decrease the
blue light exposure for the operator for safe operation as explained in the precautions paragraph.
Tip Size: Tip and beam size can be adjusted by selecting the proper size Curing Caps. For
small cavity treatment, snap on 9mm Curing Cap and anchor light on occlusal or bonding
surface. For temporary bonding, snap on 3mm Curing Cap (Tacking Tip) at the end of the
Lens Module and apply pressure at the center of crown/veneer for best contact. Tack for 1
second then remove excess adhesives before final bonding. For veneer bonding and molar
cavity treatment, snap on 13mm Curing Cap and place light in direct contact. Curing Caps
are for single use only.
Tacking Tip

Cleaning and Disinfecting
−Clean and disinfect Handpiece and Charging Stand with a soft cloth or tissue dampened with cleaning solution
including: Cavicide, Lysol, Isopropyl or Ethyl alcohol and equivalent. Do not spray, soak, or autoclave.
−Use Q-tips to clean lens and electrical contacts by slightly dampening the tip (do not soak) with Isopropyl alcohol.
−Safeguard Handpiece opening area, Metal Keypad, Charging Plug, and Lens Module against liquid and sharp objects
as this may cause electrical short-circuit, permanent optical damage or malfunction.
Configuration/Add-ons
FUSION has interchangeable LED light head allowing users to customize composite curing to their commonly used dental
materials by switching its modular light head. To interchange the LED light head, simply twist and pull out the modular light
head with its quick connect/tight fit connection between the light head and main control module. Optical performances of
both light heads are preset by the main control ensuring consistent performance for either light head per product
specification. The system can be preconfigured or later add-on using any one of the light heads:
Standard Head - providing center wavelengths coverage from 440 to 480nm
Plus Head –providing wavelength coverage from 395nm to 480nm.
Product Specification
Type of information
Specifications
Peak
Wavelength
Standard Light Head
440-480nm
Plus/Grand Light Head
395-480nm
Violet Light Head
395-420nm
White Light Head
5000- 6500K
Tip Size (mm)
Standard/Plus Head
Grand Head
10
12
Light Intensity
at light tip
(±10%
mW/cm2 or
lux)*
Standard/Plus/Grand
4000 (Plasma Mode); 2000 (Pulse Mode)
Violet Light Head
1200 (Plasma Mode)
White Light Head
110,000 lux (Plasma Mode with Tacking/Exam Tip)
Power Adapter
Input: 100-240V - 50/60Hz; Output: 5V 1-2A
Battery performance
Output: 3.7V nominal and 1.4AH. Total light exposure time 70 minutes
(Plasma Mode) and 140 minutes (Pulse Mode); 90 minutes full recharging
time. Expected life: 1000 full charge/discharge cycles.
Shutoff
Timer auto shutoff; User shut off anytime by pressing ON/OFF Key; Low
battery auto shutoff; Overheat auto shutoff (50◦C at Light Head).
Self-protection shutoff is accompanied by warning backlight, audible beep
and flashing THERMOMETER or BATTERY BAR symbols.
Overcurrent Protection
Auto
Light Dimension (mm)
Length: 204; Width: 22; Height: 22
Charging Dock Dimensions (mm)
Height: 45; Diameter:44
Weight (grams):
Handpiece: 114; Charging Stand: 89
Equipment Class
Symbol for class II equipment.
Wavelength (nm)

Safety
IEC 60601-1
EMC Compliance
IEC 60601-1-2
Protection from Electric shock
Type BF
Protection from ingress of liquids
IPX0
Shelf Life
5 years
Service Lifetime
Lifetime of the device is approximately 150,000 curing cycles based on
battery life or typically 5 service years in normal office use.
Operating environment
Ambient temperature: 50ºF to 86ºF (10ºC to 30ºC) Relative humidity:
10%-80%, non-condensing, Atmospheric pressure:0.5-atm to
1.0-atm(500hPa-1060hPa)
Storage environment
Ambient temperature: 14ºF to 104ºF (-10ºC to 40ºC) Relative humidity:
10%-80%, non-condensing, Atmospheric pressure:0.5-atm to
1.0-atm(500hPa-1060hPa)
* Irradiance (mW/cm2) is absolute irradiance measured using calibrated optical spectrometer with cosine corrector.
Limited Two-Year WARRANTY
Register your FUSION curing light at www.dentlight.com. DentLight Inc. extends a two-year warranty against defects in
material and workmanship to the original purchaser of this product from an Authorized dealer, except the Battery Assembly,
Charging Stand, and Power Adapter (one-year warranty). This warranty does not cover accessory components such as
curing caps, barrier sleeves and light shield, which are disposable items. This warranty is valid providing factory inspection
indicates that any such defect was developed during normal and proper use. DentLight shall under no circumstances be
liable for incidental, special, consequential damages and damage from misuse including the following expressed or implied:
−Improper operation, accident or neglect, misuse or abuse, such as physical damage (dents, scratches, etc.);
−Liquid, water, rain, extreme humidity, ultrasonic, autoclaving;
−Tampering, improper repairs or modifications that have not been carried out by a certified Service Center;
−Use of other spare parts and accessories other than from the manufacturer such as incorrect power adapter;
−Other acts which are not the faults of DentLight.
For service, call 1-800-763-6901 (in US) to obtain RMA number. Fill out RMA form online and return as instructed. In case
of a warranty claim, the complete apparatus must be returned. Alternatively, contact your dealer for service return.
Troubleshooting Guide
Problem
Error Indication
Possible Solutions
Light will not
turn on
1. Buzzing noise when charging. 2. LCD
is blank.
1) Charge Battery Assembly alone by directly plugging DC
Power Plug (bypassing
Charging Stand) for 2+
hours. 2) Push any Key.
Handpiece is overheated. LED Light Head
gets hot.
Direct an air stream from an air syringe or high-speed
vacuum tip to the light tip or wait for cool down.
1. Light does not activate with Key.
2. Timer counts down yet no output light.
Contact manufacturer or your local dealer for service.
Light does not
stay on for
desired time
1. One or no Battery Bars.
2. Bad connection or contacts.
3. Battery out-of-capacity
1) Charge Handpiece directly (bypass Charging Stand)
for 2 hours; 2) Check connection pins to make sure that
they are not damaged; 3) Replace battery.
Battery will not
charge
1. Broken pins in Charging Stand.
2. Electronic defect in Battery Assembly.
1. Bypass, replace or service Charging Stand.
2. Replace or service Battery Assembly.
DC Power Plug

Reorder and Optional Item Codes
REF
Description
REF
Description
7800080
FUSION Standard Curing Light Kit
7800060
Standard Light Head
7820080
FUSION Plus Curing Light Kit
7820060
Plus head
7500082
Barrier Sleeves (100/pack)
7800060U
Violet Head
7600081
Curing Caps –9mm (10/pack)
7800060W
White Light Head
7620081
Curing Caps –3mm (10/pack)
7610081
Curing Caps –13mm (10/pack)
7500084-08
Battery Assembly
7500083
Charging Stand
7500093
Standard Lens Module (10mm)
7500085
Power Adapter
7500193
Plus Lens Module (10mm)
7500095
Lens Tool
7500293
Grand Lens Module (12mm)
7500088
Orange Goggle
7500085
Power Adapter
7500092
Light Shield
Made in U.S.A.
7/2019, v5.6
FUSION is a trademark owned by DentLight.
©2019 DentLight
DentLight Inc.
1825 Summit Ave. #210
Plano, TX 75074, US
Tel: [phone]
Outside US: 1-972-889-8857
www.dentlight.com
