Denver Electronics DVH-1020 User manual

User Manual
DVH-1020

Read all instructions. Failure to
follow all instructions listed below
may result in electric shock, fire and/or serious in-
jury. The term electrical device ,as used in the fol-
lowing, refers to mains operated electrical devices
(corded) and to battery operated (cordless) electri-
cal devices.
Save these instructions.
1) Work area
a) Keep work area clean and well lit. Cluttered
and dark work areas invite accidents.
b) Do not operate the unit on easily inflam-
mable surfaces (e. g. paper, textiles, etc.)
Or in inflammable environments. Fire haz-
ard due to occurring heat build-up.
2) Electrical Safety
a) The plugs of electrical devices must
match the outlet. Never modify the plug in
any way. Do not use any adapter plugs
with earthed (grounded) electrical devic-
es. Unmodified plugs and matching outlets
will reduce the risk of electric shock.
b) Do not misuse the cord. Never use the
cord for carrying, pulling or unplugging
the electrical device. Keep cord away from
heat, oil, sharp edges and moving parts.
Damaged or entangled cords increase the
risk of electric shock.
c) Connect the electrical device to a mains
supply that is properly connected to earth.
Socket and extension cord must have an op-
erative protective conductor.
d) Protect the electrical device from rain and
moisture. The penetration of water in a bat-
tery charger increases the risk of electric
shock.
e) Check the electrical device, cable and
plug each time before using. Do not use
the electrical device when defects are de-
tected. Do not open the electrical device
yourself and have it repaired only by qual-
ified personnel using original spare parts.
Damaged electrical devices, cables and
plugs increase the risk of electric shock.
3) Service
a) Have repairs performed only by a
qualified technician and only using
original spare parts. This ensures that the
safety of theelectrical device is maintained.
Safety Rules
WARNING
NOTE:
The power cable/disconnect device shall
remain easy to operate/disconnect.

CONTENTS
CONTENTS......................................................1
SAFETY PRECAUTIONS................................2-3
NOTES ON DISCS............................................4
LOCATION OF CONTROLS............................5-6
FRONT PANEL...............................................5
BACK PANEL.................................................5
DVD DISPLAY................................................5
REMOTE CONTROL.......................................6
CONNECTIONS.............................................7-9
FUNCTION SETTING..................................10-14
LANGUANG SETUP......................................10
VIDEO SETUP...............................................11
AUDIO SETUP...............................................12
RATING SETUP.............................................13
MISC SETUP................................................14
BASIC OPERATIONS..................................15-21
PLAY DISCS.................................................15
SELECT ANGLAES.......................................16
OSD.............................................................16
SELECT SUBTITLE.......................................17
PLAY DISCS IN VARIOUS WAYS................17-21
OTHERS....................................................22-23
TROUBLE SHOOTING..................................22
TECHNICAL SPECIFICATIONS......................23

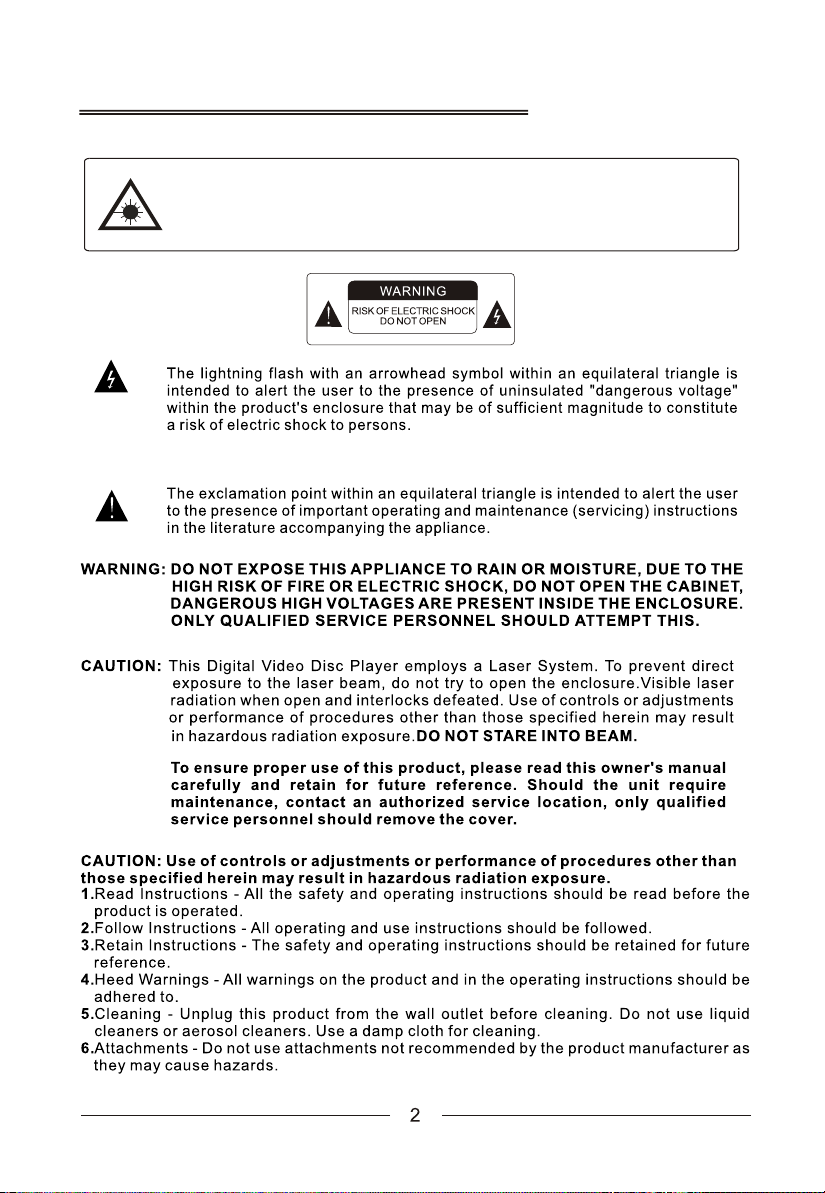

SAFETY PRECAUTIONS
DANGER: INVISIBLE LASER RADIATION WHEN OPENAND INTERLOCKFAILED
OR DEFEATED.AVOID DIRECT EXPOSURE TO BEAM.
CAUTION: HAZARDOUS LASER RADIA-TIONWHEN OPEN AND INTERLOCK
DEFEATED.

3

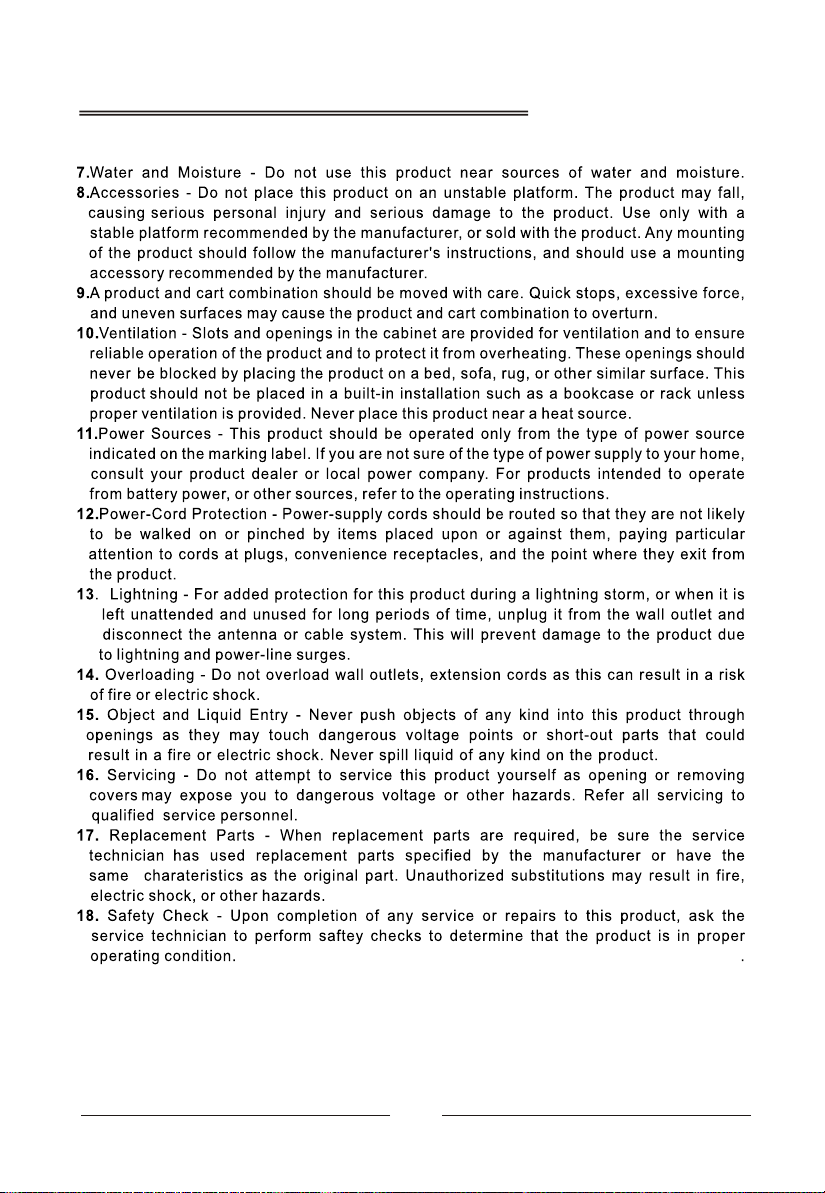

SAFETY PRECAUTIONS

4

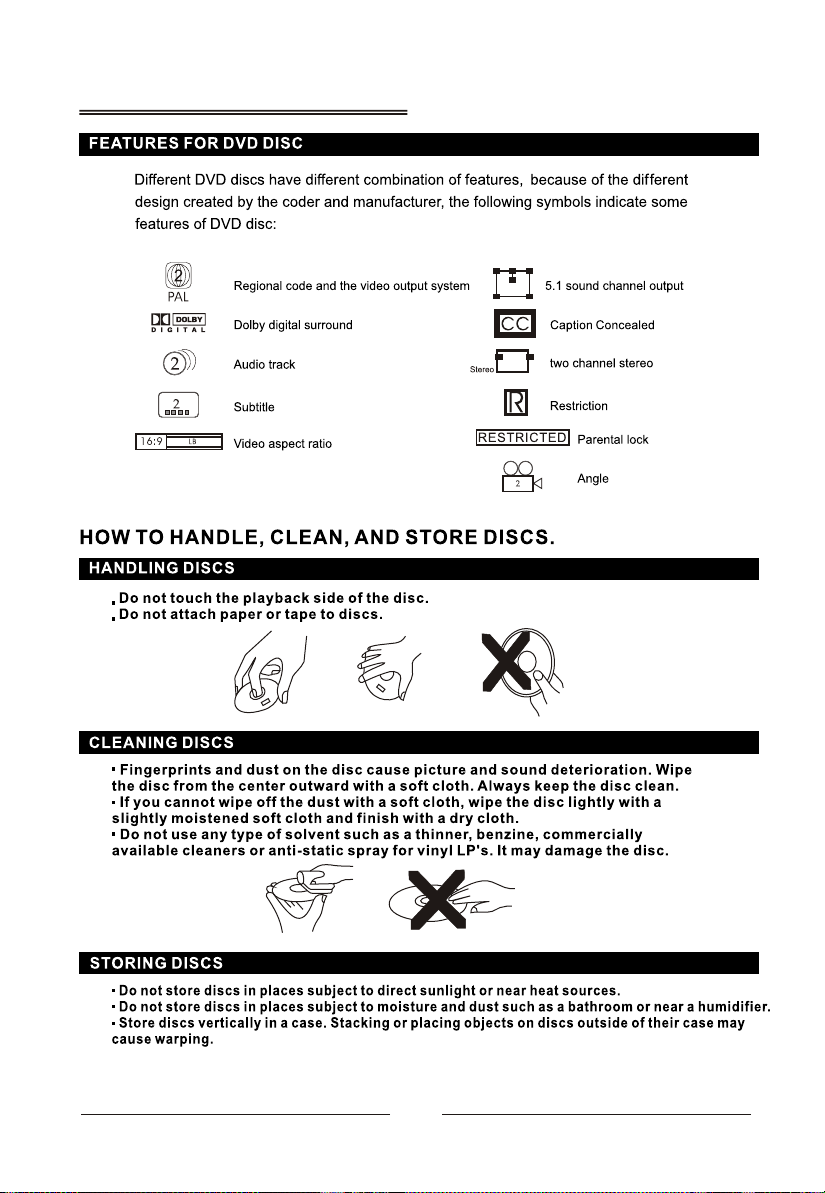

NOTES ON DISCS

5
LOCATION OF CONTROLS
1.POWER ON/OFF
2.LED DISPLAY
3.SENSOR
4.DISC LOADING TRAY
5.OPEN/CLOSE
6.3 IN 1 MM C
7.
8.
9.
10.L/R
USB
PLAY/PAUSE
STOP
12345678910
1.Y.Pb/Cb.Pr/Cr VIDEO OUTPUT
2.VIDEO OUTPUT
3.FRONT LEFT AUDIO OUTPUT
4.CENTER AUDIO OUTPUT
5.SURROUND LEFT AUDIO OUTPUT
6.MASTER LEFT AUDIO OUTPUT
7.MASTER RIGHT AUDIO OUTPUT
8.DIGITALAUDIO-COAXIAL OUTPUT
9.HDMI OUTPUT
10.S-VIDEO OUTPUT
11.DIGITAL AUDIO-OPTICALOUTPUT
12.FRONT RIGHT AUDIO OUTPUT
13.SUBWOOFER AUDIO OUTPUT
14.SURROUND RIGHT AUDIO OUTPUT
15.SCART OUTPUT
16.POWER ON/OFF
17.POWER IN
1.DISC TYPE(DVD)
2.DISC TYPE (VCD)
3.PLAY
4.PLAY INDICATOR
5.TITLE AND CHAPTER
6.TIME(MINUTE)
7.TIME(SECOND)
8.DISC TYPE(MP3)
9.PAUSE
10.DISC TYPE(MP4)
11.DOLBYAC-3 DECODER

6
LOCATION OF CONTROLS
ENTER
123
456
789
0
10+
VIDEO
N/P
DEFAULT
CLEAR
GOTO
PROG MARK
MENU/PBC
TITLE
SETUP
CARD/USB
ANGLE SUB-T
A-B REPEAT
OSD
MUTE
RETURN
LANGUAGE
STEP
RANDOM
SLOW
VOL
+
-
L/R
ZOOM
FAST BACKWARD
NUMERIC KEYS
ZOOM
STANDBY
VIDEO
RANDOM
RETURN
LANGUAGE
DEFAULT
CLEAR
PROG
FAST FORWARD
MARK
PREVLOUS
NEXT
STOP
PLAY/PAUSE
L/R
OSD
N/P
ANGLE
REPEAT
STEP
TITLE
MENU/PBC
SETUP
ENTER
CARD/USB
SUB-T
A-B
VOL+
VOL-
MUTE
GOTO
BACKWARD SLOW
FORWARD SLOW
OPEN/CLOSE

7
CONNECTIONS
Connect the SCART out jackof this unitto the SCART IN jackof the TVset
SCART input
CONNECTING BY AV CABLE
HDMI OUTPUT
HIGH DEFINITION MULTIMEDIA
Connect the HDMIcable to theTV and DVD unit .To enjoy the high quality resolution on
the TV screen

8
CONNECTIONS

9
CONNECTIONS

10
DVD menu setup
Press the SETUP button on theremote control, the SETUP MENU (main) will be displayed.
After accessing thesetup menu, press the direction buttons for up and down movement to
select an itemdesired, then press the ENTER button to confirm.Press LEFT direction
button return tothe menu of upper level.
To exit thesetup, press the SETUP button again.
In the SETUPMENU, you may choose any of the
following options asyou like.
Language
Video
Audio
Rating
Misc
OSD Language
Subtitle
MP4 subtitle
Audio
DVD-menu
: English
: English
: Western European
: English
: English
LANGUAGE SETUP
Select Language in the setupmenu, and displaythe Language submenu:
1.1 OSD Language
Use this itemto select thelanguage of the setup menu and screen display.
1.2 Subtitle
This option providesthe preset subtitlelanguage.
Follow the operatinginstructions stated in"DVD-MENU SETUP" in combination with the
desired option.
1.3
MP4 Subtitle settingis used forchoosing the language domain, (only for MP4).
When you selectone language domain (alphabet), when playback a MP4 with external
subtitle, the subtitledisplay will shownthis language alphabet. if you find the displaying
subtitle words are please ensure theexternal subtitle language and then
select the correctlanguage.
1.4 Audio
Follow the operatinginstructions stated in"DVD-MENU SETUP" in combination with the
desired option. This option provides the built-in disc dubbing language options.
1.5 DVD Menu
This option providesthe film's menulanguage options.
Follow the operatinginstructions stated in"DVD-MENU SETUP" in combination with the
desired option.
MP4 subtitle
incorrect,

11
Language
Video
Audio
Rating
Misc
Aspect Ratio
View Mode
TV System
Video out
Brightness
Smart Picture
HD Resolution
: 4:3PS
: Auto Fit
: PAL
: S-VIDEO
: Standard
: Auto
1916
VIDEO SETUP
Select Video in the setupmenu, and displaythe Video submenu:
2.1 Aspect Ratio
4:3 : Choosingthis setting ifyour DVD player is connected to a normal ratio TV. You can
fill the movieto the entirescreen of your TV. This might mean that parts of the picture (the
left and rightedges) won t be seen.
16:9 : Choosethis setting ifyour DVD player is connected to a wide screen TV. If you
choose this settingand you don t have a wide screen TV, the images onthe screen may
appear distorted dueto vertical compression.
Notes:
The image display ratio is related to the recorded disc format. Some disc can not display
images in theaspect ratio youchoose. If you play a disc recorded in 4:3 format on a wide
screen TV, black bars will appear on the left and right side of the screen. You must adjust
the screen settingdepending on thetype of the television you have.
2.2 View Mode
With this optionyou can selectthe different video vision mode on the screen.
2.3 TV System
This product supportsoutput of varioussystem, including NTSC,PAL .
If your TV set hasonly NTSC or PAL system, the screenwill blink and become colorless
when a wrongsystem is selected.In this case, press the N/P button on theRemote Control
to switch theTV TYPE..
Note: For more informationof output format,refer to theinstructions or your TV set.
2.4 Video Output
Selecting the Video Output settingto switch betweendifferent video outputs
RGB: Set thevideo output toSCART output. If you select SCART connection, you
should set upthe play modeas RGB state, then itwill output normally.
P-Scan: Set thevideo output toprogressive component output
HDMI: Set thevideo output tohigh definition output
2.5 Brightness
Press the SETUPbutton then press the DOWN direction button to select to Brightness
mode, press theLEFT and the RIGHT direction button toadjust the player video output
brightness.
2.6 HD(HDMI) Resolution
Used to setthe resolution ofHDMI image output. In this option, you can select different
HDMI image resolution. Inthe factory setupis on AUTO.
Note: If TV screen has nooutput after selecting HD Resolution, on STOP MODE
you can pressVIDEO button to selectto HDMI mode on TV screen, itwill output normally.
,Auto
S-VIDEO:Video output is S-VIDEO. You must usea special S-VIDEOcabel and only
this can beconnected.
YUV: Video output is YUV. Connect toyour TV with a 3 way RCAlead

12
AUDIO SETUP
Select Audio in the setupmenu, and displaythe Audio submenu.
Language
Video
Audio
Rating
Misc
Bass management
Front speakers
Center speaker
Surround speakers
Subwoofer
Center spkr delay
Surr spkr delay
Digital output
Pro logic
: Off
: Large
: None
: None
: None
: No Delay
: No Delay
: PCM
: Off
3.1 Bass Management
Toenable or disable the Bass Management during operation of the player.
On = Enablethe Bass Management.
Off = Disable the Bass Management.
Press setup buttonto select the audio mode, press the direction button right to the bass
management then pressthe down direction button to switch the bass management to on.
Toenjoy the 5.1ch.
3.2 Front Speaker
Toadjust the front speakers output to work in harmony with the audio equipment (e.g.
Amplifier) connected tothe player. You can select the speaker output in Large on Small,
when Bass Managementis On, thebass management isoff, the front speaker outputis
on large mode only.
3.3 Center Speaker
T Select the Large or Small
output when thebass management ison. Select Noneto off the center speaker.
3.4 Surround Speaker
3.5 Subwoofer
3.6 Center spkrDelay
Selecting the CenterDelay setting allowsthe user toenable/disable the centeroutput delay.
3.7 Surr spkrDelay
Selecting the Surr. Delaysetting allows the user to enable/disable the output delay.
3.8 Digital output
Selecting the Digital Output setting allows the user to adjust the audio output on S/PDIF
ports to workin harmony withthe audio equipment(e.g. receiver,speakers) connected to
the player.
Off Digital audio outputis disabled.
PCM Select this optionwhen you aregoing to usestereo signals (2channels). You should
combine this optionwith the option"Lower sampling rate,"which we explainfurther on
RAW If you selectthis option theplayer will usethe DVD's originalaudio track. Usethis
option when youwant to usethe Dolby DigitalAC3 signalsthrough the opticalor coaxial
audio output.
3.9 Pro logic
Off: Pro Logic decodingis off. Two-channel sources are output only on the left and right
channels.
On : Enable Pro Logicdecoding
his function isoperation for the bass management on only.
This function isoperation for the bass management On only. Select the Large or Small
output when thebass management is on. Select None to off the Surround speaker.
This function isoperation for the bass management on only. on the bass management On
mode, select toPresent to enjoy bass sound .Select None to off the bass.
Surround

RATING SETUP
In the MainMenu select Ratingand the screen shows:
Tochange the password,select Set Password. The factory default is “0000”.Then press
Set Password againto input newpassword.
Language
Video
Audio
Rating
Misc
Parental control : 7.NC-17
Set Password
4.1 Rating
Selecting a Ratingallows the user to set the parental control feature of the player. Select
Parental Control andPress ENTER. Then enter the password and press ENTER. Press
ENTER again toselect the options then confirm by pressing ENTER.
Kid Safe--Only 1 titlewith a parentalcontrol setting is allowed to play.
G--Only 2 titles with a parental control setting or less are allowed to play.
PG--Only 3 titleswith a parental control setting or less are allowed to play.
PG-13--Only 4 titleswith a parental control setting or less are allowed to play.
PG-R--Only 5 titleswith a parental control setting or less are allowed to play.
R--Only 6 orless titles with a parental control setting are allowed to play.
NC-17--Only 7 orless titles with a parental control setting are allowed to play.
Adult--Allow any titleto play (factory default).

Language
Video
Audio
Rating
Misc
Use Default Settings
MISC SETUP
Select MISC in the setupmenu, and displaythe submenu:
* Use DefaultSettings
Reset setup datato factory defaultand re-load disc
