Denver 360/2546 User manual

MADE IN
BRITAIN
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 3 - 13/07/15
Important - Please read these instructions fully before starting assembly
ALR3096
360/2546
359/7596
335/9806
Denver - 3 Door Mirror Robe
Dimensions
Width - 113.5cm
Depth - 50cm
Height - 181cm
Issue 2 - 20/01/15 - Length of Hanging Rail changed to 710mm.
Back Holders now shown fitted vertically.
Updated helpline number.
Note added on fittings page about pairing up hinge plates and hinges from the same bag.
Issue 3 - 13/07/15 - Divider changed to DF2668.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 80kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

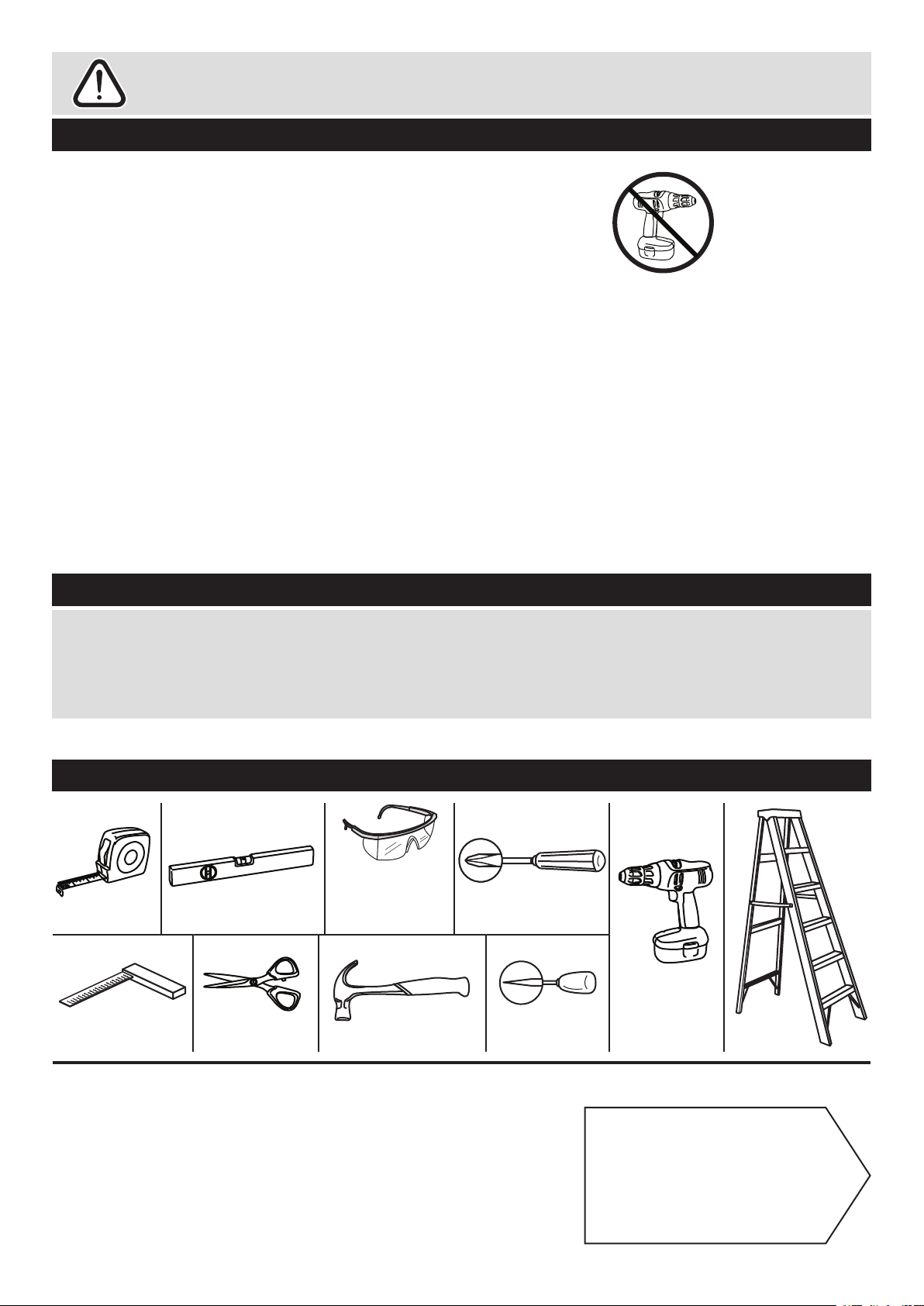

Tools required
Rule
Scissors
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Step
ladder
Electric drill
(only use
when drilling
into walls)
Square
mm 10 20 30 40 50 60 70 80 90 100 mm 10 20 30 40 50 60 70 80 90 100
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.

Components - Panels
Please check you have all the panels listed below
2
80%
x 3
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
1 2 3
Shelf (DF2353)
(372 x 470mm) x 3
Left Side (D1575A)
(1808 x 496mm)
Right Side (DF1987)
(1808 x 496mm)
Door
(D1578A)
(1786 x 355mm)
x 2
Vertical Rail
(D1577A)
(1752 x 88mm)
x 2
Small Back
(X1779-391)
(1779 x 391mm)
Large Back
(X1779-737)
(1779 x 737mm)
4
6
Hanging Rail (FHR710)
(710mm long)
7
8 9 11 12
Top/Base (DF1877A)
(1105 x 494mm) x 2
Mirror Door
(D1578MA)
(1786 x 355mm)
(Mirror - SG06
1776 x 300mm
Safety Back SAR)
10
Horizontal (DF3100A)
(718 x 470mm)
5
Divider (DF2668)
(1753 x 494mm)

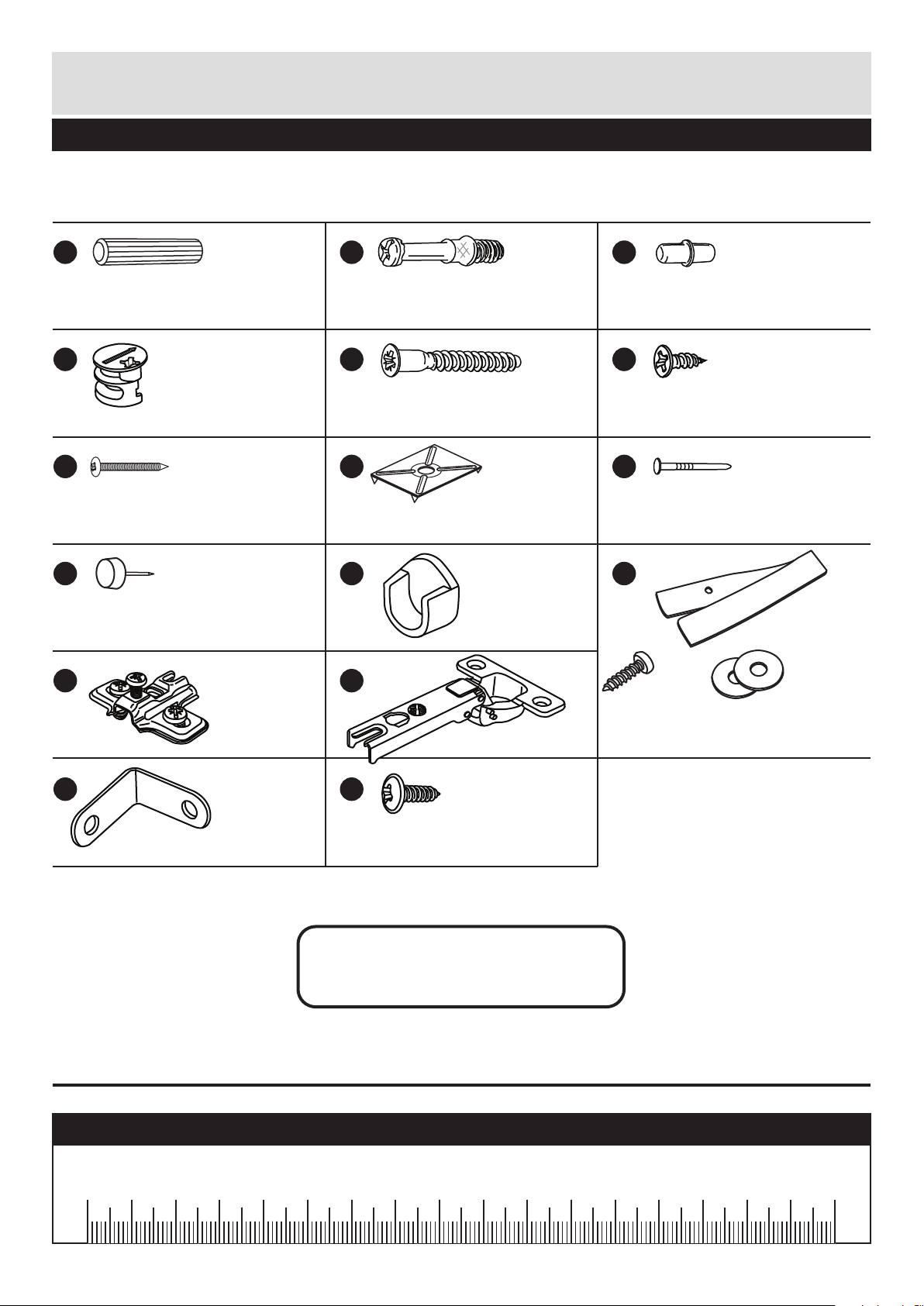

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 6
B
Metal dowel (F901) x 12
C
D E F
G H
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Large locking
nut (F900) x 12
M
I
KJ
Nail (F51) x 38
N
Rail holder
(F1014) x 2
40mm Screw (F910) x 12 13mm Screw (F63) x 20
Hinge (F518) x 9
Hinge plate
(F523) x 9
Plastic Nail (F91) x 4
Back holder (F276) x 6
Nail screw (F277) x 6
Shelf stud (F110) x 12
LStrap
Screw Washer x 2
Overbalance protector kit (F269) x 1
Bracket (F945) x 2
OP
13mm Screw (F79) x 4
Important: Always pair up the hinges
with the hinge plates from the same bag.
DO NOT mix them up.

Finished
front edge
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Step 1
80% x 3
Step 2

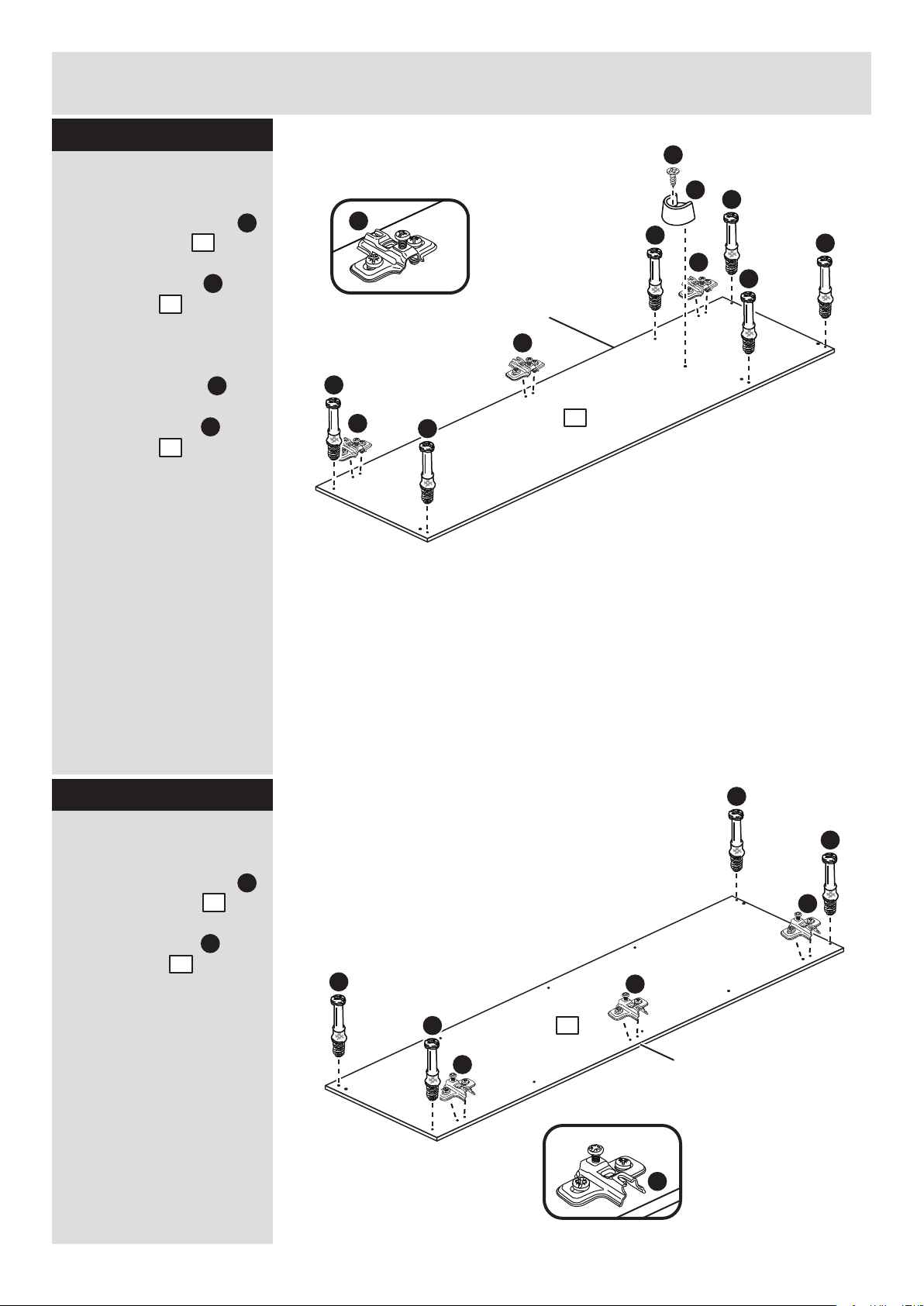

Prepare the left side
Screw 6 metal dowels
into the left side .
Push a rail holder into
the left side . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
Fit 3 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
B
1
M
K
F
1
M
1
M
B
B
B
B
B
B
M
M
K
F
1
Prepare the right side
Screw 4 metal dowels
into the right side .
Fit 3 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
B
2
M
2
B
B
B
M
M
M
B2
M
Finished
front edge

Finished
front edge
Finished
front edge
A
Assembly Instructions
5

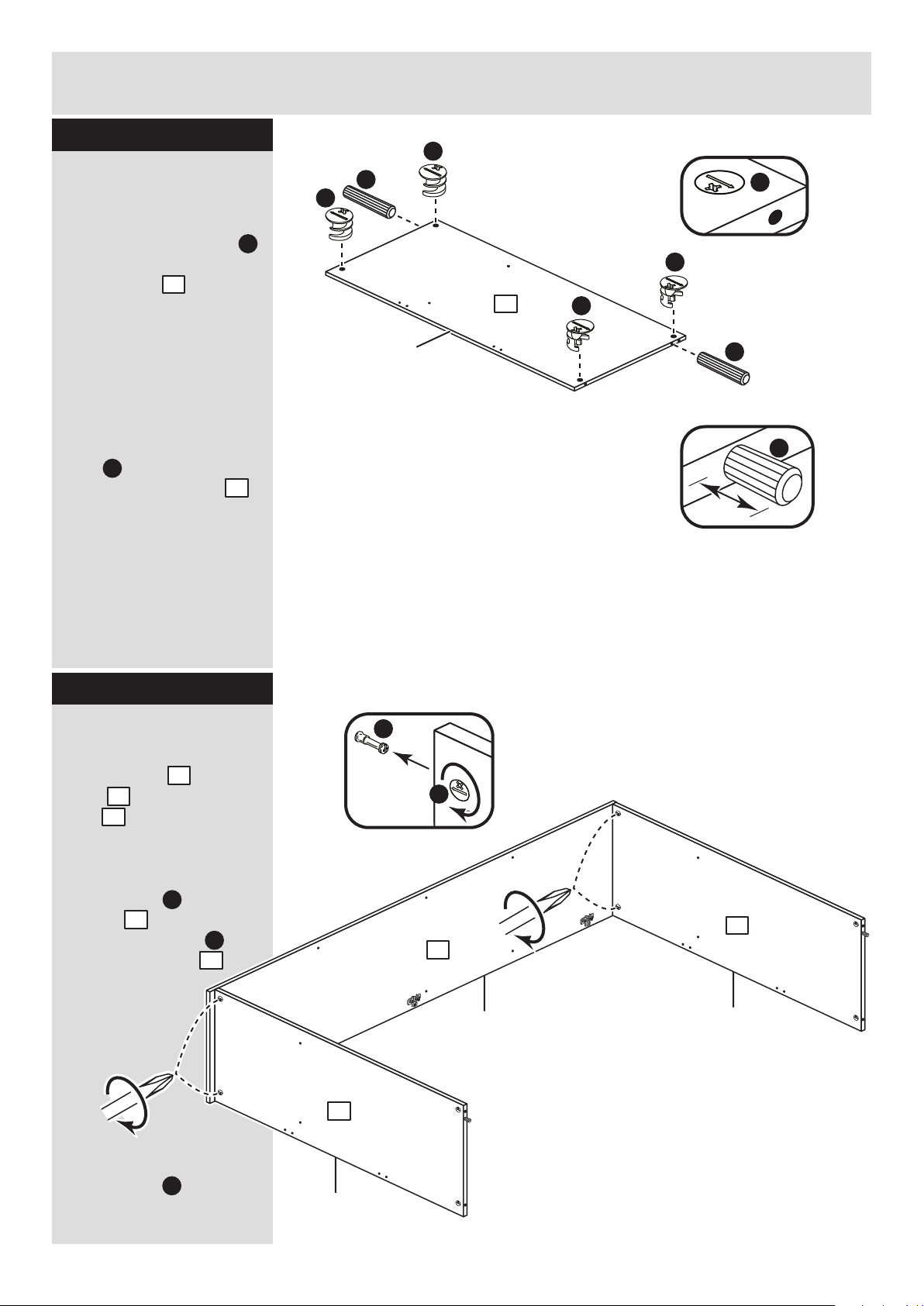

Step 3
Step 4

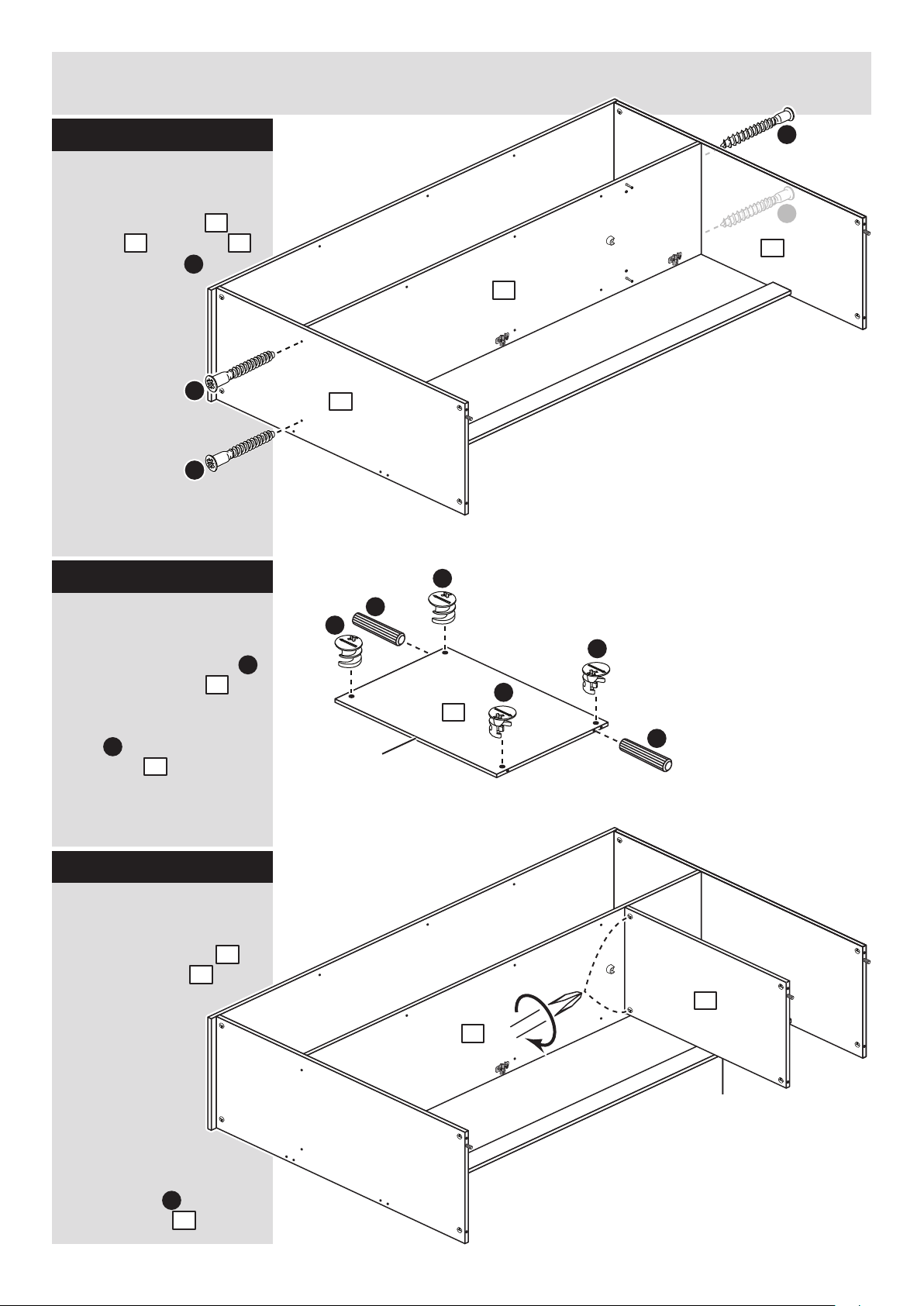

Prepare the 2 top and
base panels
Tap 2 wooden dowels
into each of the top and
base panels .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 4 large locking
nuts into each of the
top and base panels .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
4
D
D
10mm
A
x 2
A
4
D
D
A
D
D
Finished
front edge
4
4
Base
Fit the top and base
Push the top and
base onto the right
side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the top and the 2
large locking nuts
fitted to the base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
4
4
2
D
D
4
4
D
B
D
Finished
front edge
4
Top
2

E
E
E
E
Assembly Instructions
6
Step 5
80% x 3 4
Fit the 2 vertical rails
Attach each of the
vertical rails to the
top and base
using 4 screws .
8
4 4
E
8
8
E
E
4
E
E
Step 6
B
B
M
M
MFinished
front edge
Prepare the divider
Screw 2 metal dowels
into the divider .
Push a rail holder into
the divider . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
Fit 3 hinge plates onto
the divider , making
sure that the slot is
facing towards the
finished front edge.
K
F
3
3K
F
B
M
3
3

Finished
front edge
E
Assembly Instructions
7
Step 7
Step 8
4
E
E
E
4
3

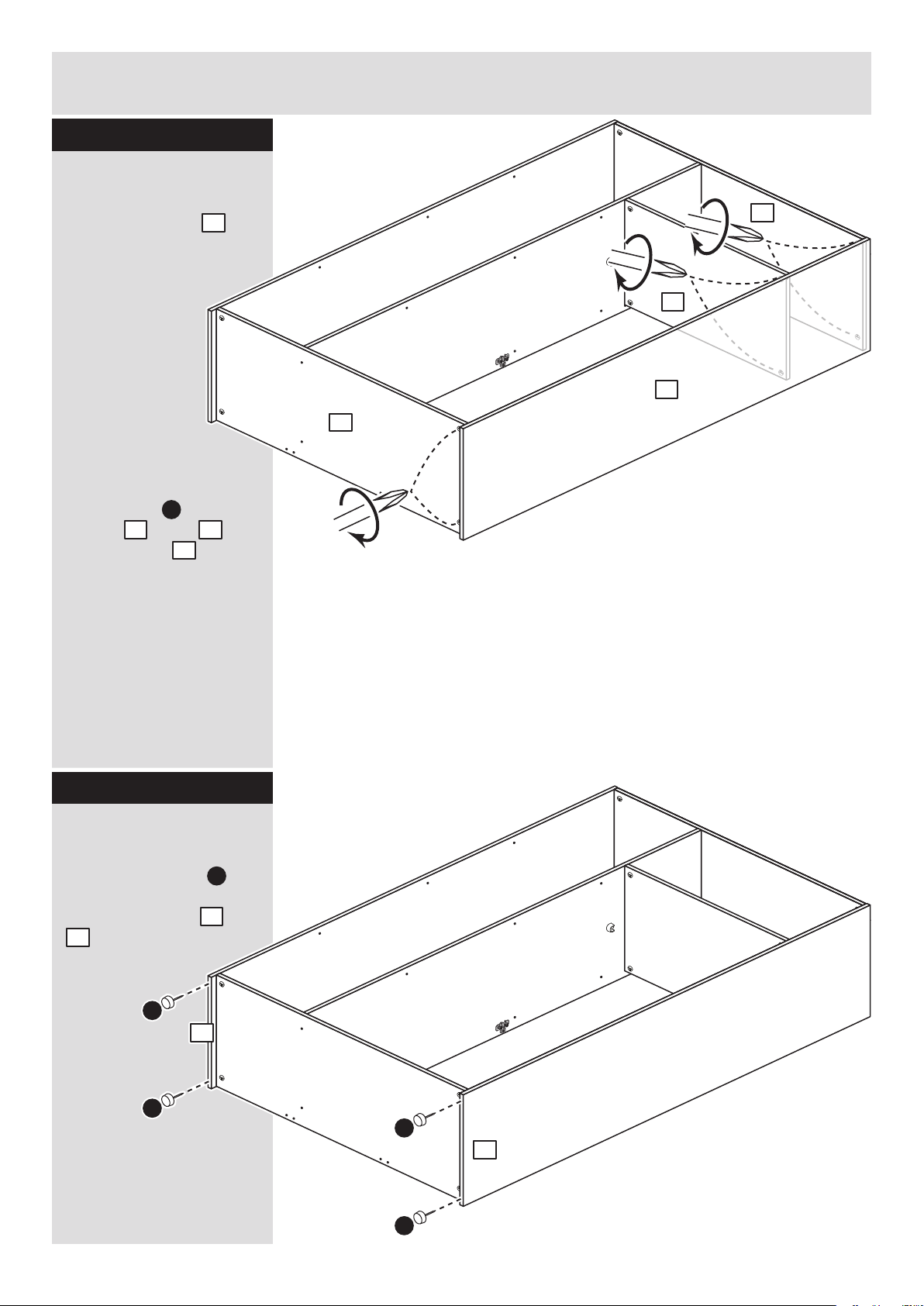

Fit the 2 divider
Attach the divider to
the top and base
using 4 screws .
3
4 4
E
4
Prepare the horizontal
Tap 2 wooden dowels
into the horizontal .
Insert 4 large locking
nuts into the
horizontal .
5
D
D
D
D
DFinished
front edge
A
A
A
5
5
4
3
5
Step 9
Fit the horizontal
Push the horizontal
onto the divider .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the horizontal .
5
3
D
5

Assembly Instructions
8
Step 10
44
4
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 6 large
locking nuts fitted to
the top , base and
the horizontal .
1
D
5
4 4
1
5
4
Step 11
Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
J
1
2
J
J
J
J
1
2

yy
yy
Assembly Instructions
9
Step 12
4
Fit the back panels
a: Square up the unit by
making sure that
measurement x:x equals
y:y.
Place the small back
and large back down,
onto the unit as shown.
Make sure that the 2
backs are pushed up
tight against each other
and that they meet in the
centre of the divider’s
back edge.
b: Nail around the
outside edges of the 2
backs.
Note: Do not nail where
the 2 backs meet and
nails should be spaced
about 150mm apart.
c: Push the 5 nail
screws through the 5
back holders and tap
them down between the
small back and large
back and into the
back edge of the divider
. .
Keep tapping the nail
screws in until the
back holders dig into
the small and large back.
Stand the unit up for
the next step.
11
12
I
G
H
11
12
3
G
H
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
Note: If ever you need to take
the backs off to dismantle the
unit, the nail screws can be
taken out using a screwdriver.
G
H
c:
G
H
11
12
H
HG +
b:
I
xx
xx
11
12
Warning: The
unit is heavy.
Lift with care.

Assembly Instructions
10
Step 13
80% x 3
7
K

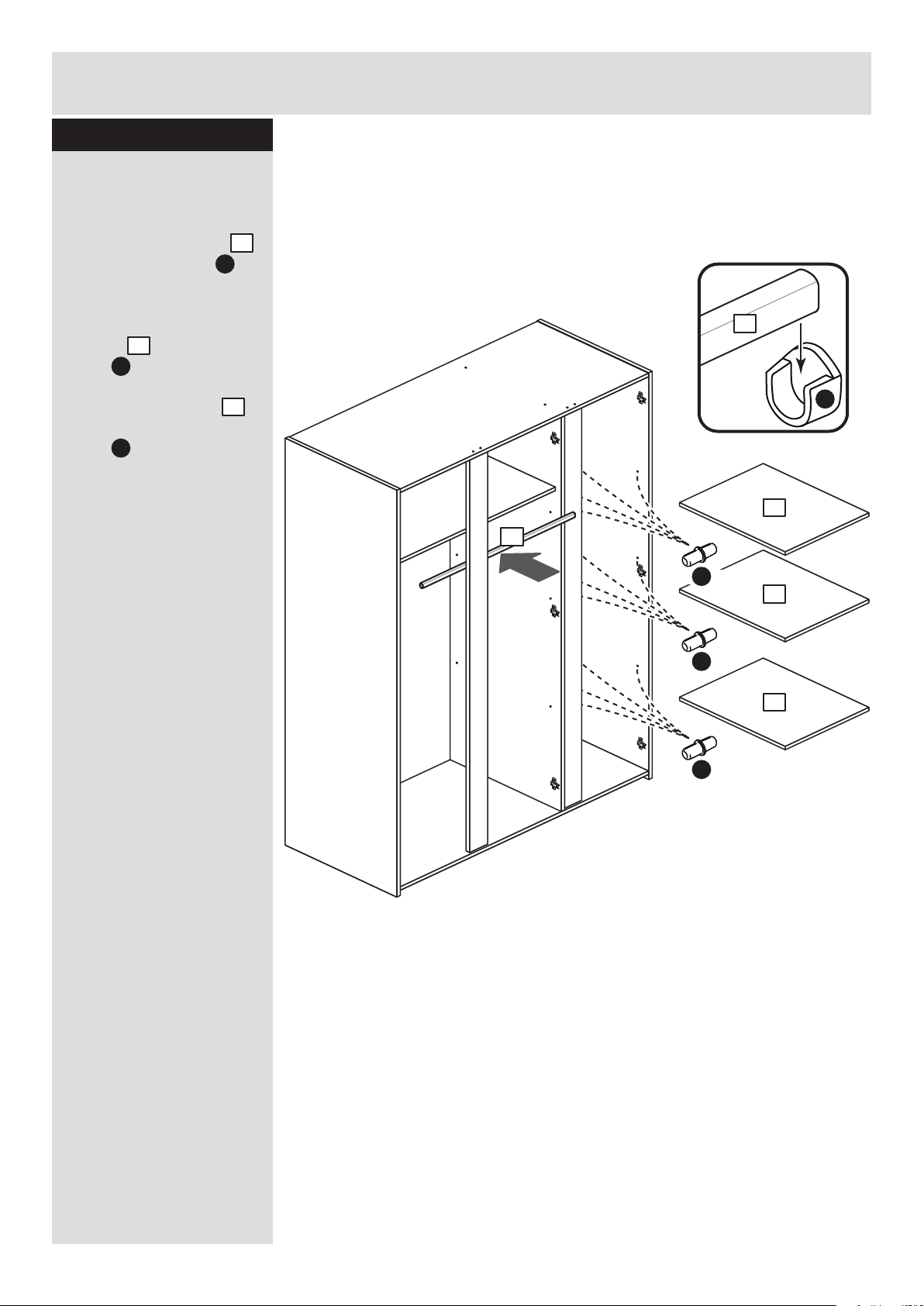

Fit the hanging rail
and shelves
Push the hanging rail
into the rail holders
fitted to the side panels.
For each of the 3
shelves , insert 4 shelf
studs .
Lower the 3 shelves
down onto the shelf
studs .
7
K
7
Cx 4
Cx 4
Cx 4
6
6
6
6
C
6
C

Assembly Instructions
11
Step 14
Fit the brackets to the
vertical rails
Fit one bracket to the
vertical rail and
horizontal using
screws .
Fit second bracket to
the other vertical rail
and the divider using
screws .
3
P
8
OO
Step 15
90
N
N
FF
N
FF
N
FF
9
x 2
8
5
8
5
O
O
P
P
P
P
3
OO
8
P
Prepare the 3 doors
Lay the doors down onto
a soft, smooth surface.
Push fit 3 hinges into
each plain door and
the mirror door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the front edge of the
door.
F
N
9
10
Warning:
Glass! Handle
with care
N
FF
N
FF
N
FF
10
x 1

Assembly Instructions
12
Step 16
Fit the 3 doors
Note: The easiest way to
attach each door and
is to fit the top hinge
first, then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
N
N
N
M
M
M
N
M
9
a: b:
c: d:
M
N
M
M
B
M
N
N
N
A
N
M
B
9
10
9
10

Assembly Instructions
13
Step 17
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.

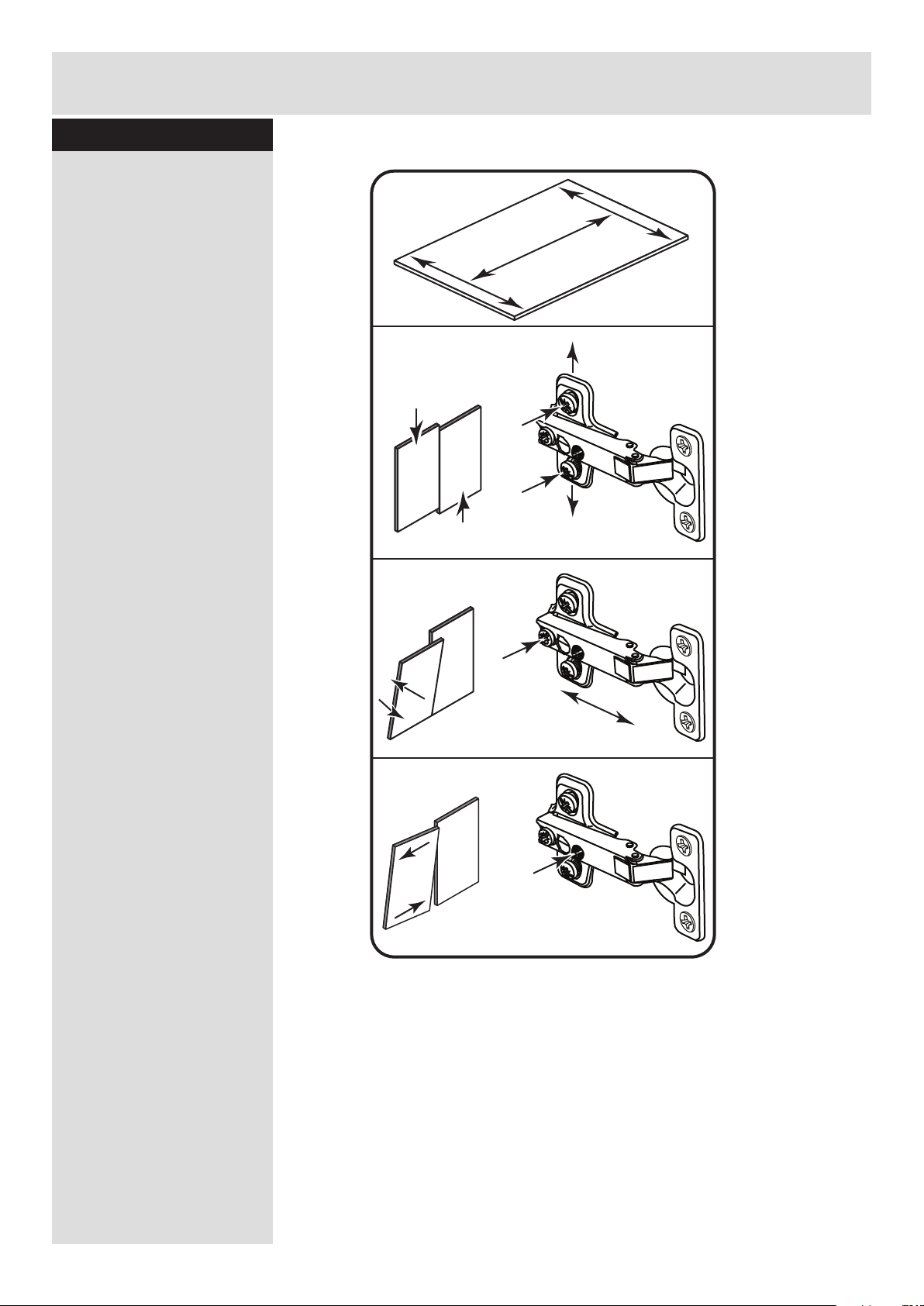

b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
b:
c:
d:
a:
A
A
B
C

Assembly Instructions
14
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 18
Fit the overbalance
protector
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by use of the
overbalance protector kit
. fitted to the unit or, an
alternative fixing method
of your choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Assembly is complete
L
L
Strap
Washer
Screw
TOP OF UNIT
L
WALL
Wall fixing
(not supplied)
Screw
(not supplied)
Washer
Strap
L

ALR3096
IMPORTANT INFORMATION ABOUT THIS PRODUCT
This product complies with the requirements of BS 7449:1991 and has been
manufactured by DECORATIVE PANELS FURNITURE LTD, TEESSIDE
INDUSTRIAL ESTATE, THORNABY-ON-TEES, CLEVELAND, TS17 9LT .
The product code for this unit and the item code(s) for the glass
components are listed in the Assembly Instructions along with a description
of the type of glass used. All clear/tinted glass complies with the
requirements of BS 6206 Class A. All mirrors comply with the requirements
of BS 6206 Class C. If the glass component contained in this unit is chipped
or broken consult the furniture manufacturer, retailer, or agent with regard to
obtaining a manufacturing specification and shape for replacement glass
quoting the unit description and batch number or date of manufacture.
Do not place very hot or very cold items against or in close proximity to
glass surface(s) unless adequately thick insulating material is used to
prevent such items coming in contact with the glass.
Do not strike the glass with hard or pointed items.
Do not sit or stand upon horizontal glass surfaces.
When cleaning glass panels use a damp cloth or leather with washing up
liquid or soft soap if necessary - do not use washing powders or any other
substance containing abrasives since these substances scratch glass.
If stated in the instruction leaflet, it is essential that this unit is fixed to a wall.
KEEP THESE INSTRUCTIONS FOR FUTURE USE
