Denver LDD-2249 User manual

Instruction Manual
22”LED TV WITH DVD
Model NO.: LDD-2249

Contents
Contents
Caution
Safety Information
Accessories
Technical Specification
Product Introduction
Front View
Rear View
OSD Menu
1. Channel menu
2. Picture menu
3. Sound menu
4. Time menu
5. OPTION menu
DVD Operation
1
2
3
3
4
5
4
4
9-15
9-10
11
12
13
14
19-25
Connections
6-7
Remote Control
8
Basic Operation
Multimedia Operation 16-18
6. HOTEL mode 15
Simple Troubleshooting 26

Caution
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling center.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live in!
1
Caution
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
The lightning flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to the persons.
directives.

Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
• The TV set should only be connected to a mains supply which matches that stated on
the label on the mains adaptor.
• To prevent overload, don't share the same mains supply socket with too many other
items of equipment.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on the leads, which may damage them.
- Hold the Mains plug, not the wires, when removing from a socket.
- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial
(if outdoor) and mains adaptor from the supply.
- Do not allow water or moisture to enter the TV or mains adaptor. Do NOT use in wet
or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if:
- the mains plug or cable is damaged.
- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.
- anything accidentally penetrates the ventilation slots.
- the set does not work normally.
- Do NOT remove the safety covers. There are no user serviceable parts inside.
You may invalidate the warranty. Qualified personnel only are permitted to service
this apparatus.
- To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for along period.
- Do NOT break open or throw exhausted batteries on a fire.
Physical safety
• Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet,
but ensure at least 5cm (2") clearance all around the unit.
• Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good
care of the remote control, do not drop it or allow it to come into contact with liquids.
• To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For
stubborn stains, you may use a damp soft cloth with diluted detergent.
2
Safety Information

Accessories
3
Accessories & Technical Specification
Technical Specification
User’s ManualRemote control
* Note: The configuration of the components may look different from the following illustration
22inch(diagonal)
1920x1080
2x3W
- Screen Size
- Resolution
- Aerial input
- Audio output power
- Power Consumption
- TV-System PAL BG/DK/I SECAM BG/DK
PICTURE SOUND SLEEP DISPLAY
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
CH+
CH-
123
456
789
0
CH.list
ROOT
FAV
TV/TXT HOLD NICAM/A2
SIZEINDEX REVEALSUBPAGE
A-B
SUBTITLE REPEAT GOTO SETUP
PROGRAM ANGLE TITLE D.MENU
SLOW
LANGUAGE
ZOOM
Mains adapter Mains cable
DC 12V 5A 60W

Product Introduction
Product Introduction
Front View
4
1). (IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby)LED Indicator: Press POWER to turn on and off.
Indicator on(Red) Standby mode
Indicator on Power on mode
2).The functions of the buttons are described as bellows:
INPUT: Press to display the input source menu.
MENU: Press to display the OSD menu, press again to exit the menu.
CH+/-: Press to scan through channels.
VOL+/-: Press to adjust the volume.
POWER: Turn on/standby the TV set.
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 300to the left or right side and 200above or below the remote control
window.
PLAY: Play/pause the disc playing.
EJECT: Eject the disc.
Remote Control Window
(keep clear)
LED Indicator
Please insert a12cm disc
according to the instruction
marked below the DVD slot.

Connections
Connections

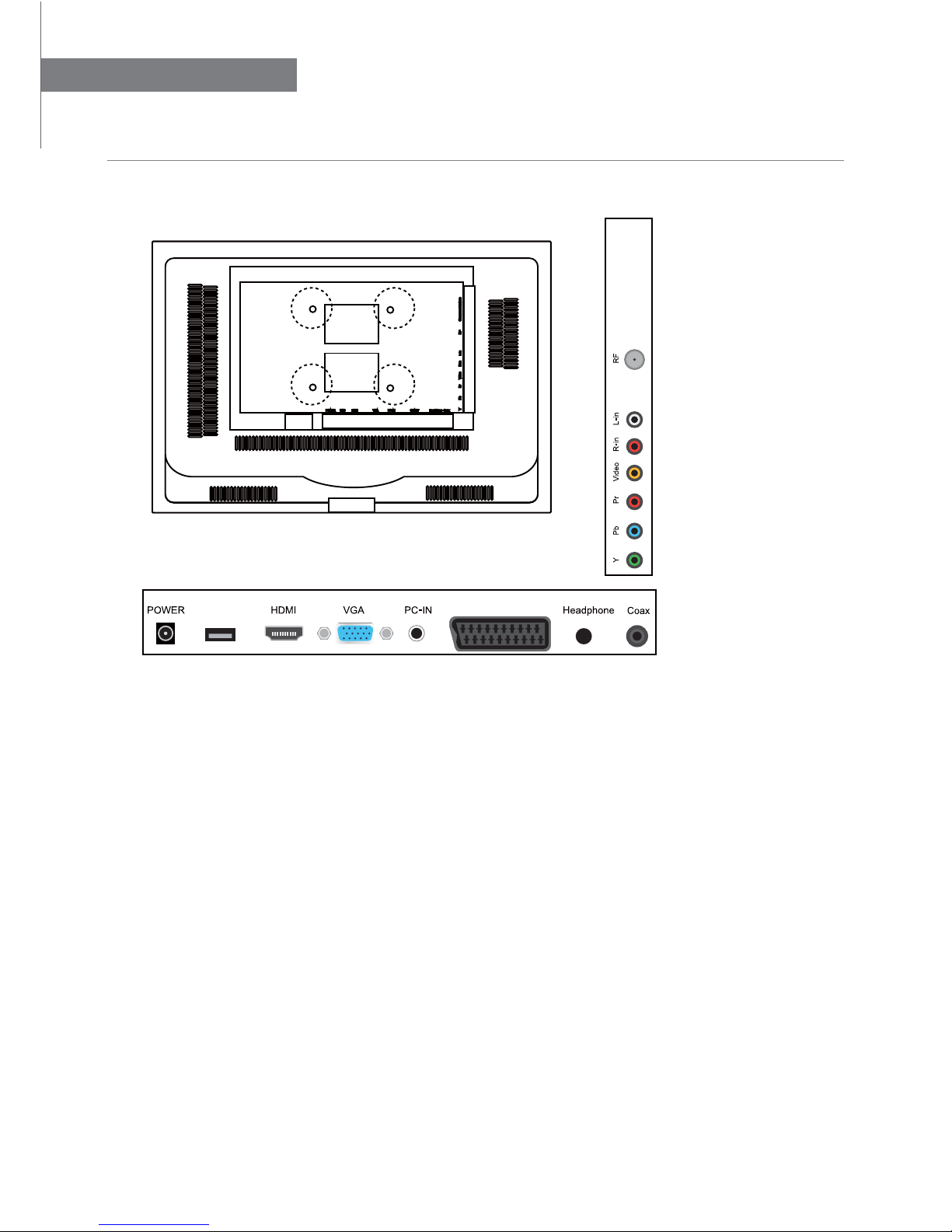

5
USB:Connect to USB device for multimedia
COAX:Output to audio amplifier
USB SCART
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
R/L in: Connect them to the audio output terminal of DVD.(shared with YPbPr)
VIDEO: Connect it to video output terminal of DVD.
YPbPr: Connect them to the YPbPr video output terminal of DVD.(used in
component source)
POWER: Connect to the mains adaptor.
HDMI: Connect it to the HDMI of DVD or other equipment.
VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
PC-IN: Connect it to the audio output terminal of PC.
SCART: Connect them to the SCART video output terminal of DVD.(used in component source)
Headphone: Connect it to your headphone or other audio equipment.

Remote Control
6

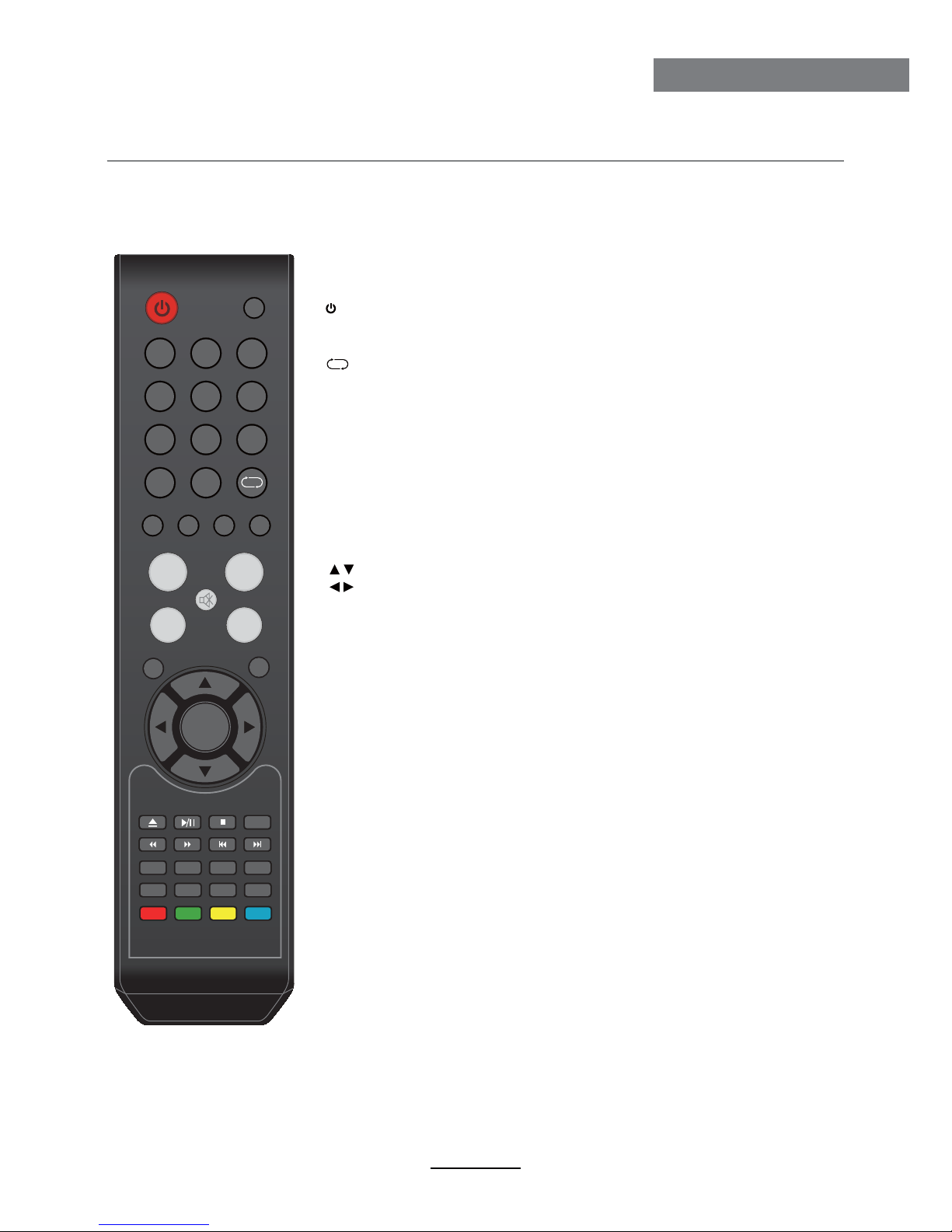

Remote Control
The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote
control may not work correctly if it is operated out of range or out of angle.
POWER : Turn on/standby the TV.
INPUT : Source select.
MUTE: Silence status.
EXIT:Exit from the current menu.
Cursor up/down keys in OSD menu
Cursor left/right keys in OSD menu
OK: Comfirm button
MENU : TV system menu.
NICAM/A2:NICAM/A2 select.
TV/TXT: Teletext on/off
REVEAL: Reveal any hidden text, for example-quiz answer.
HOLD: Hold or carry on the current subpage
SIZE: Press to see top half of page double size, Press again to see the
bottom half of page double size.
Press again for normal size
INDEX: Direct recall of page 100
SUBPAGE: Go to subpage
DISPLAY: Display playing status
PICTURE: Select the picture mode.
SOUND : Select the sound mode.
SLEEP: Time shutting down.
PICTURE SOUND SLEEP DISPLAY
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
CH+
CH-
123
456
789
0
CH.list
ROOT
FAV
TV/TXT HOLD NICAM/A2
SIZEINDEX REVEALSUBPAGE
A-B
SUBTITLE REPEAT GOTO SETUP
PROGRAM ANGLE TITLE D.MENU
SLOW
LANGUAGE
ZOOM
0-9, -/-- : Choose channel.
: Go to program you latest program.
CH/LIST: Display the p
ro
grams list.
CH+/-: Scan the channel.
VOL+/-:Volume up/down.
ROOT: Come back to the home page.
D.MENU : DVD play list/Disc menu.
TITLE: DVD title.
PROGRAM: Edit the program and play.
ANGLE: Select DVD picture angle.

Remote Control
7

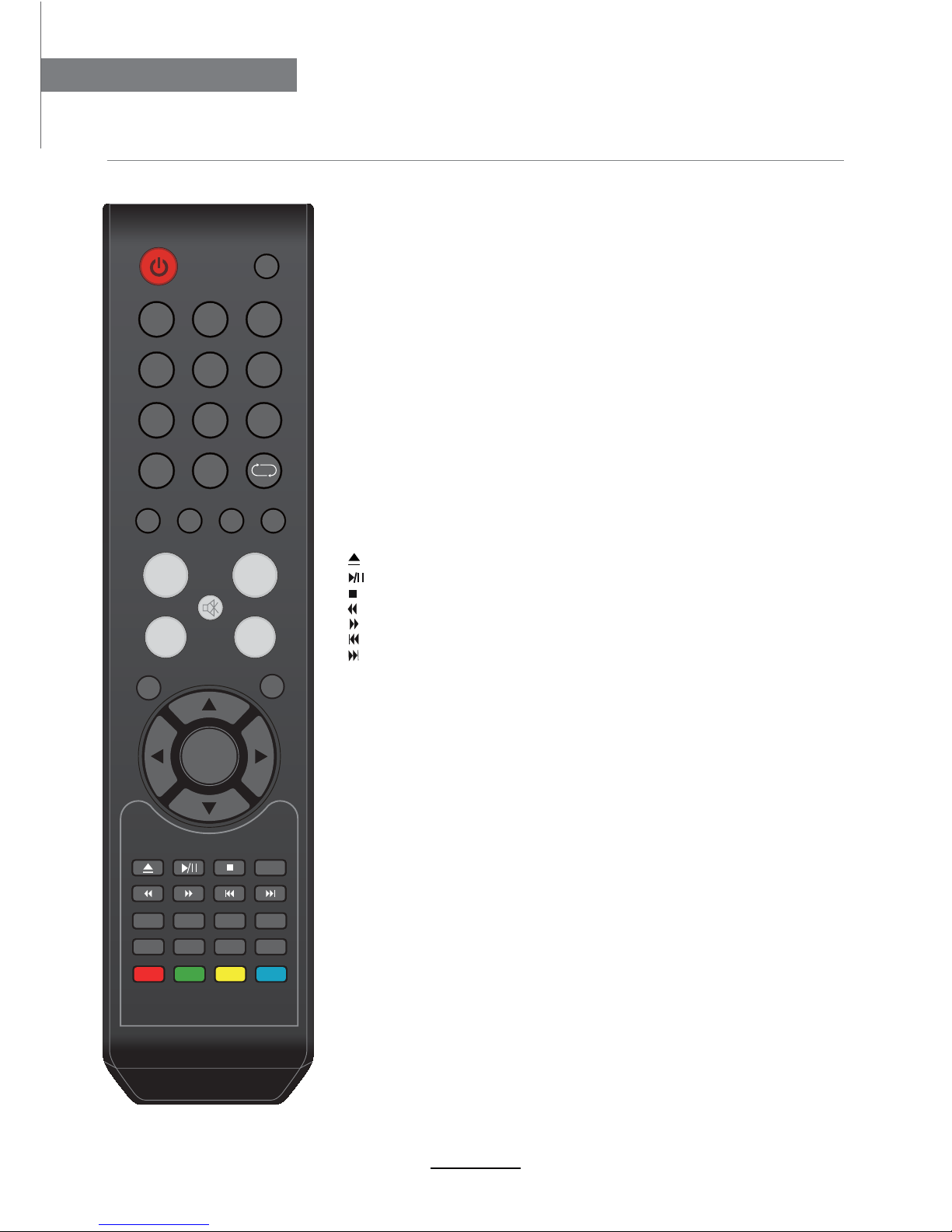

Remote Control
: Play/Pause program
: Stop program
: fast reverse
: fast forward
: previous chapter
: next chapter
COLOUR BUTTONS : Short cuts-follow the coloured links in the text.
: Load/eject DVD disc.
PICTURE SOUND SLEEP DISPLAY
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
CH+
CH-
123
456
789
0
CH.list
ROOT
FAV
TV/TXT HOLD NICAM/A2
SIZEINDEX REVEALSUBPAGE
A-B
SUBTITLE REPEAT GOTO SETUP
PROGRAM ANGLE TITLE D.MENU
SLOW
LANGUAGE
ZOOM
ZOOM: Adjust picture size in USB mode.
SETUP : DVD system setup.
LANGUAGE: Select DVD disc language.
A-B: Select and play the preferable paragraph of DVD program
by pressing this key twice at the beginning and end of it.
GOTO : Play your favorite title/chapter/track.
SLOW: Play DVD programs at slow speed.
SUBTITLE: Turn on/off the subtitle display in DTV mode
and DVD mode.
REPEAT : Repeat playing the title or chapter.

button to select the function item, press button to adjust/setup,
Basic Operation
8
Basic Operation
Power on/off
1. Connect to the power supply with a power cord and an adaptor.
2. -To turn on the TV
Press POWER button on the TV or remote control.
Press POWER button on the TV or remote control.
-To turn off theTV
Input Source select
Press INPUT button on the TV set or remote control to display input
source menu, and use CH+/- button on the TV set or Ĥ0ĥ!button
on remote control to select the input source, press OK button on the
remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Basic OSD Menu operation

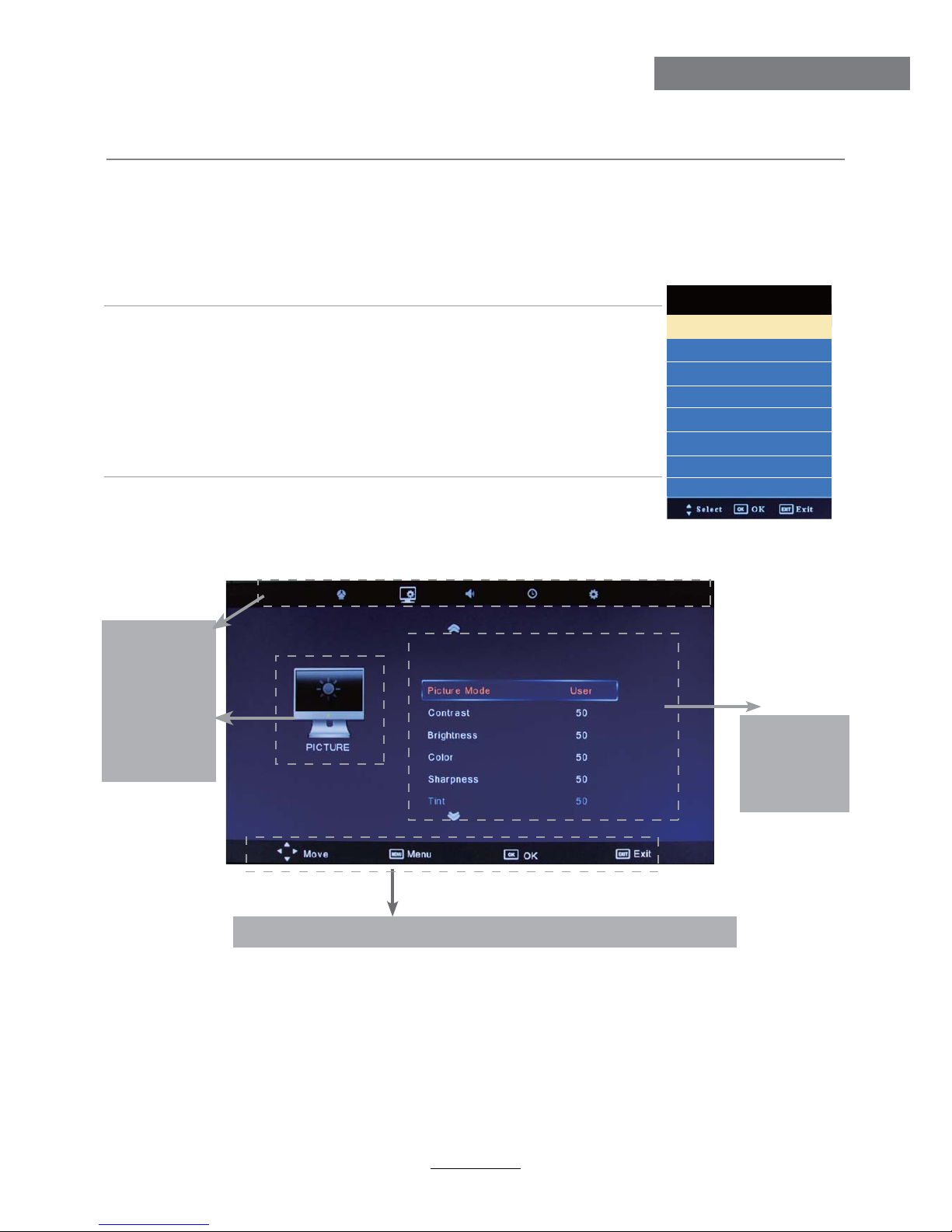

Press MENU button to display the OSD menu as below:
Use /
Ĥ
/
ĥ
Ĥ ĥ
button to select the main menu, and press button to enter the submenu.
In the submenu, use /
Ĥĥ
ĥ
or press OK button to enter the submenu.
* (Press MENU button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operating the OSD menu according to hint on the bottom of the banner.
Main menu
CHANNEL
SOUND
TIME
OPTION
Submenu
(PICTURE
menu for
example)
Hint---you should operate the OSD menu according to the hint.
Input Source
ATV
AV
SCART
YPBPR
VGA
HDMI
USB
DVD

OSD Menu
9
OSD Menu

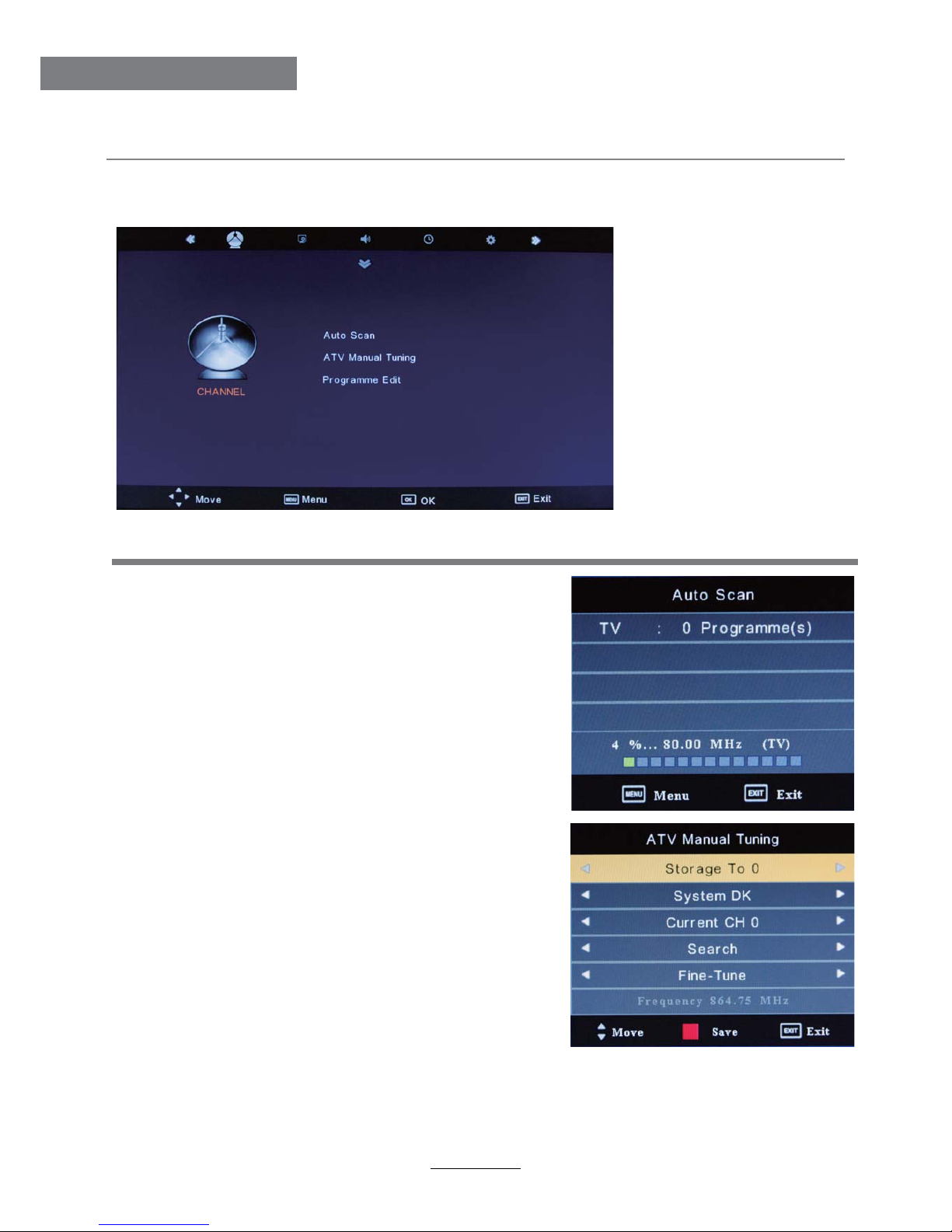

1. CHANNEL menu
Description
Auto Tuning
Press OK button to start auto tuning.
You could press MENU/EXIT button to exit the process of
tuning, there will be a hint on the screen, and you should
press button to confirm, or press button to cancel
the operation.
ATV Manual Tuning
Press OK button to enter the ATV Manual Tuning menu.
Storage to: Select a Channel for storing the
programme.
System: Select the color & sound system.
Current CH: Select the the channel for edit.
Ĥ
ĥ
Search: Press / button to manual search.
Fine Tune: Press / button to fine-tune.
Ĥ
ĥ
Ĥ
ĥ

OSD Menu
10
OSD Menu
Programme Edit
Press OK button to enter the Programme Edit menu as the following picture.
Delete: Select a channel and press RED button to delete.
by buttons.
Ĥ ĥ
Ĥĥ
Rename: Select an channel and press the GREEN button to change the name of the channel
Fav: Select a channel, and press FAV button on the remote control to set/cancel the channel
as the favourite channel.
Swap: Select a channel, and press YELLOW button to highlight the channel, then you can use
Ĥĥ
and buttons to select the channel you want to be swapped, press OK button to confirm.
Skip: Select a channel and press the BLUE button to label the channel, as long as the channel
has a skip label it will be skipped when searching through the channels with the CH+/- buttons.

OSD Menu
11
OSD Menu

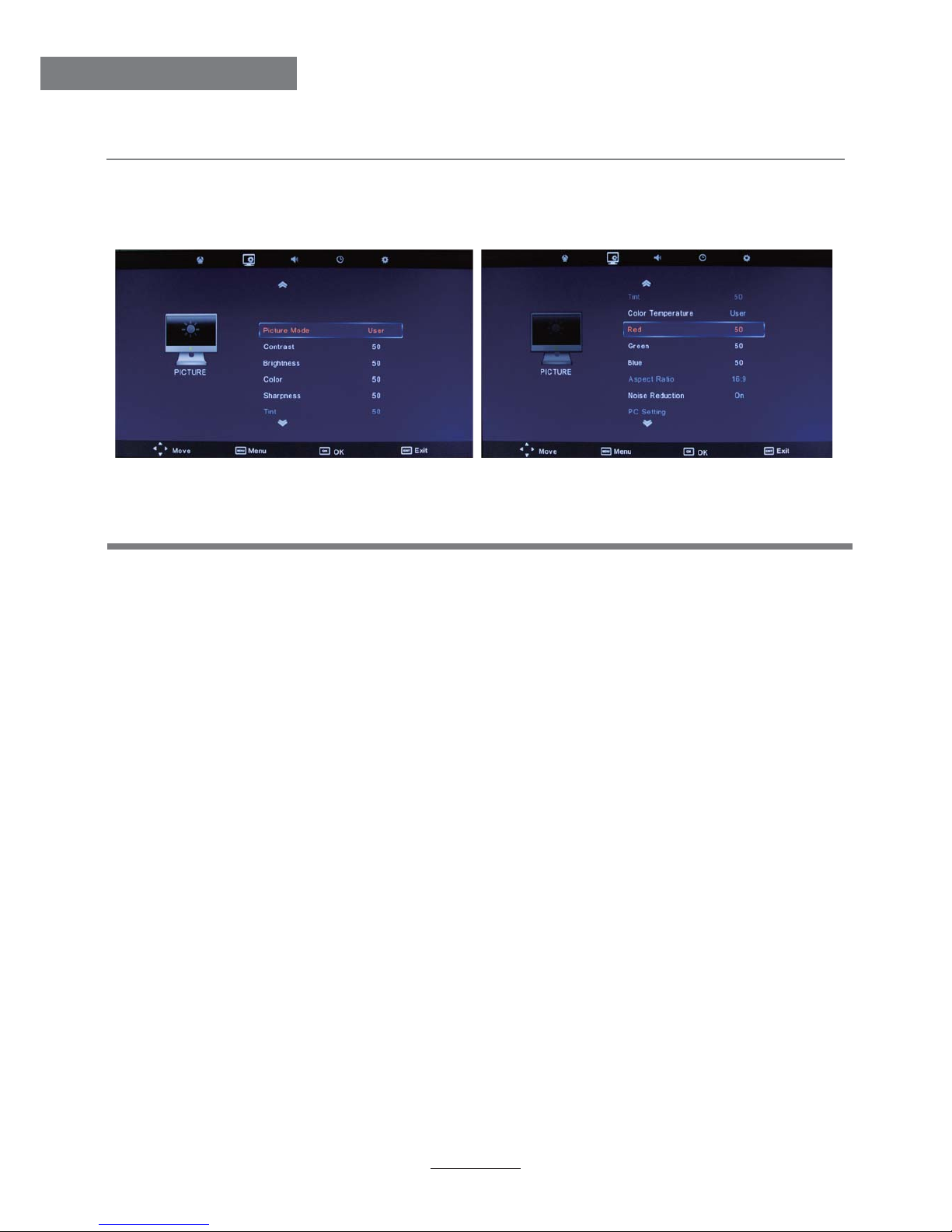

2. PICTURE menu
Description
Picture Mode: Choose from Standard, Dynamic, User and Mild.
Note: Contrast, Brightness, Color and sharpness are only available and can be adjusted in
the User mode option in the Picture Mode Settings.
Contrast: Controls the difference between the brightest and darkest regions of the picture.
Brightness: Controls the overall brightness of the picture.
Color: Control the color.
Sharpness: Increase this setting to see crisp edges in the picture; decrease it for soft edges.
Tint: Controls the tint ( NTSC mode only).
Note: RED, GREEN and BLUE are only available and can be adjusted in the User mode
option in the Color Temperature Settings.
Color Temperature: Choose from Medium, Cool, Warm and User.
Noise Reduction: Turn on/off the funciton for reduce the noise of the TV signal.
Aspect Ratio: Select the picture display mode in the screen.
PC Setup: Change the PC settings in the PC mode.

OSD Menu
12
OSD Menu
3. SOUND menu
Description
Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and User.
Treble(Can be adjusted when the sound mode is User):Controls the relative intensity of
higher pitched sounds.
Bass (Can be adjusted when the sound mode is set to User): Controls the relative intensity of
lower pitched sounds.
Balance: To adjust the balance of the left and right sound track, or turn off the volume of the
left and right sound track.
Surround Sound: Turn on/off the surround sound function.

OSD Menu
13
OSD Menu
4. TIME menu
Description
Clock: Use the and buttons to select the position, and use the and buttons to set the
time.
Off Time: Press OK button to enter the submenu, you could set the time when the TV set will
be turned off automatically, you could also set the frequency.
On Time: Press OK button to enter the submenu, you could set the time when the TV set will
be turned on automatically, you could also set the frequency, volume and program.
Sleep Timer: Allows you to setup the sleep timer among: 10min, 20min, 30min, 60min, 90min,
120min,180min, 240min and off.
Auto Sleep: Turn on/off the auto standby function.

OSD Menu
14
OSD Menu

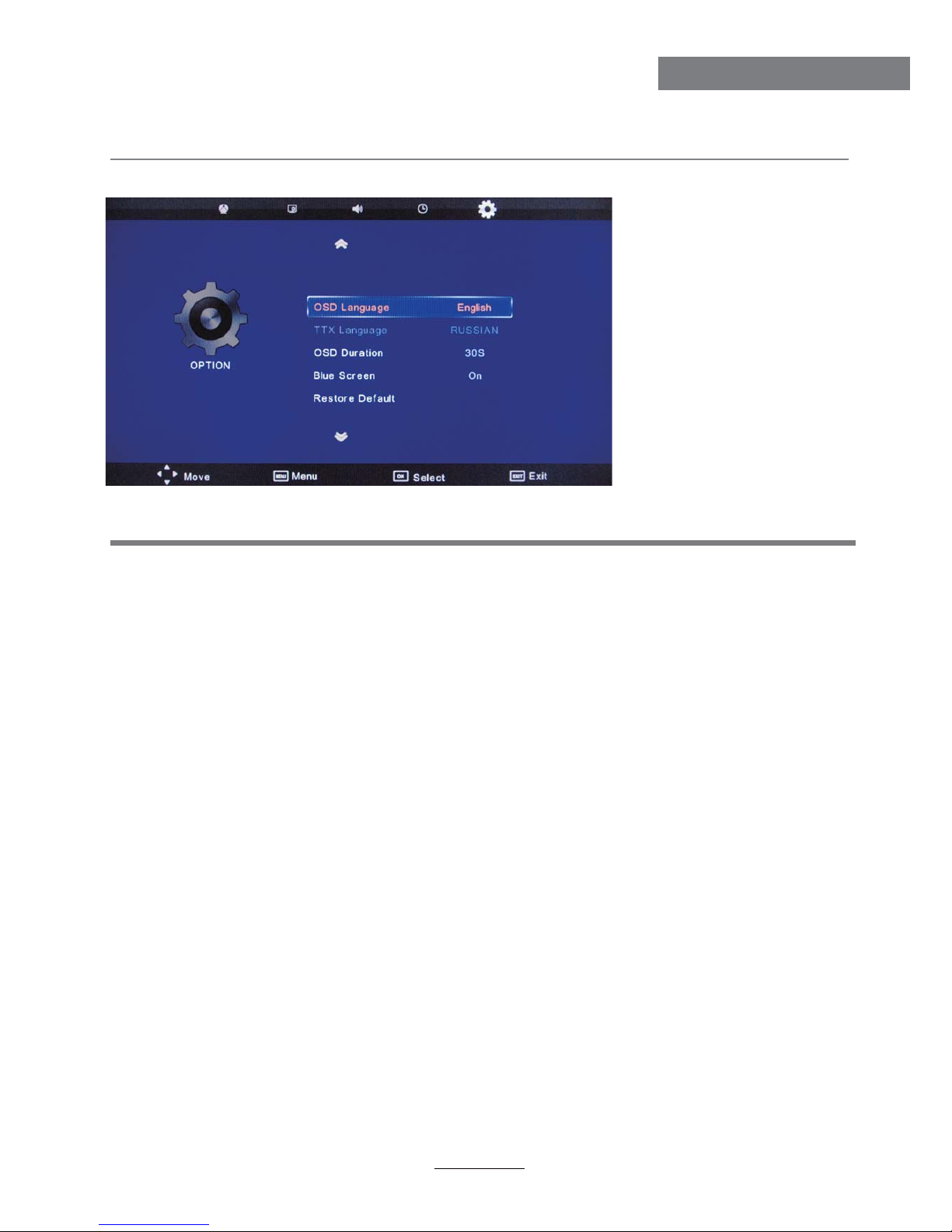

5. OPTION menu
Description
OSD Duration: Allows you to select the time for the OSD display on the screen.
OSD Language: Allows you to select menu language.
Blue Screen: Turn on/off the blue screen function when there’s no signal.
Restore Dafault: Press OK button to restore factory default.
TTX Language: Allows you to select teletext language.

OSD Menu
15
OSD Menu
6.HOTEL mode
Press MENU and enter 2580 for hotel menu
Hotel Lock: Press Left/right and set Hotel Lock On/Off. When Hotel Lock is ON, Lock
Channel-Source Lock can be used as below.
Clear Lock: To clear hotel lock, press Left/Right and then clear the lock setting.
Lock Channel: Channel menu lock. Press Left/Right, and set Lock Channel ON/OFF. When it
is ON, TV source channel menu can’t be chosen.
Set Source: Set starting source, press Left/Right and choose starting source.
Channel Number: Set starting program number. When Set Source is on ATV, press Left/Right
to set program.
Picture Lock: Picture option lock, press Left/Right and set Picture Lock ON/OFF. When it is ON,
Picture menu of main menu will not be chosen.
Key Lock: Key lock, press Left/right and set Key Lock ON/OFF. When it is ON, all keys except
for Power can’t be used.
Max Volume: Set maximum volume. Press Left/Right and set the maximum volume of TV.
After that, the maximum volume adjustment scope is the set value.
Source Lock: Source lock, press Select to enter Source Lock page. On this page, press
Left/Right and set the source desired to be locked ON.
DataBase Export:Data export. Press Left/right, if USB interface is not connected to USB device,
export fail message box. Connecting USB flash disk, the message box of Export Succeed pops
up after 2-3 seconds, USB flash disk will automatically produce DATABASE.bin file.
DataBase Import:Data import. Press Left/Right, if USB interface is connected to USB device
with the exported file as above, the import succeeds after 2-3 seconds and it will be automatically
restarted. Import Fail shows if there are not effective files inspected.
Hotel Lock ON
Lock Channel OFF
Set Source ATV
Channel Number 0
Picture Lock OFF
Key Lock OFF
Max Volume 100
Source Lock
Clear Lock
DataBase Export
Database Import
Source Lock
ATV 0FF
AV 0FF
SCART 0FF
YPBPR 0N
VGA 0FF
HDMI 0N
USB 0FF
DVD 0N

Multimedia Operation
16
Multimedia Operation
Basic Operation
1). Press the INPUT button on the remote control to display the input source menu, select Media
source by the / buttons, and press OK button to enter the Multimedia menu seen below.
Ĥ ĥ
Press / / / buttons to move , and press OK button to select the file or unfold the folder,
Then press button to program the files (be signed) you select or the files in the fold you select,
You can display the option table on the bottom of the screen by DISPLAY/INFO button, press
button to hide. Press button to stop and exit the full screen program.
2). Insert USB device, you will find the name of the device display on the screen.
3). Press / button to select the kind of the files in the device you want to program from PHOTO,
MUSIC, MOVIE and TEXT. Press / button to select the device and press OK button to enter.
MAINS MENU
PHOTO MUSIC MOVIE TEXT
MAINS MENU
PHOTO MUSIC MOVIE TEXT
Preview
Hints for operation
Return to
device list
Up Folder
USB device list
Informations
Input Source
ATV
AV
SCART
YPBPR
VGA
HDMI
USB
DVD

Multimedia Operation
17
Multimedia Operation
1. Photo
2. Music
Press / button to select the option on the table, and press OK button to change.
Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None.
Playlist: Display the playlist on the screen, and you can select the photo by / button, and
press OK button to program. Press / button to return to the options table.
Info: Display the information of the photo.
Rotate: Rotate the photo clockwise/counterclockwise.
Press / button to select the option on the table, and press OK button to change.
Press / button to select the music, and press OK button to program.
Repeat ALL: Select the repeat mode from Repeat All, Repeat 1, Repeat None.
Play the photo
Play the music
Search
Screen Saver
Goto Time: Program the movie form the time you set.
