Denver TVD-1410 User manual

TVD-1410
14 "(37cm)COLOUR TELEVISION
WITH DVD PLAYER
OPERATION MANUAL
DVD

7
7
7
7
8
8
8
8
9
9
9
9
9
10
10
10
10
10
11
11
11
11
11
11
11
12
12
12
13
13
13
13
14
14
14
14
14
15
15
15
15
16
16
16
17
17
17
17
17
17
17
17
17
18
18
18
18
18
18
18
19
20
21
1
Safety Precautions.......................
Antenna connection......................
Location of Controls (Main Unit)...
Remote Control Units...................
TV Reciever Operation
Tuning Operation
Auto Search ........................................
Manual Search ....................................
Adjusting Program ...............................
Deleting Program ................................
Exchange Program.................................
Picture Operation ..................................
Sound Operation....................................
Time Operation
Set Clock ..........................................
Set Off , On Time and Program ............
Set Remind Time and Program ............
Set Sleep Timer..................................
Setup Operation
Set OSD Language ............................
Set Background .................................
Set Black Stretch ...............................
Set Auto Volume Limit ........................
Teletext Operation
Enter Teletext Mode ...........................
Browse Pages ...................................
Function Buttons Operation ................
Operating With Remote Control
Program Selection .............................
Standby Button .................................
Mute Button .......................................
Display Button ...................................
AV Button ..........................................
PP Button ..........................................
Effect Button ......................................
DVD Player Operation
General Setup
TV Display..........................................
Angle Mark..........................................
OSD Language....................................
Digital Output......................................
Screen Saver.......................................
Analog Audio Setup
Downmix.............................................
Dolby Digital Setup
Dual Mono ..........................................
Dynamic .............................................
Contents
Video Setup
Component .............................
Sharpness ..............................
Brightness .............................
Contrast ................................
Preference Setup
TV Type .................................
Audio .....................................
Subtitle ..................................
Disc Menu ..............................
Parental .................................
Password ...............................
Default ..................................
DVD Operation
Play Discs ..............................
Pause Mode ...........................
OSD ......................................
DVD Menu Play ......................
Select With Number Button ......
Audio Mode ............................
Fast .......................................
Slow Play ...............................
Repeat Mode ..........................
Repeat A-B.............................
Subtitle ..................................
Angle .....................................
Goto ......................................
Display (Resume Time)............
Resume Play...........................
Zoom .....................................
Program Mode ........................
Picture CD ..............................
Specifications ..........................
2 - 4
5
6
4

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO PREVENT ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The graphic symbols on the back cover of the set mean the following:
The lightning flashwith arrowhead symbolwithin an equilateraltriangle is intendedto alert theuser
to the presenceof uninsulated "dangerousvoltage" within theproduct's enclosure thatmay be of
sufficient magnitude to constitute arisk of electricshock to persons.
The exclamation point within anequilateral triangle isintended to alertthe user tothe presence of
important operating andmaintenance (servicing) instructionsin the literatureaccompanying the
appliance.
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
INSTALLATION
LOCATE the receiver in the room where direct light does not strike the screen. Total darkness
or a reflectionon the picturescreen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
ALLOW enough spacebetween the receiverand the wall to permit proper ventilation.
AVOID excessive warm locations to prevent possible damage to the cabinet or component failure.
CONNECTION
This TV power plug canbe connected to230V~ 50/60Hz, NEVERconnect to DCsupply or any other power.
AUTOMATIC DEGAUSSING
All colour televisionreceivers are sensitiveto magnetic influences,usually caused byeither moving thereceiver from one
place to anotheror using certainelectrical appliances nearthe receiver.This residual magnetism as itis called, sometimes
causes distortion whichgives rise to"blotchy" areas ofcolour in thepicture. To avoid these effects the receiver incorporates
an automatic degaussingcircuit which operatesfor a shortwhile immediately eachtime the receiveris switched onusing the
mains switch. This circuit removesany residual magnetismin the metalparts of thepicture tube andtherefore ensures that
each time thereceiver is switched"ON" using theMains switch, thepurity of thecolours displayed onthe screen remain
true and lifelike.If the setis moved orfaced in adifferent direction , the mainsswitch must beswitched off at least 10 minutes
in order thatthe automatic degaussingcircuit operates properly.
2

CAUTION
Never replace withany components insideyour set, orany other adjustmentcontrols not mentionedin this manual.All television
receivers are highvoltage instruments. Your PICTURE TUBE is highly evacuated.If broken, glassfragments will beviolently
expelled. Scratching, shippingor undue pressureis dangerous andshould be avoided.When you dustor wipe thePICTURE TUBE
FACE orCABINET,the power plugshould be pulledout from thesocket , then wipe the receiver with a dry soft cloth.All "inside
work" on yourreceiver should beperformed only byProfessional Service Personnel.
DANGER
LASER SAFETY
This unit employsan optical laserbeam system in the CD mechanism,
designed with builtin safeguards. Donot attempt to disassemble, refer to
qualified service personnel.
Exposure to thisinvisible laser lightlight beam may be harmful to the
human eye.
THIS IS A CLASS-1 LASER PRODUCT. USE OF
CONTROLS, OR ADJUSTMENTS OR PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN, MAY
RESULT IN HAZARDOUS LASER LIGHT BEAM
Invisible laser radiation when open
and interlock failed or defeated.
avoid direct exposureto laser beam.
CLASS 1
LASER PRODUCT
Manufactured under license from Dolby Laboratories "Dolby" , "Pro Logic" and the double-D
symbol are trademarks of Dolby Laboratories. Confidential unpublished works. 1992-1997
Dolby Laboratories,lnc.All rights reserved.
3
C

IMPORTANT SAFEGUARDS
PREFITTED MAINS PLUGS
For you conveniencea mains plughas been fittedto this appliance.For your safetyplease observe thefollowing information.
1. CAUTION: Underno circumstances shouldthe discarded plugbe inserted intothe mains socket.To prevent a shock hazard
carefully dispose ofthe discarded plug.
2. Do notleave the pluglying around wherechildren might seeit.
3. WARNING: To prevent fireor shock hazarddo not exposepower plug to rain or moisture.
CAUTION: DANGEROUS VOLTAGES EXIST INSIDE THIS UNIT DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL. DISCONNECT FROM MAINS SUPPLY WHEN NOT IN USE.
This symbol meansthat this unitis double insulated.An earthconnection is notrequired.
ANTENNA CONNECTION
Toensure best receiving effect, use outdoor antenna or cable antenna (CATV). The type and locationof antennas will change with
places and condition.
Notes:
* Connect theoutdoor antenna as shown above, and also install a lightning arrester and perform periodical checking and repair.
* It issuggested to better use a 75 coaxial cable, toeliminate interference or noise due to improper matching of impedance.
* The cable should not be tied together with supply cord.
4

LOCATION OF CONTROLS
1. Remote controlreceiving window
2. Indicator
3. Main power switch
4. 75 ohmAntenna Socket
5. AV2 in
6. AV out
7. Audio Digital OutSockets ( For DVD only )
8. Scart1 Connector (TV input and output )
9. Scart2 Connector (DVD output )
10. Volume Button(V )
11. Volume Button(V )
12. Channel Button(P-)
13. Channel Button(P+)
14. TV/AV
15. Menu Button
16. DVD Play Button
17. DVD Button
18. Open/Close Button
19. AV1 in
interface description:
1 Side AV: AV1 signal input in TV mode.
2 Rear AV interface: AV2 signal input and AV signal output in TV mode.
3 SCART1: in TV mode, containing one AV2 signal input, oneRGB
signal input andone AV output.
4 SCART2: in DVD mode, containing one AV (CVBS) output and one
RGB output.
5 Optical fiber: in DVD mode, optical fiber signal (digital and audio)
output.
6 Coaxial: in DVDmode, coaxial signal(digital and audio)output.
Note: If you want to use the DVD mode and AV input mode of the TV
set at the same time, please input the audio and video signals from
side AV (Av1), instead of from rear AV (AV2 and Scart1).
5
DVD
3
1 2
8 46 59 7
10 12 14 1816 151719 1113

REMOTE CONTROL UNIT
1. Standby Button
2. TV/DVD Remote shiftButton
3. TV Numeric Button
* DVD NumericButton
4. Two and three Digital Program Button
* Two Digital Program Button
5. Setup Buttons (Blue)
* Setup Buttons
6. Channel Button (P+)
7. Volume Button(V-)
8. Channel Button (P-)
9. * A-B Button
10. Menu Button
* Menu Button
11. Game Button
* Repeat Button
12. * Play (ENTER) Button
13. MIX Button (For teletext mode )
* Play/Pause Button
14. SIZE Buttons (For teletext mode )
* Open/Close Button
15. TXT Button (For teletext mode )
* Stop Button
16. Cancel Button (For teletext mode )
* Previous Button
17. Reveal Button(For teletext mode )
* Next Button
18. AV Change Button
19. TV/DVD Button
20. Shift LED
21. PP Button
22. Mute Button
23. Recall Button
* Go To Button
24. Display Button
* Display Button
25. Sound Button (Green)
* Sub-t Button
26. Picture Button (Red)
* Angle Button
27. Sound Effect Button
28. Volume Button(V+)
29. Time Button (Yellow)
* Title Button
30. Tune Button
* Zoom Button
31. Child Lock Button
* Program Button
32. * Clear Button
33. * DirectionUp Button
Direction Down Button
Direction Left Button
Direction Right Button
34. E/W Button (For teletext mode )
* PBC Button
35. Mono/Stereo switchButton (No usefor this TV )
*Audio Button
36. * SlowButton
37. Hold Button(For teletext mode)
*Fast Forward Button
38. Sub-code Button (For teletext mode )
* Fast BackwardButton
Note:
All the "*" Mean The Function In DVD Mode
BATTERY INSTALLATION
Insert two "AAA" batteries as illustrated
and replace the battery cover.
6

TV RECIEVER OPERATION
Connect your TV antenna to the antenna input socket located on the back of the TV.
Push the MainPower Switch, power Indicator will be illuminated. When there is no signal,the TV will require tuning theavailable TV
programs in yourarea. The operation is as follows:
Program Operation
Auto Search
Use theAuto Store methodto automatically store into the memory.
This method willstore TV programs in order of reception 1,2,3 etc. or all set
1. Press theMENU button continuously untilTUNE menu is shown .
or press theTUNE button directly inthe remote controller, enter the TUNE menu .
2. Press P- /P+ button until " AUTO SEARCH" is highlighted.
3. Press theV+ button tostart the autosearch and storeprogramme.
4. The operation will take a few minutes .
After searching the TV will show the first station stored into preset location 1.
5.Press P+/P- button on theTV set or remote controller to recall theprograms stored.
Manual Search
Search and storedesired programs to designated channel Nos. by manual
1. Press theMENU button continuously untilTUNE menu is shown .
Or press theTUNE button directly inthe remote controller, enter theTUNE menu .
2. Press P-/ P+ button continuously until" SEARCH "is highlighted.
3. Press V+ button to start manual search up , or V- button to lower program
4 .Press P+ / P- button until "PROGRAM " ishighlighted.
5. Press V+ / V- button and changethe channel numbershown 1-249
until the correctchannel No. isshown that youwant to storethe TV channel into .
6. Press P+ / P- button until "STORE " is highlighted
7. Press theV+ button to storethe TV programme into theselected channel No..
8. Repeat operations1-6 above tosearch and storeother programmes intothe memory.
Adjusting Program ( Fine Tune )
In areas ofpoor reception ofconstant interference ,aslight adjustment
of the tuningmay improve thepicture and soundquality .
1. Press theMENU button continuously untilTUNE menu is shown .
or press theTUNE button directly inthe remote controller.
2. Press P-/ P+ button continuously until" FINE TUNE " is highlighted.
3. Press V+ / V- button all alonguntil the pictureand sound areok .
4. Press P+ / P- button until "STORE " is highlighted
5. Press theV+ button to storethe adjusted program.
Deleting Programs ( Skip ):
If some programsis not requiredor too bad, you can delete them from the channel list :
This operation willbe operated in TUNE menu ,
1. Select andview the stationto be erased.
2, Press P-/P+ button continuously until " SKIP " is highlighted.
4. Press V+ button and change the state from OFF to ON.
5. Press P- / P+ button until " STORE " is highlighted
6. Press V+ button to store the setting.
7. Press MENU or TUNE button to return to normal TV operation.
8. After you change channel the program will no longer be seen in channel list.
7
TUNE
COLOUR AUTO
SOUND BG
BAND VHFL
SKIP OFF
PROGRAM 1
SEARCH
FINE TUNE
STORE
AUTO SEARCH
TUNE
COLOUR AUTO
SOUND BG
BAND VHFL
SKIP OFF
PROGRAM 1
SEARCH
FINE TUNE
STORE
AUTO SEARCH
SOUND BG
BAND VHFL
SKIP OFF
PROGRAM 1
SEARCH
FINE TUNE
STORE
AUTO SEARCH
TUNE
COLOUR AUTO
TUNE
COLOUR AUTO
SOUND BG
BAND VHFL
SKIP OFF
PROGRAM 1
SEARCH
FINE TUNE
STORE
AUTO SEARCH
1
AUTO SEARCH
VHFL
1
SEARCH
VHFL
1
FINE TUNE
VHFL

Exchange Programs
Use this functioncan arrange theprogram list toyour own's mind.
1. Select EXCHANGE menu by pressing menu button continuously.
2. Press P+ / P- button to select " PROGRAM 1 "
3. Press V+ /V- button to select the first program number that you want to exchange
4. Press P+ / P- button to select " PROGRAM 2 "
5. Press V+ /V- button to select the program number that you want to exchange withthe first one
6. Press P+ / P- button to select " EXCHANGE "
7. Press V+ /V- button to exchange the two programs
Picture Operation
Press the MENU button on the remote controller (or on the TV set) once,
or press thePICTURE (PIC) button directly enter the PICTURE menu.
There are fouritems in thismenu: CONTRAST , BRIGHTNESS , COLOUR , SHARPNESS
1. Press P+ / P- button to select the items you want to adjust .
2. Press V+ /V- button to adjust the picture effect .
* In NTSCmode , theitem " HUE" can beselected and adjusted .
Sound Operation
Press the MENU button on the remote controller (or on the TV set) twice,
or press theSOUND ( )button directly enterthe SOUND menu .
There are fiveitems in thismenu : VOLUME, BASS ,TREBLE , BALANCE , SURROUND
1. Press P+ / P- button to select the items you want to adjust .
2. Press V+ /V- button to adjust the sound effect .
Time Operation
With this function,you can watchthe preset programat preset time ,
and turn onor off TV at preset time .
For example ,itis 16:28 now, you wantto watch program 10 at 17:00 ,
and turn it off at 23:30 , then turn it on at 7:30 the next morning
and show program8 . The operation is as follow :
Press MENU button on theremote controller (oron the Tv set) third ,
or press theTIME button directly enterthe TIME menu .
Set Clock
1. Press P+ / P- button to select the " CLOCK "
then press V+ /V- button to set hour at 16 ,
2. Press P+ / P- button again to select minute ,
and press V+ /V- button to set minute at 28 .
8
EXCHANGE
PROGRAM 1 1
PROGRAM 2 2
EXCHANGE
SOUND
VOLUME 2
BASS 32
TREBLE 32
BALANCE 0
SURROUND OFF
CONTRAST 32
BRIGHTNESS 32
COLOUR 32
SHARPNESS 32
TIME
CLOCK --:--
ON TIME --:--
ON PROG 1
OFF TIME --:--
SLEEP TIMER 0
REMIND TIME --:--
REMIND PROG 1
TIME
CLOCK 16:28
ON TIME --:--
ON PROG 1
OFF TIME --:--
SLEEP TIMER 0
REMIND TIME --:--
REMIND PROG 1

Set Remind Time and Program
1. Press P+ / P- button to select the " REMIND TIME "
use V+ /V- button to sethour at 17,
then select minuteand set itto 00 .
2. Press P+ / P- button to select the " REMIND PROG "
use V+ /V- button to setthe program numberas 10 .
Set Off time ,On time and Program
1. Press P+ / P- button to select the " OFF TIME "
use V+ /V- button to sethour at 23,
then select minuteand set itto 30 .
2. Press P+ / P- button to select the " ON TIME "
use V+ /V- button to sethour at 7,
and then selectminute and setit to 30.
3. Press P+ / P- button to select the " ON PROG "
use V+ /V- button to setthe program numberas 8 .
Set Sleep Timer
1. Press P+ / P- button to select the " SLEEP TIMER "
use V+ /V- button to setsleep time byturn :
0 ,10, 20, 30 ,40 ......180 (Minute )
Setup Operation
Press MENU button on theremote control (or on theTV set ) continuously
or press theSET button directly toenter the SETUP menu
Set OSD language
1. Press P+ / P- button to select the " ENGLISH"
2. Press V+ /V- button to select the language you want
Set Background
1. Press P+ / P- button to select the " BLUE BACK"
2. Press V+ /V- button to make the blue background ON or OFF .
* When "BLUE BACK " is ON , the screenwill be blue, if no signal input .
* When "BLUE BACK " is ON , the TV set will" standby " automatically in 5 minutes ,
if no signalinput all thetime .
9
TIME
CLOCK 16:28
ON TIME --:--
ON PROG 1
OFF TIME --:--
SLEEP TIMER 0
REMIND TIME 17:00
REMIND PROG 10
TIME
CLOCK 16:28
ON TIME 07:30
ON PROG 8
OFF TIME 11:30
SLEEP TIMER 0
REMIND TIME 17:00
REMIND PROG 10
SETUP
ENGLISH
BLUE BACK ON
BLACK STRETCH ON
AVL ON
SETUP
ENGLISH
BLUE BACK ON
BLACK STRETCH ON
AVL ON
TIME
CLOCK 16:28
ON TIME 07:30
ON PROG 8
OFF TIME 23:30
SLEEP TIMER 0
REMIND TIME 17:00
REMIND PROG 10

Set Black Stretch
1. Press P+ / P- button to select the " BLACK STRETCH "
2. Press V+ /V- button to make the black stretch ON or OFF .
* This function is used just to improvethe effect of the picture
Set Auto Volume Limit
1. Press P+ / P- button to select the " AVL "
2. Press V+ /V- button to make the blue background ON or OFF .
* When "AVL " is ON , the outputpower of the loudspeaker can
remain constant ,if the volumeis too large to distort ion .
TELETEXT OPERATION
Enter Teletext Mode
In TV mode, press theTXT button to enterthe teletext modedirectly .
* Press theTXT button twice toexit the teletextmode.
* Afterentering the teletext mode, the screen will display the first page of the teletext ;if there is no teletext signal ,
the screen will display the blank page as show below:
Browse Pages
After entering theteletext mode ,using the following methods to browse all of the pages :
1. Press theNUMERIC button , enter any of the pages .
2. Press theP+/P- button , browse the pages one by one .
3. Enter thecorresponding pages by pressing the four coloured buttonon the remotecontroller corresponding tothe four
colour page numbersat the lowerof the screen.
4. During browsing , press the TUNE button to go back to the index page .
5. During browsing , press the SIZE button to enlarge the teletext pages .
6. Press theE/W button , switchbetween the Easternand Western European display language.
7. Press theHOLD button to browsethe current pagefor a longtime .
Function Button Operation
In teletext mode,there are somespecial function button.
1. Press theMIX button , mixthe teletext pagewith current TV program ,i.e. f or semitransparent for teletextdisplay.
2. Press theREVEAL button display thecurrent TV program in teletextmode .At this time,although the TV is displayed , no TV
operation is possible, Press thisbutton twice toresume to thenormal teletext display.
3. Press theCANCEL button , exit the teletext display mode , andshift the teletextpage to backgroundoperation .
4. If theteletext signal has sub-code information , press the SUBC button to enterthe sub-code pages.
10
101 102 103 889
101
SETUP
ENGLISH
BLUE BACK ON
BLAC STRETCH ON
AVL ON

TV AV1 AV2 RGB
OPERATING WITH REMOTE CONTROL
Program Selection:
1. Program NumberUp and Down
Press the "P+ " or " P- " button to select a higher or lower program number.
2. 0 -9 Digital Button
Toselect TV stations using program numbers 0 - 9, selecting program number will be shown in the left corner of the top of screen.
3. Two Digital Program Number
Toselect TV station using program numbers "10" - "99".
For example: selectingprogram 12
* Press thebutton "-/- -"once
* Then press the number "1" button, on screen will show "1-"
* Then press the number "2" button, channel "12" will show.
4. Three Digital Program Number
Toselect TV station using program numbers "100" - "249".
For example: selectingprogram 120
* Press thebutton "-/- -/---"twice
* Then press the number "1" button, on screen will show "1--"
* Then press the number "2" button, channel "12-" will show.
* Then press the number "0" button, channel "120" will show.
5. Previous ProgramButton ( )
Press ( )button to selectthe previously viewedprogram number.
Child Lock Button
Press the "LOCK"button on theremote controller,you will berequired to enterthe four-digit passwordand ask youto enter it
again for confirmation.
After the ChildLock function isturned on, themachine will belocked at thecurrent channel andcannot be switchedover. Ifyou
want to turnthe Child Lockfunction off, press the "'LOCK"button again andenter the setpassword correctly tounlock it.
Note: There is a generalpassword [4689] setfor the machine.
Standby Button ( )
* Press the" " buttonto switch OFFthe picture andsound.
* To switch on the TV from stand-by mode, just press any desired program number (0-9).
Mute Button
Press the Mute button to switch OFF the sound, press once again to switch ON the sound.
Display Button
Press the ( ) button, the screen will be in TV screen display mode. When there is an operation menu on the screen, the menu
disappears when thisbutton is pressed.
AV Button
For turn over between RF program mode and video mode (including AV1, AV2 or RGB mode).
PP Button
This button isused to selectone of thefour picture modes: USER, MILD, STANDARD and DYNAMIC .
Effect Button ( EFFE )
You can switch over between four types of sound mode with this button: USER, SPEECH, THEATRE and MUSIC.
USER
MILD
STANDARD
DYNAMIC
SPEECH
USER
THEATRE
MUSIC
11

DVD PLAYER OPERATION
Basic Operation
1. Press TV/DVD button on the remote controller or DVD button on the TV set to turn on( or off ) DVD .
2. Press OPEN / CLOSE button to load disc into disc tray.
3. Press OPEN / CLOSE button to close the tray.
Hold the disc without touching either of its surfaces, position it with the printed title side
facing up, alignit with theguides, and place it in its proper position.

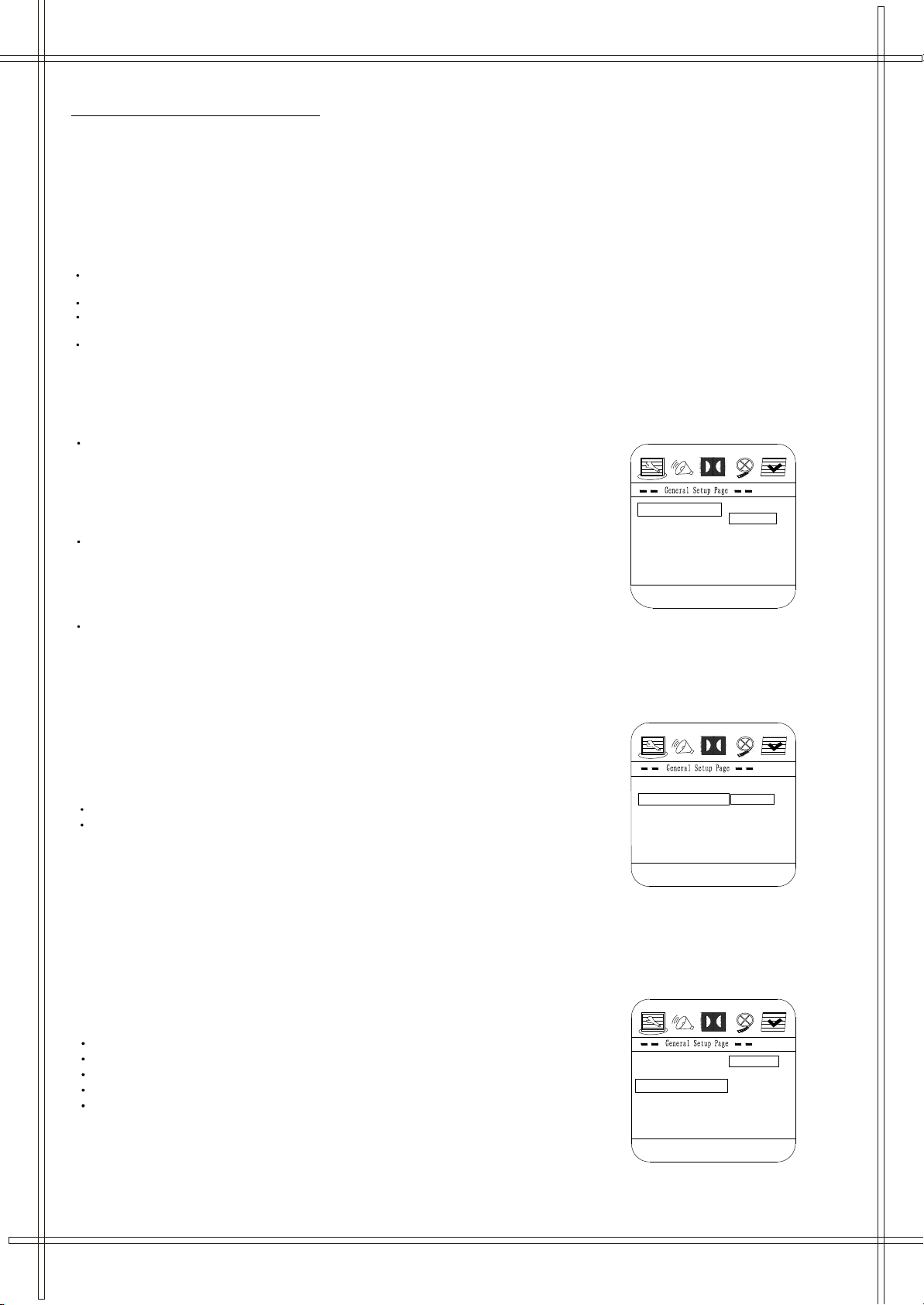

DVD Setup Mode
Setup Mode provides the menu for the configuration of General Setup Page, Speaker Setup Page, Dolby DigitalSetup ,
Video Setup Page and Preference Page .
Item selection inthe Setup Menu is done by using the Navigation Arrows, SETUP button and the OK button.
Press the SETUP button first , enter into SETUP menu, then press the DIRECTION RIGHT button, you can enter into the next
Sub-menu.
Press the SETUP button again to exit the Setup Menu,
1. General Setup
Angle Mark
This only workswhen there isan
angle mark onthe disc. Select
ON, the screenshows the mark
when playing DVD.
.
On
. Off
OSD Language
This is usedto select theOSD language.
.
English
German
. Danish
Swedish
Spanish
TV Display
PS
This is selectedwhen the DVD
player is connectedto a normal
TV. Wide-screen images are shown
on the screen,but with someparts
cut automatically.
LB
This is selectedwhen the playeris
connected to anormal TV. Wide-screen images are
shown on thescreen, with blackbelt on thetop and
bottom.
Wide
This is selectedwhen the player
is connected toa wide-screen TV.
12
Screen Saver On
Digital Output RAW
OSD Language ENG
Angle Mark On
TV Display PS Normal / PS
Normal / LB
Wide
Set TV Display Mode
TV Display PS
Angle Mark On
OSD Language ENG
Digital Output RAW
Screen Saver On
Off
On
Set Angle Mark
English
Set OSD Language English
TV Display PS
Angle Mark On
OSD Language ENG
Digital Output RAW
Screen Saver On Spanish
Swedish
Danish
German

This is usedto set theaudio output
SPDIF Off
An analog surroundsound format
Is output throughthe back-panel
Audio output connectors.
SPDIF/ RAW
This surround soundformat is output
to a Dolbydigital decoder through
the optical andcoaxial connectors.
SPDIF/ PCM
This surround soundformat is output
to a PTSdecoder through theoptical
And coaxial connects.
Screen Saver
Start the screensaver, thescreen
saver image will appear when the
player stops orthe picture isfrozen
for a fewminutes. This saver can
keep the screenfrom being damaged.
On (Start the screensaver)
Off (Remove the screensaver).
2. Speaker Setup Page
Downmix
LT/RT
Adisc recorded multichannel soundtrack,
the output signalwill be incorporatedto left
and right channel.
.
Stereo
Adisc recorded multichannel soundtrack,
The output signal will be incorporated to stereo.
3. Dolby Digital Setup
Dual Mono
This is usedto select theStereo ,L-MONO
R-MONO and MIX-MONO.
Digital Output
13
Setup SPDIF
SPDIF/RAW
SPDIF Off
SPDIF/PCM
TV Display PS
Angle Mark On
OSD Language ENG
Digital Output RAW
Screen Saver On
Screen Saver On
Angle Mark On
TV Display PS
Digital Output RAW
OSD Language ENG
Off
On
Screen Saver
Set Downmix Mode
Stereo
LT / RT
Downmix
Stereo
Dynamic
Dual Mono
R-Mono
L-Mono
Mix-Mono
Dual Mono(1+1) Setup

4.Video Setup
Component
This option isused to setthe video
output.
Off
RGB
Sharpness
This option isused to setthe sharpness
level of thesharpness of thevideo output
High
Medium
Low
Brightness
User can setthe level ofbrightness for the image displayed.
It is rangedfrom -20 to 20.
Contrast
User can setthe level ofcontrast for the image displayed.
It is rangedfrom -16 to 16.
Dynamic
This option isused to setthe compression
ratio in orderto control thesound (volume) contrast.
14
Set DRC To Full
Off
1/4
1/2
3/4
Full
Dual Mono
Dynamic
Component
Off
RGB
Contrast 00
Component RGB
Sharpness Low
Brightness 00
Brightness 00
Sharpness Low
Component RGB
Contrast 00 Low
Medium
High
Sharpness
Component RGB
Contrast 00
Sharpness Low
Brightness 00 00
Brightness
Brightness 00
Contrast 00
Sharpness Low
Component RGB
00
Contrast
Brightness +4
+4

5.Preference Setup
You must press STOP twice to enterPreference Page
TV Type
PAL
This is selectedwhen the playeris
connected to anPALSystem TV.
MULTI
The player willset the TV system
according to thedisc in thetray.
NTSC
This is selectedwhen the playeris
connected to aNTSC System TV.
Audio
If a languagelisted below isrecorded
on the disc,you can playthe sound in
such language. Ifnot, the language
recorded will beused.
English
German
Danish
Swedish
Portuguese
Spanish
French
Chinese
Russian
Subtitle
If a languagelisted below isrecorded
on the disc,you set thesubtitle to be
displayed in suchlanguage. If not,the
language recorded willbe used.
English
German
Danish
Swedish
Portuguese
Spanish
French
Chinese
Russian
Disc Menu
If a languagelisted below isrecord on
the disc, youcan set theMenu to be
displayed in suchlanguage. If not,the
language recorded willbe used.
English
German
Danish
Swedish
Portuguese
Spanish
French
Chinese
Russian
15
Set TV Standard
Password
Default
Audio ENG
Subtitle ENG
Disc Menu ENG
Parental
PAL
NTSC
MULTI
TV Type Multi
Parental
Disc Menu ENG
Subtitle ENG
Audio ENG
Default
Password
Danish
Russian
Chinese
Spanish
Engilish
German
Portuguese
Swedish
Preferred Audio Language
French
TV Type Multi
Password
Audio ENG
Subtitle ENG
Disc Menu ENG
Parental
Default
Danish
Swedish
German
Engilish
Portuguese
Spanish
French
Chinese
Preferred Subtitle Language
Russian
TV Type Multi
Audio ENG
Subtitle ENG
Disc Menu ENG
Parental
Password
Default
Swedish
Portuguese
German
Engilish
Spanish
French
Chinese
Danish
Preferred Menu Language
Russian
TV Type Multi

Parental
When playing discwith parental lockfunction, you mayselect anAge
Control Grade accordingto grade ofdisc and yourown preference.
For example, ifPG is selected,DVD Video disc rated higherthan the
PG grade cannotbe played.
KID SAFE
G
PG
PG 13
P GR
R
NC 17
ADULT
OFF
-
OLD PASSWORD
NEW PASSWORD
CONFIRM PWD
OK
Default
User can loadthe original factory
setting by chooseRESET and
press OK button .
Password
User can changethe password thatis
required when theuser wants to
change theAge Control Gradein the
Parental Lock function.
NOTE: (Preset password is 3308 )
16
Audio ENG
Subtitle ENG
Password
Disc Menu ENG
Parental
Default
8 ADULT
7 NC 17
6 R
5 PGR
4 PG 13
2 G
3 PG
1 KID SAFE
Set AGE Contral
TV Type Multi
Parental
Disc Menu ENG
Subtitle ENG
Audio ENG
Default
Password Change
Change Password
TV Type Multi
Audio ENG
Subtitle ENG
Disc Menu ENG
Parental
Password
Default Reset
Load Factory Setting
TV Type Multi

DVD OPERATIONS
Play Discs
1. Press theOPEN/CLOSE Button ( )on the frontpanel and loadthe Disc onthe tray.
The label side should be facing upwards. For a Double-sided DVD Disc, put the disc with label A/1 up.
2. Press theOPEN/CLOSE ( ) buttonagain to closethe tray andthe disc willbe loaded.
3. The Disc will beplayed automatically.
If it is a DVD disc, it will show the Menu/Title Page on the screen.
If it is a CD, it will play the first track directly.
4. Press theSTOP Button ( )if you wantto stop theDisc playback You can continue
playback by pressingthe OK button (on thefront panel)or theOK button (on theremote controller) andit will startat
the location whereyou have pressedstopped (Resume Play).
5. Press theSTOP Button twice to have the Disc really stopped.
Pause Mode
This function isapplicable for DVDand CD audio.
For DVD , the picture will become static.
For CD audio, it will become silent.
1. Press the PLAY/PAUSE ( ) Button will cause the player to enter Pause mode.
2. Press the OK Button or PLAY/PAUSE Button again willcontinue to Playmode .
OSD Language
There are 5OSD languages embeddedin the DVDPlayer : English,German , Danish , Swedish, Spanish
1. Press theSETUP button on the remotecontroller to enterthe setup menumain page.
2. Press theNavigation Arrows( ) to choose General Setup Page
3. Go tothe OSD LANGoption and usethe NavigationArrows to dothe selection.
4. Press OKbutton to confirm.
5. Press SETUP again to resume the Setup menu.
DVD Menu Play
The DVD MenuPlay function isonly applicable forDVD movie.User canget the Castinginformation, Production History, Movie
Introduction etc. directlythrough this function.
1. Press theDVD MENU Button on the remote controller to enter the Root Menu.
2. Use theNavigation Arrows( ) orinput the item index through the Number keys (0-9)
to do theselection.
3. Press OK button to confirm the selection.
Select with Number Button (0 - 9)
When using theNumber Buttons asinput, user candirectly input the numbers, if want to enter two digits.
For example, toinput the number'13' , userhas to press ' '1 ' and ' 3'.
During a DVDmovie playback, input through the Number Buttons will selectthe Chapter inthe current title.
When playing audioCD, Number Key press will command the player toaccess the trackindicated.
Audio Mode
This function isapplicable for DVDand CD audio but with different effects.
For a DVD disc, pressing the AUDIO Button will changethe language ofplayback.
Fast Play
This function isapplicable for DVDand CD audiobut with different effects. The FAST FORWARD ( ) key
and FAST BACKWARD ( ) keyare used toachieve fast playfunction.
For DVD , there are 4 different levels of speed (2x, 4x, 8x,16x). Every successivekey press willincrement the speedof quick play.
Note : PressPLAY Button at anystage will resumeto normal speed.
For CD audio, the FF/FR will perform quick rolling on the music output. However, once the FF/FR key press is released, the
Playback will resume to normal speed.
Slow Play
The Slow Forwardis applicable forDVD, There are 4 stepsof slow motionspeed, 1/2,1/4, 1/8, 1/16. Successive key presses will
decrement the playbackspeed.
Note : PressPlay Key to switchback to normalplayback speed.
Repeat Mode
This function isapplicable for DVDand CD audio but with different effects.
For DVD discplayback, user can choose to repeat the current chapter or the current title.
Subsequent key pressof the REPEAT key can change between these two options.
For CD, usercan choose to repeat the current track or the whole disc (RepeatAll).
Subsequent key pressof the REPEAT key can change between these two options.
17

Press the DISPLAY button
Press the DISPLAY button
Press the DISPLAY button
Press the DISPLAY button
Press the DISPLAY button
TITLE ELAPSED
TT 01/04 CH 01/012 0:02:03
TT 01/04 CH 01/012 1:33:30
TITLE REMAIN
CHAPTER ELAPSED
TT 01/04 CH 01/012 0:02:15
CHAPTER REMAIN
TT 01/04 CH 01/012 0:02:18
DISPLAY OFF
Press the GOTO button
Press "0" as the hour input
Press "1"and then "5" as the minute input
TITLE 01/02 TIME : :
Press "0" and then "8" as the second intput
(playback starts at 0:15:08 of Title 1)
TITLE 01/02 TIME 0 : :
TITLE 01/02 TIME 0:15 :
TITLE 01/02 TIME 0 :15:08
Repeat A-B
This function isapplicable for DVDand CD audio.User can specifythe
repeating interval bymarking the startingpoint and theend point.
1. Press theREPEATA-B Button to markthe starting point(Playback will continue).
2. Press theREPEATA-BButton to markthe end point.(Themarked part will be repeated automatically)
Note : Pressthe REPEAT A-BButton during repetitionwill disable the Repeat mode.
Subtitle
This function isonly applicable forDVD disc. Itcan change thesubtitle language shown
on the screen.
Note : Numberof subtitle availabledepends on theDVD disc.
Angle
Some discs mayhave multiple viewingangles during production.The ANGLE button is
to select theviewing angle shownon the screen.
Note : The number ofAngle ofView depends on the Disc.
Goto
This function isapplicable for DVD.and CD audio.Through this function,
the user canaccess a specificlocation or aspecific track bykey
In the targettime or thetrack number.
In the DVD playback mode, theplayer provides two
search modes :Search Chapter Time and Search Title Time.
1.Press the GOTO key to choose a search mode
(Title time / Chapter time).
2.Input the targettime through theNumber keys (0-9)and the
Player will jumpto the targetlocation immediately.
In CD audio, user can only access the
location in thecurrent track.
1. Press theGOTO key to enterthe Search
Mode (there isonly one modein CD audioplayback).
2. Input thetarget time throughthe Number keys
(0-9) and theplayer will jumpto the targetlocation immediately.
Display (Remain Time)
This function isapplicable for DVDonly. It will
display the timinginformation of theplayback on
screen.
For DVD playback, subsequent key press on the DISPLAY key
will show theTitle ElapsedTime, Title Remain Time,
Chapter Elapse Time and Chapter Remain Time one by one.
Resume Play
This function isapplicable for DVDand CD audio.During the discplayback, when theSTOP Button is pressedonce,
the player willpause, then pressthe OK button enter theResume Play mode.At thistime, if theOK Button is pressed,
the player willresume playback atthe location wherethe STOP Button is pressed. If the STOP button is pressed(i.e. STOP Button
is pressed twice),the player willbe stop.
Zoom
This function isapplicable for DVD. User can
enlarge and diminish a static picture or a moving
picture by pressingthe ZOOM key.
There are 6levels of zooming(2x, 3x and4x,
1/2x, 1/3x,1/4x )and they canbe achieved one
by one throughsubsequent key presseson the
ZOOM key.
NOTE: user canselect the portionof the picture
to be enlargedby using theNavigation keys ( ).
18
The function is only for the 2X,3X,4X

Program Mode
This function isapplicable for DVDandCD audio. Usercan assign theplayback sequence accordingto his/her preference.
For CD audio, user can assign the track sequence while for DVD disc, user can assign both the Title and Chapter sequence.
CD
1. Press thePROGRAM Key. The Program Sequence table will be shown on the screen.
2. Enter thetrack numbers accordingto the userpreference through theNumber keys (0-9).
3. Afterassigning the playbacksequence, move thegreen highlight cursorto the
START option by using the Navigation Arrows.
Press OK button on the remotecontroller to confirm.
Toremove the program:
1. Press thePROGRAM Key to invokethe Program Menu.
2. Move thegreen highlight cursorto the EXIT option by using theNavigation Arrows.
3. Press OK button to confirm, you will exit the PROGRAM menu.
DVD
1. Press thePROGRAM Key. The Program Sequence table will be shown on the screen.
2. Enter theTitle numberwith the Numberkeys (0-9) onthe remote controller.
3. Enter theChapter number ofthe Titleselected in thelast step.
4. Repeat step2 and 3 to input the sequence.
5. Afterassigning the playbacksequence, move thehighlight cursor tothe START option
by using theNavigation Arrows.Press OK on the remotecontroller to confirm.
Note : The Program canbe removed inthe same waysas CD audio.
19
NEXTEXIT
Program: Track(01-08)
START
EXIT NEXT
Program: Track(01-08)
TT: CH
TT: CH
TT: CH
TT: CHTT: CH
TT: CH
TT: CH
TT: CH
TT: CH
TT: CH
EXIT NEXT
Program: TT(02)/CH(--)
TT: CH
TT: CHTT:01 CH
TT: CH
TT: CH
TT: CH
TT: CHTT: CH
TT: CH
TT: CH
NEXTEXIT
Program: TT(02)/CH(--)
TT: CH
TT: CH
TT: CH
TT: CH
TT:01 CH:02
EXIT
TT: CH
TT: CH
TT: CH
TT: CH
TT: CH
NEXT
Program:TT(02)/CH(--)
START
TT: CH
TT: CH
TT:01 CH:01
TT:01 CH:01
TT:01 CH:02
EXIT
TT: CH
TT: CH
TT: CH
TT: CH
TT: CH
NEXT
Program:TT(02)/CH(--)
START
TT: CH
TT: CH
TT:01 CH:01
TT:01 CH:01
TT:01 CH:02
EXIT
TT: CH
TT: CH
TT: CH
TT: CH
TT: CH
NEXT
Program:TT(02)/CH(--)
START
