Depstech DS300 User manual
User Manual
Industrial Endoscope
DS300
Thanks for choosing Depstech®DS300
industrial endoscope!
Depstech®DS300 industrial endoscope was featured as a
cost efficient industrial endoscope with 4.3” digital screen,
which was invented to help car maintenance or pipeline
repairing. We hope that you can use this efficient tool to
enable you to finish the job more rapidly and help you
discover the delights of miniature worlds.
To reduce greenhouse effects and to protect our forests, we
choose a relatively small font to make the user manual.
We would recommend you:
Downloading The Multi-Language E-User Manual of your
endoscope by logging into our: www.depstech.com
You can find the Navigation on the Top – Click into
Endoscope – Click into Video Endoscope – Roll and
choose Model Number: DS300 – Click Download Button
for the E-User Manual
Any suggestions or customer service needs are warmly
welcomed by us. Feel free to contact us via
Email: [email protected]
Facebook Official Page: @DEPSTECH. FANS
Please remember to provide your Product Model No. And
Order ID to us!
Thanks for your support again!
Quick Overview of Your New Endoscope!
3
4
5
6
2
1

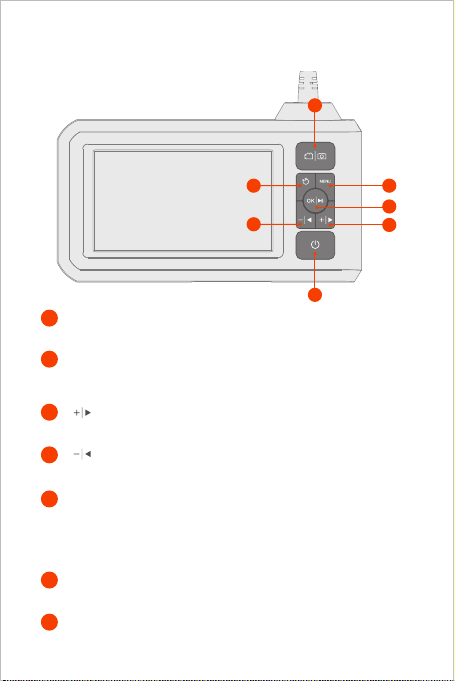

Hold this button for 2s to power on/off the endoscope.
Hold this button to start video record, single press to take a photo/end the
video record.
Power Button
Click to dim the LED lights of the camera or move the cursor up.
Photo Shoot/Video Record Button
180° Image Rotate Button
Click to rotate the real-time image 180°;
Hold this button to switch main/side camera. (For dual cam version only, support
dual-cam mode, which can project the real time image of main/side camera at the same
screen display)
Click to brighten the LED lights of the camera or move the cursor down.
OK/Play Button
Click to confirm choices in the menu; Hold this button to enter/exited the album.
7Menu Button
Click to enter the menu for more setttings.
“ ” Button
“ ” Button
1
3
4
5
6
2
7
Charging Status LED indicator
TF Card Slot
10
11
Short click the reset button with the reset pin to shut down the device.
Reset Button
8
9
Support up to 32G TF card. (The TF card has been inserted into the machine,
please format it for the first time of usage)
Micro-USB Charging Port
Charge the endoscope via Micro-USB cable.
*The package enclosed with TF Card (which has been inserted before
shipping from the factory)/ Reset pin/ Micro-USB Charging Cable/
3*Efficiency tools like magnet, hook and side mirror (Mirror for single
camera version only)
11
10
98
Q1: The image quality wasn't that good as advertised?
A1: Please adjust the length between the camera and the object that
you’re observing into the focal range. The focal range should be
1.96”~3.93” for single camera version, and 0.78”~3.14” in for dual
camera version. Besides, it’s essential to adjust the brightness of
your endoscope for the best image quality. It will do a great help if
you wipe the lens of the camera regularly after used.
Q2: The endoscope was failing to turn on?
A2: It might due to low battery status, especially in cold area. To
release the low battery state you’ve to fully charge the endoscope.
You can charge the endoscope for 4~5H and try to turn it on again.
Q3: The endoscope can not take a picture or record a video?
A3: First please make sure that the TF card has been inserted into the
machine or not. Then make sure that you’ve formatted the TF card
at the first use.
You can follow the steps below:
1. Short press menu
2. Short press “ ” button to remove the cursor down
3. Find and choose “Formate”, then choose “OK”.
FAQ
Specifications of DS300
Model
Screen Spec
Waterproof
Camera Diameter
LED
Best Focal Range
Video Spec
Photo Resoluton
Cable Length
Charging Voltage
and current
LED
Indicator Status
DS300 FHD DS300 Dual Camera
4.3” Super LCD Screen
IP67 Rating for the Probe
0.22 in 0.31 in
6 x LED 7 x LED
1.96~3.93 in
Main cam: 1.2~3.9 in
Side cam: 0.8~2.4 in
1080p/25fps
2 MP 2 x 2 MP
16.5 ft
DC 5V/2A
Red LED indicator flash: Charging status
Red LED indicator stay on: Charging finished
Notifications
※FCC statement: This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions:
1)This device may not cause harmful interface;
2)This device must accept any interference received, including interference that
may cause undesired operation.
※CE compliance: This device complies with EN 60065 standard, which means this
device will not do harm to the user or products as following situations: 1)Electric
shock 2)High temperature 3)Radiation 4)Explosion from inner 5)Mechanical
Harm 6)Fire Hazard 7)Chemical burns.
※EU Conformity Statement: This product and - if applicable - the supplied
accessories too are marked with "CE" and comply therefore with the applicable
harmonized European standards listed under the EMC Directive 2004/108/EC, the
RoHS Directive 2011/65/EU and Amendment (EU) 2015/863.
※WEEE Notice: 2012/19/EU (WEEE directive): Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the European Union. For
proper recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For
more information see: www.recyclethis.info
※2013/56/EU (battery directive): This product contains a battery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentation for specific battery information. The battery is marked with this
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see: www.recyclethis.info
※RoHS compliance: This product is in compliance with Directive 2011/65/EU of the
European Parliament and of the Council of 8 June 2011 on the restriction of the
use of certain hazardous substances in electrical and electronic equipment.
※Battery: Please do not try to change the built-in battery yourself, it may raise the risks of
leading the battery overheat or get people harmed. For better battery life spans, we would
recommend you charge the device every 3~6 month. (No matter uses it or not)
※Operation and storage conditions: Please keep the tools out of fire source, especially
keep it away from temperature higher than 158℉(70℃) - or lower than -50℉(-10℃). Be
cautious the required working temperature should between 32~113℉(0~45℃). Please keep
it in dry, clean area, free from oil, water, or chemical liquid. Those measures will help the
device maintain longer lifes pans, also it will do great help to keep the dangerous situation
far away.
※The Child can only operate this device with the guidance of adults, please do not let them
operate this device alone.
Made in China
EC REP 1: Like Sun GmbH
Planckstr.59, 45147 Essen, Germany
EC REP 2: DST Co., Ltd.
Fifth Floor 3 Gower Street, London, WC1E 6HA, UK
www.dsteu.com
