Desa RCP25 User manual

CANADIAN
PROPANE
CONSTRUCTION
HEATER
OWNER’S MANUAL
Heater Size: 50,000 BTU/Hr
IMPORTANT
Readandunderstandthismanualbeforeassembling,starting,orservicingheater.
Improper use of heater can cause serious injury. Keep this manual for future
reference.

2
101489
Safety Information.........................................................................2
Product Identification .................................................................... 4
Unpacking......................................................................................4
Theory of Operation ......................................................................5
Propane Supply..............................................................................5
Installation .....................................................................................6
Ventilation .....................................................................................7
Operation .......................................................................................7
Storage ........................................................................................... 9
Maintenance ..................................................................................9
Troubleshooting.............................................................................10
Service Procedures ........................................................................11
Specifications................................................................................. 14
Wiring Diagram.............................................................................14
Accessories ....................................................................................15
Technical Service ..........................................................................15
Service Publications ......................................................................15
Replacement Parts .........................................................................15
Warranty and Repair Service.........................................................Back Cover
SECTION PAGE
CONTENTS
Safety Information continues on next page
Carbon Monoxide Poisoning: Some people are more affected by carbon
monoxidethan others. Earlysignsof carbon monoxide poisoningresemble the flu,
with headaches, dizziness, and/or nausea. If you have these signs, the heater may
not be working properly. Get fresh air at once! Have heater serviced.
WARNING ICON G 001
WARNINGS
IMPORTANT: Read this owner’s manual carefully and completely before
trying to assemble, operate, or service this heater. Improper use of this
heater can cause serious injury or death from burns, fire, explosion, electri-
cal shock, or carbon monoxide poisoning.
SAFETY
INFORMATION
FOR YOUR SAFETY
Do not use this heater in a space where gasoline or other liquids
having flammable vapors are stored or used.

3
101489
2
SAFETY
INFORMATION
Continued
PropaneGas:Propanegasisodorless.Anodor-makingagentisaddedtopropane
gas. The odor helps you detect a propane gas leak. However, the odor added to
propane gas can fade. Propane gas may be present even though no odor exists.
Makecertainyoureadandunderstandallwarnings.Keepthismanualforreference.
It is your guide to safe and proper operation of this heater.
• For indoor use only. Provide adequate ventilation.
• Do not use heater outdoors or in occupied dwellings.
• Do not use heater in living or sleeping quarters.
• Use only in well-vented areas. Before using heater, provide at least a 0.14 m2
(1.5-square-foot) opening of fresh, outside air.
• Keep appliance area clear and free from combustible materials, gasoline, paint
thinner, and other flammable vapors and liquids. Do not use heater in areas
with high dust content.
• Keep heater away from strong drafts, water spray, rain, or dripping water.
• Install and use heater with care. Follow all local ordinances and codes. In the
absence of local ordinances and codes, refer to CAN/CGA-B149.2 Installation
Code for Propane. This instructs on the safe storage and handling of propane
gases.
• Check heater for damage before each use. Do not use a damaged heater.
• Use only propane gas set up for vapor withdrawal.
• Keep propane tank(s) below 38°C (100° F).
• Do not use heater below ground level. Propane gas is heavier than air. If a
leak occurs, propane gas will sink to the lowest possible level.
• Use only the electrical voltage and frequency specified on model plate.
• Use only a three-prong, grounded extension cord.
• Use only the hose and factory preset regulator provided with the heater.
• Inspect hose before each use of heater. If highly worn or cut, replace before
using heater. Use the replacement hose assembly specified in this manual.
• Keep heater at least 2 meters (six feet) from propane tank(s). Do not point
heater at propane tank(s) within 6 meters (20 feet).
• Minimum heater clearances from combustibles:
Front outlet: 2 m (6 Ft.) Sides: 0.61 m (2 Ft.)
Top: 2 m (6 Ft.) Rear: 0.61 m (2 Ft.)
• Locate heater on stable and level surface if heater is hot or running.
• Keep children and animals away from heater.
• Turn off propane supply and unplug heater when not in use.
• Never block air inlet (rear) or air outlet (front) of heater.
• Never move, handle, or service a hot, operating, or plugged-in heater.
• Do not alter heater. Do not use heater if altered. Keep heater in its original state.
• Never attach duct work to front or rear of heater.
• Use only original replacement parts. This heater must use design-specific
parts. Do not substitute or use generic parts. Improper replacement parts could
cause serious or fatal injuries.
WARNING ICON G 001
WARNINGS Continued

4
101489
PRODUCT
IDENTIFICATION
Figure 1 - 50,000 BTU/Hr Model
Power
Cord
Hose /Regulator
Assembly
Inlet
Connector
Handle
Shell
Hot Air Outlet
(Front)
Fan Guard
Piezo Ignitor
Button
Automatic
Control Valve
Button
UNPACKING 1. Remove all packing items applied to heater for shipment. Keep plastic cover
caps (attached to inlet connector and hose/regulator assembly) for storage.
2. Remove all items from carton.
3. Check all items for shipping damage. If heater is damaged, promptly inform
dealer where you bought heater.
Motor
Start Switch
Button
Heater Base

5
101489
Air For Combustion Air For Heating
THEORY OF
OPERATION
Combustion
Chamber
Clean
Heated
Air Out
(Front)
Hose/Regulator
Assembly
Cool Air In
(Back)
The Fuel System: The hose/regulator assembly attaches to the propane gas
supply. This provides fuel to the heater.
The Air System: The motor turns the fan. The fan pushes air into and around
the combustion chamber. This air is heated and provides a stream of clean, hot air.
The Ignition System: The piezo ignitor lights the burner.
The Automatic Control System: This system causes the heater to shut down
if the flame goes out.
Motor
Fan
Figure 2 - Cross Section Operational View
PROPANE
SUPPLY
Propane gas and propane tank(s) are to be furnished by the user.
Use this heater only with a propane vapor withdrawal supply system. The amount
of propane gas ready for use from propane tanks varies. Two factors decide this
amount:
1. The amount of propane gas in tank(s)
2. The temperature of tank(s)
This heater is designed to operate with a minimum 9-kg (20-pound) propane tank.
You may need two or more tanks or one larger tank in colder weather. Use a 45-kg
(100-pound) tank for longer operation or in very cold weather. Less gas is vapor-
ized at lower temperatures. Your local propane gas dealer will help you select the
proper supply system.
Average Temperature 0°C -6.7°C -12°C -17.7°C -23.3°C -28.9°C
At Tank Location (32°F) (20°F) (10°F) (0°F) (-10°F) (-20°F)
Number Of Tanks
(45 kg/100-pound) 1111 22

6
101489
INSTALLATION
Inlet Connector Hose
Figure 4 - Hose and Inlet Connector
1. Provide propane supply system (see Propane Supply, page 5).
2. Connect POL fitting on hose/regulator assembly to propane tank(s). Turn POL
fitting counterclockwise into threads on tank. Tighten firmly using
2.22 cm (7/8 inch) wrench.
IMPORTANT: Position regulator so that hose
leaving the regulator is in a horizontal position (see Figure 3). This places the
regulator vent in the proper position to protect it from the weather.
WARNING ICON G 001
WARNING
ReviewandunderstandthewarningsintheSafetyInformation
Section, pages 2 and 3. They are needed to safely operate this
heater. Follow all local codes when using this heater.
3. Connect hose to inlet connector. Tighten firmly using a wrench.
IMPORTANT: Use extra hose or piping if needed. Install extra hose or piping
between hose/regulator assembly and propane tank. You must use the regula-
tor supplied with heater.
Propane
Tank
Propane
Supply
Valve Regulator
Hose
POL Fitting
Figure 3 - Regulator Position
WARNING ICON G001
WARNING
Test all gas piping and connections for leaks after installing
or servicing. Never use an open flame to check for a leak.
Apply a mixture of liquid soap and water to all joints.
Bubbles forming show a leak. Correct all leaks at once.

7
101489
4. Open propane supply valve on propane tank(s) slowly. Note: If not opened
slowly, excess-flow check valve on propane tank will stop gas flow. If this
happens, close propane supply valve and open again slowly.
5. Check all connections for leaks.
WARNING ICON G001
WARNING
Never use an open flame to check for a leak. Apply a mix-
ture of liquid soap and water to all joints. Bubbles forming
show a leak. Correct all leaks at once.
6. Close propane supply valve.
VENTILATION
OPERATION
To Start Heater
1. Follow all installation, ventilation, and safety information.
2. Locate heater on stable and level surface. Make sure strong drafts do not blow
into front or rear of heater.
3. Plug power cord of heater into a three-prong, grounded extension cord.
Extension cord must be at least two meters (six feet) long, CSA listed, and of
a proper size.
4. Plug extension cord into a 120 volt/60 hertz, 3-hole, grounded outlet. Depress
start switch for three seconds to start motor and fan. This will force air out
front of heater.
Extension Cord Wire Size Requirements
Up to 15 meters (50 feet) long, use 18 AWG rated cord.
15.5 to 30.5 meters (51 to 100 feet) long, use 16 AWG rated cord.
31 to 61 meters (101 to 200 feet) long, use 14 AWG rated cord.
Continued
IMPORTANT: Provide extra fresh air if more heaters are being used.
WARNING ICON G001
WARNING
Provide at least a 0.14 m2(1.5-square-foot) opening of fresh,
outside air while running heater. If proper fresh, outside air
ventilation is not provided, carbon monoxide poisoning can
occur. Provide proper fresh, outside air ventilation before
running heater.
WARNING ICON G001
WARNING
Review and understand the warnings in the Safety Informa-
tionsection, pages 2and 3.They areneeded tosafelyoperate
this heater. Follow all local codes when using this heater.
INSTALLATION
Continued

8
101489
5. Open propane supply valve on propane tank(s) slowly. Note: If not opened
slowly, excess-flow check valve on propane tank will stop gas flow. If this
happens, close propane supply valve and open again slowly.
OPERATION
Continued
6. Push in and hold automatic control valve button (see Figure 5). Push piezo
ignitor button (see Figure 5). You may need to push piezo ignitor button 3-8
times until the burner lights. When burner lights, keep automatic control valve
button pushed in. Release button after 30 seconds.
Note: If heaterfailstoignite,hosemayhave airinit.Ifso,keepautomatic control
valvebutton pressedandwait20seconds.Releaseautomaticcontrolvalvebutton
and wait 20 seconds for unburned fuel to exit heater. Repeat step 6.
To Stop Heater
1. Tightly close propane supply valve on propane tank(s).
2. Wait a few seconds. Heater will burn gas left in supply hose.
3. Unplug heater.
To Restart Heater
1. Wait five minutes after stopping heater.
2. Repeat steps under To Start Heater, page 7.
If heater does not start or restart
• Check manual valves (if any) and supply valves on propane tank. Make sure
they are open.
• Check fuel level in propane tank(s). If fuel level is too low, contact local
propane gas company.
If heater still does not start or restart, contact your local service center.
Automatic Control
Valve Button
Piezo Ignitor
Button
Start Switch
Button
Figure 5 - Automatic Control Valve Button, Piezo Ignitor Button, and
Start Switch Button
WARNING ICON G001
WARNING
Be sure motor and fan are running before pushing in auto-
matic control valve button. Flames could flash outside
heater if motor and fan are not running.

9
101489
STORAGE
1. Store propane tank(s) in safe manner. Follow all local codes. Always store
propane tanks outdoors.
2. Place plastic cover caps over brass fittings on inlet connector and hose/regula-
tor assembly.
3. Store in dry, clean, and safe place. Do not store hose/regulator assembly inside
heater combustion chamber.
4. When taking heater out of storage, always check inside of heater. Insects and
small animals may place foreign objects in heater. Remove motor and other
internal parts if needed to remove foreign objects (see Service Procedures,
page 11).
MAINTENANCE
1. Keep heater clean. Clean heater annually or as needed to remove dust and
debris. If heater is dirty or dusty, clean heater with a damp cloth. Use house-
hold cleaners on difficult spots.
2. Inspect heater before each use. Check connections for leaks. Apply mixture of
liquid soap and water to connections. Bubbles forming show a leak. Correct all
leaks at once.
3. Inspect hose/regulator assembly before each use. If hose is highly worn or cut,
replace.
4. Have heater inspected yearly by a qualified service person.
5. Keep inside of heater free from combustible and foreign objects. Remove
motor and other internal parts if needed to clean inside of heater (see Service
Procedures, page 11).
6. Clean fan blades each season or as needed (see Fan, page 12).
WARNING ICON G001
CAUTION
Disconnect heater from propane supply tank(s).
WARNING ICON G001
WARNINGS
•Never service heater while it is plugged in, connected
to propane supply, operating, or hot. Severe burns and
electrical shock can occur.
•Keep heater clear and free from combustible materials,
gasoline, and other flammable vapors and liquids.
•Do not block the flow of combustion or ventilation air.

10
101489
TROUBLE-
SHOOTING
Checkvoltagetoelectricalout-
let. If voltage is good, check
heater power cord for breaks.
Adjustmotor/fanguardtokeep
fanfromhittinginsideofheater
shell. Bend fan guard if neces-
sary.
Replace fan. See Fan, page 12.
Replace motor. See Motor,
page 11.
Repeat installation and opera-
tion instructions. See Installa-
tion, page 6 and Operation,
page 7.
A)Checkignitorwire.Tighten
or reattach loose ignitor wire.
SeeFigure13,page13forigni-
tor wire location.
B) Set gap between ignitor
electrode and target plate to
4.32 mm (.17").
C) Tighten nut holding piezo
ignitor to base of heater.
D) Replace ignitor electrode.
See Ignitor, page 13.
This can happen when running
heater in temperatures above
29°C (85°F). Run heater in
cooler temperatures.
Check heater inlet and outlet.
Remove any obstructions.
Replace fan. See Fan, page 12.
WARNING ICON G001
WARNING
Use only in areas free of
high dust content.
Clean heater. See Mainte-
nance, page 9.
Fan does not turn
when heater is
plugged in and start
switch depressed.
Heater will not
ignite.
Heater shuts down
while running.
OBSERVED FAULT POSSIBLE CAUSE REMEDY
No electrical power
to heater
Fan hitting inside of
heater shell
Fan blades bent
Defective motor
Userdidnotfollowinstal-
lation or operation in-
structions properly
No spark at ignitor. To
test for spark, follow step
9 under Ignitor, page 13.
If you see spark at ignitor,
have heater serviced by
qualified service person.
If no spark seen:
A) Loose or disconnected
ignitor wire
B) Wrong spark gap
C) Piezo ignitor loose
D) Bad ignitor electrode
Highsurroundingairtem-
perature causing thermal
limit device to shut down
heater.
Restricted air flow
Damaged fan
Excessive dust or debris
in surrounding area
WARNING ICON G001
WARNING
Never service heater while it is plugged in, connected to
propane supply, operating, or hot. Severe burns and
electrical shock can occur.

11
101489
SERVICE
PROCEDURES
Figure 9 - Removing or Attaching
Fan Guard from Motor
Motor Wires
Figure 8 - Removing or Attaching
Fan from Motor Shaft
Figure 7 - Removing Motor and Fan Guard from Heater
Ground Screw
Wire Guard
Underside of Heater Base
Hole in Shell
for Wires
Figure 6 - Location of Ground Screw and Wire Guard
Fan Guard Screw
Fan Guard
Terminal Board
Fan Hub
Continued
Motor
1. Access ground screw
through underside of heater
base.Removegroundscrew.
Disconnect the green motor
wire and the green power
cord wire from underside of
shell (see Figure 6).
2. Remove blue, white, and
yellow motor wires from
terminal board (see Figure 6).
3. Remove two wire guard
screws. Remove wire guard.
4. Set heater on its base.
Remove three screws that
attach fan guard to heater
shell (see Figure 7).
5. Remove motor and fan
guard from heater shell.
Carefully pull the motor
wires from hole in shell
(see Figure 7).
6. Use 3.17 mm (1/8") Allen
wrench to loosen set-
screws which hold fan to
motor shaft (see Figure 8).
7. Remove fan. Be careful not
to damage the fan blade pitch.
8. Use nut driver to remove
three nuts that attach fan
guardtomotor.Removefan
guard from motor (see Fig-
ure 9).
9. Discard old motor.
10.Attach fan guard to new
motor with three nuts.
Tighten nuts firmly.
11.Place fan onto motor shaft
of new motor.
IMPORTANT: Whenplac-
ing fan onto motor shaft,
make sure fan hub in posi-
tioned away from motor
body (see Figure 8). Make
sure setscrews are touching
back of flat surfaces on
motor shaft. Tighten set-
screws firmly (4.5-5.7 Nm
[40-50 inch-pounds]).
WARNING ICON G001
WARNING
Never service heater while it is plugged in, connected to
propane supply, operating, or hot. Severe burns and elec-
trical shock can occur.
Wire Guard Screws
Set-
screws

12
101489
12.Place motor and fan guard
into rear of heater shell.
Carefully route motor wires
through hole in shell (see
Figure 10).
13.Insert three screws through
heater shell and into fan
guard.Tightenscrewsfirmly.
14. Turn heater on its side to
access opening in bottom of
base. Connect green motor
wire and green power cord
wire to heater shell using
ground screw (see Figure 6,
page 11).
15.Attach blue, white, and yel-
low wires to empty connec-
tors on blue, white, and yel-
low wire locations of termi-
nal board.
16.Attach wire guard to shell
with two screws (see Figure
6, page 11).
Motor (Continued)
Figure 10 - Replacing Motor and Fan Guard into Heater
Hole in Shell
for Motor Wires
Fan
1. Remove fan and motor (see
Motor, page 11, steps 1
through 6).
2a. If replacing fan, remove
old fan and discard. Go to
step 5 below.
2b.If cleaning fan, remove fan.
Be careful not to damage
the fan blade pitch.
3. Clean fan using soft cloth
moistened with kerosene or
solvent.
4. Dry fan thoroughly.
5. To replace fan, follow steps
11 through 16 above.

13
101489
Ignitor
1. Remove motor and fan
guard from heater (see
Motor, page 11, steps 1
through 5).
2. Remove black ignitor wire
from piezo ignitor. Access
ignitor wire through
underside of heater base
(see Figure 11). Push wire
up through bushing in
heater shell.
3. Remove ignitor mounting
screw from rear head
using nut-driver or stan-
dard screwdriver (see
Figure 12).
4. Remove ignitor from rear
head.
5. Install new ignitor. Attach
ignitor to rear head with
ignitor mounting screw.
6. Run ignitor wire from new
ignitor through bushing in
heater shell. Attach ignitor
wire to piezo ignitor.
7. Set gap between ignitor
electrode and target plate
to 4.32 mm (.17") (see
Figure 13).
8. Test for spark.
WARNING: Make sure
heater is disconnected
from propane supply.
Heater could ignite
causing severe burns.
Push piezo ignitor button
and watch for spark
between ignitor electrode
and target plate.
9. Place motor and fan guard
into rear of heater shell
(see Motor, page 12, steps
12 through 16).
Rear
Head

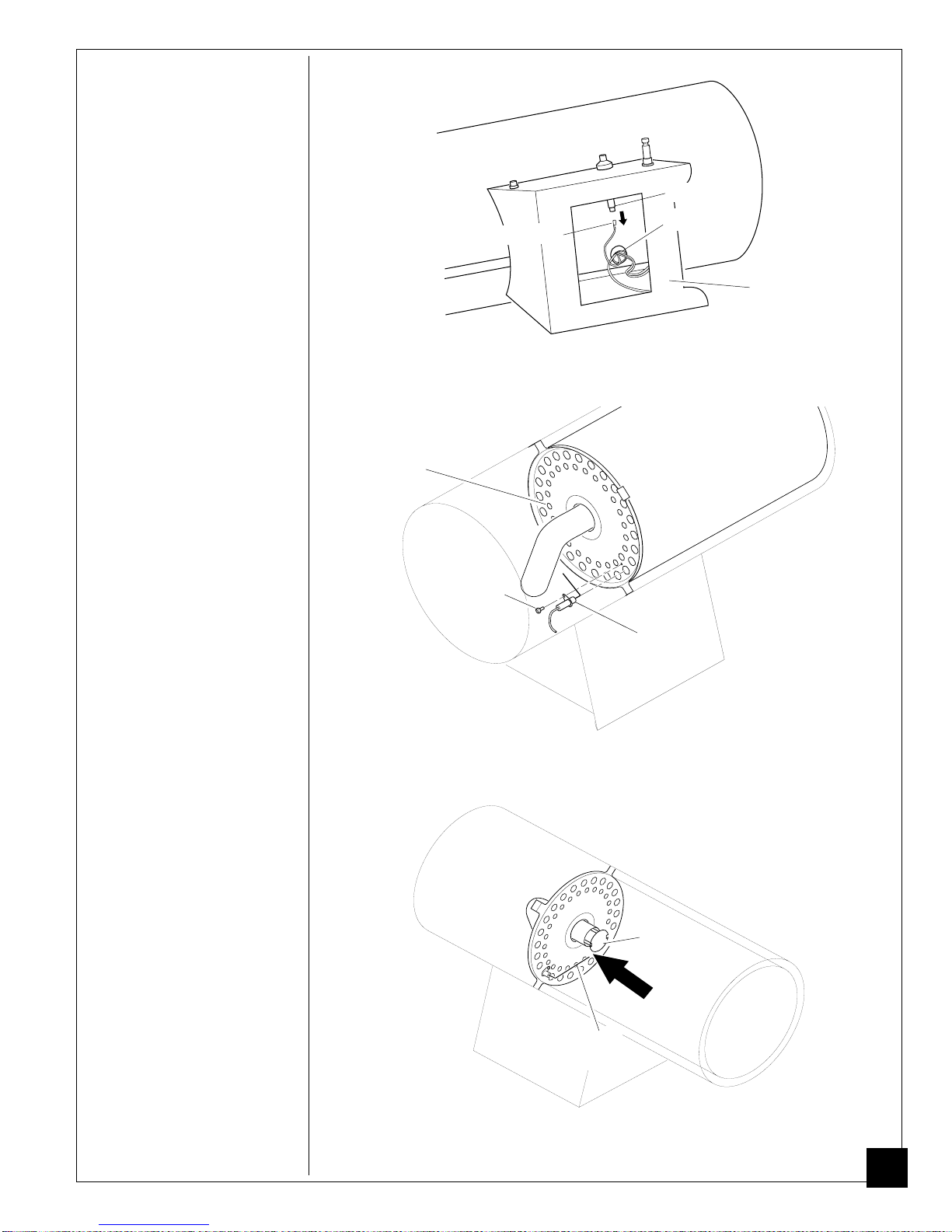

Figure 12 - Removing Ignitor Mounting Screw and Ignitor
Figure 11 - Removing Ignitor Wire from Piezo Ignitor
Bushing
Piezo Ignitor
Underside of
Heater Base
Ignitor
Target
Plate
Gap
Area
Figure 13 - Clearance between Ignitor Electrode and Target Plate
Ignitor
Electrode
Ignitor
Mounting
Screw
Ignitor Wire

14
101489
SPECIFICATIONS Input Rating 52.223 kJ/Hr (49,500 BTU/Hr)
Fuel Propane Vapor Only
Fuel Consumption
Liters/Hour (Gallons/Hour) 1.9 (0.5)
Kilos/Hour (Pounds/Hour) 1.04 (2.3)
Supply Pressure To Regulator
Minimum (for purposes 69 kPa (10 psi)
of input adjustment)
Maximum Tank Pressure or 1379 kPa
(200 psi)
Regulator Outlet Pressure 45.7 cm (18") WC
Manifold Pressure 42 cm (16.5") WC
Motor 3100 RPM
Electric Input 120 volt/60 hertz
Amperage 3 amps
Ignition Manual, Piezo
Weight
Heater 7 kg (15.5 pounds)
Shipping 7.7 kg (17 pounds)
Size - L x W x H 47 cm x 20 cm x 33 cm
(18.5" x 7.7" x 12.8")
Temperature Range for Heater Operation -29°C to 29°C* (-20° F to 85° F*)
* When running heater in temperatures above 29°C (85° F), high internal tempera-
tures may cause thermal limit device to shut down heater.
Black
Green
White Green
Connector
White
White
Blue Blue Blue
Blue
Yellow
Yellow
Yellow Start
Switch
T
Thermal
Switch
Terminal
Board
8
6
4
2
7
5
3
1
Relay
Red
Red
Gas
Valve
Piezo
Ignitor
Electrode Motor
Thermo-
couple
Figure 14 - Connection Diagram
WIRING
DIAGRAM

15
101489
ACCESSORIES
Purchase accessories and
parts from your nearest dealer
or service center. If they can
not supply an accessory or
part, call DESA Industries’
Parts Department at 905-826-
8010. You can also write to
the address listed on the back
page of this manual.
Part Number Description
LPA1020 10' Rubber Hose with Brass Fitting
LPA2140 Propane Gas Regulator
LPA3055 Hose/Regulator Assembly
LPA4020 Fuel Gas Connector
Connects regulator to all standard propane tanks.
Includes excess-flow check valve.
LPA5000 Tank Stabilizer
REPLACEMENT
PARTS Use only original replacement parts. This heater must
use design-specific parts. Do not substitute or use
generic parts. Improper replacement parts could cause
serious or fatal injuries. This will also protect your
warranty coverage for parts replaced under warranty.
TECHNICAL
SERVICE
You may have further questions about this heater. If so, contact DESA Industries’
Technical Service Department at 1-800-323-5190.
SERVICE
PUBLICATIONS
You can receive illustrated parts lists free of charge. Send your request and a self-
addressed, stamped envelope to DESA Industries (address on back page). Be sure
to include the heater model number.
Parts Under Warranty
Contact authorized dealers of this product. If they cannot supply original replace-
ment part(s), call DESA Industries at 905-826-8010. When calling DESA Indus-
tries, have ready
• your name
• your address
• model number of your heater
• how heater was malfunctioning
• purchase date
In most cases, we will ask you to return the defective part to the factory.
Parts Not Under Warranty
Contact authorized dealers of this product. If they cannot supply original replace-
ment part(s), call DESA Industries’ Parts Department at 905-826-8010. When
calling DESA Industries, have ready
• model number of your heater
WARNING ICON G001
WARNING

16
101489
NOTES _______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________

17
101489
NOTES _______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
____________________________________________________________

Model
Serial No.
Date of Purchase
LIMITED WARRANTY
DESA Industries warrants this product and any parts
thereof, to be free from defects in materials and work-
manshipforsix(6)monthsfromthedateoffirstpurchase
when operated and maintained in accordance with in-
structions.This warranty isextended only totheoriginal
retail purchaser, when proof of purchase is provided.
This warranty covers only the cost of parts and labor
required to restore the product to proper operating con-
dition. Transportation and incidental costs associated
with warranty repairs are not reimbursable under this
warranty.
Warranty service is available only through authorized
dealers and service centers.
This warranty does not cover defects resulting from
misuse, abuse, negligence, accidents, lack of proper
maintenance, normal wear, alteration, modification,
tampering, contaminated fuels, repair using improper
parts,orrepairbyanyoneotherthananauthorizeddealer
or service center. Routine maintenance is the responsi-
bility of the owner.
THISEXPRESSWARRANTYISGIVENINLIEUOF
ANY OTHER WARRANTY EITHER EXPRESSED
OR IMPLIED, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PAR-
TICULAR PURPOSE.
DESA Industries assumes no responsibility for indirect,
incidentalorconsequentialdamages.Someprovincesdo
not allow the exclusion or limitation of incidental or
consequential damages. These limitations or exclusions
may not apply to you. This Limited Warranty gives you
specific legal rights and you may also have other rights
which vary from province to province.
(To be filled in by purchaser)
WARRANTY SERVICE
Should your heater require service, return it to your
nearest authorized service center. Proof of purchase must
be presented with the heater. The heater will be in-
spected. A defect may be caused by faulty materials or
workmanship. If so, DESA Industries will repair or
replace the heater without charge.
REPAIR SERVICE
Return the heater to your nearest authorized service
center. Repairs not covered by the warranty will be billed
at standard prices.
Illustrated parts lists can be obtained free of charge. Send
a self-addressed stamped envelope to the address listed
below. List the heater model number and the date located
in the lower right corner of this page.
When writing for information regarding your heater, be
sure to include the model number and serial number as
shown on the model plate.
Each Service Center is independently owned and operated.
We reserve the right to amend these specifications at any
time without notice.
KEEP THIS WARRANTY
WARRANTY AND REPAIR SERVICE
DESA Industries of Canada, Inc.
2220 Argentia Road
Unit #4
Mississauga, Ontario
L5N 2K7
905-826-8010
FAX [phone]

APPAREILS
CANADIENS DE
CHAUFFAGE AU
PROPANE POUR LA
CONSTRUCTION
MANUEL D’UTILISATION
IMPORTANT
Veiller à lire et comprendre ce manuel avant de monter, de mettre en marche ou
d’effectuerl’entretiendecetappareil. Unemauvaiseutilisationdecetappareilpeut
causer des blessures graves. Conserver ce manuel pour s’y reporter plus tard.
Dimension de l’appareil de chauffage : 50 000 BTU/Hr
101489-01
Rev. B
07/94

2
101489
Intoxication par l’oxyde de carbone: Certaines personnes sont plus susceptibles
que d’autres aux effets de l’oxyde de carbone. Les premiers signes d’intoxication
par l’oxyde de carbone ressemblent à ceux de la grippe: maux de tête, vertiges et/
ou nausée. Si l’on ressent ces symptômes, il se peut que l’appareil de chauffage ne
fonctionne pas correctement. Aller immédiatement respirer de l’air frais. Faire
réparer l’appareil de chauffage.
Gaz propane: Le gaz propane est inodore. Un agent odorisant est ajouté au gaz
propane. L’odeur aide à détecter les fuites de gaz propane. L’odeur ajoutée au
gaz propane peut toutefois s’atténuer et il peut y avoir du gaz propane en
l’absence de toute odeur.
Veiller à lire et comprendre tous les avertissements. Conserver ce manuel pour
s’y reporter plus tard. C’est un guide pour l’utilisation correcte et sans danger de
cet appareil de chauffage.
• Destiné à l’usage intérieur uniquement. Prévoir une bonne ventilation.
• Non destiné à l’usage en plein air ou à l’intérieur des zones d’habitation.
Notes sur la sécurité....................................................................2
Nomenclature des pièces ............................................................4
Déballage ....................................................................................4
Principes de fonctionnement ......................................................5
Alimentation en propane ............................................................5
Installation ..................................................................................6
Ventilation ..................................................................................7
Fonctionnement ..........................................................................7
Remisage ....................................................................................9
Entretien .....................................................................................9
Dépannage ..................................................................................10
Procédures d’entretien ................................................................12
Spécifications .............................................................................16
Schéma électrique.......................................................................16
Accessoires .................................................................................17
Service technique........................................................................17
Publications techniques ..............................................................17
Pièces de rechange......................................................................17
Garantie et service de réparation ................................................Dos du manuel
SECTION PAGE
TABLE DES
MATIÈRES
PAR MESURE DE SÉCURITÉ
Ne pas utiliser cet appareil de chauffage dans un endroit où de
l’essence ou d’autres liquides dégageant des vapeurs
inflammables sont entreposés ou utilisés.
WARNING ICON G 001
AVERTISSEMENTS
IMPORTANT : Veiller à lire ce manuel d’utilisation attentivement et
complètement avant de tenter de monter, de faire fonctionner ou d’effectuer
l’entretien de cet appareil. Une mauvaise utilisation de cet appareil de
chauffage peut causer des blessures graves voire la mort par brûlures,
incendie, explosion, choc électrique ou intoxication par l’oxyde de carbone.
NOTES SUR LA
SÉCURITÉ
Les notes sur la sécurité se poursuivent à la page suivante.
