Desa Comfort Glow CGN12 Quick start guide

OWNER’S OPERATION AND INSTALLATION MANUAL
®
VENT-FREE NATURAL GAS HEATER
Model: CGN12
Save this manual for future reference
WARNING: If the information in this manual
is not followed exactly, a fire or explosion
may result causing property damage, per-
sonal injury, or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediatelycallyourgassupplierfrom
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be per-
formed by a qualified installer, service
agency, or the gas supplier.
D
E
S
I
G
N
N
A
E
S
T
D
C
E
R
T
I
I
F
I
E
A
M
C
R
I
A
S
O
C
I
A
O
N
®
GS
A
WARNING:Improperinstallation,
adjustment, alteration, service, or
maintenance can cause injury or
property damage. Refer to this
manual for correct installation and
operationalprocedures.Forassis-
tance or additional information
consult a qualified installer, ser-
vice agency, or the gas supplier.

2
CONTENTS SECTION PAGE
Safety Information......................................................................... 2
Product Identification .................................................................... 4
Local Codes ...................................................................................4
Unpacking......................................................................................4
Product Features ............................................................................ 4
Installing To Wall.......................................................................... 5
Connecting To Gas Supply............................................................9
Checking Gas Connections............................................................10
Operating Heater ........................................................................... 12
For Your Safety Read Before Lighting...................................12
Lighting Instructions ............................................................... 12
To Select Heating Level.......................................................... 14
To Turn Off Gas To Appliance...............................................15
Manual Lighting Procedure ....................................................15
Inspecting Burner ..........................................................................15
Pilot Flame Pattern..................................................................15
Burner Flame Pattern .............................................................. 16
Cleaning And Maintenance ...........................................................17
Troubleshooting.............................................................................17
Technical Service ..........................................................................20
Specifications ................................................................................ 21
Service Hints ................................................................................. 21
Replacement Parts .........................................................................21
Parts Centrals................................................................................. 22
Service Publications ......................................................................22
Accessory ......................................................................................22
Parts List ........................................................................................ 23
Illustrated Parts Breakdown .......................................................... 23
Warranty Information .................................................................... Back Cover
!
WARNING ICON G001
WARNINGS
IMPORTANT:Readthisowner’smanualcarefullyandcompletelybefore
trying to assemble, operate, or service this heater. Improper use of this
heatercancauseseriousinjuryordeathfromburns,fire,explosion,and
carbon monoxide poisoning.
!
WARNING ICON G001
DANGER
Carbon monoxide poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning
resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the
heater may not be working properly. Get fresh air at once! Have heater serviced.
Some people are more affected by carbon monoxide than others. These include
pregnant women, people with heart or lung disease or anemia, those under the
influence of alcohol, and those at high altitudes.
NaturalGas:Naturalgasisodorless.Anodor-makingagentisaddedtonaturalgas.
The odor helps you detect a natural gas leak. However, the odor added to natural gas
can fade. Natural gas may be present even though no odor exists.
Make certain you read and understand all warnings. Keep this manual for reference.
It is your guide to safe and proper operation of this heater.
SAFETY
INFORMATION
Continued

3
SAFETY
INFORMATION
Continued
!
WARNINGICON G 001
WARNINGS Continued
1. Use only natural gas. Do not convert heater to use different fuel type.
2. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in your building
• immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions
• if you cannot reach your gas supplier, call the fire department
3. Never install the heater
• in sleeping quarters, a mobile home, or a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects are less than
36 inches from the front, top, or sides of the heater
• as a fireplace insert
• in high traffic areas
• in windy or drafty areas
4. Always run heater with control knob at LOW or HIGH locked positions.
Never set control knob between locked positions. Poor combustion and higher
levels of carbon monoxide may result.
5. Open window to admit fresh, outside air when using heater. Open window one
or two inches. When used without fresh, outside air, heater may give off
carbon monoxide gas.
6. Never run heater in small, closed room. Open door into next room to help
ventilate.
7. Keep all air openings in front and bottom of heater clear and free of debris.
This will insure enough air for proper combustion.
8. If heater shuts off, do not relight until you provide fresh, outside air. If heater
keeps shutting off, have it serviced.
9. Do not run heater
• where flammable liquids or vapors are used or stored
• under dusty conditions
10.Never place any objects on the heater.
11.Surface of heater becomes very hot when running heater. Keep children and
adults away from hot surface to avoid burns or clothing ignition. Heater will
remain hot for a time after shut-down. Allow surface to cool before touching.
12.Make sure grill guard is in place before running heater.
13.Do not alter heater or its controls. Any change may create a safety hazard.
14. Do not use heater if any part of heater has been under water.
15.Turn off heater and let cool before servicing. Only a qualified service person
should service and repair heater.
16. Do not operate heater in elevations above 4,500 feet.

4
PRODUCT
IDENTIFICATION
LOCAL CODES Install and use heater with care. Follow all local codes. In the absence of local
codes, use the latest edition of The National Fuel Gas Code ANSI Z223.1, also
known as NFPA 54*.
*Available from: American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Control Knob
Heater
Cabinet
Grill
Guard
Burners
Front
Panel

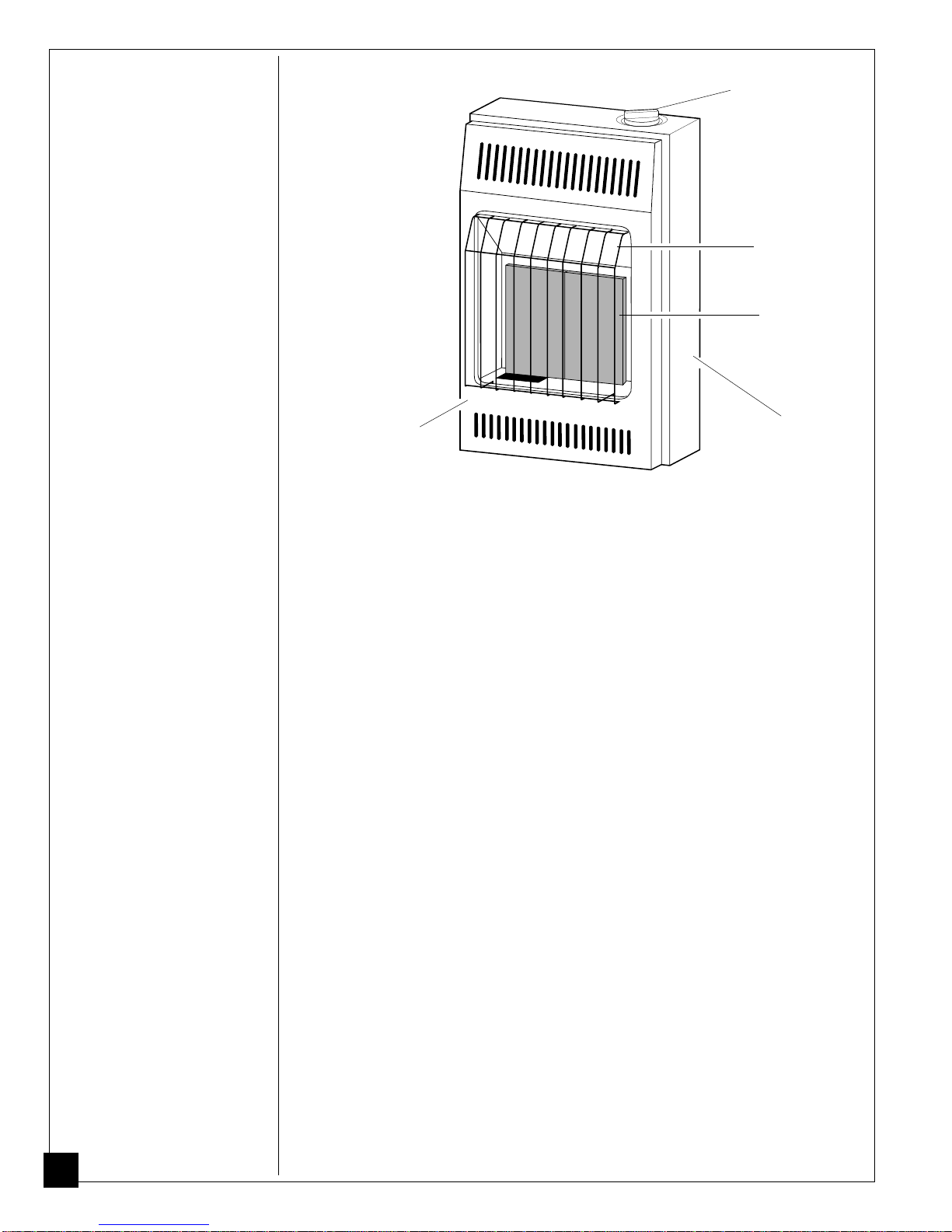

Figure 1 - Vent-Free Natural Gas Heater
UNPACKING 1. Remove heater from carton.
2. Remove all protective packaging applied to heater for shipment.
3. Check heater for any shipping damage. If heater is damaged, promptly inform
dealer where you bought heater.
PRODUCT
FEATURES
Safety Device
This heater has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS).
The ODS/pilot is a required feature for vent-free room heaters. The ODS/pilot shuts
off the heater if there is not enough fresh air.
Piezo Ignition System
This heater has a piezo ignitor. This system requires no matches, batteries, or other
sources to light heater.

5
INSTALLING
TO WALL NOTICE
A qualified service person must install heater. Follow all local
codes.
Continued
CHECK GAS TYPE
Use only natural gas. If your gas supply is not natural, do not install heater. Call
dealer where you bought heater for proper type heater.
INSTALLATION ITEMS
Before installing heater, make sure you have the items listed below.
• piping (check local codes)
• sealant (resistant to propane gas)
• manual shutoff valve *
• ground joint union
• test gauge connection * (see
Figure 10, page 10)
• sediment trap
• tee joint
• pipe wrench
*AnA.G.A. design-certified manual shutoffvalvewith 1/8" NPTtapis an acceptable
alternative to test gauge connection. Purchase the optional A.G.A. design-certified
manual shutoff valve from your dealer. See ACCESSORY, page 22.
LOCATING HEATER
This heater is designed to be mounted on a wall.
!
WARNING ICON G 001
WARNING
Maintain the minimum clearances shown in Figure 2 (page 6). If
you can, provide greater clearances from floor, ceiling, and
joining wall.
!
WARNING ICON G 001
WARNING
Never install the heater
• in sleeping quarters, a mobile home, or a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects
are less than 36 inches from the front, top, or sides of the
heater
• as a fireplace insert
• in high traffic areas
• in windy or drafty areas
!
WARNING ICON G001
CAUTION
Operating heater where impurities in the air (such as tobacco
smoke) exist may discolor walls.
!
WARNING ICON G 001
CAUTION
If you install the heater in a home garage
• heater pilot and burner must be at least 18 inches above floor
• locate heater where moving vehicle will not hit it
For convenience and efficiency, install heater
• where there is easy access for operation, inspection, and service
• in coldest part of room

6
!
WARNING ICON G001
WARNING
Maintain minimum clearances shown in Figure 3. If you can,
provide greater clearances from floor and joining wall.
2. Mark two mounting screw locations on wall (see Figure 3).
INSTALLING HEATER TO WALL
Marking Screw Locations
1. Determine where you will locate heater.
Figure 3 - Mounting Screw Locations
Mounting
Screw
Locations
10 7/8"
Minimum To
Maintain 6"
Clearance
From Wall
7 3/4"
20 1/4"
Minimum To
Maintain 3"
Clearance
From Floor
36"
3"
FLOOR
CEILING
Minimum
Minimum To Top Surface
Of Carpeting, Tile Or Other
Combustible Material
8"
Minimum
From
Sides Of
Heater
Right
Side
Left
Side
Figure 2 - Mounting Clearances As Viewed From Front of Heater
FLOOR
JOINING WALL
INSTALLING
TO WALL
Continued

7
Installing Two Mounting Screws
Note: Wall anchors and mounting screws are in hardware package. The hardware
package is provided with heater.
Attaching to wall stud method
For attaching mounting screw to wall stud
1. Drill hole at marked location using 9/64" drill bit.
2. Insert mounting screw into wall stud.
3. Tighten screw until 1/16" space (thickness of penny) is between screwhead and
wall.
Attaching to wall anchor method
Follow instructions below to attach mounting screws to hollow walls (wall areas
between studs) or solid walls (concrete or masonry).
1. Drill holes at marked locations using 5/16" drill bit. For solid walls (concrete or
masonry), drill at least 1 1/4" deep.

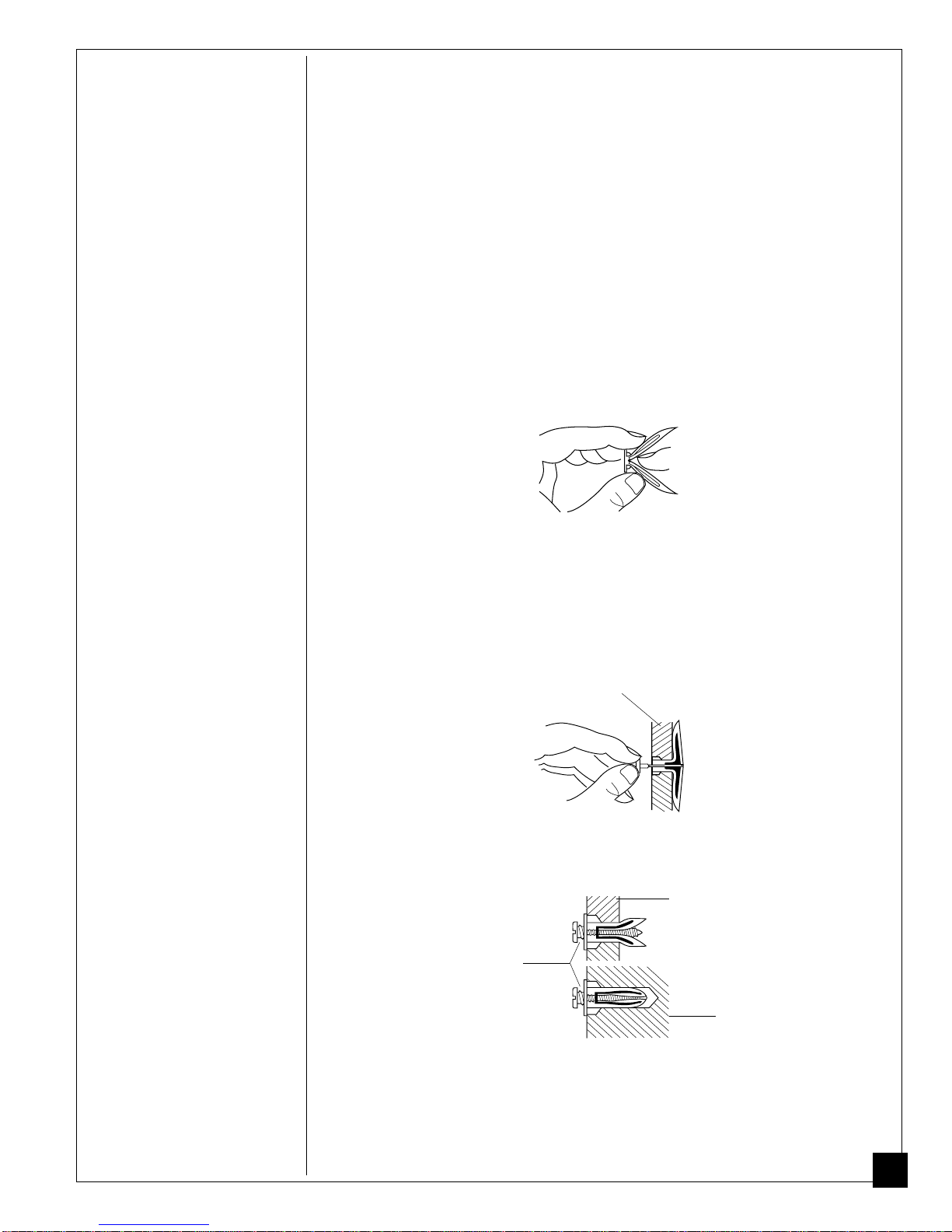

2. Fold wall anchor (see Figure 4).
3. Insert wall anchor (wings first) into hole. Tap anchor flush to wall.
Figure 4 - Folding Anchor
4. For thin walls (1/2" or less), insert red key into wall anchor. Push red key to
“pop” open anchor wings (see Figure 5). IMPORTANT: Do not hammer key!
For thick walls (over 1/2" thick) or solid walls, do not pop open wings.
5. Tighten two screws until 1/16" space (thickness of penny) is between
screwheads and wall (see Figure 6).
Thin Walls
(1/4" to 1/2" thick)
Figure 5 - Popping Open Anchor Wings For Thin Walls
ANCHOR
Thin or Thick Wall
(thick wall shown)
Solid Wall
1/16" Space
Figure 6 - Tightening Anchors

8
Placing Heater On Mounting Screws
1. Locate two keyhole slots on back panel of heater (see Figure 7).
2. Place large openings of slots over screwheads. Slide heater down until screws
are in small portion of slots.
Figure 9 - Installing Bottom Mounting Screw
Removing Front Panel Of Heater
1. Remove two screws near bottom corners of front panel.
2. Lift straight up on grill guard until it stops. Grill guard will slide up about 1/4".
3. Pull bottom of front panel forward, then down.

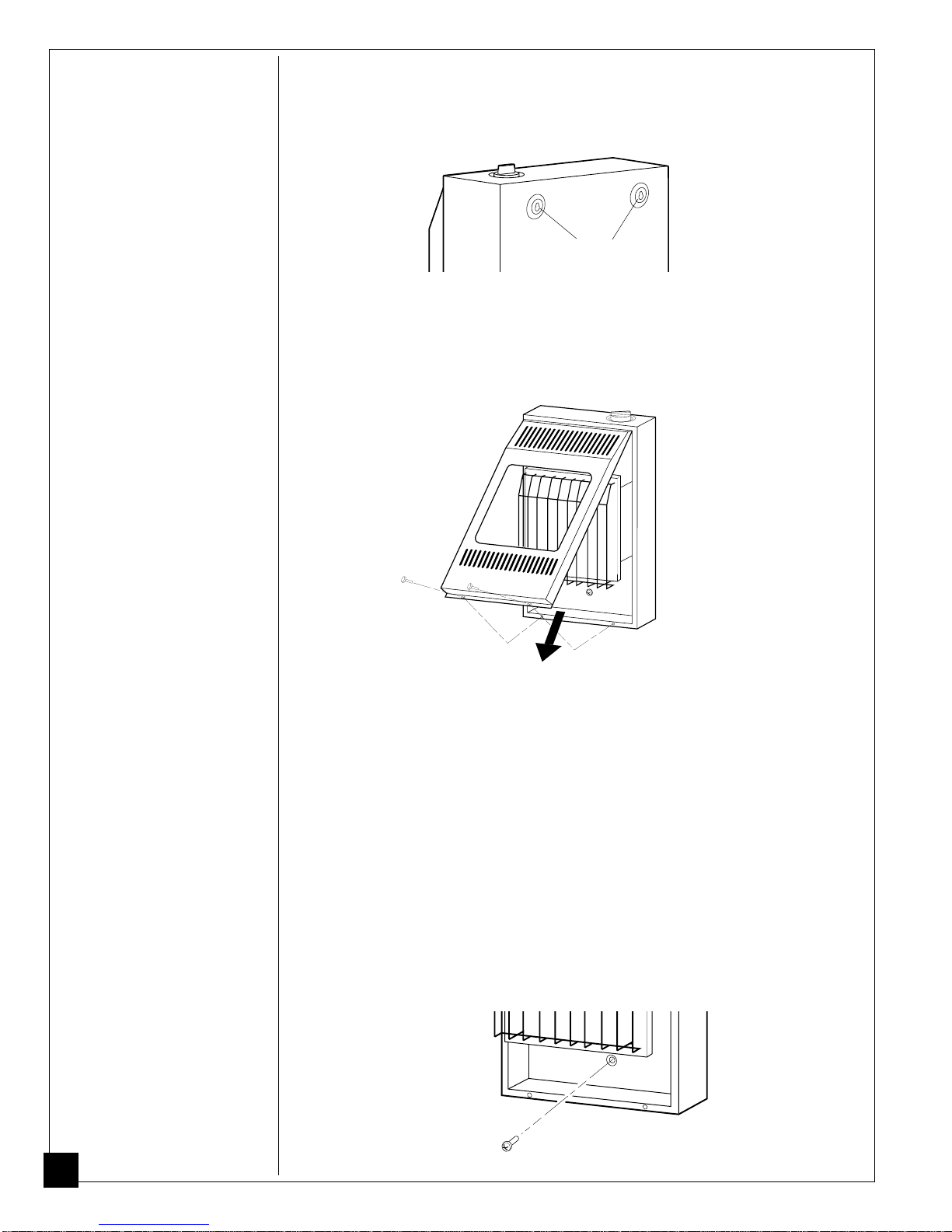

Figure 8 - Removing Front Panel Of Heater
Installing Bottom Mounting Screw
1. Locate bottom mounting hole. This hole is near bottom on back panel of heater
(see Figure 9).
2. Mark screw location on wall.
3. Remove heater from wall.
4. If installing bottom mounting screw into hollow or solid wall, install wall anchor.
Follow steps 1 through 5 under Attaching To Wall Anchor Method, page 7.
If installing bottom mounting screw into wall stud, drill hole at marked location
using 9/64" drill bit.
5. Replace heater on wall.
6. Insert bottom anchor screw through back panel into bottom anchor or drilled
hole (see Figure 9).
7. Tighten screw until heater is firmly secured to wall. Do not over tighten.
Note: Do not replace front panel at this time. Replace front panel after making
gas connections and checking for leaks (see pages 9-11).
Figure 7 - Location Of Keyhole Slots On Back Panel Of Heater
Keyhole
Slots

9
!
WARNING ICON G 001
WARNING
Never connect heater to private (non-utility) gas wells. This gas is
commonly known as well-head gas.
NOTICE
A qualified service person must connect heater to gas supply.
Follow all local codes.
CONNECTING
TO GAS
SUPPLY
IMPORTANT: Check gas line pressure before connecting heater to gas line. Gas
line pressure must be no greater than 14 inches of water. If gas line pressure is
higher, heater regulator damage could occur.
Installation must include a manual shutoff valve, ground joint union, and plugged 1/
8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be
upstream from heater (see Figure 10, page 10).
Apply pipe joint sealant lightly to male threads. This will prevent excess sealant
from going into pipe. Excess sealant in pipe could result in clogged heater valves.
Continued
Install sediment trap in supply line as shown in Figure 10. Locate sediment trap
where it is within reach for cleaning. Locate sediment trap where trapped matter is
not likely to freeze. A sediment trap traps moisture and contaminants. This keeps
them from going into heater controls. If sediment trap is not installed or is installed
wrong, heater may not run properly.
!
WARNING ICON G001
CAUTION
Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.
!
WARNING ICON G 001
CAUTION
Use only new, black iron or steel pipe. Copper tubing may be used
in certain areas. Check your local codes. Use pipe 3/8" diameter or
greater to allow proper gas volume to heater. If pipe is too small,
undue loss of pressure will occur.

10
!
WARNING ICON G 001
WARNING
Test all gas piping and connections for leaks after installing or
servicing. Correct all leaks at once.
Manual
Shutoff Valve *
IMPORTANT: Holdpressure regulatorwithwrench whenconnectingit togas piping
and/or fittings.

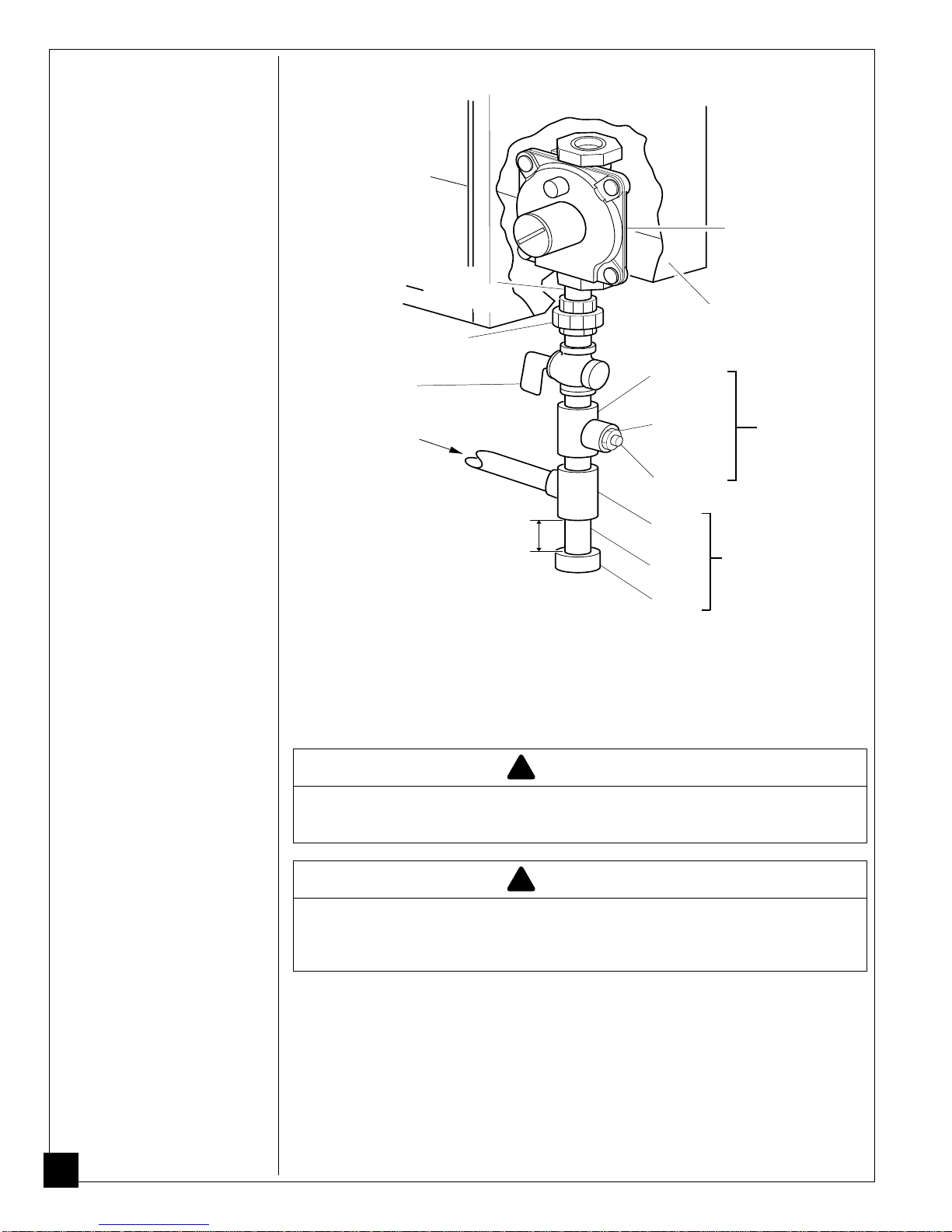

Figure 10 - Gas Connection
* AnA.G.A. design-certifiedmanualshutoffvalvewith 1/8"NPTtapisan acceptable
alternative to test gauge connection. Purchase the optional A.G.A. design-certified
manual shutoff valve from your dealer. See ACCESSORY, page 22.
Tee Joint
Reducer
Bushing to
1/8" NPT
1/8" NPT
Plug Tap
Test
Gauge
Connection *
Tee
Joint
Pipe
Nipple
Cap
Sediment
Trap
PRESSURE TESTING GAS SUPPLY PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
1. Disconnect heater and its individual manual shutoff valve from gas supply
piping system. Pressures in excess of 1/2 psig will damage heater regulator.
2. Cap off open end of gas pipe where manual shutoff valve was connected.
3. Pressurize supply piping system by either using compressed air or
opening main gas valve located on or near gas meter.
CHECKING
GAS
CONNECTIONS
Continued
Pressure
Regulator
Heater
Cabinet
3/8" NPT
Pipe Nipple
Ground Joint Union
From Gas Meter
(4" W.C. to
10.5" W.C. Pressure)
!
WARNING ICON G 001
WARNING
Never use an open flame to check for a leak. Apply a mixture of
liquid soap and water to all joints. Bubbles forming show a leak.
Correct all leaks at once.
3" Minimum

11
4. Check all joints of gas supply piping system. Apply mixture of liquid soap and
water to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
Test Pressures Equal To or Less Than 1/2 PSIG
1. Close manual shutoff valve (see Figure 11).
2. Pressurize supply piping system by either using compressed air or opening main
gas valve located on or near gas meter.
3. Check all joints from gas meter to manual shutoff valve (see Figure 12). Apply
mixture of liquid soap and water to gas joints. Bubbles forming show a leak.
4. Correct all leaks at once.
PRESSURE TESTING HEATER GAS CONNECTIONS
1. Open manual shutoff valve (see Figure 11).
2. Open main gas valve located on or near gas meter.
3. Make sure control knob of heater is in the OFF position.
4. Check all joints from manual shutoff valve to control valve (see Figure 12).
Apply mixture of liquid soap and water to gas joints. Bubbles forming show a
leak.
5. Correct all leaks at once.
6. Light heater (see OPERATING HEATER, pages 12 through 15). Check the rest
of the internal joints for leaks.
7. Turn off heater (see TO TURN OFF GAS TO APPLIANCE, page 15).
8. Replace front panel.
Figure 11 - Manual Shutoff Valve
ON
POSITION
OFF
POSITION
Manual
Shutoff
Valve
Open
Closed
Control Valve Location
Gas Meter
Manual
Shutoff
Valve
Figure 12 - Checking Gas Joints

12
OPERATING
HEATER FOR YOUR SAFETY READ BEFORE LIGHTING
A. This appliance has a pilot which must be lighted by hand. When lighting the
pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to
smell next to the floor because some gas is heavier than air and will settle on
the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob. Never use tools. If
the knob will not push in or turn by hand, don’t try to repair it, call a qualified
service technician or gas supplier. Force or attempted repair may result in a fire
or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a
qualified service technician to inspect the appliance and to replace any part of
the control system and any gas control which has been under water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. Make sure manual shutoff valve is fully open.
3. Turn control knob clockwise to the OFF position.
Clockwise
OFF
LOW
PILOT
IGN
HIGH
Control Knob
Figure 13 - Control Knob In The OFF Position
!
WARNING ICON G001
WARNING
If you do not follow these instructions exactly, a fire or
explosion may result causing property damage, personal
injury or loss of life.

13
4. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the
floor. If you smell gas, STOP! Follow “B” in the safety information at the top of
page 12. If you don’t smell gas, go to the next step.
5. Press in control knob.
Note: You may be running this heater for the first time after hooking up to gas
supply. If so, the control knob may need to be pressed in for 30 seconds. This
will allow air to bleed from the gas system.
• If control knob does not pop up when released, contact a qualified service
person or gas supplier for repairs.
6. Keep control knob pressed in and turn it counterclockwise to the
PILOT/IGN position. This will light pilot.
Note: You will hear a loud “click” when the control knob reaches the
PILOT/IGN position.
If pilot does not light
• turn control knob clockwise to the OFF position
• repeat steps 5 and 6
If pilot does not stay lit after several tries
• refer to TROUBLESHOOTING, pages 17 through 20
• contact a qualified service person or gas supplier
Until repairs are made, light pilot with match. To light pilot with match, see
MANUAL LIGHTING PROCEDURE, page 15.
7. Keep control knob pressed in for 10 seconds after lighting pilot. After 10 sec-
onds, release control knob.
Note: If pilot goes out, repeat steps 3 through 7.
Clockwise
Ignitor Electrode
Pilot Burner
Thermocouple

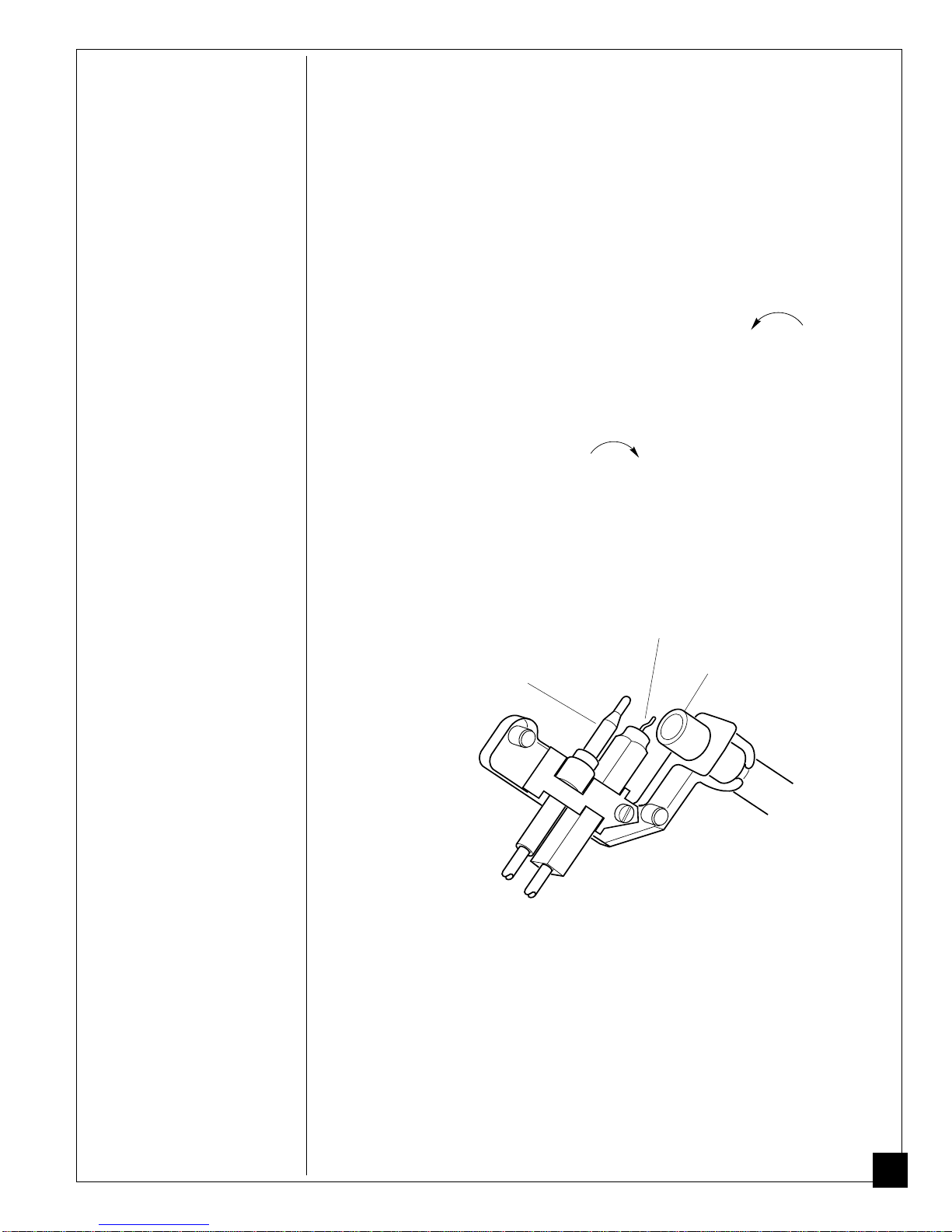

Figure 14 - Pilot
C-clockwise

14
TO SELECT HEATING LEVEL
1. Slightly press in control knob and turn counterclockwise to the LOW
or HIGH positions.
IMPORTANT: Release downward pressure while turning control knob. Control
knob will lock at the desired position.
C-clockwise
Control
Knobs Burners
LOW
OFF
PILOT
IGN
HIGH
OFF
PILOT
IGN
OFF

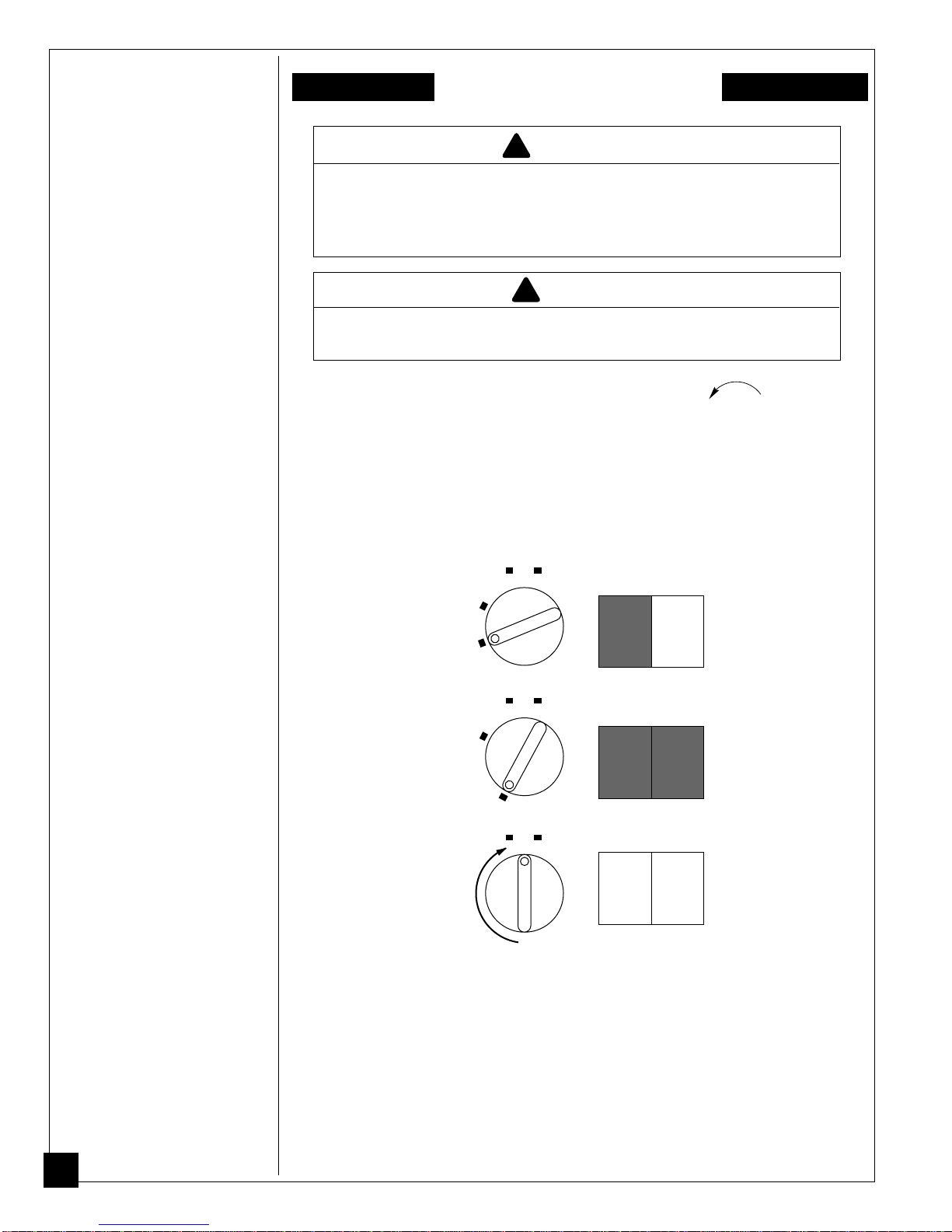

Figure 15 - Burner Patterns
!
WARNING ICON G 001
WARNING
When running heater, set control knob at LOW or HIGH
locked positions. Never set control knob between locked
positions. Poor combustion and higher levels of carbon
monoxide may result.
!
WARNING ICON G 001
CAUTION
Do not try to adjust heating levels by using the manual shutoff
valve.

15
GRH/OV 009GOOD PILOT
GRH/OV 010BAD PILOT
Shutting Off Heater
1. Turn control knob clockwise to the OFF position.
Shutting Off Burner Only (pilot stays lit)
1. Turn control knob clockwise to the PILOT position.
MANUAL LIGHTING PROCEDURE
1. Remove front panel (see Figure 8, page 8).
2. Follow steps 1 through 6 under LIGHTING INSTRUCTIONS, pages 12 and 13.
3. With control knob pressed in, strike match. Hold match to pilot until pilot lights.
4. Keep control knob pressed in for 10 seconds after pilot is lit. After 10 seconds,
release control knob.
5. Replace front panel.
Clockwise
TO TURN OFF GAS TO APPLIANCE
Check pilot flame pattern and burner flame pattern often.
PILOT FLAME PATTERN
Figure 16 shows a correct pilot flame pattern. Figure 17 shows an incorrect pilot
flame pattern. The incorrect pilot flame is not touching the thermocouple. This will
cause the thermocouple to cool. When the thermocouple cools, the heater will shut
down.

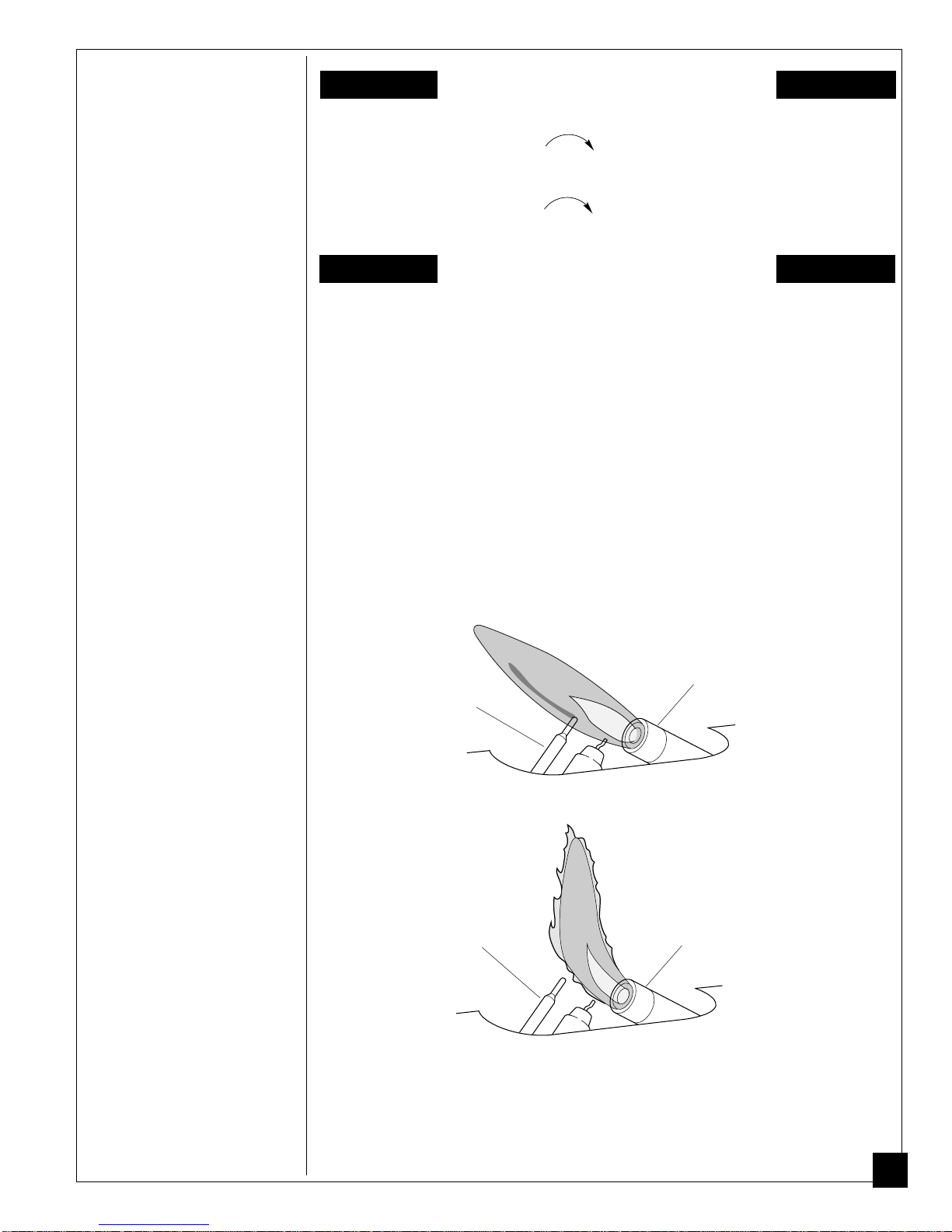

Figure 16 - Correct Pilot Flame Pattern
If pilot flame pattern is incorrect, as shown in Figure 17
• turn heater off (see TO TURN OFF GAS TO APPLIANCE, above)
• see TROUBLESHOOTING, pages 17 through 20
Figure 17 - Incorrect Pilot Flame Pattern
Pilot Burner
Thermocouple
Thermocouple
Pilot Burner
Continued
INSPECTING
BURNER
Clockwise

16
BURNER FLAME PATTERN
Figure 18 shows a correct burner flame pattern. Figure 19 shows an incorrect
burner flame pattern.
Figure 18 - Correct Burner Flame Pattern
Figure 19 - Incorrect Burner Flame Pattern
If burner flame pattern is incorrect, as shown in Figure 19
• turn heater off (see TO TURN OFF GAS TO APPLIANCE, page 15)
• see TROUBLESHOOTING, pages 17 through 20

17
CLEANING
AND
MAINTENANCE
ODS/PILOT AND BURNER ORIFICE
• Use a vacuum cleaner, pressurized air, or small, soft bristled brush to clean.
CABINET
Air Passageways
• Use a vacuum cleaner or pressurized air to clean.
Exterior
• Use a soft cloth dampened with a mild soap and water mixture. Wipe the
cabinet to remove dust.
OBSERVED
PROBLEM
When control knob is
pressed in and turned
tothePILOT/IGNpo-
sition, there is no
spark at ODS/pilot
TROUBLE-
SHOOTING
POSSIBLE
CAUSE
1. Ignitor electrode posi-
tioned wrong
2. Ignitor electrode broken
3. Ignitor electrode not con-
nected to ignitor cable
4. Ignitor cable pinched or
wet
5. Broken ignitor cable
6. Bad piezo ignitor
REMEDY
1. Replace ignitor
2. Replace ignitor
3. Reconnect ignitor cable
4. Free ignitor cable if
pinched by any metal or
tubing.Keepignitorcable
dry
5. Replace ignitor cable
6. Replacecontrolvalve(pi-
ezo is part of control
valve)
Note: All troubleshooting
items are listed in order of
operation.
!
WARNING ICON G001
WARNING
Turn off heater and let cool before cleaning.
!
WARNING ICON G001
CAUTION
You must keep control areas, burner, and circulating air
passageways of heater clean. Inspect these areas of heater before
each use. Have heater inspected yearly by a qualified service
person. Heater may need more frequent cleaning due to excessive
lint from carpeting, bedding material, etc.
!
WARNING ICON G 001
WARNING
Turn off heater and let cool before servicing. Only a qualified
service person should service and repair heater.
!
WARNING ICON G 001
CAUTION
Never use a wire, needle, or similar object to clean ODS/pilot. This
can damage ODS/pilot unit.

18
REMEDY
1. Turn on gas supply or
open manual shutoff
valve
2. Press in control knob
whileturningtoPILOT/
IGN position
3. Continue holding down
controlknob.Repeat ig-
nitingoperationuntilair
is removed
4. Clean ODS/pilot (see
CLEANING AND
MAINTENANCE,
page 17) or replace
ODS/pilot assembly
5. Replace gas regulator
1. Press in control knob
fully
2. After ODS/pilot lights,
keep control knob
pressed in 10 seconds
3. Fullyopenmanualshut-
off valve
4. Handtightenuntil snug,
then tighten 1/4 turn
more
5. A) Contact local natural
gas company
B)CleanODS/pilot(see
CLEANING AND
MAINTENANCE,
page 17) or replace
ODS/pilot assembly
6. Replace thermocouple
7. Replace control valve
OBSERVED
PROBLEM
When control knob is
pressed in and turned
tothePILOT/IGNpo-
sition,there issparkat
ODS/pilotbutnoigni-
tion
ODS/pilot lights but
flame goes out when
control knob is
released
POSSIBLE
CAUSE
1. Gassupplyturnedoffor
manual shutoff valve
closed
2. Control knob not
pressed in while being
turned to PILOT/IGN
position
3. Air in gas lines when
installed
4. ODS/pilot is clogged
5. Gas regulator setting is
not correct
1. Control knob not fully
pressed in
2. Control knob not
pressed in long enough
3. Manual shutoff valve
not fully open
4. Thermocouple connec-
tion loose at control
valve
5. Pilotflamenottouching
thermocouple, which
allows thermocouple to
cool, causing pilot
flame to go out. This
problem could be
causedbyoneorbothof
the following:
A) Low gas pressure
B) Dirty or partially
clogged ODS/pilot
6. Thermocouple dam-
aged
7. Control valve damaged
Continued

19
OBSERVED
PROBLEM
Burner(s) does not
lightafterODS/pilotis
lit
Delayed ignition of
burner(s)
Burner backfiring
during combustion
Burner plaque(s) does
not glow
Slight smoke or odor
during initial opera-
tion
Heater produces a
clicking/ticking noise
justafterburnerislitor
shut off
REMEDY
1. Clean burner orifice(s)
(see CLEANING AND
MAINTENANCE, page
17) or replace burner
orifice(s)
2. Replace burner orifice(s)
3. Contact local natural gas
company
1. Contact local natural gas
company
2. Clean burner orifice(s)
(see CLEANING AND
MAINTENANCE, page
17) or replace burner
orifice(s)
1. Clean burner orifice(s)
(see CLEANING AND
MAINTENANCE, page
17) or replace burner
orifice(s)
2. Replace burner
3. Replace gas regulator
1. Replace burner
2. Contact local natural gas
company
3. Turn control knob until it
locks at desired setting
1. Problem will stop after a
few hours of operation
1. This is common with
most heaters. If noise is
excessive, contact quali-
fied service person
POSSIBLE
CAUSE
1. Burner orifice(s) is
clogged
2. Burner orifice(s) di-
ameter is too small
3. Inlet gas pressure is too
low
1. Manifoldpressureistoo
low
2. Burner orifice(s) is
clogged
1. Burner orifice(s) is
clogged or damaged
2. Burner damaged
3. Gas regulator defective
1. Plaque damaged
2. Inlet gas pressure is too
low
3. Control knob set be-
tween locked positions
1. Residues from manu-
facturing processes
1. Metal expanding while
heating or contracting
while cooling

20
POSSIBLE
CAUSE
1. Heater burning vapors
from paint, hair spray,
glues, etc.
2. Gas leak. See Warn-
ing statement at
top of page
1. Not enough fresh air is
available
2. Low line pressure
3. ODS/pilot is partially
clogged
1. Gas leak. See Warn-
ing statement at
top of page
2. Control valve defective
1. Foreignmatterbetween
control valve and
burner
2. Gas leak. See Warn-
ing statement at
top of page
OBSERVED
PROBLEM
Heater produces un-
wanted odors
Heater shuts off in use
(ODS operates)
Gas odor even when
control knob is in OFF
position
Gas odor during com-
bustion
REMEDY
1. Ventilate room. Stop us-
ing odor-causing prod-
ucts while heater is run-
ning
2. Locate and correct all
leaks (see CHECKING
GAS CONNECTIONS,
page 10)
1. Open window and/or
door for ventilation
2. Contactlocal naturalgas
company
3. Clean ODS/pilot (see
CLEANING AND
MAINTENANCE, page
17)
1. Locate and correct all
leaks (see CHECKING
GAS CONNECTIONS,
page 10)
2. Replace control valve
1. Take apart gas tubing
andremoveforeignmat-
ter
2. Locate and correct all
leaks (see CHECKING
GAS CONNECTIONS,
page 10)
TECHNICAL
SERVICE
You may have further questions about installation, operation, or troubleshooting.
If so, contact DESA International’s Technical Service Department at 1-800-323-
5190.
!
WARNING ICON G001
WARNING
If you smell gas
• Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
