DIRECT-VENT GAS
FIREPLACE
OWNER’S OPERATION AND
INSTALLATION MANUAL
Save this manual for future reference.
Save this manual for future reference.
This appliance may be installed in an aftermarket* permanently located, manufactured
(mobile) home, where not prohibited by state or local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance
is not convertible for use with other gases, unless a certified kit is used.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer.
®
VDDVF36PN/PP (PENINSULA) AND VDDVF36STN/STP (SEE-THRU)
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS :
• Do not try to light any appliance.
• Do not touch any electrical switch;
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
— Installationandservicemustbeperformedbyaquali-
fied installer, service agency, or the gas supplier.
SAVE THIS BOOK
Thisbookisvaluable.Inadditiontoinstructing
you on how to install and maintain your appli-
ance, it also contains information that will
enable you to obtain replacement parts or
optional accessory items when needed. Keep
it with your other important papers.
WARNING: Improper installation,
adjustment, alteration, service, or
maintenance to this appliance can
cause injury or property damage.
Refertothismanual.Forassistance
or additional information consult a
qualified installer, service agency,
or the gas supplier.
CHECK LOCAL CODES PRIOR TO INSTALLATION
WARNING: If the information in these instructions
is not followed exactly, a fire or explosion may
resultcausingpropertydamage,personalinjury,or
loss of life.
WARNING: This Direct-Vent Gas
Fireplace series is intended for use
withNaturalorPropane/LPgasonly.
Do not attempt to burn any solid
fuels in these appliances.
(Peninsula Shown)

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
2
Figure 1 - VDDVF36PN/PP (Peninsula) Dimensions
FRONTVIEW
30"
(76cm)
(Opening)
25" (64cm)
19 7/8"(50cm)
(Opening)
RIGHT SIDE
1 1/4"(3cm)
22 5/8"
(57cm)
41 1/8"(104cm)
32" (81cm) (Opening) 1 7/8"(5cm)
39 3/4"
(101cm)
26 3/8"
(67cm)
3" (8cm) 1" (3cm) 2" (5cm)
22 5/8"
(57cm)
34 3/4"
(88cm)
3" (8cm)
BACKVIEWTOPVIEW
(Left Side)
(Right Side)
(Front)
(Back)
23 5/8"
(60cm)
10 1/2"
(27cm)
1.5"ø
(4cm) 1.5"ø (4cm)
10 1/2"
(27cm)
11 15/16"
(30cm)
Back of
Surround
Left Side
Surround
Right Side
Surround
Alternate Gas
Supply Inlets
Rating Plate
Location
PRODUCT DIMENSIONS
TABLE OF CONTENTS
PRODUCT DIMENSIONS
TABLE OF CONTENTS
PRODUCT DIMENSIONS........................................................... 2
GLOSSARY OF TERMS............................................................. 3
INTRODUCTION......................................................................... 3
SELECTING LOCATION............................................................. 4
PRE-INSTALLATION PREPARATION ........................................ 5
GENERAL VENTING .................................................................. 7
VENTING INSTALLATION .......................................................... 9
INSTALLATION ......................................................................... 16
PILOT ASSEMBLY ADJUSTMENT ........................................... 20
BURNER FLAME ADJUSTMENT ............................................. 20
OPERATING GUIDELINES AND MAINTENANCE
INSTRUCTIONS ....................................................................... 21
CLEANING AND MAINTENANCE ............................................ 21
OPERATING FIREPLACE ........................................................ 22
TROUBLESHOOTING .............................................................. 24
WIRING DIAGRAM ................................................................... 28
ACCESSORIES ........................................................................ 28
SERVICE HINTS....................................................................... 28
TECHNICAL SERVICE ............................................................. 28
REPLACEMENT PARTS .......................................................... 29
REPLACEMENT PARTS LIST .................................................. 29
OWNER’S REGISTRATION FORM.......................................... 31
WARRANTY INFORMATION...................................... Back Cover

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
3
3

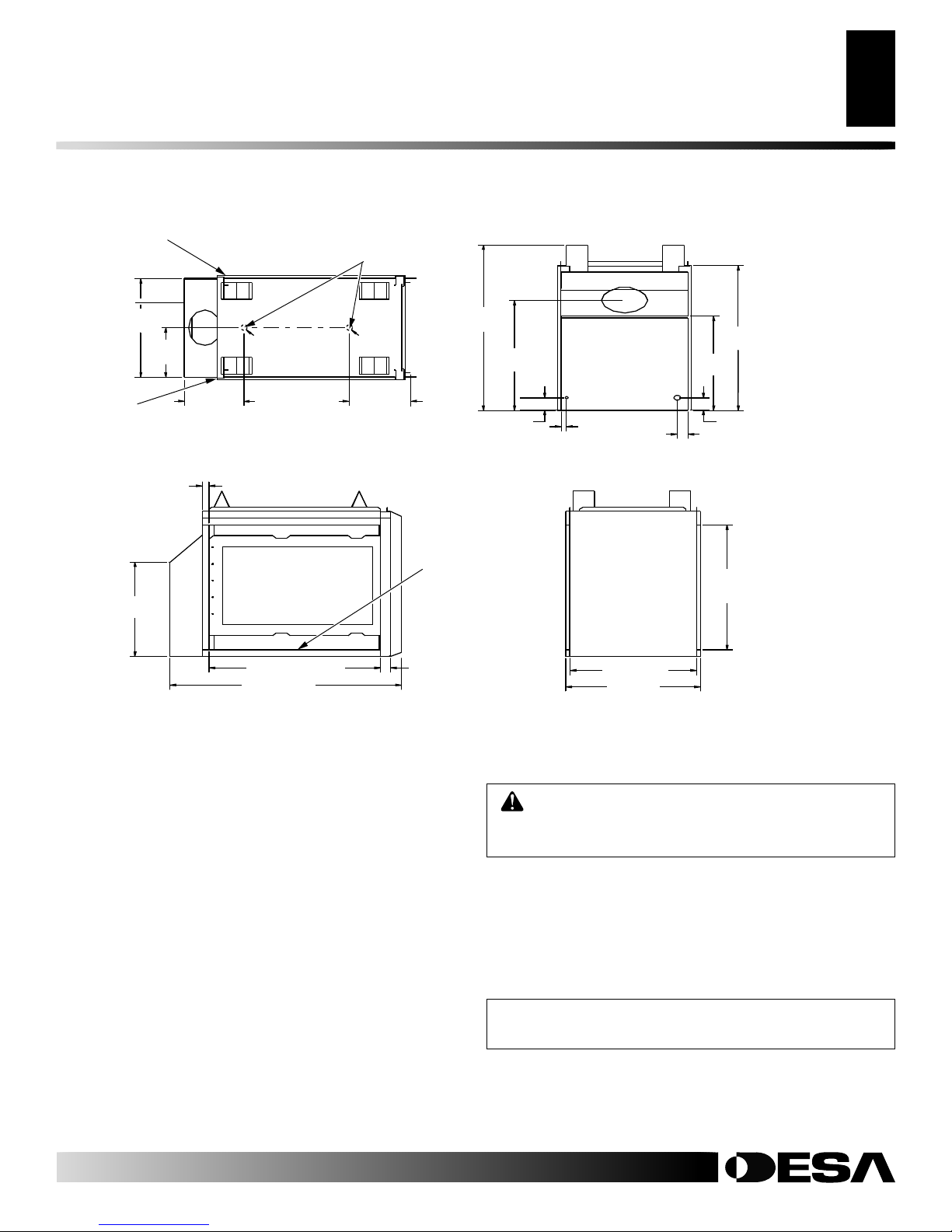

Figure 2 - VDDVF36STN/STP (See-thru) Dimensions
GLOSSARY OF TERMS
Chase - A boxlike enclosure to protect venting from the elements
when the venting run is on the outside of a structure.
Mastic - A pliable sealant for use around the vent terminal.
Snorkel Termination -A box that raisesthe horizontal termination
above ground level clearances.
Vent Terminal - Mounted on an outside wall or roof to separate the
inlet and outlet of the vent system and protect it from weather.
VinylSidingStandoff-Ametalboxthatseparatestheventcapfrom
vinyl siding.
Wall Thimble/Firestop - A metal plate used to secure the vent pipe
when it passes through a wall or ceiling.
FIREBOX DIMENSIONS
Continued
FRONTVIEW
30"
(76cm)
(Opening)
23 5/8"(60cm)
25" (64cm)
RIGHT SIDE
22 5/8"
(57cm)
43 1/8"(110cm)
32" (81cm) (Opening) 1 7/8"(5cm)
1 1/4"(3cm)
BACKVIEW
39 3/4"
(101cm)
26 3/8"
(67cm)
3" (8cm) 1" (3cm) 2" (5cm)
3" (8cm)
22 5/8"
(57cm)
34 3/4"
(88cm)
TOP VIEW
(Left Side)
(Right Side)
(Front)
(Back)
23 5/8"
(60cm)
11 15/16"
(30cm)
10 1/2"
(27cm)
1.5"ø
(4cm) 1.5"ø (4cm)
11 1/8"
(28cm)
Back of
Surround
Rating Plate
Location
Left Side
Surround
Right Side
Surround
Alternate Gas
Supply Inlets
INTRODUCTION
Models VDDVF36PN/PP series are three-sided direct-vent gas
fireplace with a sealed combustion chamber. Models
VDDVF36STN/STP series are two-sided direct-vent gas fireplace
with a sealed combustion chamber. All models use a millivolt gas
control and a millivolt ignition system. All models have a manual
HI/LO valve to control the flame height. A fan kit is available for
these models as an option (see Accessories on page 28).
NOTICE:Checklocalbuildingcodesforarearequire-
ments before installing this appliance.
PRODUCT DIMENSIONS
GLOSSARY OF TERMS
INTRODUCTION
WARNING:Thisproductcontainsand/orgenerates
chemicals known to the State of California to cause
cancer or birth defects, or other reproductive harm.
• ModelsVDDVF36PN andVDDVF36STNuse NATURALGAS
ONLY.
• Models VDDVF36PP and VDDVF36STP use PROPANE/LP
GAS ONLY.

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
4
WARNING:Installationandrepairshouldbedone
byaqualified installer/service person.Theappliance
shouldbeinspectedbeforeuse,andatleastannually
thereafter by a qualified service person. More fre-
quent cleaning may be required due to excessive lint
fromcarpeting, bedding, pet hair,etc.Itis imperative
thatthecontrolcompartments,burners,andcirculat-
ing air systems be kept clean.
NOTICE: This appliance is intended to be used only
for supplemental heat.
If you have any doubts as to which gas your particular appliance is
approved and tested for, please check the CSA rating plate located
at the interior of the appliance opening or consult your local
distributor (see Figure 1, page 2 and Figure 2, page 3).
BEFORE YOU BEGIN
Before beginning the installation of your appliance, read these
instructions through completely.
This DESA appliance and its approved components are safe when
installed according to this installation manual and operated as
recommended by DESA. Unless you use DESA approved compo-
nents tested for this appliance, YOU MAY CAUSE A SAFETY
HAZARD!
The DESA warranty will be voided by, and DESA disclaims any
responsibility for the following actions:
A) Modification of the appliance or any of the components manu-
factured by DESA unless otherwise permitted in writing by
DESA.
B) The use of any components part not approved by DESA in
combination with this DESA appliance.
C) Installation and/or operation in a manner other than instructed
in this manual.
D) The burning of anything other than the type of gas approved
for use in this gas appliance.
This appliance, when installed, must be electrically grounded in
accordance with local codes, or in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70 or the Canadian
Electrical Code, CSA C22.1.
Theinstallation mustconform withlocal codesor, intheabsenceof
local codes, with the National Fuel Gas Code, ANSI Z223.1 or the
Canadian Installation Code, CAN/CGA B149.
This appliance complies with ANSI Z21.50-1998/CSA 2.22-M48
as a VENTED GAS FIREPLACE. It is listed and tested by Interna-
tional Approval Services.
SELECTING LOCATION
To determine the safest and most efficient location for your appli-
ance, consider the following guidelines:
1. The location must allow for proper clearances (see Clearances,
page 5).
2. Consider a location where heat output would not be affected
by drafts, air conditioning ducts, windows, or doors.
3. A location that avoids the cutting of joists or roof rafters makes
installation easier.
Inselectinga location,thefollowingprecautionsmustbeobserved:
1. A projection may be ideal for a new addition on an existing fin-
ished wall. See Horizontal Termination Configuration, page 12,
or Vertical Termination Configuration, pages 14 and 15.
2. Do not locate appliance close to where gasoline or other flam-
mable liquids may be stored. The appliance must be kept clear
and free from combustible materials.
3. Do not connect this appliance to a chimney system used for
solid fuel burning fireplace.
4. Due to high temperatures, do not locate this appliance in high
traffic areas or near furniture and draperies.
5. This fireplace may be installed in bedrooms or bathrooms in
accordance with local codes.
6. Never obstruct the openings of the appliance or flow of venti-
lation air. Keep the control compartments accessible.
7. Do not use this appliance if any part has been under water. Im-
mediately contact a local service technician to examine the ap-
pliance and to replace any part(s) of the control ignition system
and other related components that have submerged under water.
INTRODUCTION
Continued

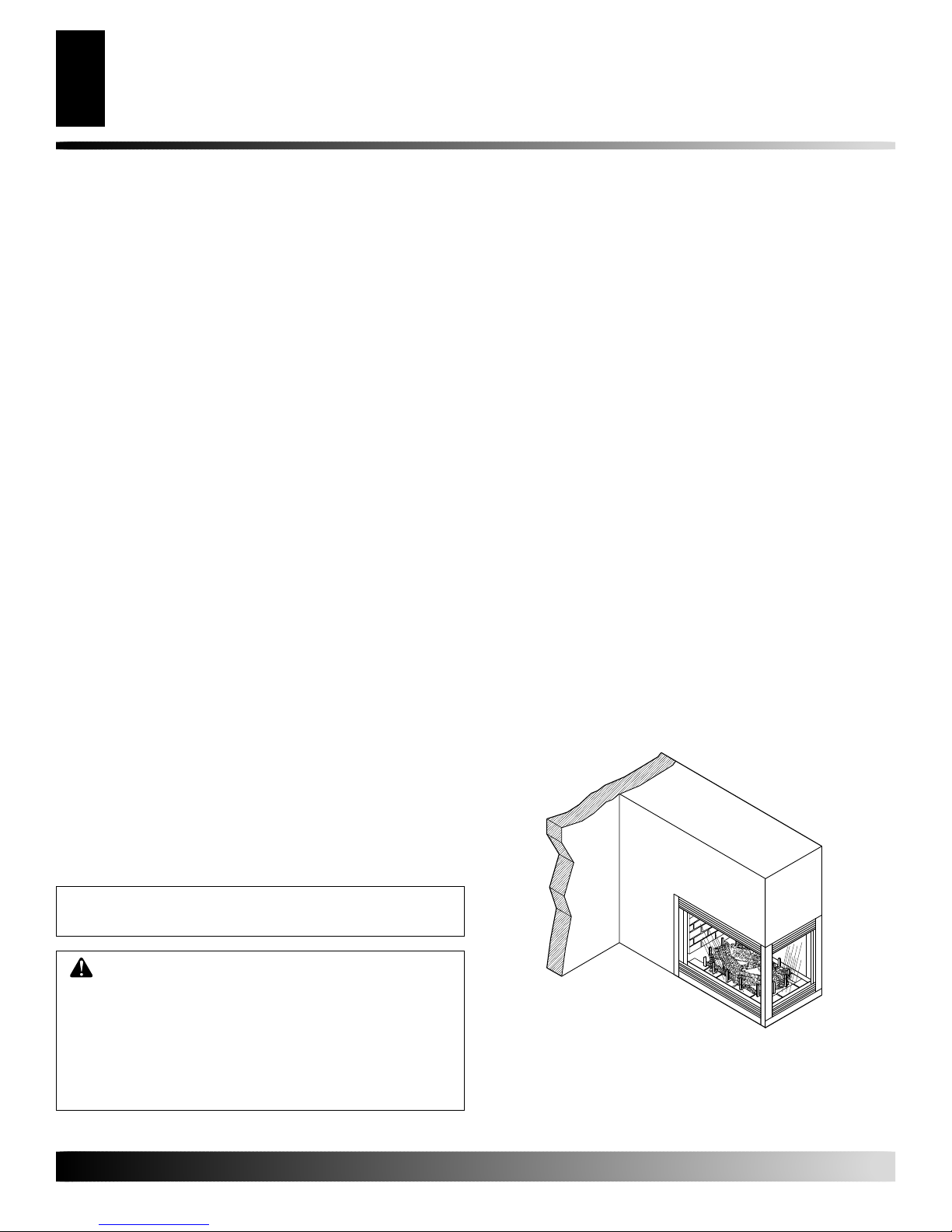

Figure 3 - Possible Installation of Peninsula Fireplace
INTRODUCTION
Before You Begin
SELECTING LOCATION

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
5
5
PRE-INSTALLATION PREPARATION
Clearances
Mantel Clearances
Framing
CLEARANCES
Minimum clearances to combustibles are:
• Back and Sides of Surround: .................................. 0" min.
• Vent Surfaces:............................................1" (2.5cm) min.
• Ceiling to Opening: ..................................36" (91cm) min.
• Floor: ...................................................................... 0" min.
• Wall to Front of Glass: .............................36" (91cm) min.
• Perpendicular Wall to Opening of Unit: .......2" (5cm) min.
• Top Spacer:............................................................. 0" min.
CAUTION: Do not block required air spaces with
insulation or any other material. Do not obstruct the
effective opening of the appliance with any type of
facing material.
PRE-INSTALLATION
PREPARATION
Figure 4 - Minimum Clearances (Peninsula Shown)
Figure 5 - Minimum Clearances (See-thru Shown)
CEILING
WALL
36"
(91cm)
Min.
36"
(91cm)
Min. 0" Floor
0"
36"
(91cm)
2" (5cm)
Wall In Front Of Glass
36" (91cm) Min.
Perpendicular
Wall 2" (5cm)
Min. From Opening
Right Side
Surround
(0" Min.)
Left Side
Surround
(0" Min.) TOP VIEW
Combustible
Material
Drywall
2 x 4 Stud
Minimum 1"(2.5cm)
Clearance from Side
(Only for See-thru)
MANTEL CLEARANCES
Woodwork, such as wood trims, mantels, and other combustible
materials projecting no more than 1 1/2inches (3.8cm) shall not be
placed within 7 inches (17.8cm) from the opening of the unit.
Combustible material above and projecting more than 1 1/2inches
(3.8cm) from the appliance’s face must not be placed less than 15
inches (38.1cm) from the louver opening (see Figure 6).
Figure 6 - Mantel Clearances for Peninsula and See-thru
Fireplaces (Peninsula Shown)
12"
(30.5cm)
Min.
21"
(53.3cm)
Min. 15"
(38.1cm)
Min.
4"
(10.2cm)
Min.
7" (17.8cm)
Min.
1 1/2" (3.8cm)
Min.
UNIT
Spacer
2 x 4
Combustible
Material May
Be Used
Drywall (Gypsum
Board, Sheetrock, Etc.)
Safe Zone for Projection
of Combustible Material
Top of Louver
Opening

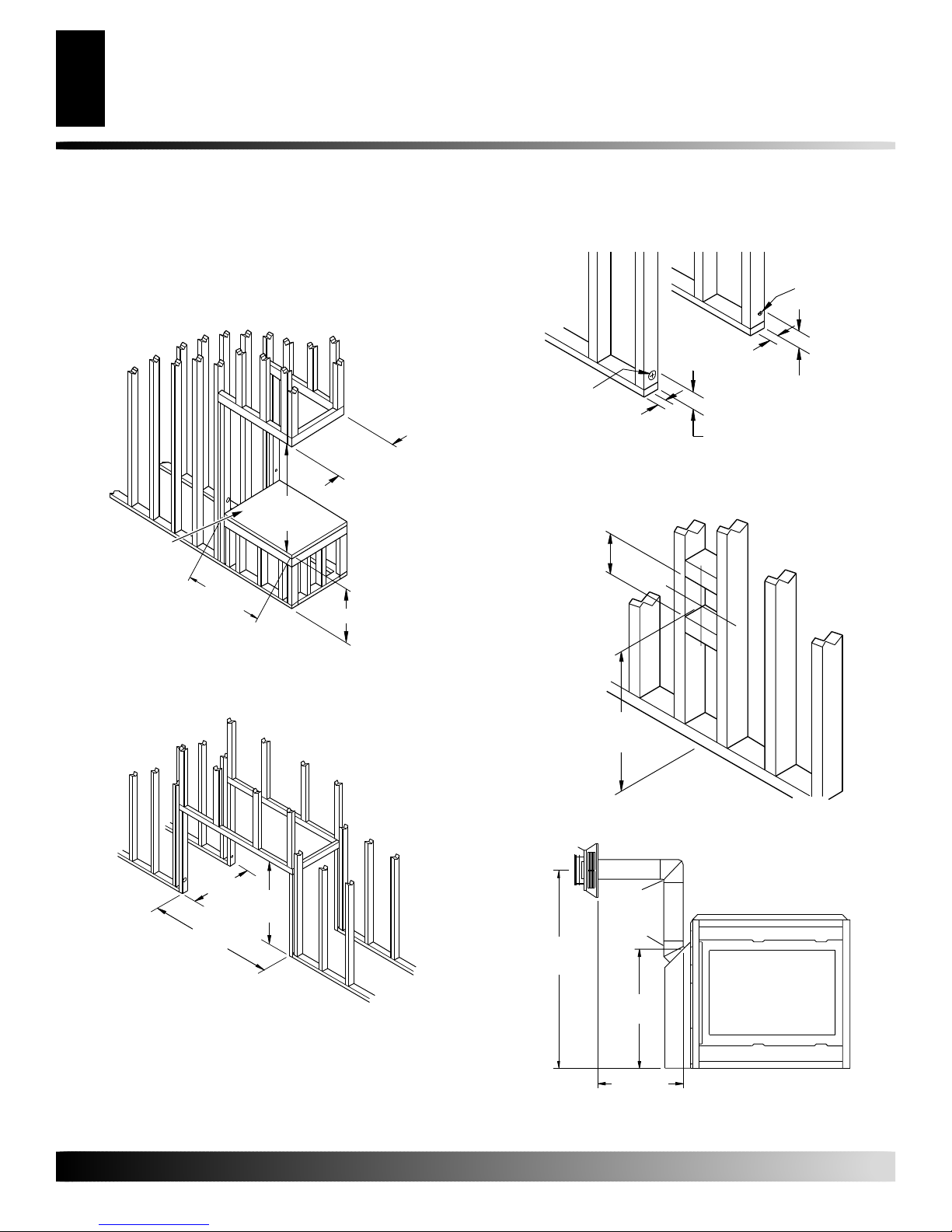

FRAMING
Once the final location has been determined, observing height
clearances for vent termination, you may construct framing using
dimensions shown in Figure 7 and Figures 8 and 9, page 6,
depending on your installation.
If the appliance is to be installed directly on carpeting, tile (other
than ceramic), or any combustible material other than wood floor-
ing, the appliance must be installed on a metal or wood panel
extending the full width and depth of the appliance. There are three
holesoneachsideofthebottomoftheunitwherescrewscanbeused
to secure the unit to the floor.
Figure 7 - Rough Opening for Installing Peninsula Fireplace
39
3
/ 4 "
(101cm)
Min.
40
1
/
2
"
(102.9cm)
23 5/8"
(60cm)

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
6
PRE-INSTALLATION
PREPARATION
Continued
Figure 8 - Rough Opening for Installing Peninsula Fireplace on
Platform
* As required by design as long as ceiling clearance is maintained.
39
3
/ 4 "
(101cm)
Min.
40
1
/
2
"
(102.9cm)
23
5
/
8
"
(60cm)
*
Platform Must Be
Solid, Flat, and
Fully Supported
Figure 9 - Rough Opening for Installing See-thru Fireplace
39
3
/ 4 "
(101cm)
Min.
43
1
/4"
(109.8cm)
23
5
/
8
"
(60cm)
Figure 10 - Hole Locations For Gas Line and Electric Wires for
Peninsula and See-thru Fireplaces
3" (7.6cm)
1" (2.5cm)
Dia. Hole
3"
(7.6cm)
2" (5.1cm)
Dia. Hole
1"
(2.5cm)
2"
(5.1cm)
Figure11-RoughOpening forInstalling ExteriorVent Terminal
Height
Depends On
Installation
10"
(25.4cm)
Square Min.
Figure 12 - Vent Opening Height
Vertical Height
Depends on
Installation
26
3
/ 8 "
(67cm)
Horizontal
Length Depends
on Installation
90
o
Elbow
45
o
Elbow
Refer to Pages 10 through 16
for Horizontal and Vertical
Installation Details
PRE-INSTALLATION PREPARATION
Framing (Cont.)
The gas supply line may be connected through the side framing or
alternately through the lower sub-flooring or a platform base if
provided (see Figures 10 and 11). Depending on the installation,
refer to the appropriate illustration.

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
7
7
GENERAL VENTING
These models are approved for use with Simpson Dura-Vent 6 5/8"
direct-vent pipe components and terminations as well as both flex
and rigid Vanguard vent components.
Yourfireplaceisapprovedtobe ventedeitherthroughthesidewall,
or vertically using the following guidelines:
• Only use Vanguard or Simpson Dura-Vent GS venting compo-
nents or kits specifically approved for this fireplace.
• Minimum clearance between vent pipes and combustible mate-
rials is 1" (25 mm), except where stated otherwise.
• Combustible material may be flush with the top front of fire-
place with a maximum thickness of 3/4".
• Do not recess venting terminals into a wall or siding.
• Install horizontal venting with a 1/4" rise for every 12" of run
toward the termination.
• You may paint the vent terminal with 450°F (232°C) heat-resis-
tant paint to coordinate with the exterior finish.
• There must not be any obstruction such as bushes, garden sheds,
fences, decks, or utility buildings within 24" from the front of
the termination cap.
• Do not locate termination cap where excessive snow or ice build
up may occur. Be sure to clear vent termination area after snow
falls to prevent accidental blockage of venting system. When
using snow blowers, do not direct snow towards vent termina-
tion area.

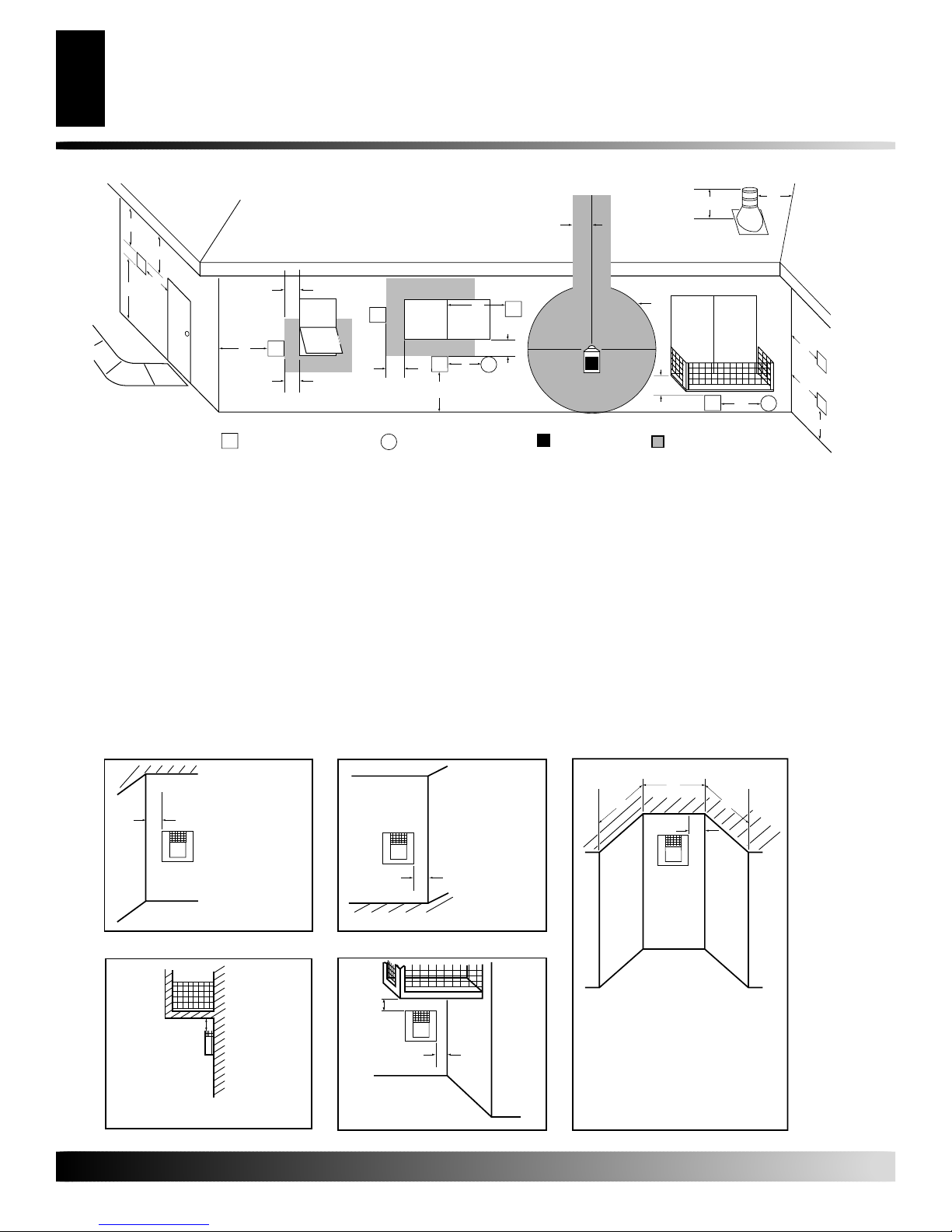

LOCATION OF VENT TERMINATION
When locating vent termination, it is important to observe the
minimum clearances shown in Figure 13, page 8. You will avoid
extra framing by positioning your fireplace against an already
existing framing member. The sides of the fireplace may be posi-
tioned directly against combustible walls.
*Check with local codes or with the current CAN/CGA B149[.1 or
.2] Installation Codes for Canada or the USA installations follow
the current National Fuel Gas Code, ANSI Z223.1/NFPA 54.
GENERAL VENTING
Location Of Vent Termination

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
8
Fixed
Closed Openable Fixed
Closed
Openable
V
V
V
V
VV
V
V
X
X
VX
G
G
J
F
B
B
K
N
H
I
A
N
E
L
D
B
M
A
C
B
V
V
A
G
G
B
TERMINATION CAP AIR SUPPLY INLET GAS METER RESTRICTED AREA
(TERMINATION PROHIBITED)
A = clearance above grade, veranda, porch, deck, or balcony
[*12 inches (30.5cm) minimum]
B = clearance to window or door that may be opened
[12 inches (30.5cm) minimum]
C = clearance to permanently closed window [minimum 12 inches
(30.5cm) recommended to prevent condensation on window]
D = vertical clearance to ventilated soffit located above the terminal
within a horizontal distance of 24 inches (61cm) from the
center-line of the terminal [18 inches (45.7cm) minimum]
E = clearance to unventilated soffit [12 inches (30.5cm) minimum]
F = clearance to outside corner (see below)
G = clearance to inside corner (see below)
H = *not to be installed above a meter/regulator assembly within
36 inches (91.4cm) horizontally from the center-line of the regulator
I = clearance to service regulator vent outlet [*72 inches (182.9cm)
minimum]
J = clearance to non-mechanical air supply inlet to building or the
combustion air inlet to any other fireplace [*12 inches (30.5cm)
minimum]
K = clearance to a mechanical air supply inlet [*72 inches (182.9cm)
minimum]
L = clearance above paved side-walk or a paved driveway located on
public property [*84 inches (213.4cm) minimum]
M = clearance under veranda, porch, deck [*12 inches (30.5cm) minimum ]
N = clearance above a roof shall extend a minimum of 24 inches (61cm)
above the highest point when it passes through the roof surface and
any other obstruction within a horizontal distance of 18 inches (45.7cm)
vent shall not terminate directly above a side-walk or paved driveway which is located between two
single family dwellings and serves both dwellings*
only permitted if veranda, porch, deck or balconey is fully open on a minimum of 2 sides beneath the floor*
* as specified in CAN/SGA B149 (.1 or .2) Installation Codes (1991) for Canada or for U.S.A. installation follow
the current
National Fuel Gas Code, ANSI Z223.1
Note: Local codes or regulations may require different clearances
A = 6" (15.2cm)
Inside Corner
V
B
E
V
B = 6" (15.2cm)
C = Maximum depth of 48" (121.9cm) for
recessed location
D = Minimum width for back wall of
recessed location -
Combustible - 38" (96.5cm)
Noncombustible - 24" (61cm)
E = Clearance from corner in
recessed location-
Combustible - 6" (15.2cm)
Noncombustible - 2" (5.1cm)
Outside Corner Recessed Location
G
H
G = Combustible 24" (61cm)
Noncombustible 18" (45.7cm)
Balcony with No SideWall
V
J
Combustible &
Noncombustible
H = 24" (61cm)
J = 20" (50.8cm)
Balcony with Perpendicular SideWall
CDC
Termination Clearances for Buildings with Combustible and Noncombustible Exteriors
Figure 13 - Minimum Clearances for Vent Terminations
GENERAL VENTING Continued
GENERAL VENTING
Location Of Vent Termination (Cont.)

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
9
9
VENTING INSTALLATION
Installation Precautions
Installation Planning
WARNING: Read all instructions completely and
thoroughly before attempting installation. Failure to
doso couldresultinserious injury,propertydamage
or loss of life. Operation of improperly installed and
maintained venting system could result in serious
injury, property damage or loss of life.
WARNING: Seal all pipe to pipe connections with
hightemperaturesilicone(600°F/316°C)every timea
vent connection is made. Before joining elbows and
pipes, apply a bead of high temperature silicone
sealant (GE RTV 106/Loctite RTV 81585) to the male
end of the elbow or pipe. High temperature silicone
must also be used to reseal any connections after
maintenance to venting system.
NOTICE: Failure to follow these instructions will void
the warranty.
INSTALLATION PRECAUTIONS
Consult local building codes before beginning the installation. The
installer must make sure to select the proper vent system for
installation. Before installing vent kit, the installer must read this
fireplace manual and vent kit instructions.
Only a qualified installer or service person should install venting
system. The installer must follow these safety rules:
• Wear gloves and safety glasses for protection
• Use extreme caution when using ladders or when on roof tops
• Be aware of electrical wiring locations in walls and ceilings
The following actions will void the warranty on your venting
system:
• Installation of any damaged venting component
• Unauthorized modification of the venting system
• Installationofany component part not manufacturedor approved
by DESA International
• Installation other than as instructed by these instructions
VENTING INSTALLATION
WARNING: This gas fireplace and vent assembly
must be vented directly to the outside. The venting
system must NEVER be attached to a chimney serv-
ingaseparatesolidfuelburningappliance.Eachgas
appliance must use a separate vent system. Do not
use common vent systems.
WARNING: Horizontal sections of this vent sys-
tem require a minimum clearance of 2" from the top
of the vent pipe and 1" minimum to the sides and
bottom. Vertical sections of this system require a
minimumof1"clearancetocombustiblematerialson
all sides of the vent pipe.
INSTALLATION PLANNING
There are two basic types of direct-vent installation:
• Horizontal Termination
• Vertical Termination
Itis important to select theproper length of vent pipefor the type of
termination you choose. It is also important to note the wall
thickness.
For Horizontal Termination: Select the amount of vertical rise
desired. The horizontal run of venting must have 1/4" rise for every
12" of run towards the termination.
WARNING: Never run the vent downward as this
may cause excessive temperatures which could
cause a fire.
You may use one or two 90° elbows in this vent configuration. See
Horizontal Termination Configurations on page 12.
For Vertical Termination: Measure the distance from the fireplace
flue outlet to the ceiling. Add the ceiling thickness, the vertical rise
inanatticorsecondstory,andallowforsufficientventheightabove
the roofline. You may use one or two 90° elbows in this vent
configuration. See Vertical Termination Configurations on pages
14 and 15.
Note: You may use two 45° elbows in place of a 90° elbow. You
must follow rise to run ratios when using 45° elbows.
For two-story applications, firestops are required at each floor
level.Ifan offset is needed inthe attic, additional pipe andelbows
will be required.
Youmayuseachasewithaventterminationwithexposedpipeonthe
exteriorofthehouse.SeeInstallingVent SysteminaChase, page10.
YourVanguarddirect-ventfireplacehasbeentestedforaminimum
3'rise with a maximum10" wall thickness. Themaximum horizon-
tal run is 20' with 8' vertical rise (see Installation for Horizontal
Termination,pages10through12).Themaximumverticalrunis30'
(see Installation for Vertical Termination, pages 12 through 15).
It is very important that the venting system maintain its balance
between the combustion air intake and the flue gas exhaust. Certain
limitationsapplytoventconfigurationsandmustbestrictlyfollowed.
NOTICE: Do not seal termination cap to pipe. Cap
must be removable for servicing vent system.

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
10
VENTING INSTALLATION
Installation Planning (Cont.)
Installation For Horizontal Termination
NOTICE: Treatment of firestops and construction of
the chase may vary from building type to building
type. These instructions are not substitutes for the
requirements of local building codes. You must fol-
low all local building codes.
Installing Vent System in a Chase
Achase is avertical boxlike structure builtto enclose ventingthat runs
alongtheoutsideofabuilding.Achaseisnotrequiredforsuchventing.
VENTING INSTALLATION
Continued
Note: When installing in a chase, you should insulate the chase as
you would the outside walls of your home. This is especially
importantin coldclimates. Minimumclearance betweenvent pipes
and combustible materials such as insulation is 1" (2.5cm).
After framing the chase (see Framing on pages 5 and 6) install the
vent system by following the installation instructions.
INSTALLATION FOR HORIZONTAL
TERMINATION
1. Determine the route your horizontal venting will take. Note:
The location of the horizontal vent termination on the exterior
wall must meet all local and national building codes and must
not be blocked or obstructed.
CAUTION: Horizontally terminated venting con-
figurationsrequireonefootofverticalrisefromthe45°
elbow before any horizontal run can be made. Failure
tomeetventingrequirementsmaycauseperformance
problems and possible damage to the fireplace.
Figure 15 - Snorkel Termination with Drainage Pipe
Figure 14 - Snorkel Termination
Snorkel
12" Minimum
1' Minimum
90º
45º
Adequate
Drainage
12" Minimum
Snorkel
1' Minimum
90º
45°
Female
Locking Lugs
Male Slots
Rigid Vent Pipe Flexible Vent Pipe
Spacer
Spring
4" Clamp
7" Clamp
4" Flex
Pipe
7" Flex
Pipe
Figure 16 - Vent Pipe Connections
Snorkel terminations are available for terminations requiring a
vertical rise on the exterior of the building (see Figures 14 and
15). Snorkel kit SVK is also available (see page 15). Follow the
sameinstallationprocedures used for standard horizontal termi-
nations. If installing the snorkel termination below grade (base-
ment applications), you must provide proper drainage to pre-
vent water from entering the snorkel termination (see Figure
15). Do not back fill around the snorkel termination.
2. Rigid vent pipes and fittings have special twist-lock connections.
Assemble the desired combination of pipe and elbows to the ap-
plianceadaptorwithpipe seamsorientedtowards thewallorfloor.
Twist-lock Procedure: The female ends of the pipes and fit-
tings have four locking lugs (indentations). These lugs will
slide straight into matching slots on the male ends of adjacent
pipes and fittings. (All connections must be sealed with high
temperature silicone sealant as specified in the second warn-
WARNING:Donotrecessventterminalintoawall
or siding.

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
11
11
VENTING INSTALLATION
Installation For Horizontal Termination (Cont.)
WARNING: Do not recess vent termination in to
any wall. This will cause a fire hazard.
VENTING INSTALLATION
Continued
Figure 17 - Vent Opening Requirements
Figure 18 - Installing Horizontal Vent Cap
Wood Screw
Vent Cap
Figure19-InstallingVinylSidingStandoff(CombustibleExterior
Wall)
Cut Vinyl Siding
Away to Fit Standoff
Wood Screw
Bolt
Standoff
Vent Cap
Apply Mastic
to All Four Sides
Vent Cap
(Horizontal
Termination)
Interior Wall
SurfaceInterior Wall Firestop
(Combustible
Exterior Wall Only)
Horizontal
Vent Pipe
Figure 20 - Connecting Vent Cap with Horizontal Vent Pipe
Screw
ing statement on page 9.) Push the pipe sections together and
twist one section clockwise approximately one-quarter turn
until the sections are fully locked. See Figure 16. Note: Hori-
zontal runs of vent must be supported every three feet. Use
wall straps for this purpose.
Flexible vent pipe must be installed with spacer springs every
12" (30.5cm). See Figure 16, page 10.All connections must be
clamped tightly and sealed with high temperature silicone seal-
ant as specified in the second warning statement on page 9.
3. Attach vent pipe assembly to the fireplace. Set fireplace in
front of it’s permanent location to insure minimum clearances.
Mark the wall for a 10" square hole (for noncombustible ma-
terial such as masonry block or concrete, a 7 1/2" (19.1cm)
diameter hole is acceptable). See Figure 17. The center of
the hole should line up with the center-line of the horizontal
rigid vent pipe. Cut a 10"x10" (25.4cm x 25.4cm) square hole
through combustible exterior wall (7 1/2" [19.1cm] diameter
hole if noncombustible). Frame as necessary (see Figure 17).
4. Noncombustible Exterior Wall: Apply a bead of non-harden-
ing mastic around the outside edge of the vent cap. Position the
vent cap in the center of the 7 1/2" (19.1cm) hole on the exterior
wall with the arrow on the vent cap pointing up. Attach the vent
cap with four wood screws provided (see Figure 18). Note : Re-
placethewoodscrews withappropriatefastenersfor stucco,brick,
concrete, or other types of siding.
Combustible ExteriorWall: For vinyl siding, stucco, or wood
exteriors, a siding standoff must be installed between the vent
cap and exterior wall. The siding standoff prevents excessive
heat from damaging sidingmaterials. Siding materials must be
cut to accommodate standoff. Bolt the vent cap to the stand-
off. Apply non-hardening mastic around outside edge of the
standoff. Position the standoff/cap assembly in the center of
the 10" (25.4cm)square hole and attach to exterior wall with
woodscrews provided (seeFigure 19).Thesiding standoff must
sit flush against the exterior fascia material.
5. Combustible Exterior Wall Only: Slide the interior wall
firestop over the vent pipe before connecting the horizontal
run to the vent cap (see Figure 20).
6. Carefully move the fireplace with vent assembly attached to-
ward the wall and insert the vent pipe into the horizontal termi-
nation. The pipe overlap should be a minimum of 11/4" (3.2cm).
Fasten all vent pipe connections (except vent cap) with screws
provided. Refer to Framing on pages 5 and 6 for instructions
on securing unit to framing or floor.
7. Combustible Exterior Wall Only: Slide the wall firestop
against the interior wall surface and attach with screws pro-
vided (see Figure 20).

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
12
VENTING INSTALLATION
Installation For Horizontal Termination (Cont.)
Installation For Vertical Termination
VENTING INSTALLATION
Continued
Figure 21 - Horizontal Termination Configuration for Rigid
Venting Using One 90°Elbow
Figure 22 - Horizontal Termination Using Flexible Venting
HorizontalVenting
Vertical (V) Horizontal (H)
49.5" min. 15" max.
(45°elbow, 1' vertical pipe, 90°elbow)
61.5" min. 34" max.
73.5" min. 58" max.
85.5" min. 10' max.
102.5" min. 20' max.
HorizontalVenting
See information in Figure 21 for
Vertical(V) andHorizontal(H) maxi-
mums and minimums. The same
amounts apply for flexible venting.
FGFVK Vent Kit Shown
Horizontal Termination Configurations
Figures 21 through 23 show different configurations for venting
with horizontal termination. Each figure includes a chart with
vertical minimum/maximum and horizontal maximum dimensions
which must be met. All connections must be sealed with high
temperature silicone sealant as specified in the second warning
statement on page 9. All horizontal terminations require 1/4" rise
per 12" of horizontal run.
Note: The PA-47-6 Pipe Adaptor
Must Be Attached Prior to the
45°Starter Elbow
45°Starter
Elbow Required
Venting withTwo 90°Elbows
Vertical (V) Horizontal (H1) +
Horizontal (H2)
5' min. 4' max.
6' min. 8' max.
7' min. 10' max.
8' min. 15' max.
20' max. 20' max.
Figure 23 - Horizontal Termination Configuration for Rigid
Venting Using Two 90°Elbows with Termination at 90°with
Fireplace
45°Starter
Elbow
Required
1. Determine the route your vertical venting will take. If ceiling
joists, roof rafters, or other framing will obstruct the venting
system, consider an offset (see Figure 24, page 13) to avoid
cutting loadbearing members. Note: Pay special attention to
theseinstallation instructions for requiredclearances (air space)
to combustibles when passing through ceilings, walls, roofs,
enclosures, attic rafters, etc. Do not pack air spaces with insu-
lation.Also note maximum vertical rise of the venting system
and any maximum horizontal offset limitations. Offsets must
fall within the parameters shown in Figure 13 on page 8.
2. Set the fireplace in desired location. Drop a plumb line down
from the ceiling to the position of the fireplace exit flue. Mark
the center point where the vent will penetrate the ceiling. Drill
a small locating hole at this point.
Drop a plumb line from the inside of the roof to the locating
hole in the ceiling. Mark the center point where the vent will
penetrate the roof. Drill a small locating hole at this point.
INSTALLATION FOR VERTICAL
TERMINATION
NOTICE:Use rigid pipe only.Flexventing is not tobe
used with a vertical termination.

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
13
13
VENTING INSTALLATION
Installation For Vertical Termination (Cont.)
VENTING INSTALLATION
Continued
4. Connect a section of pipe and extend up through the hole.
Note: If an offset is needed to avoid obstructions, you must
support the vent pipe every 3 feet (91.4cm). Use wall straps
for this purpose (see Figure 24). Whenever possible, use 45°
elbows instead of 90° elbows. The 45° elbow offers less re-
striction to the flow of the flue gases and intake air.
5. Place the flashing over the pipe section(s) extending through
the roof. Secure the base of the flashing to the roof and framing
with roofing nails. Be sure roofing material overlaps the top
edge of the flashing as shown in Figure 24. There must be a 1"
(2.5cm) clearance from the vent pipe to combustible materials.
6. Continue to add pipe sections until the height of the vent cap
meets the minimum building code requirements described in
Figure 13 on page 8. Note : You must increase vent height for
steep roof pitches. Nearby trees, adjoining rooflines, steep
pitched roofs, and other similar factors may cause poor draft
or down-drafting in high winds. Increasing the vent height may
solve this problem.
7. Twist-lock the vent cap onto the last section of vent pipe and
seal with high temperature silicone sealant as specified in the
second warning statement on page 9.
Note: Iftheventpipepassesthroughanyoccupiedareasabovethefirst
floor,includingstoragespacesandclosets,youmustenclosepipe.You
may frame and sheetrock the enclosure with standard construction
material. Make sure and meet the minimum allowable clearances to
combustibles.Donot fillany oftherequired airspaces withinsulation.
Cathedral Ceiling Installation
1. Remove shingles or other roof covering as necessary to cut the
rectangular hole for the support box. Mark the outline of the
cathedral ceiling support box on the roof sheathing using the
locating hole as a center point.
2. Cut the hole 1/8" (0.3cm) larger than the support box outline
(see Figure 26).
3. Lower the support box through the hole in the roof until the
bottom of the box extends at least 2" (5.1cm) below the ceil-
ing (see Figure 26).Align the support box vertically and hori-
zontallyusing a level.Temporarilytack the support boxin place
through the inside walls and into the roof sheathing.
Flat Ceiling Installation
1. Cut a 10" square hole in the ceiling using the locating hole as a
centerpoint. Theopening should be framed to10"x10"(25.4cm
x 25.4cm) inside dimensions, as shown in Figure 17 on page 11
using framing lumber the same size as the ceiling joists. If the
area above the ceiling is an insulated ceiling or a room, nail
firestop from the top side. This prevents loose insulation from
falling into the required clearance space. Otherwise, install
firestop below the framed hole. The firestop should be installed
with no less than three nails per side (see Figure 25).
2. Assemblethedesiredlengthsofpipeandelbowsnecessarytoreach
from the fireplace flue up through the firestop. All connections
must be sealed with high temperature silicone sealant as specified
in the second warning statement on page 9. Be sure all pipe and
elbow connections are fully twist-locked (see Figure 16, page 10).
3. Cut a hole in the roof using the locating hole as a center point.
(Cover any exposed open vent pipes before cutting hole in
roof.) The 10"x10" (25.4cm x 25.4cm) hole must be measured
on the horizontal; actual length may be larger depending on
the pitch of the roof. There must be a 1" clearance from the
ventpipe to combustiblematerials. Frame the openingas shown
in Figure 17 on page 11.

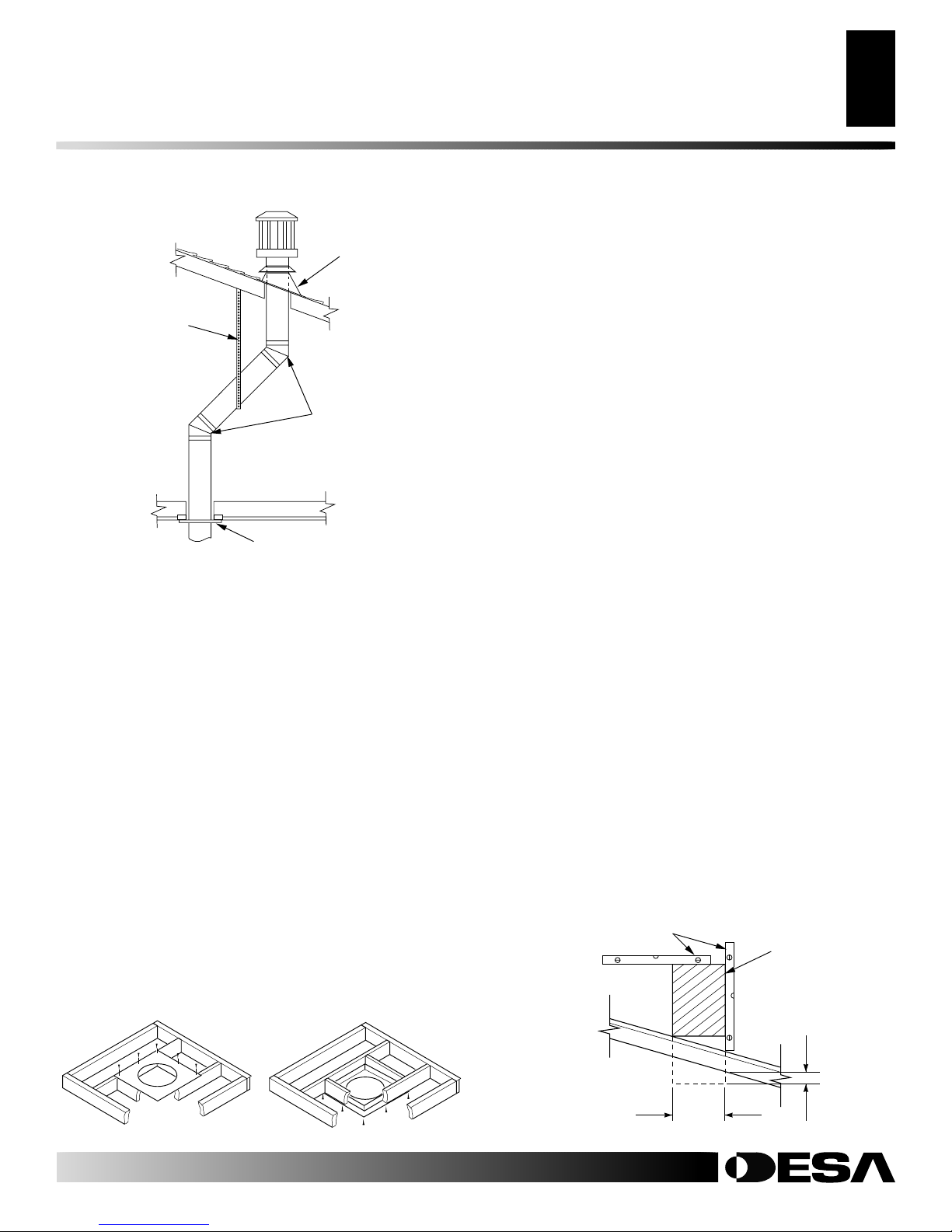

Figure 24 - Offset with Wall Strap and 45°Elbows
45°Elbow
Wall Strap
Roof
Flashing
Ceiling Firestop
Figure 25 - Installing Firestop
Ifareaaboveisnotaroom,install
firestop below framed hole.
If area above is a room, install
firestop above framed hole.
Figure 26 - Cathedral Ceiling Support Box Installation
Cut hole 1/8" (0.3cm) larger
than support box when
projected onto roofline
2" (5.1cm)
minimum
below
finished
ceiling
Level Cathedral ceiling
support box

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
14
Figure 27 - Installed Cathedral Ceiling Support Box
Nonhardening Mastic under
all edges of support box
before nailing
4. Using tin snips, cut the support box from the top corners down
to the roofline and fold the resulting flaps over the roof sheath-
ing (see Figure 27). Apply a bead of non-hardening mastic
around the top edges of the support box to make a seal be-
tween the box and the roof. Nail in place with roofing nails.
Remove any combustible material that might be inside of the
support box.
5. Complete the cathedral ceiling installation by following the
same procedures outlined in steps 2 through 7 for Flat Ceiling
Installation, page 13
.
VENTING INSTALLATION
Continued
VENTING INSTALLATION
Installation For Vertical Termination (Cont.)
Vertical Termination Configurations
Figures 28 through 31 show four different configurations for verti-
cal termination. All connections must be sealed with high tempera-
turesiliconesealantasspecifiedinthesecondwarningstatementon
page 9. Venting withTwo 90°Elbows
Vertical (V) Horizontal (H1) +
Horizontal (H2)
5' min. 2' max.
6' min. 4' max.
7' min. 6' max.
8' min. 8' max.
20' max. 8' max.
Figure 28 - Vertical Rigid Venting Configuration Using Two 90°
Elbows with Two Horizontal Runs
45°Starter Elbow
Required
Venting with One 90°Elbow
Vertical (V) Horizontal (H)
5' min. 2' max.
6' min. 4' max.
7' min. 6' max.
8' min. 8' max.
20' max. 8' max.
Figure 29 - Vertical Rigid Venting Configuration Using One 90°
Elbow
45°Starter
Elbow
Required
Venting withTwo 90°Elbows
Vertical (V1) Horizontal (H)
5' min. 6' max.
6' min. 12' max.
7' min. 18' max.
8' min. 20' max.
Note: Vertical (V1) +
Vertical (V2) = 20' max.
Figure 30 - Vertical Rigid Venting Configuration Using Two 90°
Elbows
45°Starter Elbow
Required

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
15
15
VENTING INSTALLATION
Continued
VENTING INSTALLATION
Installation For Vertical Termination (Cont.)
High Altitude Installation
Parts Lists For Venting Kits And Components
Vertical Venting
V = 30' max.
RVF Kit Shown
Figure 31 - Vertical Rigid Venting Configuration With No
Horizontal Run
45°Starter Elbow
Required
HIGH ALTITUDE INSTALLATION
Your Vanguard direct-vent fireplace has been CSA tested and
approved for operation at altitudes in the USA from 0-2000 ft. and
in Canada from 0-45000 ft.
When installing this fireplace at an elevation above 2000 feet (in the
USA), you may need to decrease the input rating by changing the
existing burner orifice to a smaller size. Reduce input 4% for each
1000 feet above sea level. Check with your local gas company for
proper orifice size identification.
When installing this fireplace at an elevation above 4500 feet (in
Canada), check with local authorities.
Consult your local gas company to help determine the proper orifice
for your location.
For assistance with any high altitude installation contact DESA
International’s Technical Service Department at 1-866-672-6040.
PARTS LISTS FOR VENTING KITS AND
COMPONENTS
Vanguard Rigid Venting
Number Description
P47-6 6" Galvanized Coaxial Pipe Section
P47-12 12" Galvanized Coaxial Pipe Section
P47-24 24" Galvanized Coaxial Pipe Section
P47-36 36" Galvanized Coaxial Pipe Section
P47-48 48" Galvanized Coaxial Pipe Section
PA47-712 Adjustable7"-12"GalvanizedCoaxialPipeSection
VKG-47 Galvanized Ground Floor Vent Kit
Includes: 45º Elbow, 7"-12" Adjustable Pipe, Wall
Firestop,HorizontalSquareTermination,and16Screws
VKB-47 Basement Galvanized Vent Kit
Includes: 45º Elbow, 7"-12" Adjustable Pipe, Wall
Firestop, Horizontal Square Termination, 4' Pipe, 90°
Elbow, and 20 Screws
VKS-47 Snorkel Galvanized Kit
Includes: 45º Elbow, 7"-12" Adjustable Pipe, Wall
Firestop, 36" Snorkel Termination, 4' Pipe, 90° Elbow,
and 26 Screws
VKR-47 Roof Rigid Vent Kit
Includes: 45º Elbow, 7"-12" Adjustable Pipe, Flue Re-
strictor,VerticalHighWindTermination,2'Pipe,4'Pipe,
FirestopPlate,Roof Flashing(0/12-6/12),and18 Screws
VKC-47 Corner Vent Kit
Includes: 45º Elbow, 7"-12" Adjustable Pipe, Horizon-
tal Termination, 6" Pipe, 90° Elbow, Wall Firestop, and
18 Screws
DESA International Elbows
Number Description
E47-45 45°Elbow, Galvanized
E47-90 90°Elbow, Galvanized
DESA International Terminations
Number Description
HT-47 Horizontal Round Galvanized Termination
HTS-47 Horizontal Square Galvanized Termination
VT-47 Vertical Round Galvanized Termination
ST-47-14 14" Snorkel Galvanized Termination
ST-47-36 36" Snorkel Galvanized Termination
*NOTICE: The 7PA-47-6 pipe adaptor is required for
use with the DESA 7 1/4" x 4 1/4" pipe. It MUST be
attached at the vent collar prior to assembly.

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
16
PARTS LISTS FOR VENTING KITS AND
COMPONENTS
(Cont.)
DESA International Venting Accessories
Number Description
SC-47 Galvanized Storm Collar
WF-47 Galvanized Wall Firestop
RF-47-6 Galvanized Roof Flashing, 0 to 6/12 Pitch
RF-47-12 Galvanized Roof Flashing, 6/12 to 12/12 Pitch
VR-47 Galvanized Vertical Restrictor
S-47 Galvanized Combustible Siding Standoff
WS-47 Wall Strap
FP-47 Firestop Plate
PA-47-6 Galvanized 6" Pipe Adaptor (Required)
VENTING INSTALLATION
Parts Lists For Venting Kits And Components (Cont.)
INSTALLATION
Wall Switch Installation
Electrical Hookup For Blower Accessory
WARNING:Donotwireremotewallswitchtomain
power supply (Standard 120v household current).
INSTALLATION
WALL SWITCH INSTALLATION
Since the VDDVF36 series models use a valve that operates on
millivoltcurrentgenerated bythepilot, awallswitch(notincluded)
may be used to activate the gas control valve without the use of
normal household electricity.
1. To remove the louvers, simultaneously pull both top end spring
latches towards the center of the appliance until they are dis-
engaged from locating holes. Repeat for bottom end spring
latches and pull outward. Reverse the procedure to install lou-
vers back onto the appliance (see Figure 32).
2. Connect the 18 ga. wires from wall switch (not included) to
the gas control valve and microswitch, as shown in Figure 33.
ELECTRICAL HOOKUP FOR BLOWER
ACCESSORY
Before blower accessory can be operated, it must be properly
connected to a standard 120 VAC power source. Refer to Wiring
Diagram on page 28.
An outlet box with two receptacles has been supplied for your
convenience, located on the lower left side of the appliance (see
Figure34).Anoptionalremotecontrolmaybeinstalledatanytime.
CAUTION: Due to high temperatures, make sure
no wires are touching the bottom of the firebox.
Figure 32 - Removing Louver
Glass
Locating
Holes
Spring
Latch
Figure 33 - Wall Switch Wiring Diagram
O
F
F
P
I
L
O
T
O
N
L
O
H
I
P
I
L
O
T
EA
16AI
7
TPTH TP TH
Wall Switch
(Supplied)
Route Millivolt Wires
(Supplied) Through Gas
Line Conduit Sleeve
To Thermopile
(Back View)
Note: Ifanyoftheoriginalwiresuppliedmustbereplaced,usetype
18 AWG-105 degree C (25 feet length MAXIMUM) or equivalent.
Figure 34 - Connecting Blower Accessory to Power Supply
For Optional
Fan Kit
From Blower
Assembly
VENTING INSTALLATION
Continued

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
17
17
INSTALLATION
Optional Wireless Hand-Held Remote Control (GHRC Series) Installation
INSTALLATION
Continued
OPTIONAL WIRELESS HAND-HELD REMOTE
CONTROL (GHRC SERIES) INSTALLATION
Note: If using an optional wireless hand-held remote control, the
wall switch is no longer operational.
NOTICE: Only use alkaline batteries (not included).
Installing Receiver
1. Remove access panel from lower front face of firebox. Lift
straight up on access panel until it stops. Pull bottom of access
panel forward, then down.
2. Disconnect wall switch wires from TH and TPTH terminals
on control valve (see Figure 33).
3. Install remote receiver unit onto mounting bracket using the
two plastic mounting clips (see Figure 35).
4. Connect wires to control valve. Connect white wire to termi-
nal TH. Connect red wire to terminal TPTH.
5. Locate the battery clip mounted on the back of the receiver
(see Figure 36).
6. Slide 9-volt battery (not included) through the clip.
7. Attach the terminal wires to the battery (see Figure 36).
8. Replace access panel. Place top of access panel into opening and
slide up. Push bottom of access panel in and slide down to install.
Figure 35 - Installing Remote Receiver (Shown from Rear of
Mounting Bracket)
Receiver
Mounting
Bracket
Plastic
Mounting
Clips
Figure 36 - Installing Battery in Receiver
Battery Clip
9-Volt Battery
Receiver
Terminal Wires
Installing 9-Volt Alkaline Battery in Hand-Held
Remote Control Unit
1. Remove battery cover on back of remote control unit.
2. Attach terminal wires to the battery (not included). Place bat-
tery into the battery housing.
3. Replace battery cover onto remote control unit.
Figure 37 - Installing Battery in Hand-Held Remote Control Unit
Battery Cover
9-Volt
Battery
Terminal Wires Remote Control
Unit
Battery
Housing

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
18
VENTING INSTALLATION
Gas Line Hook-Up
INSTALLATION
Continued
GAS LINE HOOK-UP
WARNING: Gas line hookup should be done by
your gas supplier or a qualified service person.
WARNING: Before you proceed, make sure your
gas supply is OFF.
Anequipmentshutoffvalvehasbeenincludedintheappliance’sgas
supply system. You may consider installing an extra gas shutoff
valve outside the appliance’s enclosure (check with local codes)
where it can be accessed more conveniently with a key through a
wall as shown in Figure 38.
Route a 1/2" NPT black iron gas line towards the appliance coming
in from the left. It is recommended to route the pipe between the
standofthefireboxandthesurroundofthefireplace(seeFigure39).
IMPORTANT: Theappliance andits individualshutoffvalvemust
be disconnected from the gas supply piping system during any
pressuretestingofthatsystemattestpressuresinexcessof1/2psig.
(3.5kPa). Theappliancemustbeisolatedfromthegassupplypiping
systembyclosingitsindividualequipmentshutoffvalveduringany
pressure testing of the gas supply piping system at test pressures
equal to or less than 1/2 psig. (3.5 kPa).
CAUTION: Compounds used on threaded joints
of gas piping shall be resistant to the action of
Liquefied Petroleum (LP or propane), and should be
applied lightly to ensure excess sealant does not
enter the gas line.
CAUTION: Do not kink flexible gas line.
1. Install a sediment trap between the incoming gas line and the
gas control valve (see Figure 39). The sediment trap should
extend down the center of the pipe. Refer to your local codes.
2. Prepare incoming gas line and check with local codes regard-
ing the use of teflon tape. Complete your gas line installation
by connecting incoming gas line with flexible gas line. Se-
cure tightly with a wrench, but Do NOT overtighten.
WARNING: All gas piping and connections must
be tested for leaks after the installation is completed.
Afterensuringthat thegasvalveisopen,apply a soap
and water solution to all connections and joints. If
bubbles appear, leaks can be detected and corrected.
Do not use an open flame for leak testing and do not
operate any appliance if a leak is detected.
WARNING: Improper installation, adjustment, al-
teration, service, or maintenance can cause injury or
property damage. Refer to this manual. For assis-
tance or additional information, consult a qualified
installer, service agency, or gas supplier.
GAS RATING
TYPE OF GAS NATURAL PROPANE/LP
Max. Input Rating: 30,000 Btu/hr 28,000 Btu/hr
Orifice Size (0-4,500 Ft.): 7/64" #52
Minimum Input Rating: 21,000 Btu/hr 20,000 Btu/hr
(When the Valve is in
the LOW Position)
Manifold Pressure: 3.5 in. WC 10.0 in. WC
**Minimum Supply 4.5 in. WC 11.0 in. WC
Pressure:
**Maximum Supply 10.5 in. WC 13.0 in. WC
Pressure:
** For the purpose of input adjustment.
Back Wall
Of Appliance
Incoming 1/2"
Gas Line
Permitted by
Local Codes
Figure 39 - Sediment Trap
Sediment Trap (Not Supplied)
Figure 38 - Typical Exterior Wall Gas Shutoff Installation
Key Extension
Shutoff Valve

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
19
19
INSTALLATION
Gas Supply Testing
Installing Log Set
INSTALLATION
Continued
GAS SUPPLY TESTING
Note: This section is intended as a guide for qualified service
technicians installing gas to the appliance.
CAUTION:Donotconnectappliancebeforepres-
suretestinggaspiping.Damagetothegasvalvemay
result and an unsafe condition may be caused.
The millivolt system with a manual HI/LO applies only to the
VDDVF36STN/STPandVDDVF36PN/PPmodels.The gascontrol
valveis securedunderneath thefirebox withtwo bracketsfastened to
thefireboxbottom.Twopressuretapsareprovidedonthegascontrol
valve for a pressure gauge connection (see Figure 40).
O
F
F
P
I
L
O
T
O
N
L
O
H
I
P
I
L
O
T
EA
16AI
7
TPTH TP TH
Figure 40 - Millivolt Control Valve
Pilot Adjustment Cap
ON/OFF
Knob
Outlet
Pressure
Inlet Pressure
Pilot Gas Line -
Do Not Kink
To Pilot
Burner
To Main
Burner
Flame Adjustment Knob
INSTALLING LOG SET
Before proceeding, make sure the gas control valve is in the “OFF”
position. Logshavebeenpackagedseparatelytopreventdamageto
glass or refractory.
1. Remove topandbottom louvers by simultaneouslypulling both
top end spring latches towards the center of the appliance until
they are disengaged from locating holes. Repeat for bottom
end spring latches and pull outward. Reverse procedure to
install louvers back.
2. Remove the screen rod by sliding spring clip on one end to-
ward the center. Slide rod into screen rod hole until other end
of rod is free. Remove rod.
3. To open the glass door, open the pairs of latches located on the
top and bottom of the firebox (see Figure 41). Note: Use cau-
tion when opening these latches.
4. Carefully open the door. The glass door is mounted to the fire-
box with 5 screws.
5. To remove the logs from the shrink wrap, carefully cut the
plastic around the perimeter of the log. Do not try to remove
the logs from the package without first cutting the plastic.
6. Figure 42 shows the log set. Logs “A” have the knot at the end
of the log. Logs “B” have the knot at the middle of the log.
Twigs “C” have the shape of a “Y”. Twigs “D” have the shape
ofbenttwigs.Twig “E” is a straight twig whichis placed across
the top of Logs “B”.
7. Figure 43, shows the top view of the burner and grate.
8. Place logs “A” as shown in Figure 44.
Open Close
Figure 41 - Opening Door Latches
Figure 42 - Log Set (9 Pieces)
Left
Right
Back
Front
Figure 44 - Installing Logs “A”(Top View)
Left
Front
Right
Back
Figure 43 - Burner and Grate (Top View)
A
A
B
B
C
C
D
D
E

106918-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
20
WARNING: Improper installation, adjustment, al-
teration, service, or maintenance can cause injury or
property damage. Refer to this manual. For assis-
tance or additional information, consult a qualified
installer, service agency, or gas supplier.
Left
Front
Right
Back
BB
A
A
Figure 45 - Installing Logs “B ”(Top View)
Left
Right
Back Front
D
C
C
D
E
Figure 46 - Installing Twigs “C, D, E ”(Top View)
9. Place logs “B” as shown in Figure 45. Lift the end of log “A”
that will be propped up and place log “B” under it.At the same
time, the other side of log “B” is placed over the other log
“A”. Repeat procedure for the other log “B”.
10. Take twigs “C” (shaped like a “Y”) and place them as shown
in Figure 46.
11. Take twigs “D” (bent twig) and place them as shown in Figure 46.
12. Place twig “E” across the top of logs “B” a shown in Figure 46.
13. When finished installing the logs, close the glass doors while
making certain that the safety door switch is fully depressed by
thedoor framebefore securingthefour (4)spring loadedlatches.
14. Replace the louvers in reverse order with the grilles pointing
in the down position.
VENTING INSTALLATION
Installing Log Set (Cont.)
Decorative Facing
PILOT ASSEMBLY ADJUSTMENT
BURNER FLAME ADJUSTMENT
INSTALLATION
Continued
DECORATIVE FACING
Anynoncombustiblematerialmaybeusedforfacing(glass,tile,brick,etc.)
as long as the proper clearances are observed (see Clearances, page 5).
IMPORTANT: Louveredopeningsmustnotbeobstructed,andupperand
lowerpanelsmustremainremovableforservicing.Useonlyheat-resistant,
noncombustible mortar or adhesive when securing facing material.
Note: Combustiblematerial,such aswood,thathas beenfireproofed
is not considered noncombustible.
PILOT ASSEMBLY
ADJUSTMENT
The pilot assembly is factory preset for the proper flame height.
Alteration to these settings may have occurred during shipping and
handling. If this is the case, some minor adjustment may be neces-
saryandshouldbedonebyaqualifiedtechnician.Toaccessthepilot
assembly,theglassdoormustbeopened.Thepropersettingsforthe
thermopile height should be at a distance of 3/8" (.95cm) to 1/2"
(1.3cm) from the pilot flame as shown in Figure 47.
Figure 47 - Correct Pilot Flame Pattern
1/8"
(0.3cm) 3/8" - 1/2"
(.95cm-1.3cm)
BURNER FLAME ADJUSTMENT
The air shutter, located at the underside of the main burner (see
Figure 48), has been factory preset to the proper air-to-gas ratio
whichresults in aneven, clean burningflame across theburner (see
Figure 49). If readjustment is necessary, you can restore the proper
air-to-gasratiobylooseningtheairshutterscrewandrotatingtheair
shutter until the proper flame setting is achieved (the shutter's
normal setting is “full opened”. Do not forget to retighten the air
shutter screws.
Figure 49 - Burner Flame Patterns
CORRECT
INCORRECT
CLOSE SHUTTER
INCORRECT
OPEN SHUTTER
Short, Sharp, Blowing Flame
Long, Blue Flame with Yellow Tips
Long, Uneven, Yellow Flame
Figure48-ConnectingVenturiandOrifice
Air Shutter Orifice Burner
Firebox Bottom
Venturi Tube
Burner Gas Line
