OPERATION AND MAINTENANCE INSTRUCTIONS

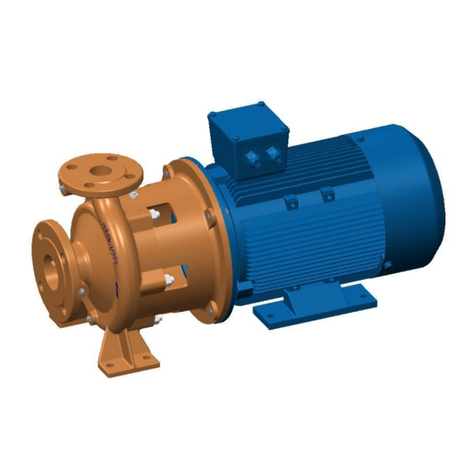

DESMI Centrifugal Pump
MODULAR H
DESMI PUMPING TECHNLOGY A/S
Tagholm 1 –DK-9400 Nørresundby –Denmark
Tel.:
[phone]
Fax:
[phone]
E-mail:
[email protected]
Internet:
www.desmi.com
Special pump No..................................................
Manual:
T1340
Language:
English
Revision:
E (04/13)

Contents
1. PRODUCT DESCRIPTION ............................................................................................................................................3
1.1 DELIVERY .................................................................................................................................................................... 3
2. TECHNICAL DATA ......................................................................................................................................................3
2.1 EXPLANATION OF THE TYPE NUMBER ........................................................................................................................ 3
2.2 TECHNICAL DESCRIPTION ........................................................................................................................................... 4
3. INSTALLATION ...........................................................................................................................................................5
3.1 MOUNTING/FASTENING ............................................................................................................................................ 5
3.2 WIRING....................................................................................................................................................................... 6
4. TRANSPORT/STORAGE...............................................................................................................................................6
5. DISMANTLING...........................................................................................................................................................7
5.1 ACCESS TO IMPELLER AND SHAFT SEAL ...................................................................................................................... 7
5.2 DISMANTLING SHAFT SEAL ......................................................................................................................................... 7
5.3DISMANTLING SEAT.................................................................................................................................................... 7
5.4 DISMANTLING SHAFT WITH BEARINGS....................................................................................................................... 7
5.5 INSPECTION ................................................................................................................................................................ 7
6. ASSEMBLING.............................................................................................................................................................7
6.1 FITTING SEALING RING IN PUMP CASING ................................................................................................................... 7
6.2 FITTING SHAFT WITH BEARINGS ................................................................................................................................. 8
6.3 FITTING WATER DEFLECTOR ....................................................................................................................................... 8
6.4 FITTING SHAFT SEAL ................................................................................................................................................... 8
6.5 FITTING IMPELLER ...................................................................................................................................................... 8
6.6 FITTING BEARING HOUSING AND SHAFT SEAL COVER ................................................................................................ 8
6.7 SHAFT ......................................................................................................................................................................... 8
7. FROST PROTECTION ..................................................................................................................................................9
8. DISMANTLING...........................................................................................................................................................9
9. START-UP..................................................................................................................................................................9
9.1 STARTING ................................................................................................................................................................... 9
10. SYSTEM BALANCING .............................................................................................................................................10
11. INSPECTION AND MAINTENANCE..........................................................................................................................11
11.1 DRAINING THE PUMP ............................................................................................................................................. 12
11.2 BEARINGS ............................................................................................................................................................... 12
12. REPAIRS ................................................................................................................................................................12
12.1 ORDERING SPARE PARTS ........................................................................................................................................ 12
13. OPERATING DATA ..................................................................................................................................................12
14. EU DECLARATION OF CONFORMITY ......................................................................................................................14
15. ASSEMBLY DRAWING............................................................................................................................................15
16. SPARE PARTS LIST ..................................................................................................................................................15
17. DIMENSIONAL SKETCH ..........................................................................................................................................16

______________________________________________________________________________
DESMI Pumping Technology A/S 3
Tagholm 1
9400 Nørresundby –Denmark
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.desmi.com
1. PRODUCT DESCRIPTION
These operation and maintenance instructions apply to the DESMI MODULAR H pump
series. The pumps are available in sizes ranging from 40 to 80 mm on the pressure flange.
The suction flange is bigger than the pressure flange.
DESMI H is a single-stage centrifugal pump with stainless steel shaft, mechanical shaft seal,
and closed impeller.
The pump is suitable for the pumping of clean and polluted liquids with temperatures between
0 and 80°C. With special shaft seal up to 140°C. Max. number of revolutions: 3600 RPM.
The pump has horizontal inlet on the centre line and vertical outlet at the top.
The back of the impeller is equipped with relief blades to reduce the load on the bearings.
Relief holes in the impeller ensure circulation of liquid for the shaft seal and prevent
overheating of the shaft seal during normal operation.
The pump is particularly suitable for the pumping of water in connection with washing plants,
air conditioning, cooling systems, and sanitary systems, etc. Furthermore, in the majority of
cases where transport of liquid is required within industry.
1.1 DELIVERY
- Check on delivery that the shipment is complete and undamaged.
-Defects and damages, if any, to be reported to the carrier and the supplier
immediately in order that a claim can be advanced.
2. TECHNICAL DATA
The pumps are manufactured in various material combinations which appear from the type
number on the name plate. See below.
2.1 EXPLANATION OF THE TYPE NUMBER
All the H pumps are provided with a name plate. The type number indicated on the name
plate is built up as follows:
H-XX-YYY-MR
XX,YYY: Pump size.
M: The material combination of the pump.
R: The assembly combination of the pump.
M may be the following:

______________________________________________________________________________
DESMI Pumping Technology A/S 4
Tagholm 1
9400 Nørresundby –Denmark
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.desmi.com
A: Standard. Casing: GG20. Impeller:AlBz.
C: All cast iron.
D: Casing: BSP5, Impeller: AlBz.
E: Special alloy.
The pumps can be delivered in other material combinations which are agreed with the
supplier.
R may be the following:
02: Monobloc, flange-mounted with electric motor.
07: On base plate with petrol or diesel engine, or with electric motor.
09: With bare shaft end.
10: Special-tailored according to task.
Any use of the pump is to be evaluated on the basis of the materials used in the pump. In
case of doubt, contact the supplier.
The pump is particularly suitable for the pumping of water for cooling of diesel engines and
cooling units, as bilge pump, ballast pump, fire pump, for irrigation, fish farms, water works,
water lowering and much more.
Pumps in material combinations A and C are primarily used for fresh water.
Pumps in material combination D are primarily used for sea water.
If the pumps are designed for special purposes the following is to be indicated:
Pump No. : _______________________________________________________
Pump type: _______________________________________________________
Application: _______________________________________________________:
Comment : _______________________________________________________
2.2 TECHNICAL DESCRIPTION
The noise level indicated is the airborne noise including the motor. The noise depends on the
motor type supplied, as the noise from the pump can be calculated as the noise level of the
motor + 2dB(A). The noise levels indicated are for pumps with MEZ-motors.
The capacity of the pump appears from the name plate on the pump. If the pump has been
delivered without motor the pump capacity is to be indicated on the plate when mounting the
motor.
The permissible loads on the flanges appear from the following table:

______________________________________________________________________________
DESMI Pumping Technology A/S 5
Tagholm 1
9400 Nørresundby –Denmark
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.desmi.com
Pump
Ø
Pressure
branch
Fv
N
Fh
N
ΣF
N
ΣMt
Nm
H-40-160
40
1350
1000
1700
220
H-50-160
50
1350
1000
1700
220
H-50-200
50
1350
1000
1700
200
H-65-160
65
1450
1050
1800
270
H-65-200
65
1450
1050
1800
270
H-80-200
80
1800
1250
2200
470
In connection with the permissible loads on the flanges the following is to be observed:
v
F
zin
F
zout
F
3
2
h
F
Fyout Fxout Fyin Fxin  2222
t
M
MZout Myout Mxout Mzin Myin Mxin  222222
2
22






















t
M
calcM
F
calcF
where indices "in" is suction branch, "out" is pressure branch, and "calc" are the values
calculated by the user.
3. INSTALLATION
3.1 MOUNTING/FASTENING
The pump should be mounted and fastened on a solid base plate with a flat and horizontal
surface to avoid distortion.
The max. permissible loads on the flanges stated in paragraph 2.2 are to be observed.
When mounting a V-belt pulley on the pump a bore H7 is recommended. To facilitate the
mounting the hub in the V-belt pulley may be heated to abt. 100°C after which the V-belt
pulley is easily lead over the shaft towards the shoulder. Alternatively, a V-belt pulley may be
mounted with a TAPER LOCK bush.
When dimensioning the V-belt pulley it is important to follow the rules of the DESMI
nomograms for the pump size in question - contact DESMI.
If the pump is to be driven by a motor via a flexible coupling, motor and pump are tobe placed

______________________________________________________________________________
DESMI Pumping Technology A/S 6
Tagholm 1
9400 Nørresundby –Denmark
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.desmi.com
on a common base plate. The following should be observed:
- Avoid distortion of the base plate.
- Avoid distortion in the piping system.
- Check that pump and motor are aligned correctly.
When connecting the pump and a prime mover the power transmission is to be
equipped with a guard in accordance with the provisions of the COUNCIL
DIRECTIVE of June 14, 1989, on the safety of machines.
At installations pumping hot or very cold liquids, the operator must be aware that
it is dangerous to touch the pump surface, and, consequently, he must take the
necessary safety measures.
3.2 WIRING
Wiring to be carried out by authorized skilled workmen according to the rules and
regulations in force.
4. TRANSPORT/STORAGE
The weights of the pumps (in A09 combination) are indicated in the following table, and the
pumps are to be lifted as shown.
Pump
Weight kg
H-40-160
28.5
H-50-160
30.0
H-65-160
36.0
H-50-200
35.0
H-65-200
41.0
H-80-200
61.5
The pump is to be stored in a dry area.
Before shipment the pump is to be fastened securely on pallets or the like.
The pump is to be lifted as shown here:
The lifting straps must not bear against sharp edges and corners.

______________________________________________________________________________
DESMI Pumping Technology A/S 7
Tagholm 1
9400 Nørresundby –Denmark
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.desmi.com
5. DISMANTLING
5.1 ACCESS TO IMPELLER AND SHAFT SEAL
Remove Allen screws (22), which hold the shaft seal cover to the pump casing, and pull the
bearing housing to remove the complete bearing housing with impeller, bearings, and shaft.
5.2 DISMANTLING SHAFT SEAL
Remove nut (6). Pull off the impeller. Remove Allen screws (19), which hold the bearing
housing to the shaft seal cover, pull shaft seal cover and bearing housing apart, by which
shaft seal and water deflector are pulled off the shaft.
5.3 DISMANTLING SEAT
Press out the seat from behind the shaft seal cover.
5.4 DISMANTLING SHAFT WITH BEARINGS
Before dismantling the shaft with bearings, remove the sunk key (16). The shaft can now be
pulled out of the bearing housing allowing inspection of the bearings.
5.5 INSPECTION
When the pump has been dismantled, check the following parts for wear and damage:
- Sealing ring/impeller: Max. clearance 0.4-0.5 mm measured in radius.
- Shaft seal/shaft seal cover: Check the seat for flatness and cracks.
Check the rubber parts for elasticity.
- Bearings: Replace in case of wear and noise.
6. ASSEMBLING
6.1 FITTING SEALING RING IN PUMP CASING
When fitted, the sealing ring is to bear against the shoulder of the pump casing.

______________________________________________________________________________
DESMI Pumping Technology A/S 8
Tagholm 1
9400 Nørresundby –Denmark
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.desmi.com
6.2 FITTING SHAFT WITH BEARINGS
Lead shaft with bearings into the bearing housing. Fit sunk key (16).
6.3 FITTING WATER DEFLECTOR
Assemble the bearing housing and the shaft seal cover. Lead the water deflector over the
shaft until it touches the shaft seal cover and then further 1-1.5 mm into the shaft seal cover.
6.4 FITTING SHAFT SEAL
Before fitting the seat, clean the recess in the shaft seal cover. When fitting the seat, remove
the protective coating without scratching the lapped surface. Dip the outer rubber ring of the
seat into
olive oil (or another neutral oil). Now press the seat into place with the fingers and check that
all parts are correctly imbedded. If it is necessary to use tools for assembling, then protect
the sliding surface of the seat to prevent it from being scratched or cut. Lubricate the inner
diameter of the slide ring rubber bellows with olive oil and push it over the shaft. The use of
a fitting bush as shown on the assembly drawing is recommended to avoid that the rubber
bellows is cut. Push the slide ring over the shaft with the hand. If the rubber bellows is tight,
use a fitting tool and take care that the slide ring is not damaged.
If the carbon ring is not fixed, it is important to check that it is fitted correctly, i.e. the
chamfered/lapped side is to face the seat. The carbon ring can be held by a little grease.
When using oil on the shaft, the bellows will settle and seat in about 15 minutes, and until
then tightness should not be expected. After start, check by viewing the leak hole that there
are no leaks.
6.5 FITTING IMPELLER
Fit the sunk key in the shaft and lead the impeller towards the shoulder of the shaft. Take
care that the ring at the end of the shaft seal spring locates in the recess of the impeller.
Secure the impeller with a washer and a nut.
6.6 FITTING BEARING HOUSING AND SHAFT SEAL COVER
Place the gasket between pump casing and shaft seal cover on the shaft seal cover where it
can be held with a little grease. Fit and fasten bearing housing with shaft seal cover. Check
that the drain passage for the shaft seal faces downwards.
6.7 SHAFT
When the pump has been assembled, check that the shaft rotates freely.

______________________________________________________________________________
DESMI Pumping Technology A/S 9
Tagholm 1
9400 Nørresundby –Denmark
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.desmi.com
7. FROST PROTECTION
Pumps which are not in operation duringfrost periods are to be drained to avoid frost damage.
Remove the plug at the bottom to empty the pump. Alternatively, it is possible to use anti-
freeze liquids in normal constructions.
8. DISMANTLING
Before dismantling the pump make sure that it has stopped. Empty the pump of
liquid before it is dismantled from the piping system. If the pump has been
pumping dangerous liquids you are to be aware of this and take the necessary
safety measures.
If the pump has been pumping hot liquids, take great care that it is drained before
it is removed from the piping system.
9. START-UP
A centrifugal pump will not function until it has been filled with liquid between the
foot valve and somewhat above the impeller of the pump.
The liquid also serves as coolant for the shaft seal. In order to protect the shaft seal the pump
must not run dry.
ATTENTION
For safety reasons the pump is only allowed to operate against closed suction and discharge
valves for a short time (max. 5-10 minutes and at a max. temperature of 130°C). Otherwise
there is a risk of damage to the pump and, at worst, of a steam explosion. If the pump room
is unmanned, the installation of a safety device is recommended.
9.1 STARTING
Before starting the pump check that:
- the shaft rotates freely without jarring sounds.
- the pump casing and the suction line are filled with liquid.
Start the pump for a moment to check the direction of rotation. If the direction is correct (i.e.
in the direction of the arrow) the pump may be started.

______________________________________________________________________________
DESMI Pumping Technology A/S 10
Tagholm 1
9400 Nørresundby –Denmark
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.desmi.com
10. SYSTEM BALANCING
It is often difficult to calculate a manometric delivery head in advance. It is, however,
decisively important to the quantity of liquid delivered.
A considerably smaller delivery head than expected will increase the quantity of liquid
delivered, causing increased power consumption and perhaps cavitation in pump and piping.
In the pump the impeller may show signs of heavy erosion caused by cavitation (corrosion)
which may at times render an impeller unfit for use in a very short time. Not unusually do
similar erosions occur in pipe bends and valves elsewhere in the piping system.
Therefore, after start-up, it is necessary to check either the quantity of liquid delivered or the
power consumption of the pump e.g. by measuring the current intensity of the connected
motor.
Together with a reading of the differential pressure the quantity of water delivered can be
determined against the characteristics of the pump.
Should the pump not function as intended, please proceed according to the fault-finding list.
Bear in mind, though, that the pump was carefully checked and tested at the factory and that
the majority of faults stem from the piping system.

______________________________________________________________________________
DESMI Pumping Technology A/S 11
Tagholm 1
9400 Nørresundby –Denmark
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.desmi.com
FAULT
CAUSE
REMEDY
The pump has no or
too low capacity
1.Wrong direction of
rotation
2.Piping system choked
3.The pump is choked
4.Suction line leaks
pump takes air
5.Suction lift too high
6.Pump and piping system
wrongly dimensioned
Change direction of
rotation to clockwise
when viewed from
shaft end (the
direction of the arrow)
Clean or replace
Clean the pump
Find the leakage,
repair
the fault, non-return
valve not submerged
Check data sheet
Q/H
curve and NPSH or
contact DESMI
As 5
The pump uses too
much power
1.Counter-pressure too
low
2. The liquid is heavier
than water
3. Foreign body in pump
4. Electric motor is
running on 2 phases
Insert orifice plate or
check valve/Contact
DESMI
Contact DESMI
Dismantle the pump,
remove the cause
Check fuses, cable
Connection, and
cable
The pump makes
noise
1.Cavitation in pump
Suction lift too high/
Suction line wrongly
Dimensioned/Liquid
Temperature too high
11. INSPECTION AND MAINTENANCE
Inspect the shaft seal for leaks at regular intervals.
-Before inspection of a pump without guard check that the pump cannot be started
unintentionally.
- The system is to be without pressure.
- The repairman must be familiar with the type of liquid which has been pumped as
well as the safety measures he is to take when handling the liquid.

______________________________________________________________________________
DESMI Pumping Technology A/S 12
Tagholm 1
9400 Nørresundby –Denmark
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.desmi.com
11.1 DRAINING THE PUMP
When the piping system has been drained, note that there is still liquid in the pump.
Remove the liquid by dismantling the pipe plug (75) at the bottom of the pump.
11.2 BEARINGS
The pump is equipped with ball bearings with a nominal life of 25,000 working hours when
direct coupled to electric motor, whereas the nominal life with overhanging V-belt drive is
about 10,000 working hours. The bearings are lubricated for life and require no attention but
are to be replaced in case of noise or bearing wear.
12. REPAIRS
12.1 ORDERING SPARE PARTS
When ordering spare parts please always state pump type and serial No. (appears from the
name plate of the pump). See also spare parts drawing with item Nos.
13. OPERATING DATA
The following working pressures are allowed:
PUMP
H-40-160
H-50-160
H-65-160
H-50-200
H-65-200
H-80-200
PRESSURE
mWC
80
80
80
110
110
110
The above-mentioned max. working pressure is NOT valid for pumps approved by a
classification society. Pumps approved by classification societies have been pressure tested
according to the requirements of these societies, i.e. a test pressure of 1.5 x the permissible
working pressure. The test pressure is stated in the test certificate and stamped into the
discharge flange of the pump.
The powers stated in the table below are the highest possible absorbed by the pump,
whereas the min./max. values for flow and pressure indicate DESMI's recommended
operating range for the pump.

______________________________________________________________________________
DESMI Pumping Technology A/S 13
Tagholm 1
9400 Nørresundby –Denmark
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.desmi.com
Impeller
diameter Ø
Max. power
kw
1450/1750/-
2950/3500 RPM
Min. Power
m3/h
1450/1750/-
2950/3500 RPM
Max. Flow
m3/h
1450/750/-
2950/3500 RPM
Min. Pressure
mWC
1450/1750/-
2950/3500 RPM
Max. Pressure
mWC
1450/1750/-
2950/3500 RPM
H-40-160 Ø175
0.8/1.3/5.7/9.4
8.0/11.0/18.0/22
26/30/50/68
4.0/7.0/20/28
9.0/13.0/37/53
H-40-160 Ø165
0.6/1.1/4.8/8
7.0/8.0./15.0/19
25/30/45/57
3.5/5.5/17.0./23
8.4/12.0/34/47
H-40-160 Ø 155
0.5/0.9/4.0/6.5
6.0/7.0/12.5/15
23/28/43/55
3.0/4.7/13.0/18
7.3/10.7/30/42
H-50-160 Ø175
1.0/1.7/8.0/13.0
18.0/20/35/36
41/49/83/98
6.0/9.0/24/98
9.2/13.6/38/54
H-50-160 Ø165
0.9/1.5/6.8/11.2
15.0/18.0/27/32
38/47/79/95
5.5/8.2/22/95
8.4/12.4/35/49
H-50-160 Ø175
0.7/1.3/5.8/9.5
14.0/17.0/26/31
37/45/75/88
4.9/7.2/20/90
7.7/11.1/32/44
H-65-160 Ø175
1.8/3.0/13.2/22
36/44/73/80
78/93/157/184
5.2/7.6/21/30
8.6/12.5/35/50
H-65-160 Ø165
1.5/2.5/11.0/18.0
32/40/60/70
75/85/151/170
3.0/6.0/16.0/25
7.2/11.0/32/44
H-65-160 Ø155
1.3/2.1/8.8/15.0
25/32/50/60
70/78/141/165
1.5/4.5/9.0/15.0
6.2/9.2/27/38
H-50-200 Ø220
2.5/4.2/18.5/31
23/25/40/47
53/62/95/114
9.5/15.0/46/63
15.2/22/63/88
H-50-200 Ø205
2.1/3.5/15.5/26
20/22/35/40
50/58/90/108
9.0/13.5/42/57
14.0/20/57/80
H-50-200 Ø190
1.8/3.0/13.2/22
17.0/18.0/30/33
47/55/85/103
7.8/12.0/35/51
12.6/18/51/72
H-65-200 Ø220
3.3/5.8/27/44
37/45/76/86
90/105/182/200
9.0/14.0/37/57
15.0/22/61/86
H-65-200 Ø205
2.7/4.7/22/36
32/38/63/72
85/95/170/186
8.0/12.5/32/49
13.2/19.0/53/75
H-65-200 Ø190
2.2/3.7/17.5/29
23/27/46/52
77/90/157/172
7.0/10.5/28/42
11.6/16.8/47/66
H-80-200 Ø220
4.8/8.2/38/63
56/72/112/115
140/168/270/330
8.2/12.0/33/41
14.7/21/61/85
H-80-200 Ø205
3.9/6.7/31/51
50/60/95/105
130/156/260/300
7.1/10.4/27/38
12.7/18.5/53/73
H-80-200 Ø190
3.1/5.3/24/40
40/43/88/95
120/145/245/280
6.2/9.0/23/31
11.2/16.2/46/64

______________________________________________________________________________
DESMI Pumping Technology A/S 14
Tagholm 1
9400 Nørresundby –Denmark
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.desmi.com
14. EU DECLARATION OF CONFORMITY
DESMI PUMPING TECHNLOGY A/S, hereby declare that our pumps of the Modular H type
are manufactured in conformity with the following essential safety and health requirements in
the COUNCIL DIRECTIVE 2006/42/EC on machines, Annex 1.
The following harmonized standards have been used:
EN/ISO 13857:2008
Safety of machinery. Safety distances to prevent danger zones being
reached by the upper limbs
EN 809 + A1
Pumps and pump units for liquids –Common safety requirements
EN/ISO12162+A1:2009
Liquid pumps –Safety requirements –Procedure for hydrostatic
testing
EN 60204-1:2006
Safety of machinery –Electrical equipment of machines (item 4,
General requirements)
Pumps delivered by us connected with prime movers are CE-marked and comply with the
above requirements.
Pumps delivered by us without prime movers (as partly completed machinery) must only be
used when the prime mover and the connection between prime mover and pump comply with
the above requirements.
Nørresundby, Jan 25, 2013
Kurt Bech Christensen
Technical Director
DESMI PUMPING TECHNLOGY A/S
Tagholm 1
9400 Nørresundby

______________________________________________________________________________
DESMI Pumping Technology A/S 15
Tagholm 1
9400 Nørresundby –Denmark
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.desmi.com
15. ASSEMBLY DRAWING
16. SPARE PARTS LIST
1 Pump casing 15 Ball bearing
2 Pipe plug 16 Sunk key
3 Pipe plug 17 Shaft
4 Sealing ring 18 Bearing housing
5 Impeller 19 Allen screw
6 Nut 20 Shaft seal cover
7 Spring collar 21 Gasket
8 Washer 22 Allen screw
9 Sunk key 27 Pipe plug
10 Mechanical shaft seal 80 Sealing washer
11 Water deflector 81 Sealing washer
12 Ring lock 82 Sealing washer
13 Ball bearing
14 Support disc

______________________________________________________________________________
DESMI Pumping Technology A/S 16
Tagholm 1
9400 Nørresundby –Denmark
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.desmi.com
17. DIMENSIONAL SKETCH
Type
a
f
l
g
h2
h1
d
t
u
s
m2
m1
C
b
n2
H-40-160
80
292
50
125
160
132
24j6
27
8
14
70
100
12
50
190
H-50-160
100
292
50
145
180
160
24j6
27
8
14
70
100
12
50
212
H-65-160
100
292
50
171
200
160
24j6
27
8
14
95
125
12
65
212
H-50-200
100
292
50
160
200
160
24j6
27
8
14
70
100
12
50
212
H-65-200
100
292
50
185
225
180
24j6
27
8
14
95
125
12
65
250
H-80-200
125
385
80
192
250
180
32j6
35
10
14
95
125
14
65
280
Type
nl
D1
K1
Dn1
Y1
D2
K2
Dn2
Y2
Q
R
H-40-
160
240
185
145
65
4xø18
150
110
40
4xø18
¼” BSP
3/8”BSP
H-50-
160
265
185
145
65
4xø18
165
125
50
4xø18
¼” BSP
3/8”BSP
H-65-
160
280
200
160
80
8xø18
185
145
65
4xø18
3/8” BSP
3/8”BSP
H-50-
200
265
185
145
65
4xø18
165
125
50
4xø18
3/8” BSP
3/8”BSP
H-65-
200
320
200
160
80
8xø18
185
145
65
4xø18
3/8” BSP
3/8”BSP
H-80-
200
345
220
180
100
8xø18
200
160
80
8xø18
3/8” BSP
3/8”BSP
