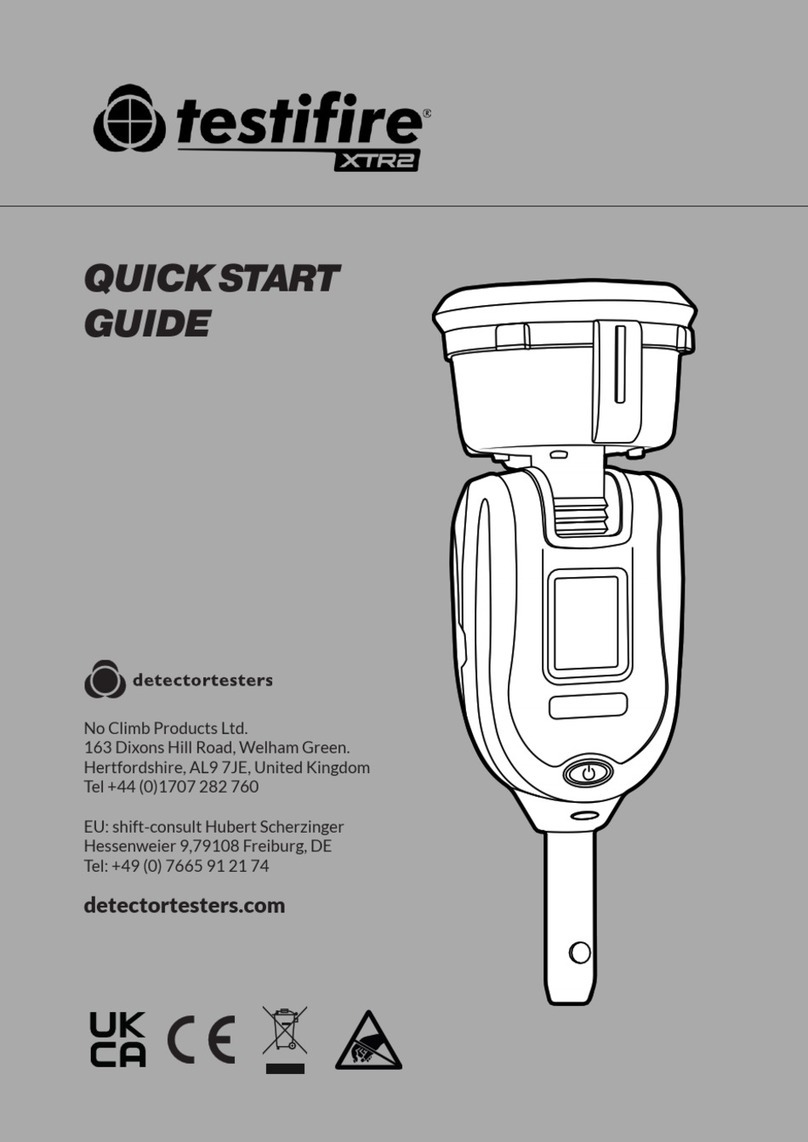

Detectortesters testifie XTR2 User manual

QUICK START
GUIDE
detectortesters.com
EU: shift-consult Hubert Scherzinger
Hessenweier 9,79108 Freiburg, DE
Tel: [phone]
No Climb Products Ltd.
163 Dixons Hill Road, Welham Green.
Hertfordshire, AL9 7JE, United Kingdom
Tel [phone]

PRODUCT REGISTRATION
1GETTING STARTED WITH
DT CONNECT
STEP 1
Visit https://detectortesters-connect.com to create
your account.
STEP 2
Sign into the Cloud Portal to register your device. You will
need to purchase a subscription to use connected services
however your XTR2 comes with an extended free trial
which starts from the moment you register your device.
You will be informed via the portal and DT Connect app
when your free trial subscription is about to expire.

Get the DT Connect app
For help with DT Connect,
including the app, Cloud Portal
and subscriptions, scan the QR
code:
STEP 3
Download the DT Connect app for your smartphone device
from the App Store or Google Play Store. The following
smartphones are supported:
• Apple iPhone with iOS 12 or later
• Android OS 8 or later

GETTING STARTED
2CHARGING THE BATTERY
The battery is charged by placing the battery pack into the
charge cradle and connecting to a power source using the
supplied mains adaptor.
100%
Battery LEDs
50%
75% 25%
Important: Testire XTR2 needs to be paired to the user's
smartphone via the DT Connect app before rst use.

3INSTALLING THE GENERATOR
Take care not to touch exposed electrical contacts when
installing product components. Ensure all
components are securely tted.
2
1
• Ensure unit is switched off and open the back cover
• Insert the generator rmly, engaging clips 1 and 2

4INSTALLING THE SMOKE CARTRIDGE
Slide the smoke cartridge completely into the smoke
generator housing following the guide rails.
Note: Do not insert the smoke cartridge until the
generator has been fully tted.
In order to ensure maximum capacity from each new
smoke cartridge, Testire XTR2 must be paired with
the DT Connect app.

5INSTALLING THE BATTERY
Clip the battery into place.

USING THE CLOUD PORTAL
The Cloud Portal can be accessed by all users with admin
privileges and enables users to:
• View, download and send test reports in
PDF or CSV format
• Register new devices and purchase new
subscriptions
• Register new technicians or back-ofce
staff to your company

HELP AND SUPPORT
Contact Detectortesters for help and support with
Testire XTR2 and DT Connect:
Email: [email protected]
https://www.detectortesters.com/troubleshooting
Download the full user manual by
scanning the QR code.
EU COMPLIANCE DECLARATION
Hereby, Detectortesters (No Climb Products Ltd.)
declares that the radio equipment type Testire XTR2
Smoke & Heat detector is in compliance with Directive
2014/53/EU.
The full text of the EU declaration of conformity is avail-
able at the following internet address:
https://www.detectortesters.com/manuals

ICONS & LED INDICATOR REFERENCE CHARTS
Connect with us
401080-3
LCD DISPLAY ICONS
STATUS INDICATOR LEDS
BLUETOOTH CONNECTION
CARTRIDGE STATUS ICON SOLID ALARM DETECTION
BATTERY STATUS ICON
SOLID BLUE FLASHING BLUE
SOLID RED FLASHING RED
ALTERNATE SOLID RED/BLUE FLASHING ALT RED/BLUE
SOLID ORANGE FLASHING ORANGE
SOLID WHITE FLASHING WHITE
SOLID PURPLE TRIPLE FLASHING GREEN
TRIPLE FLASHING RED
SMOKE TEST SMOKE TEST ACTIVE
WHEN IDLE WHEN ACTIVE
HEAT TEST HEAT TEST ACTIVE
COMBINED TEST COMBINED TEST ACTIVE
DELAYED START DELAYED START ACTIVE
CLEARING CLEARING ACTIVE
SYSTEM FAULT PASSED TEST RESULT
FAILED TEST RESULT
GENERATOR STATUS ICON BLINKING ALARM DETECTION
Testire XTR2 displays the following icons on the LCD display:
Testire XTR2 indicates events as follows:
