Detroit Radiant Products EDX Series User manual

EDX Series
Installation, Operation,
Maintenance, and Parts Manual
LIOEDXc-Rev. 08617
Print: 1c-12/20 (DRPC)
Replaces: 1c-03/19 (DRPC)
WARNING
!
CE Certified 230V-50Hz. (G20, G25, G25.3, and G31) Infrared Tube Heater.
The EDX Series Infrared Tube Heater is a positive pressure, single stage radiant heater system. All persons
involved with the installation, operation, and maintenance of the heater system must read and understand the
information in this manual.
For Your Safety
If you smell gas:
• Do not try to light any appliance. • Immediately call your gas supplier from a neighbor’s phone.
• Do not touch any electrical switch. • Follow the gas supplier’s instructions.
• Do not use any phone in your building. • If you cannot reach your gas supplier, call the fire department.
INSTALLER: Present this manual to the end user.
Keep these instructions in a clean and dry place for future reference.
Model#: ___________________ Serial #: _________________________
(located on rating label)
Improper installation, adjustment, alteration, service, or maintenance can cause
property damage, injury, or death. Read the installation, operation, and maintenance
instructions thoroughly before installing or servicing this equipment.
This heater
must be installed and serviced by a Gas Safe Registered Gas Engineer
only! Conversion of the heater for use with other gases must be carried out by a Gas
Safe Registered Gas Engineer. Failure to comply could result in personal injury,
asphyxiation, death, fire, and/or property damage.
In locations used for the storage of combustible materials, signs must be posted to
specify the maximum permissible stacking height to maintain the required clearances
from the heater to the combustibles. Signs must either be posted adjacent to the
heater thermostats or, in the absence of such thermostats, in a conspicuous location.
0063

2
EDX Series
Contents
1.0 Introduction............................................................... 3
Overview ............................................................ 3
Available Models and Technical Specifications............................... 3
2.0 Safety ................................................................... 4
Warning Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Applications .......................................................... 4
Codes and Regulations................................................. 5
Clearances to Combustibles ............................................. 6
3.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Design Considerations and Prechecks ..................................... 8
Recommended Mounting Heights......................................... 9
Design Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Hanger Placement and Suspension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Radiant Tube Assembly................................................. 14
Optional U-Bend or Elbow Accessory Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Burner Control Box Suspension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Reflector Assembly .................................................... 19
Baffle Assembly and Placement .......................................... 21
Flueing Requirements .................................................. 23
Combustion Air Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Gas Supply and Pressure ............................................... 29
Gas Connection....................................................... 31
Electrical Requirements................................................. 33
Internal Wiring Diagram................................................. 34
4.0 Operation ................................................................ 35
5.0 Maintenance .............................................................. 36
Converting Heaters from One Gas Type to Another ........................... 37
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.0 Parts .................................................................... 42
Burner Assembly Components ........................................... 42
Tube and Reflector Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
7.0 Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

3
EDX Series
* These models are not CE certified for (G31) Propane gas.
1.0 Introduction •Overview •Available Models and Technical Specifications
Overview
The intent of this manual is to provide information regarding general safety, installation, operation, and
maintenance of this tube heater. You must read and understand all instructions and safety warnings
before installing or servicing the tube heater.
Available Models and Technical Specifications
Chart 1.1 • Available Models
1.0 Introduction
Model
Number
High Fire
Rate Length (Installation Kit)
Combustion
Chamber Radiant Tubes
EDX-50 14,7 kW 6 m (20-Kit) 9 m (30-Kit) 12 m (40-Kit) Aluminized Aluminized or HRT
EDX-60 17,6 kW 6 m (20-Kit) 9 m (30-Kit) 12 m (40-Kit) Aluminized Aluminized or HRT
EDX-75 22,0 kW 6 m (20-Kit) 9 m (30-Kit) 12 m (40-Kit) Aluminized Aluminized or HRT
EDX-100 29,3 kW 9 m (30-Kit) 12 m (40-Kit) 15 m (50-Kit) Aluminized Aluminized or HRT
EDX-125 36,7 kW 12 m (40-Kit) 15 m (50-Kit) 18 m (60-Kit) Aluminized Aluminized or HRT
EDX-150 43,0 kW 12 m (40-Kit) 15 m (50-Kit) 18 m (60-Kit) Titanium & Aluminized Aluminized or HRT
EDX-170 50,0 kW 15 m (50-Kit)* 18 m (60-Kit)* 21 m (70-Kit)* Titanium & Aluminized Aluminized or HRT
EDX-188 55,0 kW 15 m (50-Kit)* 18 m (60-Kit)* 21 m (70-Kit)* Titanium & Aluminized Aluminized or HRT
EDX-204 60,0 kW 15 m (50-Kit)* 18 m (60-Kit)* 21 m (70-Kit)* Titanium & Aluminized Aluminized or HRT

4
EDX Series
1.0 Introduction •Overview •Available Models and Technical Specifications
Model (Input)
Gas
Typ e Injector
Injector
Marking
Air Inlet
Orifice
Air Inlet
Marking
Min. Gas
Pressure
Max. Gas
Pressure
High
Rate
Pressure Baffle Length by Model Length (m)
Air
Proving
Set Point
(mm) (DMS) (mm) (“) (mbar) (mbar) (mbar) 6 9 12 15 18 21 (Pa)
EDX-50
(14,7 kW)
G20 3,26 30 36,5 1 7/16 11,5 50,0 9,0 4,22 3,35 1,68 N/A N/A N/A 25
G25 3,26 30 36,5 1 7/16 15,5 50,0 13,0 4,22 3,35 1,68 N/A N/A N/A 25
G31 2,08 45 38,1 1 1/2 27, 5 50,0 25,0 4,22 3,35 1,68 N/A N/A N/A 25
EDX-60
(17,6 kW )
G20 3,73 26 36,5 1 7/16 11,5 50,0 9,0 4,22 3,35 1,68 N/A N/A N/A 25
G25 3,73 26 36,5 1 7/16 15,5 50,0 13,0 4,22 3,35 1,68 N/A N/A N/A 25
G31 2,37 42 36,5 1 7/16 27,5 50,0 25,0 4,22 3,35 1,38 N/A N/A N/A 25
EDX-75
(22,0 kW)
G20 4,22 19 39,7 1 9/16 11,5 50,0 9,0 4,22 3,35 1,68 N/A N/A N/A 25
G25 4,22 19 39,7 1 9/16 15,5 50,0 13,0 4,22 3,35 1,68 N/A N/A N/A 25
G31 2,64 37 41,3 1 5/8 27, 5 50,0 25,0 4,22 3,35 1,68 N/A N/A N/A 25
EDX-100
(29,3 kW)
G20 4,85 11 41,3 1 5/8 11,5 50,0 9,0 N/A 4,22 3,35 1,68 N/A N/A 35
G25 4,85 11 41,3 1 5/8 15,5 50,0 13,0 N/A 4,22 3,35 1,68 N/A N/A 35
G31 2,95 32 47,6 1 7/8 27,5 50,0 25,0 N/A 4,22 3,35 1,68 N/A N/A 35
EDX-125
(36,7 kW)
G20 5,22 5 46,0 1 13/16 12,5 50,0 10,0 N/A N/A 4,22 2,52 1,68 N/A 50
G25 5,22 5 46,0 1 13/16 17,5 50,0 15,0 N/A N/A 4,22 2,52 1,68 N/A 50
G31 3,26 30 50,8 22 7, 5 50,0 25,0 N/A N/A 4,22 2,52 1,68 N/A 50
EDX-150
(43,0 kW)
G20 5,41 347,6 1 7/8 12,5 50,0 10,0 N/A N/A 3,35 3,35 1,68 N/A 50
G25 5,41 347,6 1 7/8 17,5 50,0 15,0 N/A N/A 3,35 3,35 1,68 N/A 50
G31 3,66 27 54,0 2 1/8 27, 5 50,0 25,0 N/A N/A 3,35 3,35 1,68 N/A 50
EDX-170
(50,0 kW)
G20 6,14 C50,8 212,5 50,0 9,0 N/A N/A N/A 2,52 1,68 1,68 50
G25 6,14 C50,8 217,5 50,0 13,2 N/A N/A N/A 2,52 1,68 1,68 50
G31 N/A N/A N/A N/A 27,5 N/A N/A N/A N/A N/A 2,52 1,68 1,68 N/A
EDX-188
(55,0 kW)
G20 6,52 F5 7, 2 2 1/4 12,5 50,0 9,0 N/A N/A N/A 2,52 1,68 1,68 50
G25 6,52 F5 7, 2 2 1/4 17,5 50,0 13,2 N/A N/A N/A 2,52 1,68 1,68 50
G31 N/A N/A N/A N/A 27, 5 N/A N/A N/A N/A N/A 2,52 1,68 1,68 N/A
EDX-204
(60,0 kW)
G20 7,03 J60,3 2 3/8 12,5 50,0 9,0 N/A N/A N/A 1,68 1,68 1,68 50
G25 7,03 J60,3 2 3/8 17,5 50,0 13,2 N/A N/A N/A 1,68 1,68 1,68 50
G31 N/A N/A N/A N/A 27,5 N/A N/A N/A N/A N/A 1,68 1,68 1,68 N/A
All Models: Gas Connection is 1/2” (according to EN-10226/ISO-7). Flue diameter is 100 mm.
This appliance can also be converted and/or adjusted to the appliance category E (I2E) and can be used for the high calorific distribution
gases with a Wobbe-index of 49,4-51,4 MJ/m3 (dry, gross value, 15°). The high calorific distribution gas shall not contain more than
7% C3H8, 12% C2H6, 1,5% CO2, 0,5% H2, and 1,8% H2O vapor. At the same time, the PE value (propane equivalent value) shall not be
higher than 7%.
The Wobbe-index values mentioned above are the values which are guaranteed by the tests acording to EN416 and the extreme limit
gases which are applicable for the appliance categories mentioned above.
Chart 1.2 • Technical Specifications

5
EDX Series 2.0 Safety •Warning Symbols •Applications
2.0 Safety
Improper installation, adjustment, alteration, service, or maintenance can cause property
damage, serious injury, or death. Read and understand the installation, operating, and
maintenance instructions thoroughly before installing or servicing this equipment. Only Gas
Safe Registered Gas Engineers and service personnel may install or service this
equipment, and must do so in accordance with relevant clauses of applicable standards
and recommendations.
WARNING
!
Warning Symbols
Safety is the most important consideration during installation, operation, and maintenance of the radiant tube
heater. You will see the following symbols and signal words when there is a hazard related to safety and/or
property damage.
Warning indicates a potentially hazardous situation
which, if not avoided, could result in serious injury or
death.
Caution indicates a potentially hazardous situation
which, if not avoided, could result in minor or
moderate injury.
Notice indicates a potentially hazardous situation
which, if not avoided, could result in property
damage.
NOTICE
CAUTION
!
WARNING
!
Not For Residential Use. Do not use this heater in the home, sleeping quarters, attached
garages, etc. Installation of a commercial tube heater system in residential indoor spaces
may result in property damage, serious injury, or death.
WARNING
!
Applications
This is not an explosion proof heater. Consult your local fire marshal, insurance carrier, and other authorities
for approval if the proposed installation is in question.
Commercial/Industrial Applications
Unless otherwise indicated, radiant tube heaters are designed and certified for use in commercial and industrial
buildings such as warehouses, manufacturing plants, aircraft hangars, and vehicle maintenance shops. For
maximum safety, the building must be evaluated for potential problems before installing the heating system. A
critical safety factor to consider before installation is the clearances to combustibles.

6
EDX Series
2.0 Safety •Codes and Regulations
Codes and Regulations
The following must be reviewed before installing this heater:
• Check the rating label on the heater to verify the proper gas to be used. Check other labels to the
heater to verify proper mounting and clearances to combustibles.
• Signs must be posted in storage areas to specify maximum stacking heights allowed in order to
maintain published clearances to combustibles.
• Under no circumstance is either the gas supply line or the electrical supply line to the heater to
provide any assistance in the suspension of the heater.
• The weight of the heater must be entirely suspended from a permanent part of the building structure
having adequate load characteristics.
• Neither the gas supply line, electrical supply line, or sprinkler heads shall be located within the
minimum published clearances to combustibles as shown on page 8.
• This heater must be installed in accordance with all national or local codes in force.
• These appliances must be installed in accordance with all relevant gas, technical, electrical, and
ventilation requirements of the applicable local and national regulations for infrared tube heaters.
Specifically, EN13410:2001 “Gas fired overhead radiant heaters: Ventilation requirements for non-
domestic presmises” should be observed.
• Notwithstanding their limited scope, this appliance must be installed in accordance with relevant
provisions of the following regulations:
GB - United Kingdom:
Gas Safety (Installation and Use) Regulations 1998 and BS6891:2015. Due account should be taken
of any obligations arising from the Health and Safety at Work etc. Act 1974, the current Building
Regulations, the current I.E.E. Regulations, and other relevant codes of practice.
IE - Ireland:
I.S.3212-1987, ICP 4, I.S.327. Due account should be taken of any obligations arising for the current
Building Regulations, the current I.E.E. Regulations, and other relevant codes of practice.

7
EDX Series 2.0 Safety •Clearances to Combustibles
Clearances to Combustibles
Combustible/Degrading Items:
• Wood
• Paper
• Fabric
• Chemicals
• Paint
• Parked vehicles
• Gasoline
• Storage racks
• Plastics
• Flexible gas lines
A critical safety factor to consider before installation is the clearances to combustibles. Clearance to
combustibles
is defined as the minimum distance you must have between the tube surface, or reflector, and
the combustible item
. Considerations must also be made for moving objects around the radiant tube heater.
The following is a partial list of items from which to maintain clearances:
Moving Objects:
• Overhead doors
• Vehicles & vehicle lifts
• Cranes
• Hoists
• Trailers
WARNING
!
This is not an explosion proof heater! Placement of explosive objects, flammable
objects, liquids, and vapors close to the heater may result in explosion, fire, property
damage, serious injury, or death. Do not store or use explosive objects, liquids, and
vapors in the vicinity of the heater. Where there is the possibility of exposure to
flammable vapors or highly combustible materials, consult the local fire marshal,
fire insurance carrier, and other authorities for approval of the proposed installation.
WARNING
!
Fire Hazard. Always maintain published clearances to combustibles. Failure to comply with
the stated clearances to combustibles may result in personal injury, property damage, and/or
death. Failure to mount the appliance level may result in personal injury, property damage,
and/or death.
When installing the radiant heating system, the minimum clearances to combustibles for your series radiant
tube heater and system configuration must be maintained. These distances are shown in Chart 2.1 on page 8,
and on the burner control box. If you are unsure of the potential hazards, consult your local fire marshal, fire
insurance carrier, or other qualified authorities on the installation of gas fired radiant tube heaters for approval
of the proposed installation.
In locations used for the storage of combustible materials, signs must be posted to specify the maximum
permissible stacking height to maintain the required clearances from the heater to the combustibles. Signs
must either be posted adjacent to the heater’s thermostat or in a conspicuous location.
The stated clearance to combustibles represents a surface temperature of 50°C (90°F) above room
temperature. Building materials with a low heat tolerance (such as plastics, vinyl siding, canvas, tri-ply, etc.)
may be subject to degradation at lower temperatures. It is the installer’s responsibility to assure that adjacent
materials are protected from degradation.
• Vehicles with lifts or cranes
• Storage areas with stacked materials
• Lights
• Sprinkler heads
• Overhead doors and tracks
• Dirty or contaminated environments
• Gas and electrical lines
• Combustible and explosive materials
• Chemical storage areas
• Areas of high chemical fume concentrations
• Provisions for accessibility to the heater
• Adequate clearances around air openings
• Combustion and ventilating air supply
• Vehicle parking areas
Common Hazards:
For maximum safety the building must be evaluated for hazards before installing the heating system.
Examples include, but are not limited to:

8
EDX Series
3.0 Installation •Clearances to Combustibles
IMPORTANT: For the safe installation of this unit, the clearances to combustibles data below contains
clearances that must be maintained.
Check the rating plate on the heater to verify the minimum clearances to combustibles and gas type for your
model heater.
Model No.
Mounting
Angle* Front Behind To p Below
EDX-50. 60 (14,7 kW. 17,6 kW) 0° 23 23 15 120
45° 99 20 25 120
w/ 1 side shield 0° 74 20 15 120
w/ 2 side shields 0° 23 23 15 120
6,1 m downstream of burner 0° 18 18 15 76
EDX-75 (22,0 kW) 0° 23 23 16 152
45° 99 20 25 152
w/ 1 side shield 0° 74 20 15 152
w/ 2 side shields 0° 23 23 15 152
6,1m downstream of burner 0° 18 18 15 76
EDX-100 (29,3 kW) 0° 36 36 15 168
45° 99 20 25 168
w/ 1 side shield 0° 74 20 15 168
w/ 2 side shields 0° 41 41 15 168
6,1m downstream of burner 0° 18 18 15 76
EDX-125 (36,7 kW) 0° 51 51 15 193
45° 147 20 25 193
w/ 1 side shield 0° 107 20 15 193
w/ 2 side shields 0° 51 51 15 193
6,1m downstream of burner 0° 18 18 15 76
EDX-150 (43,0 kW) 0° 61 61 15 206
45° 147 20 25 206
w/ 1 side shield 0° 107 20 15 206
w/ 2 side shields 0° 58 58 15 206
6,1m downstream of burner 0° 28 28 15 112
EDX-170 (50,0 kW) 0° 86 86 15 234
45° 160 20 25 234
w/ 1 side shield 0° 127 20 15 234
w/ 2 side shields 0° 76 76 15 234
6,1m downstream of burner 0° 28 28 15 112
EDX-188 (55,0 kW) 0° 104 104 15 239
45° 160 20 25 239
w/ 1 side shield 0° 137 20 15 239
w/ 2 side shields 0° 76 76 15 239
6,1m downstream of burner 0° 28 28 15 112
EDX-204 (60,0 kW) 0° 104 104 15 239
45° 160 20 25 239
w/ 1 side shield 0° 137 20 15 239
w/ 2 side shields 0° 76 76 15 239
6,1m downstream of burner 0° 28 28 15 112
*Heaters mounted on an angle between 0° to 45° must maintain clearances posted for 0° or
45°; whichever is greater.
Side
Chart 2.1 • Clearances to Combustibles (cm)
0° Mounting
Angle Top
Side Side
Below
45° Mounting
Angle
Top
Front Behind
Below
0° w/ 1
Side Shield
Top
Front Behind
Below
0° w/ 2 Side
Shields
Top
Side Side
Below
Figure 2.1 • Clearance
Angles
Figure 2.2 • End Clearances
31 cm 31 cm

9
EDX Series 3.0 Installation •Design Considerations and Prechecks
3.0 Installation
Design Considerations and Prechecks
Placement of infrared heaters is influenced by many factors. Aside from safety factors, considerations such as
the number of heater or flue elbows that are allowed, maximum flue lengths, ducting of combustion air, and
combining exhaust flues are a few examples. All installation manuals along with national, state, provincial, and
local codes address these issues. It is critical that you read, understand, and follow all guidelines and
instructions.
To ensure a properly designed heating system, a layout should be developed for the correct placement of the
heating appliance, flues, and combustion air intake ducts. Inspect and evaluate the mounting conditions, flue
locations, gas supply, and wiring. Refer to Chart 3.1 on page 10 for the recommended mounting heights and
coverages for the model being installed.
NOTE: In outdoor applications, the effective infrared surface temperature of a person or object may be
diminished with wind above 8 km/h. The use of adequate wind barrier(s) may be required.
NOTE: When heated, materials high in hydrocarbons (solvents, paint thinner, mineral spirits,
formaldehydes, etc.) can evaporate. This may result in odors or fumes being emitted into the environment.
To correct this problem, clean the area and/or introduce additional ventilation. Heaters installed and
serviced in accordance with the installation manual do not emit odors into the environment. See notice on
page 28 for additional information.
WARNING
!
Improper installation, adjustment, alteration, service, or maintenance can cause
property damage, serious injury, or death.
Read and understand the installation, operating, and maintenance instructions
thoroughly before installing or servicing this equipment.
Only Gas Safe Registered Gas Engineers and service personnel may install or service
this equipment.
When designing an infrared radiant heating system, consider the following:
• Has the building’s heat loss been evaluated?
• Does the design meet the needs of the space?
• Have all clearances to combustible situations been observed?
• Have recommended mounting heights been observed?
• Is the supply (burner) end of the heater located where more heat is required?
• Is it best to offset the heaters and/or rotate the reflectors towards the heat zone?
• Are protective guards, side shields, ‘U’, or ‘L’ reflector covers needed?
• Does the heater require outside fresh air for combustion?
• Is the environment harsh or contaminated (requiring outside air for combustion)?
• Are chemicals or vapor a concern (requiring outside air for combustion)?

10
EDX Series
3.0 Installation •Recommended Mounting Heights
NOTE: Factory recommended mounting heights are listed as a guideline. If infrared heaters are mounted too low or
too high, they may result in heat discomfort or lack of heat. It is generally recommended to observe the recommended
mounting heights to optimize comfort conditions. However, certain applications such as spot heating, freeze
protection, outdoor patio heating, or very high ceilings may result in the heaters being mounted outside of the factory
recommended mounting heights. Clearances to combustibles must always be maintained.
Figure 3.1 •Recommended Mounting Heights and Distances (see chart above for dimensions)
Dim. C
Dim. A
Dim. B
Dim. A
Dim. C

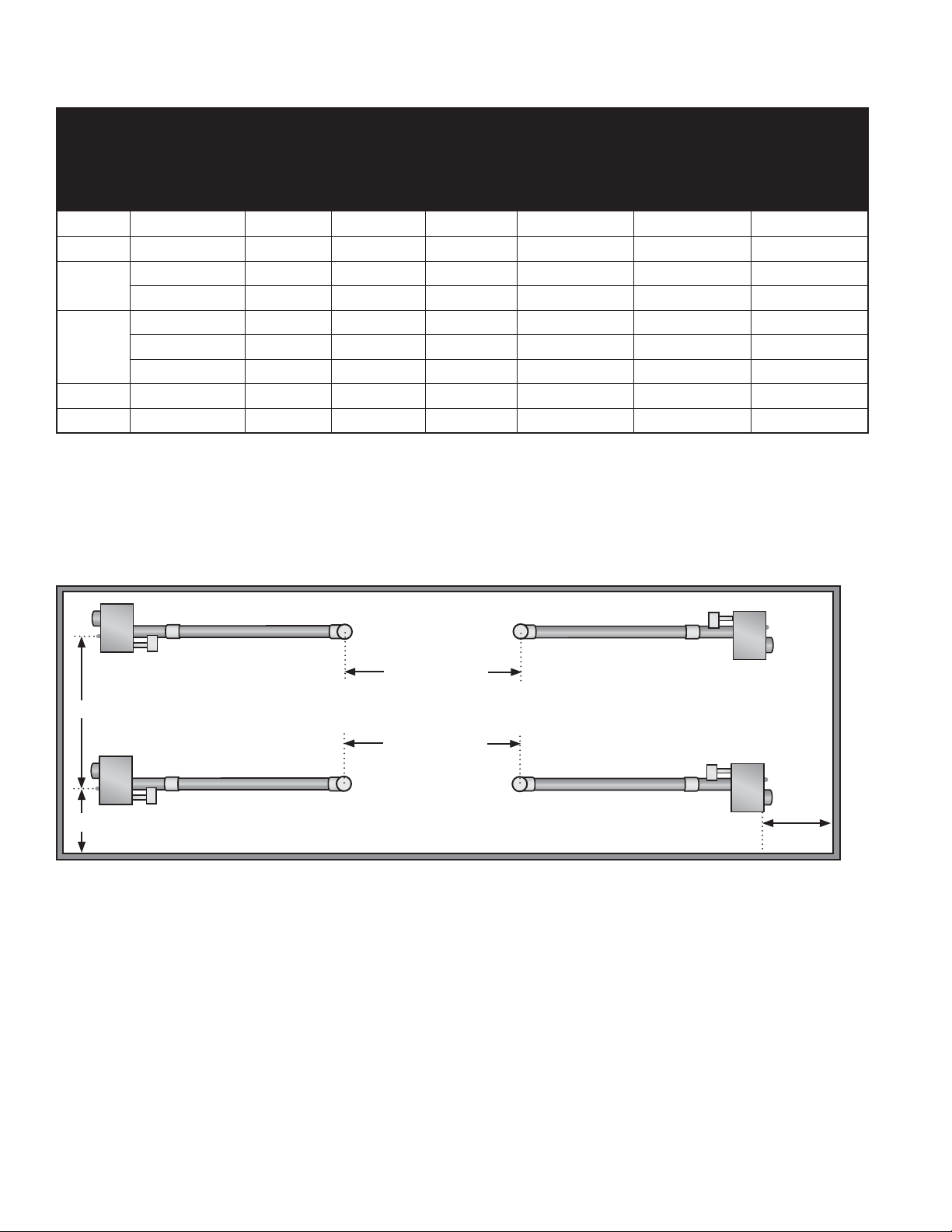

Chart 3.1 • Recommended Mounting Heights
Model
Length
(m)
kW Range
Recom-
mended
Mounting
Heights
(m)
Coverage
Straight
Config.
(LxW) (m)
Coverage
U-Tube
Config.
(LxW) (m)
Distance
Between
Heater Rows
(m) Dim. A
Distance
Between
Heater Rows
(m) Dim. B
Max. Distance
Between
Heaters and
Wall (m) Dim.
C
6 m 14,7 - 22,0 kW 3,3 to 6,1 6,7 x 4,6 N/A 6,1 to 9,1 9,1 to 15,2 5,5
9 m 14,7 - 29,3 kW 3,7 to 7,0 10,0 x 5,5 5,5 x 4,6 6,1 to 9,1 9,1 to 15,2 6,1
12 m 14,7 - 29,3 kW 3,7 to 7,6 13,4 x 6,4 7,0 x 5,2 6,1 to 9,1 9,1 to 15,2 6,1
36,7 - 43,0 kW 4,6 to 9,2 13,7 x 7,9 7,3 x 6,1 9,1 to 12,2 12,2 to 18,3 7,6
15 m
29,3 kW 4,6 to 8,2 16,8 x 7,3 8,5 x 5,8 6,1 to 9,1 9,1 to 15,2 7,6
36,7 - 50,0 kW 4,9 to 12,2 17,0 x 9,2 8,8 x 7,0 9,1 to 12,2 12,2 to 18,3 7,6
55,0 - 60,0 kW 5,5 to 12,5 17,0 x 9,2 8,8 x 7,0 9,1 to 12,2 12,2 to 18,3 7,6
18 m 36,7 - 60,0 kW 5,5 to 12,5 20,4 x 10,4 10,4 x 7,9 9,1 to 12,2 12,2 to 18,3 7,6
21 m 50,0 - 60,0 kW 5,5 to 13,5 23,4 x 10,4 12,0 x 7,9 9,1 to 12,2 12,2 to 18,3 7,6

11
EDX Series 3.0 Installation •Design Scenarios
Design Scenarios
A tube heater system is being installed in a 27,4 m (L) x 15,2 m (W) space with 4,3 m ceilings. Two
overhead doors are located at one end and an equipment storage area exists on one side. The calculated
heat load is 85,0 kW.

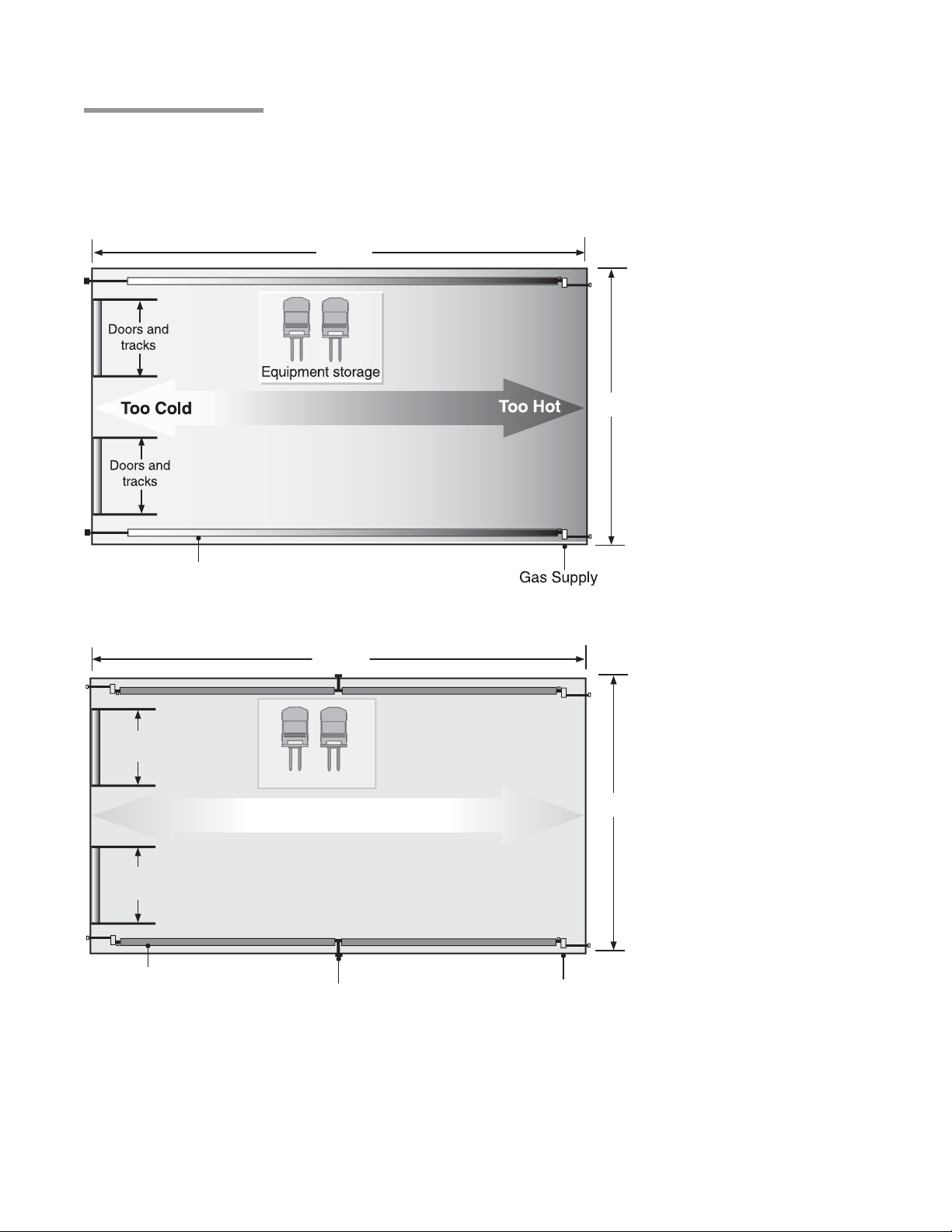

Figure 3.2 •Poor Design
15,2 m
18 m - 43,9 kW, Typ. 2
27,4 m
Doors and
tracks
Doors and
tracks
Equipment storage
Better Heat Distribution
Sidewall Vent, Typ. 2
15,2 m
27,4 m
Gas Supply
12 m - 22,0 kW, Typ. 4
Figure 3.3 •Good Design
• Two burners (43,9 kW
each) are placed at one
end, opposite the area of
highest demand (overhead
doors).
• Recommended mounting
heights are not observed.
• Produces an uneven heat
distribution.
• Four burners (22,0 kW
each) are placed in each
corner. Burner (hotter)
ends direct heat to areas of
highest heat demand.
• Recommended mounting
heights observed.
• Distributes heat more
evenly.

12
EDX Series
3.0 Installation •Hanger Placement and Suspension
Hanger Placement and Suspension
Suspension of the heater must conform to applicable codes referenced in the Safety section and these
instructions.
1Lay radiant tubing out in the following order. Position tubes in their approximate locations (see Figure
3.4).
• Primary combustion chamber.
• Radiant emitter tubes.
IMPORTANT! 43,9–60,0 kW models must use the titanium alloy treated combustion chamber as the
first tube connected to the burner control box. The combustion chamber has an orange identification
sticker located on the swaged end of the tube.
2Mark locations for hanging points (see Figure 3.4).
NOTE: If the available hanging points do not allow for the recommended spacing (or if an alternative
hanging method is utilized) then additional hangers may be necessary.
• The spacing between the burner control box mounting brackets and the first hanger should be
approximately 71 cm.
• The space between the first two hangers placed on the first tube should be approximately 269 cm.
• The space between hangers thereafter, one per tube, should be approximately 295 cm.
WARNING
!
Improper suspension of the radiant tube heater may result in collapse and being crushed.
Always suspend from a permanent part of the building structure that can evenly support the
total force and weight of the heater.
Failure to maintain minimum clearances to combustibles may result in fire and/or explosion,
property damage, serious injury, or death. Always maintain minimum clearances.

13
EDX Series 3.0 Installation •Hanger Placement and Suspension

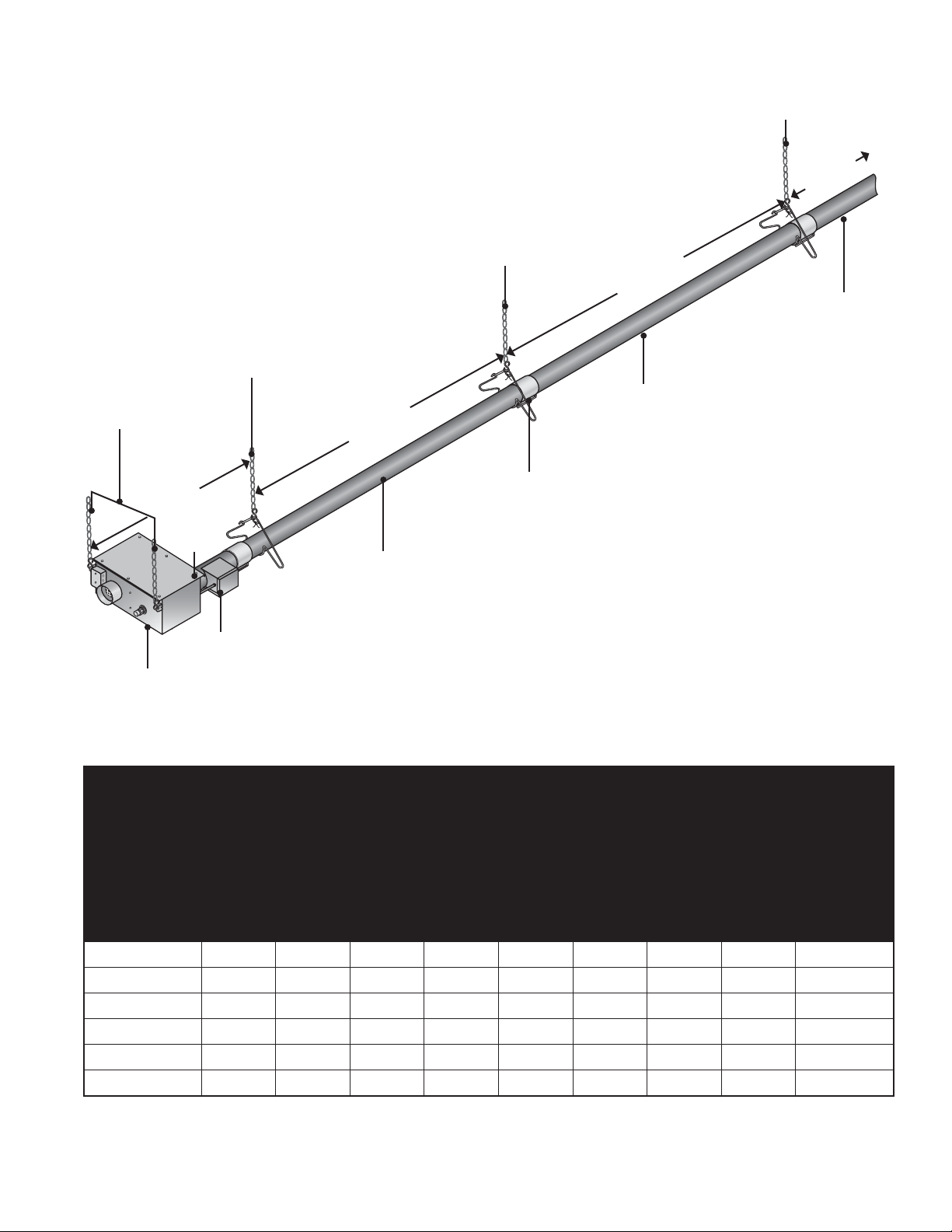

Burner
Tube
3 m Primary Combustion Chamber
Stainless Steel Tube Clamp
Radiant Emitter Tube
NOTE: If applicable, use a secondary
combustion chamber. Refer to Chart 1.1 on
page 3.
NOTE: Type varies depending on model.
Refer to Chart 1.1 on page 3.

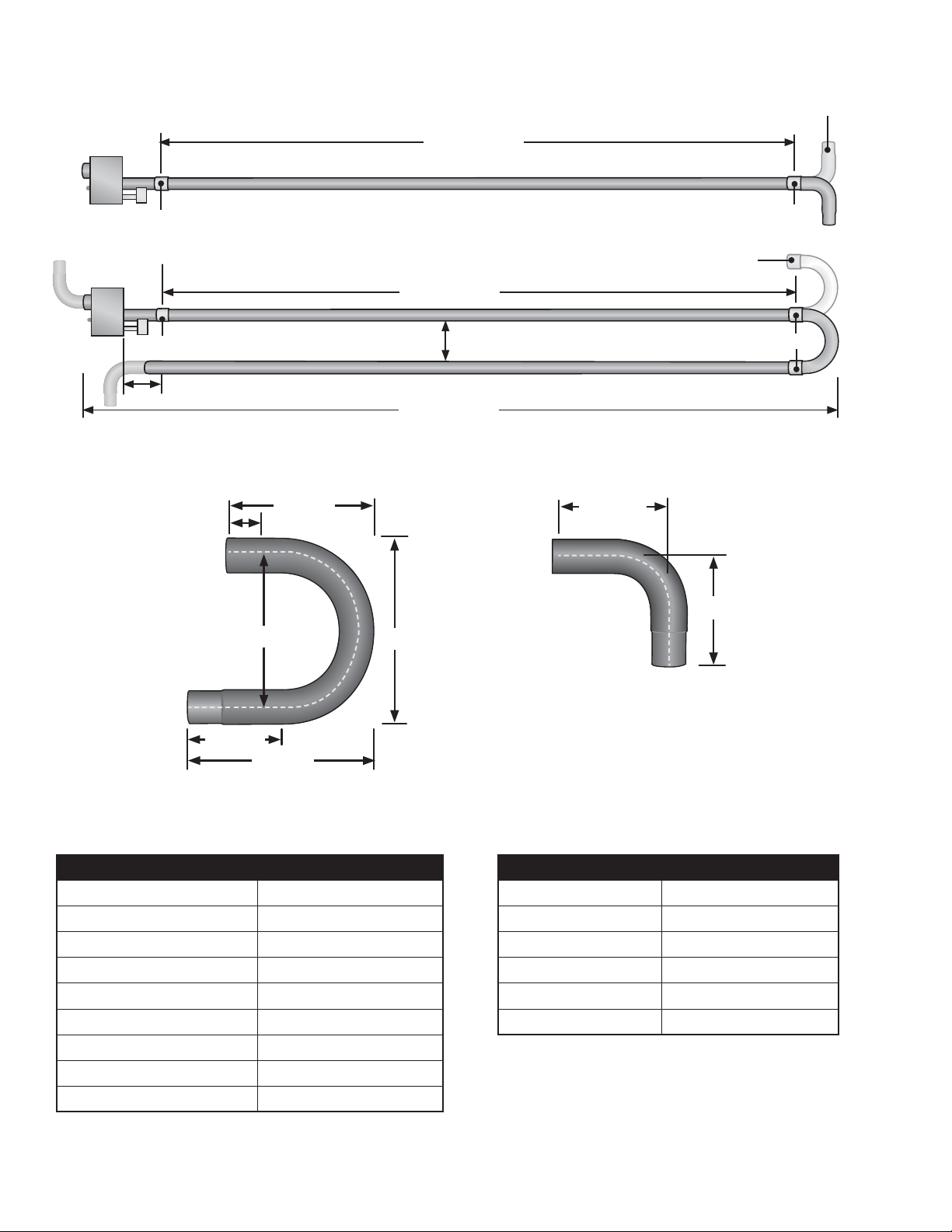

* Refer to page 18 for U-Bend configuration dimensions.
** Model requires 5EA-SUB accessory package when installing in a U-Shaped configuration.
(43,9–60,0 kW models only)
71 cm
269 cm
295 cm
Burner Control Box
Radiant Emitter
Tube ( s)
Suspension
Point
Burner Control Box
Suspension Points
Suspension
Point
Suspension Point
Igniter/Sensor Box
Figure 3.4 •Heater Suspension Layout
NOTE:
A sticker identifying the combustion chamber(s)
is located on the swaged end of the tube(s).
Model Length (mm) Dimension Straight Config. (m) * Tube and Reflector Suspension Points Control Box Stabilizer Shipping Weight (kg) Stainless Steel Ship Weight (kg) Chain Set Qty. Straight Config. Chain Set Qty. U-Tube Config. Optional Brass Knuckles (P/N: BK) Optional Single Mount Bracket (P/N: SMB) U-Tube Config. Only
6 m 6,58 3 2 54,5 66,0 5 6 3 2
9 m 9,53 4 2 73,0 88,5 6 7 4 3**
12 m 12,47 5 2 86,5 107,0 7 8 5 3
15 m 15,42 6 2 107,0 132,0 8 9 6 4**
18 m 18,36 7 2 125,5 150,0 9 10 7 4
21 m 21,30 8 2 144,0 168,0 10 11 8 5
295 cm
Chart 3.2 • Mounting Requirements and Weights

14
EDX Series
3.0 Installation •Hanger Placement and Suspension
Suspension of the heater must conform to applicable codes referenced in the Safety section and these
instructions.
3Prepare the mounting surface, if necessary, such as weld blocks or drill holes. See Figure 3.5.
NOTE: The burner control box and radiant tubes should be in straight alignment and level.
4Fasten beam clamp, screw hook, or other type of suspension anchor to hanging point.
5Attach and close S-hook and #1 double-loop chain to anchor. Check that it is securely attached.
NOTE: Threaded rod and turnbuckles may be used.
6Attach hangers to chains. Adjust chain lengths until radiant tubing is level and equal weight distribution
is achieved. NOTE: Chains must be straight up and down. Do not install chains at an angle as this can
result in tube warpage or separation. Gripple®may also be used.
Figure 3.5 •Mounting the Hangers
5S-Hook and
#1 double-loop
chain
3Wood
Beam
3Concrete Beam
4Beam Clamp 4Screw Hook
4
Screw hook
with
locknut
and
washer
5Threaded Rod
and Turnbuckle
6Threaded Rod
6Chain
3
I-Beam
4Beam Clamp
6Chain
6Gripple
3I-Beam

15
EDX Series 3.0 Installation •Radiant Tube Assembly
Radiant Tube Assembly
2Slide tube clamps onto radiant tubes (see Figure 3.7).
To install the radiant tubes:
1Place tubes in hangers with the welded seam facing downward and the swaged end of the tube towards
the exhaust end of the heater system (see Figure 3.6).
Refer to page 22 for tube installation sequence.
Figure 3.6 •Attach Hangers
Figure 3.7 •Attach Tube Clamps
Hanger Welded Seam
Faces Down
Swaged End
Tube Clamp
Radiant Tube
NOTE: If the tube clamp comes apart, the spacer must
be re-assembled with the spacer’s concave surface
facing against the radiant tube surface.
Concave Surface

16
EDX Series
3.0 Installation •Optional U-Bent or Elbow Accessory Configuration
Tubes fit snuggly together and the
tube clamp is centered over the seam.
Tubes are not fit snuggly
together and the tube clamp is
not centered over the seam.
The tube clamp is tight when proper
torque is achieved (normally when
seam becomes visible).

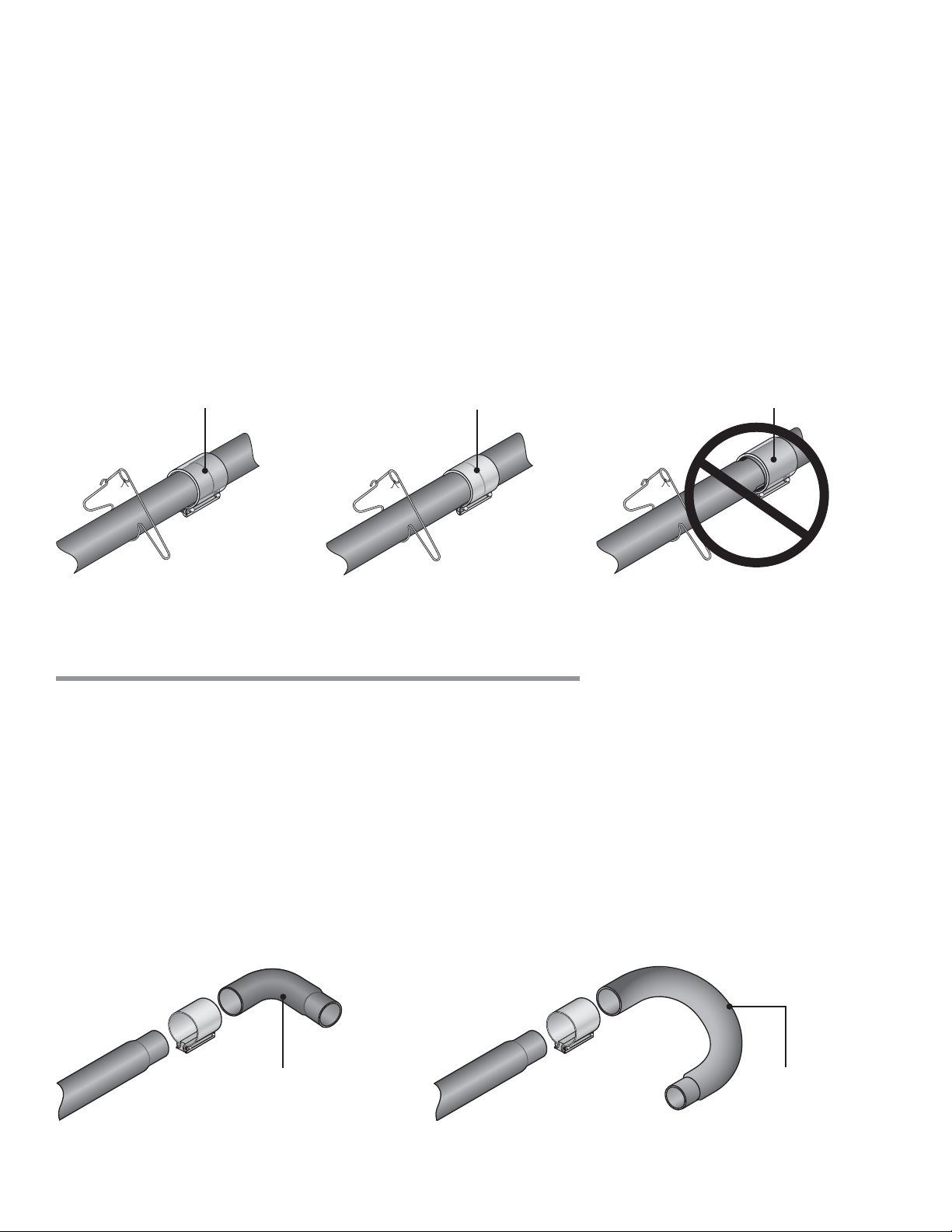

Correct Tube Connection Incorrect Tube Connection
90° Elbow Bend 180° U-Bend
Figure 3.9 •Optional Tube Connections
(P/N: TF1B)
(P/N: E6)
3Slip-fit the radiant tube sections together until tightly connected (install swaged end of each tube towards
exhaust end). NOTE: If it is difficult to mate the tubes, they may be installed incorrectly.
4Center tube clamps over the seams where two radiant tube sections connect. If necessary, rotate tube
clamps so they will not interfere with the reflector end caps during expansion and contraction of the heater
while operating.
5Tighten tube clamp bolts to secure. When proper compression is obtained (30-44 Nm), the tube seam will
create a visible mark on the tube clamp. NOTE: Excessive torque may damage the tube clamp.
6Determine the location of the burner control box and note the placement of the mounting chains.
Figure 3.8 •Tube Connections
A 180° U-Bend or 90° accessory fitting may be installed in the radiant tube heater system. Refer to page 18
for minimum distance requirements from the burner control box.
When installing a U-Bend or Elbow Accessory Fitting:
• The top clearance of an uncovered (no reflector) U-Bend or elbow accessory fitting to combustibles is 46
cm.
• If operating the heater unvented, separate the intake air to the heater from its exhaust products a
minimum of 122 cm; further separation may be necessary. Outside combustion air may also be supplied.
• A maximum of one 180° U-Bend or two 90° elbows can be installed on a heater.
• Omit one 84 cm section of turbulator baffle. Refer to Baffle Assembly section.
Optional U-Bend or Elbow Accessory Configuration

17
EDX Series 3.0 Installation •Optional U-Bend or Elbow Accessory Configuration
For 45° hanging angle use two
S-hooks and two #1 double-loop chains.
For variety of hanging angles, use the Brass
Knuckle (P/N: BK) fitting with a #1 double-
loop chain and S-hook.
45°
30° 15°
U-Tubes can be mounted at a
15°, 30°, or 45° angle with two
suspension points, using two Brass Knuckle
(P/N: BK) fittings, #1 double-loop chains, and
S-hooks.
U-Tubes can be mounted from a single suspension
point using a Single Mounting Bracket (P/N: SMB)
with five S-hooks and #1 double-loop chains.

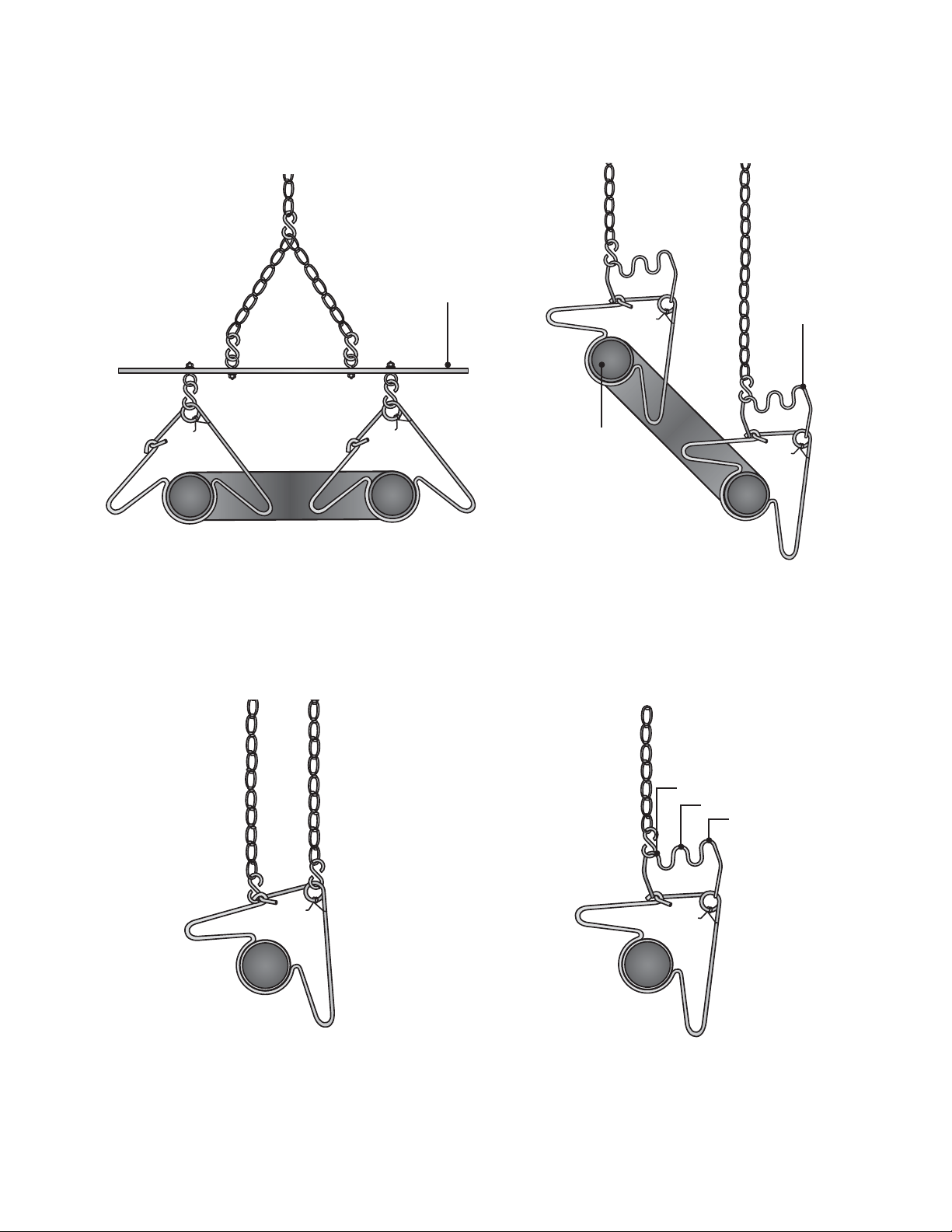

Figure 3.10 •U-Tube Hanger Mounting Options
Figure 3.11 •Angled Hanger Mounting Options
Exhaust
End
Single Mounting
Bracket
Brass Knuckle
NOTE: When installing 9 m, 15 m, and 21 m models in a “U” configuration, the use of a 5EA-SUB accessory
package is recommended.

18
EDX Series
3.0 Installation •Optional U-Bend or Elbow Accessory Configuration
31,8 cm
Figure 3.12 •Elbow and U-Bend Clearances
Dimension A
U-Bend can be set in both directions
30,5 cm
Figure 3.13 •U-Bend and Elbow Dimensions
Elbow can be set
in both directions
Tube Clamp Tube Clamp
Dimension A
Dimension B
P/N: TF1B
P/N: E6
20,3 cm
40,6 cm
40,6 cm
15,2 cm
50,8 cm
25,4 cm
50,8 cm
Tube Clamp Tube Clamp
31,8 cm
Chart 3.3 • Minimum Distance from Burner
Control Box to U-Bend or Elbow Accessory
Chart 3.4 • Overall Dimensions for Heaters
Configured with U-Bend (P/N: TF1B)
Model Dimension A (m)
EDX-50 3,05
EDX-60 3,05
EDX-70 3,05
EDX-100 3,05
EDX-125 4,57
EDX-150 6,10
EDX-170 7,62
EDX-188 7,62
EDX-204 7,62
Model Length Dimension B (m)
6 m 3,96
9 m 5,38
12 m 6,91
15 m 8,33
18 m 9,86
21 m 11,38

19
EDX Series
Suspending the burner control box must be done in accordance with applicable codes listed in the Safety
section and these instructions.
The burner control box must be in straight alignment with the radiant tubes and level.
1Determine the mounting chain locations for hanging the burner control box.
2Fasten beam clamp, screw hook, or other type of suspension anchor to hanging point.
3Attach and close S-hook and double-loop chain to anchor. Check that it is securely connected.
4Attach chain assemblies and S-hooks to mounting brackets on the burner control box. Adjust chain
lengths until level and in straight alignment with the radiant tubes. The burner sight glass will be visible
from the floor.
Figure 3.14 •Burner Control Box Assembly - Side View
Figure 3.15 •Burner Control Box with U-Bend - End View
75,2 cm
40,7 cm
12,7 cm
45,8 cm
9 cm
7, 6 c m
20,6 cm
12
3
4
Burner Sight Glass
(bottom side of the tube)
Burner Control Box tube is in
straight alignment with Primary
Combustion Chamber
30,5 cm
20,6 cm
14 cm
40,7 cm
Burner Control Box Suspension
3.0 Installation • Burner Control Box Suspension

3.0 Installation •Reflector Assembly
Reflector Assembly
To install the reflectors:
1Attach reflector center supports onto radiant tubes.
2Slide each reflector section through the hangers and adjust the reflector tension spring into the V-groove
on the top of the reflector. The reflectors should overlap approximately 10 cm.
3To prevent the reflectors from shifting, secure the reflector sections together using sheet metal screws
except at the expansion joint (see page 22). NOTE: Installer to provide sheet metal screws.
4Attach reflector end caps, polished side inward, to each end of the reflector run.
Reflectors and reflector accessories direct infrared energy to the floor level. The reflector assembly
depends on the heater configuration, proximity to combustibles, and the space surrounding the heater.
Before you begin assembly, determine if the use of reflector accessories is necessary (see page 21).
Figure 3.16 •Reflector Assembly
Reflector
10 cm approx.
overlap
Reflector Center
Support
Radiant
Tube
Hanger
and Chain
Place at the
mid-point
of the tube
Reflector
End Cap
Reflector
Tension
Spring
Clips
20
EDX Series
